Vents VUT 300 EVK mini EC User manual

USER MANUAL
VUT 300 EVK mini EC
VUT 300 EV mini EC
VUT 301 EVK mini EC
VUT 301 EV mini EC
Air handling unit
with heat recovery

2VUT 300 (301) EV(K) mini EC
Introduction
Use
Delivery set
Structural designation key
Technical data
Safety requirements
Structure and operating logic
Mounting and set-up
Condensate drainage
Connection to power mains
Unit control
Maintenance
Fault handling
Storage and transportation rules
Manufacturer’s warranty
Acceptance certicate
Electrical connection certicate
Warranty card
CONTENTS
3
3
3
4
4
6
7
8
10
11
12
19
22
23
23
24
24
24

3
VUT 300 (301) EV(K) mini EC
INTRODUCTION
USE
DELIVERY SET
Unit - 1 item;
User’s manual - 1 item;
Remote controller - 1 item;
Shipping box - 1 item;
Fastener kit - 1 item.
The present user manual consisting of technical details, operating instructions and technical
specication covers the installation of the VUT 300 (301) EV (K) mini EC air handling unit with heat
recovery, VENTS series (hereinafter the unit).
The unit is designed to ensure continuous mechanical air exchange in houses, oces, hotels,
cafés, conference halls, and other utility and public spaces as well as to recover the heat energy
contained in the air extracted from the premises to warm up the ltered stream of supply air.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses,
summer gardens, and other spaces with high humidity.
Due to the ability to save heating energy by means of energy recovery, the unit is an important
element of energy-ecient premises.
The unit is a component part and is not designed for stand-alone operation.
It is rated for continuous operation.
Transported air must not contain any ammable or explosive mixtures, evaporation of chemicals,
sticky substances, brous materials, coarse dust, soot and oil particles or environments favourable for
the formation of hazardous substances (toxic substances, dust, pathogenic germs).
Relative humidity of transported air must not exceed 80 % at an ambient temperature of +20 °C.
The unit is not designed to be used by children, physically or mentally disabled
persons, persons with sensory disorder or with no appropriate experience or expertise.
The unit must be handled only by properly qualied personnel after the
appropriate safety brieng.
Install the unit to be out of reach of children.
Warning!
The unit is not allowed for operation without properly installed fat lters or with
the clogged fat lters because ingress of oil and sticky substances may damage the
unit.

4VUT 300 (301) EV(K) mini EC
The unit is designed for operation in an enclosed area at ambient temperatures from +1 ºC to +
40 ºC at relative humidity of up to 80%.
In order to prevent condensation on the internal walls of the units, it is necessary that the surface
temperature of the casing is 2-3 °C higher than the dew point temperature of the transported air.
The unit must be grounded!
Hazardous parts access and water ingress protection standard:
Unit motors - IP 44;
Unit assembly connected to air ducts - IP 22.
The unit series designations, their main outside and connecting dimensions, appearance and
technical data are given in gures 1, 2 and in Tables 1 and 2.
The unit design is regularly being improved, so some models can slightly dier from those ones
described in this manual.
VUT 300 EVK mini EC
Motor type
electronically commutated
Spigot orientation
V - vertical
Air capacity, m³/h
300 - unit with an integrated control panel;
301 - unit with a remote control panel.
Unit type
VUT - heat recovery ventilation
Electric heater
Modication
K - kitchen hood
TECHNICAL DATA
STRUCTURAL DESIGNATION KEY

5
VUT 300 (301) EV(K) mini EC

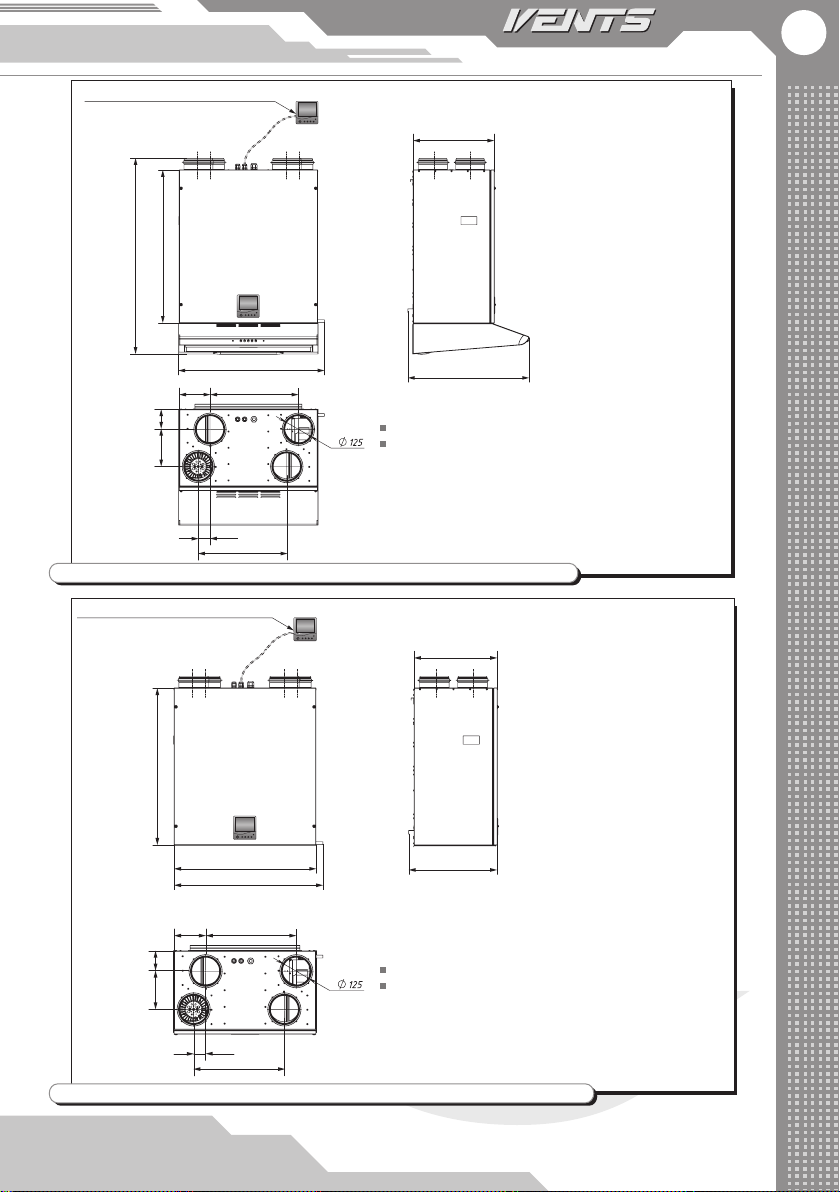

Fig. 1. Overall and connecting dimensions of the Unit with kitchen hood
Fig. 2. Overall and connecting dimensions of the unit without kitchen hood
The unit VUT 300 EVK mini EC with a built-in control panel;
The unit VUT 301 EVK mini EC with a remote control panel.
840
659
remote control panel xed on 10 m cable
for the units VUT 301 EVK mini EC
627
350
50
380
132 380
521
85160
The unit VUT 300 EV mini EC with a built-in control panel;
The unit VUT 301 EV mini EC with a remote control panel.
659
627
595
350
50
380
132 380
85160
370
remote control panel xed on 10 m cable
f
or the units VUT 301 EV mini EC

6VUT 300 (301) EV(K) mini EC
SAFETY REQUIREMENTS
While operating and mounting the unit consider the requirements of the present operation manual
as well as general requirements of all applicable local and national building and electrical codes and
standards.
The unit must be grounded!
Model VUT 300 (301) EV(K) mini EC
Unit voltage [V] 230 / 50 Hz
Max. fan power [W] 187
Fan current [A] 1,1
Electric heater power [kW] 1,5
Electric heater current [A] 6,5
Total unit power [kW] 1,69
Max. unit current [A] 7,6
Max. air capacity [m3/h] 270
Noise level, 3 m [dB(A)] 42
Max. transporting air temperature [°C] from -25 °C up to +40 °C
Casing material polymer coated steel
Insulation 15 mm ( foiled polypropylene foam)
Filter: extract/supply G4 / G4
Connected duct diameter [mm] Ø125
Weight [kg] 38/37
Heat recovery eciency up to 95%
Heat exchanger type counter-ow
Heat exchanger material polystyrene
* - only for the unit VUT 300 (301) EV mini EC
without kitchen hood
Table. 1. Technical parameters of the unit
Ambient Temperature [0C] from 0 to 40
Relative Humidity [%] from 5 to 90 (without condensation)
Cable Section [mm2] from 0.18 to 0.35
Material ABS Plastic
Dimensions (WxHxD) [mm] 86x86x14
Cable Length [m] Up to 10
Protection Class IP30
Table 2 . Control Panel Specications

7
VUT 300 (301) EV(K) mini EC
STRUCTURE AND OPERATING LOGIC
Do not!
• Do not operate the unit beyond the specied temperature range or in an aggressive
and explosive medium!
• Do not connect clothes dryers or similar equipment to the ventilation system!
• Do not operate the unit in the air and dust mixture medium!
The unit operating principle is as follows (g. 3).
Warm stale air from the premises extracted by the unit is puried in the extract lter, then it passes
through the heat exchanger and then is exhausted outside through the ducts by the exhaust fan.
Clean cold intake air supplied to the unit is puried in the supply lter.
The air passes through the heat exchanger and then fed into the premises by the supply fan.
Thermal energy of warm extract air is transferred to clean intake fresh air from outside and warms
it up. The air ows are fully separated.
Heat recovery minimizes thermal energy losses, energy demand and operating costs for heating
during winter time.
The unit is equipped with an electric heater to enable supply air warming up to +30 °C.
Before connecting the unit to power mains make sure that the unit is free of any visible damages or
any other foreign objects inside the casing that can damage the impeller blades.
All the wireworks with the unit are allowed by a professional electrician, duly authorized for electric
operations.
Warning!
Disconnect the unit from power supply prior to any mounting, servicing, connection
or repair operations with the unit.

8VUT 300 (301) EV(K) mini EC
MOUNTING AND SET-UP
Mount the unit to provide enough access for maintenance or repair operations, g. 4.
The wall for mounting must have even surface.
Any surface irregularities will lead to unit casing skew and may prevent the unit from operating
properly.
For the unit fastening use the fasteners recommended by the manufacturer for the specied wall
type.
To ensure proper supply air pre-heating install the duct temperature sensor (g. 3) at the
minimum distance of 1 m from the supply spigot.
The supply air duct temperature sensor is installed as follows:
Drill a Ø 9 mm hole in the duct;
Install the sensor into the hole;
Fasten the sensor ange with three self-tapping screws.
It is recommended that the sensor and air duct joint is hermetically sealed.

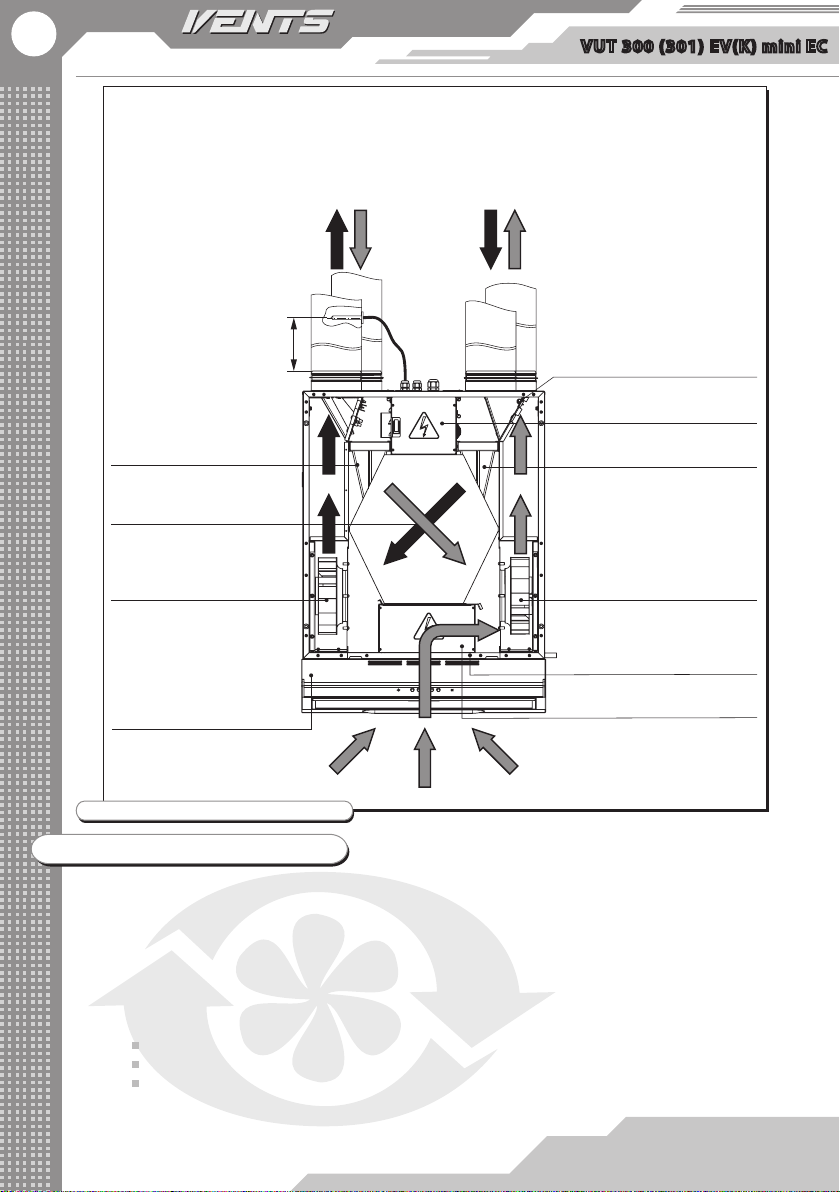

Fig. 3. Design and operating logic
SUPPLY FAN
COUNTER-FLOW HEAT EXCHANGER
EXHAUST FAN
DRAIN PAN
SUPPLY FILTER
FILTRATION CLASS G4
BUILT-IN CONTROL UNIT
TEMPERATURE SENSOR FOR HEAT
EXCHANGER FREEZING PROTECTION
EXTRACT FILTER
FILTRATION CLASS G4
ELECTRIC HEATER
BYPASS (AIR BYPASSING FROM
KITCHEN HOOD)
KITCHEN HOOD
min 1 m
SUPPLY AIR TEMPERATURE
SENSOR
EXTRACT AIR INTAKE AIR EXHAUST AIR SUPPLY AIR

9
VUT 300 (301) EV(K) mini EC

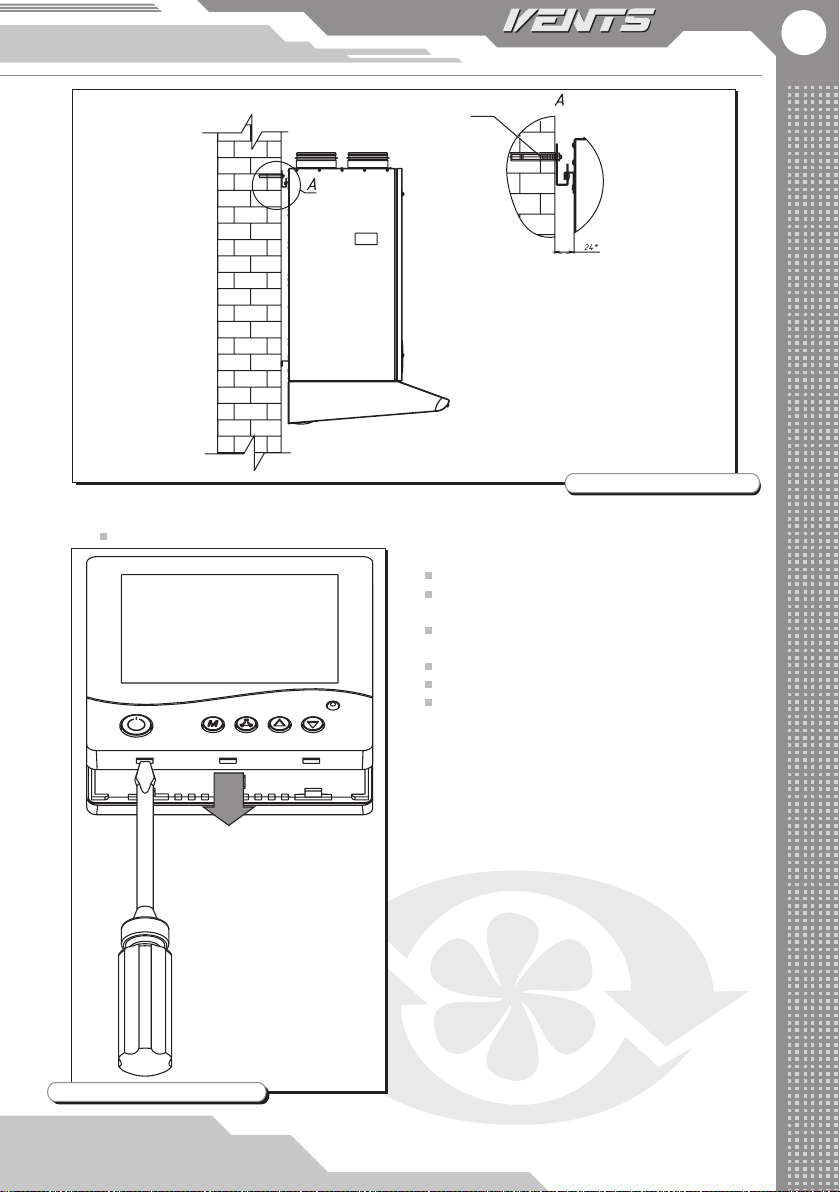

Fig. 4. Unit mounting
Anchor
Mounting sequence of the wall-mounted control panel:
Use a screwdriver to lift the latches through the technological openings in the upper part
of the wall-mounted control panel, g. 5.
Take o the back cover.
Disconnect the cable from the terminal
block.
Route the cable to the panel installation
site.
Fix the panel back cover to the wall, g. 6.
Connect the cable to the terminal block.
Put the panel on the latches and press to
click.
Fig. 5. Taking o the back panel.

10 VUT 300 (301) EV(K) mini EC
CONDENSATE DRAINAGE

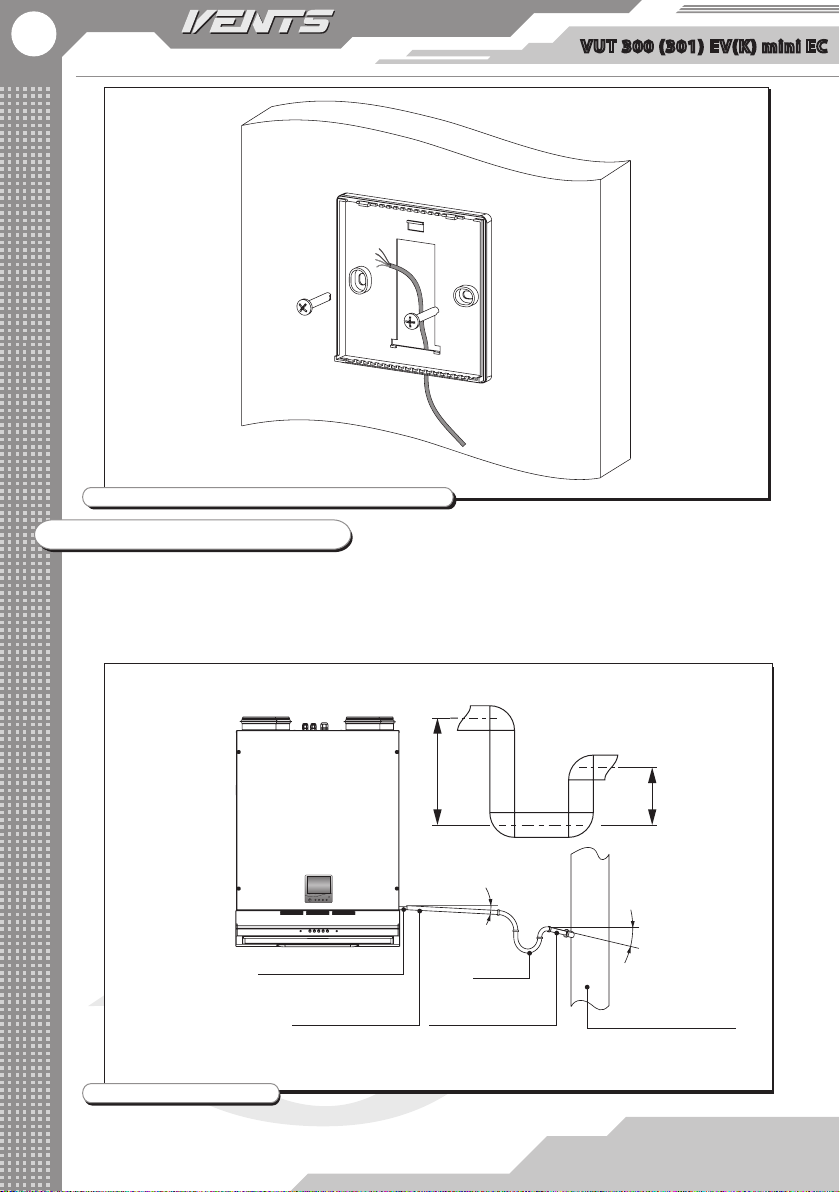

Fig. 7. Condensate drainage
min 100 mm
min 50 mm
DRAIN PIPE
CONNECTING PIPE
U-TRAP
SEWAGE SYSTEM
min 3°
min 3°
CONNECTING PIPE
Fig. 6. Mounting of the panel back cover to the wall
The condensate drain pan located in the heat recovery section is equipped with a drain pipe to
remove condensate from the unit. Connect a U-trap to the drain pipe.The U-trap and the drain pan must
be thermally insulated.
The U-trap height, g. 7, depends on the pressure inside and outside of the section and must be not
less than H=100 mm, h=50 mm.

11
VUT 300 (301) EV(K) mini EC
CONNECTION TO POWER MAINS
The unit is designed for connection to 230 V / 50 Hz single-phase AC mains.
Proper connection is ensured by the power cable with a Euro plug supplied by the manufacturer.
The unit must be connected to the power mains through an automatic cut-out switch integrated
into the stationary wiring with a magnetic breaker with the nominal trip current at least equal to the
unit consumption current, refer table 1.
The unit has extra electric connection options. The contact designations are enclosed in brackets
on the X3 terminal block sticker, g. 8.
connection of the automatic re-ghting system contact (PK)
connection of the humidity relay/sensor or CO2 sensor contact (H)
While connecting the automatic re-ghting system contact remove the jumper between the
X3:1 and X3:2 terminals of the X3 terminal block; in case of re the dry contact breaks the control
circuit from the central re-ghting board and cuts o power supply to the unit.
The humidity sensor or CO2 sensor is connected to the X3:3 and X3:4 terminals of the X3 terminal
block; if the dry contact is closed, the unit turns to the maximum speed.
Extra contacts must be connected in compliance with the wiring diagram, g. 8. Route the cable
through a cable sealing gland on the unit top.
Disconnect the unit from the power mains prior to any work.
The unit must be plugged into a properly installed power socket with an earthed
terminal.
The rated electrical parameters of the unit are stated on the sticker.
Any tampering with the internal connections is prohibited and will void the warranty.

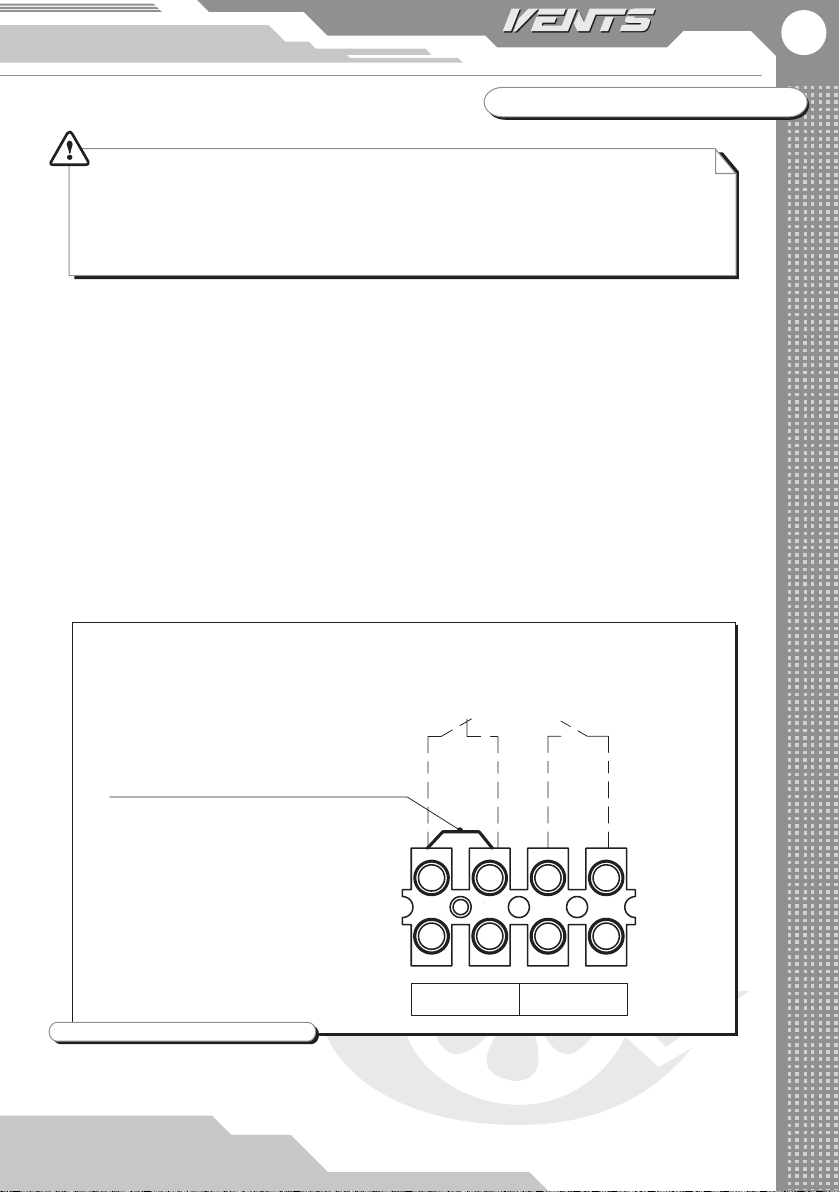

Fig. 8. External wiring diagram
1
2
3
4
ÐÊ Í
While connecting the NC contact to
the re-ghting system remove the
j
umper
РК
to the re-ghting
board
РК H
X3
1
2
3
4
Н
to the humidity
sensor or CO2
sensor

12 VUT 300 (301) EV(K) mini EC
UNIT CONTROL

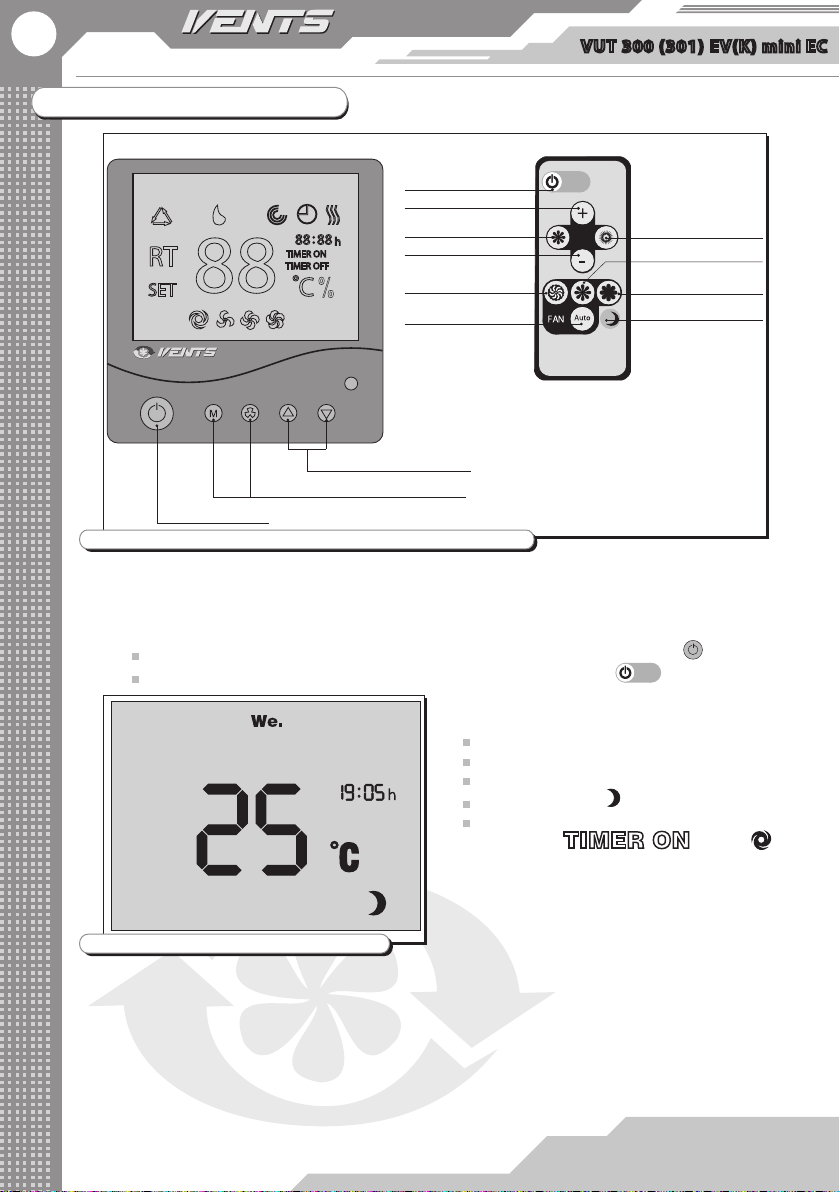

Fig. 9. Control panel and remote controller
Turning unit ON/OFF
Unit control mode buttons (described below)
Вкл./Выкл. нагревателя
Fan speed control buttons
Remote controller
Remote Controller
Turning unit ON/OFF
Fan speed UP
Heater ON
Heater OFF
Fan speed DOWN
First speed ON High speed ON
Medium speed ON
Time-scheduled
operation ON
Timer ON/OFF
Wall-mounted control panel
The unit is controlled from the wall-mounted control panel as well as from the remote controller,
g. 9.
1. Turning unit ON/OFF
To turn the unit ON/OFF:
from the wall-mounted control panel - press the button Turning unit ON/OFF ;
from the remote controller - press the button Turning unit ON/OFF .
Fig. 10. Display of the turned o unit
The wall-mounted display shows the following
indications as the unit is turned o, g. 10:
Indoor temperature;
Weekday;
Time;
OFF indication ;
When air supply to the heating elements
is activated, the and
indicator glows and the countdown of the air supply
to the heater time starts (min : s).

13
VUT 300 (301) EV(K) mini EC

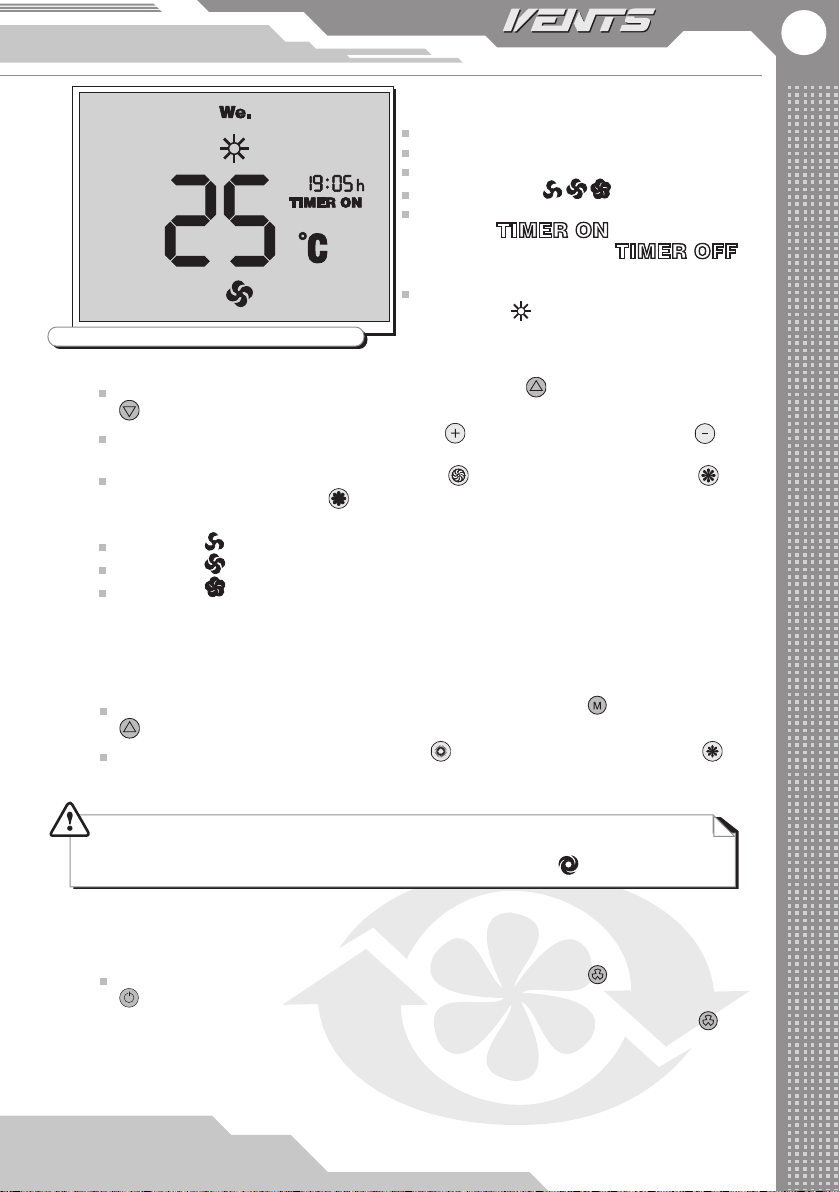

Fig. 11. Display in turned ON
The wall-mounted display shows the following
indications as the unit is turned on, g. 11:
Indoor temperature;
Weekday;
Time;
Fan speed indicator ;
Timer status information;
The indicator is displayed as the
timer is turned on. The indicator
is displayed as the timer is turned o.
Heater status information. As the heater is turned
on, the indicator is displayed.
2. Unit ventilation mode control.
From the wall-mounted control panel - press the button for setting speed up or the
button for setting speed down (low speed - medium speed - high speed);
From the remote controller - press the button for setting speed up or the button for
setting speed down (low speed - medium speed - high speed);
From the remote controller - press the button to activate low speed, the button to
activate medium speed and the button to activate high speed.
The wall-mounted control panel displays the current fan speed:
Indicator — low speed mode;
Indicator — medium speed mode;
Indicator — high speed mode.
3. Supply air warming up
The electric heater warms up the supply air up to the set temperature in compliance with the duct
temperature set point. To turn the heater ON/OFF:
from the wall-mounted control panel - press and hold the button and then press the
button .
from the remote controller: press the button to turn the heater on, press the button to
turn the heater o.
Warning!
If the heater is on, the unit can be turned o only after 20 seconds after turn-o
command to ensure the heater cooling. In this case the indicator is displayed.
4. Timer.
The timer is designed to switch the fans to maximum speed with subsequent automatic reset to a
previous speed after set time period (from 20 to 60 minutes). To turn the timer on/o:
from the wall-mounted control panel - press and hold the button and then press the
button . Press the button once to set the timer for 20 minutes, each subsequent pressing extends the
timer setting for 10 minutes.The maximum timer setting is 60 minutes. Press and hold the button for
3 seconds to turn the timer o;

14 VUT 300 (301) EV(K) mini EC
from the remote controller - press the button to turn the timer for 20 minutes on. To turn
the timer o press the button or .
5. Heat exchanger freezing protection.
If the temperature in the intake air duct upstream of the heat exchanger is from -7 °C up to
-15 °C, the unit turns into automatic temperature control mode. The supply fan has 5 minutes standstill
and then it operates within 25 minutes. If the temperature is below -15 °C the supply fan has 5 minutes
standstill and then it operates within 15 minutes.
6. Unit setup modes
Re-adjustment of the unit settings results in loss of the factory settings!
Fan speed and temperature sensor setup is possible only from the wall-mounted
control panel!
Fan capacity setup mode.
The unit operates at low, medium or high speed. The supply and extract fan speeds are smoothly
adjustable in setup mode.The fan capacity is adjustable only in the fan speed setup mode. The fan speed
setup mode is accessible only when the unit is o. To enter the fan speed setup mode press and hold
the button on the wall-mounted control panel, then press and hold the button within 3 seconds.
Access to the setup mode is conrmed by the indicator and , g. 12 on the wall-mounted
control panel display.
To select the required speed to be
adjusted use the buttons and .
During fan speed setup the selected speed is
displayed by the indications , or .
Fig. 12. Fan speed setup
To adjust the supply fan capacity press
and hold the button and press the button
to set the fan speed up or the button to set the
fan speed down. Each pressing of the button
and increases or decreases the supply fan by
1%. If the button remains pressed the display
indicators show the current supply fan speed, g.
13.
To adjust the exhaust fan speed press
and hold the button and regulate the speed by
the button for setting speed up and the button
for setting speed down.
Fig. 13. Fan speed setup

15
VUT 300 (301) EV(K) mini EC
Each pressing of the button and yincreases or decreases the exhaust fan speed by 1%. If the
button remains pressed the display indicators show the current exhaust fan speed. To exit the fan
speed setup mode and save changes press the button .
Fan speed adjustment is not possible with the remote controller.
To return to the factory settings, enter the fan speed setup mode and synchronously press and hold
for 3 seconds the buttons and .
Factory fan speed settings:
low speed — 40 %
medium speed — 70 %
high speed — 100 %
Duct temperature sensor setup mode.
To enter the temperature sensor setup mode turn the unit o and turn synchronously the buttons
and on the wall-mounted control panel. Access to the temperature sensor setup mode is
conrmed by the indicator and .
After activation of the setup mode
the wall-mounted control panel displays the duct
temperature sensor settings, g. 14.
Press the button for temperature
setup of the duct temperature sensor. The setup is
engaged cyclically with 2 °C interval from +16 °C up
to +30 °C.
Press the button to review the current
temperature sensor readings.

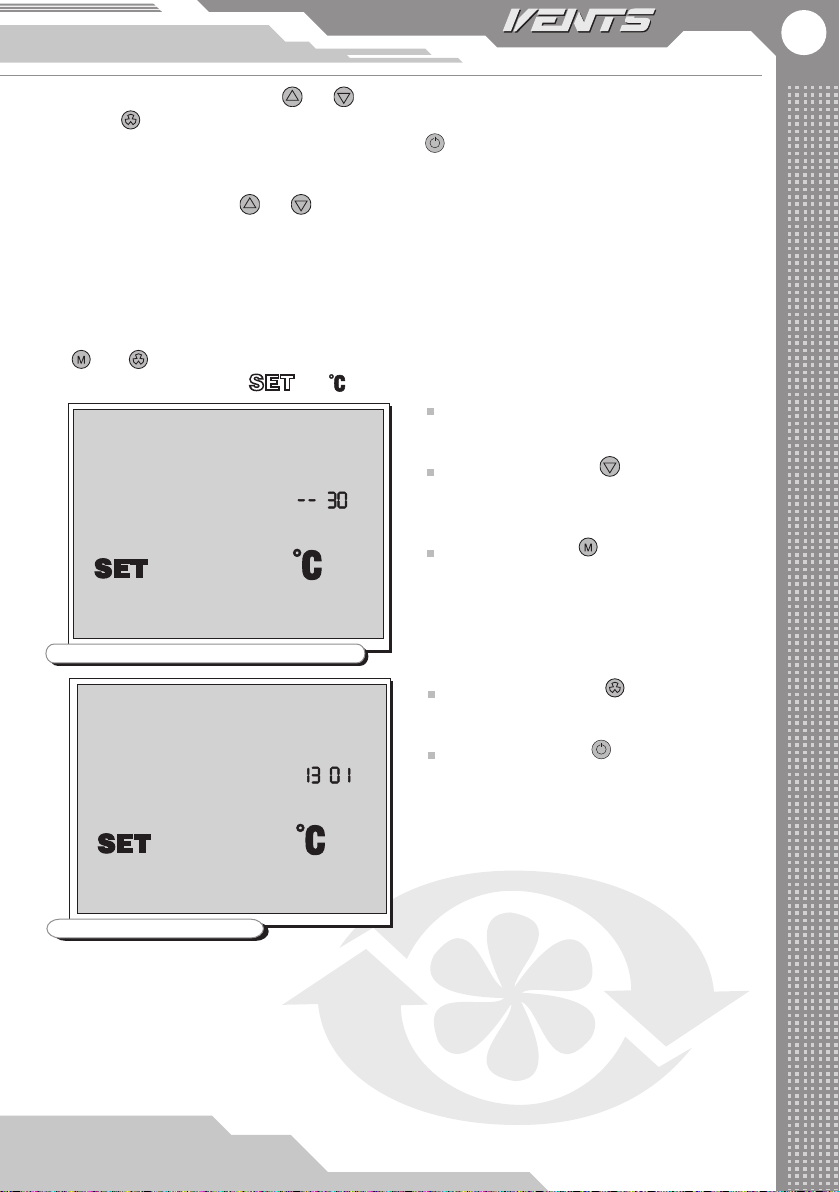

Fig. 14. Temperature sensor setup
Press the button to display the
controller board code and rmware version code on
the wall-mounted control panel, g. 15.
Press the button to exit the duct
temperature sensor setup mode.
Fig. 15. Firmware version

16 VUT 300 (301) EV(K) mini EC
7. Filter replacement signal
As the lter service life expires (3000 hours) the wall-mounted control panel displays a lter
replacement indicator instead of the operating temperature, g. 16.
Fig. 16. Filter replacement signal
In case of the lter replacement signal
turn the unit o with the button and disconnect
it from power mains. Then replace the lters
following the lter replacement procedure in the
section «Technical maintenance» on page 19.
After that press the button on the
wall-mounted control panel or the button
on the remote controller to turn the unit on. Then
press synchronously the buttons and to
reset the motor meter.
8. Date and time setup.
Turn the unit o.
Press and hold the button , then press the button on the wall-mounted control panel
to enter the date and time setup mode.
Keep the button pressed and select a parameter to be edited using the buttons and
. An editable parameter blinks.
The date and time setup parameters are located as listed:
1. Minutes;
2. Hours;
3. Weekday;
4. Date;
5. Month;
6. Year.
Then set the required parameter with the buttons and on the wall-mounted control
panel.
Press the button to exit the date and time setup mode.
9. Time scheduled operation.
Press and hold the button , then press the button on the wall-mounted control panel
to activate the time-scheduled operation. The indicator conrms that the unit time-scheduled
operation is activated.
Press and hold the button and then press the button on the wall-mounted control
panel.
Press the button on the remote controller to activate or deactivate the unit time-
scheduled operation.
The timer control always takes precedence of the time-scheduled operation.
10. Time-scheduled operation setup.
Each weekday has four entries that determine the fan switching to a set fan speed, turning the
heater on or o.
To enter the time-scheduled operation setup mode, turn the unit o with the button
on the wall-mounted control panel or with the button on the remote controller.

17
VUT 300 (301) EV(K) mini EC

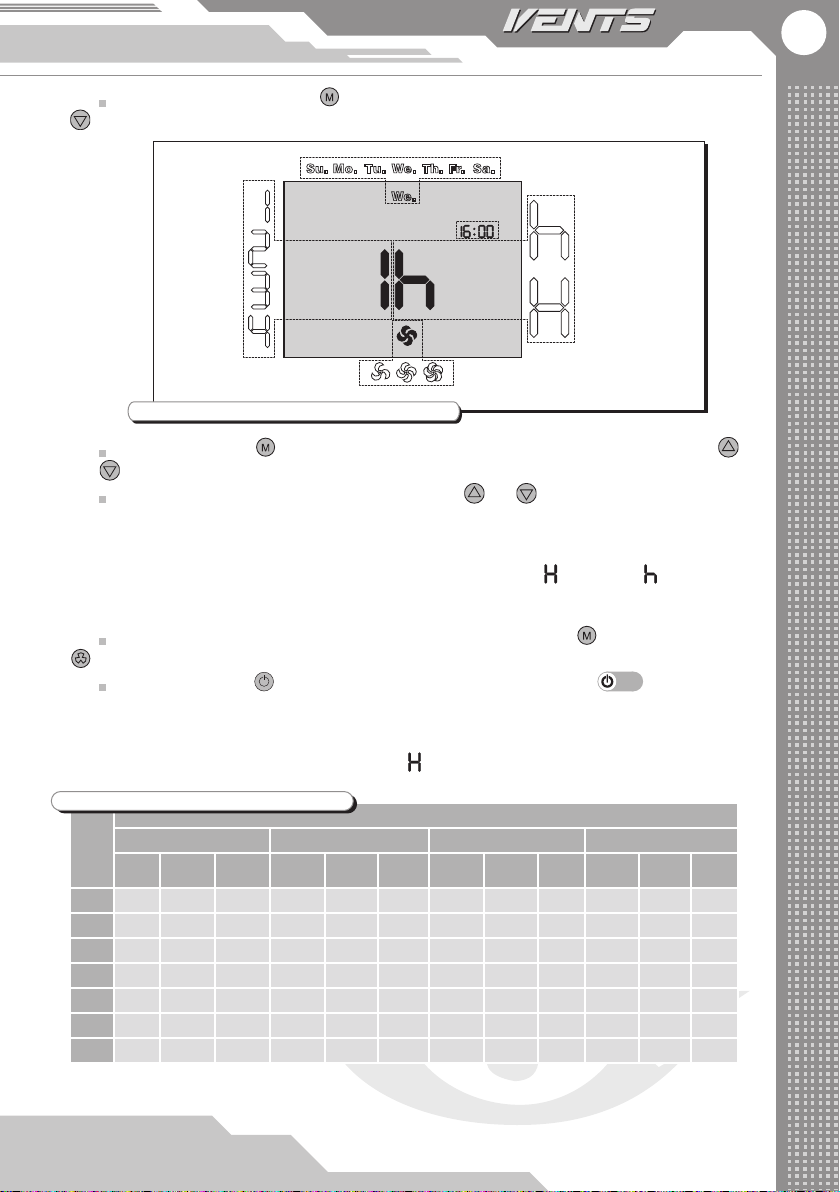

Fig. 17. time-scheduled operation indicators
Weekday
Time
Entry
number Heater
status
Fan speed
— Heater ON
— Heater OFF
Hold the button and select a required parameter to be adjusted using the buttons
and .
Set a required parameter using the same buttons and .
Time-scheduled operation parameters, g. 17.
• Entry number - each weekday has four entries.
• Weekday - setup of a weekday.
• Heater status - setup of the heater status for the current entry. - heater on, - heater o.
• Fan speed - setup of the fan speed for the current entry.
• Time - time setup for the current entry.
To copy the set entries for the next day press and hold the button and press the button
. No copying from Sunday to Monday is possible.
Press the button on the wall-mounted control panel or the button on the remote
controller to exit the time-scheduled operation setup mode.
A programming example for setup of the time-scheduled operation is stated in the table 3. By
default the time-scheduled operation mode is adjusted for warm season. While adjusting the time-
scheduled operation mode set the heater status — .
Press and hold the button on the wall-mounted control panel and the press the button
.
Day
Entry Number
1 2 3 4
Start
Time Mode Heater Status
Start
Time Mode Heater Status
Start
Time Mode Heater Status
Start
Time Mode Heater Status
Mo. 07:00 2 speed O 08:00 1 speed O 17:00 2 speed O 22:00 1 speed O
Tu. 07:00 2 speed O 08:00 1 speed O 17:00 2 speed O 22:00 1 speed O
We. 07:00 2 speed O 08:00 1 speed O 17:00 2 speed O 22:00 1 speed O
Th. 07:00 2 speed O 08:00 1 speed O 17:00 2 speed O 22:00 1 speed O
Fr. 07:00 2 speed O 08:00 1 speed O 17:00 2 speed O 22:00 1 speed O
Sa. 10:00 2 speed O 12:00 2 speed O 17:00 2 speed O 23:00 1 speed O
Su. 10:00 2 speed O 12:00 2 speed O 17:00 2 speed O 23:00 1 speed O
Table 3 . Sample programming sequence

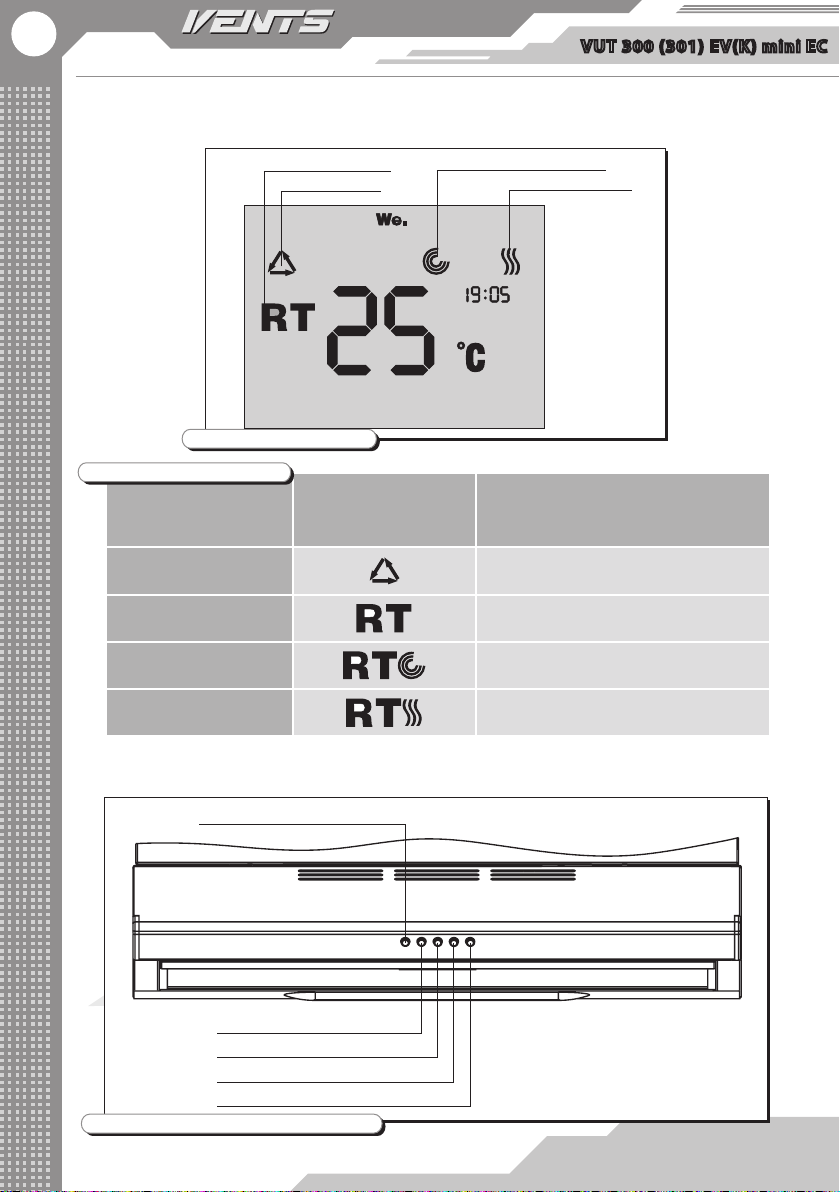

18 VUT 300 (301) EV(K) mini EC
Fig. 19. Kitchen hood control
Light ON/OFF
low speed ON
medium speed ON
high speed ON
Extract mode OFF
11. Alarms.
In case of alarm the unit is turned o and the wall-mounted control panel display shows the alarm
indicators, g. 18. The possible alarms are listed in the table 4.
Fig. 18. Alarm indication
Freeze protection
sensor breakout
Duct temperature sensor breakout
Heater overheating
Temperature sensor alarm
ALARM INDICATION FAULT HANDLING
Heater overheating. Heater overheating. Switch the thermal
protection thermostats manually.
Temperature sensor
alarm
Short circuit of the temperature sensor(s).
Remove the short circuit.
Duct temperature sensor
breakout
Remove the duct temperature sensor
breakout.
Freeze protection sensor
breakout
Remove the freeze protection sensor
breakout.
Table 4. Unit alarms
12. Kitchen hood control (only for the units VUT 300 (301) EVK mini EC).

19
VUT 300 (301) EV(K) mini EC
The unit requires maintenance works 3-4 times per year.
Maintenance includes regular cleaning and the following operations:
1. Filter maintenance (3-4 timed per year).
Dirty lters increase air resistance in the system and reduce supply air volume. The lters require
cleaning as they get clogged, but at least once in 3-4 months.
Vacuum cleaning is allowed. Replace the lters as they get clogged following the second cleaning.
Contact your local manufacturer representative for new lters.

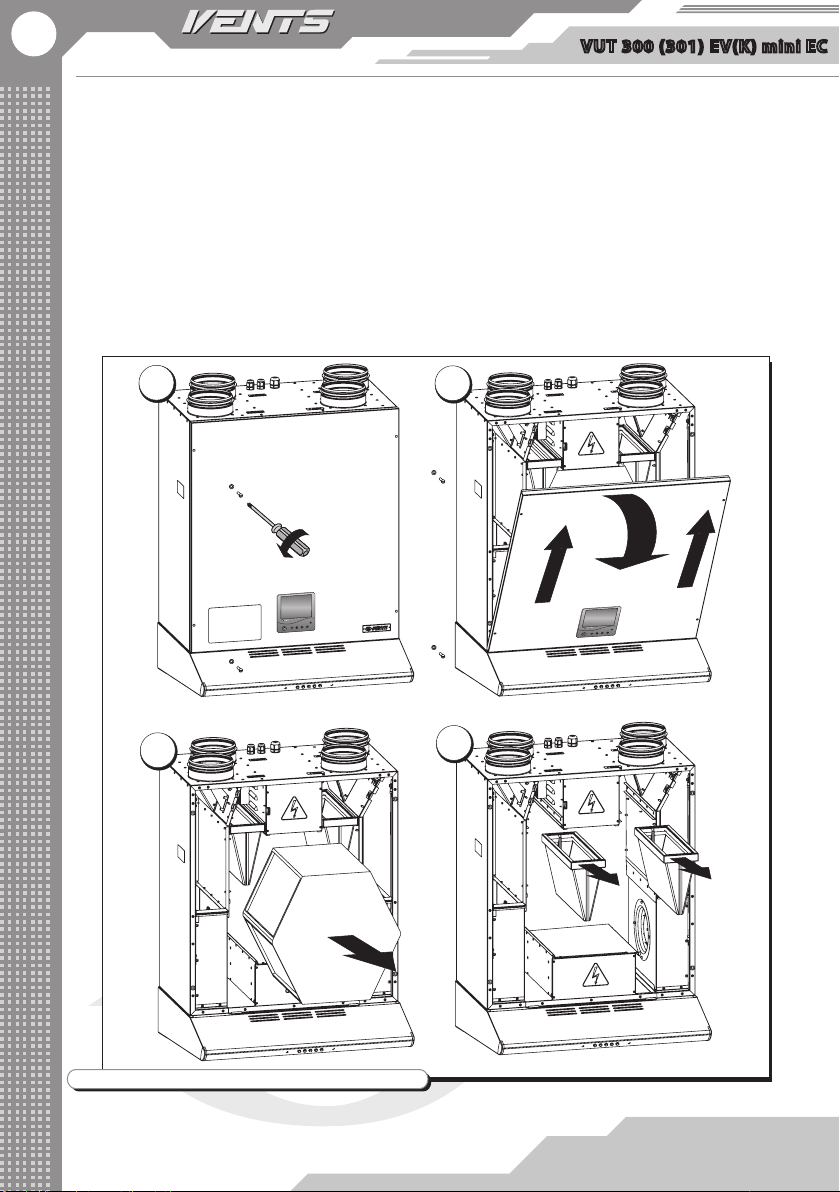

To remove the lters follow the procedure in the g. 20:
1. Remove the screws.
2. Open the unit access door and disconnect the control panel plug connector (only for the model
with a built-in control panel), then unscrew 2 M6 screws to release the stopper. Open the unit access
door and lift it upwards to remove it from the supports.
3. Remove the heat exchanger from the unit by pulling its band.
4. Take the supply and extract lter o.
2. Kitchen hood fat lter maintenance (only for the units VUT 300 (301) EVK mini EC (as
required).
To clean the metal fat lters let them soak in hot water mild detergent solution until the fat gets
dissolved.
To release the fat lters follow the procedure in g. 22:
1. Press the latch.
2. Move the fat lter carefully down and release it.
3. Heat exchanger inspection (once per year).
Some dust can get accumulated on the heat exchanger block even in case of regular maintenance
of the lters.
To maintain the high heat exchange eciency, regular cleaning is required.
To clean the heat exchanger pull it out of the unit and ush it with warm soap or mild detergent
water solution. Re-install the dry heat exchanger to the unit.
4. Fan inspection (once per year).
Even in case of regular lter and heat exchanger maintenance, some dust and grease can get
accumulated inside the fans and reduce the fan performance and supply air ow.
Clean the fans with a soft brush or cloth. No water and abrasive detergent, sharp objects or solvents
are allowed for cleaning to prevent the impeller damage.
5. Condensate drainage (once per year).
The drain pipes may get clogged with extracted particles.
Pour some water inside the drain pan and check the pipe for clogging. Clean the U-trap and drain
pipe if required.
6. Supply air ow control (twice per year).
Leaves and other pollutions can clog the supply air grille and reduce the unit performance and
supply air volume.
Check the supply grille twice per year and clean it as required.
MAINTENANCE
Press the respective speed button (low, medium or high speed, g. 19) to turn the kitchen
hood on. The kitchen hood has priority over the control panel, i.e. the control panel is not active when
the kitchen hood is on.
Press the respective button to turn the kitchen hood o, see g. 19. After turning the
kitchen hood o the unit reverts to the operation mode set from the control panel.
The kitchen hood is controlled with the buttons located on the front panel, g. 16. If the kitchen
hood is in operation, the heat recovery function is not engaged because extract air ows passes by
the heat exchanger. The unit operates at the speed set by the kitchen hood.

20 VUT 300 (301) EV(K) mini EC
Fig. 20. Heat exchanger and lter servicing
12
34
7. Ductworks inspection (once in 5 years).
Even if you follow all the listed maintenance guidelines, some dust can get accumulated inside
the air ducts and reduce the unit performance. Duct maintenance means their regular cleaning or
replacements.
8. Control unit maintenance (as required).
Maintenance of the control unit must be performed by a qualied electrician duly authorized
for unassisted electric operations up to 1000 V. Read the user’s manual prior to the control unit
servicing! Cut o power supply to the unit prior to the control unit servicing.
While servicing the control unit follow the operations shown in g. 21:
1. Remove four screws to take o the protecting cover.
2. Remove the heat exchanger from the unit by pulling its band.
3. Remove the screws that x control block swivel panel. Hold the swivel panel while detaching it.
4. Move the swivel panel downwards.
