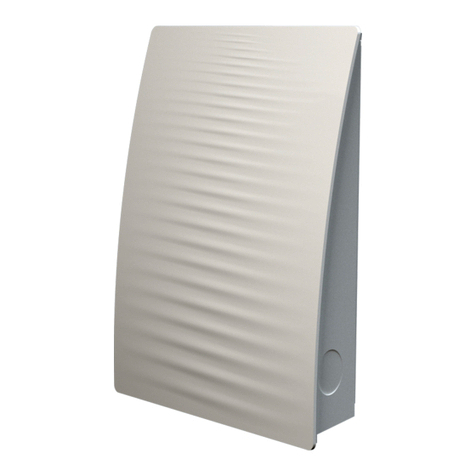

Outer ventilation hood
USER’S MANUAL

2
EN-14 100/125/160
www.ventilation-system.com
OVERALL DIMENTIONS
PURPOSE
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY
QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED
ACCESS BY UNATTENDED CHILDREN.
The outer ventilation hood is designed to prevent ingress of water and foreign objects into the ventilation equipment from outside.
øD
ø5 (3/16")
4 holes
155 (6 1/8")
155
(6 1/8")
54
(2 1/8")
220
(8 11/16")
231
(9 1/8")
Model D, mm (inch)
EN-14 100 106 (4 3/16’’)
EN-14 125 132 (5 3/16’’)
EN-14 160 164 (6 7/16’’)
OUTER VENTILATION HOOD MOUNTING
1. Insert the air duct from indoor to protrude from outside on the
outer wall surface.
Cut the air duct excess and a stream spreader with a hack saw or
with any other suitable tool.
WARNING! If the mounting place is located at high altitude
please refer to a mounting company possessing an
appropriate mounting equipment!
(1/8’’)
10 mm
(3/
8
’’)
min 3 mm

3
www.ventilation-system.com
2. Mark the fastening holes for the outer ventilation hood and drill 4
holes, 50 mm deep to suit the expansion anchors (6x40).
Use the back wall of the ventilation hood to facilitate the marking.
ø6 (1/4")
4 holes
155
(6 1/8")
155
(6 1/8")
3. Insert the supplied expansion anchors 6x40 into the holes.
Disassemble the outer ventilation hood to enable access to the
fastening holes.
Pull the front part below toward you.
4. Fix the back wall of the ventilation hood on the wall using the
supplied screws 4x40.
5. Cover the ventilation hood with the front part.

V113-8EN-01
