Venturer CDG 62 User manual

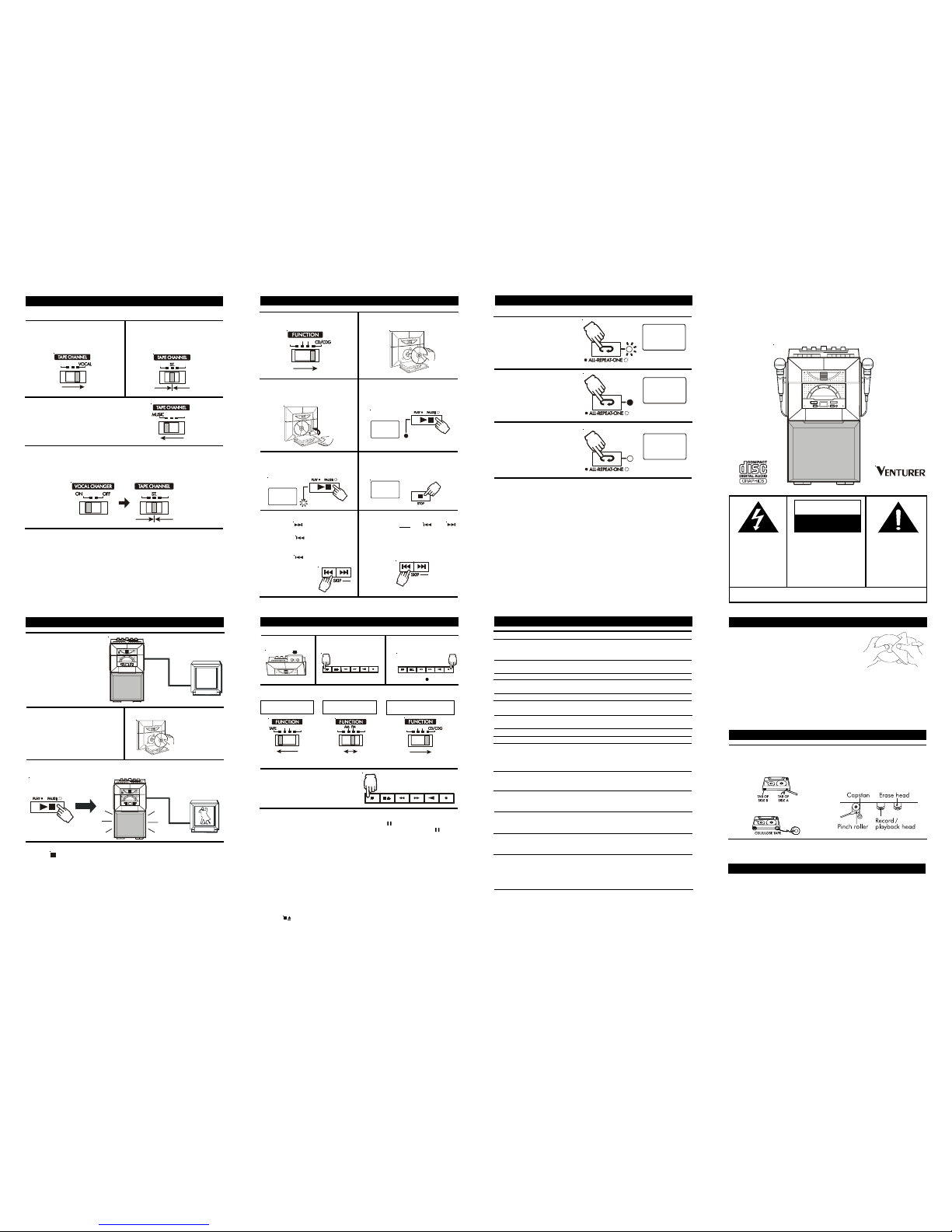

- 9 - - 10 -
INSTRUCTIONMANUAL
THE CD/CDG KARAOKETHE CD/CDG KARAOKE
THE CD/CDG KARAOKETHE CD/CDG KARAOKE
THE CD/CDG KARAOKE
MACHINEMACHINE
MACHINEMACHINE
MACHINE
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSETHIS APPLIANCE TO RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Theexclamation point
withinthetriangleisa
warning sign alerting
you of important in-
structions accompa-
nyingthe product.
The lightning flash
andarrowheadwithin
the triangle is a
warningsignalerting
you of "dangerous
voltage" inside the
product.
WARNING: TO REDUCE
THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER (OR BACK) NO
USER-SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WW
WW
WARNINGARNING
ARNINGARNING
ARNING
RECORDING FROM MICROPHONE
MIXING SOUND
1.Connect the microphone(s) to MIC
socket and turn the switch on.
2.Set the FUNCTION selector
appropriately and play the desired
musicsource (TAPE/AM/FM/CDG/CD).
3.Insertacassette tapeinto eachcassette
holder and depress the RECORD
button.
NOTE
• The PITCH control must be adjusted
to the centre position when recording.
TO STOP RECORDING
Press the STOP/EJECT button.
Forrecording RECORD
• USE ONLY NORMAL (TYPE I ) TAPES FOR RECORDING.
1. Insert a cassette
into deck B. 2. Press the PAUSE button on deck B. 3. Press the RECORD button on deck B.
4. Prepare the source to be recorded and play it.
(Refer to Tape Playback) (Refer to listening to the radio)
Recording from
Tape Recording from Radio
5. Press the PAUSE button again
to start recording.
PREVENTACCIDENTALERASURE
TROUBLESHOOTINGGUIDE
Cleaning the tape heads
To maintain optimum sound quality, clean
the recording playback heads, erase
head, pinch rollers and capstans
regularly (every 10 hours of use). Use
a cotton swab lightly moistened with
cleaning fluid or denatured alcohol.
Tape Care
To prevent accidental erasure
Use a screwdriver or pointed tool to
break off the plastic tabs.
To reuse
Cover the tab openings with cellulose
tape.
Cleaning the unit
Do not use volatile chemicals on this unit. Clean by lightly wiping with a soft cloth.
PROBLEMS
No power supply.
The cassette cannot be inserted.
The tape does not run.
The tape gets caught in the tape
transport mechanism.
Tape running is unstable.
There is excessive noise, the sound
quiversor thereare breaksin thesound.
The REC button cannot be pressed.
Recording cannot be done.
The previous recording cannot be erased.
Disc in place but unit won't play.
Disc skips
The CD sound jumps.
No graphics when playing CDG.
No sound when playing CDG.
No sound and no graphics when
playing CDG.
ITEMS TO CHECK
• Is the power cord unplugged or loose?
• Are batteries installed?
• Are the batteries properly aligned?
• Is the cassette facing the wrong direction when you
try to insert it?
• Is the PAUSE button depressed?
• Is the pinch roller or capstan dirty?
• Is there excessive slack in the tape?
• Is there excessive slack in the tape?
• Are the heads dirty?
• Is a cassette inserted?
• Is the cassette's erasure prevention tab broken off?
• Are the heads dirty?
• Is the erasure head dirty?
• Make sure FUNCTION selector is set to CD/CDG.
• Make sure disc label is facing front.
• Make sure disc is clean.
• Pause mode is activated.
• Disc may be damaged or dirty; check disc
• Make sure to unit is on a secure spot. Vibration or
jarring can cause the disc to skip.
• Is the lens or CD excessively dirty?
• Is the unit subject to excessive vibration?
• Are there any bad scratches on the CD?
• Is the disc with Graphics or CDG marked on disc?
• Is the function switch set to CDG position?
• Is the video in cable plugged in or loose?
• Is the TV set on mute mode?
• Is the volume set to the minimum?
• Is the audio in cable plugged in or loose?
• Is the connection of video and audio cable plugged
in correctly?
• Are there any CDG inside the CD tray?
• Is the graphics disc upside down?
• Is the graphics disc excessively dirty?
- 14 -
MICROPHONE MIXING (KARAOKE) - continued
VOCAL
• Set theTAPE CHANNEL switch to
VOCAL.
• The background music will be cut.
VOCAL CHANGER
• Press theVOCAL CHANGER to ON, and theTAPE CHANNEL switch to STEREO.
• The singer's voice will be cut out when you sing into the microphone. Once you
stop singing, the singer's voice will be resumed.
FEEDBACK
In case a loud howling sound "feedback" is heard when a microphone is plugged in,
try the followings:
1.Decrease the master volume or mic volume on the unit.
2. Move the hand microphone away from the unit.
MUSIC
• Set theTAPE CHANNEL switch to MUSIC.
• The original singer's voice will be cut.
STEREO
• Set theTAPE CHANNEL switch to
STEREO.
• For normal playback of karaoke tape.
1. Set the FUNCTION switch to CDG/
CD. 2. Open the CD door. Place a disc in
the center with the label side front.
3. Close the CD door gently, the total
track number will be shown after a
few seconds.
4. Press the CD PLAY/PAUSE button to
play the CD, the CD PLAY/PAUSE
indicator will light.
TO PAUSE
Press the CD PLAY/PAUSE button
again. The CD PLAY/PAUSE indicator
will flash.
TO STOP
Press the CD STOP button. The total
number of tracks will be displayed.
TO SKIP
• Press the button to skip to the
next track.
• Press the button once to go
back to the beginning of the current
track.
Press the button continuously
to go back to the
previous tracks.
• Playback resumes
from the selected
track.
TO SEARCH
• Press and hold the and
buttons to search through the current
track.
• Playback resumes from the selected
point.
- 11 -
COMPACT DISC PLAYBACK - continued
COMPACT DISC GRAPHICS (CDG)
Preparation
• Make sure that the TV set is
correctlyconnected to this unit
(See TV CONNECTION).
• Prepare CD-Gs.
1.Turn on the TV set and select the
correct channel (or video input). 2.Place the CDG disc in the disc holder.
3.Press the PLAY/PAUSE button to start playing.
Sound will be heard from the speakers of this unit, and graphics will be shown on
the TV set.
To stop play
Press the STOP button.
Usable disc
Use a disc with GRAPHIC or CDG
marked on its jacket.
When playing a disc other than CDG
with a video image (CD-V, CD-I etc.),
the video image will not shown on the
TVset.
Note
• The video image remains when the
player stops, until the next operation
starts.
Printed side front
Note
• Whileyou operate searching or pause
function, an unusual image may be
displayed on theTV set.This does not
indicate a malfunction.The image will
be recorded a few seconds later after
you press PLAY button to resume
playback again.
• If the color video images of a nearby
television changes while this unit is
operating, move this unit further away
from the television.
- 12 -
REPEAT PLAY
TO REPEAT THE SAMETRACK
Press the CD REPEAT button
once, the REPEAT ONE
indicator will blink.
TO REPEAT THEWHOLE DISC
Press the CD REPEAT button a
second time to repeat all tracks,
the REPEAT ALL indicator will
light.
TO CANCEL REPEAT PLAY
Press the CD REPEAT button
until the repeat indicator is
turned off.
TO INTERRUPT RECORDING
Press the PAUSE button.
To resume recording, press the PAUSE
button again.
TO ERASE A RECORDEDTAPE (deck
B only)
1.Set the function selector toTAPE.
2.Insert a tape with the side you want to
erase facing you.
3.Press the RECORD button to start
erasing.
• If squealing sounds (beating) are
heard when recording AM programs
Set the BEAT CUT switch on the rear
panel of the unit to eliminate the noise.
(Refer to Compact Disc Playback/CDG)
Recording from CDG or CD
(AUDIO ONLY)
Power consumption: 22W
Power source:
AC 120 V ~ 60 Hz (USA and Canada)
AC 230 V ~ 50 Hz (Europe)
AC 240 V ~ 50 Hz (Australia)
AC 110-120V/220-240V ~ 50/60Hz (Others)
DC 1.5Vx9 (UM/SUM-1, "D" CELL)
Design and specifications subject to change without notice.
SPECIFICATIONS
Printedin China
811-CG6291-070
MAINTENANCE
CLEANING CD
If the CD skips or will not play, the disc may need
cleaning.
Before playing, wipe the disc from the centre out
with a cleaning cloth. After playing, store the disc
in its case.
Important notices
• Should the CD door be opened before the reading of the CD is completed, a
jamming noise may occur. This is resolved by closing the CD door.
• Keep the CD door closed at all time to prevent dust from entering the CD
compartment.
• If an abnormal display indication or an operating problem occurs, disconnect the
AC power cord. Wait at least 5 seconds, then reconnect the AC power cord.
Side A
Side A
PLAYS FOR KARAOKE TAPE IN THE DECK A AND CDG/CD.
COMPACT DISC PLAYBACK
COMPACT DISC PLAYBACK - continued
RECORDING -- DECK B ONLY
ÿ
ÿ
ÿ
þÿ
- 13 -

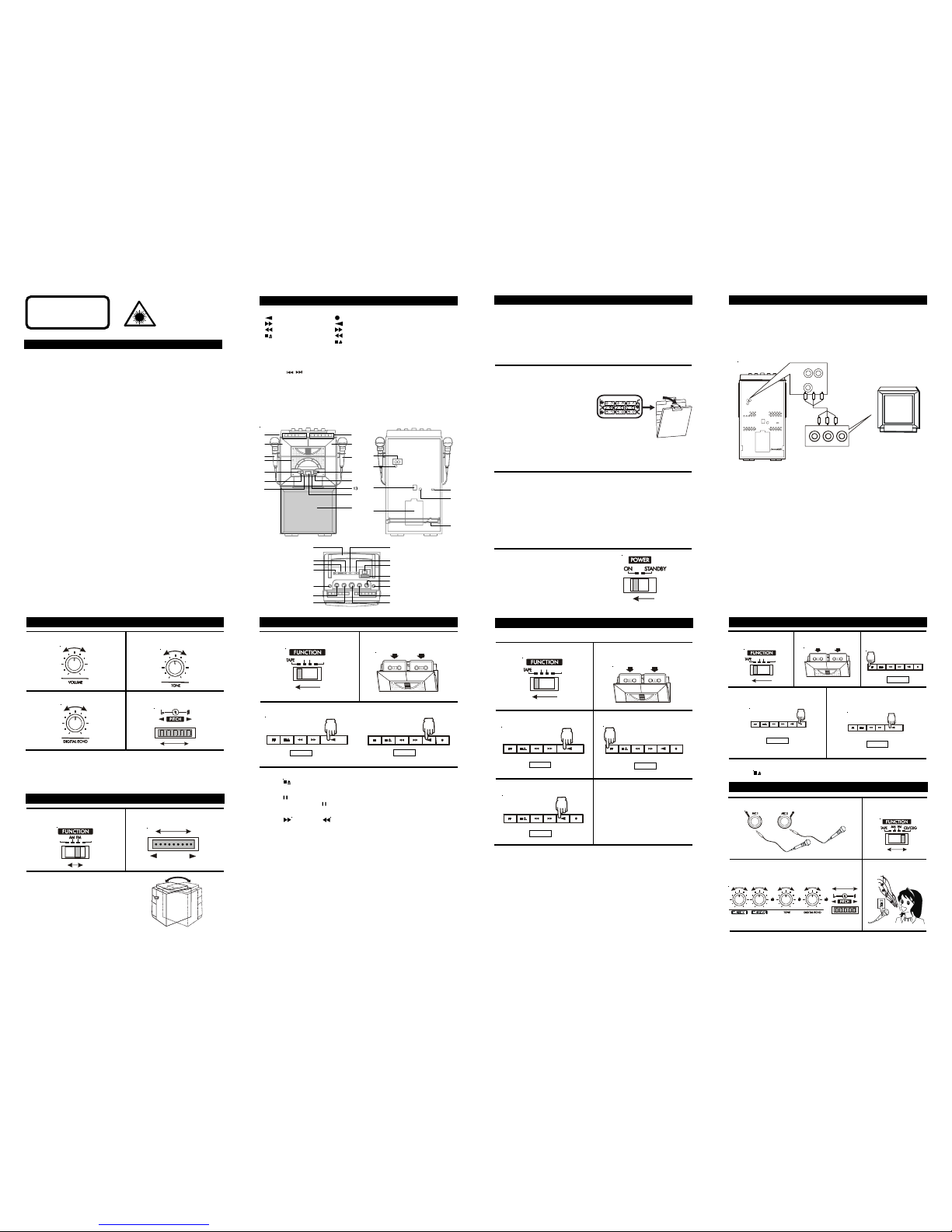

Accessary supplied:
AC power cord
2 Microphones
DEMO CDG disc
AUDIO/VIDEO cable
Model:CDG62
ÿþ
ÿ
ÿ

20. BEAT CUT switch
21. DC 12V socket
22. AC cord
23. Handle
24. VOCAL CHANGER
25. PITCH control
26. POWER switch
27. MIC INPUT 1 socket
28. TONE control
29. DIGITAL ECHO control
30. TAPE CHANNEL switch
31. FUNCTION switch
32. Tuning scale
33. TUNING control
34. MIC 2 VOLUME control
35. MIC INPUT 2 socket
36. MIC 1 VOLUME control
37. Master VOLUME control
- 1 -
1. Deck A operation buttons
PLAY
REW(REWIND)
F.FWD (Fast Forward)
STOP/EJECT
PAUSE
2. Cassette Deck A
compartment
3. Microphone 1
4. CD door
5. CD SKIP ( /) button
6. CD REPEAT button
7. CD REPEAT indicator
-2 -
HOUSE CURRENT
Before use, check that the rated
voltage of your unit matches your local
voltage.
Caution:
To prevent electrical shock, match wide
blade of plug to wide slot, fully insert.
BATTERIES
• Disconnect the AC power cord from
theAC inlet of the unit.Batterypower
is cut automatically when it is
connected.
• When the volume decrease, or the
sound distorts, replace all batteries
with new ones.
• Openthe batteries compartment and
insert 9 x "D" size batteries as shown
here:
• Do not mix old and new batteries. Do
not mix ALKALINE, standard
(CARBON-ZINC) or rechargeable
(NICKEL-CADMIUM) batteries.
9 x "D" size batteries
DC 12V
12 VOLT CAR ADAPTOR
Connect the adaptor (not included) to
an UL recognised 12 voltage 3A
Cigarette Lighter Receptacle and insert
the adaptor cord plug to the DC input
socket located on the back of the unit.
This model is provided with positive tip
polarity DC input socket as shown here:
Make sure the polarity of the plug of the
caradaptor is also of positivetip polarity.
TURN ONTHE UNIT
Press the POWER switch to (ON) turn
on the unit.
NOTE:
After using the unit, press the POWER
switchto (STANDBY) turn off thepower.
- 3 -
LISTENINGTOTHE RADIO
Adjust the VOLUME.
Adjust the DIGITAL ECHO level.
WHEN RECORDING
• The VOLUME, TONE and DIGITAL ECHO controls may be adjusted with no
effect on the recorded signal.
• The PITCH control must be adjusted to the centre position. Otherwise distortion
signal may be recorded.
Adjust the TONE for high or low
frequency range.
Adjust the PITCH control of the music.
(for TAPE only)
1. Set the FUNCTION switch to the
desired position (AM/FM).
FOR BETTER RECEPTION
Repositioning the unit to get better reception.
2. Tune into the desired station.
1. Set the FUNCTION switch toTAPE.
3. Press the PLAY button to begin playback.
2. Insert a cassette into each cassette
holder.
TO STOP PLAYBACK
Press the STOP/EJECT button.
TO INTERRUPT PLAYBACK
Press the PAUSE button.
To resume play, press the PAUSE button again.
TO FAST WIND
Press the REWIND or F.FWD button.
Press the STOP/EJECT button to stop winding at the desired position.
WHEN THE TAPE REACHES ITS END
During fast wind or regular play, the tape will stop automatically when its end is
reached.
WHEN BOTH DECK A AND DECK B ARE SETTOTHE PLAYBACK MODE
The sound from both decks will be mixed together.
NOTE:
The PITCH control must be adjusted to the centre position otherwise distortion
signal may be played.
- 5 -
FROM DECK ATO DECK B
Played
next
Played
first
TAPE PLAYBACK - continued
1. Set the FUNCTION switch toTAPE. 2. Insert a cassette into each cassette
holder.
3. Press the PLAY button on deck A.
5. Press the PLAY button on deck B. As soon as the tape in deck A reaches
its end and stop , the pause mode for
deck B is be released and playback
starts automatically.
4. Press the PAUSE button on deck B.
- 6 -
Should any trouble occur, disconnect the AC power cord and refer servicing to
qualified personnel.
FCC INFORMATION (For U.S.A. only)
This device complies with part 15 of the FCC Rules. Operations is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesirable operations.
FOLLOWTHE ADVICE BELOW FOR SAFE AND APPROPRIATE OPERATIONS.
ON PLACEMENT
• Do not use the unit in places which
are extremely hot, cold, dusty, or
humid.
• Place the unit on a flat and even
surface.
• Do not restrict the air flow of the unit
by placing it in a place with poor air
flow, by covering it with a cloth, or by
placing it on a carpet.
• Never obstruct the ventilation holes
on the rear panel, as increased
internal temperature may affect the
electric parts. In particular, do not
place the system in an airtight rack.
• If using the system near television or
radio, interference may occur. Move
this system away.
ON ACVOLTAGE
• Before use, check that the rated
voltage of your unit matches your
local voltage.
ON SAFETY
• When connecting or disconnecting
the AC cord, grip the plug but not the
cord itself. Pulling the cord may
damage it and thus be hazardous.
• Disconnectfrom the AC mains, when
the unit is not going to be used for
some time.
• If the AC lead is broken or damaged
or if the copper wires are exposed,
contact a qualified engineer to
replace.
PRECAUTIONS
PARTS IDENTIFICATION POWER CONNECTION
ADJUSTINGTHE SOUND TAPE PLAYBACK TAPE DUBBING
2. Insert a cassette into
each cassette holder. 3. Press the PAUSE button
on deck B.
1. Set the FUNCTION
switch to TAPE.
Forplayback For recording
TO STOP DUBBING
Press the STOP/EJECT buttons of deck A and deck B.
MICROPHONE MIXING (KARAOKE)
4. Press the RECORD button of deck
B, which also engages the PLAY
button.
5. Press the PLAY button on deck A, the
recording of deck B will be
automatically engaged.
1.Connectthe microphone(s) (included).
3. Adjust the MIC VOLUME, TONE,
PITCH and DIGITAL ECHO controls.
2.Select a source to be
mixed and play.
4. Start singing.
TV CONNECTION
When the unit is connected to a TV set of either NTSC or PAL color system, the video
image from a CD-G (CD graphics) can be shown on the TV set.
• Sound from the disc is heard from the speakers of this unit.
• Only a TV set with the VIDEO input jack can be connected to watch graphics.
CONNECTION (A) - FOR ALLTV SETS WITH AUDIO AND VIDEO JACKS
Connect the AUDIO andVIDEO jack of the unit to the AUDIO and VIDEO input jack of
the TV set with the connection cable supplied.
8. Deck B operation buttons
RECORD
PLAY
REW(REWIND)
F.FWD (Fast Forward)
STOP/EJECT
PAUSE
9. Cassette Deck B
10. Microphone 2
11. CD PLAY/PAUSE button
12. CD STOP button
13. CD PLAY/PAUSE indicator
14. CD display (Track number)
15. Speaker
16. AUDIO R/L jack
17. VIDEO jack
18. AC Input socket
19. Battery compartment
AUDIO IN
LR
VIDEO IN
ÿþ
AUDIO OUTPUT
RL
VIDEO
OUTPUT
CAUTION
INVISIBLELASER RADIATIONWHEN
OPENANDINTERLOCKSDEFEATED.
AVOID EXPOSURETOBEAM.
This product contains a
low power laser device.
TUNING
DECK A
OR
DECK B
DECK B
DECK B
ÿþý ÿþý
ÿþý

ÿ ÿ
ÿ
þ
ÿþý 
ÿþý ÿ
ÿþý ÿ
DECK B
ÿ
ÿ

ÿÿ
ÿ
ÿ
ÿ






ÿ

ÿ

ÿ
ÿ
ÿ
 






ÿ






