Venue Lighting Effects Dual Scanner User manual

DUAL SCANNER USER MANUAL
www.venuelightingeffects.com

SPECIFICATIONS
Lamp: ELC 24V 250W
Motor(s): 4 Precision micro-stepping motors 1.8/step
Gobos: 13
Color: 10 solid colors, 10 bi-color combinations plus open
Modes of Operation: Stand-alone Auto, Sound Active, Master/Slave, DMX
DMX Channels: 4
Pan: 165°
Tilt: 114°
Cooling: Fan
Input Power: 120VAC 60Hz
Dimensions: L 17.7” x W 6.2” x H 6.1”
Weight: 16.5 lbs. / 7.5 kg
SAFETY INSTRUCTIONS
Read user manual before connecting or operating your dual scanner.
• Always completely disconnect the scanner and allow to cool down for 15 minutes before replacing the lamp or fuse.
• Do not use the scanner near water.
• Do not block fan or exhaust vents in area of scanner use.
• Do not install scanner anywhere near heat sources such as radiators, heat registers, stoves or other apparatus
that produces heat.
• Unplug your scanner when unused for long periods of time.
• Refer all servicing to authorized service personnel.
• Room temperature when scanner is in use should not exceed 104° F.
INSTALLATION AND SET UP
To hang the fixture, install a “C” or “S” clamp to the yoke through the 1/2” hole, the head is now ready for permanent
installation. Hang the unit and position it as necessary and tighten the hex bolt. When the required angle is reached,
lock the fixture with the thumbscrew.
CAUTION:
• Do not mount the unit near curtains or any ammable objects.
• The scanner is for indoor use only. Using the scanner outdoors will void the warranty.
• Cables conforming to the DMX standard (USITT DMX512/1990) must be used.
REPLACING LAMP
1. Unplug the scanner completely from the electrical outlet and wait for the unit to cool, about 15 minutes.
2. Unscrew the xing screw of the lamp window cover on the rear of the unit.
3. Take the lamp and socket out of the unit body gently. Do not touch the bulb with bare hands. Use gloves or handle
the lamp by its base only.
4. Place the new lamp and socket into the unit and then fasten the lamp cover screws.

OPERATION
DIP Switch Settings:
This product utilizes a DIP switch address block to select the mode of operation, such as DMX Mode, Standalone-Auto
(Master/Slave), or Sound Active (Master/Slave).
About DIP Switches:
DIP Switch #1 through #9
The DMX receipt mode: Address code
The Master/Slave mode: 1 – 6 controls setup program in the fixture.
7 – 9 controls speed
DIP Switch #10
The DMX receipt mode: No function
The Master/Slave mode: Exchange between Automatic and Sound Activates
DIP Switch #11
Exchange between DMX receipt mode and Master/Slave mode
DIP Switch #12
Exchange the assignment of Tilt Channel and Pan Channel
DIP Switch #13
Exchange the direction for Pan Channel
DIP Switch #14
Exchange the direction for Tilt Channel

HOW TO SELECT FUNCTIONS:
DMX Receipt Mode:
Flip DIP Switch #11 to “OFF”, the xture is now in DMX receipt mode. DIP Switch #1 through #9 set the DMX address
of the fixture.
Auto Mode:
When using one fixture only, put DIP switch #11 “ON”. This places the unit into Stand Alone Auto Mode. Flip DIP Switches
#1 through #6 to the “ON” position to activate built-in programs. To adjust the speed of the program refer to the chart below
and turn “ON” corresponding DIP Switch for desired speed. DIP Switches #7 through #9 are used in combinations of ON/
OFF states to adjust playback speed.
When using more than one fixture you will need to set the first fixture in the series as the Master and the subsequent
ones as slaves.
IMPORTANT

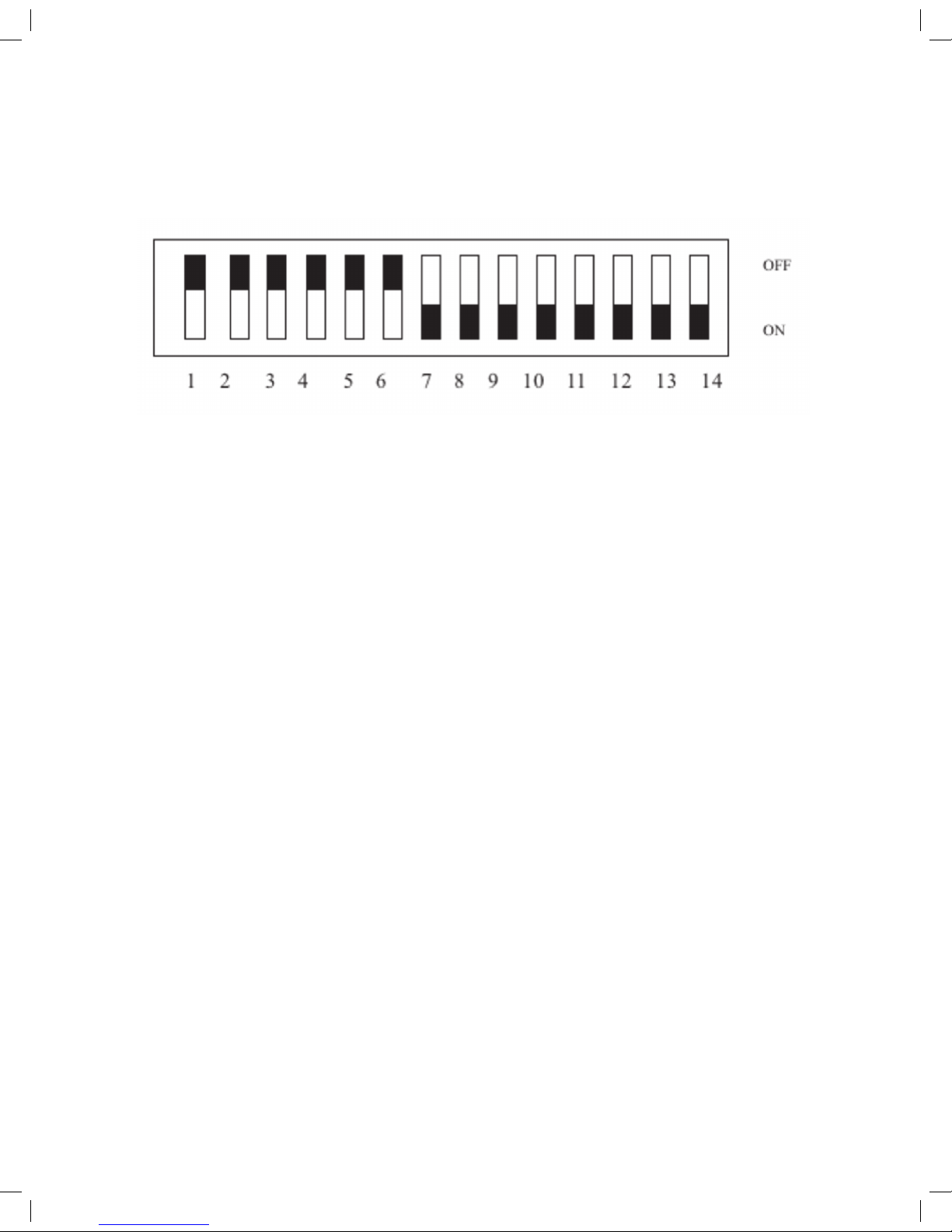

Connect all fixtures to the master in a series using standard DMX 3-Pin XLR cables. Set all DIP switches properly as
shown below.
You should not run Auto Modes when connected in the same data line as DMX operated fixtures as addition data sent
from the Master may impede the functionality of your DMX fixtures.
To Set the Master, turn DIP switch #11 ON and #10 OFF. Turn on DIP switch #1 through #6 to run the preprogrammed
sequences stored in the xture. DIP Switches #7 through #9 are used in combinations of ON/OFF states to adjust
playback speed.
To set the units to Slave, turn OFF switch #11. The SLAVE unit will then receive its control signal from the Master as long
as it is connected to a properly configured Master.

SOUND ACTIVE MODE
When using one fixture only, put DIP switch #11 “ON”: This places the unit into Stand Alone Sound Active Mode and select
DIP Switches 1-6 to the “ON” position to activate built in programs. To adjust the speed of the program refer to the chart
below and turn “ON” corresponding DIP Switch for desired speed. DIP Switches #7 through #9 are used in combinations
of ON/OFF states to adjust playback speed.
When using more than one fixture you will need to set the first fixture in the series as the Master and the subsequent
as slaves.
IMPORTANT
Connect all fixtures to the master in a series using standard DMX 3-Pin XLR cables.
Set all DIP switches properly as shown below.
You should not run Stand Alone Sound Active Modes when connected in the same data line as DMX operated fixtures as
addition data sent from the Master may impede the functionality of your DMX fixtures. To Set the Master, turn DIP switch
#11 on and #10 OFF. Turn on DIP switch #1 through #6 to run the preprogrammed sequences stored in the fixture. DIP
Switches #7 through #9 are used in combinations of ON/OFF States to adjust playback speed.
To set the units to Slave, turn OFF switch #11. The Slave unit will then receive its control signal from the Master as long as
it is connected to a properly configured Master.
To set the units to Slave, turn OFF switch #11. The Slave unit will then receive its control signal from the Master as long as
it is connected to a properly configured Master.
SPEED CONTROL CHART
DIP #12 Swap Pan Tilt Channels When ON
DIP #13 Inverts Pan When ON
DIP #14 Inverts Tilt When ON
Speed No DIP #7 DIP#8 DIP#9 Time in Seconds/Step
1 OFF OFF OFF 2
2 ON OFF OFF 3/2
3 OFF ON OFF 1
4 ON ON OFF 3/4
5 OFF OFF ON 1/2
6 ON OFF ON 3/8
7 OFF ON ON 1/4
8 ON ON ON 1/5

CHANNELS AND DIGITAL VALUES
CHANNEL 1 PAN (X)
CHANNEL 2 TILT(Y)
CHANNEL 3 GOBO
0-5 Black out
6-15 Dimming
16-223 Gobo Rotation and Gobo Selection
224-239 Gobo Scroll in steps
240-255 Strobe Speed (Shutter) 7 Speeds
CHANNEL 4 COLOR
0-143 Mixed Colors
144-239 Incremental Color Change
240-255 Rainbow Color Change (7 Speeds)
DMX OPERATION MODE
To set the fixtures in DMX Mode make certain all units are connected to the provided DMX controller or any standard DMX
512 controller using the provided 3-Pin XLR cable.

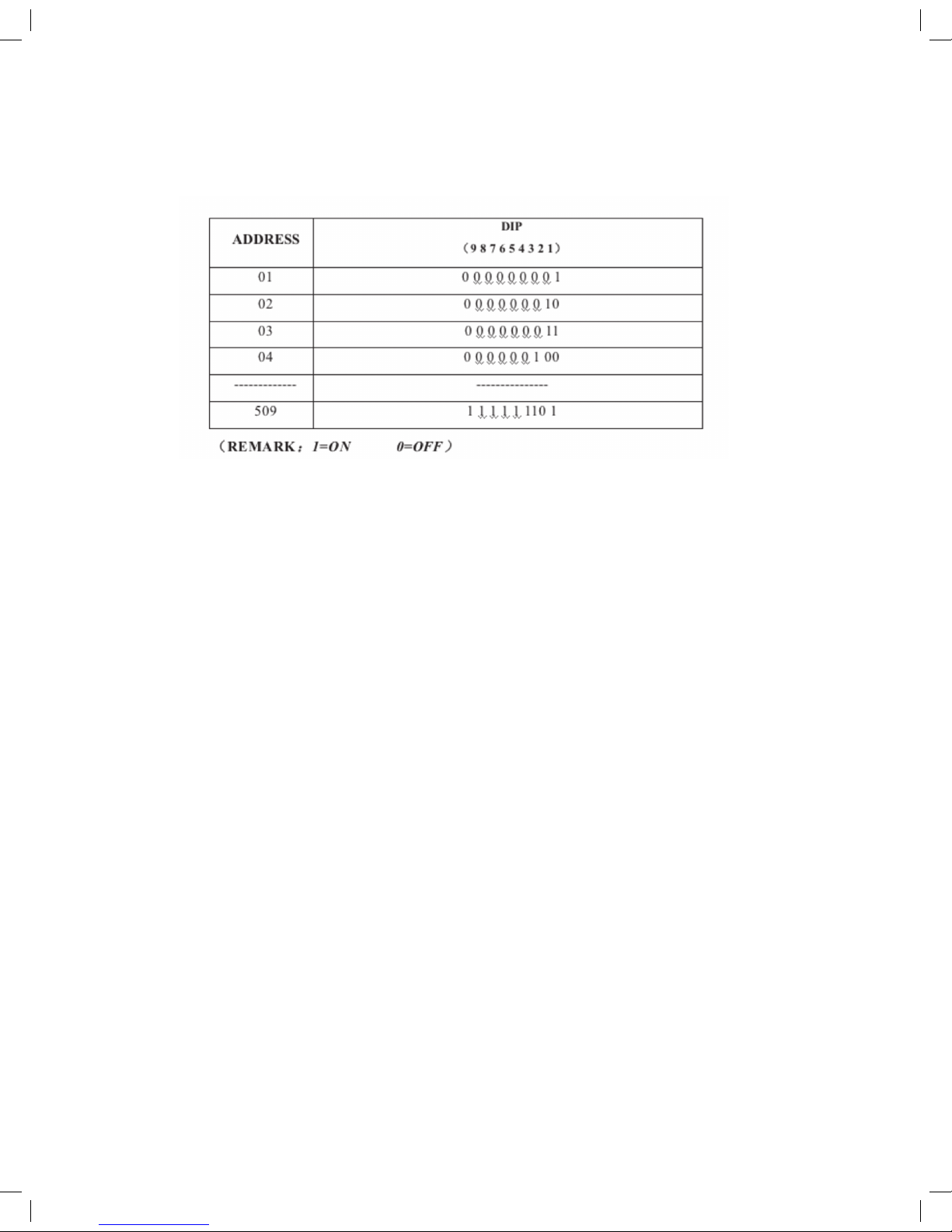

Turn OFF DIP switch #1 and set the binary DMX address.
DIP #12 Swap Pan Tilt Channels When ON
DIP #13 Inverts Pan When ON
DIP #14 Inverts Tilt When ON
UNDERSTANDING DMX 512
SOUND MODE
Master Fixture: Flip DIP Switch #11 to “ON”, DIP Switch #10 to “ON” for SOUND. Then ip DIP Switch #1 through #6 to run
the six built-in programs. For example, DIP Switch #2, #4, to “ON”, Program Two and Four will run. To Slave fixture, turn
#11 to “OFF.”
NOTES:
When in Master/Slave mode, follow the table below:

TROUBLE SHOOTING
Fixture does not turn on
Output power seems low
Fixture does not respond
to DMX signal
Scanner loses position on
one or more of its functions.
The head does not respond
to the music in sound or
controller sound activated
strobe.
FAULT CHECK
Check power line connection and fuse. If they are in working order, contact your dealer.
Check to see that the mirror and front lens are clean.
Check the control cable from the controller and along the chain. Check for a bad
connection or a bad cable. Check that pin 1 goes to pin 1, 2 to 2 and 3 to 3. Check that
the terminator plug is correctly attached at the end of the chain (100 Ohm across pins
2 & 3 of XLR connector) Check that the DMX address is set to the required channel.
Check that the motors can move freely and are not hindered. If they seem to be
working properly, contact your dealer.
Check that the unit is close enough to a mid-range sound source. Try gently tapping
the built-in-microphone to see if it responds. If so, move it closer to the audio source.

1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be kept for future reference.
3. Read and understand all warnings listed on the operating instructions.
4. Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e., bathtub, sink, swimming pool, wet basement, etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, it should not be placed at against a wall or placed in a built-in enclosure
that will impede the ow of cooling air.
8. Do not install this product near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus. Do not break the ground pin of the power supply cord.
11. Only use attachments specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer
or sold with the apparatus. When a cart is used, exercise caution when moving.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through
the ventilation ports or any other openings.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way.
16. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17. When a mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable.
IMPORTANT SAFETY INSTRUCTIONS
This symbol is intended to alert the user to the
presence of non-insulated “dangerous voltage”
within the products enclosure.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the unit.
Apparatus shall not be exposed to dripping or splashing.
Objects lled with liquids, such as vases, shall not be
placed on the apparatus.
