Claypaky SHARPY X SPOT User manual

INSTRUCTION MANUAL
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
INDEX
Page Contents
2 1. Safety information
3 2. Unpacking and preparation
4 3. Installation and start-up
43.1 Installing the fixture
5 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
6 3.4 Switching on the fixture and basic SetUp
8 4. Maintenance
84.1 Opening the covers
94.2 Periodical cleaning
10 4.3 Effects module removal
14 4.4 Rotating gobos
15 4.5 Battery removal
16 5. Dimensions
16 6. Cause and solution of problems
ENGLISH
CD3004
SHARPY X SPOT

2
SHARPY X SPOT
EN
IT
DE
ES
FR
RU
SAFETY INFORMATION
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: FIS027 - Safety Information Sharpy X Spot
INFORMAZIONI DI SICUREZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: FIS027 - Safety Information Sharpy X Spot
INFORMATIONEN ZUR SICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
Ref: FIS027 - Safety Information Sharpy X Spot
INFORMACIONES DE SEGURIDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: FIS027 - Safety Information Sharpy X Spot
CONSIGNES DE SÉCURITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives
à ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
Réf. : FIS027 - Safety Information Sharpy X Spot
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкцию по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
www.claypaky.com
Наименование: FIS027 - Safety Information Sharpy X Spot
1. SAFETY INFORMATION

3
SHARPY X SPOT
1
PAN Mechanism Lock and Release (every 90°) -Fig. 2
TILT Mechanism Lock and Release (every 45°) -Fig. 3

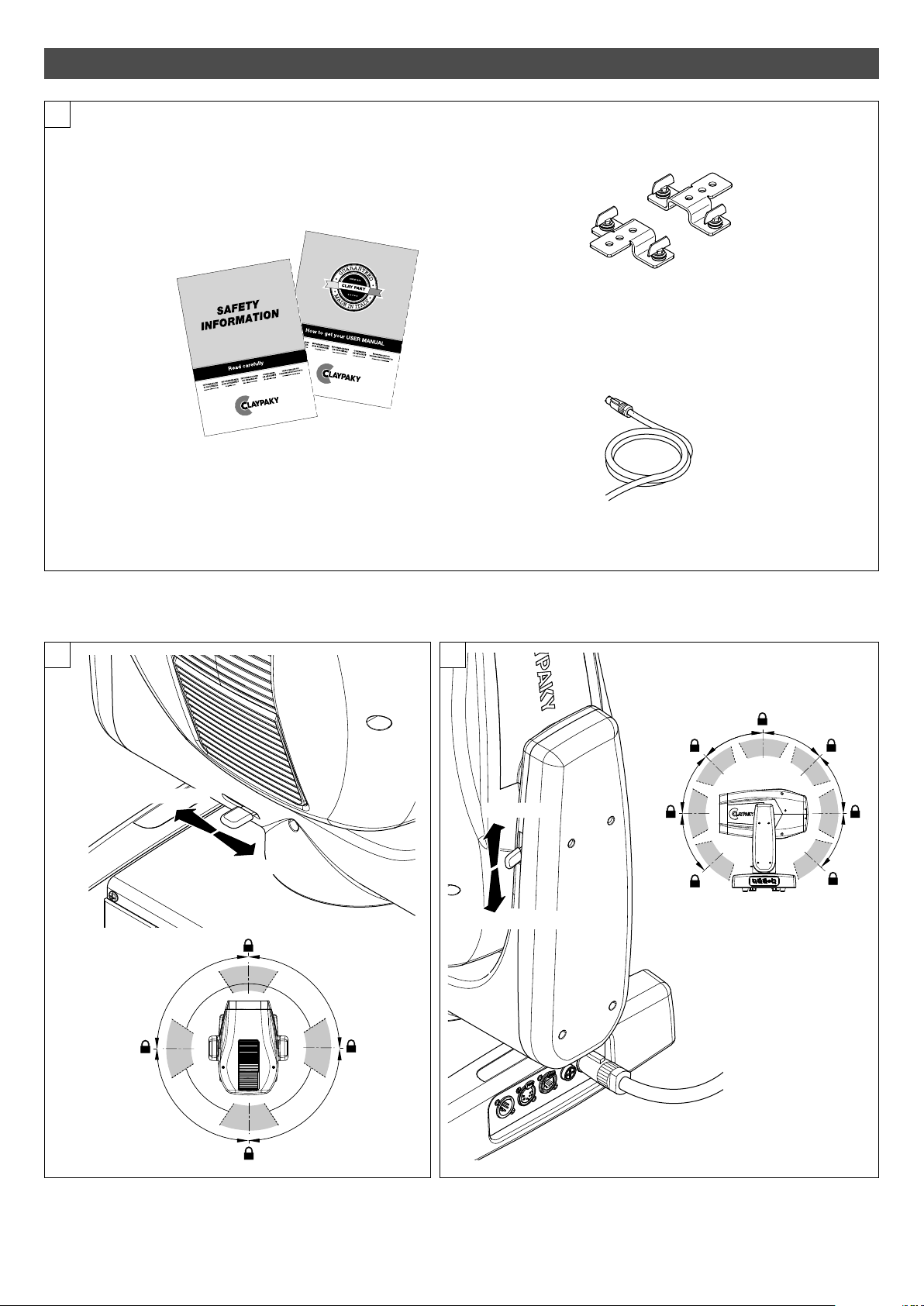

Packing contents - Fig. 1
90°
90°
90°
90°
UNLOCKED
LOCKED
45°
45°
45°
45°
45°
45°
45°
LOCKED
UNLOCKED
2 x 183102/805
2. UNPACKING AND PREPARATION
2 3

4
SHARPY X SPOT
4
3. INSTALLATION AND START-UP
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
3.1 Installing the fixture
Fuse Power INEthernetDMX IN
(5 pin)
DMX THRU
(5 pin)
Display User buttons
5
Control panel - Fig. 5

5
SHARPY X SPOT
2
1
1
2
3
750VA
FuseT10A
250V
6

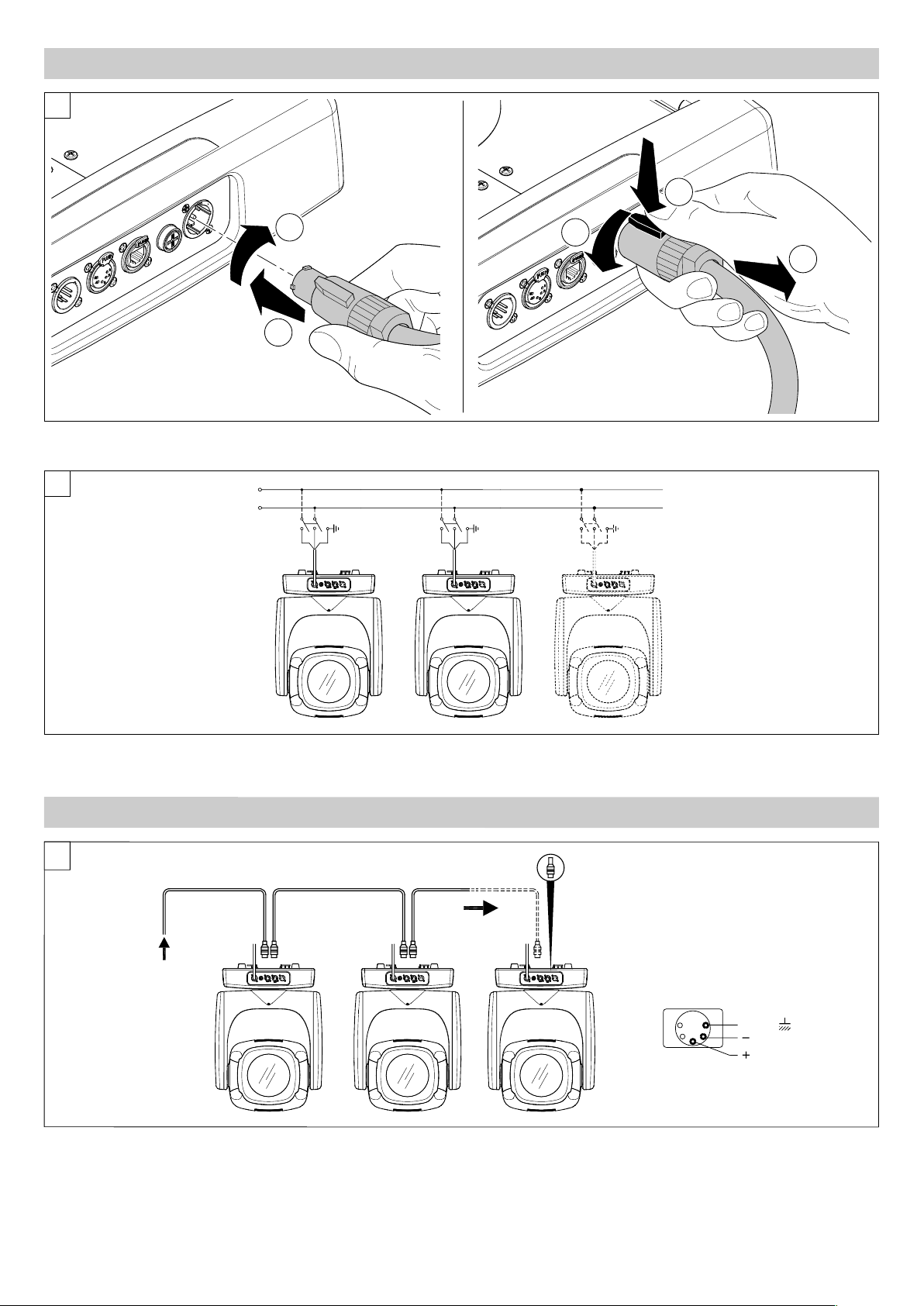

Connecting and disconnecting power cable - Fig. 6
3.2 Connecting to manis supply
Connecting to the mains supply - Fig. 7
Mains
7
Connecting to the control signal line (DMX) - Fig. 8
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to
the shield braid and to pin 1 of the connectors.
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
8
3.3 Connecting the control signal line: DMX / Art-Net
Continue ‘

6
SHARPY X SPOT

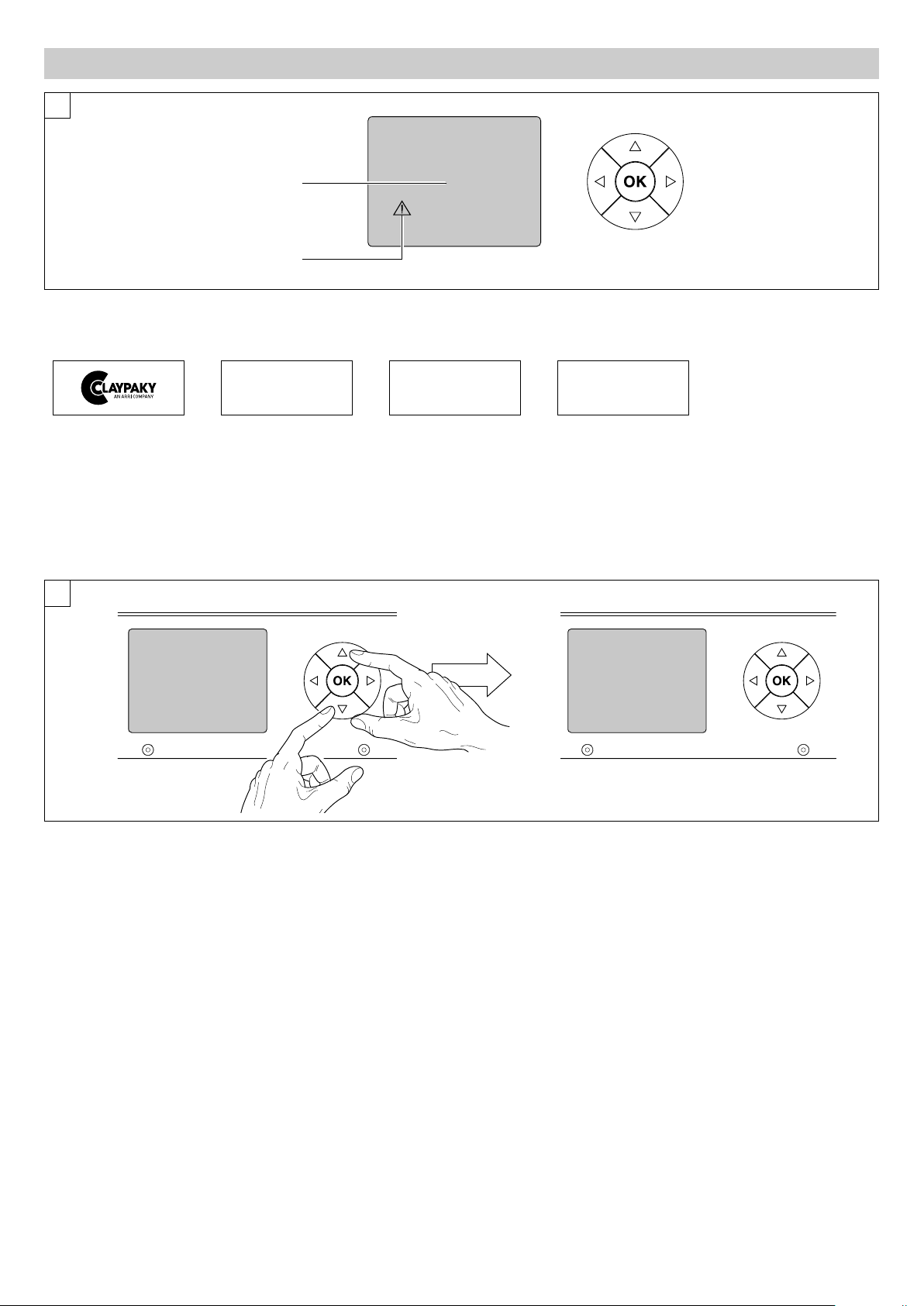

Switching on the projector - Fig. 9
Switch-on the fixture. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware Dmx Address xxx
Sharpy X Version X.X.X
Spot Date - Hour
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
Dmx Address
Warning Message
9
3.4 Switching on the fixture and basic SetUp
28
28
Reversal of the display - Fig. 10
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
10

7
SHARPY X SPOT
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity
supply. All that is needed is to press
RIGHT
E
to momentarily activate the display and thus access the settings. Once the required operations have
been carried out, the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press LEFT
D
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Enters the successive menu.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT

8
SHARPY X SPOT
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.

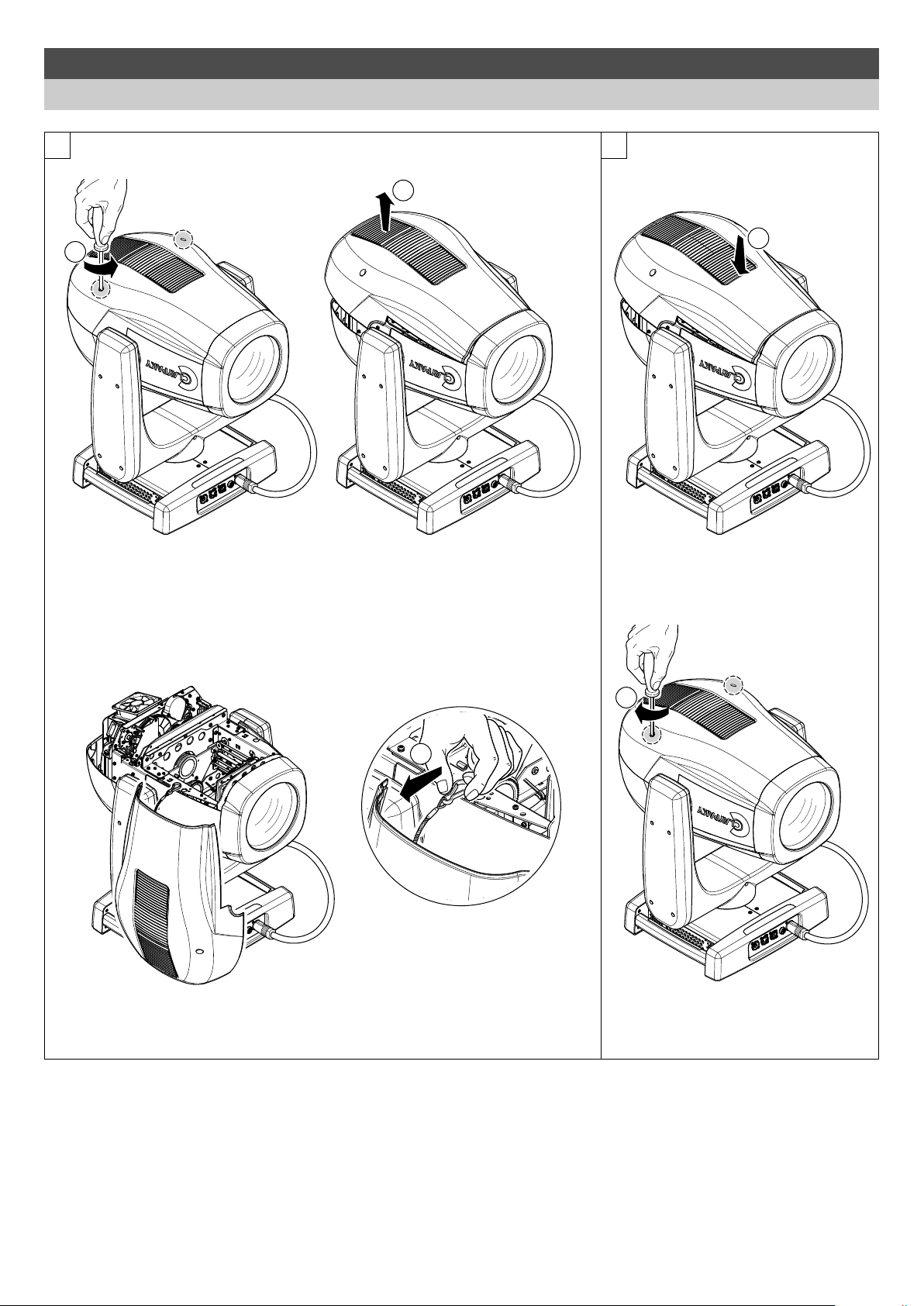

Opening the head covers - Fig. 11.
Closing the head covers - Fig. 12.
1
1/4 Turn 2
1
2
1/4 Turn
3
11 12
4. MAINTENANCE
4.1 Opening the covers

9
SHARPY X SPOT
Lower side
Upper side
13
Periodical cleaning - Fig. 13
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of
the working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
NOTE: keep a careful cleaning
of the ''CMY/colour filters assembly''
to prevent rapid deterioration.
Light collimation system
This product contains internal
light collimation system.
Avoid intense light from any
angle.
4.2 Periodical cleaning
Continue ‘

10
SHARPY X SPOT
1
Upper side
2
Extraction of the effect modules - Fig. 14.
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.
14
4.3 Effects module removal

11
Upper side
1
2
Extraction of the effect modules - Fig. 15.
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.
15
SHARPY X SPOT
Continue ‘

12
SHARPY X SPOT
1
2
16
Cleaning of the grids - Fig. 16.

13
SHARPY X SPOT
Continue ‘
Lower Side
ADJUST
8
8
ADJUST
1/4 Turn
2
1
4
5
6
7
3
Lamp change - Fig 17.
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it
with a clean, dry cloth.
Lamp regulation
To centre the lamp, turn the adjusting screw as shown in the figure.
WARNING: The lamp must be adjusted with the projector switched off. After adjusting, close the effects covers, switch on the projector and check
that the adjustment has been correctly made. If necessary, switch off the projector, remove the effects covers and repeat lamp adjustment.
REMARK:
- Lifetime of the lamp will be influenced by the switching cycle.
- After a successful starting, attempt to keep the lamp burning for at least 15 minutes in order to complete the chemical cycle of the
lamp to secure the lifetime.
- After switching-off the lamp wait at least 2 minutes before switching-on it again.
17

14
SHARPY X SPOT
14
1
2
3
1.1
ø19 ±0.2
ø13.5
Gobo 7
Gobo 6
Gobo 5
Gobo 8
Gobo 4
INDEX
Gobo 3
Gobo 2
Gobo 1
19
Replacing rotating gobos (ø 19 mm – max 13.5 mm image – thickness 1.1 mm) - Fig. 19
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;
Bearing group replacement - Fig. 18
18
4.4 - Rotating gobos
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
Grey/Black side
away from light source
Coated side towards
light source
Coated side
Uncoated side
Uncoated side
Reflective side towards light source
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2
Gobo orientation - Fig. 20
The pictures shown the correct gobos orientation.
20

15
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
21
4.5 - Battery removal
SHARPY X SPOT

350
(13.78")
668
(26.30")
406
(15.98")
560
(22.05")
560
(22.04")
306
(12.05")
485
(19.09")

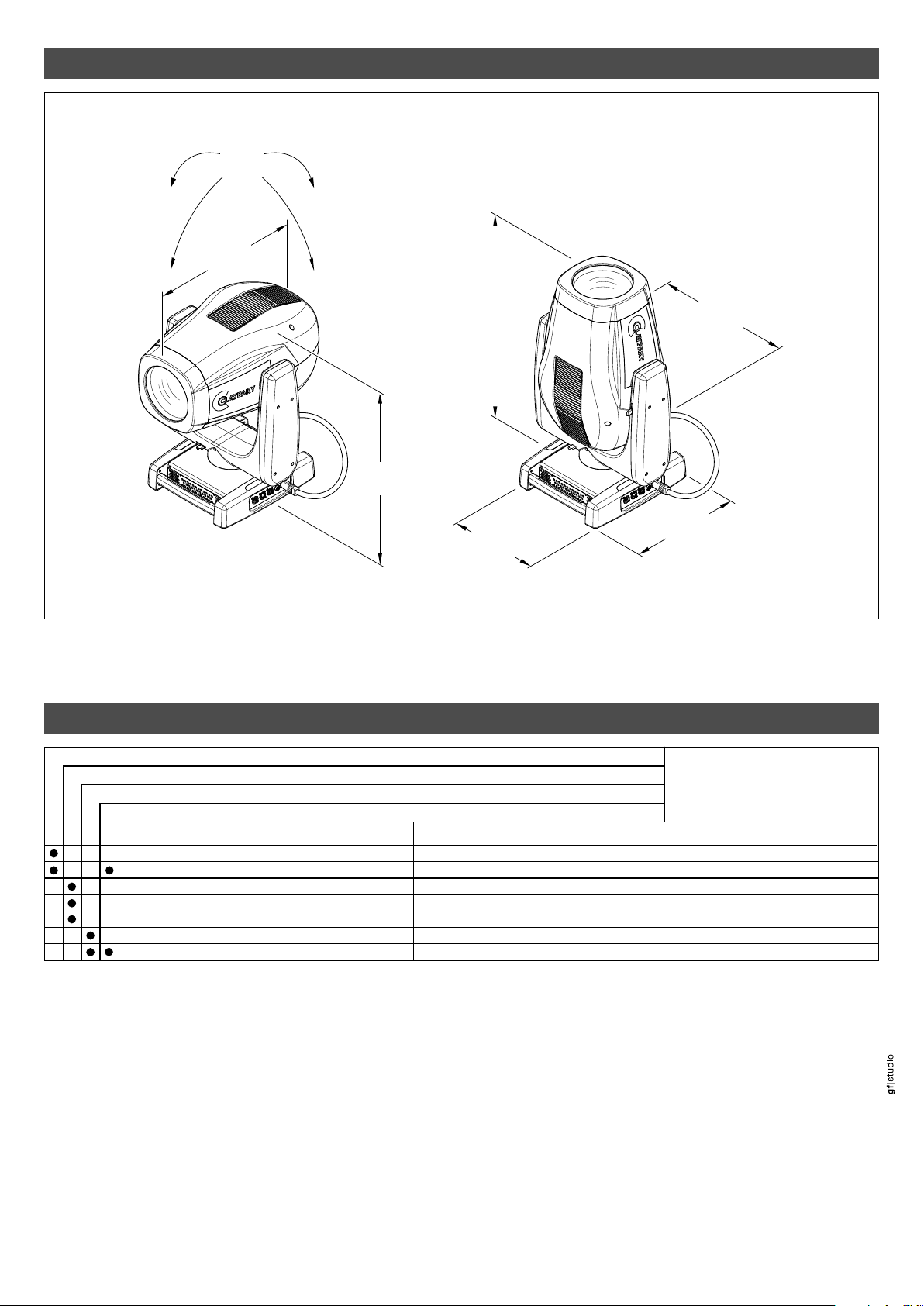

5. DIMENSIONS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Light source exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses broken
Dust or grease deposited.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
6. CAUSE AND SOLUTION OF PROBLEMS
www.claypaky.com – Service support & Helpdesk: https://e-assist.tech
IST02W/001 – EN - Rev.0 07/2023
