PCE-CIC Series Colour Viewing Box
User Manual
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 25 August 2020
v1.0
English

© PCE Instruments
Contents
1Introduction ........................................................................................... 1
2Safety notes........................................................................................... 1
3Specifications........................................................................................2
4Delivery scope.......................................................................................2
5Light sources used ............................................................................... 3
6Structure ................................................................................................ 3
7Device description ................................................................................ 5
7.1 PCE-CIC 5....................................................................................................................... 5
7.2 PCE-CIC 10..................................................................................................................... 6
7.3 PCE-CIC 11..................................................................................................................... 7
8Operation notes..................................................................................... 8
9Test report*............................................................................................ 9
10 Bulb replacement................................................................................ 10
11 Lamp breakage....................................................................................10
12 Warranty...............................................................................................11
13 Disposal ...............................................................................................11

© PCE Instruments
1
1 Introduction
Thank you for purchasing a colour viewing box from PCE Instruments.
A colour viewing box is used wherever products must have the same colour properties during
production. Thus a colour viewing box contributes to quality control. The colour viewing box is a
simulation instrument which, by means of different types of light, is able to display certain
situations in order to analyse the colour characteristics of individual samples.
Metamerism can thus be avoided by using a colour viewing box. To support the measurement,
the colour viewing box has a built-in hour meter which makes it easier for the user to stick to the
recommended running time of the lamps. The user can select the appropriate type of light
independently by pressing a key. The control bar is located at the front side of the colour
viewing box. If desired, several types of light can be switched on at the same time in the colour
viewing box. This is done by pressing the respective keys simultaneously.
2 Safety notes
Please read this manual carefully and completely before you usethe device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.
•Upon receipt, the device must be checked for damage.
In case of damage, the device must not be used.
•The assembly instructions must be followed.
•The power supply is only to be established after the complete assembly at the place of
installation, according to the type plate.
•The device must be set up on a stable, non-slip substructure.
•The working height should allow comfortable viewing of the samples at a 45° angle.
•A minimum distance of 10 cm to the body (rear panel / lid / side panels) must be
maintained.
•The ventilation holes must not be closed.
•This product is intended for indoor use only under normal environmental conditions. (e.
g., do not expose it to high temperatures, high humidity or vibration.
•The device must only be used as described inthis instructionmanual. If used otherwise,
this can cause dangerous situations for the user and damage to the meter.
•Do not expose the device to shocks or strong vibration.
•The case should only be opened by qualified PCE Instruments personnel.
•Never use the instrument when your hands are wet or dirty.
•You must not make any technical changes to the device.
•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,
no abrasives or solvents.
•The device must only be used with accessories from PCE Instruments or equivalent.
•Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
•Do not use the instrument in explosive atmospheres.
•The measurement range as stated in the specifications must not be exceeded under
any circumstances.
•Danger of burns: Depending on the operating mode and duration, the lamps generate
heat which can cause burns if touched.
•Lamps may only be touched when they have cooled down accordingly.
•Always pull out the mains plug when installing or replacing the lamps.
•The colour viewing box may only be operated when all lamps are installed.

© PCE Instruments
2
•Colour viewing boxes are not designed for permanent lighting.
•Used fluorescent lamps must be disposed of in accordance with the current disposal
directive and must not be disposed of as normal household waste.
•Non-observance of the safety notes can cause damage to the device and injuries to
the user.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.
3 Specifications
PCE-CIC 5
PCE-CIC 10
PCE-CIC 11
Standard light
D65
X
X
X
TL84
X
X
X
F11
X
X
TL83
X
X
U30
X
x
CWF
X
X
A / F
X
X
X
UV-A
X
X
x
Standards
ASTM D 1729
ISO 3664
ASTM D1729
ISO3664
DIN
ANSI
BSI
ASTM D1729
ISO3664
DIN
ANSI
BSI
Operating hours
counter per light type
Yes
Yes
Yes
Power supply
230 V AC / 50 Hz
Inner dimensions
680 x 385 x 355 mm
1280 x 590 x 590
mm
665 x 490 x 360 mm
Outer dimensions
710 x 405 x 570 mm
1310 x 600 x 800
mm
695 x 552 x 502 mm
Weight
30 kg
65 kg
20 kg
4 Delivery scope
1 x base plate
1 x rear wall
2 x side walls
1 x lighting segment (cover incl. illuminant depending on colour viewing box)
1 x screw connection (depending on the colour viewing box)

© PCE Instruments
3
5 Light sources used
Standard
light
Scope of application
Colour
temperature
Watt
Type
D65
Daylight simulation for
industry for colour evaluation
6500 Kelvin
20
SYLVANIA
F20T12/D65
TL84 / F11
Department store, warehouse
and office in Europe
4100 Kelvin
18
PHILIPS
TLD 18W/33-
840
TL83 / U30
Fluorescent light (warm white)
similar to Incandescent A
3000 Kelvin
18
PHILIPS
TLD 18W-830
CWF
Department store, warehouse
and office in USA
4100 Kelvin
18
PHILIPS
TLD 18W/33-
640
A / F
Incandescent lamps for living
areas, gastronomy
2700 Kelvin
40
OSRAM
SPC. OVEN P
FR 40 240V /
E14/SES
UV-A
For detection of optical
brighteners
365 nm
20
PHILIPS
TL-D 18W BLB
6 Structure
The colour viewing box is supplied in individual parts and must be assembled before first use.
The lighting part (cover) is nearly complete and the main part of the assembly is limited to the
construction of the body.
The assembly should be carried out at the intended installation site to avoid later transport. The
installation site should absolutely avoid incidence of extraneous light and the environment
should be as colour-neutral as possible in order to influence the perception of the observer as
little as possible.
Two people are needed for the assembly. Due to the sharp-edged outer packaging, we
recommend wearing protective gloves.
After unpacking the colour viewing box (Caution! The outer packaging may have protruding
nails), the colour viewing box must be checked for possible damage and for completeness.

© PCE Instruments
4

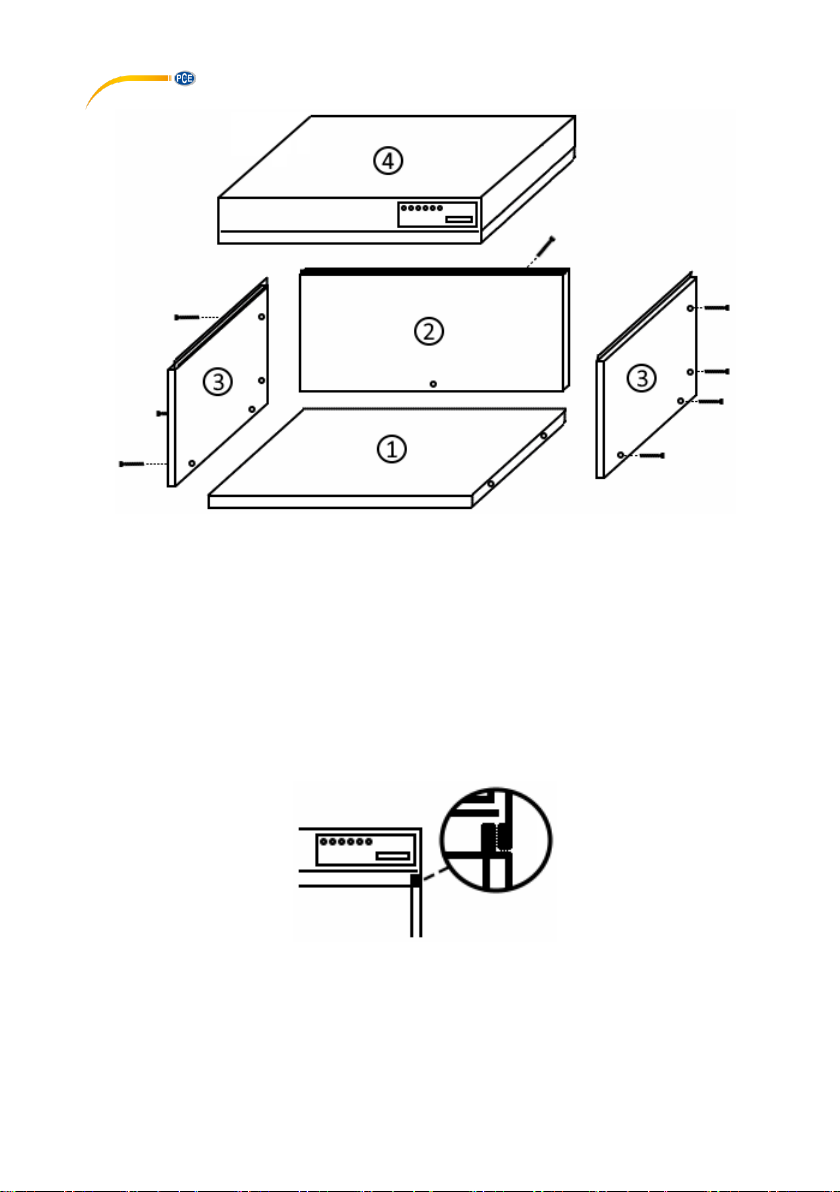

1. Remove the base plate ➀and place it with the set-up side (feet / felt) on the table.
2. Screw the rear panel ➁onto the base plate. The MATT painted side is the inner side.
3. Now the side parts ➂must be screwed to the bottom wall ➀and the rear wall ➁. The
MATT painted side is the inner side.
4. Missing light sources must be screwed into the lighting segment.
(The power supply must not yet be established)
5. The lighting segment ➃must now be plugged onto the body. Make sure that the cover
clasps the edges of the body.
6. Now the power supply must be established with the supplied cold-device plug.
The connection is located on the rear side of the lighting segment.

© PCE Instruments
5
7 Device description

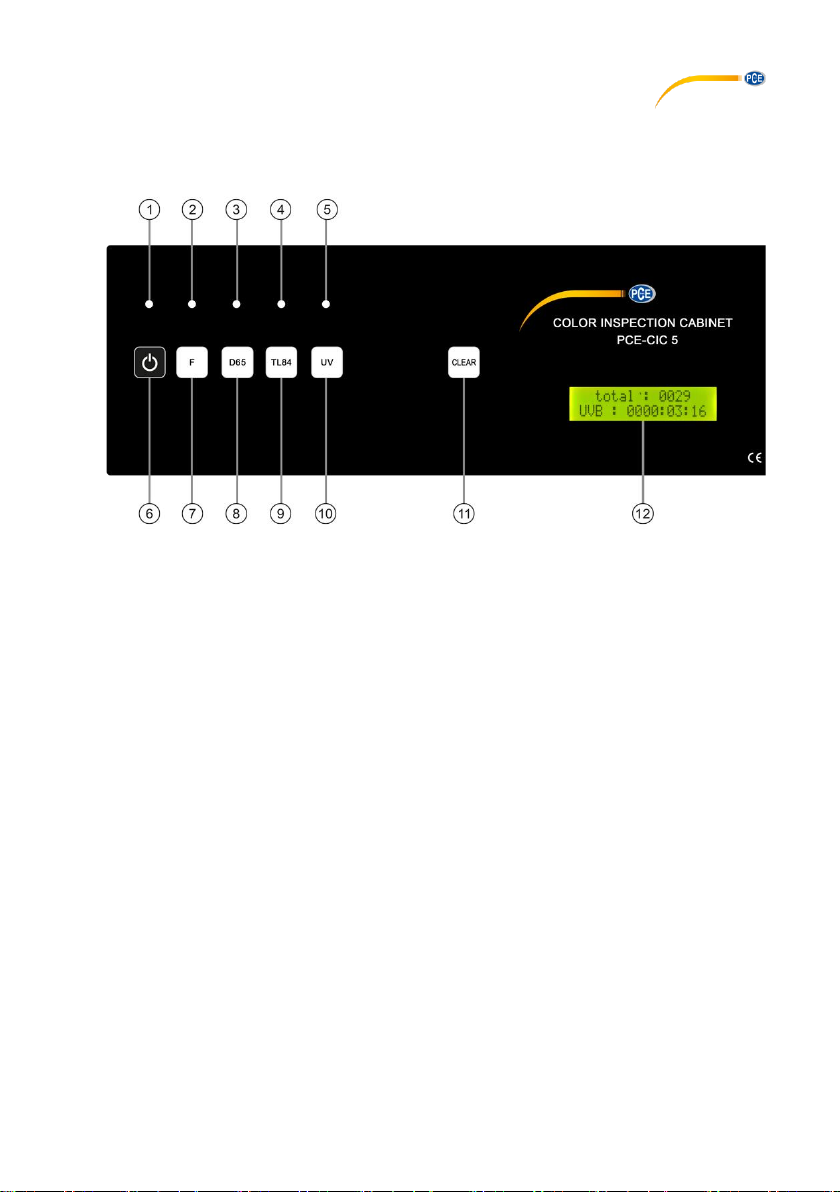

7.1 PCE-CIC 5
1. On/off LED
2. LED F light
3. LED D65 light
4. LED TL84 light
5. LED UV light
6. On/off key
7. F light key
8. D65 light key
9. TL84 light key
10. UV light key
11. Clear key
12. LC display

© PCE Instruments
6

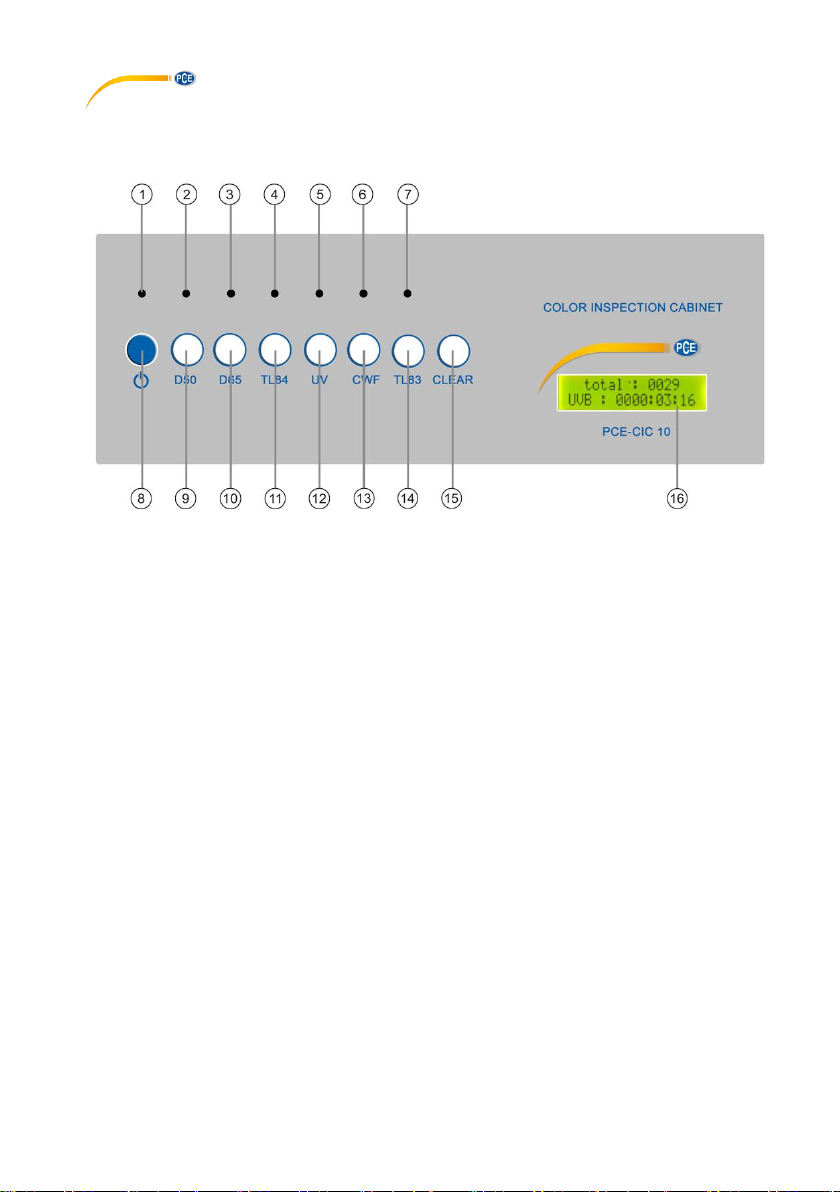

7.2 PCE-CIC 10
1. On/off LED
2. LED D50 light
3. LED D65 light
4. LED TL84 light
5. LED UV light
6. LED CWF light
7. LED TL83 light
8. On/off key
9. D50 light key
10. D65 light key
11. TL84 light key
12. UV light key
13. CWF light key
14. TL83 light key
15. Clear key
16. LC display

© PCE Instruments
7

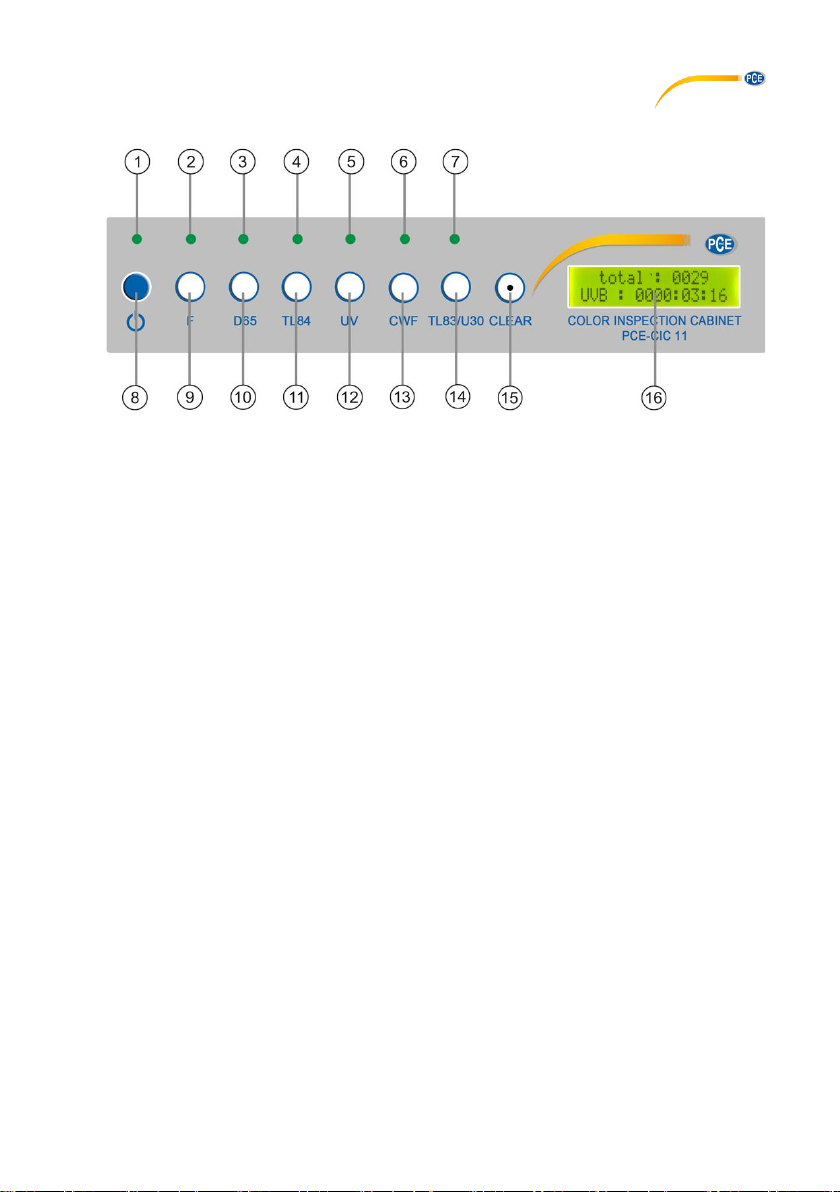

7.3 PCE-CIC 11
1. On/off LED
2. LED F light
3. LED D85 light
4. LED TL84 light
5. LED UV light
6. LED CWF light
7. LED TL83 / U 30 light
8. On/off key
9. F light key
10. D85 light key
11. TL84 light key
12. UV light key
13. CWF light key
14. TL83 / U 30 light key
15. Clear key
16. LC display

© PCE Instruments
8
8 Operation notes
- The observer should wear a neutral (achromatic) colour for the evaluation of the samples
to avoid reflections and other influences.
- The observer must be examined and selected by an appropriate method to ensure normal
colour vision and normal ability to distinguish colours.
- Press the on/off key to turn on the colour viewing box. The timer will then display the total
running time of the colour viewing box, regardless of the light type.
- If you have selected a light type via the control bar and pressed the key, it will be switched
on and the time counter will show the running time of the selected light type.
Depending on the light source, a certain warm-up time must be taken into account in
order to be able to make a reproducible assessment.
Since the light quality decreases with increasing operating hours, the light sources must
be replaced after a certain number of operating hours.
(see illuminant manufacturer's specifications)
- Place the objects to be viewed in the centre of the colour viewing box and also change the
position of the reference samples from time to time.
- A viewing angle of 45 degrees is ideal.
- When viewing is complete, press the on/off key again to turn off the unit.

© PCE Instruments
9
9 Test report*
The test report should contain at least the following information:
(a) All details necessary for the identification of the tested coating material;
(b) a reference to this international standard (ISO 3668);
(c) details of additional information referred to in annex A;
(d) a reference to the international or national standard, product specification or other document
containing the information referred to in (c);
(e) in what daylight - natural or artificial - the sample was taken and where appropriate, the type
of artificial light;
(f) details of the colour viewing box, if used, e. g. manufacturer and brightness of interior walls;
(g) Description of the rating scale, as described in Annex B (see 8.1.3);
(h) the result of the test, with reference to metamerism where appropriate and whether sampling
has been carried out with regard to a reference standard produced in parallel or with respect to
a colour standard;
(i) any deviation from the stipulated test procedure;
j) Inspection date and name(s) of the inspector(s).
*Extract from DIN EN ISO 3668
Note: This is a recommendation on how the structure of a test report can be, based on
DIN EN ISO 3668.

© PCE Instruments
10
10 Bulb replacement
- Before changing the lamp, disconnect the cold-device plug from the power supply.
- Wait until the lamps have cooled down before replacing them.
- The illuminants have a marking and must be re-inserted in the place provided for this
purpose.
- The illuminants must always be completely replacedfor the respective light sources in order
to ensure consistent quality based on the number of operating hours.
- After changing the bulbs, the respective hour meters must be reset.
To do this, select
the appropriate light type and press the clear button.
Lamps are not household waste and must be disposed of in
accordance with the applicable disposal guidelines.
11 Lamp breakage
Depending on the type of light, illuminants may contain small amounts of mercury and other
substances that are harmful to health. For this reason, if the lamp breaks, you must act
immediately and with the utmost caution:
1. Disconnect power supply.
2. Ventilate the room for about 15 minutes. During this time, switch off the heating,
ventilation and air conditioning system and leave the room.
3. Put on disposable gloves and, if necessary, safety gloves for the clean-up work and avoid
any unintentional contact with the fragments. (e. g. with clothes / shoes, etc.)
4. Leave the windows open during the clean-up work.
5. First, sweep the fragments together with the help of a carton / cardboard.
(Do not use a hand brush / broom, as this will whirl up the fragments into the ambient air with
the bristles and other fragments will get caught in the bristles)
6. Any remaining fragments must be removed with adhesive tape or moist disposable paper
towels.
7. The lamp residues as well as the auxiliary materials used for collection (e. g. cardboard /
paper / adhesive tape / gloves, etc.) must be safely sealed in airtight containers (e. g.
screwed glass, sealable plastic bags, etc.) and disposed of at the designated collection
points.
https://www.lightcycle.de/verbraucher/sammelstellensuche.html

© PCE Instruments
11
8. After cleaning up, wash your hands thoroughly and air the room for some time.
12 Warranty
You can read our warranty terms in our General Business Terms which you can find here:
https://www.pce-instruments.com/english/terms.
13 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament
applies. Due to the contained pollutants, batteries must not be disposed of as household waste.
They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use
them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance with
your local waste regulations.
If you have any questions, please contact PCE Instruments.
Lamps are not household waste and must be disposed of in
accordance with the applicable disposal guidelines.

© PCE Instruments
12
PCE Instruments contact information
Germany France Spain
PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.
Im Langel 4 23, rue de Strasbourg Calle Mayor, 53
D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete)
Deutschland France España
Tel.: [phone] Téléphone: [phone] Tel. : [phone]
Fax: [phone] Numéro de fax: [phone] Fax: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol
United Kingdom Italy Turkey
PCE Instruments UK Ltd PCE Italia s.r.l. PCE Teknik Cihazları Ltd.Şti.
Unit 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6 Halkalı Merkez Mah.
Ensign Way, Southampton 55010 Loc. Gragnano Pehlivan Sok. No.6/C
Hampshire Capannori (Lucca) 34303 Küçükçekmece - İstanbul
United Kingdom, SO31 4RF Italia Türkiye
Tel: [phone] Telefono: [phone] Tel: [phone]
Fax: [phone] Fax: [phone] Faks: 0212 705 53 93
[email protected] [e-mail] in[email protected]
www.pce-instruments.com/english www.pce-instruments.com/italiano www.pce-instruments.com/turkish
The Netherlands China Hong Kong
PCE Brookhuis B.V. PCE (Beijing) Technology Co., Limited PCE Instruments HK Ltd.
Institutenweg 15 1519 Room, 6 Building Unit J, 21/F., COS Centre
7521 PH Enschede Zhong Ang Times Plaza 56 Tsun Yip Street
Nederland No. 9 Mentougou Road, Tou Gou District Kwun Tong
Telefoon: [phone] 102300 Beijing, China Kowloon, Hong Kong
[email protected] Tel: [phone] Tel: [phone]
www.pce-instruments.com/dutch [email protected] [email protected]
www.pce-instruments.cn www.pce-instruments.cn
United States of America
PCE Americas Inc.
711 Commerce Way suite 8
Jupiter / Palm Beach
33458 FL
USA
Tel: [phone]
Fax: [phone]
[email protected]
www.pce-instruments.com/us
