AWNING V210 - RHODOS

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
1
Subject to misprints, errors and technical modifications.
Inhoudsopgave
page
Content package 2
Necessary tools 2
Specications 3
Important before mounting 4
1. Installation on the wall 5
1.1 Marking the holes 5
1.2 Drilling the holes 5
 1.3 Drillingthecontrolhole 5
1.4 Installation using wall strips 6
2. Electrical wall control 7
2.1 Connecting the wall control 7
2.2 Standard factory setting 8
3. Remotecontrol 8
 3.1 Connectingtheremotecontrol 8
4. Inclination 9
4.1 Standard factory setting 9
4.2 Setting the inclination 9
5. Front bar 10
5.1 Setting the front bar 10
6. Valance 11
6.1 Installation of the valance 11
User information 12

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
2
Subject to misprints, errors and technical modifications.
Content package
1. Sun awning *
2. Control
a. Manual control: crank handle
b. Electrical: switch + plug
c.Remotecontrolled: remotecontrol+plug
* The displayed awning is a manual control version.
Necessary tools
• Drilling machine
• Support drill 10/14 mm
• Crosshead screwdriver
• Socketwrench10/13/17
• Key set
• Clack with lengthening piece, husk 10/17 mm
• Tapeline
• Plumb rule
• Pencil
In case of electrical control:
• Nippers
• Flathead screwdriver

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
3
Subject to misprints, errors and technical modifications.

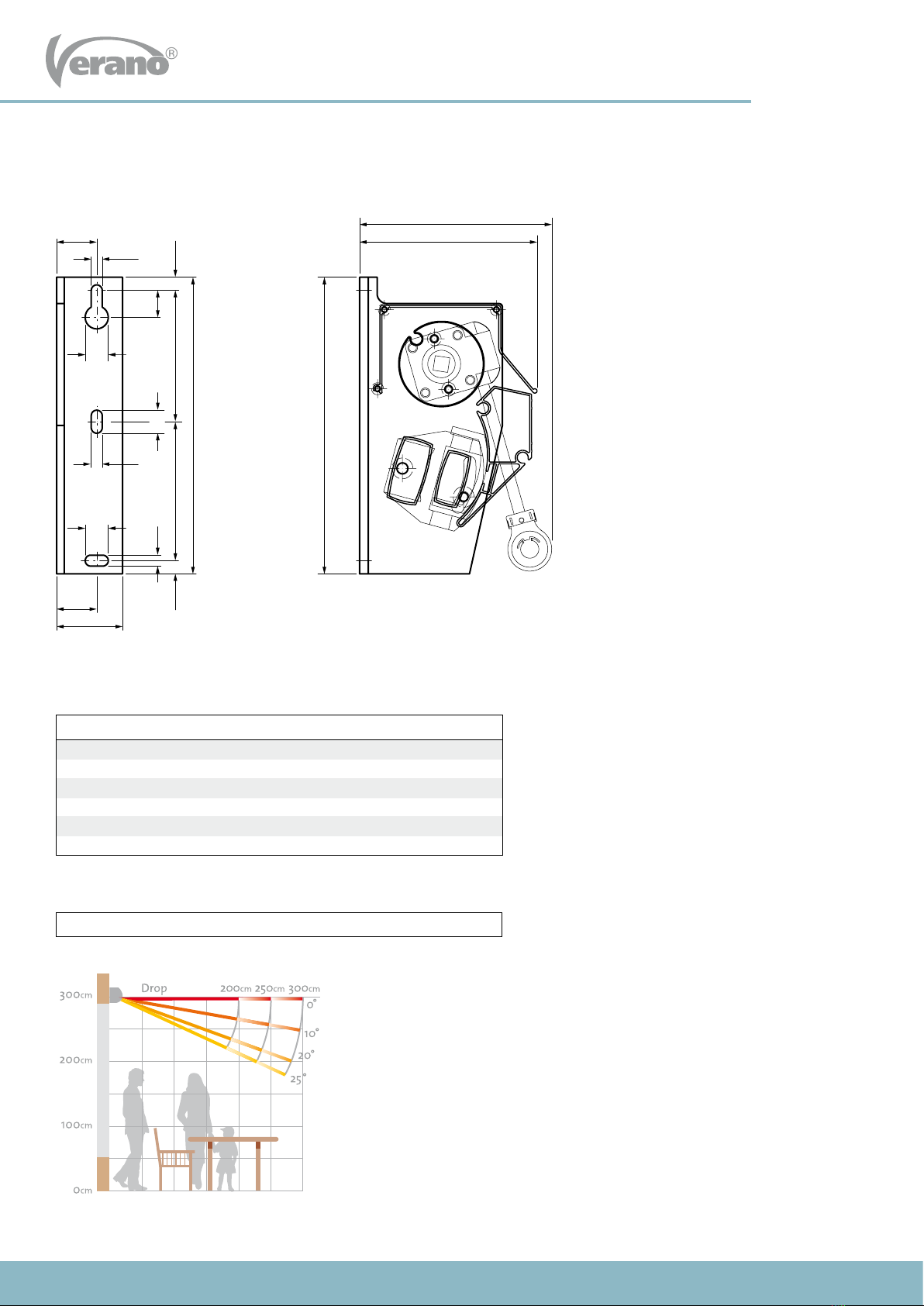

Specications
36
12119
270
10
21
127
10
21
10
12 25
36
60
21
270
162
175
Front view wall support le Awning section
Width
minimum 2500 mm maximum 6000 mm
Minimal width per fabric projection
 1500 1830
2000 2400
2500 2970
2500 Equilateral 2790
 3000 3620
 3000Equilateral 3240
Projection [mm] Minimal awning width [mm]
Wall installation Sizes in mm

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
4
Subject to misprints, errors and technical modifications.
Important before mounting
Check the mounting height
Make sure that you have enough mounting height on your façade to place the awning. Above the wall support
(mountingsupport)havetobe5rowsofstonestopreventtomuchpressureonthefaçade.Thisisnotoenthecase
withahouse-extension.Itisrecommendedtodrillthemountingholeinthehstone(minimum)measuredfromthetop.
Wall strips
Whentherearefewerthanverowsofstonesabovethewallsupport,wallstripshavetobeused.Thesestripsdividethe
forces over a bigger wall surface when the walls are to weak. See page 5 for detailed instructions.
Attention! Makesurethereisnomountingpointinthesoldiercourse.Theseareoenhalfstones.
1
2
3
4
5
rollaag
min. 30 cm
Patio door
Whentheawningisfullyopen,ithangsdownundertheangle.Thereforeweadvisetokeepatleast30centimeters
between the window frame and the awning in a situation with patio doors to the outside. When possible, it is advisable
tohangtheawninghigherthan30centimetersabovethewindowframe.
Be careful for damages
Don’t use a knife or any other sharp object when opening the packing. This may cause damage to the content of the
package.Putthecontentofthepackageonasosurface.Becarefulwhendrilling,fallingdrillcuttingscancausedamages.
Checkifthewindowframeorfaçadeisatandsmooth.
General warning
Mounting the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the mounting of this
specicVerano®product.Ifyoucannotmounttheproductyourself,youcanalwaysoptforprofessionalmounting.The
mounting team of Verano® is pleased to help you.
Soldier course

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
5
Subject to misprints, errors and technical modifications.

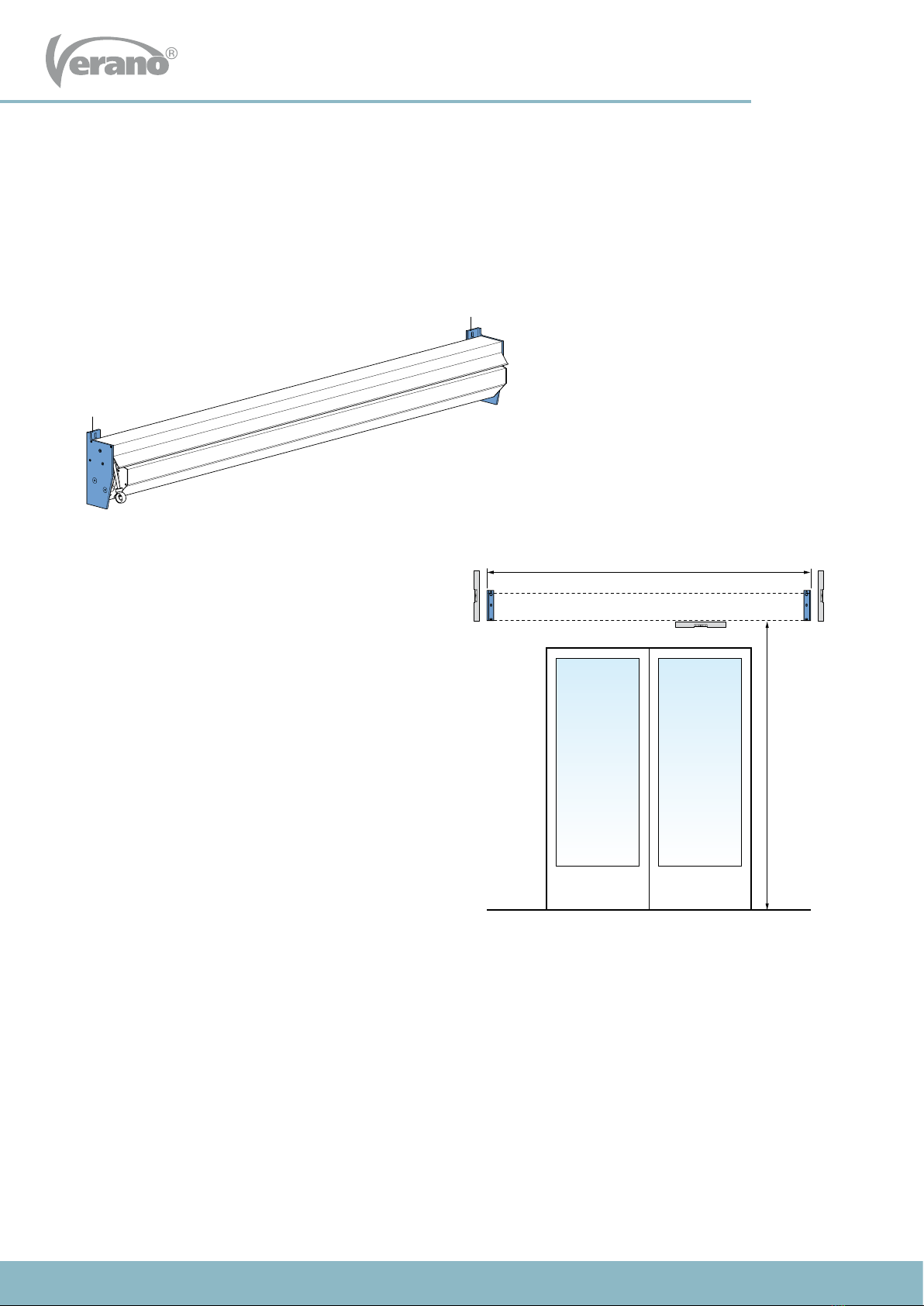

1.1 Marking the holes
Fortheinstallationoftheawning,thetwowallsupports(A)needtobelevelhorizontalandvertical.Seegure1.1
and 1.2. The wall supports need to be installed in the same line on the wall. If the wall supports are not in the same line
(with an uneven position of the arms as a result) the awning will not function correctly.
Mark the drill holes of the wall supports (A) carefully on
thewallaccordingtosizeXandsizeYingure1.2.
Make sure that the upper installation holes are in the
middle of the stone.
If necessary, use an alignment string.
X
AA
Y
g. 1.2 Placing the wall support
g. 1.1 Wall support sun awning
1. Installation on the wall
X = Width of the awning
Y=Windowframeheightplusminimal30cm
A = Wall supports
A
A
1.2 Drilling the holes
Drill the installation holes. We advise to use a 14 mm stone drill if you need to drill in a cement or stone wall. Use
matching plugs and nuts of high quality. Install the awning on the wall and fasten the nuts in the wall supports (A)
tightly. Use a clack with lengthening piece.
1.3 Drilling the control hole
Do you have wall control and do you want to connect it on the inside? Measure the location of the control hole carefully.
The location depends on your personal preference and situation. Drill with a 10 mm drill to the inside. Hold a shelf on the
inside of the wall to prevent damages to the wall when drilling through.

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
6
Subject to misprints, errors and technical modifications.

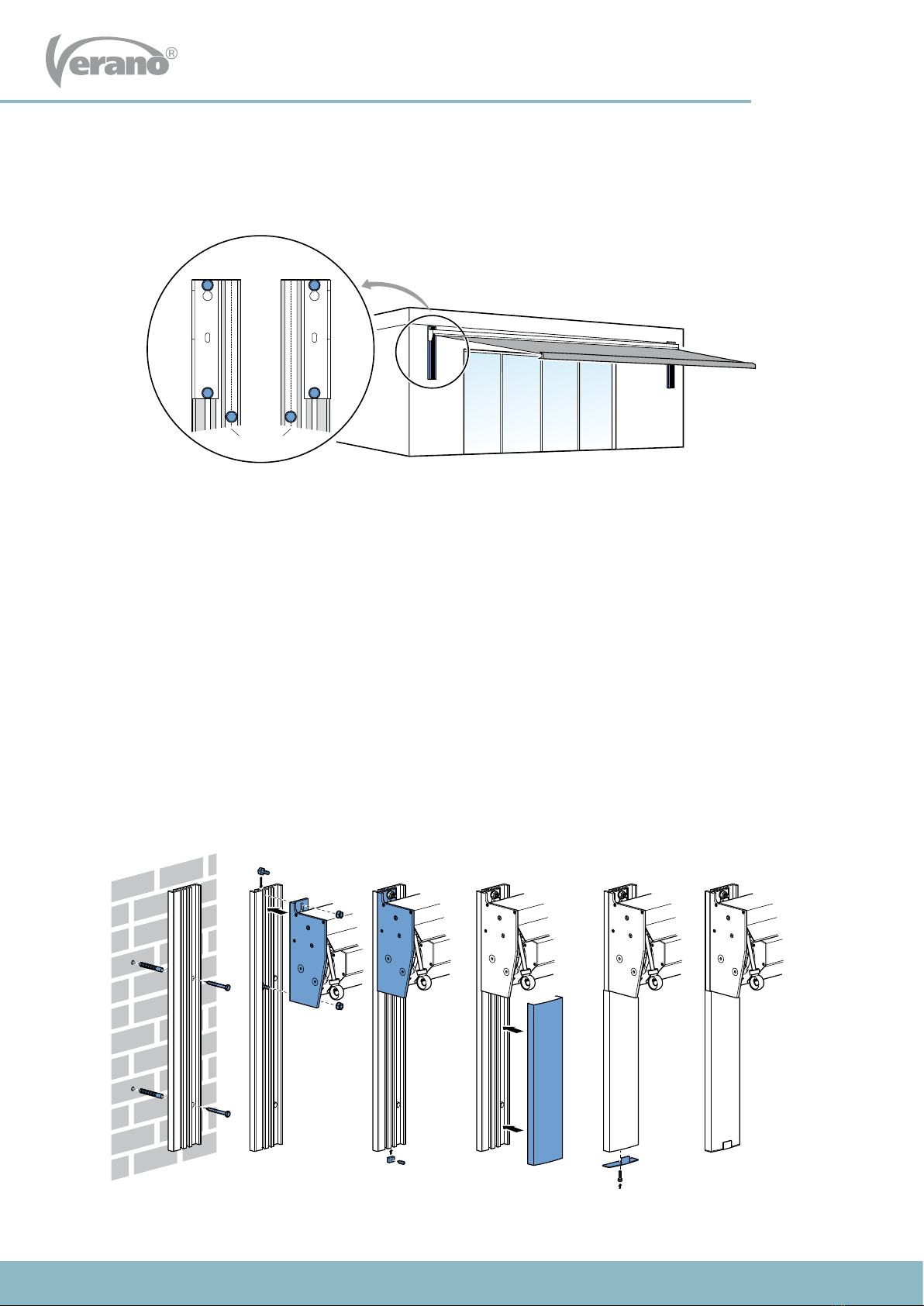

1.4 Installation using wall strips
Iftherearelessthanverowsofstonesabovetheinstallationlocation,wallstripsneedtobeused.Thestripsdividethe
poweroveralargerwallsurfacesothatthewallcancarrymoreweight.Seegure1.3.
Followthestepsbelowtoinstallthewallstrips(seegure1.3and1.4):
1. MarkthepositonofthewallstripsonthewallaccordingtosizeXandYingure1.2.Thewallstripsneedtobe,both
horizontal and vertical, levelled. Make sure that the installation holes are in the middle of the stone. If necessary, use
an alignment string.
Attention!Thelewallstripisturned180degreesrelativetotherightwallstrip.
Fasten the wall strips tight to the wall.
2. Install the awning as high as possible on the wall strips with two nuts per wall support.
3. Install the fastening block at the bottom of the wall strip. The block is needed to fasten the cover plate.
4. Placetheclosurecapoverthebottompartofthewallstrip.Youneedtocustomizeitrst.
5. Install the cover plate to the fastening block in the bottom part of the wall strip.
6. Theinstallationoftheawningonthewallstripsisnownished.
LINKS RECHTS
boorsleuf
g. 1.3 Using wall strips
5321 64
g. 1.4 Installation of the wall strip (le)
LEFT
Drill slot
RIGHT

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
7
Subject to misprints, errors and technical modifications.
2. Electrical wall control
TIP! Sealing the hole
In case of an electrical wire to the inside, we advise to seal the hole where the wire comes in. This to prevent moisture from
running inwards. Attention! Do this both on the in- and outside.
2.2 Standard factory setting
The motor control is set standardly.
See the included manual of the motor and the possible remote control.
g. 2.1 Motor le (seen from the outside) g. 2.2 Motor right (seen from the outside)
2.1 Connecting the wall control
1. Checkthepositionofthemotor(leorright),seenfromtheoutside!
2. Ifyouhaveinsidecontrol,rstguidethecablethroughtheholeinthewallyoudrilledbefore.
3. Connect the four-wired cord of the motor and the three-wired cored with plug following the scheme below.
4. Put the plug in the power point.
5. Theawningisnowconnected.Beforeyoucontinuetheinstallation,checkiftheawningrollsoutcorrectly.
geel/groen blauw
bruin
geel/groen blauw zwart
bruin bruin
geel/groen blauw bruin geel/groen blauw
zwart bruin bruin
geel/groen blauw
bruin
geel/groen blauw zwart
bruin bruin
geel/groen blauw bruin geel/groen blauw
zwart bruin bruin
brown
brown
brown brown brown brown black black
blue blue
blue blue
yellow/green yellow/green yellow/green yellow/green

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
8
Subject to misprints, errors and technical modifications.
3.1 Connecting the remote control
1. Ifthepowerpointislocatedontheinside,rstguidethewirethroughtheholeinthewallyoudrilledbefore.
2. Install the plug according to the color scheme below:
• Brown  220Vpowersupply
• Blue  220Vpowersupply
• Yellow/green grounding
• Black  (donotconnect)
• White (do not connect)
• Orange (do not connect)
3. Put the plug in the power point.
4. Theawningisnowconnected.Beforeyoucontinuetheinstallation,checkiftheawningrollsoutcorrectlybyusingthe
remote control.
TIP! Sealing the hole
In case of an electrical wire to the inside, we advise to seal the hole where the wire comes in. This to prevent moisture
from running inwards. Attention! Do this both on the in- and outside.
3. Remote control

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
9
Subject to misprints, errors and technical modifications.
4.1 Standard factory setting
The walk-through height of the front bar is standardly set between 1,80 and 1,90 meter at an installation height of
2,70 meter.
4.2 Setting the inclination
Ifyouwanttosettheawningdierentfromthestandardfactorysetting,followthestepsbelow:

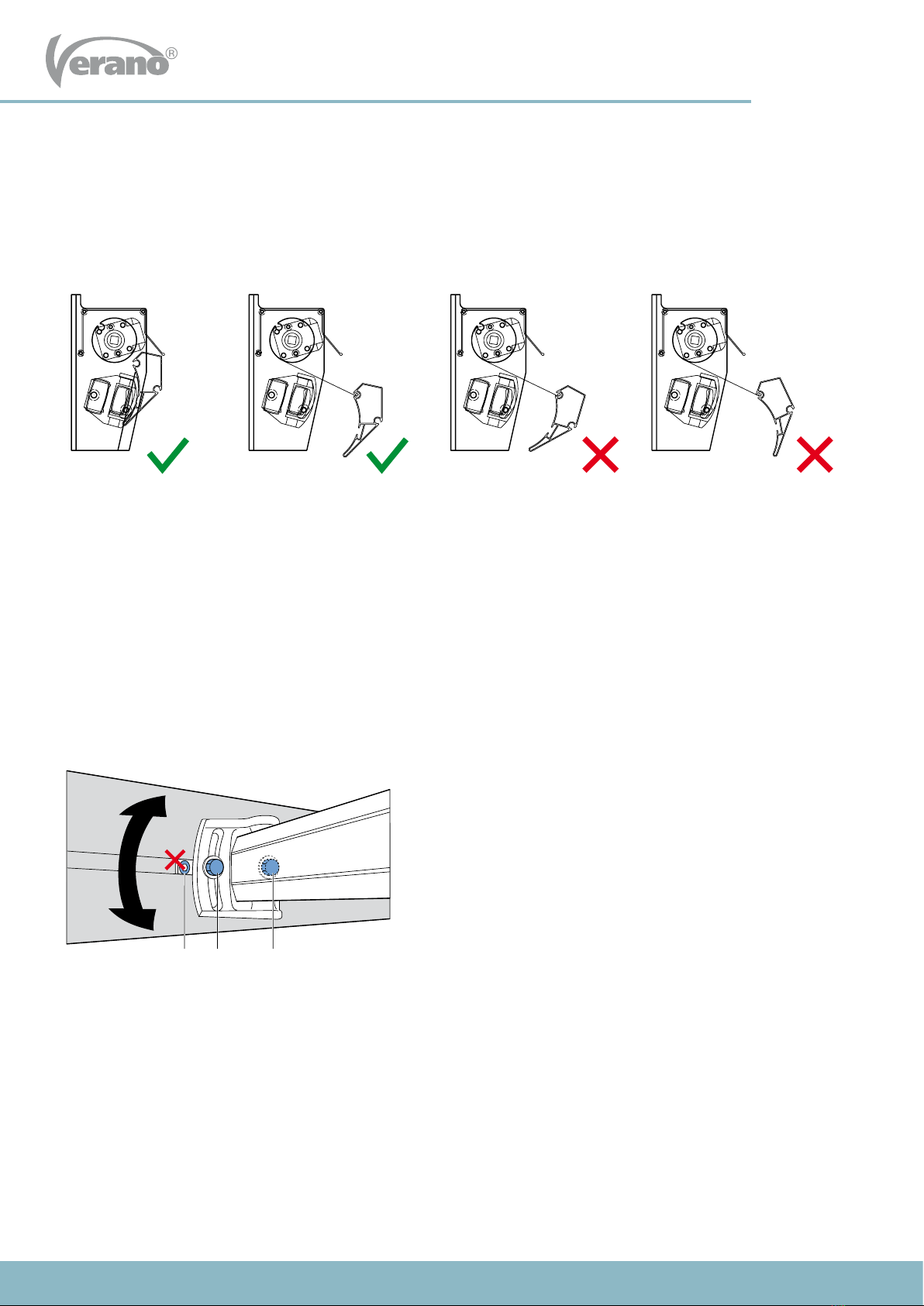

1. Rolltheawningout.Thearmconnectionsarelocatedleandrightontheawning.
2. Twistnut#1inoneturn(wrench17).Lithefrontbarduringthetwistsothattheadjustingbolt(orallen)moveseasily.
 Seegure4.1.
3. Twisthexagonnut#2(wrench13)orallen#2foranupanddownmovement.Le=down,right=up.Lithefrontbar
during the twist.
4. If the front bar is on the right height on one side, than:
 Fastennut#1.Lithefrontbarduringthetwistsothattheallennut#3(allen#6)isfastenedrectilinear.
 Theallennut#3canbeskewisnut#1isloosenedtomuch.
5. Repeatthestepsaboveontheothersideuntilthefrontbarisinthesamelinewiththetopcap.
Attention! Never touch nut #4.
4
1
2
3

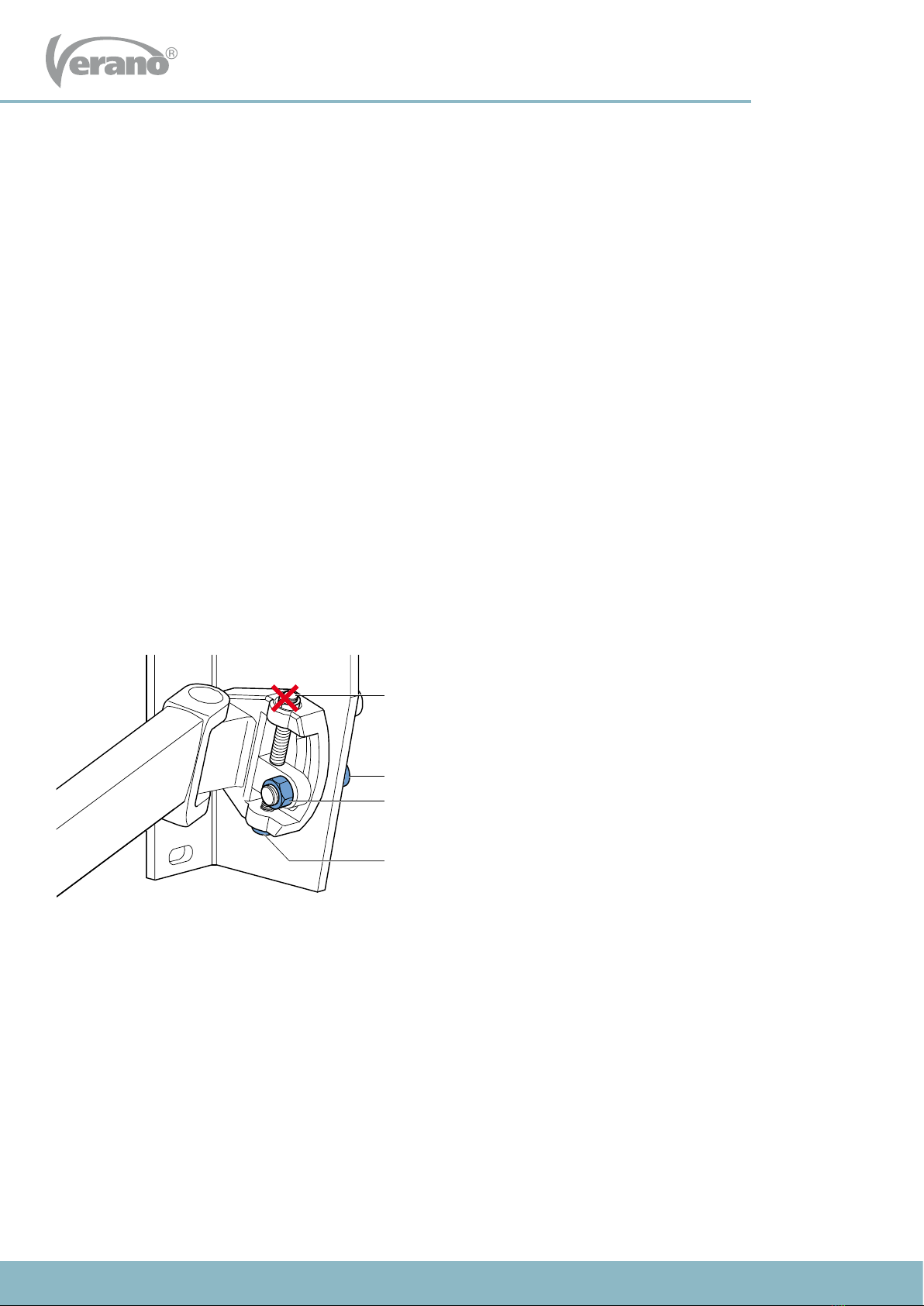

g. 4.1 Detail arm connection right
4. Inclination

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
10
Subject to misprints, errors and technical modifications.
5.1 Setting the front bar
The right position can be achieved if the front bar connects perfectly to the top- and bottom cap if the awning is closed.
Seegure5.1.
Follow the steps below if the opening between the cap and the front bar is to large:
1. Unroll the awning until the arms and the fabric are completely tension free.
2. Attheendofthefoldingarms(onthesideofthefrontbar),armconnectionsarelocated.Seegure5.1.
3. Twist the bolts #1 (allen 10) loose on both sides.
4. Put the front bar in the desired position.
5. Fasten the bolts #1.
6. Rollintheawning.
211
g. 5.2 Detail arm connection on front bar
g. 5.1 Position front bar
5. Front bar
Attention! Never touch allen #2.
Attention! The fabric should always be on the underside.

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
11
Subject to misprints, errors and technical modifications.

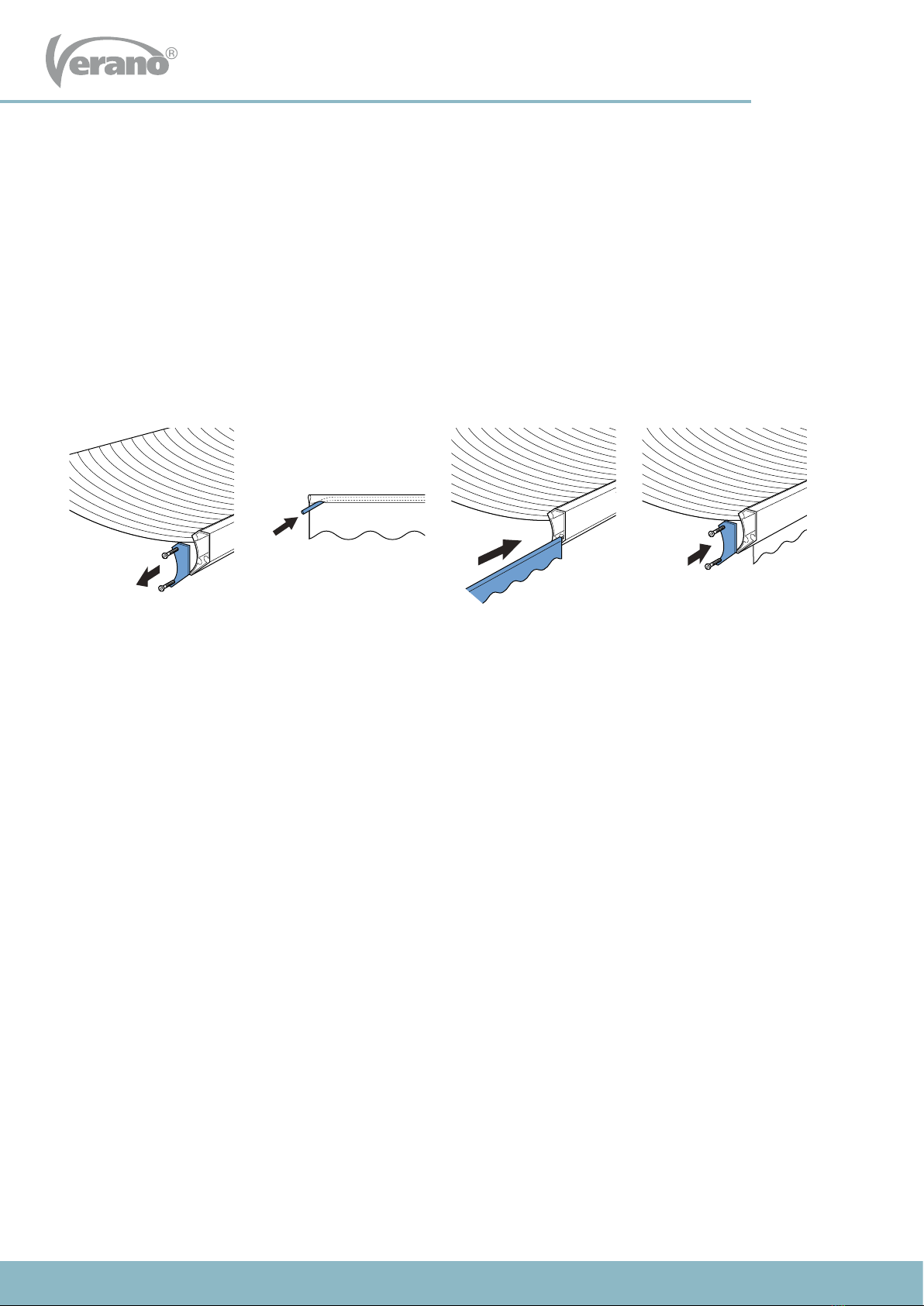

6.1 Installation of the valance
Followthestepsbelowfortheinstallationofthevalance.Seegure6.1.
1. Take the cover of the front bar on one side. The fabric tendon is locked in the front bar.
2. Slide the fabric tendon in the valance at the side where the fabric is open.
3. Slide the valance carefully in the intended recess. Make sure that you guide the valance well to prevent ripping of
the fabric.
4. Place the cover on the front bar.
6. Valance
1
234
g. 6.1 The installation of the valance

INSTALLATION MANUAL AWNING V210 - RHODOS
1787-190830EN
12
Subject to misprints, errors and technical modifications.
User information
A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production
process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and nely
detailed aer-care, nothing is le to chance. This allows us to guarantee the resistance as well as the strength and durability of the
colours of your screen for many years to come.
Starting with a completely pigmented poly-acryl material, which gives it its exceptional quality, our screens have the advantage of
total monitoring during the production process. In spite of all this there may be small irregularities in your screen that are diicult to
detect and impossible to avoid. They are inherent in all technical materials butdo not reduce the technical presentation and durability
of your screen.
Waling, chalk stripes, small pleats next to the seam or in the middle of the screen or nap can appear. The retailer cannot be held
responsible for these irregularities.
Cable motor: if broken o, cannot be guaranteed.
Thesesmallirregularitieshavenoeectwhatsoeveronthequalityofthescreenanddonotconstitutethescreenbeing
replaced. However do inform us if you notice any irregularities in colour fastness, decay or resistance, in fact in any of the
basic characteristics of our 2-year guarantee.
Wave forming or wrinkle forming
All technical materials can display
these symptoms in the middle of
a canvas. They are especially
noticeable with backlight through
thedierenceinlightreection.
Wave forming
Next to the seams, caused by the
unavoidabletensiondierencein
rolling up.
Fold stripes/ chalk stripes
A fold caused during the
manufacture, can show a darker
stripebylightreection.Thisis
mostly noticeable in lighter
coloured blinds.
