INSTRUCTION MANUAL • ENGLISH & ESPAÑOL
KNEE WRAP TENS + Heat
Pain Management Solution
Model 22-033KW; Wrap plus stimulator
Model 22-050; Wrap only
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE
USING YOUR TENS DEVICE
Intention for Use:
To be used for temporary relief of pain associated with sore and aching muscles in the
knee joint due to strain from exercise or normal household and work activities.
It is also intended for symptomatic relief and management of chronic, intractable pain
and relief of pain associated with arthritis.
See pg 5 of this manual for further details.

2 • ENGLISH

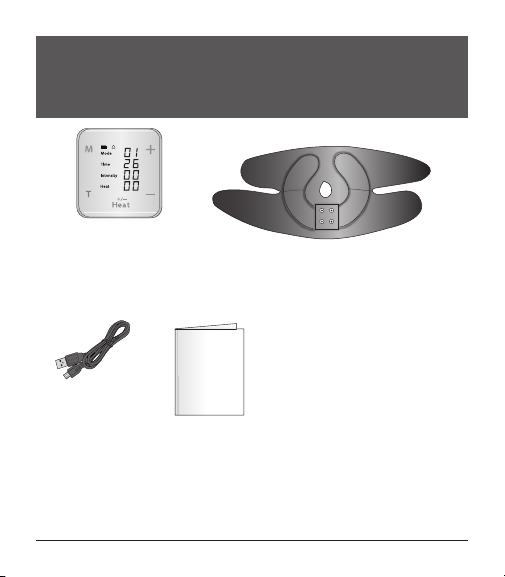

STOP! PLEASE ENSURE YOU HAVE ALL OF
THE FOLLOWING COMPONENTS BEFORE
USING YOUR TENS DEVICE
IF YOU ARE MISSING ANY PARTS, INCLUDING
INSERTS OR INSTRUCTION MANUALS, DO NOT
RETURN TO PLACE OF PURCHASE.
CONTACT CUSTOMER CARE AT 8663261313.
Instruction Manual
Replacement
Parts Order Form
USB Cable
Electric Stimulator
Knee Wrap
(22-050 includes wrap only)

ENGLISH • 3
Introduction/Indications for Use ............................................................................................................4–5
Care and Safety Information..................................................................................................................6–13
Product Features.................................................................................................................................... 14–15
Charging the Device ............................................................................................................................. 16–17
Preparing Your Device .......................................................................................................................... 18–20
Placement & Treatment............................................................................................................................... 21
Pulse Program Descriptions................................................................................................................ 21–22
Instructions for Use............................................................................................................................... 23–26
Optional Accessory —Gel Pads ......................................................................................................... 27–30
Cleaning and Storage.................................................................................................................................. 31
Troubleshooting ........................................................................................................................................... 32
Device & Label Symbols.............................................................................................................................. 33
Electromagentic Compatibility.......................................................................................................... 34–37
Product Specications.......................................................................................................................... 38–39
Warranty Information........................................................................................................................... 40–41
Español..................................................................................................................................................... 43–83
Toll-Free Customer Care Help Line:
1-866-326-1313
Monday – Friday
8:30 a.m. – 4:30 p.m. CST
INDEX
Distributed by
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
www.veridianhealthcare.com
Made in China
#93-1371 01/18
©2018 Veridian Healthcare, LLC

4 • ENGLISH
INTRODUCTION
Electronic Stimulator delivers electric pulses and heat generated to
the user’s skin through the electrodes. The portable and compact
device has multiple modes of dierent pulse frequencies, covering
Transcutaneous Electrical Nerve Stimulation (TENS) and Electrical
Muscle Stimulation (EMS). It includes operating elements of POWER–
ON/OFF button, intensity increase button, intensity decrease button,
mode button, timer button, and heat button, and can be attached and

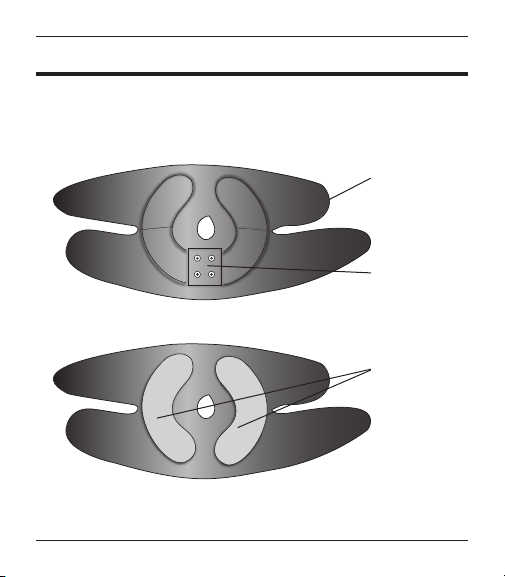

detached to the electrode through the four magnetic connectors.

ENGLISH • 5
INDICATIONS FOR USE
TENS (Modes 1, 2, 4, 5, 6, 8)
To be used for temporary relief of pain associated with sore and aching
muscles in the shoulder, waist, back, arm, and leg, due to strain from
exercise or normal household and work activities.
It is also intended for symptomatic relief and management of chronic,
intractable pain and relief of pain associated with arthritis.
EMS (Modes 1, 3, 7)
To stimulate healthy muscles in order to improve and facilitate muscle
performance. To be used for the improvement of muscle tone and
rmness, and for strengthening muscles in the arms, abdomen, legs,
and buttocks. Not intended for use in any therapy or for the treatment
of any medical conditions or diseases.
It is also intended to temporarily increase local blood circulation in the
healthy muscles of lower extremities.
Heating Mode
Temporary relief of minor aches and pain
Consult with your physician before using electrical stimulation and
heat simultaneously.

6 • ENGLISH
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
NOTE: Read all instructions and inserts included with this device
carefully before use. The following basic precautions are needed when
using an electrical product.
Consult with your physician before using electrical stimulation and
heat simultaneously.
CAUTION: Failure to read and observe all precautions could result in
injury or equipment damage.
Improper care or use of your device may result in injury, damage to the
unit or ineective treatment. Following these instructions will ensure
the device’s ecacy and long life.
CONTRAINDICATIONS :
• Do not use this device if you have a cardiac pacemaker, implant-
ed debrillator or other implanted metal or electronic device.
• Do not use this device to treat undiagnosed chronic pain.
• Do not use this device if you have suspected or diagnosed heart
problem.
• Do not use this device if you have suspected or diagnosed
epilepsy.

ENGLISH • 7
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
• Do not use this device if you have a tendency to bleed internally
following an injury.
• Do not use this device during pregnancy.
GENERAL WARNINGS PRIOR TO USE
• If you are under the care of a Physician, consult with your Physi-
cian before using this device.
• Long-term eects of this device are not known.
• Do not place the device on or close to your heart.
• Take care when applying device close to the neck; do not place
this device on the front or sides of the neck. Severe spasm of the
muscles may occur and the contractions may be strong enough
to close the airway or cause diculty in breathing. Stimulation
over the neck could also aect hearing or blood pressure.
• Do not apply stimulation across the chest because the intro-
duction of electrical current into the chest may cause rhythm
disturbances to the heart.
• Do not place the device on or around your head. The eects of
stimulation of the brain are unknown.

8 • ENGLISH
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
• Do not use this device while sleeping.
• Do not use if you feel numbness.
• Do not use this device in or close to water.
• Use only on normal, healthy, clean skin. Do not use on or close
to open wounds or rashes, or over swollen, red, infected or
inamed skin.
• Do not apply stimulation over, or in proximity to, cancerous
lesions.
• Do not use the device on children or incapacitated persons.
• Consult with your physician before using this device, because
the device may cause lethal rhythm disturbances to the heart in
susceptible individuals.
GENERAL CAUTIONS PRIOR TO USE
• Read this manual before using this device for the rst time.
• Keep this manual available whenever you use this device.
• This device is intended for individual person use only.
• This device is not eective for pain associated with Central Pain
Syndromes, such as headaches.

ENGLISH • 9
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
• This device is for pain caused by muscle soreness, and should be
placed only around muscles where pain originates.
• The pain may indicate that you have some other health problem.
You should know the reason and source of your pain before
using these devices.
• The safety of using this device during pregnancy or birth has not
been established.
• The eectiveness of this device depends greatly on a person’s
individual physical condition. It may not always be eective for
every user.
• If you have had medical or physical treatment for your muscle
pain, consult with your treatment provider before using this de-
vice. You should contact your physician prior to using this device
following recent surgical procedures. Stimulation may disrupt
the healing process.
OPERATING WARNINGS & CAUTIONS
CONSULT WITH YOU PHYSICIAN IFYOU HAVE ANY OF THE FOLLOWING:
• If you have suspected or diagnosed heart problem.

10 • ENGLISH
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
• If you have suspected or diagnosed epilepsy.
• If you have a tendency to bleed internally following an injury.
• If you recently had surgery, or have ever had surgery on your
back.
• If areas of skin lack normal sensations, such as skin that tingles
or is numb.
• During menstruation or during pregnancy.
• The unit is intended for the temporary relief of pain caused by
muscle soreness. The source or cause of the pain should be
addressed by a healthcare professional. Pain could indicate an
injury or condition that requires treatment.
• Some people may feel skin irritation or experience a very sensi-
tive feeling in the skin due to electrical stimulation. If this occurs,
stop using these devices and consult your physician.
• If skin under the pad(s) feels irritated after using the stimulator
for a long period of time, use the stimulator for a shorter period
of time.
• Minor redness at stimulation placement is a normal skin
reaction. It is not considered a skin irritation, and it will normally
disappear within 30 minutes after the electrodes are removed.

ENGLISH • 11
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
If the redness does not disappear after 30 minutes from the
removal of electrodes, do not use the stimulator again until after
the excessive redness has disappeared.
• Turn o your device if the stimulation feels unpleasant or does
not provide pain relief.
• May cause serious burns. Do not use over sensitive skin areas or
in the presence of poor circulation. The unattended use of this
device by children or incapacitated persons may be dangerous.
To reduce the risk of burns, electric shock, and re, this device
must be used in accordance with the instructions.
• Do not crush the device and its electrodes; avoid sharp folds.
• Carefully examine the device controller, belt and electrodes (if
using), and do not use if they show any sign of deterioration.
• Do not tamper with this device and its electrodes in any way.
There are no user serviceable parts. If for any reason they do not
function satisfactorily, return to the authorized service center at
address given.
• Keep this device out of the reach of children.
• Use this device only with the pads and accessories recommend-
ed by the manufacturer.

12 • ENGLISH
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
• Do not use this device when driving, operating machinery or
when swimming.
• Before removing the Electrode Pad, be sure to turn it OFF, avoid-
ing unpleasant stimulation.
• TENS is not a substitute for pain medications and other pain
management therapies.
• TENS is a symptomatic treatment and, as such, suppresses the
sensation of pain that would otherwise serve as a protective
mechanism.
• Do not use the unit while sleeping.
• After each use, clean any adhesive residue left on the skin with
soap and water.
• The eectiveness of stimulus therapy varies from person to
person. It may not be an eective treatment for all users.
• The long-term eects of stimulus therapy are unknown.

ENGLISH • 13
IMPORTANT SAFEGUARDS
WARNINGS & CAUTIONS
STORAGE WARNINGS & CAUTIONS
• Storage outside of stated storage temperature may result in
measurement error or device malfunction; storage environment
temperature is: 14°F – 122°F (-10°C – 50°C);
humidity: 30–90% RH.
• Keep the unit out of reach of small children.
• Do not store the device in direct sunlight, dusty or humid envi-
ronments, or extreme temperatures. Exact gures for appropri-
ate use and storage can be found in the Product Specications
section of this manual.
CLEANING WARNINGS & CAUTIONS
• Never immerse the unit in water to clean as it may damage the
unit.
• Follow the ‘Cleaning and Maintenance’portion of this manual for
instruction on how to clean and care for your device.

14 • ENGLISH
PRODUCT FEATURES
Mode Change
Timer Change
Intensity
Increase (+)
Intensity
Decrease (–)
Heat On/O
Electrical Stimulator
Front
Back
Snap-On Electrode
Contact Points
Power
Lock/Unlock
USB
Port

ENGLISH • 15
PRODUCT FEATURES
Knee Wrap
Hook and Loop
Closure (underside)
Conductive Silver
Pad
Snap-On Electrode
Contact Points
Wrap ts knee circumference 12”~ 19”

16 • ENGLISH
CHARGING THE DEVICE
This device includes an internal rechargeable battery
within the electrical stimulator unit and USB cable.
A USB wall charger/adapter (5V, 1.5A-6A) is required
for charging; not included.
Before rst use, the device should be fully charged. Charging time may
vary depending on the wall adapter used; 3–6 hours from depleted
battery to full charge.
1. Connect the wide end of the USB cable to
a wall adapter.
2. Connect the smaller mini USB to the TENS
stimulator.
3. During charging the battery symbol on
the stimulator will ash. When the device
is fully charged, the battery symbol will be
solid green.
4. Unplug the charger and stimulator when
fully charged; never operate the unit while
charging.

ENGLISH • 17
NOTE:
The TENS + Heat device oers 3 user modes, 8 pulse modes and 20 lev-
els of intensity. As such, the power usage and rechargeable battery life
will vary depending on the users specic settings during treatment.
For example, a fully charged device utilizing mid-range intensity and
only the TENS setting battery life may extend to 20 hours of use. The
same setting with the heat function activated may extend to approxi-
mately 3 hours of use.
For maximum eectiveness, monitor the battery life symbol and
charge the device when the battery level graphic is depleted.
CHARGING THE DEVICE

18 • ENGLISH
YOU MUST
SPRAY CONDUCTIVE
PADS BEFORE USE
The conductive silver pads MUST be lightly
dampened in order for the TENS device to func-
tion properly.
Before application of the wrap, using clean wa-
ter and the enclosed spray bottle, lightly spray
the silver pads until they are damp to the touch.
Never soak the pads or wrap. Do not allow the
controller to get wet.
Apply the wrap and proceed as directed on the
following pages.
PREPARING YOUR DEVICE & WRAP

ENGLISH • 19
PREPARING YOUR DEVICE & WRAP
This wrap is designed for direct contact with
the skin around the front of the knee joint.
1. Place the wrap so that the mesh pads are
situated on the knee, and the gold/silver
controller connection points are in the
front for easy access.
2. The sewn in conductive pads should be
entirely touching the skin. Do not use
over material such as an elastic wrap or
bandage.
3. The wrap should be snug, but not too
tight.
4. While the stimulator device is OFF (the
display is NOT illuminated) carefully
attach the control unit via the magnetic
connection points.
5. Note that the controller can only be
attached in one orientation; apply the
belt and controller as to best allow for
user access to the conroller.
When connecting the
controller, match the silver
to silver, and gold to gold
connection points.
Silver
Gold

20 • ENGLISH
PREPARING YOUR DEVICE & WRAP
6. Pull gently to ensure the controller is
rmly attached.
7. Clothing may be worn OVER the wrap;
ensure any clothing will not interfere
with access to the controller.
Read and review the‘Instructions for
Use’ section of this manual BEFORE
powering ON the controller.
NOTE: The conductive silver pads may be
lightly dampened to increase the stimulus
sensation.
Before application of the wrap, using clean
water, lightly spray the pads until they are
damp feeling. Never soak the wrap. Do not
allow the controller to get wet. Apply the wrap
and proceed with use as normal.
