Vermont Castings Intrepid INDVR Series Installation instructions

120012761Vermont Castings • Intrepid DV Installation Manual_R15 • 04/18
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certied
kit is used.
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use
any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
– If you cannot reach your gas supplier, call the
re department.
• Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional
information consult a qualified installer, service
agency or the gas supplier.
WARNING
!
Installation & Operating Manual
Installation and Appliance Setup - Care and Operation
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Call your dealer for questions on Installation, Operation, or Service.
12761
Intrepid DV Cover
6/07

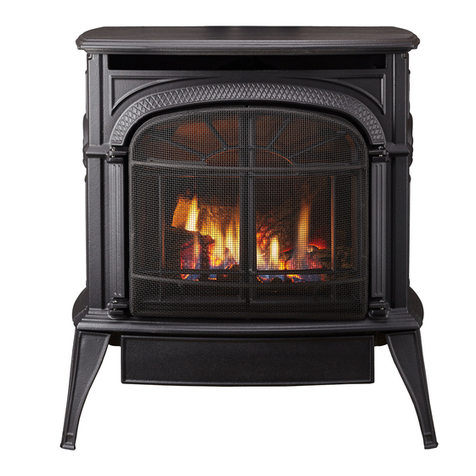

Intrepid®Direct Vent Gas Heater
Model: INDVR
NOTICE: SAVE THESE INSTRUCTIONS

220012761
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
Thank you and congratulations on your purchase of a Vermont Castings stove.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible re hazard and will void the warranty.
Table of Contents
Installation & Operating Instructions
General Information............................................................. 3
Requirements for the Commonwealth of Massachusetts.... 4
Stove Dimensions................................................................ 5
Installation Requirements.................................................... 6
Locating the Stove............................................................... 6
Clearance Requirements..................................................... 6
Minimum Clearances, Parallel Installation,
Corner Installation..................................................... 7
Wall and Ceiling Clearances ............................................... 7
Mantel Clearances............................................................... 7
Hearth Requirements .......................................................... 7
Gas Specications............................................................... 8
Air Shutter Setting ............................................................... 8
Gas Inlet and Manifold Pressures ....................................... 8
High Elevations.................................................................... 8
Horizontal Termination......................................................... 8
Vertical Termination ............................................................. 9
Restrictor Plate Adjustment for Extended Pipe Runs .......... 9
Vent Termination Clearances............................................... 10
General Venting Information / Termination Location............ 11
Termination Clearances....................................................... 12
Installation
Install Optional FK20 Fan Kit............................................... 13
Venting System Components .............................................. 14
Venting System Assembly,
General Information, Options, Planning ................... 15
Rear Vent............................................................................. 16
Horizontal Installation .......................................................... 17
Vertical Installation............................................................... 19
Cathedral Ceiling Installation............................................... 21
General Maintenance .......................................................... 22
Supplemental Canadian Instructions................................... 22
Vertical Through Existing Chimney...................................... 22
Converting a Class-A Metal Chimney
or Masonry Chimney to a Direct Vent System.......... 25
Connect Gas Supply Line.................................................... 27
Burner Information............................................................... 28
Complete the Assembly....................................................... 28
Install ON/OFF Switch ........................................................ 28
Install the Front Plate........................................................... 28
Thermostat Connection ....................................................... 28
Install the Log Set................................................................ 29
Operation
Your First Fire ...................................................................... 30
Pilot and Burner Inspection ................................................. 30
Flame & Temperature Adjustment ....................................... 30
Flame Characteristics.......................................................... 31
Lighting and Operating Instructions..................................... 32
Troubleshooting................................................................... 33
Fuel Conversion Instructions............................................... 34
Maintenance
Annual System Inspection................................................... 37
Logset and Burner Cleaning................................................ 37
Care of Cast Iron ................................................................. 37
Cleaning the Glass .............................................................. 37
Glass Replacement ............................................................. 37
Gasket Replacement........................................................... 38
Inspect the Vent System Annually ....................................... 38
Check the Gas Flame Regularly.......................................... 38
Stove Disassembly.............................................................. 38
Wiring Diagrams.................................................................. 39
Service Parts List .............................................................. 40
Optional Accessories ....................................................... 41
Warranty ............................................................................. 44
Energuide........................................................................... 48
= Contains updated information



320012761
The Intrepid Direct Vent room Heater, Model INDVR is a vented gas
appliances listed to ANSI Standard Z21.88-2005 and CSA-2.33-
2005 for Vented Room Heaters, and CSA 2.17-M91, Gas-Fired
Appliances For Use at High Altitudes.
The installation of the Intrepid Direct Vent Room Heater must
conform with local codes, or in the absence of local codes, with
National Fuel Gas Code, ANSI Z223.1/NFPA 54 — latest edition
and CSA B-149.1 (EXCEPTION: Do not derate this appliance for
altitude. Maintain the manifold pressure at 3.5” w.c. for Natural
Gas and 10” w.c. for LP gas at maximum input.) Refer to Page 7
(RF only).
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases unless a certied kit is used.
Installation and replacement of gas piping, gas utilization
equipment or accessories, and repair and servicing of equipment
shall be performed only by a qualied agency, preferably NFI
or WETT (Canada) certied. The term “qualied agency”
means any individual, rm, corporation, or company that
either in person or through a representative is engaged in
and is responsible for (a) installation or replacement of gas
piping, or (b), the connection, installation, repair, or servicing
of equipment, who is experienced in such work, familiar with all
precautions required, and has complied with all the requirements
of the authority having jurisdiction.
The Intrepid Direct Vent Room Heater should be inspected before
use and at least annually by a qualied service agency. It is
imperative that control compartments, burners, and circulating
air passageways of the appliance be kept clean.
The Intrepid Direct Vent Room Heater and the individual shut-off
valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).
The Intrepid Direct Vent Room Heater must be isolated from the
gas supply piping system by closing the individual manual shutoff
valve during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psig.
An accessible tap is located above the pilot/on-off knob for checking
the inlet pressure.
‘Direct Vent’ describes a sealed combustion system in which
incoming outside air for combustion and outgoing exhaust enter
and exit through two separate concentric passages within the same
sealed vent system. The system does not use room air to support
combustion. The Direct Vent system permits the gas appliance to
be vented directly to the outside atmosphere through the side of
the house or vertically through the roof.
This appliance is approved for bedroom installations in the U.S.
and Canada.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
WARNING: Operation of this heater when not connected to a
properly installed and maintained venting system can result in
carbon monoxide (CO) poisoning and possible death.
The Intrepid Direct Vent Room Heater, when installed, must be
electrically grounded in accordance with local codes or, in the
Installation & Operating Instructions
Proposition 65 Warning: Fuels used in gas, woodburning or
oil red appliances, and the products of combustion of such
fuels, contain chemicals known to the State of California to
cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Intrepid
Direct Vent / Rear Vent
Certied to:
ANSI Z21.88-2009 / CSA Z2.33-2009
Vented Gas Fireplace Heaters
absence of local codes, with the National Electrical Code ANSI/NFPA
70, (latest edition), or of the current Canadian Electrical Code C22.1.
Due to high temperatures this appliance should be located out
of trafc and away from furniture and draperies.
WARNING: This appliance is hot while in operation. Keep
children, clothing, and furniture away. Contact may cause
burns or ignition of combustible materials.
Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition. Young children should be carefully supervised
when they are in the same room as the appliance.
Clothing or other ammable materials should not be placed
on or near the appliance.
Any safety screen, glass or guard removed for servicing an
appliance must be replaced prior to operating the appliance.
The appliance area must be kept clear and free from combustible
materials, gasoline, and other ammable vapors and liquids.
The ow of combustion and ventilation air must not be
obstructed. The installation must include adequate accessibility
and clearance for servicing and proper operation.
WARNING: Do not operate the Room Heater with the glass
panel removed, cracked or broken. Replacement of the panel
should be done by a licensed or qualied service person.
Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
Do not burn wood, trash or any other material for which this
appliance was not designed. This appliance is designed to
burn either natural gas or propane only.
This gas appliance must not be connected to a chimney ue
serving a separate solid-fuel burning appliance.
CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation.
Verify proper operation after servicing.
*Aftermarket: Completion of sale, nor for purpose of resale, from
the manufacturer.

420012761
Installation & Operating Instructions
Requirements for the Commonwealth of
Massachusetts
All gas tting and installation of this heater shall only be done
by a licensed gas tter or licensed plumber.
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in whole
or in part for residential purposes, including those owned or
operated by the Commonwealth and where the side wall
exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not
limited to decks and porches, the following requirements
shall be satised:
Installation of Carbon Monoxide Detectors:
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter shall
observe that a hard wired carbon monoxide detector with an
alarm is installed on each additional level of the dwelling,
building or structure served by the side wall horizontally
vented gas fueled equipment. It shall be the responsibility
of the property owner to secure the services of qualied
licensed professionals for the installation of hard wired carbon
monoxide detectors.
In the event that the side wall horizontally vented gas fueled
equipment is installed in a crawl space or an attic, the hard
wired carbon monoxide detector with alarm and battery back-
up may be installed on the next adjacent oor level.
In the event that the requirements of this subdivision can not
be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above
requirements; provided, however, that during said thirty (30)
day period, a battery operated carbon monoxide detector with
an alarm shall be installed.
Approved Carbon Monoxide Detectors:
Each carbon monoxide detector as required in accordance
with the above provisions shall comply with NFPA 720 and
ANSI/UL 2034 listed and IAS certied.
Signage:
A metal or plastic identication plate shall be permanently
mounted to the exterior of the building at a minimum height
of eight (8) feet above grade directly in line with the exhaust
vent terminal for the horizontally vented gas fueled heating
appliance or equipment. The sign shall read, in print size no
less than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW, KEEP CLEAR OF ALL OBSTRUCTIONS”.
Inspection:
The state or local gas inspector of the side wall horizontally
vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon
monoxide detectors and signage installed in accordance with
the provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions:
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• ProductApproved side wall horizontally vented gas fueled
equipment installed in a room or structure separate from
the dwelling, building or structure used in whole or in part
for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided:
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system
design or venting system components with the equipment,
the instructions provided by the manufacturer for installation
of the equipment and the venting system shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided:
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not provide
the parts for venting the ue gases, but identies “special
venting systems”, the following requirements shall be satised
by the manufacturer:
• The referenced “special venting system” instructions shall
be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved
by the Board, and the instructions for that system shall
include a parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all
venting design instructions shall remain with the appliance
or equipment at the completion of the installation.

520012761
24¹⁄₄”
(616 mm)
13¹¹⁄₁₆” (347 mm) 21³⁄₁₆” (538 mm)
13⁷⁄₈” (352 mm) 21³⁄₄” (553 mm)
16⁷⁄₁₆”
(418 mm)
21³⁄₈"
(543 mm)
18”
(457 mm)
Centerline
of Flue Pipe
12761
Intrepid DV
dimensions
6/07
6¹⁄₂”
(165 mm)
C
L
Valve
Inlet
4”
(102 mm)
C
L
Valve Inlet
Stove Dimensions - Intrepid Direct Vent Gas Heater
Figure 1 - Intrepid dimensions.

620012761
• Always maintain required clearances (air spaces)
to nearby combustibles to prevent re hazard.
Do not ll air spaces with insulation. All venting
components must maintain a 1” (25 mm) clearance
to combustible materials. Maintain a 6” (152 mm)
clearance when using single wall pipe. Maintain a 2”
(51 mm) clearance on top and 1” (25 mm) on sides
and bottom when venting straight off the rear.
• The gas appliance and vent system must be vented
directly to the outside of the building and never be
attached to a chimney serving a separate solid fuel
or gas-burning appliance.
• Refer to the manufacturer’s instructions included
with the venting system for complete installation
procedures.
Installation Requirements
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 - latest edition. (EXCEPTION: Do
not derate this appliance for altitude. Maintain the manifold
pressure at 3.5 inches w.c. for Natural Gas, and 10 inches
w.c. for Propane).
In Canada, installation must be in accordance with the
current CSA B-149.1 Installation Codes and/or local codes.
The installation should be done by a qualied service
person who is familiar with the building codes and
installation techniques appropriate for your area to
accomplish a safe and effective installation.
Your dealer or your local gas supplier will be able to
refer a qualied service person.
A
BC
D
ST936
Stardance rear vent
Stove locations
6/07 djt
Figure 2 - Possible stove locations.
Clearance Requirements
Minimum Clearances to Combustible Materials:
Measure side clearances as shown in Figures 3, 4 and 5
from the outer edge of the cast iron stove top. Measure rear
clearances from the outermost surface of the steel rear skirt.
This heater is approved for installation into an alcove
constructed of combustible materials to the dimensions and
clearances shown on the next page.
The same clearances apply in a standard parallel installation.
Locating the Stove:
In choosing a location for the stove, consider:
• The location of outside walls;
• Where additional heat is needed:
• Where family members gather most often;
• The vent system requirements.
NOTE: We do not recommend the use of wallpaper next
to this stove. Over time, radiant heat may cause the
wallpaper to shrink, or may adversely affect the binders in
the wallpaper adhesive.
WARNING
!
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
The surface of the Heater is hot when it is in use. Young
children should be watched carefully when they are
in the same room when the Heater is in use, and they
should be taught to avoid the hot surface. Keep any
objects that can burn well away from the Heater, and
observe the recommended clearances that follow.
WARNING
!
Due to high temperatures, the HEATER should be
located out of trafc and away from furniture and
draperies.

720012761
A (Max.) B (Min.)
9
(230 mm)
10-1/2"
(270 mm)
7-1/2"
(190 mm)
9"
(230 mm)
6"
(152 mm)
7-1/2"
(190 mm)
4-1/2"
(114 mm)
6"
(152 mm)
3"
(76 mm)
4-1/2"
(114 mm)
1-1/2"
(38 mm)
3"
(76 mm)
A = Depth of Mantel and/or Top Trim
B = Height from Top of Heater
C
L
18³⁄₄"
(476 mm) 2¹⁄₂"
(64 mm)
4"
(102 mm)
4"
(102 mm)
ST947
Intrepid
Parallel installation
6/07
Max. Vent
Length
24” (610 mm)
Figure 3 - Parallel Installation, minimum back and side clearance.
Parallel Installation: Minimum Clearance and Flue
Centerline
2" (51 mm)
2"
(51 mm)
7¹⁄₂"
(190 mm)
Max. Vent
Length
24" (610 mm)
St948
rear corner specs
6/07
Corner Installation: Minimum Clearance and Flue
Centerline
Figure 4 - Corner installation, minimum corner clearance and ue
centerline.
Wall and Ceiling Clearances
9"
(230 mm)
Max. Mantel
Width
Refer to
Fig. 6
4"
(102 mm)
Sidewall/
Trim 2¹⁄₂"
(63 mm)
Rear Wall
St949
Wall/Ceiling clearances
6/07
Figure 5 - Alcove and ceiling clearances.
Mantel Clearances
Figure 6 - Mantel / top trim clearances.
Hearth Requirements:
The Intrepid Heater must be installed on rigid ooring. When
the heater is installed directly on any combustible surface
other than wood ooring, a metal or wood panel extending the
full width and depth of the unit must be used as the hearth.
There are no other hearth requirements.
Noncombustible
Materials
ST382
Pinnacle
mantel clearances
6/13/00 djt
A
B
3" (75mm) Min.
Combustible
Mantel or Trim
Materials

820012761
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 - latest edition. (EXCEPTION:
Do not derate this appliance for altitude. Maintain the
manifold pressure at 3.5” w.c. for Natural Gas and 10”
w.c. for Propane.)
High Elevations
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500
feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Horizontal Termination:
Except for straight-through the wall vent installations.
The vent must rise vertically a minimum of 24” (610 mm)
after the rst elbow directly off the back of the unit, before
the next elbow. The horizontal run may extend up to 20’ (6
m) and include a vertical rise of up to 40’ (12 m). (Figure 7)
Horizontal termination must also meet the criteria shown in
Figures 11 and 12.
• Approved vent systems must terminate above and including
the heavy line in Figure 7.
• Two 45° elbows may be substituted for each single 90˚
elbow.
• With a rise between 2’ - 5’, one 90° or two 45° elbows may
be used (Excluding the rst elbow directly off the back of
the unit.
20
19
18
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Vertical Run (in feet)
Measured after the first elbow. (Transition elbow)
Horizontal Run (in feet)
21
22
23
24
25
26
27
28
29
30
ST134a
FDV28
Horizontal
vent run
12/3/99 djt
areas modified
1/11/00 djt
May use up to
four 90° Elbows
(Including elbow
directly off back of
unit.)
Two 90°
Elbows
Unacceptable
Venting Conguration
Unacceptable
Venting Conguration
Figure 7 - Horizontal vent termination window.
Gas Specications
Model Fuel
Gas
Control
Max.
Input
BTU/h
Min.
Input
BTU/h
INDVR Series Natural Millivolt 18,500 12,500
INDVR Series Propane Millivolt 16,000 12,000
Weight: Fully assembled 350 lbs.
Air Shutter Setting
Minimum Injector Air Inlet Opening
Model Natural Gas LP (Propane)
INDVR 1/2" Open 1/2" Open
Gas Inlet Manifold Pressure
Natural Gas LP (Propane)
Inlet Minimum 5.5" w.c. 11.0" w.c.
Inlet Maximum 14.0" w.c. 14.0" w.c.
Manifold Pressure 3.5" w.c. 10" w.c.
WARNING
!
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual for correct
installation and operational procedures. For
assistance or additional information consult a
qualied installer, service agency, or the gas
supplier.

920012761
Vertical Termination:
A vertical vent system must terminate no less than 8’ (2.44
m) and no more than 40’ (12 m) above the appliance ue
collar. A restrictor plate (supplied) must be used (where
specied) in all vertically terminated vent systems. NOTE:
The restrictor plate supplied with the vertical termination
kit should be discarded. Install restrictor plate according
to recommendations in Figure 10. A vertically terminated
vent system must also conform to the following criteria:
• No more than three 90° elbows may be used.
• Two 45° elbows may be substituted for one 90° elbow.
No more than six elbows may be used.
• Vent must rise a minimum of 2 feet before offset is used.
• Termination height must conform to roof clearance as
specied in Figure 11.
20
19
18
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Vertical Run (in feet)
(Measured after the first elbow. (Transition elbow)
Horizontal Run (in feet)
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
ST132f
Pinstar
Vertical
vent run
10/9/00 djt
All Vertical
Terminations in
this area Re-
quire use of the
Restrictor Plate*
Vertical terminations
must be within this area
Unacceptable
Venting Conguration
No Restrictor
Plate
Figure 8 - Vertical vent termination window.
Restrictor Plate Adjustment
for Extended Pipe Runs:
This stove is shipped with a restrictor plate in the Parts Bag.
Adjustments can be made by loosening the adjustment
screw to allow the restrictor plate to slide up or down.
(Figure 9) A guide for usage is shown in Figure 10.
NOTE: Some installations may require some adjustment by
the installer for optimum ame appearance. Optimum ame
appearance is a ame that is not subject to tall, dirty yellow
ames producing soot or ames lifting off of the ember bed
ports.
Restrictor Plate Adjustment:
1. Remove the logs if installed.
2. Remove the adjustment screw in the back wall of the
rebox.
3. Install restrictor plate as shown in Figure 9 with angle
on plate on the top right side. Secure with adjustment
screw.
4. Adjust restrictor according to examples in Figure 10.
5. Install logs following log installation instructions.
Figure 10
Examples for Extended Run/Restrictor Plate Settings / top
of plate to center of bolt:
1. 90° elbow, 40’ (12 m) vertical - 27⁄8" (73 mm)
2. 90° elbow, 20’ (6 m) vertical, 90° elbow, 8’ (2.4 m)
horizontal - 27⁄8" (73 mm)
ST936
SDDVT restrictor plate
6/07
Restrictor Plate
Figure 9 - Restrictor plate.

10 20012761
When planning the installation, consider the location of the
vent terminal and clearances. Some of the most common
clearances to keep in mind are shown in Figure 11.
Important: All vent clearances must be maintained.
Check your vent termination clearances against Figures
11 and 12.
The vent should be placed so that people cannot be burned
by accidentally touching the vent surfaces when the stove
is operating.
The vent termination should be located where it cannot be
damaged by such things as automobile doors, lawn mowers
or snowblowers and it should be located away from areas
where it could become blocked by snow, etc.
Some considerations are:
• Obstructions or impediments to venting.
• Nearby combustible materials that could come into contact
with combustion exhaust gases.
• Other nearby openings {within 9” (230 mm)} through which
exhaust gas could reenter the building.
• All vegetation within 3’ (914 mm) that may interfere with
the draft.
Other factors that inuence where the installation will be
sited include the location of outside walls, where additional
heat may be desired in the home, where the family members
gather most regularly, and perhaps most importantly, the
distance limitations of the venting system.
Vent Termination Clearances
Your stove is approved to be vented either through the side
wall, or vertical through the roof.
• Vermont Castings Group does not require any opening
for inspection of vent pipe.
• Only venting components specically approved and
labelled for this stove may be used.
• Minimum clearances between vent pipes and
combustible materials is one (1”) inch (25mm), except
where stated otherwise.
• Venting terminals shall not be recessed into a wall or
siding.
• Horizontal venting must be installed on a level plane
without an inclining or declining slope.
There must not be any obstruction such as bushes, garden
sheds, fences, decks or utility buildings within 24” from the
front of the termination hood.
Do not locate termination hood where excessive snow or ice
build up may occur. Be sure to check vent termination area
after snow falls, and clear to prevent accidental blockage of
venting system. When using snow blowers, make sure snow
is not directed towards vent termination area.
Location of Vent Termination:
It is imperative the vent termination be located observing the
minimum clearances as shown in Figure 11.
• The horizontal termination must not be recessed into
the exterior wall or siding.
• Horizontal vent runs must be level toward the vent
termination.
• Clearances around the vent termination must be
maintained.
IMPORTANT
!

11 20012761
A = Clearance above grade, veranda, porch, 12” (30cm) 12” (30cm)
deck, or balcony
B = Clearance to window or door that may be 6” (15cm) for appliances 6” (15cm) for appliances
opened < 10,000Btuh (3kW), 12” (30cm) < 10,000 Btuh (3kW), 9”
for appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
C = Clearance to permanently closed window 12” (305mm) recommended to 12” (305mm) recommended to
prevent window condensation prevent window condensation
D = Vertical clearance to ventilated soft located
above the terminal within a horizontal 18” (458mm) 18” (458mm)
distance of 2’ (610mm) from the center
line of the terminal
E = Clearance to unventilated soft 12” (305mm) 12” (305mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner (see next page) see next page see next page
H = Clearance to each inside of center line 3’ (91cm) within a height of 15’ (5m) 3’ (91cm) within a height of 15’
extended above meter/regulator assembly above the meter/regulator assembly (5m)above the meter/regulator
assy
I = Clearance to service regulator vent outlet 3’ (91cm) 3’ (91cm)
J = Clearance to nonmechanical air supply inlet 6” (15cm) for appliances < 10,000 6” (15cm) for appliances
to building or the combustion air inlet to any Btuh (3kW), 12” (30cm) for < 10,000 Btuh (3kW), 9”
other appliances appliances > 10,000 Btuh (3kW) and < (23cm) for appliances > 10,000
100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
K = Clearance to a mechanical air supply inlet 6’ (1.83m) 3’ (91cm) above if within 10’
(3m) horizontally
L = Clearance above paved sidewalk or paved 7’ (2.13m)† 7’ (2.13m)†
driveway located on public property
M = Clearance under veranda, porch, deck or 12” (30cm)‡ 12” (30cm)‡
balcony
N = Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof
surface, and any other obstruction within a horizontal distance of 18” (450mm).
V
X
X
X
D
E
B
B
B
C
B M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable Fixed
Closed
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
A
G
CFM145a
V
V
V
VV
V
V
VN
Figure 11 - Vent termination clearances.
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both
dwellings
‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the oor:
NOTE: 1. Local codes or regulations may require different clearances.
2. The special venting system used on Direct Vent Stoves are certied as part of the appliance, with clearances tested and approved by the
listing agency.
3. Vermont Castings Group assumes no responsibility for the improper performance of the appliance when the venting system does not
meet these requirements.
Canadian Installations1US Installations2
General Venting Information - Termination Location

12 20012761
Figure 12 - Termination clearances.
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 12" (305 mm)
P = 6” (152 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
E= Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O= 8’ (2.4 m) Min.
O
P
V
V
V
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions specied for vinyl or
non-vinyl siding and softs. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All mechanical air intakes within 10’ (1 m) of a
termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All gravity air intakes within 3’ (914 mm) of a termination cap must
be a minimum of 1’ (305 mm) below the termination cap.

13 20012761
If you are installing the fan, install it before completing
the stove venting.
If you are not installing a fan, proceed to the appropriate
vent assembly section.
Install Optional Fan Kit FK20
Fan Kit Contents:
• #10 x 1/2” phillips screws, 2
• Control Knob • Wire Tie
• Retaining Nut • Snapstat
• Snapstat Bracket
• Blower Assembly w/ Rheostat Control & Snapstat
1. Remove the rear fan cover by removing the four (4) screws
holding the cover in place on the rear shroud. (Figure 13)
Retain the screws for future use.
2. Attach the Snapstat to the bracket using two (2) #10 x
1/2” Phillips screws. (Figure 14)
3. Locate and remove the 1/4-20 x 3/8” hex head bolt
installed in the hole in the right rear ledge of the rebox.
(A, Figure 14) Use that bolt to secure the snapstat bracket
to the rebox. The mounting hole is slotted to allow you
to adjust the bracket so the snapstat head makes contact
with the rebox surface. (Figure 14)
4. Attach the fan to the rebox by reusing the two (2) pan
head 1/4-20 screws on the top edge and the two (2) #10
x 1/2” sheet metal screws on the side edges. (Figure 15)
5. The rheostat control switch attaches to the control panel
plate provided on the front of the stove.
Installation
NOTE: Verify the two relief doors (located on top of the
rebox) are properly seated on the gasket. The doors sit
ush on the gasket, and should lift easily from the seal
around the opening.
Unpack the Stove:
The stove is shipped fully assembled on its back. Unpack
the stove and carefully set it upright.
KT899
FK30 remove cover
6/07
Remove Four
(4) Screws
(Retain for
future use)
Figure 13 - Remove four (4) screws holding rear fan cover in
place. Retain for future use.
KT900
attach snapstat
7/07
A
1/4-20 x 3/8’
Phillips Screw
1/2” Sheet
Metal
Screw
Snapstat Snapstat Bracket
Figure 14 - Attach snapstat.
Upper
Flange
1/4-20 x 3/8”
Screws (2)
#10 x 1/2”
Sheet Metal
Screw
To Control
Valve
#10 x 1/2” Sheet
Metal Screw
Figure 15 - Use screws removed earlier to attach fan kit to rebox.
• Insert the switch box shaft through the hole in the back of
the left side of the panel, aligning the locator pin with the
smaller hole in the panel. (Figure 17)
• Attach the retaining nut to the switch control shaft to secure
it to the plate.
• Attach the control knob to the rheostat shaft.
Porcelain enamelled surfaces are fragile. Handle porcelain
enamelled castings tenderly. Familiarize yourself with
the assembly steps before you begin and proceed
with deliberation and care. If possible, have assistance
available.
Place enamelled castings on a soft, cushioned surface
until you are ready to assemble.
Avoid contact between the castings and other hard
surfaces or objects.
CAUTION
!

14 20012761
ST347a
JUV
FK28
rheostat install
9/21/00
Rheostat
Retaining Nut
Rheostat Knob
Figure 17 - Attach rheostat to bracket.
ST240
FDV attach fan
12/13/99 djt
Figure 16 - Correct position of fan skirt installation.
Approved Vent System Components
The Intrepid Heater must be vented to the outdoors through
an adjacent exterior wall or through the roof. The venting
system must be comprised of the appropriate listed venting
components specied on this page. These parts are
available from DuraVent Corporation.
See Figure 4 for dimensions relevant to the standard
minimum-vent kits.
DuraVent Components
www.duravent.com
Phone: [phone], Fax: [phone]
Minimum Horizontal Vent Kit 46DVA-KHC
Venting Component required for:
Basic Straight Through-the-Wall Installation
Horizontal Termination Cap 46DVA-HRC
Vermont Castings Group Zero Clearance
Sleeve (included) 54623
Firestop 46DVA-WFS
Wall Thimble Cover 46DVA-DC
24” Straight (Maximum length) 46DVA24B
Hardware Package (2 req’d) 56167
NOTE: DuraVent Wall Thimble, 46DVA-WT is not
approved for use with this appliance except in
noncombustible masonry walls.
For corner installation add:
45° Elbow, Blk. 46DVA-E45B
Venting Components
90° Elbow, Blk. 46DVA-E90B*
45° Elbow, Blk. 46DVA-E45B
6" Straight, Blk. 46DVA-06B*
9" Straight, Blk. 46DVA-09B
81⁄2" Pipe Extension, Blk 46DVA-08AB*
16" Pipe Extension, Blk 46DVA-16AB
12" Straight 46DVA-12
Venting System Components
• Use the wire tie to secure the fan and rheostat wire
harnesses together to the tubing under the bottom of
the unit.
24" Straight 46DVA-24B*
36" Straight 46DVA-36B
48" Straight 46DVA-48
Square Horizontal Termination Cap 46DVA-HC
Sconce Horizontal Termination Cap 46DVA-HSC
Round Horizontal Termination Cap 46DVA-HRC
Wall Plate 46DVA-DC*
Vinyl Siding Standoff 46DVA-VSS
Snorkel Termination - 14" 46DVA-SNK14
Snorkel Termination - 36" 46DVA-SNK30
Wall Strap 46DVA-WS
Cathedral Ceiling Support Box 46DVA-CS
Storm Collar 46DVA-SC
Firestop Spacer 46DVA-FS
Flashing 0/12 - 6/12 46DVA-F6
Flashing 6/12 - 12/12 46DVA-F12
Wall Thimble 46DVA-WT*
Wall Thimble Cover (Brass) 3PVP-TKV
Wall Firestop 46DVA-WFS
Attic Insulation Shield 46DVA-IS
Co-Linear Vent Adapter 46DVA-GCL
Steel Chimney Conversion Kit
Kit A (65⁄8" - 85⁄8") 46DVA-KCA
Kit B (65⁄8" - 101⁄2") 46DVA-KCB
Kit C (65⁄8" - 13") 46DVA-KCC
Masonry Chimney Conversion Kit 46DVA-KMC
Vertical Termination Cap (High Wind) 46DVA-VCH
Vertical Termination Cap (Low Prole) 46DVA-VC
*Included in Minimum Horizontal Vent Kit 46DVA-KHC
All DuraVent Straight vent pipe sections have a net length
11⁄2" (37 mm) less than the nominal dimension; i.e., a 6”
(152 mm) Straight pipe section has an effective length of
41⁄2" (115 mm).
Refer to the DuraVent website for additional components.
(www.duravent.com)

15 20012761
Venting System Assembly
General Information:
The Intrepid is approved for installation only with the Dura
Vent components listed on Page 14. Follow these and the
vent component instructions exactly.
For U.S. installations: The venting system must conform
with local codes and/or the current National Fuel Gas Code,
ANSI Z223.1/NFPA 54
For Canadian installations: The venting system must
conform to the current CSA B149.1 installation code.
Options:
The DuraVent Direct Vent Pro offers a complete line of
component parts for both horizontal and vertical installation.
Many items are offered in decorative black as well as
galvanized nish. The galvanized pipe and ttings may
be used for concealed locations such as attics, or spaces
where corrosion is a factor, such as above the rooine.
Decorative black painted sections are recommended for
use on visible interior runs. Decorative brass trim kits are
available for both Wall Thimbles and Ceiling Support Boxes.
Snorkel Terminations are available for applications which
may require vertical rise on the building exterior.
Planning Your Installation:
There are two basic types of Direct Vent Pro installations:
Horizontal Termination (Figs. 18 and 19)
Vertical Terminations (Figure 20)
When planning your installation, it will be necessary to select
the proper length of vent pipe for your particular requirement.
For horizontal installations, check these instructions to
determine the minimum clearance from the rear of the
appliance to the wall. It is also important to note the wall
thickness. Select the amount of vertical rise desired or
required, for “vertical-to-horizontal” installations (verify that
it is within the minimum and maximum limits. Refer to Page
7). To determine the length of vent pipe required for vertical
installations, measure the distance from the appliance ue
outlet to the ceiling, the ceiling thickness, the vertical rise in
an attic or second story, and allow for sufcient vent height
above the rooine. For multi-story applications, restops
are required at each oor/ceiling level. If an offset is needed
in the attic, additional pipe and elbows will be required.
Figure 18
ST973
simpson rear install
8/07
Pipe Section
Round Ceiling Support /
Wall Thimble Cover
Square Horizontal
Termination
Firestop
Zero Clearance Wall Sleeve
Figure 19
ST974
simpson thru
the wall
8/07
Square Horizontal
Termination Cap
Round Ceiling
Support / Wall
Thimble Cover
Pipe Section
90° Elbow
Pipe Section
90° Elbow
Firestop
Zero Clearance
Wall Sleeve

16 20012761
Figure 21 - Locate vent opening. NOTE: Zero clearance sleeve
is required for combustible wall installations.
VO584-100a
Vent Opening
7/07 djt
10"
(254 mm)
10"
(254 mm)
7¹⁄₂" Dia.
(190 mm)
Framing Detail
Vent Opening - Combustible Wall
Vent Opening - Noncombustible Wall
Figure 22 - Intrepid minimum horizontal rear vent installation.
ST950
install pipe thru wall
7/07
18¹⁄₄"
(464 mm)
to
Center of
Opening
Firestop
Wall Plate
10” x 10” (254 x 254 mm)
Wall Opening
Zero Clear-
ance Sleeve
- Seal Around
Seal Around
Terminal All Components Must
Remain Concentric
ZCS103
Zero Clearance Sleeve
& Firestop
12/6/99 djt
12”
(305mm)
Max. Length Sleeve
#8 Sheet Metal
Screws
Firestop
Figure 23 - Assemble the wall sleeve and restop.
3. Install the Wall Firestop/Sleeve assembly into the wall
cutout and fasten the restop to the wall cutout framing
members. (Figure 23)
Rear Vent:
Use components listed on Page 14 under ‘Basic Straight
through-the-Wall Installation’ for an installation where the
heater is parallel to the wall and the vent system extends
straight back through that wall.
1. Locate the vent opening on the wall. Refer to Figures 20
& 21 to determine the top of the opening centerline. It may
be necessary to rst position the stove and measure to
nd the hole location. Depending on whether the wall is
made of combustible materials, cut the opening to the size
shown in Figure 21. Combustible wall openings must be
framed as shown in Figure 21.
2. Measure the wall thickness and cut the zero clearance
sleeve sections to proper length (MAXIMUM 12”).
Assemble the sleeve with the #8 sheet metal screws
supplied. Attach the restop plate to the sleeve end with
the holes. (Figure 22) NOTE: The zero clearance sleeve
is required in combustible walls only.
ST975
simpson
straight up
8/07
Vertical High
Wind Termination
Cap (shown)
Storm Collar
Roof
Flashing
Ceiling Firestop
Round Ceil-
ing Support /
Wall thimble
Pipe Section
Cathedral
Ceiling Support
Box
90°Elbow
Figure 20

17 20012761
4. Slip the wall cover over the interior end of the horizontal
pipe and install into the zero clearance sleeve. Seal the
joint inside the wall plate if needed to keep cold air from
being drawn into the home.
5. Install the vent terminal. (Figure 22) Guide the inner and
outer vent termination collars into the adjacent pipes.
Double check that the vent pipes overlap the collars by 2”.
Fasten the termination to the outside wall with the screws
provided, and caulk the joint with weatherproof sealant.
6. Use wall straps to support vertical pipe runs at 4’ (1219
mm) intervals.
Horizontal Installation
Step 1. Set the gas appliance in its desired location. Check
to determine if wall studs or roof rafters are in the way once
the venting system is attached. If this is the case, you may
want to adjust the location of the appliance.
Step 2. DirectVent Pro pipe and ttings are designed with
special twist-lock connections. To connect the venting
system to the appliance ue outlet, a twist-lock appliance
adaptor is built into the appliance at the factory. Assemble
the desired combinations of black pipe sections and elbows
to the appliance adapter with pipe seams oriented towards
the wall or oor, as much out of view as possible. (Figure
24)
St977
simpson framing
8/07
C
L
Center of
Hole
Figure 26
NOTES:
1. The horizontal run of venting must be level, or have a
1/4” (6 mm) rise for every 1’ (305 mm) of run toward
the termination. Never allow the vent to run downward.
A downward slope can trap heat and become a possible
re hazard.
Figure 25
2. Horizontal vent runs of vent pipe must be supported to
prevent any downward sags. Horizontal pipe sections
should be supported at least every 4’ (1.2 m). Wall straps
can be used for this purpose. Alternatively, plumbers
tape or other suitable noncombustible material can be
used to support the vent pipe.
3. DirectVent Pro venting requires no sealant.
Step 3. With the appliance adapter and pipe section
attached, slide the stove into its correct location. Mark
the wall for a square hole that measures 10” x 10” (254
x 254 mm). The centerline of the pipe should line up with
the center of the square hole. (Figure 26) Cut and frame
the square hole in the exterior wall where the vent will be
terminated. If the wall being penetrated is constructed of
noncombustible material only, i.e. masonry block, brick or
concrete only, a hole with zero clearance is acceptable.
ST977
simp twist lock
8/07
Figure 24
NOTES:
1. Twist-lock procedure: Line up locking lugs on male and
female ends of pipe sections. Insert the male end of pipe
into the female end until the locking lugs are covered.
Twist the female end clockwise an eighth of a turn to lock
sections together. (Figure 25) Screws are not required to
secure the joint, but are acceptable provided they do not
penetrate the inner wall of the vent pipe.
St976
simp pipe
8/07

18 20012761
NOTES:
1. The four (4) wood
screws provided
should be replaced
with appropriate
fasteners for use
on brick, block,
concrete or other
types of sidings.
2. For buildings with
vinyl siding or
stucco, another
component must
be used between
the horizontal
termination cap and
the wall surface.
The vinyl siding
standoff prevents
excessive heat from
possibly melting
the vinyl siding material. Vinyl siding standoffs are not
required with snorkels. For vinyl wall installations a
4-piece vinyl siding standoff should be assembled and
installed between the horizontal termination cap and the
exterior wall. (Figure 30) The vinyl should be cut away to
the outer edges of the assembled standoff.
ST982
simp vinyl sidind
8/07
Cut Back
Siding 4 pc. Vinyl Siding
Standoff
Wood Screws
(4 Req.)
Round
Cap
Sconce
Cap Wood Screw
Figure 30
IMPORTANT: You must attach the four (4) pieces of the
new vinyl siding standoff to the horizontal termination
cap in specic order to ensure a weather tight t. Loosely
assemble the four parts, in order, around the base of the
horizontal termination cap. Place the rst of four pieces
along the upper edge of the cap, then using two (2) screws
per side, secure each piece to the pre-drilled holes along
both sides of the cap, nally, attach the nal piece to the
bottom edge of the cap. Tighten all screws and mount cap,
with all four (4) pieces attached, directly onto the wall with
the four (4) 21⁄2" (64 mm) screws provided. (Figure 30)
12” (305 mm)
Minimum
St980
simp snork drain
8/07
4” (102 mm)
Snorkel
Figure 28
Step 4. Position the horizontal termination cap in the center
of the square framed hole, and attach to the exterior wall
with the four (4) wood screws provided. Before attaching
the vent termination cap to the exterior wall, run a bead of
non-hardening silicone sealant around the outside edges to
make a seal between the cap and the wall. The arrow on the
vent cap should be pointing up. Ensure proper clearances
to combustible materials are maintained. (Figure 29)
12” (305 mm)
Minimum
ST979
simpson snorkel
8/07
4”
(102 mm)
Snorkel
Figure 27
2. The location of the horizontal vent termination on an
exterior wall must meet all local and national building
codes, and must not be easily blocked or obstructed.
Refer to Pages 10 and 11 for proper Termination Clear-
ances.
For installations requiring a vertical rise on the exterior of
the building, 14” (356 mm) and 36” (914 mm) tall snorkel
terminations are available. (Figure 27) Follow the same in-
stallation procedures as used for standard horizontal termi-
nations. If the snorkel termination must be installed below
grade level, (i.e. basement application), proper drainage
must be provided to prevent water from entering the snorkel
termination. (Figure 28) Do not attempt to enclose the snor-
kel within the wall or any other type of enclosure.
HOT
ST981
SIMP termination
8/07
Wood
Screws
Figure 29

19 20012761
Vertical Installation
Step 1. Check these installation instructions for required
clearances (air spaces) to combustibles when passing
through ceilings, walls, roofs, enclosures, attic rafters or
other nearby combustible surfaces. Do not pack air spaces
with insulation. Check these instructions for maximum
vertical rise of the venting system and any maximum
horizontal offset limitations.
Step 2. Set the gas appliance in
the desire location. Drop a plumb
bob down from the ceiling to the
position of the appliance ue exit,
and mark the location where the
vent will penetrate the ceiling.
Drill a small hole at this point.
Next, drop a plumb bob from the
roof to the hole previously drilled
in the ceiling, and mark the spot
where the vent will penetrate the
roof. (Figure 33) Determine if
ceiling joists, roof rafters, framing
or other materials will obstruct
the venting system. You may
wish to relocate the appliance or
to offset, to avoid cutting load-
bearing members.
Step 3. To install the round
ceiling support/wall thimble cover
in a at ceiling, cut a 10” x 10”
(254 x 254 mm) square hole in
the ceiling (unless otherwise
specied) centered on the hole
drilled in Step 2. Frame the hole
as shown in Figure 34.
Step 4. If the twist-lock appliance adapter has not been
installed on the stove, do so now.
Step 5. Assemble the desired pipe sections and elbows
necessary to reach from the appliance adapter up through
the round ceiling cover or support box. Ensure that all pipe
and elbow connections are in their fully twist-locked position.
ST984
straight up locat
8/07
Mark Location
Mark and Drill
Plumb Bob
Figure 33
ST983
wall thimble cover
8/07
Sheet Metal
Screws
Wall Thimble Cover
Zero Clearance
Wall Sleeve
Firestop
Figure 31
Step 7. Slide the wall thimble cover up to the wall surface
and attach to the wall with screws provided. (Figure 32)
Apply optional decorative brass trim to wall thimble cover
if desired.
B984
install thimble cover
8/07
Wood Screws
Figure 32
3. When penetrating through stucco wall, install the
counter ashing. The counter ashing allows stucco,
or other materials, to be nished directly to the sides of
the termination cap. First attach the counter ashing to
the base of the horizontal termination cap with the small
screws provided, then mount entire assembly onto the
wall with the four (4) 21⁄2" (64 mm) wood screws provided.
4. If the optional copper version of the horizontal termination
cap is installed, use an appropriate noncombustible
material to avoid direct contact between the galvanized
and copper metals to prevent possible galvanic reaction.
Step 5. Before connecting your horizontal pipe sections to
the horizontal termination cap, slide the wall thimble cover
over the pipe section nearest the interior side of wall. (Figure
31)
Step 6. Slide the appliance and vent assembly towards the
wall, carefully inserting the pipe section into the cap assembly.
It is important the pipe section extends into the back of the
termination cap with a minimum overlap of 11⁄4" (32 mm). Use
the two (2) sheet metal screws provided to secure the pipe
section to the back of the termination cap. The wall thimble
cover will cover the screw heads. (Figure 31)

20 20012761
ST986
thru ceiling
8/07
Ceiling
Joists Cut
and
Frame
11⁄2" Wood
Screws
Decorative
Ceiling Support
Cover
Figure 34
Step 8. Continue to add pipe sections until the height of
the system (before adding the cap) meets the minimum
building codes requirements as described in Table 2, Figure
37. Note that for steep roof pitches, the vent height must be
increased. In high wind conditions, nearby trees, adjoining
rooines, steep pitched roofs and other similar factors
can result in poor draft, or down drafting. In these cases,
increasing the vent height or switching to the high wind
termination cap may help to solve the problem.
Step 9. Slip the storm collar over the pipe section, and push
it down to the top of the roof ashing. (Figure 38) Use non-
hardening sealant between the storm collar and the pipe
section
Table 2
Roor Pitch Minimum Height
Flat 7/12 1' (914 mm)
Over 7/12 to 8/12 1'6" (45 mm)
Over 8/12 to 9/12 2' (61 mm)
Over 9/12 to 10/12 2'6" (762 mm)
Over 10/12 to11/12 3'3" (990 mm)
Over 11/12 to 12/12 4' (1.2 m)
Over 12/12 to 14/12 5' (1.5 m)
Over 14/12 to 16/12 6' (1.8 m)
Over 16/12 to 18/12 7' (2.1 m)
Over 18/12 to 20/12 7'3" (2.3m)
Over 20/12 to 21/12 8' (2.4 m)
H
ST989
chimney height
8/07
Dimension ‘H’
from Table 2
Figure 37
Step 7. Slip the roof ashing over the pipe section(s) pro-
truding through the roof. Use a non-hardening sealant be-
tween the roof ashing and the roong to prevent water
leakage. Secure the base of the roof ashing to the roof
with roong nails. Ensure the roong material overlaps the
top edge of the roof ashing. (Figure 38) Verify that you
have at least the minimum clearances to combustibles at
the rooine and in the attic.
NOTES:
1. If exact lengths or distances must be met between elbow
offsets or elsewhere, use the pipe extensions to adjust
onto standard pipe sections. (Figure 35)
2. If an offset is necessary in the attic to avoid obstructions,
it is important to support the vent pipe in order to avoid
excessive stress on the elbows. Wall straps or plumber
tape may be used for this purpose. (Figure 36)
3. Wherever possible, use 45° elbows instead of 90°
elbows. The 45° elbow offers less restriction to the ow
of ue gases and intake air.
ST987
pipes
8/07
Pipe
Extension
Pipe
Section
Figure 35
ST988
offset
8/07
Wall Strap
/ Plumbers
Tape
45°
Elbow
45°
Elbow
Figure 36
Step 6. Cut a hole in
the roof centered on
the small drill hole
placed in the roof in
Step 2. The opening
should be of sufcient
size to meet the
minimum requirements
for clearance to
combustibles, as
specied. Continue
to assemble pipe
sections and elbows as
necessary to reach up
through the roof line.
Galvanized pipe and
elbows may be utilized
in the attic, as well as
above the rooine.
The galvanized nish
is desirable above the
rooine, due to higher
corrosion resistance.
