VX-160POE
PoE Ethernet Extender
User Manual
Ver 1.1
MASTER / SLAVE INDOOR UNITS

2
1. Introduction
master unit injects the high power with the data from the Ethernet interface, and transmits both the
data and power to the remote slave unit via a 2-wire line. The remote unit regenerates the power
and provides the PoE capability to power up the farther remote PD device. Up to 15.4 watts can be
supplied to the remote PD device with 100m Ethernet CAT5 cable when powered by a 48V high
slave unit up to 300m distance for AWG24 line when using a 48V high power adaptor. Users may
select different data rates from dip switches on the front panels for different line gauges and
gauges.
With the PoE feature, it conforms to the Safety Extra Low Voltage (SELV) requirement. The
VX-160POE system offers a cost effective solution for remote power applications such as
LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over 2-wire line system.
2. Application Notes

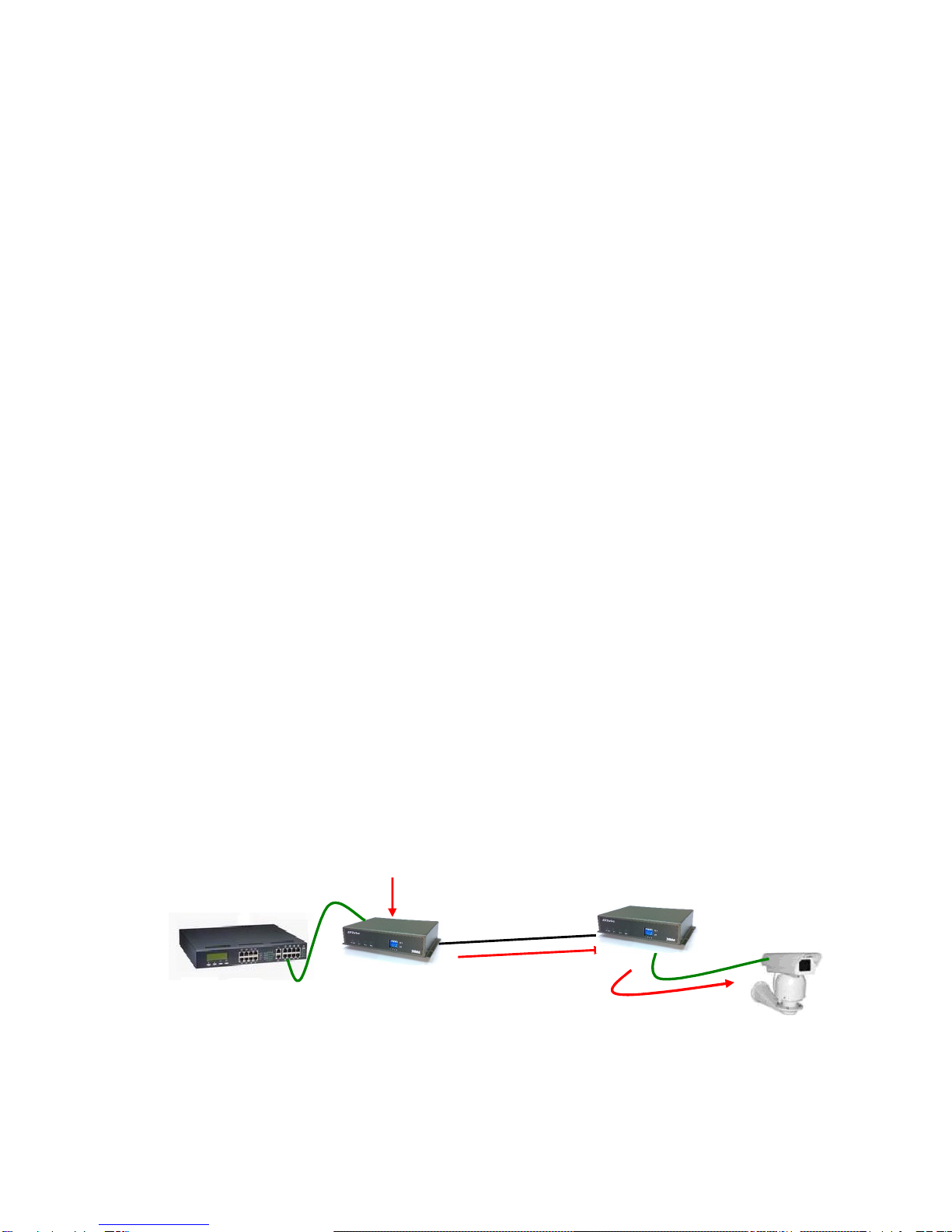

1) Ethernet & Power Extension over coaxial cable
LAN Switch
LAN
Ethernet PSE Power
VX-160POE Master
VX-160POE Slave
Local Power
Line Power
Up to 1000ft for 24 AWG
The VX-160POE system featured one master and one slave unit, provides long-reach Ethernet
extension with remote Power-over-Ethernet (PoE) capability over a 2-wire line. The VX-160POE
power adaptor to the master unit. The VX-160POE system supports the wall-mount feature.
With the RJ11 connector for a 2-wire line connection, the VX-160POE master unit connects with the
distances. The maximum data rate can be up to 60 Mbps in full duplex mode depending on the line

3
3. Features
PoE Ethernet Extender for 10/100M Fast Ethernet interfaces
2-wire RJ11 Connector
Maximum 1000ft distance for AWG24 2-wire line
Line rate up to 60 Mbps full duplex
Dip Switches for line rate settings with Slave following Master
Max. 15.4 watts for remote PD device
IEEE 802.3af PoE Compliant
Auto MDIX for 10/100 BaseT Ethernet LAN Ports
Easy installation with indoor models
Low-Latency for Video/Voice/Data applications
4. Technical Specifications:
Master Unit:
LAN Interface:
Auto-Detection for 10/100 BaseT and Half/Full duplex
Fully compatible with IEEE802.3/IEEE802.3u
Automatic MDIX Function
Connector: RJ45
Line Interface:
Line Rate: 60/60 ~ 10/10Mbps (full duplex)
Rate Selection: Dip Switches with Slave following Master
Safety Extra Low Voltage (SELV) Compliant (< 60V)
Connector: RJ11
LED Indicators:
POWER: Power is ON LINE: Connection Status
LAN: Data Activity of LAN Port M/S: LED OFF indicating Master mode
Local Power Adaptor:
INPUT: 110/240VAC @ 50-60Hz
OUTPUT: 48VDC 65W
Physical Dimension:
VX-160POE: 120 x 90 x 28 (mm)

4
Slave Unit:
LAN Interface:
IEEE 802.3af Compliant PSE with output voltage within 44~57 Volts
Power Auto Restart with Under Voltage Lockout (UVLO) Fault Detection
Maximum output power 15.4 Watts
Auto-Detection for 10/100 BaseT and Half/Full duplex
Fully compatible with IEEE802.3/IEEE802.3u
Automatic MDIX Function
Connector: RJ45
Line Interface:
Line Rate: 60/60 ~ 10/10Mbps (full duplex)
Rate Selection: Dip Switches with Slave following Master
Safety Extra Low Voltage (SELV) Compliant (< 60V)
Connector: RJ11
LED Indicators:
POWER: Power is ON LINE: 2-wire Connection Status
LAN: Data Activity of LAN Port M/S: LED ON indicating Slave mode
Physical Dimension:
VX-160POE slave indoor: 120 x 90 x 28 (mm)
Operating Environment:
Humidity: 5% to 95% non-condensing
Temperature: 0 ~ 50 degree C
5. Packing Contents
Inside the package you should find:
(1) One VX-160POE master unit
(2) One VX-160POE slave unit
(3) One 48V Power Adaptor
(4) One AC power cord
(5) One User Manual +Accessories.
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.

5
6. LED Indicators
On the front panel of VX-160POE, there are 4 LED indicators as the following
POWER:“Green On” indicates power is on and normal.
LAN:“Green On” indicates Ethernet LAN port is in connection.
“Flashing” indicates Ethernet LAN data activities.
LINE:“Green On” indicates 2-wire line is in connection.
“Flashing” indicates 2-wire line is in handshaking status.
M/S:“Green On” indicates as VX-160POE Slave unit.
“OFF” indicates VX-160POE Master unit.
7. Dip Switches Settings
Pin 1 Pin 2 Pin 3 Pin 4 Line Rate (Mbps)
NA OFF OFF OFF 10/10
NA ON OFF OFF 20/20
NA OFF ON OFF 30/30
NA ON ON OFF 40/40
NA OFF OFF ON 50/50
NA ON OFF ON 60/60
NA OFF ON ON 60/60
NA ON ON ON 60/60
*The line rate settings on the master and the slave units must be the same.
If not, the real line data rate will follow the master setting.

6
Local Power
LAN Switch VX-160POE
Slave
VX-160POE
Master
Ethernet 2-wire Line Ethernet
PSE Output PowerPSE Power
A B C
8. Data Rates vs Distances vs PoE power
Performance for AWG24 line with 48V Power Adaptor
Line Rate (Mbps) Distance B (Meter) Distance C (Meter) Max. PSE Output
Power (Watts)
60/60 200 100 15.4+
50/50 300 100 15.4+
40/40 400 100 7+
20/20 500 100 4+
