INSTALLER: Deliver this booklet to the Home Owner!
Attic Storage Lifting System
INSTALLATION GUIDE
All Models 24
Protected By
US Patent 8,418,814
US Patent 8,851,238
US Patent 8,702,069
CONTENTS Page
Safety Facts .............. 2
Overview ................... 3
Electrical ................... 4
Lift Opening Specs .... 4-5
Framing Techniques .... 6-9
Carton Contents. ....... 10
Assembly and
Installation ........... 11-18
IMPORTANT! PLEASE READ YOUR OWNERS MANUAL!
The manual includes essential safety and maintenance
information. Read manual before operating the Versa Lift!
Copyright ©
2006 - 2019 BPG
All rights reserved.
Revised March 2019

NOTICE TO INSTALLER:
DO NOT OPERATE THE MOTOR UNTIL YOU ARE
INSTRUCTED TO IN STEP 9 OF THIS GUIDE!
Doing so will cause the Versa Lift to malfunction and
require re-calibration by factory or authorized dealer.
!
DANGER
TO REDUCE THE RISK OF ACCIDENTS,
SEVERE INJURY, OR DEATH, ALL OPERATORS MUST READ
AND UNDERSTAND THE OWNERS MANUAL COMPLETELY
BEFORE OPERATING THIS EQUIPMENT!
!
WARNING
FALLING HAZARD: The ladder opening and
lift opening present falling hazards to any person who enters
the attic. When you are in the attic space, be alert at all times
to these openings. We highly recommend you install a safety
railing around your ladder opening, such as the Versa Rail by
BPG* (see Fig. 0).
!
DANGER
!
WARNING
If you install this lift product inside the
NEVER ALLOW PERSONS ON OR IN THE
LIFT! NEVER SIT OR STAND ON THE LIFTING PLATFORM!
ABSOLUTELY NO RIDERS! No person under 18 years of age
should be allowed to operate this product. Children should be
kept away from the lift when it is in operation. When not in use,
lock the remote control and remove the key and store it where
children cannot get it! This product can cause serious injury or
death to a child who attempts to ride the lift or to lift others!
When not in use, ALWAYS raise the lifting platform to the
highest position and unplug the power cord to lift, lock the
remote and store the key!
living space of a home, or in a closet, or a walk-in attic
accessible to children, then you must also install the Auto-
Shutter* from BPG that automatically closes the lift opening as
the platform goes down to help prevent children, pets, etc.
from falling through the opening (the Auto-Shutter is not
illustrated in this manual).
*For information on the Versa-Rail, Auto-Shutter, and other
Versa Lift accessories visit www.versaliftsystems.com or
call us at 405-516-2412.
!
WARNING
WHEN WORKING IN THE ATTIC, STAY ON
DECKED AREAS. If you must enter non-decked areas, stay on
joists. The materials between the joists will not support your
weight and will collapse if you stand or sit on them. Be alert to
overhead hazards, such as exposed nails. Be aware of and
avoid openings, such as the ladder opening or the lift opening
when you are working or moving around in the attic.
!
WARNING
When working with power tools, follow all of
the manufacturers safety guidelines and wear approved safety
glasses and hearing protection.
!
WARNING
DO NOT WORK ALONE IN A HOT ATTIC or
if you have any health condition that could affect your balance,
your mobility, or cause you to loose consciousness. If you
have any diminished capacity, always work with another
person in case you should need help. Don’t work in the attic
in the heat of the day. You can quickly be overcome by heat
exhaustion in a hot attic in just a matter of minutes. Morning
hours are the coolest time to work in the attic.
!
WARNING
DO NOT OPERATE THIS EQUIPMENT IN
DAMP, WET OR POORLY LIGHTED LOCATIONS or attic spaces
and don’t expose it to rain. Do not use this equipment in the
presence of flammable gases or liquids. Keep the work area
clear of obstacles, cluttered areas invite injuries. Use only
correctly grounded power outlets or extension cords. Never
operate equipment without grounding!
READ THIS BEFORE INSTALLING THE VERSA
LIFT
2
Indicates a potentially hazardous
situation which, if not avoided,
will
result
in
minor
or
moderate
injury.
!
CAUTION
situation
which,
if
not
avoided,
will
result in death or serious
injury.
! WARNING
Indicates a
potentially hazardous
situation
which,
if
not
avoided,
will
result in death or serious
injury.
!
DANGER
Indicates
an
imminently
hazardous
SAFETY GUIDELINES
-
DEFINITIONS:
It is important to read and understand this manual.
The
information it contains relates to protecting your
safety
and preventing problems
. The symbols below are used
to help you recognize safety
information.
Versa Rail
Lifting
Head
Ladder Remote
Opening Control
Versa Lift
Lift Opening
Joist
Height
Cables
Ladder
Floor-to-Floor
Lifting Platform Height
Fig. 0

!
WARNING
BEFORE INSTALLING THIS LIFT:
Verify that this product and its installation does not violate
local building codes. You can find out this information
from a local building inspector, architect, structural
engineer, or your building contractor.
Find out if there are any code restrictions on what types
of things you can store in your attic.
Get professional advice and estimates on framing,
decking and assembly if you are not qualified or
physically able to do these tasks. You can find building
contractors, remodeling contractors, architects,
engineers and inspectors in the Yellow Pages.
You are responsible for determining the suitability of this
product for your individual purposes, as well as installing
it in a way that meets local building and safety codes.
Two persons are required to
perform certain tasks in this guide for safer and
easier installation. Performing these tasks alone is
not recommended.
Versa Lift
INSTALLATION OVERVIEW:
1. FRAME THE OPENING:
The first step to installing your new Versa Lift is preparing
an opening in the ceiling where the lift will be located.
Tools/Materials Required: Saws, Drill-Driver, Hammer,
Nails or Screws, Framing Square, Tape Measure, Header
& Joist Lumber to match your existing joists.
Skill Level: Professional - Only attempt this part of the
installation yourself if you are skilled in construction-type
framing. If you are not, you should hire a Versa Lift dealer
or a building/remodeling contractor to do this job for you.
Before cutting any ceiling joist, consult a contractor or
structural engineer to determine the best location to
install your lift. If your attic is not already floored, you may
want to get some advice on how to add flooring in your
attic to create a nice storage area.
2. FLOORING AN ATTIC SPACE:
If your attic is not already floored in the area where your
Versa Lift will be installed, then flooring material such as
plywood must be added on top of the ceiling joists to
make a floor that you can walk on and store items on.
Tools/Materials Required: Skill Saw, Hammer and Nails
or Screws and Power Driver, Framing Square, Tape
Measure, and Decking Material.
Skill Level: Handyman - If you have skill with general
carpentry tools (sawing, measuring, nailing or screwing)
and the physical strength to move large pieces of wood,
then you can do this part yourself with a helper. (You can
get 4 x 4-ft. or 2 x 8-ft. pre-cut plywood at most lumber
stores. It is much easier to handle than 4 x 8-ft sheets.)
3. ASSEMBLE AND INSTALL THE LIFT:
The Versa Lift comes partially assembled. The cartons
contain all of the parts and fastening hardware, along
with detailed instructions in this guide for assembly.
Tools/Materials Required: A Power Drill-Driver, 5/32”
Drill Bit, Phillips Driver Bit, Socket Driver Bit, Tape
Measure, Square, Level, Phillips Screwdriver, 3/8” & 7/16”
Wrenches, and 3/8” & 7/16” Sockets and Ratchet.
Skill Level: Handyman - If you have the skill for general
repair and maintenance using hand tools and can read
and follow instructions, then you can do this part yourself
with a helper.
3
READ THIS BEFORE INSTALLING THE VERSA
LIFT

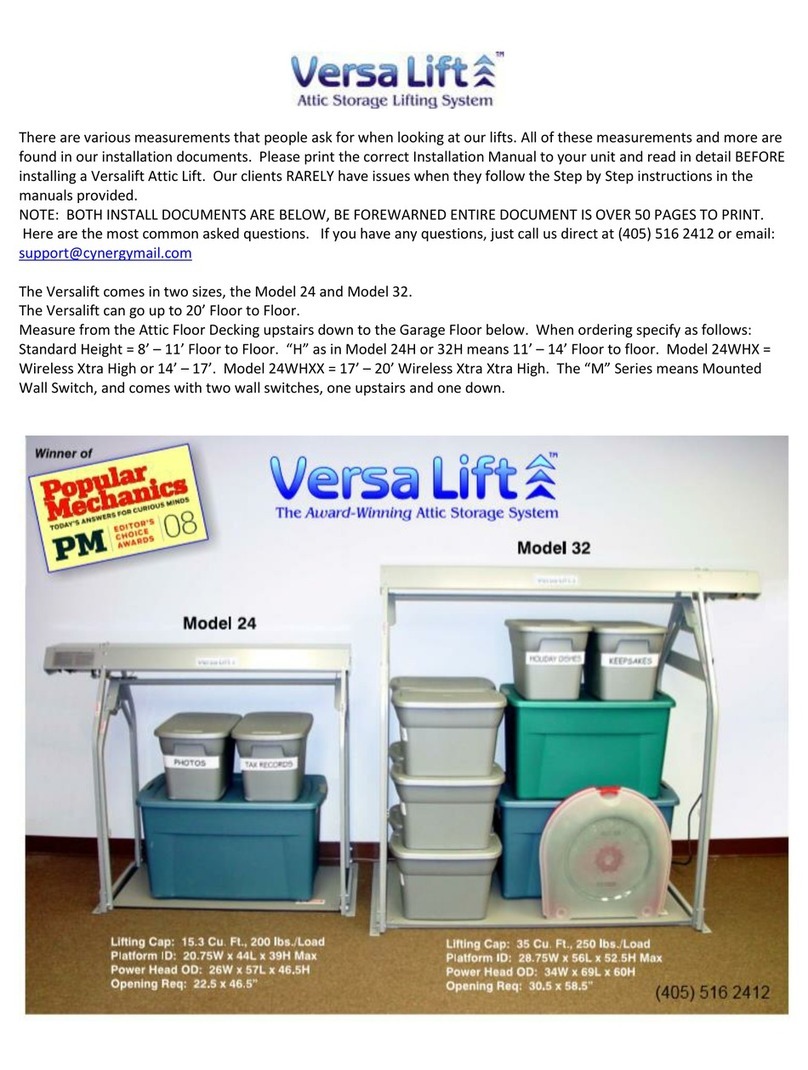

VERSA LIFT SPECIFICATIONS:
General Specifications (All Models 24)
Dimensions 26x57x47H
Vertical Attic Space Req’d.
48”
Min. Max. Joist Height 18”
Lift Opening Size 22.5x46.5”
Motor 0.6 hp
Voltage 120 VAC
Power 5 amps
Lift Capacity Max. 200 lbs.
Lifting Speed 8 in/sec
Duty Cycle (minutes) 2 on
/
4 off
Lifting Cables (2) .093 (7x19)
Shipping Wt. (approx) 170 lbs.
Model Floor-to Floor
24..............................................................................8-11 ft.
24H...........................................................................11-14 ft.
24HX..........................................................................14-17 ft.
24HXX....................................................................17-20 ft.
Control Options
Handheld Remote...............(keylock and 15-ft cord)
Wall Mounted Switch Set....(downstairs has keylock)
Wireless Remote........(with powerful Radio Receiver)
!

ELECTRICAL REQUIREMENTS:
ELECTRICAL OUTLET:
You will need a single 120 volt AC grounded electrical
outlet to plug in the Versa Lift power cord. It is highly
recommended that the outlet be on the same switched
circuit as the lighting in your attic so that when the attic
lights are turned off, the power to the Versa Lift is also
turned off. This arrangement will be more convenient for
you and will prevent unintended operation of the lift.
The power cord provided with this product has three blades.
The longest blade is the grounding blade (Fig. 1a). The
shorter flat blades are the current carrying blades. You will
need a grounded power outlet (receptacle) as shown below
(Fig. 1a). If your outlet does not have a grounded receptacle
for a three blade plug or if you are unsure if your outlet is
correctly grounded, have a qualified electrician check the
outlet (receptacle) to make sure it meets local codes.
Incorrect grounding puts you at risk of electrical shock.
Never modify the equipment plug to fit a two blade outlet
(receptacle)!
If you use an extension cord, it must be a heavy duty three-
wire type with a three blade grounding plug and matching
grounded outlet (receptacle) like those shown in Fig. 1a
and rated for at least twice the load (10 amps minimum).
LIFT OPENING SPECIFICATIONS:
VERTICAL ATTIC SPACE:
The Versa Lift requires a minimum of 47” of vertical space
directly over the lift opening (Fig. 1b).
OPENING DIMENSION & TOLERANCES:
The final opening size is 22½” x 46½” with a tolerance of
+1/4” and -0” (the opening can be up to 1/4” larger, but
no smaller.) The lift opening must be square as shown
below (Fig. 1c). Diagonal A should equal B within 1/2”.
LIFT OPENING FINISH:
The lift opening must have smooth, perpendicular side
walls. No nail heads, brackets, sheet rock or decking
can protrude or extend into the opening, as this will
cause the lifting platform to become caught on those
edges and the lift will malfunction. (See Figs. 2a, 2b & 3).
Versa
Lift
Opening Installation Specs
4
!
control
transmitter
or
from
another
transmitter
in your area. Unintended operation can cause
the lifting platform to move unexpectedly,
possibly causing injury to persons or damage
to
property
located
directly
under
the
lift.
!
WARNING
To prevent unintended lift operation,
you must turn the power switch off, unplug the power
cord, or disconnect the power when not in use! The
wireless model radio is active if the lift has power and
is turned on and can operate the lift whenever a
coded signal is received from the Versa Lift remote
90° 90°
DIM. DIM.
"A" "B"
90° 90°
46.5
22.5"
11"
LIFT OPENING
REQUIRES 46.5” MIN.
OF VERTICAL SPACE
46"
7.75”
24.5"
30°
31.5"
47”
MIN.
Fig. 1b
LIFT OPENING MUST BE SQUARE (A = B ± 1/2”)
"
Fig. 1c
120VAC GROUNDED POWER OUTLET
CURRENT
CARRYING
BLADES
GROUNDING BLADE
IS THE LONGEST OF
THE THREE BLADES
Fig. 1a

LIFT OPENING SPECIFICATIONS
(Cont)
:
OPENINGS IN SOLID WOOD JOISTS:
For solid wood joists, the final opening size must be 22½” x
46½”. All side walls must be smooth and perpendicular (the
opening can’t be smaller at the bottom). Cut sheet rock and
decking flush with the walls. Nothing can protrude inside
the opening: Nail heads must be set flush or below the sur-
face. Install the 2”x2” L-flashing in the corners of the open-
ing to cover hanger brackets and nail heads (see Fig. 2a).
LIFT OPENING WITH SOLID WOOD JOISTS
INSTALL FLASHING IN ALL OPENINGS: Install the
2 x 2” L-flashing the corners of all openings, even in
I-Joist openings that are paneled with 1/4” plywood.
Cut the flashing to the finished opening height (including
sheet rock and decking). Align it to the bottom and nail
both edges with #17 x 1” nails, placing nails within 1/4”
from each edge (Fig. 3). The flashing strips cover nail
heads and brackets while providing a slippery surface in
the opening to reduce paint wear on the lifting frame.
FINISHED OPENING
SIZE IS 22.5" x 46.5"
INSTALL 2 x 2” FLASHING
INSIDE FINISHED OPENING
CUT SHEET ROCK
FLUSH WITH OPENING
Fig. 2a
INSTALL DECKING
FLUSH WITH OPENING
HOLE SIDE WALLS MUST
BE SMOOTH AND SQUARE.
SET NAIL HEADS FLUSH.
WARNING!: TO PREVENT LIFT
MALFUNCTION, THE OPENING
SIDEWALLS MUST BE SMOOTH
WITH NO PROTRUDING NAILS,
BRACKETS, SHEETROCK, ETC.
PILOT HOLES FOR MOUNTING THE LIFT: Mark the
location of the mounting holes on the floor deck at either
OPENINGS IN FABRICATED I-JOISTS:
For “I-Joists” make a rough opening of 23 x 47” and panel
all four sides with 1/4” thick plywood (Fig.2b). The final
opening size with paneling will be 22½”x 46½”. The panels
provide the required smooth walls and cover I-joist ledges.
The side walls must be square (perpendicular) and all nail
heads must be set flush or below the surface. Cut all sheet
rock and decking flush with the edges of the opening.
Install the 2”x2” L-flashing (provided) in the corners of the
opening to cover hanger brackets & nail heads (Fig. 2b). For
more information on framing for I-joists, see pgs. 8 and 9.
LIFT OPENING WITH "I-JOIST" FABRICATED JOISTS
end of the lift opening. These will be pilot holes for the
lag screws provided to secure the lift to the attic floor.
Find and mark the center on each side of the rectangular
opening, then use a straight edge or square to draw a
center line (Fig. 4). Next draw a line parallel to each of
the narrow ends and spaced 3/4” away from the opening.
Measure along the parallel lines 10” each way from the
center line and mark 4 hole centers (Fig. 4). Then
measure 2” over from the first 4 marks and mark 4 more
hole centers (Fig 4). Find the “Mounting Rails” in the
Versa Lift carton and place them over the hole centers
you have marked to check your work. The hole centers
ROUGH-IN OPENING 23 x 47”
THEN PANEL 4 SIDES WITH
1/4" PLYWOOD. THE FINISHED
OPENING SIZE IS 22.5" x 46.5"
INSTALL 2 x 2” FLASHING
INSIDE FINISHED OPENING
CUT SHEET ROCK
FLUSH WITH OPENING
Fig. 2b
INSTALL DECKING
FLUSH WITH OPENING
HOLE SIDE WALLS MUST
BE SMOOTH AND SQUARE.
SET NAIL HEADS FLUSH.
WARNING!: TO PREVENT LIFT
MALFUNCTION, THE OPENING
SIDEWALLS MUST BE SMOOTH
WITH NO PROTRUDING NAILS,
BRACKETS, SHEETROCK, ETC.
should match the four slotted holes on the Mounting
Rails. If so, drill 8 pilot holes with a 5/32” bit on the hole
centers you have marked (Fig. 4). Approximate depth of
the pilot holes is 2-1/2”.
!
WARNING
THE VERSA LIFT OPENING MUST HAVE
SMOOTH PERPENDICULAR SIDE WALLS: Nail heads,
hanger brackets, sheet rock or decking must NOT pro-
trude or extend into the opening, as this can cause the
lifting platform to hang up and malfunction, resulting in
possible damage or personal injury! Product warranty is
void if the opening does not meet the exact requirements
detailed in these pages.
5
Versa
Lift
Opening Installation Specs
COVER ALL HANGER BRACKETS
HANGER BRACKETS MUST
HAMMER NAIL HEADS
BE COVERED WITH 2" x 2"
COMPLETELY FLAT.
"L" SHAPED FLASHING.
THEN INSTALL THE
LIFT OPENING COVER FLASHING.
NAIL 1/4" FROM
EACH EDGE WITH
#17 x 1" NAILS
CUT FLASHING TO
OPENING HEIGHT, INCL.
DECKING & SHEET ROCK
Fig. 3
LOCATE AND DRILL PILOT HOLES FOR MOUNTING LIFT
DRAW A CENTER-LINE ON
ALL 4 SIDES OF THE OPENING
11-1/4” 3/4"
11-1/4”
23-1/4”
23-1/4”
3/4"
DRILL 5/32" PILOT HOLES
2"
x 2½" DEEP x 8 PLACES
10"
10"
Fig. 4
2"

6
Versa Lift Opening Framing Techniques
LIFT OPENING ORIENTATION - Aligned or Transverse
In general, transverse openings should be avoided because
more joists will have to be cut, which will weaken the ceiling
more than an aligned opening.
An aligned opening with joists 24” OC can be framed without
the need to cut a ceiling joist (Fig. 5), while an aligned opening
with joists 16” OC requires one joist to be cut (Fig.6).
An transverse opening with joists 16” or 24” OC will require
more joists to be cut (Fig. 7 & Fig. 8). You should consult a
professional to evaluate the strength of your ceiling construc-
tion and to determine if transverse mounting is advisable and to
determine if you will need to double the adjacent joists to
compensate for the joist(s) you cut (see Figs. 7 & 8).
NOTICE ABOUT FRAMING TECHNIQUES:
The optional framing illustrations & techniques (pages 6-9)
are provided for illustration only and are not intended as
specific directions for you to follow in your individual
installation. Use them to help you plan your installation and
consult with a professional engineer, architect, or contractor
about local codes and building practices. BPG does not
warrant this product to be suitable for your intended purpose,
location, structure, installation or use. Each installer is
responsible for choosing the appropriate location, method of
installation and determining suitability of this product.
Optional Framing Technique #1 - For homes with
SOLID WOOD JOISTS 24” OC: Choose the location. If
your attic is already decked, you will need to remove enough
decking to expose the joists in the area of the opening. If your
attic is not already decked, then nail down some plywood on
either side for a temporary work surface.
An aligned opening can be framed without the need to cut a
ceiling joist, just install blocking and headers shown in (Fig. 5).
A transverse opening will require you install temporary sup-
ports (Fig. 7&9), then mark and cut one joist before installing
blocking and headers as shown in Fig. 7.
Fig. 7
2. INSTALL
BLOCK-
ING
22.5"
24"
O.C.
46.5"
1. CUT
JOIST
3. INSTALL
HEADERS
DOUBLE JOISTS WITH
SIMILAR SIZE BOARDS
46.5"
22.5"
22.5"
46.5"
Fig. 6
16"
O.C.
MAY NEED TO
BE DOUBLED
16"
O.C.
DOUBLE JOISTS WITH
SIMILAR SIZE BOARDS
22.5"
46.5"
Note: Joist hangers can be used instead of blocking, but joist
hangers must be covered with 2 x 2” “L”
flashing (provided) to prevent the
lift platform from hanging in the
opening, causing lift malfunction
or damage (see Fig. 2a, 2b, & 3
for details about “L” flashing).
Joist Hanger for Solid W ood Joist
’
1. INSTALL
BLOCK-
ING
2. INSTALL
HEADERS
24"
O.C.
Fig. 8
Fig. 5

Versa Lift Opening Framing Techniques
7
Optional Framing Technique #2 - For homes with
SOLID WOOD JOISTS 16” OC: Choose the location.
If your attic is decked, you will need to remove enough
decking to expose the joists in the area of the opening.
If your attic is not decked, then nail down some plywood
on either side for a temporary work surface.
You will need temporary supports for any joist that will be
cut. One technique is shown below using two 2 x 8”
(minimum size) planks to span the adjacent joists. Each
plank is secured with 2 lag screws to the joist(s) to be cut
(Fig. 9). A framing square is used to mark guide lines for
headers and cut lines (Fig. 9 inset). After cutting the joist,
2x4” or 2x6” blocking is installed (Fig. 10 & inset). Mark,
cut, and install headers with blocking (Fig. 11 & detail).
Trim the joist section removed in Fig. 9 and install it to
finish the framed opening (Fig. 12 & inset). Cut the sheet
rock flush with the opening (Fig. 13). Install decking flush.
Finally, install the 2 x 2” flashing in the corners (Fig. 13).
See illustration on page 6 about joist hangers. Special
care must be taken to hammer nails flat and to cover
the joist hangers with the 2 x 2” “L” flashing!
x
x
x
INSTALL
HEADERS
HEADER DETAIL
INSTALL BLOCKING
Note: Corners must be covered with 2 x 2” “L” flashing
to reduce wear and prevent possible lift malfunction. Fig. 11
HEADER
22.5"
1.5"
DRAW
GUIDE
LINES
1.5"
RAFTER
SQUARE
JOIST
SECTION
46.5"
CUT
LINE
1.5"
INSTALL
JOIST
SECTION
Fig. 9
16"
O.C.
4" LAG
SCREWS
TEMPORARY JOIST SUPPORTS
Fig. 12
REMOVE LAG SCREWS AND
TEMPORARY JOIST SUPPORTS
CUT
JOIST
INSTALL
BLOCKING
NAIL
BLOCK
TO JOIST
CUT
SHEET
ROCK
Fig. 10
Fig. 13
DOUBLE JOISTS WITH
SIMILAR SIZE BOARDS
FOR ADDED STRENGTH
(IF NEEDED)
INSTALL 2 x 2” FLASHING (4)
INSIDE FINISHED OPENING

8
Versa Lift Opening Framing Techniques
Optional Framing Technique #3 - for new homes with
I-JOISTS 16” OC: This procedure is similar to the one for
solid wood joists (see prior page). However, I-Joists are
too narrow on the ends to hold a nail when attaching one
I-Joist perpendicular to the face of another.
I-Joists can be joined perpendicular by using specially
formed metal hanger brackets.
Another way to join I-Joists is to install blocking on the
ends of I-Joist sections and headers (see Fig. 14). The
block provides a thickness to the end of the I-Joist that
can be nailed into. Second, the block is offset so that it fits
into the inset in the face of the perpendicular I-Joist. The
blocking should be attached securely (Fig. 14 inset) and
placed on the side opposite the opening (since the
opening must not have anything projecting inward).
I-Joists have recessed faces that form ledges that can
hang-up the lifting platform as it travels downward from
the attic. To resolve this problem and to cover any metal
hanger brackets, all I-Joist openings must be framed
½”oversized in each dimension to 47” x 23” (Fig. 15).
Next cut 1/4” thick plywood panels (Fig. 16 inset) and nail
them to the four I-Joists faces inside the opening (Fig. 16).
The final size opening will be 46 ½” x 22 ½” (Fig. 16).
Please note that any nail heads in the opening must be
set flush or below the surface and decking and sheet rock
must be cut or installed flush to the opening (Fig. 2b &
16). Finish the opening by installing the 2 x 2” flashing in
the corners (Fig. 16).
As with solid wood joists, I-Joists that need to be cut must
be supported by some means until they are connected to
headers that tie them to adjacent I-Joists.
NOTE: This technique requires that you have additional
I-Joist material of the same size as that used in you
ceiling. If you do not have access to additional I-Joist,
then see the technique on the following page.
O.C.
CUT 1/4" PLYWOOD TO
PANEL INSIDE OF I-JOISTS
JOIST
22 1/4"
46.5"
22.5"
16"
O.C.
Note: I-Joist hangers can be used instead of blocking.
Finish opening with 1/4” paneling to cover hangers
and create a smooth-sided opening (Fig. 16), then
install 2 x 2” flashing in every corner (Fig. 16 & pg. 5).
I-Joist
Depending on location
and code requirements,
web stiffeners may be
required for I-Joist when
using hanger brackets.
Web Stiffener
Hanger
2 EACH
23"
47"
16"
Fig. 16
46 3/4"
JOIST
2 EACH
Fig. 15
INSTALL 2 x 2” FLASHING
(4)
INSIDE FINISHED OPENING
I-JOIST/HEADER BLOCK BLOCK
PLACE BLOCK USE 2" NAILS
INTO INSET or SCREWS
THEN MARK WOOD
OFFSET LINE GLUE
INSET OFFSET
OFFSET LINE
I-JOIST
I-JOIST SECTION
HEADERS
2x4" or 2x6"
BLOCKING
Fig. 14

Versa Lift Opening Framing Techniques
9
Optional Framing Technique #4 - For existing homes
with I-JOISTS 16” OC: The procedure is generally the
same as with I-Joists on the prior page, but when the
home is a finished construction (already built and owned)
you may not have extra I-Joist pieces from which to
construct headers. In this case, you may need a way to
construct headers from other available material.
One way to address this problem is to construct headers
from ½”or 3/4” plywood and 2 x 2” rails (Fig. 17). Join the
rails to the plywood with wood glue and nails or screws.
Then attach offset blocking (Fig. 17) as previously
explained. Headers constructed this way will have good
strength and have the advantage of a smooth face
toward the opening. NOTE: The blocking is attached
flush with the ends of the I-Joist Section when using
constructed headers with a flat inside surface (Fig. 17).
When headers are constructed as described above,
the opening must be framed ½”oversized in only one
dimension to 46 ½” x 23” (Fig. 18). Next, cut two 1/4”
thick plywood panels (Fig. 19 inset) and nail them to the
two I-Joist faces inside the opening (Fig. 19). The final
opening size will be 23 ½” x 46 ½” (Fig. 19). Please note
that any nail heads in the opening must be set flush or
below the surface and decking and sheet rock must be
cut or installed flush to the opening (Fig. 2b & 19). Finish
the opening by installing the 2 x 2” flashing in the corners
as shown in Fig. 19.
As with solid wood joists, I-Joists that need to be cut
must be supported by some means until they are
connected to headers that tie them to adjacent I-Joists.
46.5"
46.5"
23"
22.5"
16"
O.C.
CUT 1/4" PLYWOOD TO
PANEL INSIDE OF I-JOISTS
JOIST
461/4"
16"
O.C.
Note: I-Joist hangers can be used instead of blocking.
Finish opening with 1/4” paneling to cover hangers
and create a smooth-sided opening (Fig. 16), then
install 2 x 2” flashing in every corner (Fig. 16 & pg. 5).
Depending on location
and code requirements,
web stiffeners may be
required for I-Joist when
using hanger brackets.
Web Stiffener
I-Joist
Hanger
Fig. 19
Fig. 18
INSTALL 2 x 2” FLASHING (4)
INSIDE FINISHED OPENING
2 EACH
2x4"or2x6"
BLOCKING
(OFFSET)
2x4"or2x6"
BLOCKING
(SET FLUSH)
I-JOIST
SECTION
WOOD
GLUE
PLYWOOD
CONSTRUCTED
HEADERS
½ or 3/4"
PLYWOOD
2x4"or2x6"
BLOCKING
(OFFSET)
2x2"
2 x 2" TOP & BOTTOM RAILS
GLUE AND NAIL TO PLYWOOD
I-JOIST PLYWOOD HEADER
BLOCK
USE 2" NAILS
or SCREWS
PLACE
BLOCK
USE 2" NAILS
INTO
INSET
TO
or
SCREWS
MARK
OFFSET
WOOD
GLUE
Fig. 17
INSET OFFSET
OFFSET LINE

TM
AtticAtt ic StorageStora ge LiftingL iftin g
SystemSystem
Bye r s P r oduc t s G r oup
9
1.
UNPACKING: Save Carton #1! (You will need the two
long lift housing cartons (overpack, telescoping box and
foam blocks) for warranty repairs. So please save them!)
The Versa Lift is packed in three cartons. The carton
contents are shown below in Fig. 20. The fasteners
shown in Fig. 20 inset will be in a hardware bag (you
don’t need to count the hardware). Open the cartons and
check the contents to locate all of the items in Fig. 20.
Also, check the components in all three cartons for any
damage. If any components are missing or damaged, do
not proceed with assembly. Contact us to get needed
replacements for any missing or damaged items.
CARTON 1
Lift Control
Device Carton
Lift Head
Assembly
Hardware Bag
17
CARTON CONTENTS
:
1.
Model 24 Lift Head Assembly (1)
1a. Corded Remote Control or
1a. Corded Remote Control or
1a, 1b
or 1c
1
18
19
10
20
21
6 11
22
5
12 23
24
1b. Mounted Wall Switches or
1c. Wireless Radio Control
2. Short Door Braces (2)
3. Long Door Braces (2)
4.
2 x 2” x 20” “L” Flashing (4)
5. Long Chains (2)
6. Short Chains (2)
7.
Installation Guide (1)
8. Owners Manual (1)
Hardware Bag Contents:
9.
¼” x 2½” Lag Screw (10)
10.
¼-20 x 2” Phillips Truss Screw (5)
11.
¼-20 x 1½” Phillips Truss Screw (28)
12.
¼-20 x 2½” Phillips Pan Screw (5)
3
7
2
8
Model 24
TM
Model 24
Model 24H
Attic Storage Lifting System
INSTALL ATION GUIDE
Byers
Prod uct s
Grou p
13 25 26
13.
10-32 x 1” Phillips Pan Screw (10)
14.
10-32 x 5/8” Phillips Pan Screw (10)
15.
10-32 x 3/8” Phillips Pan Screw (10)
Model 24H
4
SAFETY GUIDE
OPERAT ION
MAINTE NA NCE
16.
¼ x 1” Flat Washer (10)
SAFETY GUIDE
OPERAT IO N
MAINTE NA NCE
US & Foreign Patents Pending Copyright © 2006 BPG
16
17. ½ x 1” Nylon Guide Spacer (10)
18.
¼-20 Tall Flanged Locknut (44)
19.
¼-20 Short Locknut (5)
CARTON 2
US & Foreign Patents Pending Copyright © 2006 BPG
29
28
27
Pan Head Truss Head
20. 10-32 Locknut (10)
21. Screw Cover (10)
22.
1/2 x 3/8”Cable Clamp Spacer (12)
23.
6-32 x 5/16” Phillips Screw (5)
24. #17 x 1” Flashing Nails (50)
25. #2 Phillips Driver (for 6-32 &10-32)
26. #3 Phillips Driver (for 1/4-20 screws)
CARTON CONTENTS:
27.
Lift Housing Legs (4)
28.
Right Platform Legs (2)
29.
Left Platform Legs (2)
30. Cable Clamps (2)
31.
Platform Leg Brackets (2)
32.
Mounting Rails (2)
33.
Platform Supports (2)
34.
Platform Top Brace (1)
30
CARTON 3
CARTON 3 CONTENTS:
35.
Platform Panel (1)
36.
Door Panel (1)
35
Note: Hardware Bag
contains extra hardware
not listed here. Not all
hardware will be used
during this assembly.
14
All Models 24:
Versa
Lift
Carton Contents 24, 24H, 24HX & 24HXX
10
15
Figure 20

Versa Lift Installation - Assembly (All Models) 11
!
2a. LIFT HEAD ASSEMBLY - Using the Rope Handles
provided, move the Lift Head into the attic for assembly.
Warning! Heavy!! This job requires two able persons.
(After the lift head is in the attic, untie the rope handles
and save them.) Locate the other parts shown below and
move them up to the attic for assembly to the Lift Head.
2b. INSTALL THE HOUSING LEGS
Assemble the four lift housing legs into the lift housing as
shown. The locknuts will not work loose, so don’t over-
tighten or you will collapse the square tubing. Note: The
DO NOT RUN the Lift
legs must fit to the INSIDE of the lift housing (see inset).
2c. INSTALL THE MOUNTING RAILS
Assemble the mounting rails onto the lift housing legs,
as shown, but do not tighten them yet. Leave them slight-
ly loose for leveling adjustment Step 4.
2d. INSTALL NYLON GUIDE SPACERS
Install two nylon spacers with a 2½” screw and locknut to
the mounting rails in four places (by each leg) as shown
below. Tighten them snug, but do not over-tighten.
1/4-20 TALL LOCKNUT (4)
motor until this manual tells you to!
THE LIFT WILL MALFUNCTION IF YOU DO!
½ x 1” NYLON
SPACER (8)
(2 x 4 Places)
2c. INSTALL THE
MOUNTING RAILS
1/4-20 x1-1/2"
TRUSS SCREW (8)
MOUNTING
RAILS (2)
1/4-20 x 2-1/2”
PHILLIPS PAN
HEAD (4)
2d. INSTALL NYLON
GUIDE SPACERS
Hardware Needed:

1/4-20 x 1-1/2”
Truss Screws (16)

1/4-20 x 2-1/2”
Phil.
Pan-head Screws (4)

1/4-20
Tall
Locknuts (20)

½
x 1”
Nylon
1/4-20 TALL
LOCKNUT (8)
Spacers (8)
LIFT HOUSING LEGS (4)
LIFT HEAD ASSY
LIFT HOUSING LEGS (4)
2b. INSTALL THE
HOUSING LEGS
1/4-20 TALL
LOCKNUT (8)
Note: The legs fit
to the INSIDE of LIFT
the lift housing!
¼-20 x 1-1/2”
HOUSING
Fig. 22
TRUSS SCREW (8)
!
CAUTION
!

12
Versa Lift Installation - Assembly (All Models)
3. INSTALLING THE LIFT HEAD
This step requires two persons. Turn the lift head
assembly upright and position it in front of the opening
(Fig. 23). With one person on each end, lift slightly and
move the assembly over the opening (Fig. 23) and align
the slots in the mounting rails with the pilot holes in the
decking. Install the 8 lag screws and 1” diameter washers
into the pilot holes and screw them down until they
almost contact the mounting rail, but leave them loose so
the mounting rails can be adjusted later (Fig. 23 inset).
(Note: A couple of drops of dishwashing liquid in the pilot
holes will make installing the lag screws easier.)
4. LEVEL THE LIFT HEAD
The screws that hold the legs to the mounting rail must
be loose for this step. Place a bubble level lengthwise on
the housing and see if head is level (Fig. 24). Place shims
under both legs on the low end (Fig. 24 inset). Adjust the
shims until the head is level, then tighten all 8 leg screws
(Fig. 24 inset). Remove shims after bolts are tight.
INSTALL 1/4 x 3"
LAG SCREWS (8)
1/4"x1" DIA. WASHER (8)
INSTALL LAG SCREWS,
BUT DO NOT TIGHTEN
(Note: A couple of drops of
dishwashing liquid in the pilot
holes will make installing
the lag screws easier.)
(8) PRE-DRILLED
5/32" PILOT HOLES
(SEE FIG. 4, PG. 5)
REQUIRES 2 PERSONS:
SLIDE THE LIFT HOUSING
ASSEMBLY INTO POSITION
Fig. 23
PLACE LEVEL ON HOUSING. USE SHIMS
UNDER LEGS TO LEVEL HOUSING, THEN
TIGHTEN LEG BOLTS (SEE INSET).
HOUSING LEG
2. TIGHTEN
LEG BOLTS
Fig. 24
1. ADD
SHIMS
UNDER LEG
IF NEEDED.

Versa Lift Installation - Assembly (All Models) 13
Close
5. DOOR ASSEMBLY
Assemble the door down-stairs. Locate the door, door
braces, and fasteners shown in Fig. 25. Insert each screw
through a screw cover, the door panel, then the door
braces (see Fig. 25 inset). Note: Insert a 1/4 x 1” spacer
washer under the center holes on the short braces as
illustrated below.
NOTE: SHORT BRACES (2)
MUST GO ON TOP OF
LONG BRACES!!
10-32
LOCKNUT (8)
LONG BRACE (2)
DOOR PANEL (1)
IMPORTANT :
BRACE FLANGES
SCREW
MUST ALL POINT COVER (8)
TO THE CENTER
OF THE PANEL!
10-32 x 5/8"
PHILLIPS
SCREW (8)
1/4 x 1”
WASHER (2)
Fig. 25
Assemble Screw Cover
IMPORTANT: Assemble all braces with small flanges
pointing toward the panel center. Short braces must
go on top of long braces. Fasten each screw with a
locknut and tighten all 8 screws. Close the screw covers.
Make sure they snap completely shut (Fig. 25 inset).
6. PLATFORM ASSEMBLY
The platform must be assembled down-stairs. Locate the
platform, 2 platform supports, 4 platform legs, ¼-20 x 2”
truss screws, and short locknuts (Fig. 26). Note: The
platform top side has warning labels. Insert the plat-
form support into one of the left legs as shown (Fig. 26
inset). Align the hole in the leg with the hole in the outer
end of the support. Next insert a ¼-20 x 2” screw down
through the platform, leg and support (Fig. 26). Secure
screw with a short locknut, but do not tighten until all
four screws are installed. When all legs are assembled as
shown in Fig. 26, tighten all of the screws and locknuts,
but do not over-tighten or you will collapse the tubing.
Locate the platform leg brackets, platform top brace, and
fasteners shown in Fig. 27. Install each bracket with 4
truss screws and tall locknuts (Fig. 27 inset). Tighten as
above. Install the platform top brace with 2 truss screws
and tall locknuts (Fig. 27). Tighten fasteners as above.
Fig. 27
1/4-20
TALL
LOCKNUTS (2)
PLATFORM
TOP BRACE
1/4-20 TALL
LOCKNUTS (8)
1/4-20 x 1½"
TRUSS SCREW
(2)
1/4-20 x 1-1/2"
TRUSS SCREW (8)
PLATFORM LEG
BRACKET (2)
PLATFORM
LEG
PLATFORM
SUPPORT
INSERT SUPPORT
INTO LEG. ALIGN
TO FIRST HOLE.
PLATFORM
PANEL (1)
PLATFORM
LEG (2 LEFT)
PLATFORM
LEG (2 RIGHT) FOUR HOLES
IN PLATFORM
1/4-20 x 2"
TRUSS SCREWS (4)
LABELS UP
PLATFORM
SUPPORT(2)
1/4-20 SHORT
LOCKNUTS (4)
NOTE: SECOND (INSIDE)
HOLES ARE NOT USED.
Fig. 26

14
Versa Lift Installation - Assembly (All Models)
!
7. DOOR AND PLATFORM ASSEMBLY
7-1. Locate the (8) 10-32 x 3/8” screws. Lift the platform
assembly onto the door assembly (Fig. 28).
Note: The spring brackets on the end of the platform
legs fit outside of the door braces (Fig. 28 inset).
7-2. Install and tighten the screws through the spring
brackets and into the door braces.
7-3. Locate the short and long chains. The last link on
each end of each chain is open to form a hook. Hook the
end of each chain onto the chain brackets on each
platform leg (Fig. 28 and inset). You can open the hook
further with pliers, if needed, to make it easier to hook.
7-4. Close the hooks on both ends of the short chains so
the chain is secured to the chain brackets. Close one
hook on each long chain, leaving the other ends open for
loading the platform.
Refer to the Owners Manual for complete information
about using the chains and how to safely load a
variety of cargo items on the platform.
8. CONNECT THE LIFT HEAD TO THE PLATFORM
8-1. Release the cables and let them hang down through
the lift opening. Check under housing to see that cable is
coming straight down out of the slots (Fig. 29 insets).
Make sure the cables are not kinked, tangled or fouled.
8-2. Position the lifting platform assembly directly below
the lift opening (Fig. 29). WARNING: The platform must
sit directly on the floor to attach the cables (not on a
box or a table). This sets the cable length so the Lift will
reach your floor and know where to stop automatically.
8-3. Pass the ends of the cables through the slots in the
platform leg brackets as shown in Fig. 30.
8-4. Pull the cable tight and wind it tightly around the
threaded studs exactly as shown in the illustration. Wrap
it as tightly as possible. Pinch the last loop around the
last stud, then pass the end of the cable through the
center hole in the bottom of the leg bracket (Fig. 30).
8-5a. Draw the cable tight by pulling firmly on the end of
the cable (Fig. 30).
IMPORTANT: To avoid damaging the studs, do not
use a power tool to install the cable clamp nuts!
Use only a socket and ratchet or an end wrench!
8-5b. While holding tension on the cable, install the cable
clamp with the top half leaning away from the cable (see
Fig. 30), then install a 1/2 x 3/8” aluminum spacer and
tall locknut on the last stud and snug it down to hold the
cable, but don’t tighten it yet. Install the rest of the alum.
spacers and tall locknuts and snug them down (snug is
when the nut gets a little tight and you can’t turn the
aluminum spacer with your fingers.) Install the second
cable and clamp, applying the same tension as with the
first cable. A little bit of slack in the cables is normal.
8-6. Torque all 10 locknuts to 5 foot pounds (60 inch
pounds). If you do not have a torque wrench, then
snug all 10 locknuts as explained above, then turn
each nut one-half turn (180 degrees) beyond snug
(see Fig. 31). Do not over-tighten these nuts or you
may break the studs off!
8-7. You don’t need to cut the excess cable, you can
thread it through the two holes in the bottom of the leg
bracket (Fig. 32) or you can wind it into a coil and zip tie
it inside the bracket. If you do cut off the excess cable,
you must leave at least a foot so that you can re-adjust
the cable if it becomes necessary.
NOTE: It is important that the excess cable is secured
where it can’t get caught in the lift opening when the
platform goes up or down.
STOP and DO NOT PROCEED TO STEP 8! Contact
BPG immediately (405-491-8550) to get the tech-doc.
about how to return the motor to the factory preset
position to prevent a serious malfunction of this Lift!
HOOK CHAINS
ON BRACKETS
PLATFORM
ASSEMBLY
SHORT CHAIN
(2)
LONG CHAIN (2)
10-32 x 3/8"
PHILLIPS
(8)
DOOR
ASSEMBLY
SPRING
BRACKET
FITS OUTSIDE
OF
DOOR
BRACE
Fig. 28
STOP! If you have already operated the Lift Motor:
!

Versa Lift Installation - Assembly (All Models) 15
8. CONNECT THE LIFT HEAD
TO THE PLATFORM
CHECK
CABLE
CHECK
CABLE
8-4. WIND THE CABLE
TIGHTLY ON THE
STUDS EXACTLY
AS SHOWN HERE.
8-3. PASS CABLE THRU SLOT IN
BRACKET AS SHOWN. THEN
PULL SLACK OUT OF CABLE.
TOP HALF
BEND LEANS
AWAY FROM
THE CABLE!
8-1. DROP THE CABLES
DOWN THROUGH
THE LIFT OPENING.
8-5. PULL FIRMLY
HERE UNTIL CABLE
CLAMP IS IN PLACE &
NUTS ARE TIGHT TO
SPECS (SEE BELOW).
CABLE
CLAMP (2)
1/2 x 3/8" Aluminum
SPACERS (10)
WARNING!:
D O NOT
Fig. 30
!
1/4-20 TALL
LOCKNUTS (10)
use a power tool to install
the cable clamp nuts, as this
can break the studs! Use only
a socket and ratchet or use
an end wrench to tighten!
!
IMPORTANT!!
The lifting platform
must sit directly on the
floor when attaching
the cables!!
Fig. 29
8-2. PLACE THE LIFTING
PLATFORM DIRECTLY
ON THE FLOOR UNDER
THE LIFT OPENING.
Fig. 31
Fig. 32
8-6. TIGHTEN LOCKNUTS
TO SPECIFIED TORQUE
OF 5 FOOT POUNDS
(or SNUG + ½ TURN).
DO NOT OVER-TIGHTEN!
8-7. DO NOT CUT CABLE.
STORE EXCESS AS SHOWN
OR ROLL UP AND ZIP TIE
TO INSIDE OF THIS FLANGE.
REPEAT FOR OTHER END.
!

16
Versa Lift Installation - Assembly (All Models)
Fig. 33a
9.1. REMOVE THE PACKING SCREW
Remove the packing screw (see Fig. 33a) to release the
upper limit switch lever. NOTE: The Lift will not run in
the up direction until this lever is free to operate the
up limit switch!
9.2. PLUG IN YOUR CONTROL DEVICE
There are three control options for the Versa Lift. General
information about each control is provided in Fig. 33b,
shown to the right. (Detailed information and required
hardware is provided in the box your control came in).

The corded remote (keyed) plugs into Port #1.

The downstairs (keyed) wall switch plugs into
Port #1, while the upstairs wall switch (no key) plugs
into Port #2.

The wireless radio receiver plugs into Port #1.
(The receiver can be mounted on the back of the lift
head, or on either side of the lift head. See Fig. 33a.)
See Fig. 33a below for the location of control Ports #1&2.
Please note the orientation of the locking tab on the plug,
as the plug will only insert one way. The locking tab must
be depressed whenever you wish to remove the plug.
For more information about the control devices, safety,
and Lift operation, please refer to the Owners Manual.
RECEIVER
CAN MOUNT
ON EITHER SIDE
RECEIVER
CAN MOUNT
ON THE BACK
CONTROL PORT #2
CONTROL PORT #1
9.2. PLUG IN YOUR CONTROL
TO THE CORRECT PORT(S)
UPPER LIMIT
SWITCH LEVER
TO CONTROL PORT #2 –
TO CONTROL PORT #1 –
9.1. REMOVE
THE PACKING
SCREW TO
RELEASE UP
LIMIT LEVER
CORDED
REMOTE
UPSTAIRS
WALL SWITCH
UP-DOWN
SWITCH
DOWNSTAIRS
WALL SWITCH
UP-DOWN
SWITCH
KEY
SWITCH
KEY
TO
CONTROL
PORT #2
TO
CONTROL
PORT #1
UP-DOWN
SWITCH
KEY
SWITCH
KEY
15-FT. CORD
TO
CONTROL
PORT #1
WIRELESS
TRANSMITTER
(REMOTE)
ON
WIRELESS
RECEIVER
UP DOWN
OFF
“STORAGE” SWITCH
I=ON, O=OFF
BACK
VIEW
TO
CONTROL
PORT #1
Fig. 33b

Versa Lift Installation - Assembly (All Models) 17
10. RAISE THE LIFTING PLATFORM
Review steps 2-8 to make sure you haven’t missed any
assembly steps. All screws must be tight except the lag
screws that hold the mounting rails to the deck. They
should be loose enough that the rails can be moved
freely the distance that the slotted holes allow.
10-1. Make sure the power cord and control cords are
clear of the lift opening and are not wrapped around the
housing or the housing legs (Fig. 34).
10-2. Plug in the power cord (Fig. 34) to the power outlet.
10-3. Stand clear of the lift and keep your hands clear.
Turn the main power switch to “ON” so it is lighted red.
Turn ON your control device as explained in Step 9.
Press the “UP” direction switch and watch as the platform
comes up. When the platform enters the opening, jog the
“UP” direction switch to move the platform in small
increments, watching to make sure that it does not catch
or bind on the opening. (If the platform hangs in the
opening, correct any causes before continuing the
operation.)
10-4. When the platform comes all the way up, it will lift
the upper limit switch lever (see Fig 33a), stopping the
motor and the platform before it can impact the Lift Head.
The platform should be approximately level with the floor.
11. ADJUST THE MOUNTING RAILS
Adjust the mounting rails to center the lifting platform in
the opening. Mark the platform center by measuring 22”
in from either end and making a small mark (see Fig. 35).
11.1
The mounting rail holes are slotted for adjustment.
Push both mounting rails inward against the platform and
move the rails and platform left or right until the platform
center marks are aligned with the opening center marks.
11.2
With the platform centered and the rails pressed
up against each side of the platform, tighten the (4) lag
screws on the first mounting rail, but don’t over-tighten!
Place a 1/16” to 1/8” shim spacer between the second
mounting rail and the platform legs and tighten the
remaining (4) lag screws (see Fig. 35).
Note: a strip of single-wall corrugated is a good shim.
11.3 Remove the shim spacers and check your work:
The platform assembly should freely move front-to-
back between the guide spacers and side-to-side
between the mounting rails 1/16” to 1/8”.
!
Turn off the key or power switch and unplug the
power cord before proceeding to the next steps.
10. RAISE
THE LIFTING
PLATFORM
POWER CORD
POWER SWITCH
(LIGHTED RED
WHEN
“ON”)
JOG THE
UP
SWITCH
TO SLOWLY RAISE THE
PLATFORM TO THE
HIGHEST POSITION.
!
UNPLUG POWER CORD
BEFORE PROCEEDING
TO THE NEXT STEP!
10. ADJUST
THE
MOUNTING
RAILS
POWER SWITCH
(NOT LIGHTED
WHEN
“OFF”)
1. PUSH MOUNTING
RAILS AGAINST
THE PLATFORM
LEGS EACH END.
FIRST
MOUNTING
RAIL
2. LINE
UP
PLATFORM
CENTER MARK
WITH
OPENING CENTER
MARK
CENTER OF
PLATFORM
CENTER
MARK
ON OPENING
(Fig. 4 on pg.
5)
SHIM
HERE
3. INSERT SHIMS. TIGHTEN
(8) LAG SCREWS LEAVING
1/16” - 1/8” SPACE
BETWEEN
PLATFORM LEGS AND
RAIL.
SECOND
MOUNTING
RAIL
Fig. 35
Fig. 34
WARNING: KEEP AWAY FROM
THE LIFT HOUSING AND LIFT
PLATFORM WHEN OPERATING!
!

18
Versa Lift Installation - Assembly (All Models)
!
WARNING
12. CENTER THE LIF T HOUSING:
IMPORTANT STEP!!
To operate correctly, the lift housing must be adjusted so
it is centered over the floor opening. If not centered, the
cables will not wind evenly onto the winch drum. Take
these steps to center the lift housing.
Step 1: Lower the lift platform until the top is even with
the top of the mounting rails. See Fig. 36.
Step 2: Look closely at the space between the outside
ends of the platform triangle brackets and the inside
walls of the mounting rails. Determine which space is
larger, left or right.
Step 3: Adjust the position of the lift housing by pushing
it firmly left or right as shown in Fig. 36. If the left space is
larger, then push the lift housing right. If the right space is
larger, push the housing left. Repeat these steps until the
left and right spaces are equal.
Note: Even though the housing legs are bolted tightly to
the housing, they will move slightly when forced and this
will allow the housing to shift laterally.
Congratulations! Your installation is complete!
12. CENTER THE LIFT HOUSING
STEP 1: LOWER THE PLATFORM
SO THE TOP IS EVEN WITH THE
TOP OF THE MOUNTING RAILS.
STEP 2: COMPARE THE LEFT
AND RIGHT SPACES BETWEEN
THE TRIANGLE BRACKETS AND
THE MOUNTING RAILS.
STEP 3: PUSH LIFT
TOP OF
HOUSING LEFT OR
MOUNTING
RIGHT. REPEAT 2 & 3
RAILS
UNTIL BOTH SPACES
ARE EQUAL.
LEFT
SPACE
RIGHT
SPACE
TRIANGLE
BRACKETS
TOP OF
PLATFORM
Fig. 36
!

Versa Lift Installation - Assembly (All Models) 19
The proper way to operate your new Versalift after it has been installed and
tested....
1. Always press the down button the ENTIRE time allowing the Versalift to come
to a stop automatically when it comes to rest on the floor.
2. Always press the up button until the lift stops on its own in the attic. The lift
will shut itself off when it arrives flush with the attic floor.
This practice allows the lift to maintain the cable around the cable drum properly
insuring a trouble free operation for years to come.
DO NOT lower the lift onto a box, workbench, pickup bed or at waist/knee height
to unload. This practice can cause the cable to wind up backwards creating an
issue with the cable around the drum, which can result in damage to the lift or
injury.
Put your load in the center of the lift, or stacked as evenly as you can to insure a
smooth operation.

NOTICE: The VersaLift is available in 1 of 3 Switching Methods.
1. Corded (Standard Series)
2. Wireless Remote (“W” Series)
3. Mounted Wall Switches (“M” Series) (2)
You CANNOT HAVE A CORDED and a WIRELESS or MOUNTED it is either/or. You CAN upgrade at any time.
