VESALA PK2 User manual

User Manual
PK2 Receiver X2.0 ENG
for Vesala Drill Point Locator Receiver PKR2 X2.0
and Vesala SPL2 SmartPlug Locator X2.0
IMPORTANT: Read carefully before use.
Keep for future reference.
English
Issued: 2022-03-04
Revised: 2022-05-10

User Manual Vesala PK2 Receiver X2.0 ENG
2 (22)

3 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
Table of contents
1 Safety notes ................................................................................................................................................................................... 4
2 General description ..................................................................................................................................................................... 5
2.1 Intended use ........................................................................................................................................................................ 5
2.2 Specifications ...................................................................................................................................................................... 5
2.3 Package contents ............................................................................................................................................................... 8
2.4 PKR2 and SPL2 parts and functions ............................................................................................................................. 9
3 Commissioning ........................................................................................................................................................................... 10
3.1 Inserting and replacing batteries ............................................................................................................................... 10
3.2 Attaching felt pads .......................................................................................................................................................... 10
3.3 Testing correct operation .............................................................................................................................................. 11
3.4 Selecting the transmitter type and distance measuring units ......................................................................... 12
4 Operating receivers ................................................................................................................................................................... 13
4.1 Inspecting the work site for hazards ......................................................................................................................... 13
4.2 Objects that may decrease locating accuracy ........................................................................................................ 13
4.3 Locating accurately thru thick structures ................................................................................................................ 14
4.4 Operating the receiver ................................................................................................................................................... 15
4.5 Measurement at an angle ............................................................................................................................................. 16
4.6 Offset measurement with PKR2 and PKT2 ............................................................................................................... 17
4.7 Multipoint measurement with PKR2 and PKT2 ...................................................................................................... 17
5 Taking care of your equipment ............................................................................................................................................. 18
5.1 Storing ................................................................................................................................................................................. 18
5.2 Cleaning .............................................................................................................................................................................. 18
5.3 Troubleshooting ............................................................................................................................................................... 19
5.4 Modifying and misuse .................................................................................................................................................... 21
5.5 Warranty.............................................................................................................................................................................. 21
5.6 Disposal ............................................................................................................................................................................... 21
6 Supplier contact information ................................................................................................................................................. 22
7 Declaration of conformity ....................................................................................................................................................... 22

User Manual Vesala PK2 Receiver X2.0 ENG
4 (22)
1 Safety notes
To avoid possible harm, read and follow these instructions.
DANGER: Risk of electric shock, fire, or property damage
Drilling a structure may damage a dangerously live electric cable or a pressurised pipe. Before
drilling a structure, make sure the structure doesn’t contain dangerously live cables or
pressurised pipes. If their existence cannot be excluded, the whole installation containing the
structure should be de-energized and de-pressurised before drilling begins. In some cases, a
decrease in locating accuracy may move the intended drill point.
ATTENTION: Risk of locating error due to electromagnetic conditions
Large metallic objects, radio transmitters or industrial equipment may degrade locating
accuracy or may prevent locating completely. Before attempting to locate a drill hole, take care
that there are no large metallic objects at or near the intended drill hole. Large metallic objects
include radiators, sheet metal, foil, and wire mesh among other things. Shut down or move any
radio transmitters that actively transmit on the same frequency at least 10 m away from the
intended drill hole. This includes other drill point locators.

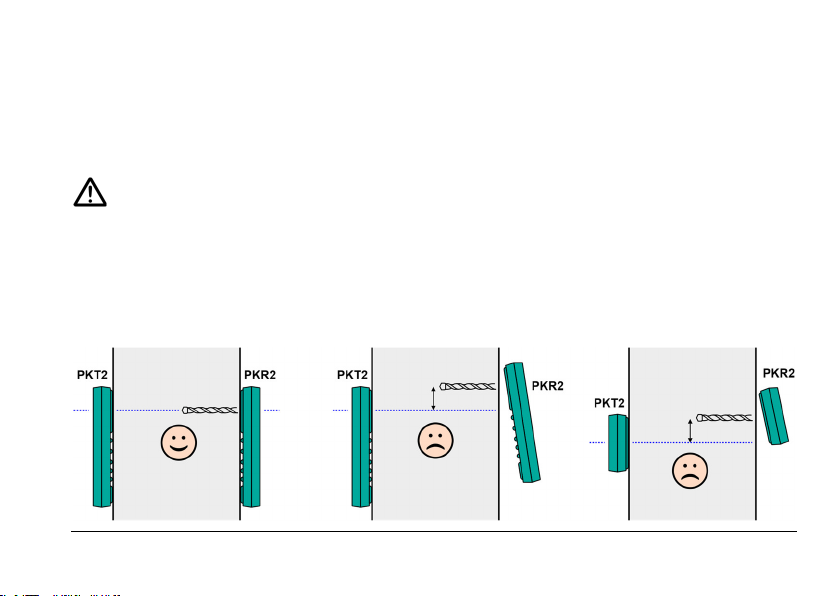

ATTENTION: Risk of locating error due to device misorientation
Locating drill points with misoriented devices may degrade locator performance. Instructions
for properly orienting the devices are provided in section 4: Operating receivers.

5 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
2 General description
2.1 Intended use
Drill Point Locator Receiver PKR2 and SPL2 SmartPlug Locator are used to locate positions and
measure distances thru non-conductive structures such as walls, floors, and ceilings before
drilling or cutting. A separate transmitter unit is needed to mark the desired location.
Transmitter PKT2 is included in PK2 Drill Point Locator kit with Receiver PKR2. In addition to that,
PKR2 may be used with smaller transmitters SP15 SmartPlug or TX15 Plug Transmitter. SPL2
SmartPlug Locator is compatible with these small transmitters only. Drill Point Locator Receiver
PKR2 and SPL2 SmartPlug Locator are intended for professional use in dry conditions.
2.2 Specifications
Operating temperature, LR03 batteries
installed -10°C…+40°C
Operating temperature, FR03 batteries
installed -20°C…+40°C
Humidity 10…90 % RH, non-condensing
Storage temperature, LR03 batteries installed +5°C…+30°C

User Manual Vesala PK2 Receiver X2.0 ENG
6 (22)
Storage temperature, batteries removed or
FR03 batteries installed -20°C…+40°C
Degree of protection IEC 60529 IP40
Batteries 3 pcs 1.5V IEC LR03 or FR03
Current consumption 15…75 mA
Nominal battery voltage 4.5 V
Enclosure material ABS
Enclosure size 176 x 78 x 29 mm
Weight, LR03 batteries included 216 g
Locating range, continuous PKR2 and PKT2: 0…150 cm
With SP15 or TX15: 0…30 cm
Extended locating range until SP15 or TX15
power saving activates
0…50 cm
Distance indication range, continuous PKR2 and PKT2: 1…200 cm
With SP15 or TX15: 0.2…30 cm
Extended distance indication range until SP15
or TX15 power saving activates 0.2…60 cm

7 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
Performance in free air, room temperature,
≥1000 mm from conductive objects Lateral error: ±3% of actual distance between units
Distance error: ± 1 cm ± 10%
Operating frequency band,
maximum power transmitted 9000…13350 Hz, input 83.000…83.666 kHz, < 10 mW
433.47…434.37 MHz, input
Electromagnetic environment ETSI EN 301 489-1: Residential, commercial
and light industrial environment
Receiver category 2
International standards this product is in
conformance with EN 300 220-1 EN 300 220-2
EN 300 330
EN 301 489-1
EN 301 489-3
EN 303 454

User Manual Vesala PK2 Receiver X2.0 ENG
8 (22)
2.3 Package contents
PK2 Drill point locator (V11740) contains the following items
 Drill Point Locator Receiver PKR2, version X2.0 (V11744)
 Drill Point Locator transmitter PKT2, version X2.0 (V11741)
 Alkaline battery LR03, 6 pcs (J01573)
 Felt pad, 4 pcs (N05925)
 Adhesive putty, Casco 2981, 60 g (S14010)
 User manuals
SPL2 SmartPlug Locator (V11762) contains the following items
 SPL2 SmartPlug Locator, version X2.0 (V11745)
 Alkaline battery LR03, 3 pcs (J01573)
 Felt pad, 4 pcs (N05925)
 User manual
Version numbers are indicated at the beginning of the serial number.

9 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
2.4 PKR2 and SPL2 parts and functions
Centre hole Mark the located point on the structure here.
Direction indicators
Red arrows show where to move the device.
Green squares indicate located position.
Display
Indicates measured distance to transmitter.
Displays firmware version letter and battery voltage at start-up.
Power LED
Green LED indicates power on. LED blinks if batteries should be
replaced. Device will shut down after 10 minutes of inactivity.
Power and volume button
Long press: Toggle power on or off.
Short press: Toggle speaker volume normal or low.
Volume resets to normal at start-up.
Extended start-up press: Access menu, see chapter 3.4.
Speaker
Higher pitch indicates better alignment or shorter distance.
Batteries
Located backside under battery cover: 3 x 1.5 V LR03 or FR03

User Manual Vesala PK2 Receiver X2.0 ENG
10 (22)
3 Commissioning
3.1 Inserting and replacing batteries
1. Clean and dry the device with a soft cloth.

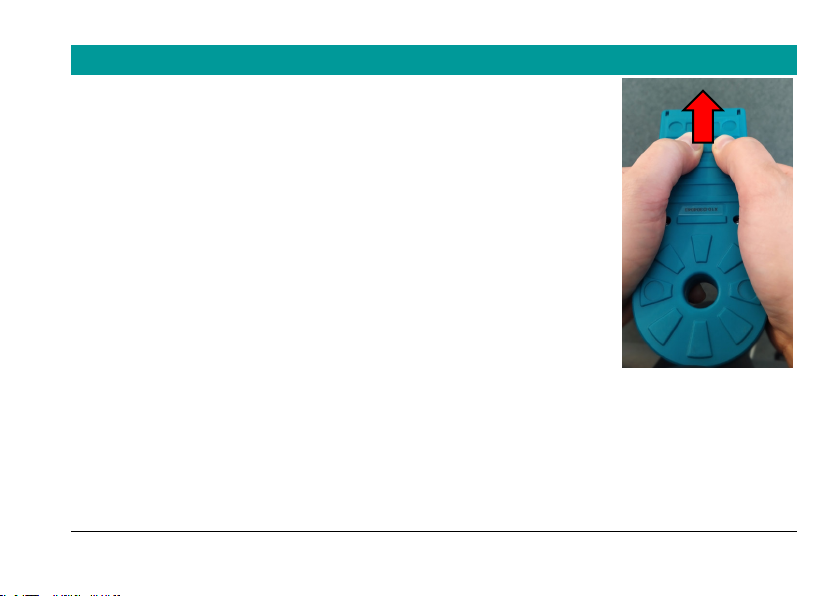

2. Gently press battery cover and slide towards bottom end.
3. Remove old batteries.
4. Insert three new 1.5 V LR03 (AAA) alkaline batteries or FR03
lithium batteries. FR03 batteries should be used when
ambient temperature is below -10°C. Observe that battery
polarity matches markings on the battery compartment.
5. Put battery cover back on and gently close it.
3.2 Attaching felt pads
Felt pads may be attached to the bottom of the receiver at designated
spots to avoid scratches on structures and to ensure smooth
movement.

11 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
3.3 Testing correct operation
Refer to Vesala Transmitter PKT2 user manual for information on how to test correct operation
with Transmitter PKT2 and Receiver PKR2. To test correct operation with SmartPlug SP15 or Plug
Transmitter TX15, follow this sequence:
1. When using Receiver PKR2, make sure it has the correct transmitter type selected. See
chapter 3.4.
2. Activate SmartPlug SP15 or Plug Transmitter TX15.
3. Power on Receiver PKR2 or SPL2 SmartPlug Locator.
4. Hold SmartPlug SP15 or Plug Transmitter TX15 directly behind Receiver PKR2 or SPL2
SmartPlug Locator at a distance of 30 cm as shown.
a. Receiver should now display the distance between the devices.
5. De-activate SmartPlug SP15 or Plug Transmitter TX15 and power off Receiver PKR2 or
SPL2 SmartPlug Locator.

User Manual Vesala PK2 Receiver X2.0 ENG
12 (22)
3.4 Selecting the transmitter type and distance measuring units
When delivered, Receiver PKR2 displays distance from Transmitter PKT2 in centimetres. SPL2
SmartPlug Locator displays distance from SmartPlug SP15 or Plug Transmitter TX15 in
centimetres. The units or the transmitter used with SPL2 SmartPlug Locator cannot be changed.
Receiver PKR2 has two other modes: display distance from Transmitter PKT2 in inches and
display distance from SmartPlug SP15 or Plug Transmitter TX15 in centimetres. If you use a
different transmitter than supplied with Receiver PKR2 or wish to change distance measuring
units, follow the sequence below.
1. If device is on, shut it down.
2. Press and hold power button for an extended time.
3. One of the following will eventually appear on display. Currently selected units are
displayed first.
4. U: cn - distance from Transmitter PKT2 in centimetres
5. U: In - distance from Transmitter PKT2 in inches
6. U: PH - distance from SmartPlug SP15 or Plug Transmitter TX15 in centimetres
7. Device will beep and display new units. To change units, release Power button when
desired unit is visible.
8. Continuing to hold Power button cancels units change. This is indicated with a beep.
If you wish to change transmitter or units again, repeat the sequence above. Selecting the
wrong transmitter will either display incorrect distance or prevent operation completely.

13 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
4 Operating receivers
4.1 Inspecting the work site for hazards
Carefully examine the structure to be drilled and surroundings for hazards before drilling.
DANGER: Risk of electric shock, fire, or property damage
Drilling a structure may damage a dangerously live electric cable or a pressurised pipe. Before
drilling a structure, make sure the structure doesn’t contain dangerously live cables or
pressurised pipes. If their existence cannot be excluded, the whole installation containing the
structure should be de-energized and de-pressurised before drilling begins. In some cases, a
decrease in locating accuracy may move the intended drill point.
4.2 Objects that may decrease locating accuracy
ATTENTION: Risk of locating error due to electromagnetic conditions
Large metallic objects, radio transmitters or industrial equipment may degrade locating
accuracy or may prevent locating completely. Before attempting to locate a drill hole, take care
that there are no large metallic objects at or near the intended drill hole. Large metallic objects
include radiators, sheet metal, foil, and wire mesh among other things. Shut down or move any
radio transmitters that actively transmit on the same frequency at least 10 m away from the
intended drill hole. This includes other drill point locators.

User Manual Vesala PK2 Receiver X2.0 ENG
14 (22)
Locating accuracy will be degraded if there are large metallic objects closer to the units than the
distance between the units is. Additionally, distance display may indicate longer distance than
actual. To avoid locating errors when large metallic objects are present, consider another drilling
location, perform offset measurement or multi-point measurement.
4.3 Locating accurately thru thick structures
ATTENTION: Risk of locating error due to device misorientation
Locating drill points with misoriented devices may degrade locator performance.
Alignment errors are highlighted when locating drill points thru thick structures. When using
Transmitter PKT2 with Receiver PKR2 for straight drilling, the device bottoms should face each
other on parallel planes both sides of the structure. When wedge pieces are used for angled
drilling, the angle of both transmitter and receiver should be the same and they should be at the
same angle to the horizontal. If necessary, use a spirit level to align the wedges.

15 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
Respectively, when locating SmartPlug SP15 or Plug
Transmitter TX15, the receiver should be used perpendicular
to the transmitter. Notice this especially when the transmitter
has been installed in an angle to the structure.
4.4 Operating the receiver
Place the receiver against the structure with the user interface
towards the user. Move the receiver slowly to the direction
indicated by red arrows. Two arrows pointing to a direction
indicate a long distance, one stands the proximity of the
measured point. The audio signal pitch increases when the
receiver is moved towards the correct spot. Green squares
indicate when the receiver is aligned with the transmitter.
When only four green squares are displayed on the receiver,
the transmitter and receiver are aligned and the distance
between them can be read on the display. The spot can now be
marked through the receiver's centre hole.

User Manual Vesala PK2 Receiver X2.0 ENG
16 (22)
4.5 Measurement at an angle
When a drill point needs to be located at an angle other
than 90° to the surface of a structure, start by attaching
the transmitter to the structure at the desired angle of the
drill hole. Locate the transmitter while holding the
receiver at an equal angle. A wedge made from a non-
metallic material may be used to hold the devices at the
desired angle. If the angles are not identical, the resulting
hole should be drilled from both sides of the structure so
that the holes meet inside the structure at different
angles.

17 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
4.6 Offset measurement with PKR2 and PKT2
Place the transmitter on an area where no
metal is present. Measure the distance and
direction from the receiver to the intended
drilling point. Locate the corresponding
spot relative to the transmitter on the other
side of the structure and use reverse
measurement to define the drilling point.
4.7 Multipoint measurement with PKR2 and PKT2
Measure at least two, preferably four points at exactly same distance from the intended drilling
point. Make separate measurements and markings for each
reference point. The
correct drilling spot is at
the geometrical midpoint
of the reference points.

User Manual Vesala PK2 Receiver X2.0 ENG
18 (22)
5 Taking care of your equipment
5.1 Storing
Remove batteries before storing the device for an extended period. Batteries left in the device
may leak and cause damage. Store the device, batteries and accessories inside its original
packaging in a dry, warm place.
5.2 Cleaning
If the device is dirty or wet, clean and dry the outer surface of the device with a soft cloth before
changing batteries. Avoid getting dirt or water inside the device. A small amount of isopropanol
can be used to remove stains and disinfect the surface. Battery compartment and battery
contact surfaces inside the battery compartment should only be cleaned with isopropanol and a
soft, lint free cloth.

19 (22)
User Manual Vesala PK2 Receiver X2.0 ENG
5.3 Troubleshooting
If case of trouble, follow the table below for possible remedy.
Problem Possible explanations Remedy
The device does
not power up or
unexpectedly shuts
down.
One or more battery is
empty. Replace all batteries.
One or more battery is
reversed. Orient batteries so that polarity matches markings on the battery compartment.
Device shuts down after
inactivity. When no signal is detected, the device will shut down after 10 minutes.
Receiver gives
inaccurate
positioning result
or indicates
distance
incorrectly.
There are interfering
objects nearby. Stay clear from objects or use the offset measurement method.
Transmitter PKT2 and
receiver PKR2 are not on
parallel planes.
Make sure that the structure is evenly
thick and place transmitter and receiver
accurately on their surfaces.

User Manual Vesala PK2 Receiver X2.0 ENG
20 (22)
Problem Possible explanations Remedy
Receiver gives
inaccurate
positioning result
or indicates
distance
incorrectly.
Transmitter SP15 or TX15
are not perpendicular to
the receiver.
Make sure the receiver is held at the
same angle to the structure where the
transmitter is installed.
Wrong transmitter type or
display unit is selected. To select correct transmitter type and display units, see chapter 3.4.
Receiver does not
respond to
transmitter even
when distance is
within operating
limits.
Other electric or radio
equipment in close
proximity interferes with
the communication
between the transmitter
and the receiver.
Turn off, move, or otherwise eliminate
the interfering equipment.
There are large metal
objects in the way. Try to find a spot without metal or use the offset measurement method.
Wrong transmitter type is
selected. To select correct transmitter type, see chapter 3.4.
