Vestfrost VLS 064 RF User manual

Model VLS 064 RF
Combined Icelined Refrigerator/Waterpacks Freezer
GB Instructions for use
FR Consignes d’utilisation
ES Instrucciones para el uso

CHI 使用说明

+43ºC
+10ºC
+43ºC
+10ºC

General Information
The VLS 064 RF is an ice-lined vaccine
refrigerator (+2 to +8°C) equipped with
basket. It has one compartment for storage
of vaccine and one compartment for
freezing and storage of water packs.
Power supply
The VLS 064 RF is equipped with a heavy-
duty compressor that can operate at
voltages 22% below nominal voltage. See
the rating plate. If voltage variations go
beyond this range, it is recommended to
use an automatic voltage stabilizer.
Technical data
See the rating plate, which is placed at the
rear side of the appliance.
Unpacking and installation
Unpacking
1. Unpack the appliance and check that it
has not been damaged. If you observe any
damage, inform your supervisor.
2. Check the rating for correct voltage and

3. Open and remove all internal packing
material.
Warning: For your own saftey, no person
must attempt to lift this appliance
without aid.
Contents
General information....................................2
Power supply..............................................2
Technical data.............................................2
Unpacking...................................................2
Get to know your refrigerator......................3
Installation ..................................................4
Electrical connection...................................5
Operation and function ...............................6
Cool down of the appliance ........................6
Loading the appliance ................................7
Freezing waterpacks ..................................7
Maintenance and cleaning..........................8
Trouble shooting.........................................9
Warranty, Spare parts and service ...........10

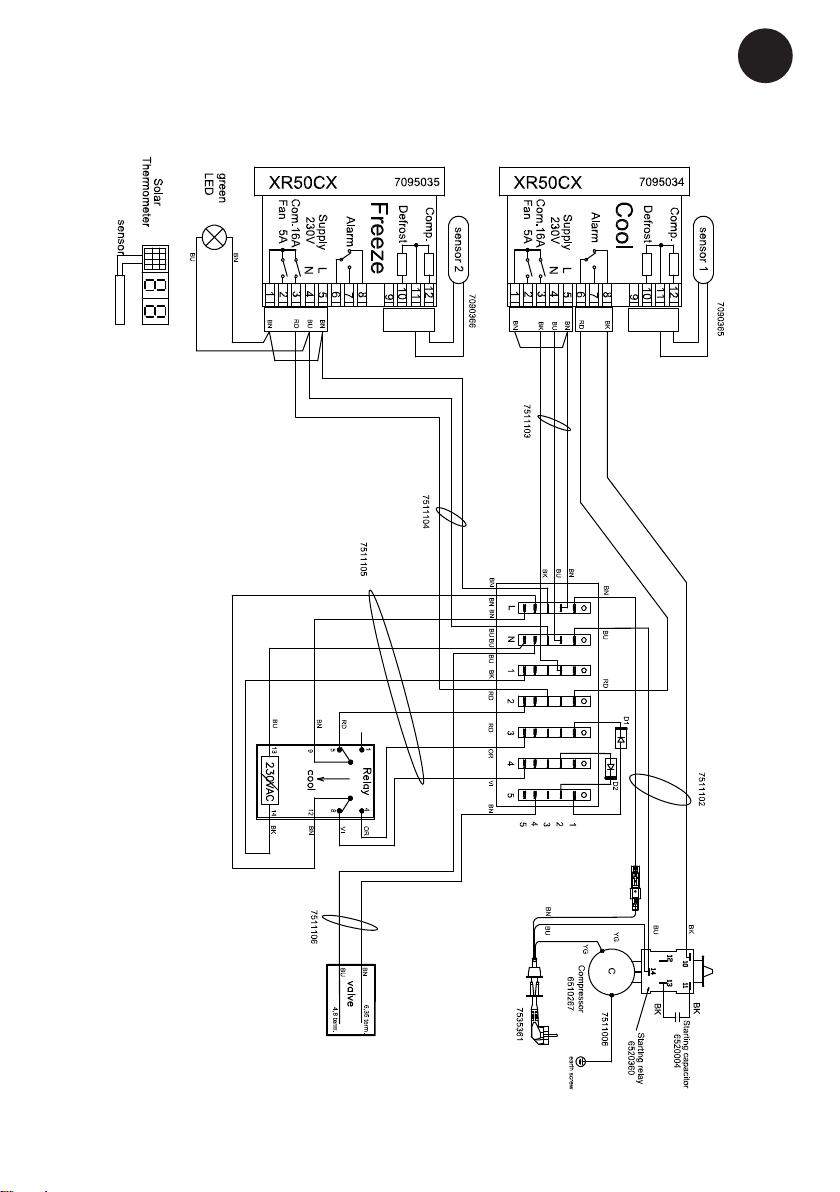

Wiring diagram .........................................13
Disposal ...................................................14

without prior notice.
2
GB

Get to know your Refrigerator
Handle
Lid
Sealing strip
Inner lid
Vaccine storage
Freezing
Compartment
Compressor
compartment
with ventilation
grille
Temperature
display
Fig. 1
Basket
Bottom grate
3
GB

Location
The appliance must be placed in a well
ventilated room, not in direct sunlight and
away from other heating sources.
When installing the appliance please


Installation
100 mm
100 mm
50 mm
800 mm
There must be at least 30 mm clearance
between the base of the appliance and the

There must be free access to

Fig. 2
Fig. 3
4
GB

Preparation

-

earthed.
Colour code for leads:
Lead of cord Pin of plug
230 V 115 V
Brown White Live
Blue Black Neutral
Green/Yellow Green Earth
Connect the plug to the socket and switch
on the appliance.
- Check, by listening, that the compressor is
running, if it does not run, contact your
supervisor.
The green indicator lamp located in the
control panel will illuminate when the unit is
connected to voltage supply
Recommended Voltage stabilizer:
Sollatek voltage stabilizer type SVS04-22 or
equivalent.
Electrical connection
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
This device complies with relevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Com-
patibility Directive 2004/108/EC
The socket should be freely accessible.
Connect the appliance only to 220-240V
50Hz & 208-230V 60Hz alternating current
via a correctly installed earthed socket.
The socket must be fused with a 10A - 13A
fuse.
If the appliance is to be operated in a non-
European country, check on the rating plate
whether the indicated voltage and current
type correspond to the values of your mains
supply.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.
The rating plate provides various techni-
cal information as well as type and serial
number.
5
GB

Operation and function
Electronic thermostat
The appliance has an electronic thermostat
that controls the temperature in the vaccine
compartment. The thermostat is set by the
factory.
1. The green diode is on when the
appliance is connected to the power
supply.
2. Solar Thermometer.
Starting procedure
Connect the mains lead to the power

indicate that the appliance is operating. The
electronic thermostat makes a self test, 20
seconds before the compressor starts.
Temperature control
It is recommended to check the inside
temperature with an accurate thermometer
twice a day. The inside temperature must
be checked regularly according to WHO’s

Cool down of the appliance
Before the appliance is loaded with
vaccines the ice-lining must be frozen. To
ensure that the ice-lining is frozen do the
following:
1. Place a thermometer in the top basket.
2. Let the refrigerator run for at least 48
Hours before loading vaccine.
3. Check the temperature in the vaccine
compartment
(must be between +2° and +8°C).
The temperature in the vaccine
compartment must always be monitored
on the thermometer and be within the
range +2° to +8°C. Due to tolerance of the
thermostat you should always control the
temperature during cool down.

The green diode
indicates that
there is power.

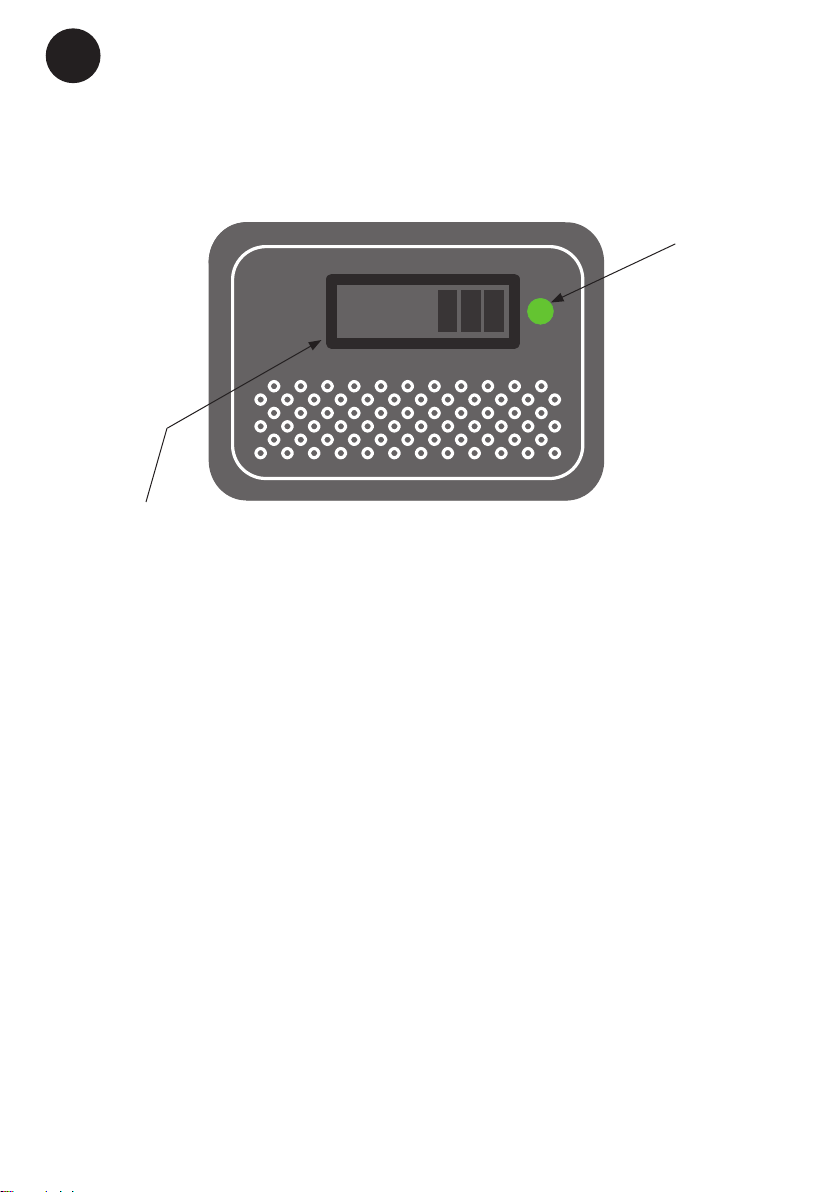

1. Green diode
°C
+4
2. Solar-thermometer
6
GB

Loading the appliance
Loading vaccines
When the temperature in the vaccine
compartment has stabilized, i.e. and the
temperature is between +2° and +8°C and
the compressor stops and starts, vaccines
can be loaded.
To ensure air-circulation and prevent too
low vaccine temperature, direct contact to
the inside walls must be avoided in the top
section of the cooler.

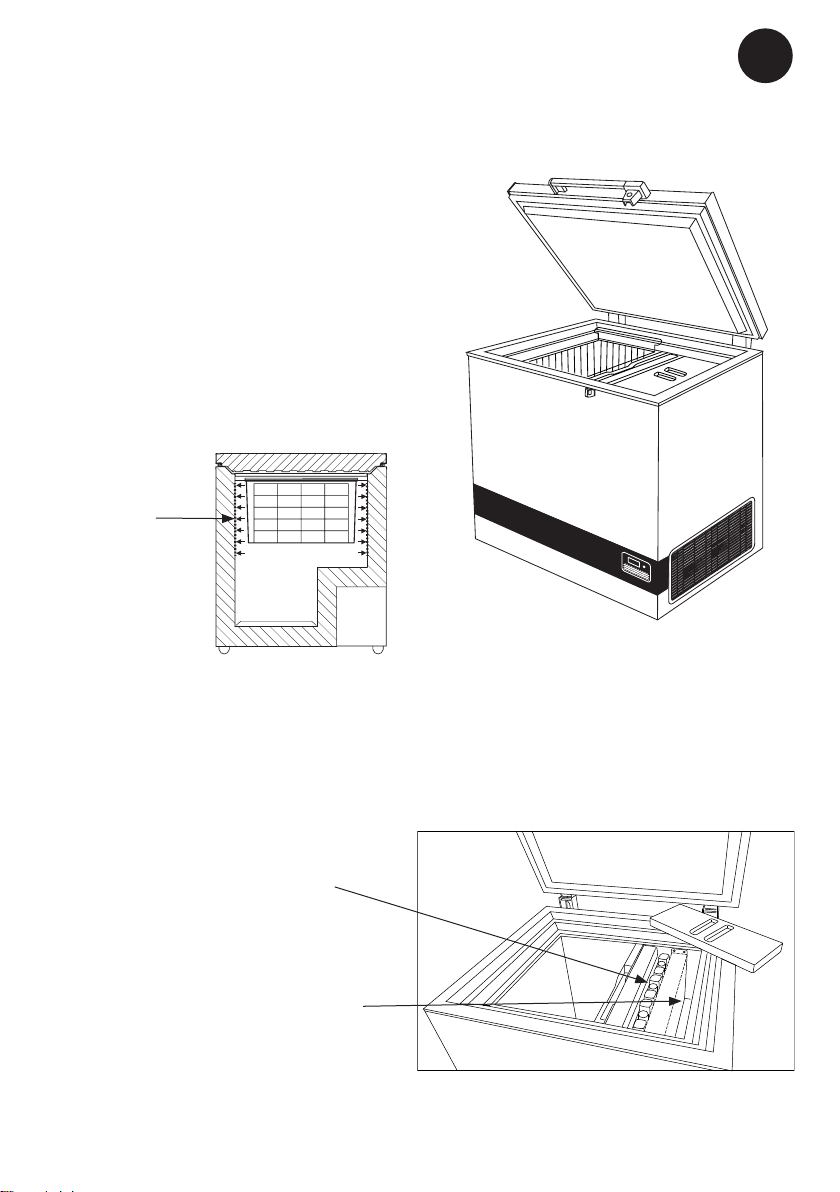

Fig. 5
Fig. 7
The VLS 064 RF has a freezing capacity
of 3 x 0.6 liter water packs /24h. Storage
capacity is 6x 0,6 liter water packs.
- Place the 3 water packs in the slot
nearest center of the unit
- Place the lid on top of the freezing
compartment
- The water packs will be frozen after 24h
- Move the frozen water packs to the 2.
slot for storage
The unit is ready to freeze the next batch
of water packs
Freezing water packs
Cold surface
Avoid direct contact
Fig. 6
7
GB

Daily maintenance:
The temperature in the vaccine
compartment must always be monitored
on the thermometer every day. Please note
that the vaccine in the appliance may not
freeze.
Weekly maintenance:
During normal use, water can accumulate
at the bottom of the appliance; remove with
a cloth or through the drainage hole.
Wipe of water droplets on the inside wall at
the same time.
Under certain ambient conditions, rime can
form on the inside wall. Remove the rime
without using sharp edged tools.
Check if lid gasket is sealing tight to the top
frame when the lid is closed. A tight sealing
lid reduces accumulation of water and for-

Monthly maintenance:
Clean the grill on the right side of the
refrigerator once each month.
Yearly maintenance:
Electric connections and components are
to be checked and cleaned once a year or
more if necessary.
Maintenance and cleaning
Cleaning
Disconnect the power supply before
cleaning. The best way to clean the
appliance is by using luke warm water with
a small amount of unscented detergent.
Never use cleaning agents that scour. Use
a soft cloth. Rinse with clean water and dry
thoroughly. It is important to prevent water
from running into the control panel.
The sealing strip around the lid must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
If the appliance is not being used for any
period of time, switch off the appliance,
disconnect the power supply, empty the
appliance, clean the inside, and leave the
lid open to allow air circulation and prevent
smells.
8
GB

Trouble shooting
Fault Possible cause Remedy
Compressor is not
running
Be patient, it is most likely that the
compressor will start within a few
minutes.
If this is not the case, check the fol-
lowing:
- Check that power is connected.
- Check the fuse and replace it if
necessary.
- If the above is OK, call technical
supervisor.
Compressor is running,
and the temperature is
too high
The ventilation grille is blocked.
The lid is not closed properly.
The temperature in the room in which
the appliance is installed is too high.
Ensure unhindered air circulation.
Ensure that the lid is closed properly.
Shield the appliance against direct
sun light and ensure more ventilation
to the room.
No temperature is
displayed
The thermometer is broken.
There is not enough light for the solar
sensor.
Change the thermometer.
Turn on the light.
9
GB

Produkt nr.
Warranty, spare parts and service
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,

installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations are not
covered by the warranty.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully.
Spare parts

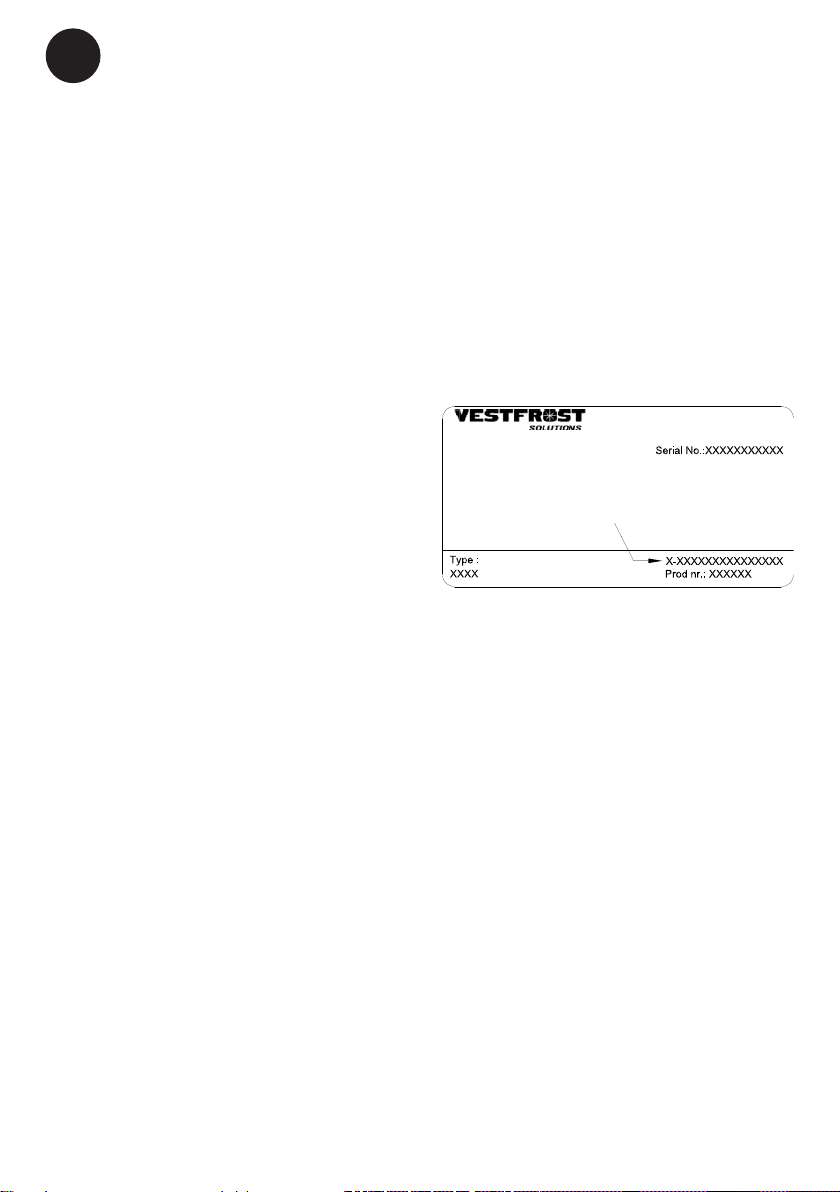

When ordering spare parts, please state the
type, serial and product numbers of your
appliance. This information is given on the
rating plate . The rating plate contains
various technical information, including type
and serial numbers.
Fig. 8
10
GB

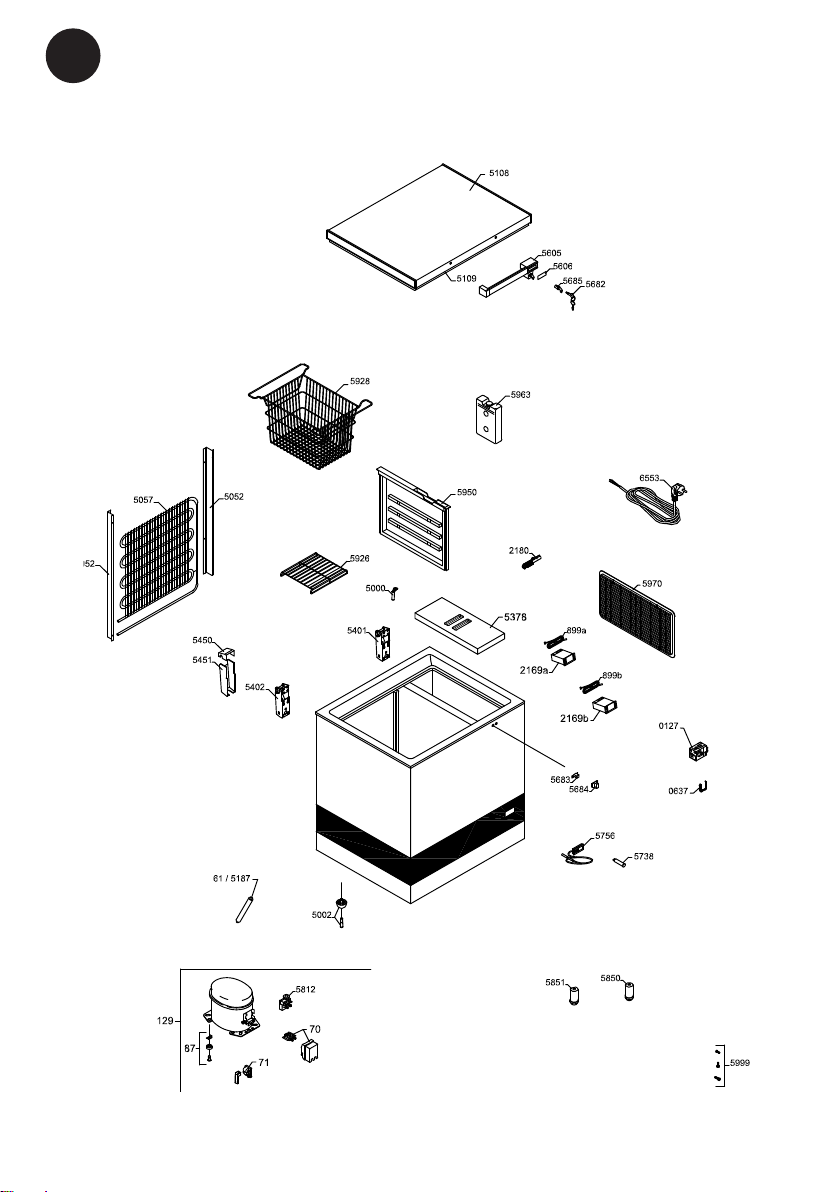

VLS 064 RF
VLS064RF 3.1
Position Item number Item name
0070
A
921001 Cover + wirring clamp
0087 0-6038175 Base plate fittings, complete
0127 0-7038027 Relay
0129 8-036038987 Compressor - NL7,3MF, Complete,
0637 0-5238579 Holder for relay
0899a 7090365 Phail,
0899b 7090366 Phail,
2169a 7095034 Thermostat XR50CX - unidad de refrigeración
2169b 7095035 Thermostat XR50CX - freezer
2180 0-52393820101 Fittings for phial
5000 3010049 Drain plug
5002 6000959 Foot with pin
5052 2041300 Fittings for condenser
5057 6010084 Condenser
5108 5000917680 Lid foamed without handle/hinges
5109 3020102-01 Gasket 201 l. 701x581mm white
5187 6530068 Filter drier
5378 5020540 Lid for fast freeze compartment
5401 1510028 Hinge S 58-00-13
5402 1510029 Hinge 40
5450 3010040-01 Top part for hinge cover
5451 3010032-01 Bottom part for hinge cover
5605 304090501 Handle with lock (push and turn)
5606 8090342-94 Inlay for handle,
5682 1510046 Key, set - 2pc.
5683 2040145 Catch for handle
5684 3010265-01 Cover for catch
5685 600098801 Lock with keys,(push and turn)
5738 7010138 Pilot lamp, green
5756 7020287-03 Thermometer, solar
5812 6520360 Starting device, 117U6016
5850 6520004 Starting condenser 117U5015
5926 3510032 Bottom grating
5928 3510040 Basket
5950 3010155-01 Plastic partition
5963
A
93010357 Eutectic element
5970 3010308-01 Motor screen
6553 7535361 Mains lead
Subject to changes without prior notice.
1-X06467104410103 Version :...
A
Date :............. 20-10-2014
A
pproved b
y
:....
11
GB

12
GB

13
GB

Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
For business users in the Euro-
pean Union.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to dis-
card this product, please contact your
local authorities or dealer and ask for
the correct method of disposal.

This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.
14
GB

Information générale
Le VLS 064 RF est un réfrigérateur à vac-
cins glace bordée (entre +2 et +8 ° C) équi-
pé panier. Il a un compartiment pour le stoc-
kage du vaccin et un compartiment pour la
congélation et le stockage des packs d’eau.

Le modèle VLS 064 RF est équipé d’un
compresseur puissant pouvant fonctionner
sur un voltage de 22 % inférieur à la tension
nominale. Voir la plaque signalétique. Si les
variations de tension débordent cette plage,
l’emploi d’un stabilisateur automatique de
tension est recommandé.

Voir la plaque signalétique placée à l’arrière
de l’appareil.
Déballage
1. Déballer l’appareil et s’assurer qu’il n’a
subi aucun dommage. Si un dommage
est observé, contacter votre responsable
technique.
     
tension et quelle fréquence conviennent
3. Ouvrir et sortir tout le matériel emballé à
l’intérieur.
 Pour votre propre sécurité, per-
sonne ne doit tenter de soulever
l’appareil sans aide.
Table des matières
Information générale...................................2
Alimentation électrique ...............................2
Caractéristiques techniques .......................2
Déballage ...................................................2
Faire connaissance avec son réfrigérateur 3
Installation ..................................................4
Raccordement électrique............................5
Mise en service et fonctions .......................6
Refroidissement de l’appareil .....................6
Chargement de l’appareil ...........................7
Entretien et nettoyage ................................8
............................9
Garantie, pièces de rechange et service..10
Schéma de principe..................................13
Mise au rebut............................................14
Nous nous réservons le droit d’apporter

2
FR

Faire connaissance avec son réfrigérateur
Poignée
Couvercle
Bande d’étanchéité
couvercle interne
Le stockage
de vaccins
Compartiment
congélation
Compartiment du
compresseur avec
la grille de ventilation

de la température
Panier
Grille de fond

3
FR

Il doit y avoir au moins 30 mm d’espace
entre la base de l’appareil et le sol.
Les ouvertures de ventilation sur l’appareil
ou sur la structure incorporée doivent être
maintenues libres de toute obstruction.
-
lation doit être libre. 

Emplacement
L’appareil doit être placé dans une pièce
bien ventilée, à l’abri du soleil et loin des
autres sources de chaleur.
Lors de la mise en place de l’appareil, s’as-
surer que le sol est bien plan. Pour plus

Installation

100 mm
100 mm
50 mm
800 mm
4
FR

Préparation

votre support. Si ce n’est pas le cas, de-



Cordon élec-
trique

230 V 115 V
Marron Blanc Sous tension
Bleu Noir Neutre
Vert/Jaune Vert Terre

allumer l’interrupteur de l’appareil.

en route, sinon, contacter votre respon-
sable technique.
La lampe témoin verte placée dans le pan-
neau de contrôle s’allume lorsque l’appareil
est connecté à l’alimentation électrique.
Stabilisateur de tension recommandé:
Stabilisateur de tension Sollatek du type
SVS04-22 ou équivalent.

Le câblage et les raccordements électriques
des systèmes d’alimenta¬tion électrique
doivent respecter les normes électriques
(locales et nationales) en vigueur. Consul-
tez ces normes avant toute installation de
l’appareil.
Ce dispositif est conforme aux directives de
l’U.E. le concernant, y compris la Directive
2006/95/CEE sur la Basse Tension et la
Directive 2004/108/CE sur la Compatibilité
Electromagnétique.
La prise de courant doit rester facilement
-
pareil dans une prise secteur en 220-240V
50Hz & 208-230V 60Hz réglementairement
reliée à la terre. La prise doit être protégée
par un fusible/disjoncteur supportant de 10A
- 13A fusible.
Sur les appareils destinés aux pays non
-

la plaque signalétique concordent bien avec
ceux offerts par le secteur du pays oncerné.
Les informations concernant la tension
et la puissance absorbée / courant sont

Si un changement de cordon d’alimentation
électrique s’impose, cette opération est
réservéeà un spécialiste.
La plaque signalétique fournit diverses
informations techniques ainsi que les numé-
ros de type et de série.
N’utilisez en aucun cas des rallonges de
câble.
5
FR

Mise en service et fonctions
Fig. 4
2. Solaire thermomètre
1. Voyant vert

L’appareil est muni d’un thermostat
électronique pour le contrôle de la
température dans le compartiment à
vaccins. Le thermostat est réglé au départ
d’usine.
1. La diode verte est allumée lorsque
l’appareil est connecté à l’alimentation
électrique.
2. Solaire thermomètre.
Procédure de mise en route

courant. La diode verte doit s’allumer
(Fig. 4) pour indiquer que l’appareil est
en fonction. Le thermostat électronique
procède à son propre test, 20 secondes
avant la mise en route du compresseur.
Contrôle de la température

température intérieure deux fois par jour à
l’aide d’un thermomètre précis. Selon les

température intérieure doit être contrôlée
régulièrement.
Refroidissement de l’appareil
Avant que les vaccins soient chargés dans
l’appareil, la contre-paroi réfrigérante doit
être gelée. Pour s’assurer que la contre-
paroi réfrigérante est bien gelée, procéder
comme suit :
1. Placer un thermomètre dans le panier
supérieur.
2. Laisser le réfrigérateur fonctionner
pendant 48 heures au moins avant de
charger les vaccins.
3. Contrôler la température dans le
compartiment de vaccins
(celle-ci doit se situer entre +2 et +8 °C).
La température dans le compartiment à
vaccins doit être constamment contrôlée sur
le thermomètre et doit se situer dans une
fourchette de +2 à +8 °C. La précision du
thermostat permet un contrôle constant de
la température pendant le refroidissement.
°C
+4
6
FR
