Vestil DGS-A-PSD User manual

1
Instruction Manual
Note: The Owner/Operator must read carefully and understand
all the information presented here before operation.
DRUM GRAB
MODEL NUMBER:DGS-A-PSD

2
Contents
1 Structure and relevant parts description………. 2
2 Specification……………………………………… 3
3 Unpacking………………………………………… 3
4 General safety information……………………... 3
5 Operation…………………………………………. 4
6 Maintenance……………………………………… 6
7 For warranty service…………………………….. 6
8 For non-warranty service……………………….. 6

3
THANK YOU FOR CHOOSING OUR DRUM GRAB. FOR YOUR
SAFETY AND CORRECT OPERATION, PLEASE CAREFULLY READ
THE MANUAL BEFORE USE.
NOTE: All of the information reported herein is based on data available at
the time of printing. The factory reserves the right to modify its own
products at any time without notice or incurring in any sanction. Please
verify with the factory for possible updates.

4

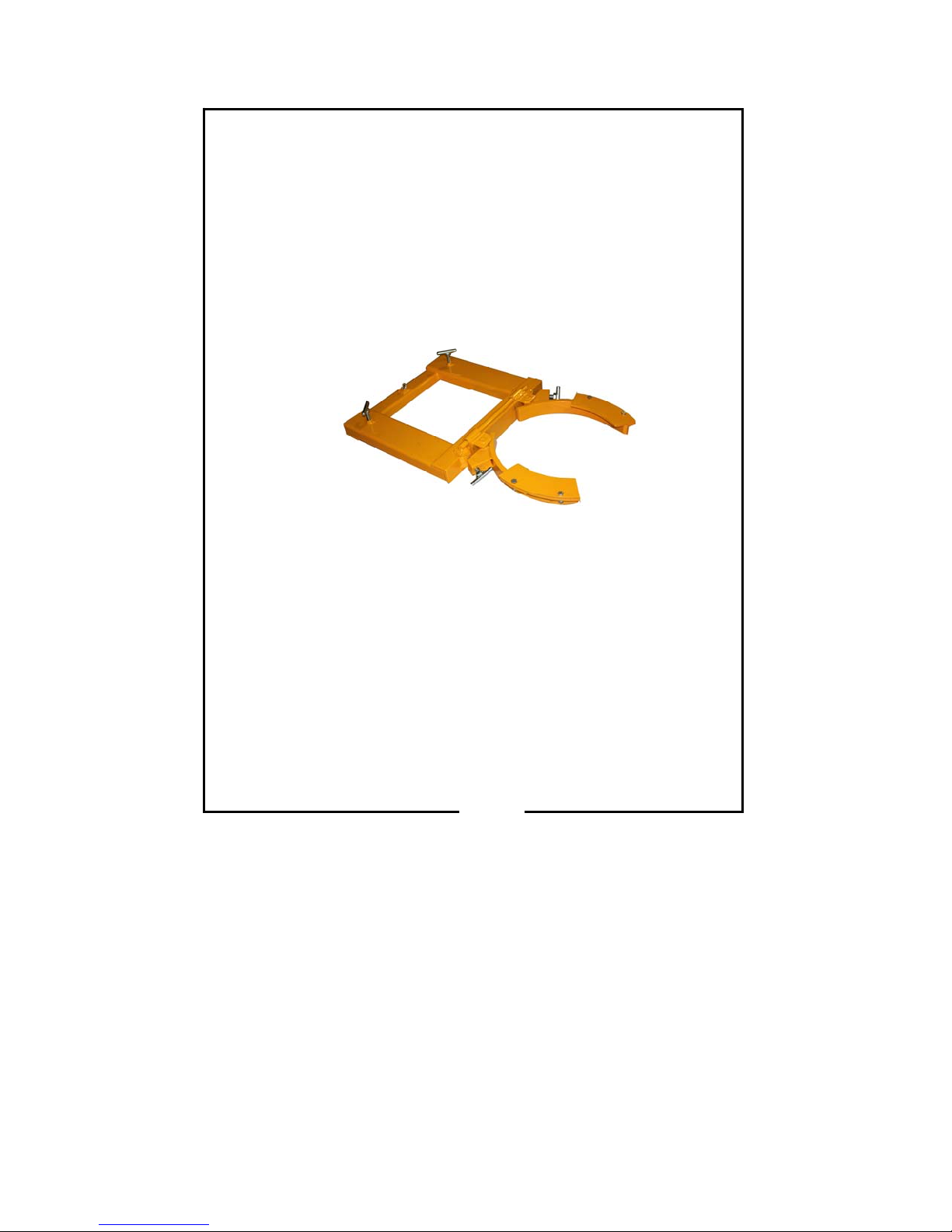

1. STRUCTURE AND RELEVANT PARTS DESCRIPTION
Item No. Description Remark
1 Supportin rackg
2 Axle base
Axl3
Bol4
Clam5
6 M20X90 T-BOLT
LOAD RATING: 1500lbs/per drum, drum diameter：16⅜-24”

5
2. SPECIFICATION
Model Drum Type Capacity
(lbs / per drum)
Drum
diameter
(Inch)
Fork
Pockets
(Inch)
Net
weight
(lbs)
DGS-A-P
SD Single Drum 1500 16-23½ 51/2*2 121
3. UNPACKING
When unpacking your unit, check carefully for shipping damage. If
damage has occurred, file a claim with the delivering carrier within 24
hours and notify the dealer from whom the unit was purchased.
4. GENERAL SAFETY INFORMATION
WARNING: The Drum Grabs are designed for specific functions. To
insure proper use, the following instructions must be adhered to:
1.DO NOT USE YOUR UNIT FOR LOADS EXCEEDING THE RATED
CAPACITY..
2.Adhere to all local codes regarding drum use and storage.
3.Before using this product, contact the manufacturer of your industrial
truck and obtain their written approval that the truck has the capacity to
be used with this attachment.
4.Don not use drum grabs with manually operated stackers.
5.Do not use to lift personnel or to carry loads over people.
6.Do not leave with a loads suspended in air unattended.
7.Do not remove or obscure capacity warning label.
8.Inspect unit daily before use. Remove unit from service immediately if
damaged or malfunctioning until such time as repairs have been
made.
9.Do not modify this product in any way.
10. Use only replacement parts with the manufacturer offered when
servicing.

6
5. OPERATION (video clip of the operation for steel drums is available upon request)
The following outlines the general operation of Drum Grabs. Differences
for specific models follow this section.
1. Place unit on floor or flat surface easily accessible to fork truck. Be
sure that “T” bolts are sufficiently unthreaded to allow forks to enter
pockets.
2. Adjust the hoop according to the drum diameter
3. Carefully slide forks (do not use fork extensions) into drum grab’s fork
pockets. Be sure forks are in pockets as far as possible.
4. Hand tighten “T” bolts to secure unit to forks (hand tool may be used
but is not necessary). Recheck bolts periodically during use for
tightness.
5. If not already done, unfold grab jaws.
6. Raise unit and approach drum so that the jaws come in contact with
the drum just below the upper rolling rib of the drum. (Fig 1)
7. Move unit forward onto drum, lowering jaws slowly as you move. Jaws
will open and close around drum. (Fig 2)

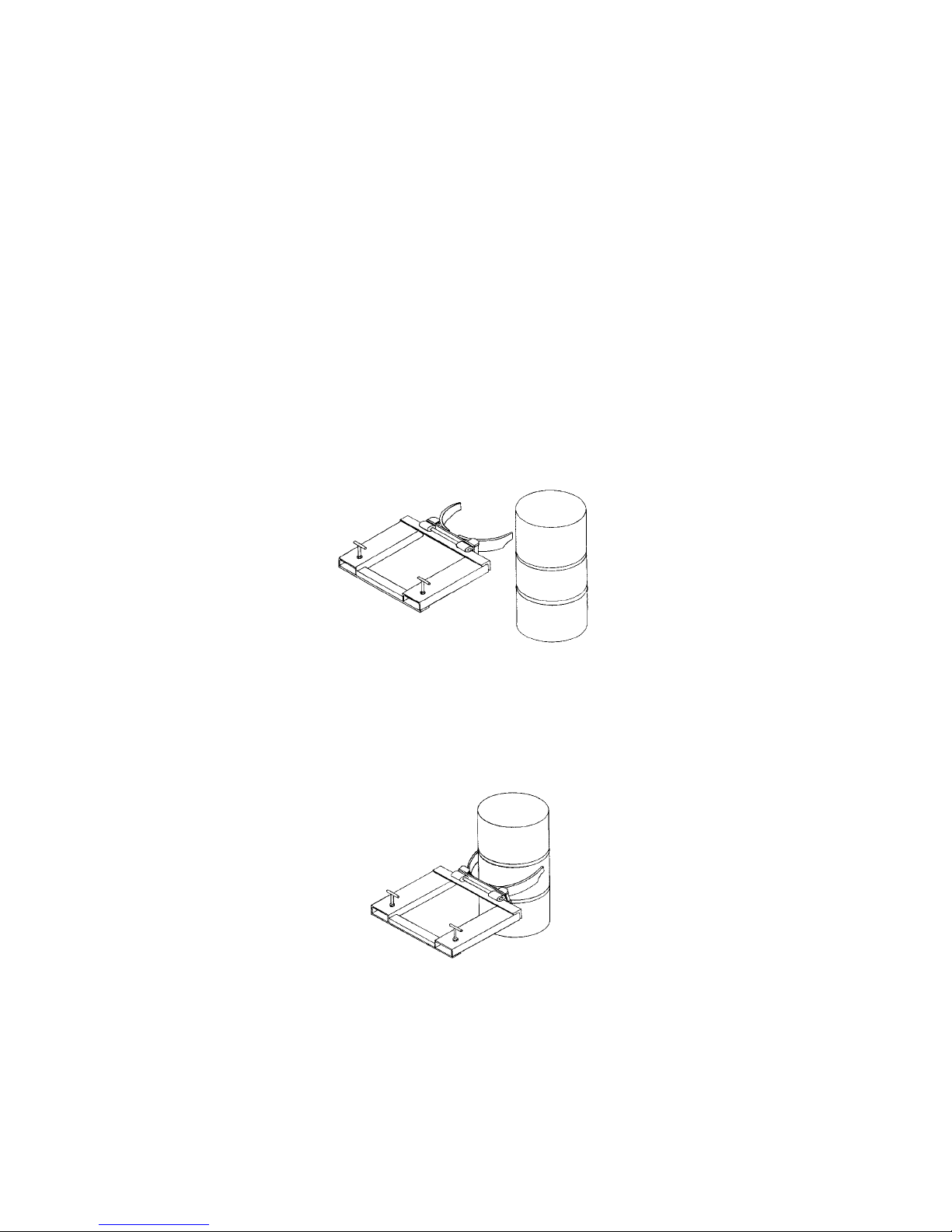

Figure 1
Figure 2

7
8. When jaws surround drum, raise forks until jaws rest under upper
rolling rib. Drum can now be raised and moved where desired. (Fig.3)
9. To release drums, return to floor, lowering drum grab slowly as you
pull back.
10. Follow same procedure with tow drums at same time. For easier
pickup, drums should touch each other. Be sure that drum weights are
similar to insure balanced load.
6. MAINTENANCE
Lubricate moving parts periodically
7. FOR WARRANTY SERVICE
If unit does not work properly, contact your dealer or the factory for units
less than ninety days old.
8. FOR NON-WARRANTY SERVICE
For units older than ninety days, repairs can be made easily with factory authorized parts.
Figure 3

8
NOTE: Do not send units to the factory for service without obtaining a
“returned goods authorization number” from the service department. We
will not be responsible for goods returned without proper authorization.
This needs to be updated with detail user instructions
1.How and when to adjust the T-bolt?
The T-Bolts are adjusted to the proper clamping angle because clamping
different drum types requires different clamping angles and
sometimes adjustments .

9

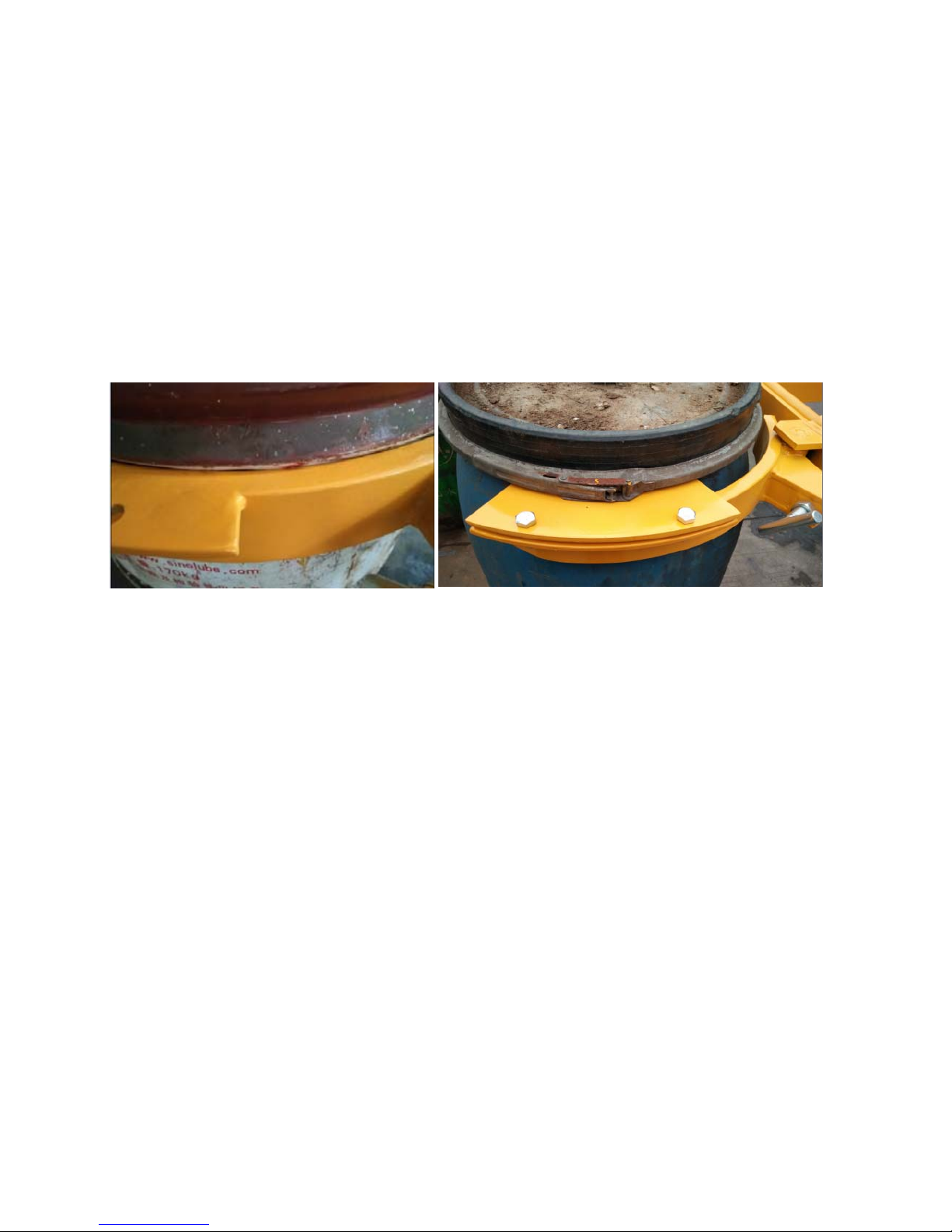

2. How to use with 30 & 55 gallon steel and plastic drums?
Lifting steel drum:Remove clamping brackets. Steel drums are lifted
from middle of the drum. Lifting plastic drum, install the clamping
brackets. Plastic drums are lifted from under the top ring.
3. What is the purpose of clamping brackets bolted on the gripper arms
and when to use these brackets?
The function of the clamping brackets is to clamp the plastic drums.
Since the plastic oil drum is clamped in the deep groove below the top
ring, the clamping brackets must be installed.

Copyright 2016 Vestil Manufacturing Corp. Page 8
