METEOROLOGICAL STATION
MODEL:YT60231
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:YT60231
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
METEOROLOGICAL
STATION

- 2 -
PRODUCT FEATURES
● Colorful and big digit display with super bright backlight.
● 9 functional buttons: SET, TEMP/ALARM, RAIN, WIND/+, BARO/-/RCC,
ALERT, MAX/MIN, CHANNEL, LIGHT/ SNOOZE
● Self setting accurate atomic time function.
● Alarm with snooze function.
● Daylight Saving Time (DST) function.
● Time zone: -12~12.
● 8 languages for weekdays display.
● Moon Phase.
● Indoor & outdoor temperature (°C/°F) & humidity readings with trend.
● 4-level brightness of backlight.
● Hourly, Daily, Weekly, Monthly, Total rainfall and Rainfall rate in past hour.
● Average wind speed, gust wind speed and wind direction displays.
● Absolute and relative Barometric pressure displays with trend.
● Light intensity and UV index display.
● Weather index display : Feel likes, Wind Chill, Heat index. Dew point.
● Weather Forecasting.
● Max/Min reading.
● Weather alert settings.

- 3 -

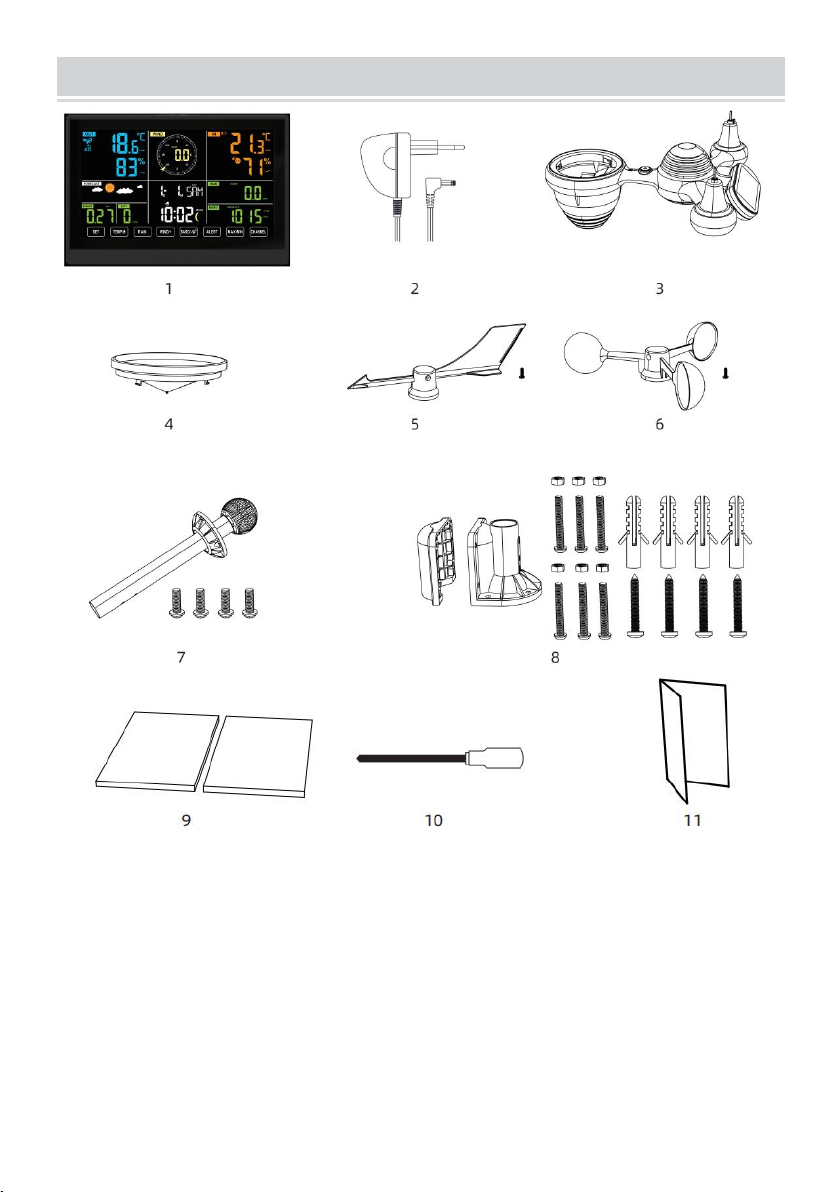

PACKAGE CONTENTS
1 Weather station
2 Adapter
3 Wireless 7-in-1 outdoor sensor
4 Funnel
5 Wind direction vane with 1 screw
6 Wind speed cups with 1 screw
7 Mounting pole with 4 screws
8 Mounting brackets with 6 screws
9 Rubber pads X 2
10 Screwdriver
11 User guide
NOTE: 4 extra screws for wind direction vane and wind speed cups.

- 4 -
PRODUCT OVERVIEW
WIRELESS 7-IN-1 OUTDOOR SENSOR
1Solar panel
2Wind direction vane
3UV/light sensor
4Bubble level gradienter
5Rain collector
6Wind speed cups
7Mounting pole
8Mounting brackets
9Hygro-thermo sensor
10 LED: Flashes when the
unit transmits a reading
11 RESET button
12 Battery door

- 5 -

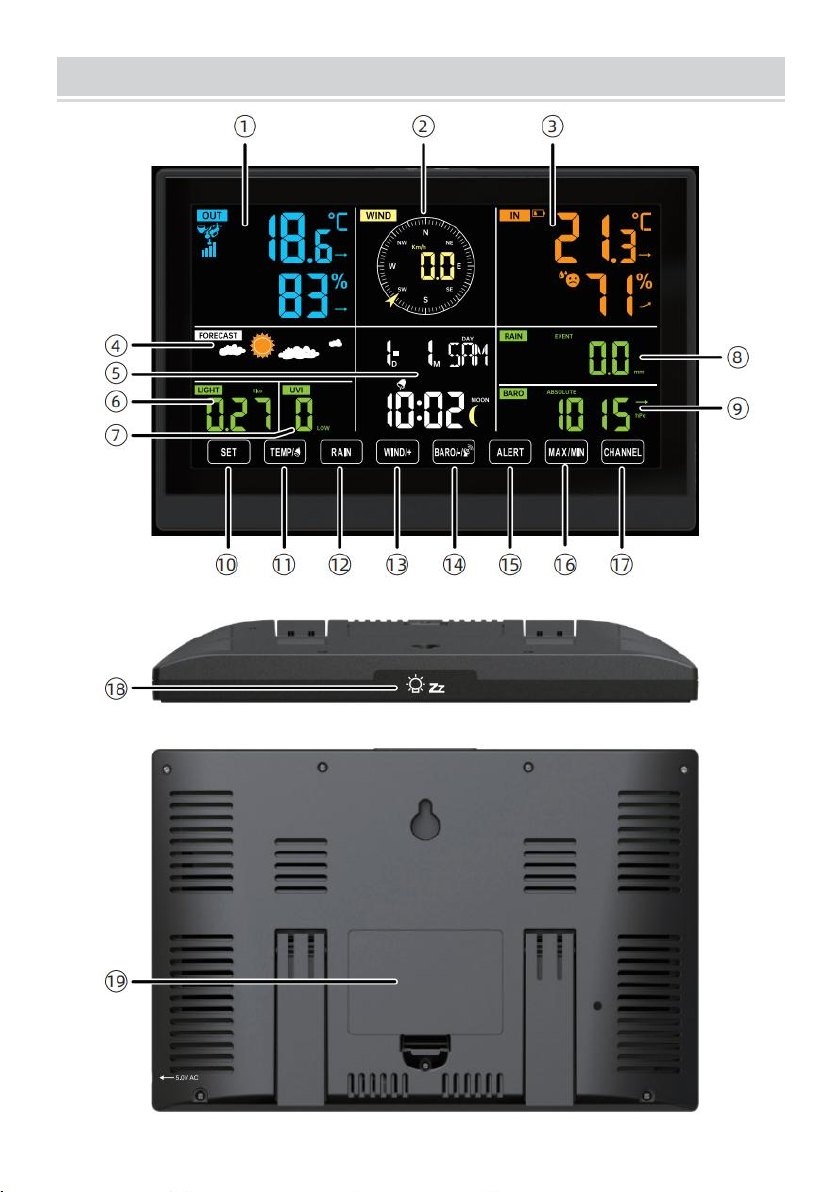

WEATHER STATION

- 6 -
1Outdoor temperature/humidity reading, weather index
2Wind direction & speed
3Indoor temperature/humidity reading
4Weather forecast
5Time & date, moon phase, Weekday
6Light intensity
7UV index
8Rain
9Barometer
10 SET button
11 TEMP/ (ALARM) button
12 RAIN button
13 WIND/+ button
14 BARO/-/ (RCC) button
15 ALERT button
16 MAX/MIN button
17 CHANNEL button
18 LIGHT/ SNOOZE button
19 Battery compartment (3 x AAA batteries, not included)
SETTING UP THE WIRELESS 7-IN-1 OUTDOOR SENSOR
The wireless 7-in-1 outdoor sensor measures wind speed, wind direction,
rainfall, UV, light intensity, temperature, and humidity.

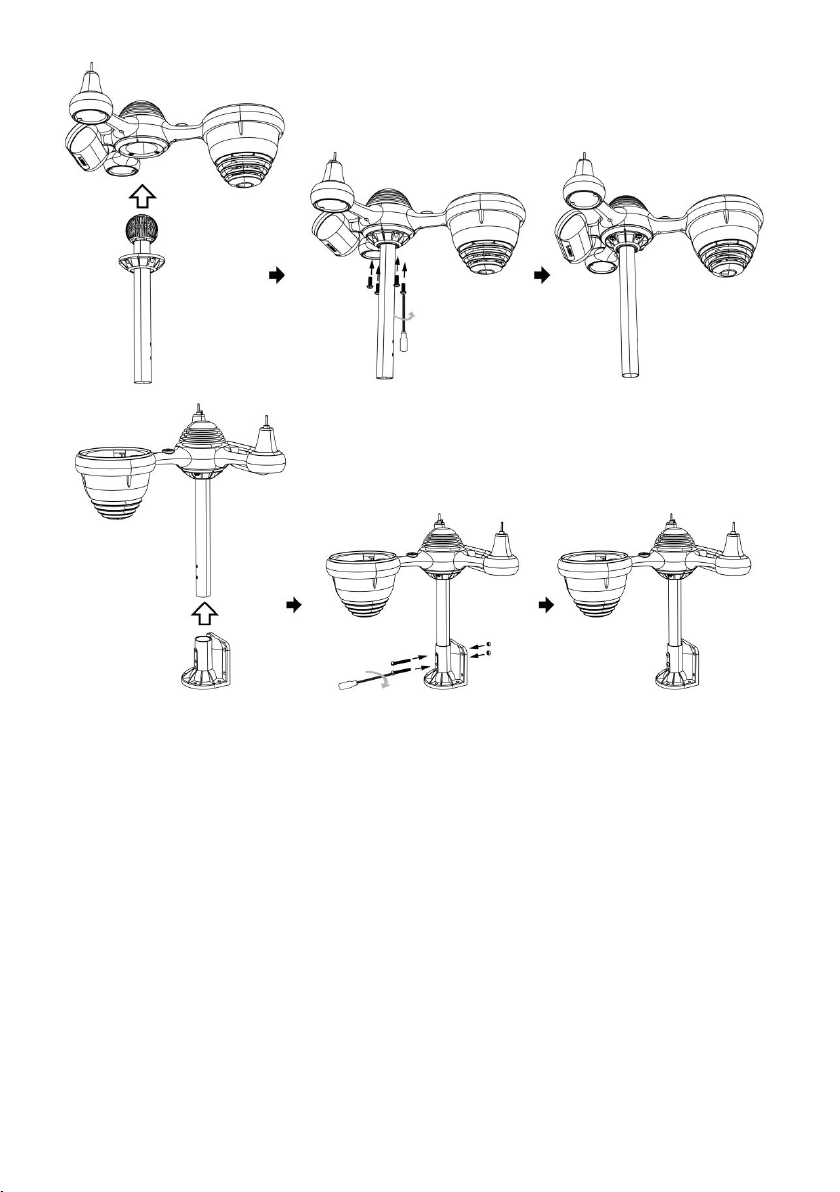

INSTALLING THE MOUNTING POLE AND BRACKET
● Secure the sensor onto a mounting pole and bracket (included) using the
screws (included).

- 7 -

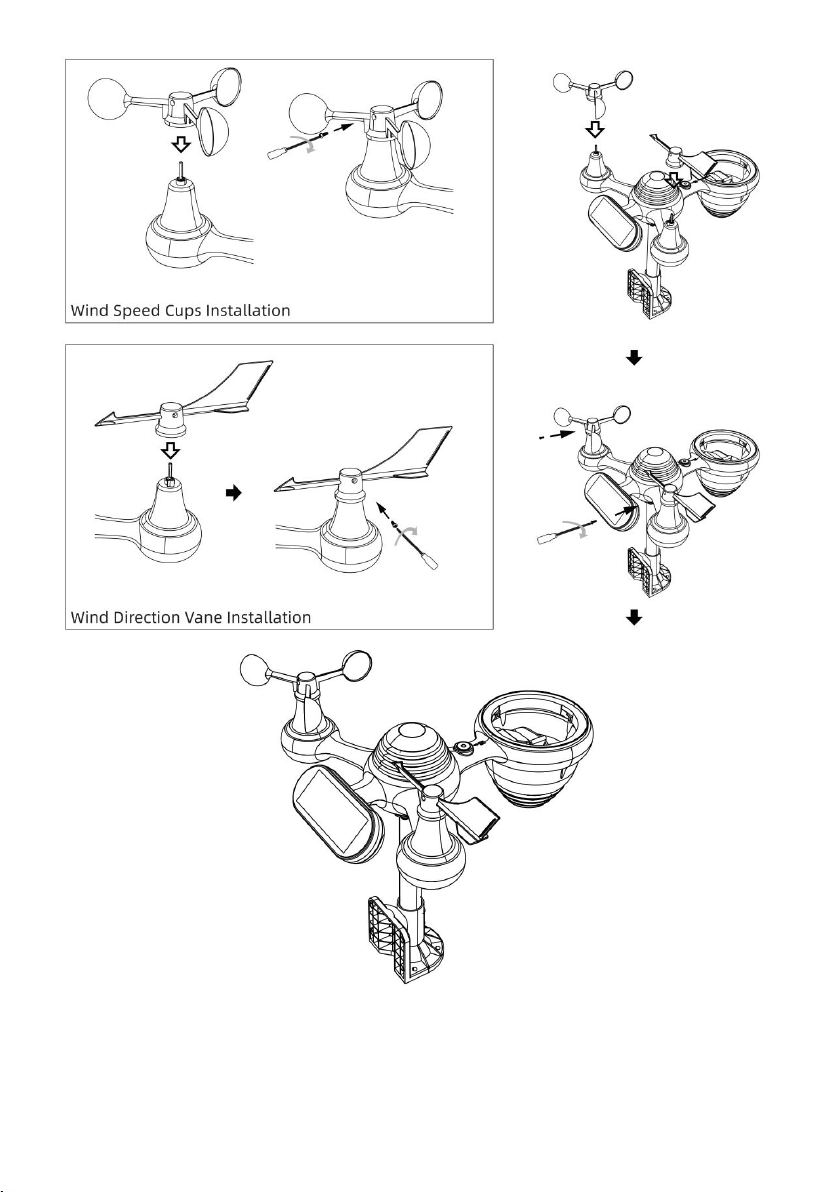

INSTALLING WIND SPEED CUPS AND WIND DIRECTION VANE
● Align the screw holes in the wind speed cups with the flat, vertical side of
the metal rod.
● Insert the wind speed cups in the metal rod and screw on tight to lock it in
place.
● Align the screw holes in the wind direction vane with the flat, vertical side
of the metal rod.
● Insert the wind direction vane in the metal rod and screw on tight to lock it
in place.

- 8 -

- 9 -

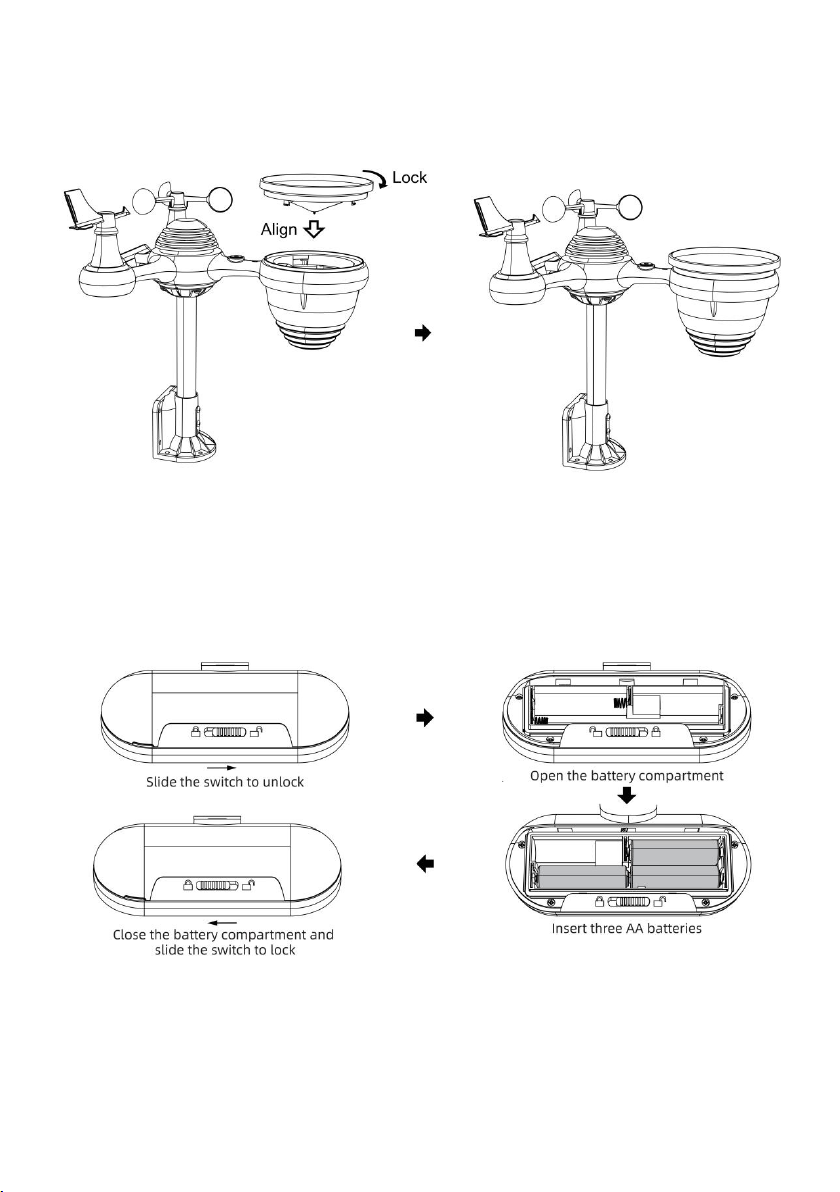

SETTING UP RAIN COLLECTOR
● Align the notches on the funnel with the lock grooves inside the rain
collector.
● Insert the funnel in the rain collector and screw on tight to lock it in place.
INSTALLING THE BATTERIES
● Slide the switch to unlock the battery compartment at the bottom of the
solar panel.
● Insert three AA batteries (not included) according to the +/- polarity
labeled in the compartment.
● Lock the battery compartment back onto the compartment.

- 10 -

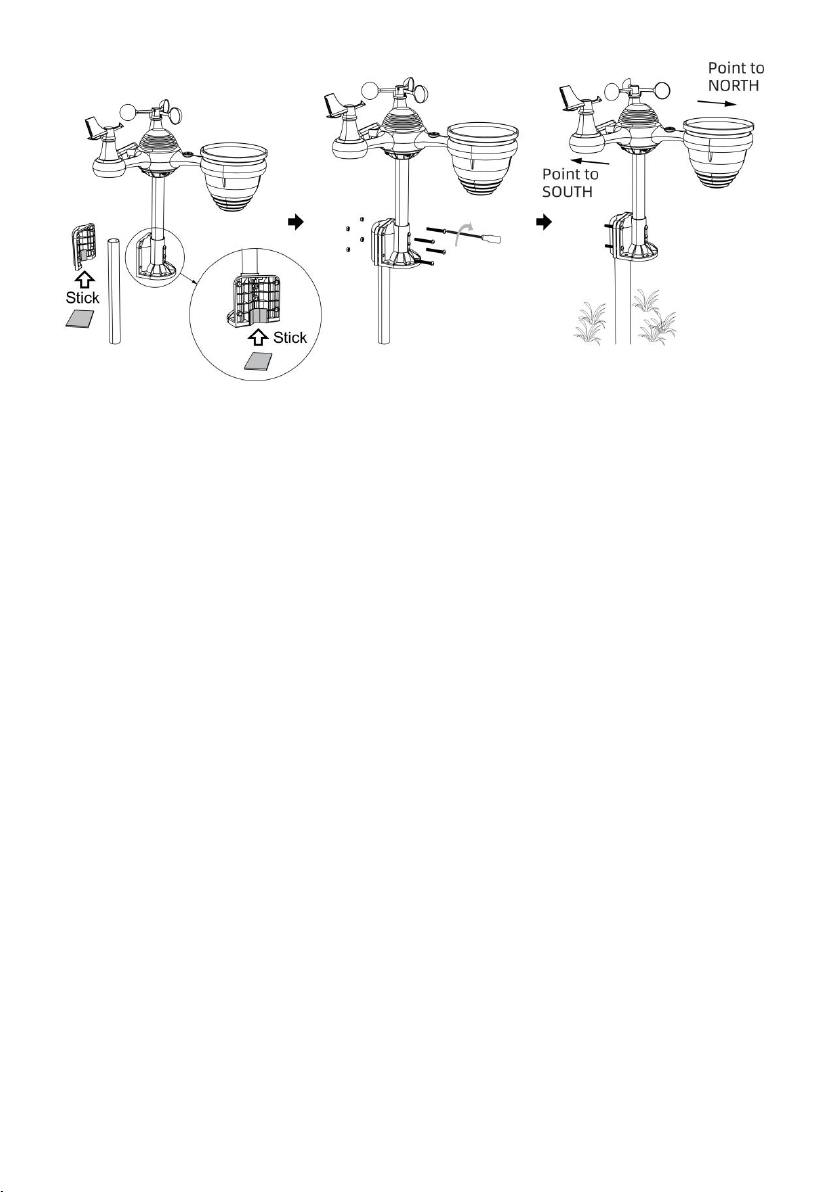

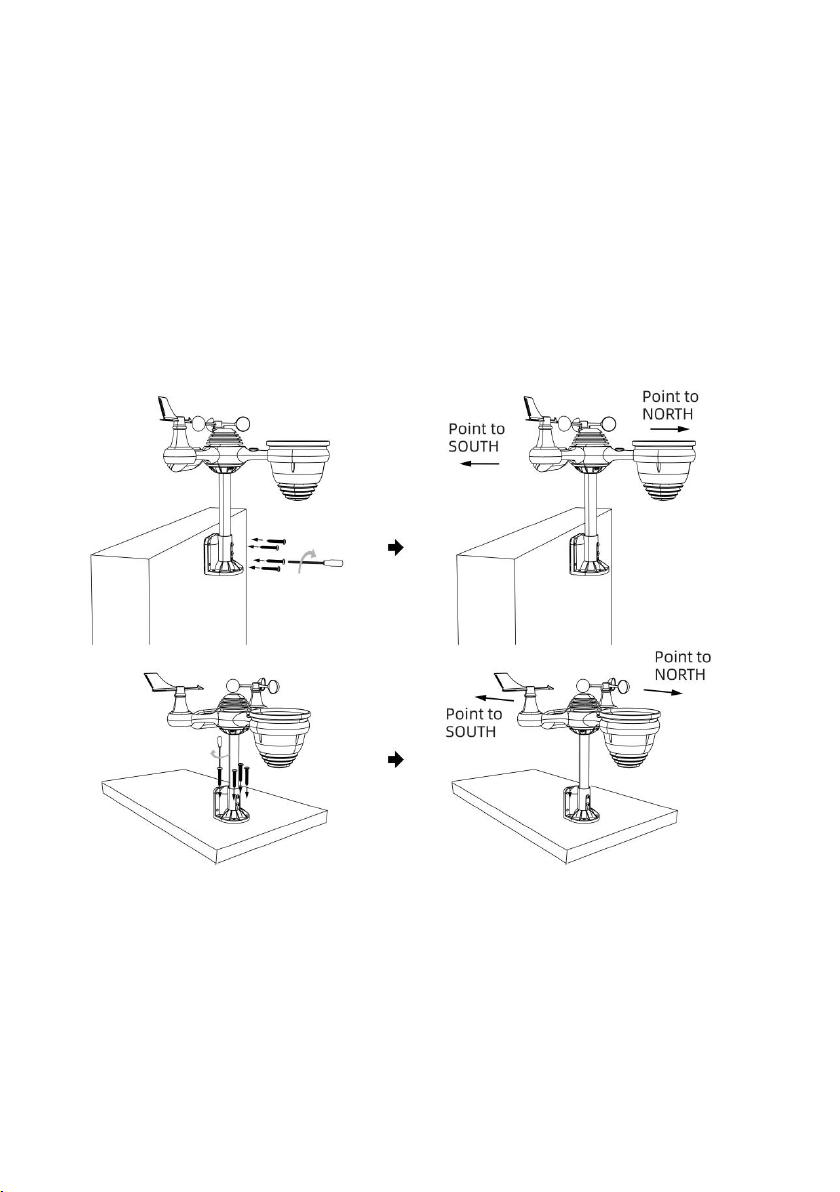

MOUNTING THE WIRELESS 7-IN-1 OUTDOOR SENSOR
● Pick a location for the 7-in-1 outdoor sensor that is open with no
obstructions.
● Tighten the mounting brackets to a surface/wall using four tapping
screws (included), or tighten the mounting pole to your existing mounting
pole with four Φ5 Bolts and M5 Nuts assembly.
● Add rubber pads onto the mounting bracket before fastening the
mounting bracket to the sensor.
● Make sure the rain collector faces north and the solar panel faces south
before fastening the screws (included).
● Please ensure that the sensor is fixed particularly tightly, otherwise windy
conditions cause the transmitter to shake and thus misread the rainfall
data.

- 11 -
POINTING THE WIRELESS 7-IN-1 OUTDOOR SENSOR TO SOUTH
(OPTIONAL)
The outdoor wireless weather sensor is calibrated to be pointed north for
maximum accuracy. However, for your convenience, if you are a user
located in the Southern Hemisphere, you can use the sensor with the rain
collector pointing south.
1.) Mount and install the wireless weather sensor with the rain collector
pointing South, instead of North. (Please refer to MOUNTING THE
WIRELESS 7-IN-1 OUTDOOR SENSOR.)
2.) Select "STH" for south hemisphere in the clock setting mode. (Please
refer to "setting the clock")
NOTE: Changing the hemisphere setting will automatically switch the
direction of the moon phases on display.
Pointing the wireless weather sensor toward the south will allow
maximum sunlight on the solar panel, especially during the winter
season in the Southern Hemisphere.
ADJUSTING THE 7-IN-1 WIRELESS SENSOR LEVEL
● Use the bubble level indicator to make sure the wireless outdoor sensor
is completely level. If the sensor is not level, the gain gauge, UV and Light
intensity will not measure properly.
● To adjust the level of wireless outdoor sensor, loose the screws of the
mounting pole. Adjust the level of the wireless outdoor sensor in order to
make sure the bubble is in the center of the bubble level indicator.
● Tighten the screw of the mounting pole again.

- 12 -
SETTING UP THE WEATHER STATION
POWERING UP THE WEATHER STATION
● Plug the power adapter into the power jack located in the back of the
weather station. Insert 3 new AAA alkaline batteries (not included) for
backup.
● Once the weather station is turned on, it will automatically enter pairing
mode.
PAIRING THE WIRELESS 7-IN-1 SENSOR
● Once your weather station powers on, it should automatically search for
and connect to the wireless sensors. If the weather station does not
connect within the first 5 minutes, refer to the following section,
“RE-PAIRING SENSOR”.
● You will see the icon of an antenna scrolling in the temperature and

- 13 -
humidity (outdoor) section of the display.
● Once the pairing process completes, the antenna icon will appear solid
(not flashing), and the readings for outdoor temperature and humidity, wind
speed, wind direction, UV, light intensity, and rainfall will appear in their
designated sections of the LCD display
RE-PAIRING SENSOR
● If the connection fails or the weather station is reset, then press and hold
the 【CHANNEL】button over 2 seconds to enter pairing mode, and the
weather station will re-register all the sensors that have already been
registered to it before, (i.e. the weather station will not lose the connection
of the sensors that you’d paired up before.)
ATOMIC CLOCK RECEPTION
● After RF connection is established or 5 minutes pairing time, the weather
station will automatically receive atomic clock signal, the RCC receiving dot
icon will flash.
● When the weather station detects the atomic clock signal, the signal
strength indication will be indicated. When the atomic clock signal is
received successfully, the time and date will be updated.
● The weather station automatically begins to search DCF signal and
update the time every day at 1:00 am, 2:00 am, 3:00 am, 4:00 am, 5:00 am.
● The Atomic Time tower icon will flash while searching and will
appear solid when it has connected.

- 14 -
● Put the weather station away from interference, such as electronic
devices. (TV, computer, microwave, radio, etc.)
MANUAL ATOMIC CLOCK RECEPTION
● You can receive the atomic clock signal manually. In Normal display,
press and hold 【BARO/-/ 】button over 2 seconds to receive the
atomic clock signal manually.
● During atomic clock reception, press and hold 【BARO/-/ 】
button for over 2 seconds to exit atomic clock reception.
NOTE : During RCC reception, the backlight is temporarily turned off
in order to get better receiving performance. After RCC reception is
finished, the backlight will resume.
OPERATING INSTRUCTIONS
CLOCK
Setting the Clock
In Normal time display, press and hold 【SET】over 2 seconds to enter
time setting mode. Press and release 【WIND/+】and 【BARO/-/
】to adjust the values. Hold 【WIND/+】and 【BARO/-/ 】
over 2 seconds to adjust the values rapidly.
Press and release 【SET】to confirm and move to the next item.
To exit the setting mode at any time, press 【LIGHT/SNOOZE】
button.

- 15 -

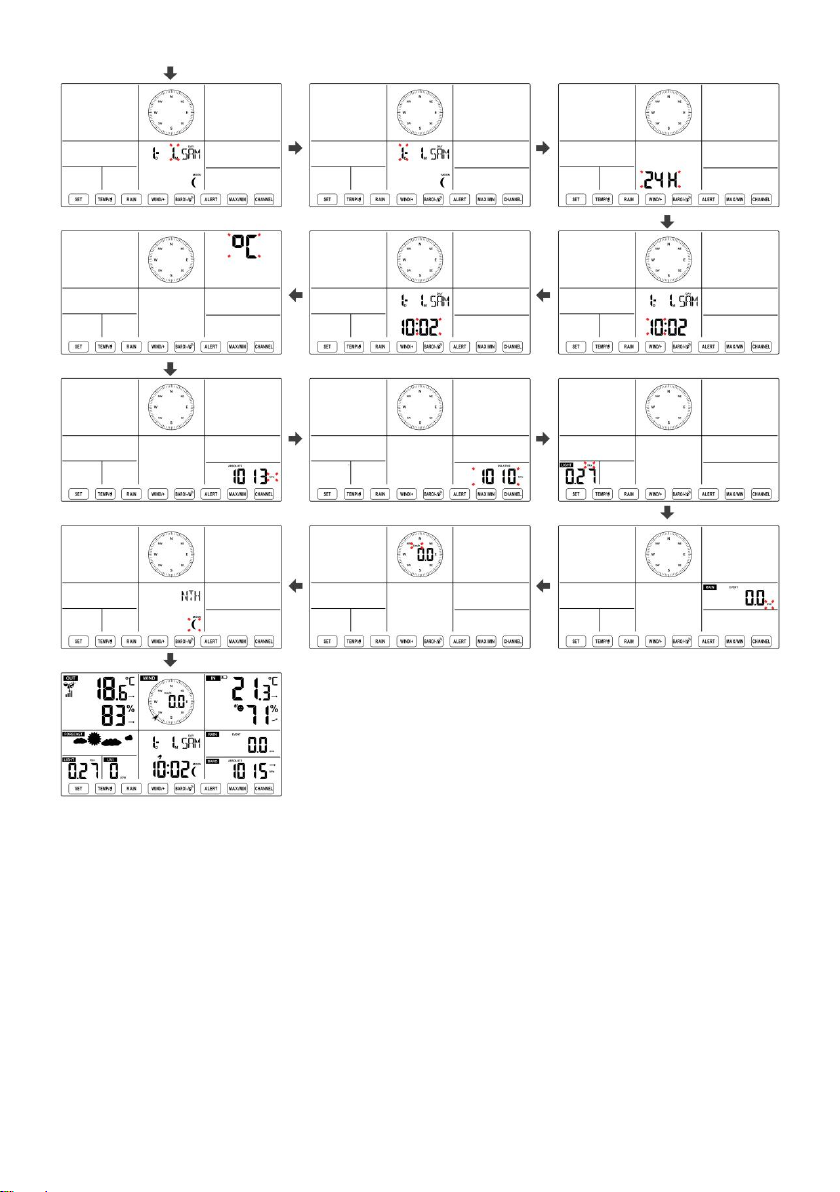

Setting Order
1. RCC On/Off
4. BEEP On/Off
7. Month
10. Hour
13. Pressure Unit
16. Rainfall Unit
18. Hemisphere
2. Time Zone
5. M-D/D-M Format
8. Date
11. Minute
14. Relative Pressure
Calibration
19. End of setting
3. Weekday Language
6. Year
9. 12/24 Hour Format
12. Temperature Unit
15. Light Intensity Unit
17. Wind Speed Unit
1.) Press and hold 【SET】button entering the settings. RCC ON flashes.
Press 【WIND/+】or 【BARO/-/ 】to change between RCC
on and RCC off. Press 【SET】to select time zone.
NOTE: If RCC OFF is selected, you will skip time zone and move to
weekday language setting.
2.) When Time Zone flashes, press 【WIND/+】or 【BARO/-/
】to set time zone. Press 【SET】to select language for weekday
display.
3.) When weekday flashes, press 【WIND/+】or 【BARO/-/ 】
to adjust the desire language. Press 【SET】to select beep sound on/off
when pressing any button.
NOTE : There are total 8 languages for weekday display.
(ENG = English, GER = German, FRE = French, SPA = Spanish, ITA =
Italian, DAN = Danish, DUT = Dutch, RUS = Russian)
4.) When Beep On flashes, press 【WIND/+】or 【BARO/-/ 】
to beep sound on/off. Press 【SET】to select date format.
5.) When D--M flashes, press 【WIND/+】or 【BARO/-/ 】to
switch between M-D and D-M date format. Press 【SET】to select year.
6.) When year flashes, press 【WIND/+】or 【BARO/-/ 】to

- 16 -
adjust the calendar year. Press 【SET】to select month.
7.) When month flashes, press 【WIND/+】or 【BARO/-/ 】to
adjust the calendar month. Press 【SET】to select date.
8.) When Day flashes, press 【WIND/+】or 【BARO/-/ 】to
adjust the calendar day. Press 【SET】to select 12/24-hour format.
9.) When 12 H flashes, press 【WIND/+】or 【BARO/-/ 】to
change between 12 hour and 24 hour format. Press 【SET】to select
hour.
10.) When hour flashes, press 【WIND/+】or 【BARO/-/ 】
to adjust the hour. Press 【SET】to select minute.
11.) When minute flashes, press 【WIND/+】or 【BARO/-/ 】
to adjust the minute. Press 【SET】to select temperature unit.
12.) When ℃flashes, press 【WIND/+】or 【BARO/-/ 】to
change between ℉and ℃. Press 【SET】to select pressure unit.
13.) When pressure unit flashes, press 【WIND/+】or 【BARO/-/
】to change between hPa, inHg and mmHg. Press 【SET】
to select relative pressure calibration.
14.) When Relative Pressure flashes, press 【WIND/+】or
【BARO/-/ 】to adjust the relative pressure. Press 【SET】to select
Light intensity unit.
15.) When Light intensity unit flashes, press 【WIND/+】or
【BARO/-/ 】to change unit between lux, fc and w/m2. Press 【SET】
to select rainfall unit.
16.) When Rain unit flashes, press 【WIND/+】or 【BARO/-/ 】

- 17 -
to change unit between in and mm. Press 【SET】to select windspeed
unit.
17.) When Wind speed unit flashes, press 【WIND/+】or
【BARO/-/ 】to change unit between in and mm. Press 【SET】
to select hemisphere.
18.) When NTH flashes, press 【WIND/+】or 【BARO/-/ 】
to change hemisphere between NTH (northern) and STH (southern). Press
【SET】to save and exit the setting. It will return to the normal mode
display.
NOTE: If there is no valid operation within 20 seconds, it will
automatically return to the normal display mode from the setting
mode. While adjusting settings, you can press
【LIGHT/SNOOZE】button to return to normal display mode.

- 18 -

- 19 -
Moon Phase
The display console calculates the moon phase according to your time,
date, and time zone.
The table below explains the corresponding phases and their icons for both
the Northern and Southern hemispheres.
Northern Hemisphere Icons
Moon Phase
Southern Hemisphere Icons
New Moon
Waxing Crescent Moon
First Quarter Moon
Waxing Gibbous Moon
Full Moon
Waning Gibbous Moon
Third Quarter Moon
Waning Crescent Moon
Setting the Alarm
● In normal time display, press 【SET】button to switch display alarm
time (alarm time mode).
● In alarm time display, press and hold 【SET】button over 2 seconds
to enter alarm setting mode. Hour of alarm starts to flash.
● Press 【WIND/+】button or 【BARO/-/ 】button to set required
alarm hours. Hold 【WIND/+】button or 【BARO/-/ 】button
to adjust alarm hours quickly.
● Press 【SET】button to select minute of Alarm. Minute of alarm
starts to flash.
● Press 【WIND/+】button or 【BARO/-/ 】button to set
required alarm minutes. Hold 【WIND/+】button or 【BARO/-/ 】
button to adjust alarm minutes quickly.
