Vezco VZ-NVR-12M256-16HD User manual

NETWORK VIDEO RECORDER
Quick Start Guide

Network Video Recorder Quick Start Guide
2
TABLE OF CONTENTS
Chapter1 Panels Description ..........................................................................................................7
1.1 Front Panel........................................................................................................................7
1.1.1 16 CHANNELS NVR Series...................................................................................7
1.1.2 24 CHANNELS NVR Series...................................................................................8
1.2 Rear Panel ........................................................................................................................9
Chapter 2Installation and Connections........................................................................................10
2.1 NVR Installation...............................................................................................................10
2.2 Hard Disk Installation ......................................................................................................10
2.2.1 16 CHANNELS NVR Series.................................................................................10
2.2.2 24 CHANNELS NVR Series.................................................................................12
2.3 Connections ....................................................................................................................15
2.3.1 Alarm Input Wiring ...............................................................................................15
2.3.2 Alarm Output Wiring.............................................................................................15
2.3.3 Using Alarm Connectors ......................................................................................16
2.3.4 Controller Connection..........................................................................................16
2.4 HDD Storage Calculation Chart.......................................................................................17
Chapter 3 Menu Operation ............................................................................................................18
3.1 Menu Structure................................................................................................................18
3.2 Startup and Shutdown.....................................................................................................18
3.2.1 Startup.................................................................................................................18
3.2.2 Shutdown.............................................................................................................19
3.3 Activating Your Device.....................................................................................................19
3.4 Using the Unlock Pattern for Login..................................................................................20
3.5 Login and Logout.............................................................................................................21
3.5.1 User Login ...........................................................................................................21
3.5.2 User Logout .........................................................................................................21
3.6 Using the Setup Wizard...................................................................................................22
3.7 Network Settings.............................................................................................................22
3.8 Adding IP Cameras .........................................................................................................23
3.9 Live View.................................................................................................................................. 24
3.10 One-Touch RAID Configuration.......................................................................................24
3.11 Recording Settings..........................................................................................................25
3.12 Playback..........................................................................................................................26
Chapter 4 Accessing by Web Browser.........................................................................................27

Network Video Recorder Quick Start Guide
3
Quick Start
Guide About this
Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and all
other information hereinafter are for description and explanation only. The information contained in the
Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the
latest version in the company website.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS
AND ERRORS, AND OUR COMPANY MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS
FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
OUR COMPANY, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU
FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR
LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT,
EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE
WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE
CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE
LATER PREVAILS

Network Video Recorder Quick Start Guide
4
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his ownexpense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmfulinterference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
3. EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive
2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as
unsorted municipal waste in the European Union. For proper recycling, return this product to
your local supplier upon the purchase of equivalent new equipment, or dispose of it at
designated collection
points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for
specific battery information. The battery is marked with this symbol, which may include
lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to
a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder Quick Start Guide
5
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or
property loss. The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
● Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
● In the use of the product, you must be in strict compliance with the electrical safety regulations of
the nation and region. Please refer to technical specifications for detailedinformation.
● Input voltage should meet both the SELV(Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VACor 12 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
● Do not connect several devices to one power adapter as adapter overload may cause over-
heating or afire hazard.
● Please make sure that the plug is firmly connected to the powersocket.
● If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the servicecenter.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-freeenvironment.
Unit is designed for indoor useonly.
Keep all liquids away from thedevice.
Ensure environmental conditions meet factoryspecifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within theunit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories andperipherals.
A factory recommended HDD should be used for thisdevice.
Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

Network Video Recorder Quick Start Guide
6
Applicable Models
This manual is applicable to the models listed in the following table.
Model
16 CHANNELS NVR
24 CHANNELS NVR

Network Video Recorder Quick Start Guide
7
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.

Network Video Recorder Quick Start Guide
8
Chapter 1 Panels Description
1.1 Front Panel
1.1.1 16 CHANNELS NVR Series
Figure 1. 1 16 CHANNELS NVR Series
Table 1. 1 Description
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Shortcut buttons
Exit
● Returns to the previous menu.
● Press it twice quickly to switch the main and auxiliaryport.
● In live view mode, press it to enter PTZ controlinterface.
Menu
● Press it to pop up main menu.
● Hold it for 5 seconds to turn on/off buttonsound.
● During playback, press it to show/hide controlpanel.
3
Status indicator
HDD
● Solid red: at least one HDD is installed
● Unlit: no HDD is detected.
● Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
4
Power switch
Powers on/off device. Solid blue indicates device is powered on. Solid
red indicates device is shut down.
5
Control buttons
ENTER
● Confirms selection in any of the menu modes.
● Checks the checkbox fields.
● Switches on/off status.
● Plays or pauses the video playing in playbackmode.

Network Video Recorder Quick Start Guide
9
No.
Name
Description
● Advances the video by a single frame in single-frame playback
mode.
● Stops/starts auto switch in auto-switchmode.
DIRECTION
● Navigates between different fields and items inmenus.
● In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons to
select the next and previous video files.
● Cycles through channels in live viewmode.
● Controls the movement of the PTZ camera in PTZ controlmode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
1.1.2 24 CHANNELS NVR
Figure 1. 2 24 CHANNELS NVR Series
Table 1. 2 Panel Description
No.
Name
Description
1
Power switch
Powers on/off device.
2
Status indicator
Power
Solid blue indicates device is powered on. Solid red indicates
device is shut down.
HDD
● Solid red: at least one HDD is installed
● Unlit: no HDD is detected.
● Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
Ready
Solid blue indicates device runs properly.
Alarm
Solid red indicates alarm occurs.
3
USB interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
4
Panel lock
Locks or unlocks the panel by the key.
5
HDD sequence indicator
Shows the HDD installation slot.

Network Video Recorder Quick Start Guide
10
1.2 Rear Panel
Purpose:
We take the example of 16 CHANNELS NVR series to introduce the rear panel.
The difference between 24 CHANNELS NVR and 16 CHANNELS NVR is 16 CHANNELS NVR
contains the decoding board, that is the module marked as 13 in following figure.
Figure 1. 3 16 CHANNELS NVR Series
Table 1. 3 Panel
Description
No.
Name
Description
1
HDMI 1/2
HDMI video output connector.
2
Audio in
RCA connector for audio input.
Audio out
RCA connector for audio output.
3
USB 3.0
Universal Serial Bus (USB 3.0) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
4
LAN
4 10/100/1000 Mbps self-adaptive Ethernet interfaces.
5
eSATA
Connects external SATA HDD, CD/DVD-RM.
6
VGA
DB9 connector for VGA output.
7
Mini SAS (optional)
Connector for mini SAS.
8
Reset
Reset button.
9
RS-232
Connector for RS-232 devices.
10
Alarm in
Connector for alarm input.
Alarm out
Connector for alarm output.
RS-485
Connector for RS-485 devices.
KB
Connector for keyboard.
11
GND
Ground (needs to be connected when NVR starts up).
12
Power
supply
modules
Only one power supply module is provided by default. Two power supply
modules are optional for redundancy.
13
Decoding board
Decoding board. Only available for 16 CHANNELS NVR and 24
CHANNELS NVR/H.

Network Video Recorder Quick Start Guide
11
Chapter 2Installation and Connections
2.1 NVR Installation
During installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and videocables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its
diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈ 0.75 inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 to +55 ºC, +14 to +131 º F.
8. Environmental humidity should be within the range of 10% to90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
2.2.1 16 CHANNELS NVR Series
Purpose:
The following section introduces the HDD installation for the 16 CHANNELS NVR series NVR.
Steps:

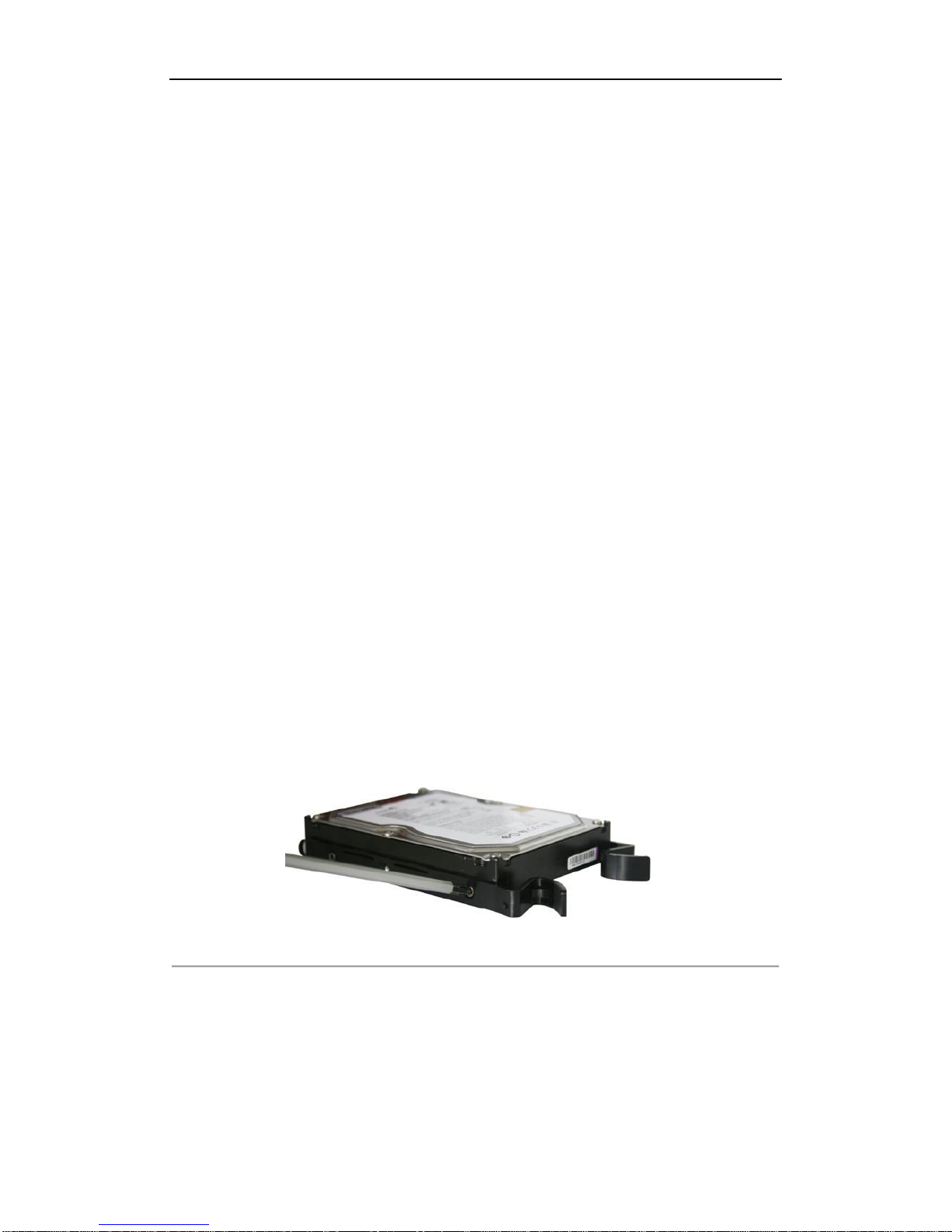

1. Fasten the hard disk mounting handle to the hard disk withscrews.
Figure 2. 1 Fasten Hard Disk

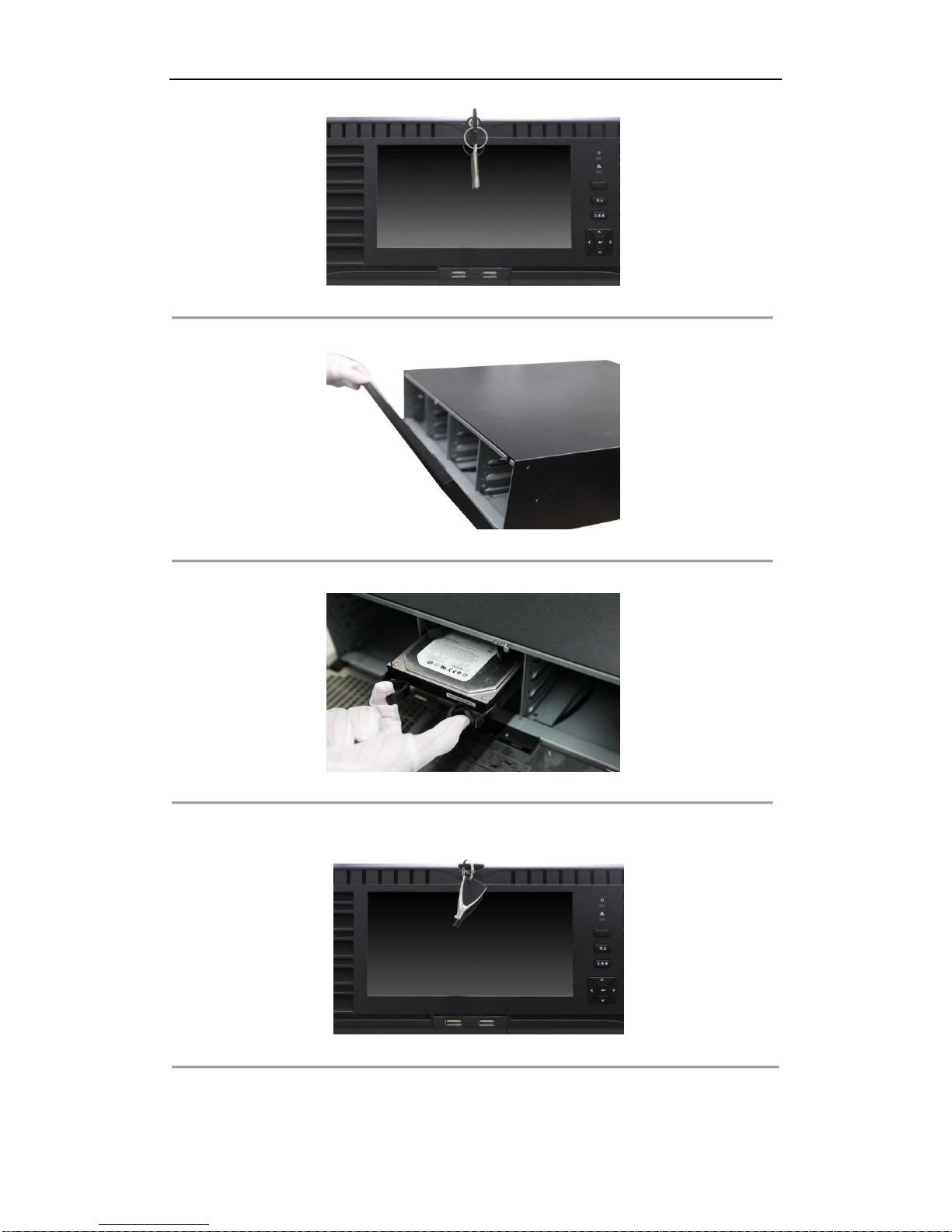

2. Insert the key and turn in clockwise direction to open the panellock.

Network Video Recorder Quick Start Guide
12

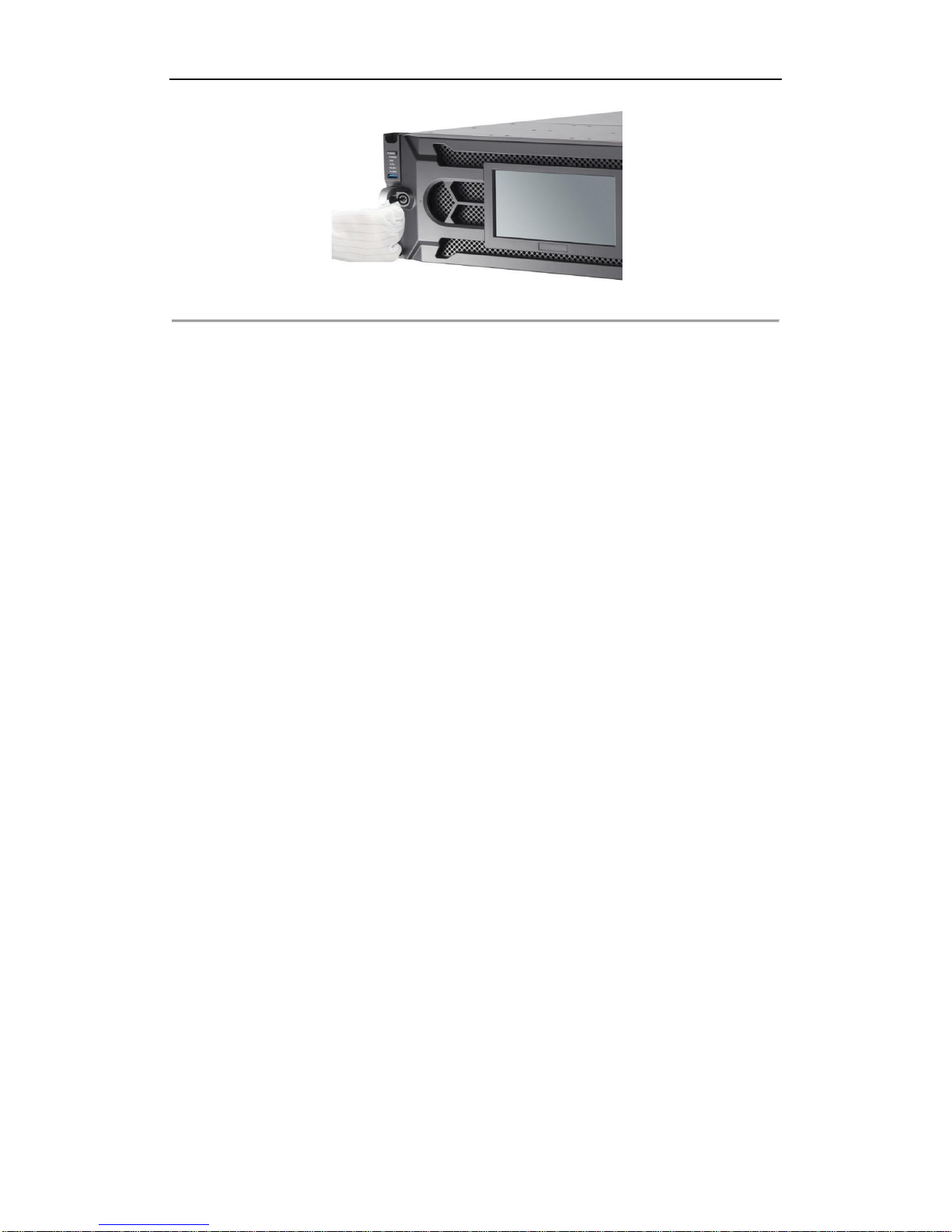

Figure 2. 2 Insert Panel Key
3. Press the buttons on the panel of two sides and open the frontpanel.
Figure 2. 3 Open Panel Lock
4. Insert the hard disk along the slot until it is placed intoposition.
Figure 2. 4 Insert Hard Disk
5. Repeat the above steps to install other hard disks onto the NVR.After having finished the
installation of all hard disks, close the front panel and lock it with the keyagain.
Figure 2. 5 Lock Panel

Network Video Recorder Quick Start Guide
13
2.2.2 24 CHANNELS NVR Series
Purpose:
The following section introduces the HDD installation for the 24 CHANNELS NVR series NVR.
Steps:

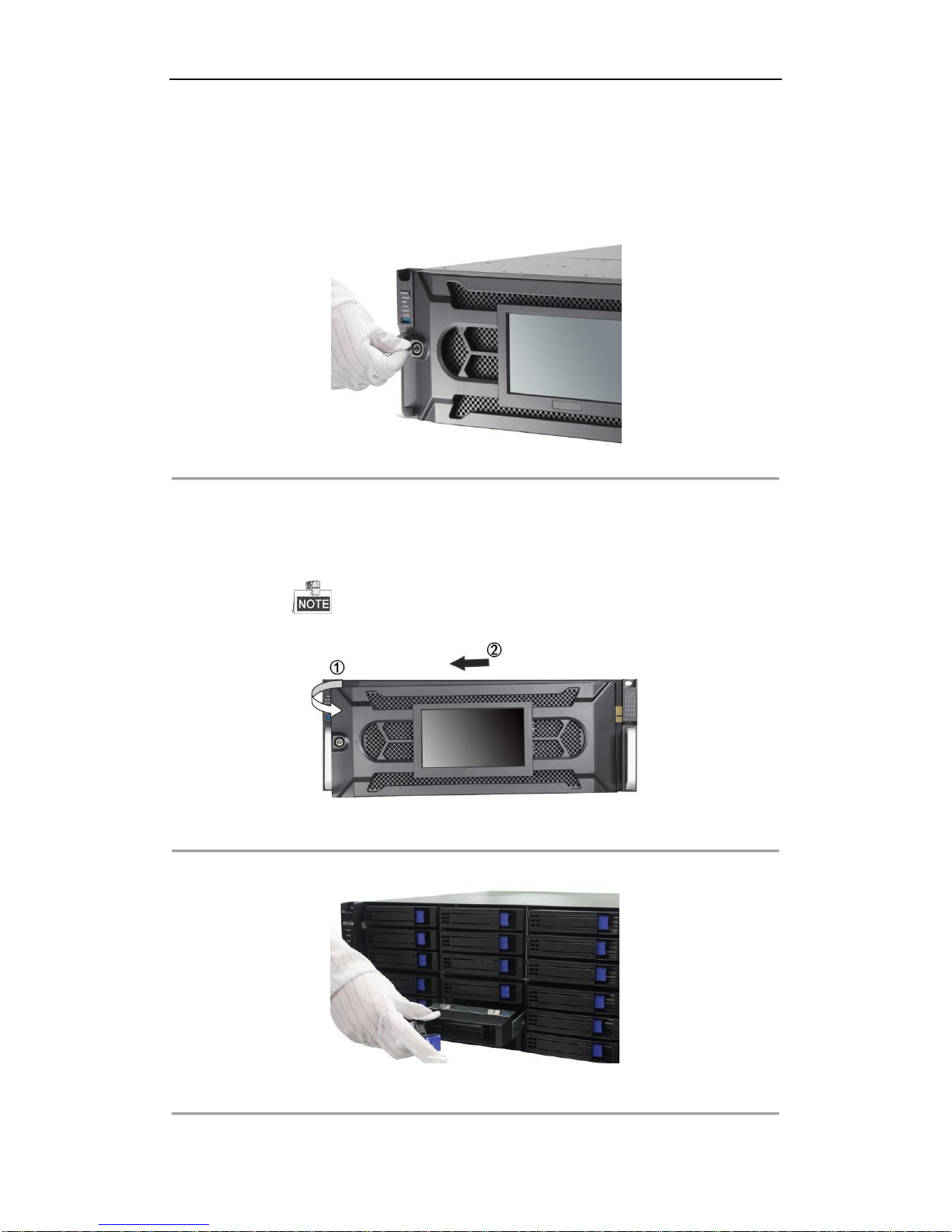

1. Unlock the front panel with the panel key.
Figure 2. 6 Unlock the Panel
2. To remove the cover from front panel, operate followingsteps:
1) Slightly pull the cover out of the device along the direction arrow ①and make it a little above
the left handle. The angle between the cover and the front panel must be within10°.
2) Pull the front panel out of the device along the direction
arrow ②. Handle with care to avoiddamage.
Figure 2. 7 Remove the Cover

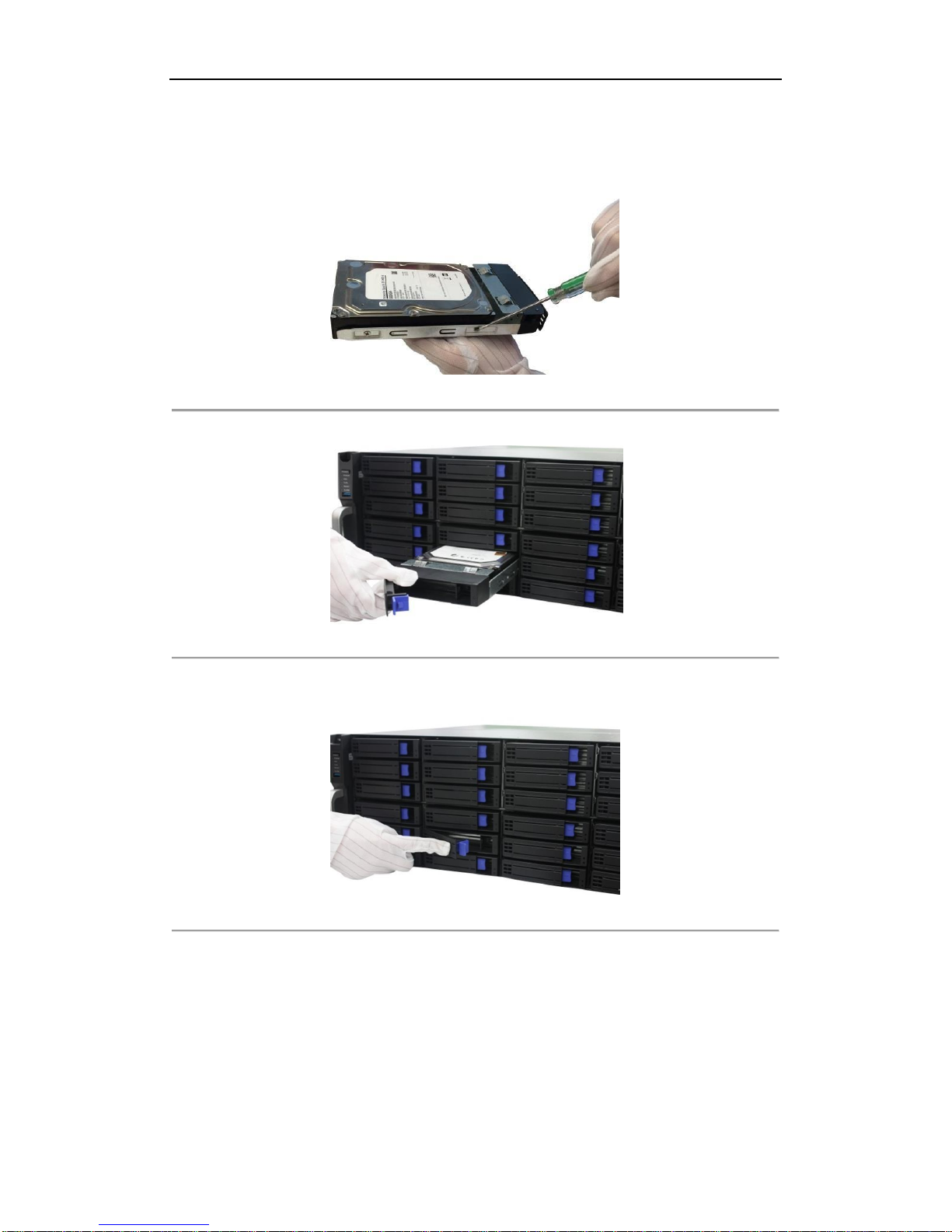

3. Press the blue button to pop up the handle and hold the handle and pull the hard disk box out of the
slot. Figure 2. 8 Pull out Slot

Network Video Recorder Quick Start Guide
14
4. Fix the hard disk in the hard disk box.
1) Place a hard disk in the hard disk box. The SATA interface must face the hard disk boxbottom.
2) Adjust the hard disk position. Ensure the hard disk rear aligning with hard diskbottom.
3) Use a screwdriver to fasten the four screws into the screw holes that in bothsides.
Figure 2. 9 Fix the Hard Disk
5. Push the hard disk box back into the slot.
Figure 2. 10 Push the Hard Disk Box into the Slot
6. Press the handle until you hear a click. Thus to fix the hard disk box. Repeat above steps to install
the rest hard disk boxes.
Figure 2. 11 Press the Handler
7. Install the cover back to front panel. And lock it with panelkey.

Network Video Recorder Quick Start Guide
15
Figure 2. 12 Reinstall the Cover and Lock the Panel

Network Video Recorder Quick Start Guide
16
2.3 Connections
2.3.1 Alarm Input Wiring

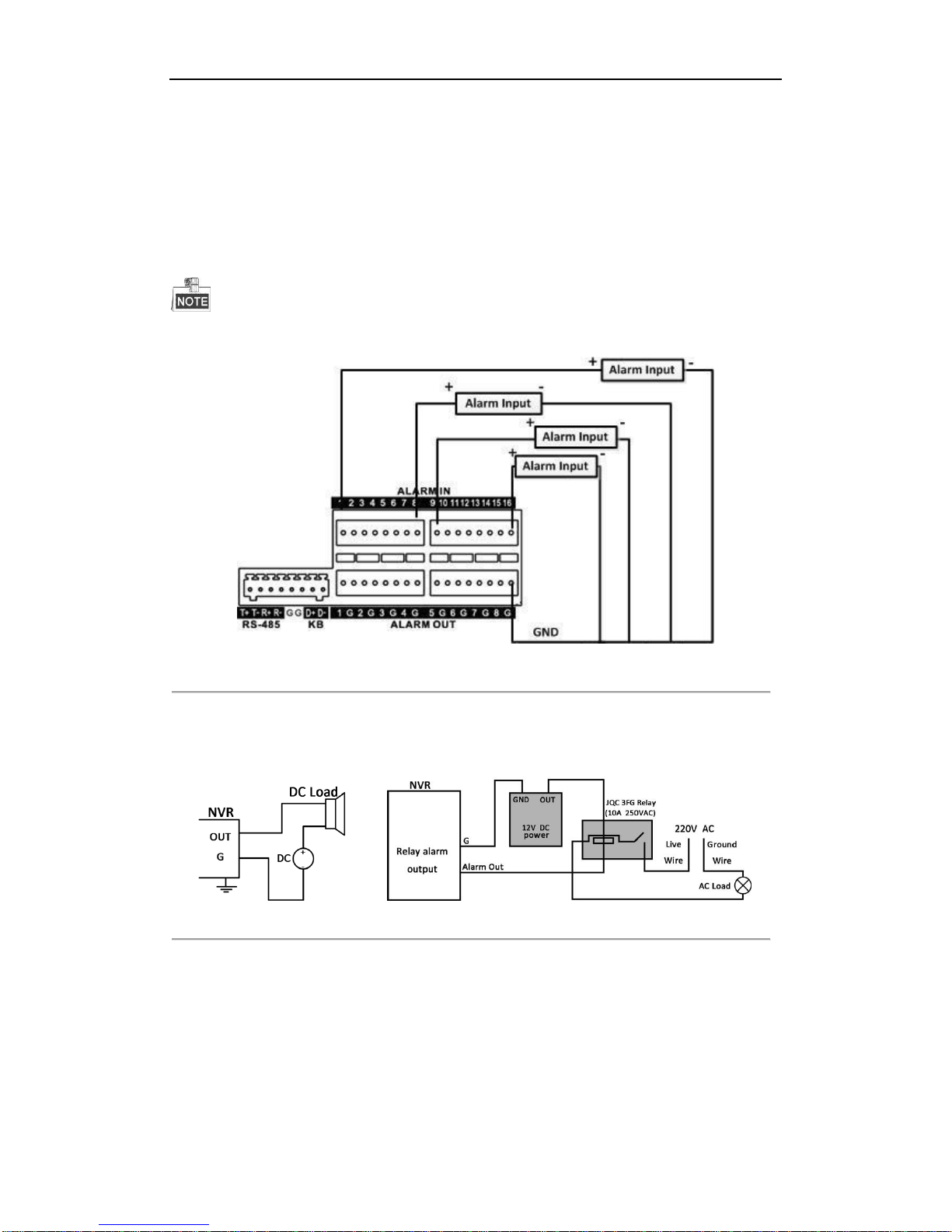

The alarm input is an open/closed relay. To connect the alarm input to the device, use the following
diagram.
If the alarm input is not an open/close relay, please connect an external relay between the alarm input
and the device.
Figure 2. 13 Alarm Input Wiring
2.3.2 Alarm Output Wiring
To connect to an alarm output (AC or DC load), use the following diagram:
Figure 2. 14 Alarm Output Wiring
For DC load, the jumpers can be used within the limit of 12V/1A safely.
To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard
in the NVR). Use an external relay for safety (as shown in the figure above).
There are 4 jumpers (JP6, JP9, JP10, and JP11) on the motherboard, each corresponding with one alarm
output. By default, jumpers are connected. To connect an AC load, jumpers should be removed.
Example:
If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3 jumper.

Network Video Recorder Quick Start Guide
17
2.3.3 Using Alarm Connectors
To connect alarm devices to the NVR:
1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminalblock.
2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop
screws. Ensure signal cables are tight.
3. Connect pluggable block back into terminal block.
2.3.4 Controller Connection
Figure 2. 15 Controller Connection
To connect a controller to the NVR:
1. Disconnect pluggable block from the KB terminalblock.
2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and
fasten stop screws. Ensure signal cables are in tight.
3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block.
Fasten stop screws.
4. Connect pluggable block back into terminal block.
Make sure both the controller and NVR are grounded.

Network Video Recorder Quick Start Guide
18
2.4 HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel for
an hour at a fixed bit rate.
Please note that supplied values for storage space used is just for reference. The storage values in
the chart are estimated by formulas and may have some deviation from actual value.
Bit Rate
Storage Used
96K
42M
128K
56M
160K
70M
192K
84M
224K
98M
256K
112M
320K
140M
384K
168M
448K
196M
512K
225M
640K
281M
768K
337M
896K
393M
1024K
450M
1280K
562M
1536K
675M
1792K
787M
2048K
900M
4096K
1.8G
8192K
3.6G
16384K
7.2G

Network Video Recorder Quick Start Guide
19
Chapter 3Menu Operation
3.1 Menu Structure
Refer to the following figure for the menu structure:
Figure 3. 1 Menu Structure
3.2 Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
3.2.1 Startup
Step:
Connect the device power supply interface and electrical socket with delivered power cable. It is
HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the
device. The Power button on the front panel should be red, indicating the device is receiving the
power.
If the device is shut down according to steps of 3.2.2 Shutdown, press the POWER button in front
panel to start device.
Menu
Playback Export VCA Search Manual
HDD
Record
Camera Configuration Maintenance
Shutdown
Normal/
Smart Normal
Behavior
Search
Record
General
Schedule Camera
General System Info Logout
Event
Event Face Search Alarm
Advanced
Parameters OSD
Network
Log
Information
Shutdown
Tag
Plate
Search
Advanced Image
Alarm
Import/
Export
Reboot
Sub-periods
Counting
Holiday
PTZ
Live View Upgrade
External
File
Heat Map
Motion
Exceptions
Default
Privacy
Picture Mask
User
Net Detect
Video
Tampering
Hot Spare
HDD Detect
Video Loss
VCA

Network Video Recorder Quick Start Guide
19
3.2.2 Shutdown
Steps:
1. Enter the Shutdown
menu. Menu >
Shutdown
Figure 3. 2 Shutdown
2. Select the Shutdown button.
3. Click the Yes button.
3.3 Activating YourDevice
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No operation is
allowed before activation. You can also activate the device via Web Browser, SADP or client software.
Steps:
1. Input the same password in the text field of Create New Password and Confirm NewPassword.
Figure 3. 3 Set Admin Password
2. Click OK to save the password and activate the device.
STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password
of your own choosing (Using a minimum of 8 characters, including at least three of the following
categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase
the security of your product. And we recommend you reset your password regularly, especially in the high
security system, resetting the password monthly or weekly can better protect your product.
