Vezco VZ-NVR3200-4HD User manual

NETWORK VIDEO RECORDER
Quick Start Guide

Network Video Recorder User Manual
1
User Manual
About this Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information contained
in the Manual is subject to change, without notice, due to firmware updates or other reasons.
Please find the latest version in the company website www.vezcocctv.com.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”,
WITH ALL FAULTS AND ERRORS, AND OUR COMPANY MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-
INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL OUR COMPANY, ITS DIRECTORS,
OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN
IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL
BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY
RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR
OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN
YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR
USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO
ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT
BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS.

Network Video Recorder User Manual
2
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesiredoperation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC(battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder User Manual
3
Applicable Models
This manual is applicable to the models listed in the following table.
Model
VZ-NVR3200-4HD
VZ-NVR3200-4HD-P
VZ-NVR-3200-16P
VZ-NVR-81080-P
VZ-NVR-161080-P
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not
avoided, could result in equipment damage, data loss,
performance degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided,
will result in death or serious injury.

Network Video Recorder User Manual
4
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility
of the installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region. Please referto technical
specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the
Limited Power Source with 100~240 VAC or 12 VDC according to the IEC60950-1
standard. Please refer to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload
may cause over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the
power cable, and then please contact the servicecenter.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Unit is designed for indoor useonly.
Keep all liquids away from the device.
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a
result of dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS ifpossible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should beused for this device.
Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries according
to the instructions provided by the batterymanufacturer.

Network Video Recorder User Manual
Product Key Features
General
Connectable to network cameras, network dome and encoders.
Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch,
Brickcom, Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and
ZAVIO, and cameras that adopt ONVIF or PSIAprotocol.
Connectable to the smart IPcameras.
H.265+/H.265/ H.264+/H.264/MPEG4 video formats
PAL/NTSC adaptive video inputs.
Each channel supportsdual-stream.
Up to 8/16/32/64network cameras can be added according to different models.
Independent configuration for each channel, including resolution, frame rate, bit rate,
image quality, etc.
The quality of the input and output record is configurable.
Local Monitoring
HDMI and VGA outputs provided for VZ-NVR-81080-P, VZ-NVR-161080-P, VZ-
NVR3200-4HD-P, VZ-NVR3200-4HD NVR.
HDMI Video output at up to 4K resolution and VGA video output at up to 2K resolution.
Multiple screen display in live view is supported, and the display sequence of
channels is adjustable.
Live view screen can be switched in group. Manual switch and auto-switch are
provided and the auto-switch interval is configurable.
Configurable main stream and sub-stream for the live view.
Quick setting menu is provided for liveview.
Motion detection, video tampering, video exception alert and video loss alert functions.
Privacy mask.
Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing bydragging mouse.
HDD Management
4 SATA hard disks for VZ-NVR-81080-P, VZ-NVR-161080-P, 2 SATA hard disks for VZ-
NVR3200-4HD-P, VZ-NVR3200-4HD NVR.
Up to 6TB storage capacity for each disk supported.
Supports 8 network disks (NAS/IP SANdisk).
Supports S.M.A.R.T. and bad sector detection.
HDD group management.
Supports HDD standbyfunction.
HDD property: redundancy, read-only, read/write(R/W).
HDD quota management; different capacity can be assigned to different channel.

Network Video Recorder User Manual
Hot-swappable RAID storage scheme, and can be enabled and disabled on your
demand. And 16 arrays can be configured.
Recording, Capture and Playback
Holiday recording schedule configuration.
Continuous and event video recordingparameters.
8 recording time periods with separated recordingtypes.
Pre-record and post-record for alarm, motion detection for recording, and pre-record
time for schedule and manualrecording.
Searching record files and captured pictures by events (alarm input/motion detection).
Tag adding for record files, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording and capture.
Provide new playback interface with easy and flexible operation.
Searching and playing back record files by channel number, recording type, start
time, end time, etc.
Smart search for the selected area in thevideo.
Zooming in whenplayback.
Reverse playback ofmulti-channel.
Supports pause, play reverse, speed up, speed down, skip forward, and skip
backward when playback, and locating by dragging themouse.
Supports thumbnails view and fast view during playback.
Up to 16-ch synchronous playback at 1080p realtime.
Supports playback by transcoded stream.
Manual capture, continuous capture of video images and playback of captured pictures.
Supports enabling H.264+ to ensure high video quality with lowered bitrate.
Backup
Export video clips whenplayback.
Management and maintenance of backupdevices.
Either Normal or Hot Spare working mode is configurable to constitute an N+1
hot spare system.
Alarm and Exception
Configurable arming time of alarminput/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video
input/output standard mismatch, illegal login, network disconnected, IP
confliction, abnormal record/capture, HDD error, and HDD full,etc.
VCA detection alarm issupported.

Network Video Recorder User Manual
VCA search for face detection, vehicle plate, behavior analysis, people counting and
heat map.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center,
sending email and alarm output.
Automatic restore when system is abnormal.
Other Local Functions

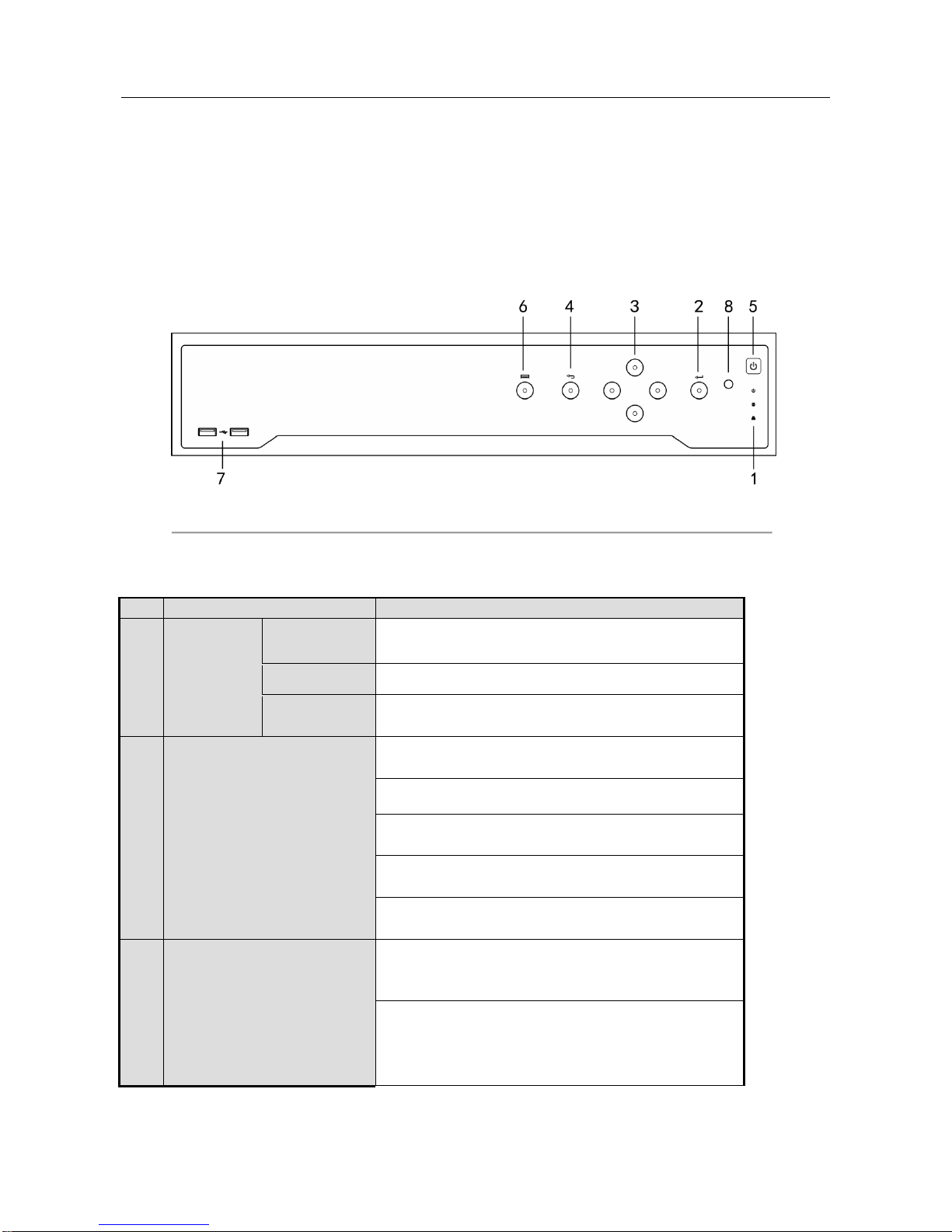

Operable by front panel, mouse, remote control, or control keyboard.
Three-level user management; admin user is allowed to create many operating
accounts and define their operating permission, which includes the limit to access
any channel.
Admin password resetting by exporting/importing the GUID file.
Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Import and export of device configuration information.
Network Functions
Two self-adaptive 10M/100M/1000M network interfaces for VZ-NVR-81080-P, VZ-
NVR-161080-P, and the multi-address and network fault tolerance working modes
are configurable.
One self-adaptive 10M/100M/1000M network interface for VZ-NVR-
81080-P, VZ-NVR-161080-P, VZ-NVR3200-4HD-P, VZ-NVR3200-4HD.
Eight independent PoE network interfaces for the VZ-NVR-81080-Pmodels, and sixteen
independent PoE network interfaces for the VZ-NVR-161080-P, VZ-NVR3200-4HD-P.
Long distance (100-300 m) network transmission via PoE (for some models).
IPv6 is supported.
TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP,NFS, and iSCSI are
supported.
TCP, UDP and RTP forunicast.
Auto/Manual port mapping by UPnPTM.
Extranet access byHiDDNS.
Support access by Cloud P2P.
Remote web browser access by HTTPS ensures high security.
The ANR (Automatic Network Replenishment) function is supported, it enables the IP
camera save the recording files in the local storage when the network is
disconnected, and synchronizes the files to the NVR when the network is resumed.
Remote reverse playback viaRTSP.
Supports accessing by the platform viaONVIF.
Remote search, playback, download, locking and unlocking of the record files, and
support downloading files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarmstatus.
Remote keyboardoperation.

Network Video Recorder User Manual
Remote HDD formatting and program upgrading.
Remote system restart and shutdown.
RS-232, RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZcontrol.
Remote JPEGcapture.
Virtual host function is provided to get access and manage the IP camera directly.
Two-way audio and voicebroadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows system.
Source code of application softwarefor demo.
Development support and training for application system.

Network Video Recorder User Manual
TABLE OF CONTENTS
Chapter 1 Introduction........................................................................................................................................ 16
1.1 Front Panel.................................................................................................................................... 16
1.1.1 VZ-NVR3200-4HD-P, VZ-NVR-3200-16P............................................................................. 16
1.1.2 VZ-NVR-81080-P, VZ-NVR-161080-P.................................................................................. 17
1.2 IR Remote ControlOperations...................................................................................................... 17
1.3 USB Mouse Operation.................................................................................................................. 35
1.4 Input Method Description.............................................................................................................. 22
1.5 Rear Panel.................................................................................................................................... 23
1.5.1 VZ-NVR-8108-P Series......................................................................................................... 24
1.5.2 VZ-NVR3200-4HD-P, VZ-NVR-3200-16P ............................................................................ 25
Chapter 2 Getting Started................................................................................................................................... 26
2.1 Device Startup and Activation....................................................................................................... 26
2.1.1 Starting Up and Shutting Down theNVR .............................................................................. 26
2.1.2 Activating Your Device.......................................................................................................... 44
2.1.3 Using the Unlock Pattern forLogin........................................................................................ 46
2.1.4 Login and Logout................................................................................................................... 32
2.1.5 Resetting Your Password...................................................................................................... 33
2.2 Using Wizard for Basic Configuration........................................................................................... 34
2.3 Adding and Connecting the IPCameras....................................................................................... 39
2.3.1 Activating the IPCamera....................................................................................................... 39
2.3.2 Adding the Online IP Cameras.............................................................................................. 40
2.3.3 Editing the Connected IP Cameras and Configuring Customized Protocols........................ 45
2.3.4 Editing IP Cameras Connected to the PoEInterfaces .......................................................... 48
2.3.5 Configuring PoE Interface ..................................................................................................... 50
Chapter 3 Live View............................................................................................................................................ 52
3.1 Introduction of Live View............................................................................................................... 52
3.2 Operations in Live ViewMode ...................................................................................................... 53
3.2.1 Front Panel Operation on LiveView...................................................................................... 54
3.2.2 Using the Mouse in Live View............................................................................................... 54
3.2.3 Using an Auxiliary Monitor..................................................................................................... 55
3.2.4 Quick Setting Toolbar in Live ViewMode.............................................................................. 56
3.2.5 Fisheye Expansion View ....................................................................................................... 58
3.3 Adjusting Live ViewSettings......................................................................................................... 59
3.4 Channel-zero Encoding ................................................................................................................ 61
Chapter 4 PTZ Controls...................................................................................................................................... 62
4.1 Configuring PTZ Settings.............................................................................................................. 62
4.2 Setting PTZ Presets, Patrols & Patterns....................................................................................... 64
4.2.1 Customizing Presets.............................................................................................................. 64
4.2.2 Calling Presets ...................................................................................................................... 65
4.2.3 Customizing Patrols............................................................................................................... 65
