VIA Technologies K8T800 User manual

TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.1
April 26, 2004
VIAVIA
VIAVIA
VIA K8T800K8T800
K8T800K8T800
K8T800 mainboard for AMDmainboard for AMD
mainboard for AMDmainboard for AMD
mainboard for AMD
Socket 754 based Athlon 64 processorSocket 754 based Athlon 64 processor
Socket 754 based Athlon 64 processorSocket 754 based Athlon 64 processor
Socket 754 based Athlon 64 processor
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
60000028H5+11

ii
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED
WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS
PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL
APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE
COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR
LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii
80 Port Frequently Asked Questions
Below is a list of some basic POST Codes, possible problems and solutions. For
more detailed information about POST Codes, refer to Appendix D in this manual.
POST CODE Problem Solution
FFh or CFh 1.BIOS chip inserted
incorrectly
2. Incorrect BIOS update
version
3. M ainboard problem
4. Add-on card inserted
incorrectly.
1. Reinsert the BIOS
chip
2. Download the correct
BIOS version update
from the manufacturer's
Web site.
3. Replace mainboard
4. Remove and replace the
add-on card
C1h - C5h 1. Memory module
inserted incorrectly
2. Memory compatibility
problem
3. Memory module
damaged
1. Reinsert memory
module
2. Replace memory
with correct type
3. Replace memory
module
2Dh 1. Error occured in VGA
BIOS
2. VGA card inserted
incorrectly
1. Replace VGA card
2. Reinsert the VGA
card
26h Overclock error Clear CMOS or press the insert
key to power on the system
07h - 12h 1. Init keyboard
controller error
2. RTC error
1. Ensure that the keyboard and
mouse are connected
correctly.
2. Replace the RTC battery.
Initial Keyboard

iv
Table of Contents
Section 1 Introduction
Package Contents ...................................................... 1- 1
Mainboard Features ................................................... 1- 2
System Block Diagram ............................................... 1- 5
Section 2 Specification
Mainboard Specification ............................................ 2-1
Section 3 Installation

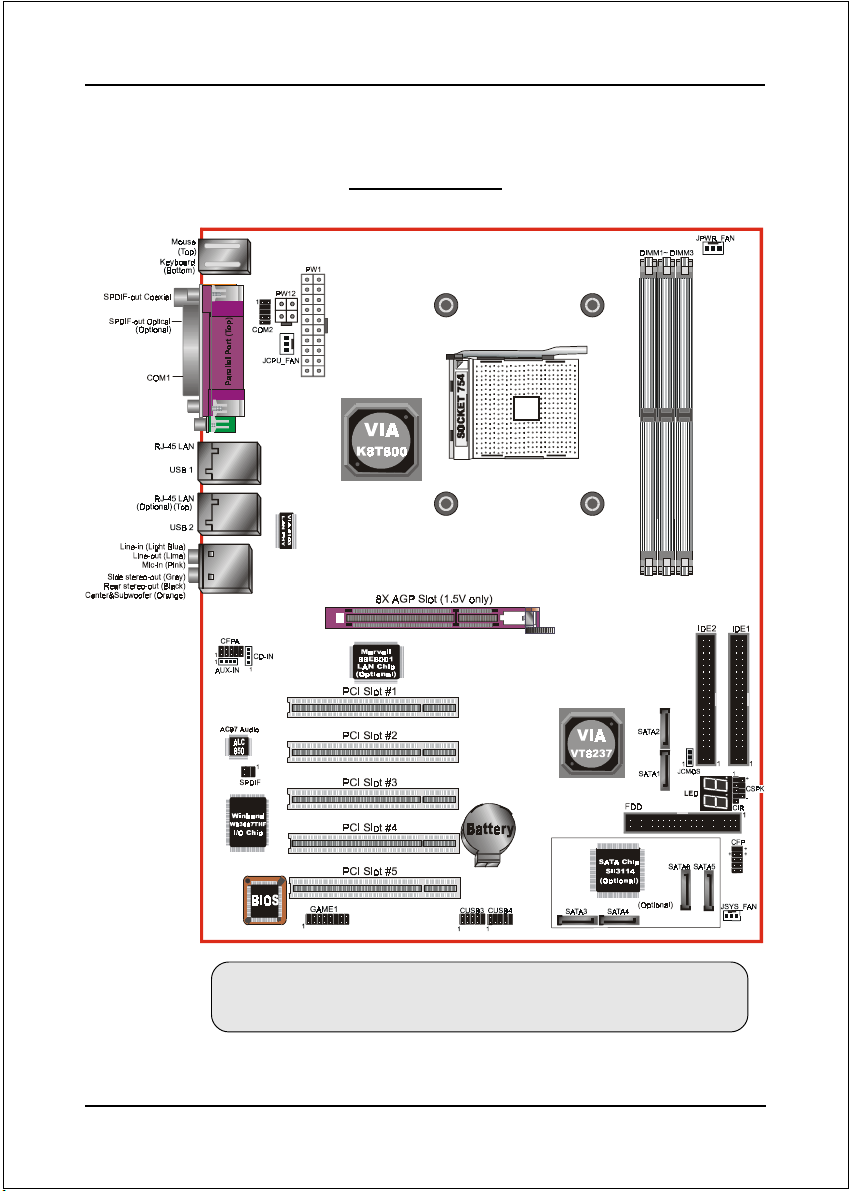

Mainboard Layout ..................................................... 3- 2
Easy Installation Procedure ....................................... 3- 3

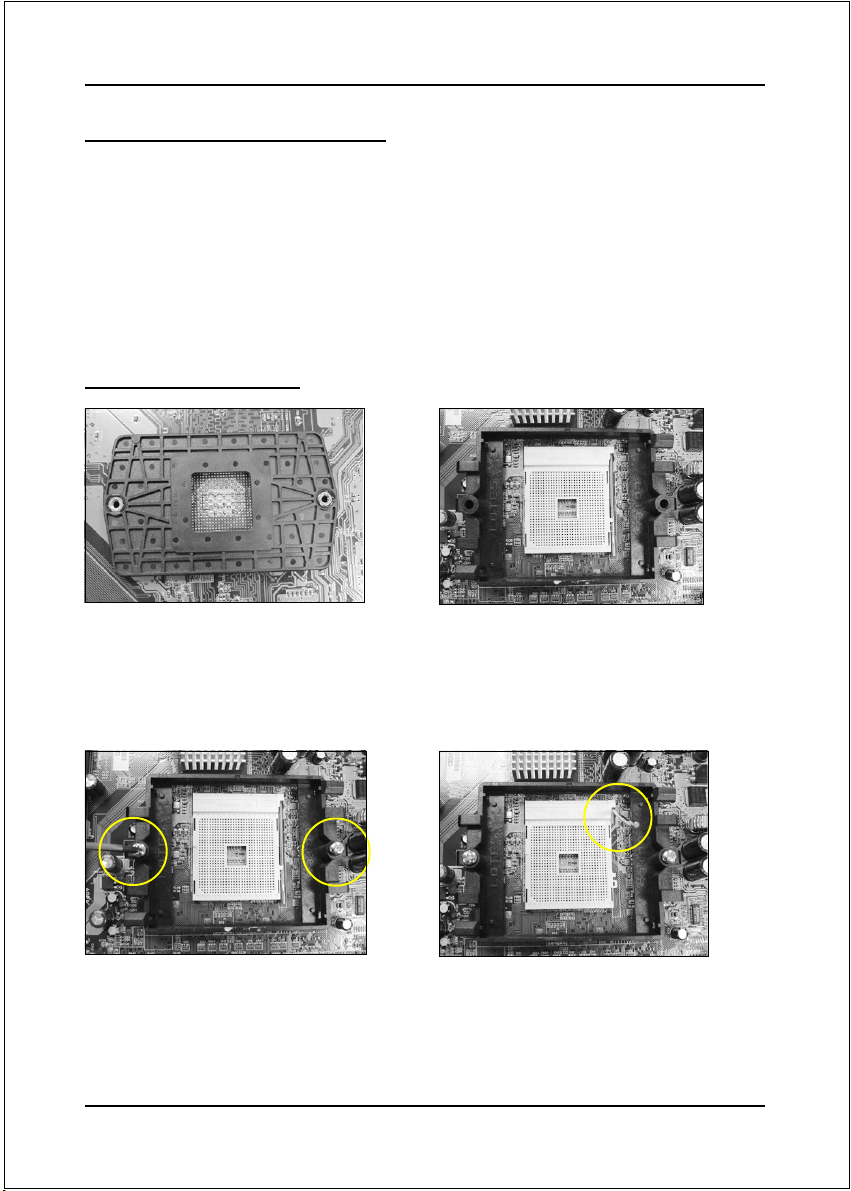

CPU Insertion ............................................................. 3- 3
Jumper Settings .......................................................... 3- 6
System Memory Configuration .................................. 3-7
Expansion Slots .......................................................... 3- 9
Device Connectors..................................................... 3-11
Power-On/Off (Remote) .............................................. 3-18
External Modem Ring-in Power ON and
Keyboard Power ON Function (KBPO) ..................... 3-18
STR (Suspend To RAM) Function ............................ 3-19
CPU Overheating Protection...................................... 3- 20
Section 4 BIOS Setup
Main Menu ................................................................ 4- 1
Standard CMOS Setup ............................................... 4- 2
Advanced BIOS Features .......................................... 4- 3
Advanced Chipset Features ...................................... 4- 6
Integrated Peripherals ................................................ 4-11
Power Management Setup ......................................... 4-17
PNP/PCI Configuration .............................................. 4-20
Page

v
PC Health Status ........................................................ 4-22
Power BIOS Features ................................................. 4-24
Defaults Menu ........................................................... 4-26
Supervisor/User Password Setting ............................ 4-27
Exit Selecting .............................................................. 4-28
Section 5 S-ATA RAID Configuration
Introduction ............................................................... 5-1
VIA S-ATA RAID Features ........................................ 5-3
Silicon Image SiI3114 SATA RAID Features (Optional) 5-4
Enable RAID Function ............................................... 5-5
Section 6 Driver Installation
Easy Driver Installation .............................................. 6-1
Realtek Sound Manager Quick User guide ................ 6-2
Appendix Appendix A
Realtek Media Player User’s Guide ............................ A-1
Appendix B
Update Your System BIOS ......................................... B-1
Appendix C
VIA RAID BIOS Utility ................................................ C-1
Silicon Image SiI3114 RAID BIOS Utility (Optional) ..... C-7
Appendix D
POST Codes ............................................................... D-1

vi
Page Left Blank

Introduction
Page 1-1
Section 1
INTRODUCTION
1-1 Package Contents
Contents
A. Mainboard
B. User’s manual
C. Floppy drive cable
D. HDD drive cable
E. CD (drivers and utilities)
F. I/O Shield
G. Game & COM bracket cable
H. S-ATA data and power cable
Powerpack items (Optional)
I. Mini heatsink
J. Tool Pen
K. Extra USB2.0 port cable
Optional Items
L. S/PDIF Module
B
A
C
D
USER’S
MANUAL
E
F
G
K
HL
If you need the optional item, please
contact your dealer for assistance.
IJ

Introduction
Page 1-2
1-2 Mainboard Features
Features Brief Introduction
2AthlonTM 64 Processor
The AMD AthlonTM 64 processor family is designed to support performance
desktop. It provides a high performance HyperTransportTM link to I/O, as well
as a single 64-bit high-performance DDR memory controller.
For more information about all the new features AthlonTM 64 Processor deliver, check out
the AMD website at http://www.amd.com
2Chipset
The board is designed with VIA chipset, K8T800 as North Bridge and VT8237 as
South Bridge, providing a feature rich and scalable platform. The K8T800 North
Bridge is designed with an ultra fast HyperTransport link to the AthlonTM 64 and
comes equipped with AGP 8X features for VGA card expansion.
The K8T800 North Bridge connects to the VT8237 South Bridge through the fast
Ultra V-Link connection at 1.06GB/s. With support for two Serial ATA channels
at 150MB/s bandwidth, integrated RAID (0, 1, 0+1 & JBOD) capability as well as
up to eight USB 2.0 ports, the VT8237 offers the highest possible peripheral
performance for professional users. Additional features include a VIA MAC for
10/100Mbps Fast Ethernet, integrated PCI support.
2Accelerated Graphics Port (AGP)
The AGP slot on the board is compliant with the new AGP 3.0 specification. This
new specification enhances the functionality of the original AGP specification
by allowing 8X data transfers ( 8 data samples per clock) resulting in maximum
bandwidth of 2.1GB/s. Only 1.5V AGP cards are supported.
2Ultra ATA100/133
The mainboard provides an Ultra ATA100/133 Bus Master IDE controller. This
controller supports Ultra ATA100/133 protocols which are ideal to support
demanding applications such as real-time video, multimedia, and a high perfor-
mance operating system. A new IDE cable is required for Ultra ATA100/133.

Introduction
Page 1-3
2Hardware Monitoring
Hardware monitoring enables you to monitor various aspects of the system
operation and status. The features include CPU temperature, voltage and fan
speed in RPMs.
210/100 LAN (Optional)
This mainboard is mounted with a ethernet LAN PHY. It allows the mainboard to
connect to a local area network by means of a network hub.
2GbE LAN (Optional)
This mainboard is optionally mounted with a Gigabit ethernet LAN chipset. The
new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per second
(Mbps), which runs 10 times faster than conventional 10/100BASE-T Ethernet
LANs.
2Serial ATA
Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage
interface .Increases the peak data transfer speed up to 150MB/sec and allows
future enhancements to the computing platform.
2More S-ATA (Optional)
Extra SiI3114 S-ATA controller onboard for more S-ATA ports, complete with
RAID function, 4 S-ATA ports with 150MB/sec supporting RAID 0, 1 , 10, 5.
2USB2.0
A popular USB standard for plugging in peripherals with up to 480Mbps transfer
speed while maintaining backward compatibility with older USB1.1 device.
28ch
Delivers 8 channel audio to bring you the latest in audio realism from DVD
movies and games. Perfect for your home theatre system.

Introduction
Page 1-4
Special Features
&Cool ‘n’Quiet Technology
Reduce the noise and heat from your PC when AMD Cool’n’QuietTM Technology
is enabled.
&80 Port
An onboard LED-display trouble-shooting device ,facilitating user to detect
boot-up problems.
&QuickSPDIF
On board SPDIF-out connector for quick connection to 6 channel speakers. Not
only removes cable cluttering but also delivers loss-free digital audio to let you
enjoy DVD movies and games with crystal clear sound.
&Magic Health
Reports your system hardware status for every boot-up to help detect faults
early.Monitor hardware status including CPU temperature ,CPU/Memory/AGP
voltage ,fan RPM speed for chassis fan,CPU fan & Power supply fan.
&EZ-Boot
Simply press “ESC” to select your bootable device.No more hassle to serach the
BIOS menu.change and re-start.
&PowerBIOS
Supporting a full range of overclocking setting via BIOS ,Various adjustable
feature include FSB/AGP/Memory voltage tweaking.

Introduction
Page 1-5
Figure 5: System Block Diagram
1-3 System Block Diagram

Introduction
Page 1-6

Specification
Page 2-1
Section 2
SPECIFICATION
Mainboard Specification
Processor
Supports 754-pin Socket for AMD Athlon 64 processors with 1.6GTs Hyper
Transport FSB up to 3700+
Chipset
VIA K8T800 AGPset : VIA K8T800 + VT8237
Main Memory
Three 184-pin DDR DIMM sockets for 64-bit, Unbuffered, Single/Double-
side and DDR-266/333/400 DIMMs
Supports up to 3GB memory size
BIOS
Flash EEPROM with Award BIOS
- ACPI v2.0 compliant
- S3 (Suspend to DRAM) sleep-state support
- SMBIOS (System Management BIOS) v2.2 compliant
- Supports Power failure recovery
- Able to wake the computer from specific states by LAN, Power switch,
PME#, RTC alarm, USB, PS2 K/B, PS2 Mouse, Modem Ring-in COM#1…
Onboard PCI Devices
LAN --> Embedded 10/100Mbps Fast Ethernet controller with onboard
VIA 6103 PHY (Optional)
Integrates 1Gbps Ethernet controller with onboard Marvell
88E8001 LAN Chipset (Optional)

Specification
Page 2-2
S-ATA --> Integrated Serial ATA controller from Silicon Image SiI3114
for 4 ports solution with RAID 0, 1 ,10, 5 and support up to
150MB/sec transfer rate
Legacy IO Controller
Winbond W83687THF LPC IO controller with floppy, printer, game, serial
and SIR interface
Supports Hardware Monitoring function
Intelligent CPU fan speed control to lower system noise
Audio
Eight channel audio with analog and digital output using Realtek ALC850
AC’97CODEC
- AC’97 v2.3 compliant
- Supports CD-In, Aux-In and S/PDIF-in/out interface
- Supports Line-out and Mic-In for front panel
- Supports automatic “jack-sensing”
- Rear panel audio jacks configuration:
Peripheral Interfaces
))
))
)At Rear Panel
PS/2 keyboard and mouse ports
One Parallel (printer) port
One S/PDIF-Out Coaxial jack
For more detailed information about SiI3114, refer to
user’s manual in the bundled CD.
roloCkcaJenohP lennahc2 lennahc6 lennahc8
eulBthgiLni-eniLtuo-oeretsraeRni-eniL
emiLtuo-eniLtuo-oeretstnorFtuo-oeretstnorF
kniPni-ciMrefoowbuS&retneCni-ciM
yarGtuo-oeretsediS
kcalB tuo-oeretsraeR
egnarO refoowbuS&retneC
(Optional)

Specification
Page 2-3
One S/PDIF-Out Optical (Optional)
One Serial port
One RJ45 LAN connector (Dual LAN optional for high-end level only)
Four USB2.0 ports
Six Audio jacks
))
))
)Onboard connector and pin-header
One floppy drive connector
Two ATA-133 IDE connectors
Four extra USB2.0 ports
One CD-IN and One AUX-IN connector
One Front Panel Audio connector
One S/PDIF in/out connector
One IR connector
One Game port connector
One COM2 connector
Six S-ATA connectors ( 4 optional from Silicon Image SiI3114 chip)
Three Fan connectors
Front Panel Controller
Supports Reset & Soft-Off switches
Supports HDD & Power LEDs
Supports PC speaker
Expansion Slots
One AGP slot supporting 1.5v 4X/8X AGP card
- AGP v3.0 compliant
Five PCI slots with Bus Master support
- PCI v2.2 compliant

Specification
Page 2-4
Other Features
Magic Health – a H/W monitoring software utility, for voltages, tempera-
tures and fan-speeds sensing
EZ Boot – An easy way let end-user can choose to boot from hard drive,
CD-ROM, floppy, …
KBPO – Keyboard power on, turn on the computer from keyboard
Supports “Cool’n’ Quiet” power saving technology
Excellent Overclocking capabilities through
- subtle voltage tuning for CPU, Memory, AGP
- subtle frequency tuning on FSB with 1MHz
- Supports complete Asynchronous FSB/Memory and Asynchronous FSB/
AGP, PCI scheme for overclocking
P80P for system debugging
Form Factor
305mm x 245 mm ATX size

Installation
Page 3-1
Section 3
INSTALLATION
Note: Depending on the model you purchased, some components
are optional and may not be available.

Installation
Page 3-2
Mainboard Layout
Note: Depending on the model you purchased, some components
are optional and may not be available.

Installation
Page 3-3
Easy Installation Procedure
The following must be completed before powering on your new system:
3-1. CPU Installation
3-2. Jumper Settings
3-3. System Memory Configuration
3-4. Expansion Slots
3-5. Device Connectors
3-1 CPU Installation
<Figure 1> <Figure 2>
Step 4
Open the socket by raising the actuation
lever.
Step 1
Place the back plate into the two holes
around the CPU area behind the mainboard.
Step 2
Place the retention mechanism on the
mainboard as shown.
Step 3
Screw in the two pan head screws.
<Figure 3> <Figure 4>

Installation
Page 3-4
Step 5
Align pin 1 on the CPU with pin 1 on
the CPU socket as shown in the
illustration above. The CPU is keyed to
prevent incorrect insertion. Do not force
the processor into the socket. If it does
not go in easily, check for mis-orienta-
tion and reinsert the CPU.
Make sure the processor is fully
inserted into the socket.
<Figure 5> <Figure 6>
Step 6
Close the socket by lowering and
locking the actuation lever.
Step 7
Apply thermal compound to the top of
the CPU and install the heatsink as
shown.
<Figure 7> <Figure 8>
Step 8
Press the clips in the direction of the
arrows shown in Figure 8 to secure the
assembly to the CPU socket.
