Dear customer,
we thank you that you have bought VIADRUS HERCULES U28 universal boiler, thus having shown your
confidence in VIADRUS a.s.
For you to get used to a correct way of handling your new product from the beginning please read at first this
manual for its usage (first of all the chapter no. 3.1 – Boiler operation by user, chapter no. 3.4 – Boiler cleaning -
maintenance and chapter no. 3.5 – IMPORTANT NOTICE). Please follow the stated information whereby a longlife
and trouble-free boiler operation will be guaranteed for both your and our satisfaction.
1 Technical information
VIADRUS HERCULES U28 is cast-iron low-pressure boiler designed for combustion of solid fuels – light coal and
hard coal. As a complement fuel it is possible to use wood.
Combustion of other materials, like plastics is impermissible.
1.1 Usage
The VIADRUS HERCULES U28 boiler complies with the requirements on heating up family houses, shops,
schools etc.
The boiler is manufactured as a hot-water boiler with both natural and forced heating water circulation and working
overpressure up to 400 kPa (4 bar). Before dispatch the boiler is tested for tightness by applying
800 kPa (8 bar) testing overpressure.
The boiler is designed for heating both closed and open heating systems.
1.2 Boiler advantages
1. Long lifetime of the cast-iron heat exchange and all other parts with regard to the quality of used materials.
2. Long-term verified construction.
3. Sophisticated manufacturing technology on the automatic forming lines with a constant and verified quality of
the manufacturing process (ISO 9001, ISO 14 001).
4. Combustion efficiency 82 %.
5. Easy operation and maintenance.
6. Output graduation according to the sections number.

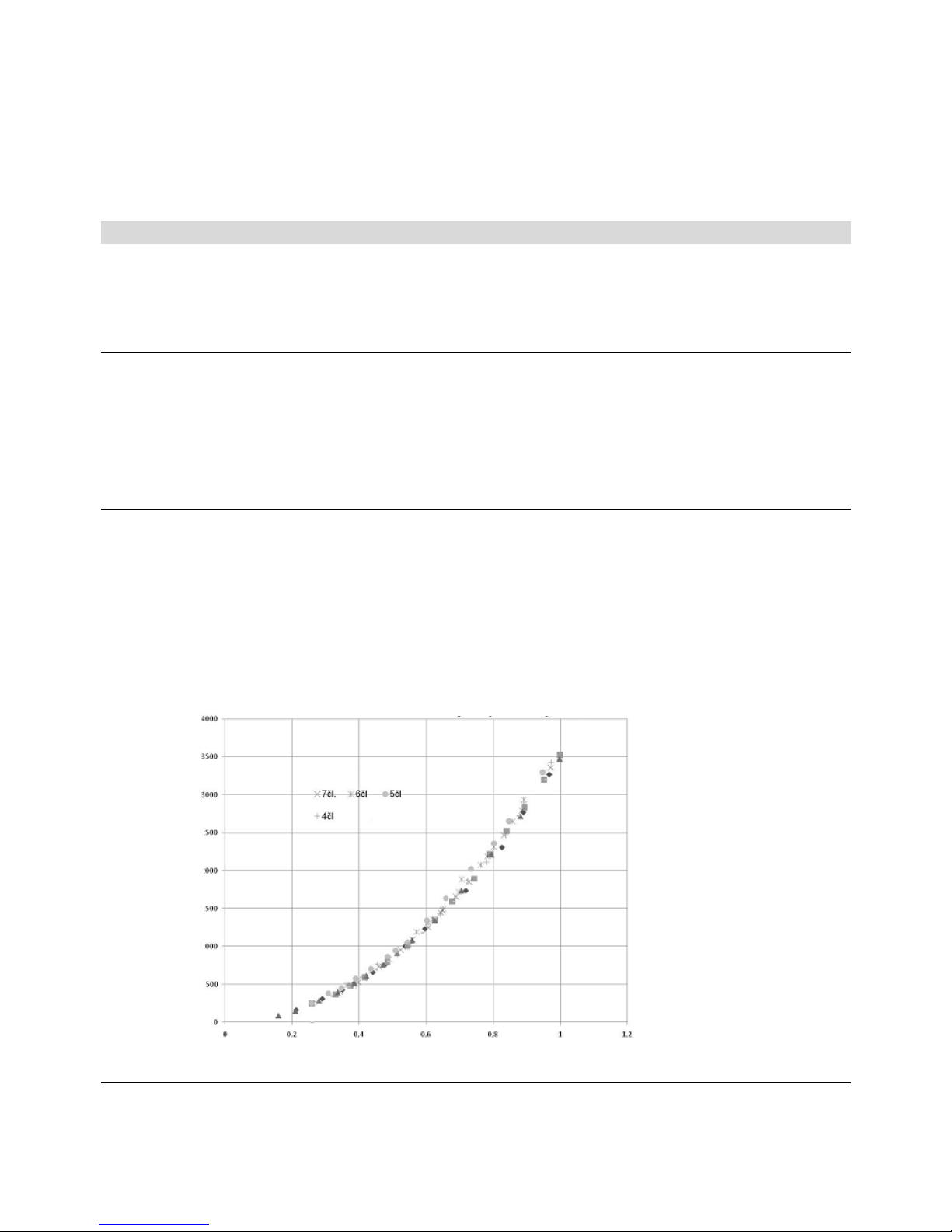

Fig. №. 1 Hydraulic loss of boiler drum
Pressure loss independence on p
z
–
Q flow rate
Flow rate Q (10
-
3
m
3
.s
-
1
)
Pressure loss Pz (Pa)
Čl. = sections

4
1.3 Boiler technical data
Tab. №. 1 Dimensions, technical data
Number of section
s
pc
4
5
6
7
Boiler class according to EN 303 - 5 - 3
Combustion chamber volume l 45,6 61,9 78,2 94,9
Water space volume l 52,6 62 71,7 81,3
Weight kg 364 437 510 583
Combustion chamber depth mm 311 422 533 644
Diameter of smoke socket mm 156
Boiler dimensions: height x width mm 1165 x 695
depth L mm 831 942 1053 1164
Filling opening dimensions mm 318 x 265
Maximum working water overpressure kPa
(bar) 400 (4)
Minimum working water overpressure kPa
(bar) 50 (0,5)
Testing water overpressure kPa
(bar) 800 (8)
Boiler hydraulic loss - See Fig. no. 1
Minimum output water temperature °C 60
Control range of water temperature °C 60 – 85
Noise level dB Does not exceed the level 65 dB (A)
Boiler connections – heating water “ 1 1/2
– return water “ 1 1/2
Cooling water temperature for equipment for
surplus heat withdaral °C 5 – 20
Cooling water overpressure for equipment
for surplus heat withdaral kPa (bar) 200 – 600 (2 - 6)
Tab. №. 2 Technical data – hard coal as fuel
Granularity 20 – 40 mm, fuel moisture max. 15 %
Calorific value of fuel: 14 – 20 MJ.kg
-1
Number of sections
pc
4
5
6
7
Nominal heat output kW 19 25 30 35
Fuel consumption at nominal heat output kg.h
-
1
3,7 4,7 5,8 6,8
Fuel efficiency MJ.kg
-
1
19,68
Burning time at nominal output hour 4
Flue gases temperature at nominal heat
output °C 232 – 288
Flue gases mass flow rate at nominal output
kg.s
-
1
0,0156 0,0205 0,0254 0,0303
Efficiency % 80 79 79,5 78,5
Required chimney draught mbar 0,16 0,2 0,25 0,30
Tab. №. 3 Technical parameters – hard coal as fuel
Granularity 20 – 40 mm, fuel moisture max. 15 %
Calorific value of fuel: 26 - 29 MJ.kg
-1
Number of sections
pc
4
5
6
7
Nominal heat output kW 20 27 35 44
Fuel consumption at nominal heat output kg.h
-
1
3,15 4,2 5,4 6,5
Fuel efficiency MJ.kg
-
1
24,2
Burning time at nominal output hour 4
Flue gases temperature at nominal heat
output °C 243 – 295
Flue gases mass flow rate at nominal output
kg.s
-
1
0,0196 0,0251 0,0306 0,0361
Efficiency % 78,4 79,5 81 82,8
Required chimney draught mbar 0,2 0,23 0,27 0,3

5
1.4 Basic boiler dimensions
4
5
6
7
L
mm 492 603 714 825
L1
mm 831 942 1053 1164
D
mm 156
Fig. №. 2 Basic boiler dimensions

6

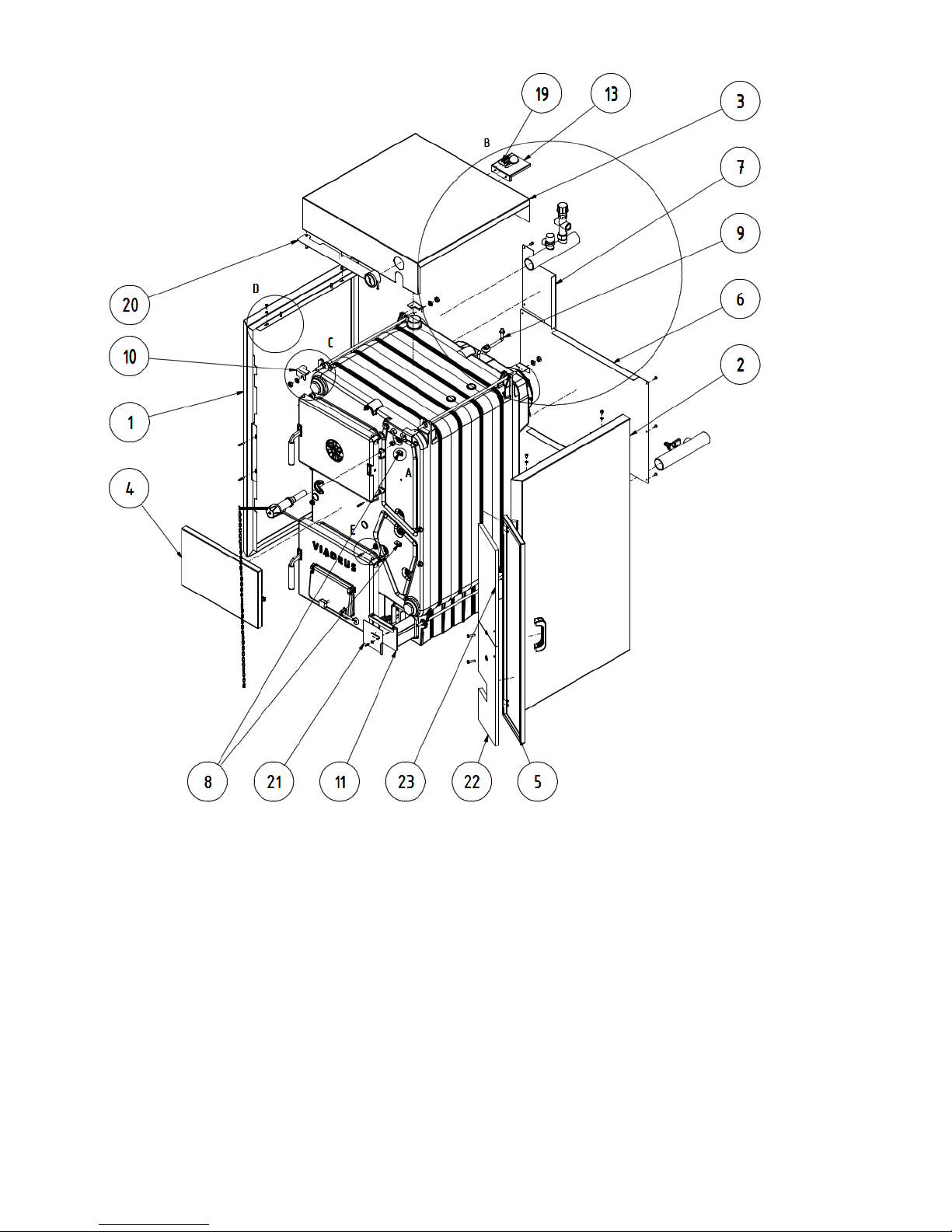

1 Front cell
2 Center cell
3 Middle section without lower bar
4 Rear cell
5 Feeding gate (with the rosette of primary air)
6 Cleaning cover -upper
7 Cleaning cover - lower
8 Dump grate
9 Ash gate (with a suffocating throttle of secondary air)
10 Smoke extension piece
11 Air rosette (tertiary air)
12 Boiler case (complete)
13 Thermo-manometer
14 Draught regulator
15 Pipe of output water
16 Filling and cock
17 Pipe of input water
18 Two-way safety cock DBV 1 - 02
19 Safety valve
20 Small ash pan with a movable cover
(tertiary air)
21 Ash pan
22 Partition of the smoke adapter
23 Partition of the flue gases area
Fig. №. 3 Basic boiler parts

7
2 Assembly manual
2.1 Boiler construction
The main boiler part is the cast-iron sectional boiler drum made of the grey cast-iron according to EN 1561,
quality 150.
The pressure parts meet the strenght demands according to EN 303- 5.
The boiler drum is assembled of sections by means of pressed boiler nipples with 56 mm diameter and secured by
anchor bolts. The boiler sections create the feed space, combustion and ash space, water space and convectional
space. The heating water input and output is situated at the rear boiler part.
There is placed the smoke adapter and heating water connection at the upper part of rear boiler section and the
return water connection at the bottom part. The water connection is possible to connect by means of thread pipes.
The stoking door, ash door and 2 cleaning covers are connected to the front boiler section. Under the ash pan door
there is installed the tilting grate.
The whole boiler drum is insulated by the health harmless mineral insulation, which reduces the losses caused by
heat transmission into the environment. The boiler sell is coloured by a good quality comaxit spray.
2.2 Rules and directives
The solid fuel boiler can be installed by the company holding a valid certification for its installation and
maintenance. There must be made lay-out according to the valid rules for the boiler installation. Before the boiler
installation to the older heating system the installation company must make the flush (cleaning) of the whole
heating system. The heating system must be filled with water meeting the requirements ČSN 07 7401,
especially its hardness must not exceed the required parameters.
Tab. №. 4
Recommended values
hardness mmol/l 1
Ca
2+
mmol/l 0,3
Concentration of whole Fe + Mn mg/l (0,3)*
*) recommended value
WARNING!!! The use of anti-freeze mixture is not recommended by the manufacturer.
In case of two way safety vent reaction, when there is a possibility of boiler having been filled with the
water, which does not meet the ČSN 077401 requirements it is necessary to change the water in the
heating system so that it meets the ČSN 077401 requirements again.
a) to the heating system
ČSN 06 0310 Heating systems in buildings – Designing and installation
ČSN 06 0830 Heating systems in buildings – protecting device
ČSN 07 7401 Water and steam for thermal energy equipments with working pressure up to 8 MPa.
EN 303-5 Boilers for central heating – Part 5: Solid fuel boilers for central heating with manual or
automatic feed and max. 500 kW nominal thermal output: terminology, requirements,
testing and marking.
b) to the chimney
ČSN 73 4201 Chimneys and flue gas ducting– designing, implementation and connection of fuel
consumers.
c) regarding the fire regulations
ČSN 06 1008 Fire safety of heat installations.
EN 13501-1 +A1 Fire classification of construction products and building elements – Part 1: Classification
using test data from reaction to fire tests
d) to the system of HWS heating
ČSN 06 0320 Heating systems in buildings – Hot water preparation – Designing and planning
ČSN 06 0830 Heating systems in buildings – Safety devices.
ČSN 75 5409 Water installations inside buildings.

8
2.3 Positioning possibilities
Boiler positioning in the living space (including corridors) is prohibited!
The installation of the boiler must comply with all requirements of ČSN 06 1008.
Permanent access of air must be ensured in the room where the boiler will be installed and operated.
Boiler positioning with regard to the fire regulations:
1. The boiler can be installed on a fire-proof floor (Fig. no. 4):
−Place the boiler on fire-proof base exceeding the boiler platform by 20 mm on sides and only up to the
boiler drum depth.
−If the boiler is positioned in a cellar, we recommend installing it on a retaining wall minimum 50 mm hight.
−Install the boiler in the middle of the retaining wall.
Quantity
of sections
4
5
6
7
L [mm]
494 605 716 827
Fig. №. 4 Boiler base dimensions
2. A safe distance from the combustible materials:
−when installing and operating the boiler it is necessary to keep a safety distance of 200 mm from the
materials of combustibility grade A1, A2, B and C (D);
−for easily combustible materials of combustibility grade E (F), which quickly burn and burn themselves even
after removal of ignition source (such as paper, cardboard, asphalt and tar paper, wood and wood-fiber
boards, plastics, floor coverings) the safe distance has to be doubled, i.e. to 400 mm;
−safe distance should be doubled as bulb where the grade of reaction to fire has not been proved.
Tab. №. 5 Grade of reaction to fire
Grade of reaction to fire
Examples of building materials and pro
ducts included in the reaction to fire
(Extract from EN 13501-1 + A1)
A1
– incombustible Granite, sandstone, concrete, bricks, ceramic tiles, mortars, fireproof plasters, …
A2
– combustible with difficulty
acumin, izumin, heraklit, lignos, boards and basalt felt, fibreglass boards,...
B
– hardly combustible Beech and oak wood, hobrex boards, plywood, werzalit, umakart, sirkolit,...
C (D)
– medium combustible Pinewood, larch, whitewood, chipboard and cork boards, rubber flooring,...
E (F) – easily combustible Asphaltboard, fibreboards, cellulose materials, polyurethane, polystyrene, polyethylene,
PVC,…

9
Boiler positioning with regard to the necessary handling space:
•Basic environment AA5/AB5 according to ČSN 33 2000-1 ed. 2.
•In front of the boiler there must be left a minimum handling area of 1000 mm.
•The minimum distance between the rear part of boiler and the wall 400 mm.
•At least from one side part keep the access area to the back boiler part of minimum 400 mm.
•Minimal distance from the wall at the left side of boiler is 100 mm. In a case of modification with left opening of
the door, the distance from the wall must be bigger because of door opening in sufficient action range.
Fig. №. 5 Modifications of stocking door opening
Fuel positioning:
•It is interdicted to store the fuel behind the boiler or next to the boiler within a distance smaller than 400 mm.
•It is interdicted to store the fuel between two boilers in the boiler-room.
•The producer recommends to keep the distance between the boiler and fuel min. 1000 mm or to store the fuel
in a different room that where the boiler is installed.
The selection of the right boiler size
The selection of the right boiler size, it means the
heating output, is very important condition for
economic operation and the right boiler function. The
boiler must be selected so that the heating output
conforms to the heating loss of the object. The
nominal output of the boiler is counted according to
the valid rules for outside temperature –12 °C, -15 °C
and –18 °C. The boiler selection with too high heating
output (overrating) results in tarring and ratting of
boiler. It is not useful to use the boiler with higher
output than the heating loss of the boject.
Chimney draught
The chimney with the right chimney draught is the
fundamental prerequisite for the right boiler function. It
influences the boiler output as well as its efficiency.
The boiler can be connected to the venting unit with
the sufficient chimney draught, see. Chapter no. 1.3.
and if the revision by the certified organization is
made.
Fig. №. 6 Positioning of Boilers in Boiler
Room

10
2.4 Delivery and accessories
The boiler is packed in a transport package and must not be tilted over during the transport. The accessories are
put inside the boiler drum, accessible by opening the stoking door.
Standard Boiler Delivery:
• Boiler with appropriate number of sections on a pallete
• Cover with insulation including an ash pan, a bracket of cleaning tools – type 2, cover of a movable and small
ash pan of the appropriate size
• Heating and return water tubes G 1 1/2" 2 pcs
• Side grate -4 sections 4 sections - 1 pc, 6 sections - 1 pc
• Side grate -5 sections 5 sections - 1 pc, 7 sections - 1 pc
• Side grate -additional 6 sections - 1 pc, 7 sections - 1 pc
• Cleaning tools - handle 1 pc
• A packet
• A production label
• Commercial and technical documents
Packet Accessories:
• Door hinges 2 pcs
• A handle 503a - 514 1 pc
• A magnetic element - flat 1 pc
• Brush 1 pc
• Stabbler 1 pc
• Jointing material for covers:
- Butterfly nut M4 1 pc
- Nut M5 1 pc
- Nut M6 2 pc
- Nut M8 1 pc
- Washers 4,3 9 pcs
- Washers 5,3 4 pcs
- Washers 6,4 2 pcs
- Large-area washers 6,4 2 pcs
- Washers 8,4 2 pcs
- Connecting pins 8 pcs
- Screws M4 x 6 9 pcs
- Screws M5 x10 6 pcs
- Screws M6 x 35 2 pcs
- Screws M8 x 12 1 pcs
- Screws ST 4,8 x 13 11 pcs
- Spring leave retainers 8 pcs
• A pull rod of smoke control 1 pc
• Jointing material for the pull rod of smoke control:
- Cotter pins 2,5 x 20 2 pcs
- A nut M10 1 pc
- Washers 10,5 2 pcs
- A plastic ball M10 1 pc
• A thermomanometer 1 pc
• A screw of suffocating throttle 1 pc
• A special hook 1 pc
• A socket spanner with a handle, hexagonal 902-13 1 pc
• Filling and discharging cock Js 1/2“ 1 pc
• Draught regulator - complete 1 pc
• Plug Js 1 1/2“- blind 1 pc
• Under plug sealing 1 pc
• Stick-on label – position of a partition of smoke extension 1 pc
• Screws M5x10 2 pc
• Nust M10 5 pc
• Washers 10,5 6 pc
• Washers 5,3 2 pc

11
Necessary accessories: (they are not included in delivery):
•Two-ways safety valve DBV 1 – 02 (1 pc) incl. siesal (10 g); this equipment has not to be used in case of open
heating system
•Safety valve – 1 pc
By request (is not included in delivery):
•Filter 3/4“ – for delivery with the two way safety vent DBV 1 - 02
Necessary accessories for combustion of additional fuel - timber (It is not a part of delivery):
4
sections
5
sections
6
sections
7
sections
•Additional adapter - timber 1 2 2 3
•Small additional adapter - timber 1 1
•Additional grate 4 sections 2 2
•Additional grate 5 sections 2 2
•Additional grate- additive 2 2
•Ceramics of combustion chamber 4 sections 1 1 1
•Ceramics of combustion chamber 5 sections 1
•Additional ceramics of combustion chamber
2 sections 1
•Additional ceramics of combustion chamber
3 sections 1
a) Ceramics of combustion chamber 5 sections
b) Ceramics of combustion chamber 4 sections
c) Additional ceramics of combustion chamber 3 sections
d) Additional ceramics of combustion chamber 2 sections
e) Additional grate 5 sections
f) Additional grate 4 sections
g) Additional grate - additive
h) Additional adapter - timber
j) Small additional adapter - timber

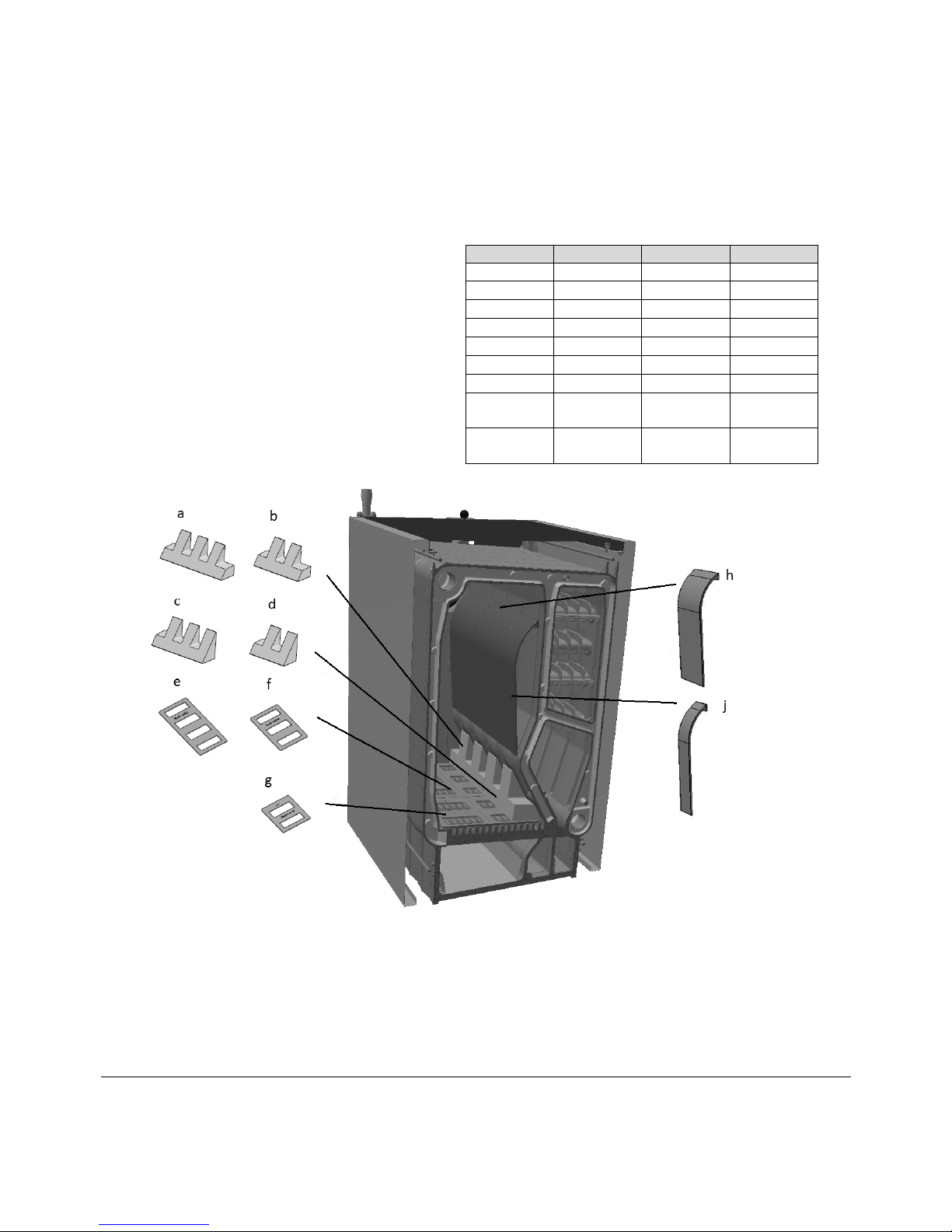

Fig. №. 7 Necessary Accessories for Combustion of Additional Fuel - Timber
The necessary accessories and optional boiler accessories is not included in the boiler standard price.

12
2.5 Assembly technique
2.5.1 Installation of the boiler body
1. Fit the boiler drum on the retaining wall (substruction).
2. Mount to the boiler drum system outlet the connecting tube G 1 1/2“. It must be connected by means of a
removable joint to the heating system.
3. Mount to the boiler drum system outlet the connecting tube G 1 1/2“. It must be connected by means of a
removable joint to the heating system.
4. To connect two-way safety valve DBV 1 - 02 with connecting pipe of recurrent and heating water and with the
input of cold water and with the output of excessive heat according to Fig. no.15.
5. Mount the discharging valve to 1/2“ thread in tube of heating water according to Fig. no. 3.
6. Set the smoke tube to the smoke adapter and insert it into the chimney. The diameter of smoke tube is 160
mm.
7. Screw the draught regulator into the opening in upper part of front section. The boiler draught regulator
adjustment procedure is described in the manual enclosed to the particular regulator.
8. Blind the threated opening JS 6/4“ in the front section with JS 6/4“ plug. Place the sealing under the plug.
2.5.2 Mounting of Covers
1. Take the covers out from the cardboard wrapping.
2. Fit the metal components by the appropriate connecting material according to Fig. no. 8:
−Pos. 1 Insert 2 pcs of connecting pins into left side part of the cover;
−Pos. 2 Insert 2 pcs of connecting pins into right side part of the cover. Then connect it with the front part of
the cover by means of 2 pcs of door hinges and by 8 pcs of M4 x 6 screws and 8 pcs of 4,3
washers.
−Pos. 3 Fit the middle part of the cover by 4 pcs of spring leaf retainers and screw the magnetic element up
by means of M5 nut;
−Pos. 4 Complete the small ash pan with removable cover (screw the removable cover and the
small ash pan by means of 1 pc of 4,3 washer and 1 pc M4 butterfly nut).
−Pos. 5 Fit the upper part of the cover by 4 pcs of spring leaf retainers and screw the front curtain up by
means of 3 pcs of ST 4,8 x 9,5 screws. Screw the console of drawbar up by 2 pcs of M5 x 12
screws.)
3. According to the Fig. no. 9 – cover the boiler.
4. Insert the small ash pan (11) with removable cover (21) into the boiler drum.
5. Screw up 2 pcs of cleaning cover console (8 and detail A) to the cleaning covers by means of 1 pcs of M8 x12
screws and 2 pcs of 8,4 washers.
6. Put the cover consoles (10 and detail C) on the anchoring screws and secure them by 4 pcs of M10 nuts and
4 pcs of 10,5 washers.
7. Put the side parts of the cover with insulation on the consoles and secure them by means of 4 pcs of M5x12
screws and 4 pcs of 5,3 washers (detail D). By means of 2 pcs of connecting pins, screw the left side part of
the cover on the front section of the boiler drum. By means of 2 pcs M5 x 10 screws and 2 pcs of 5,3 washers,
screw the right side part of the cover on the front section of the boiler drum.
8. Insert the insulation into the front part of the cover (22 + 23) and srew the handle up by means of 2 pcs of
M6 x 35 screws and by 2 pcs of 6,4 large–area washers
9. Screw 2 pcs of connection pins into the front section (see detail E) and put on the middle part of the cover with
insulation (4).
10. Assembling of the pull rod of smoke control according to the detail B. Parts list:
- 2 pcs cotter pins
- 2 pcs washers 10,5
- 1 pc nut M 10
Insert the cotter pins into the smoke extension and put the washers 10,5 on. Put the pull rod on the smoke
extension partition and secure it by 10,5 washers and the cotter pins. Screw the M10 nut on the pull rod.
11. Insert the thermo-manometer into the upper part of the cover. Screw the manometer capillary tube into the
return valve and insert the capillary tube of thermometer into the bulb and secure it by capillary spring.
12. Put the upper part of the cover (3) with insulation on the side parts of the cover (1 and 2). Screw the plastic
ball M10 on the pull rod of smoke control.
13. Screw the upper back metal sheet by 2 pcs of ST 4,8 x 9,5 screws to the left side part of the cover.
14. Further screw the back metal sheet with insulation (6) by means of 5 pcs of ST 4,8 x 9,5 screws to the left and
right part of the cover.

13
15. To fit on the draught regulator the pull rod with chain let (in accordance with attached Manual of draught
regulator).
1 Left side part of cover with insulation (2 pcs of connecting pin)
2 Right side part of cover with insulation and front part of cover
(2 pcs connecting pins, 2 pcs door hinges, 8 pcs M4 x 6 screws, 8 pcs 4,3 washers)
3 Middle part of cover (4 pcs spring leave retainers, 1 pc magnetic element, 1 pc M5 nut)
4 Small ash pan with removable cover (1 pc removable cover, 1 pc 4,3 washer, 1 pc M4 butterfly nut)
5 Upper part of cover (1 pc front curtain, 1 pc pull rod console, 4 pcs spring leave retainers,
3 pcs ST 4,8x 9,5 screws, 2 pcs M5 x 12 screws)
Fig. №. 8 Location of connecting material in the boiler cover

14
1 Left side part of cover with insulation
(2 pcs connecting pins, 2 pcs M5 x 12 screws,
2 pcs 5,3 washers)
2 Right side part of cover with insulation
(2 pcs connecting pins, 2 pcs M5 x 10 screws,
2 pcs 5,3 washers)
3 Upper part of cover with insulation
4 Middle part of cover with insulation
(2 pcs connecting pins)
5 Front part of cover with insulation
(4 pcs M4x6 screws, 4 pcs 4,3 washers)
6 Back part of cover with insulation
(5 pcs ST 4,8 x 9,5 screws)
7 Upper back metal sheet
(2 pcs ST 4,8 x 9,5 screws)
8 Console of cleaning cover
(1 pcs M8 x 12 screws, 2 pcs 8,4 washers)
9 Pull rod of smoke control
(2 pcs cotter pins, 2 pcs 10,5 washers,
1 pc M10 nut)
10 Console of cover
(4 pcs M10 nuts, 4 pcs 10,5 washers)
11 Small ash pan
12 Plastic ball M10
13 Pull rod console
14 Smoke extension
15 Cotter pin 2,5 x 20
16 Smoke extension partition
17 M10 nut
18 10,5 washer
19 Stick-on label – positon of smoke extension
partition
20 Front curtain
21 Removable cover
22 Insulation of front metal sheet
23 Insulation of upper front metal sheet

Fig. №. 9 Boiler Cover
Note: Before stoking it is necessary to open the partition in smoke adaptor by means of the pull rod of
smoke control. Thus the flue gases are discharged through the shorting opening into the chimney.

16
2.5.3 Way of Positioning of Side Grate in Boiler
1 Section Grate Head Metal
Fig. №. 10 Position of Side Grate in Boiler
Side grate will be positioned in the boiler under the angle of about 45 ° between 4 and 5 section grate head metal,
see the detail in Fig. no. 10.

17
1 Side grate 4 sections
2 Side grate 5 sections
3 Side grate -additive
Fig. №. 11 Positions of Side Grates in Individual Sizes of Boiler (Coal fuel)
Side grates serve for combustion of coal fuel. If addtitive fuel of timber is combusted, take off these grates
from the boiler.
Boiler 4 sections Boiler 5 sections
Boiler 6 sections Boiler 7 sections

18
2.5.4 Change of Opening Direction of Stocking Door
1. Raise the upper part of cover (13).
2. Disassemble the stocking door (1) by taking 2 pcs of door pins off (7).
3. Remove 2 pcs of M10 x 55 screws (4) including 2 pcs of M10 nuts (5) and 2 pcs of 10,5 washers (6) into the
head metals on the left side.
4. Disassemble the support piece for the catch (9) and screw it on by means of 2 pcs of M8 x 12 screws (8) on the
right hand side.
5. Disassemble the protective plate of the stocking door with insulation (10) by releasing of 2 pcs M8 x 16 screws
(12) and 2 pcs of 8,4 washers (11). Take out the 8 x 30 pin (3) and the catch (2) from the stocking door.
Reassemble the protective plate with insulation. Remove the catch on the right side of the door and secure it by
the pin.
6. Hang the stocking door on the 2 pcs of M10 x 55 screws and secure it by 2 pcs of door pins.
7. Verify tightness of the areas of contact of the door.
1. Stocking door
2. Catch
3. 8x30 Pin
4. M10x55 Screw
5. M10 Nut
6. 10,5 Washer
7. Door pin
8. M8x12 Screw
9. Supporting piece for catch
10. Protective plate of stocking door including Insulation
11. 8,4 Washer
12. M8 x 16 Screw
13. Upper part of cover
Fig. №. 12 Change of Opening Direction of Stocking Door
2.5.5 Assembly tools for brush
Use the leather gloves and common assembly tools for mounting or dismounting of the brush and the spike point
(if they are included in the delivery).

19
2.5.6 Filling the heating system with water
The water hardness must correspond to ČSN 07 7401 and it is inevitable to treat the water according to
Chap. no. 2.2. in case the water hardness is unsatisfactory.
The heating systems with an open expansion tank allow the direct contact between the heating water and the
atmosphere. During the heating season the water expanding in the tank absorbs the oxygen, which increases its
corrosive effects and at the same time the water evaporates heavily. Only the water treated to the values according
to ČSN 07 7401 can be used for refilling.
The heating system must be thoroughly flushed out in order to wash out all impurities.
During the heating season it is necessary to keep a constant volume of heating water in heating system and be
particular about bleeding the heating system to avoid the air suction into the system. Water from the boilers and
heating system must never be discharged or taken for usage except in cases of emergency like the repairs etc.
Water discharge and filling with new water increases the danger of corrosion and scale development. In case we
have to refill the heating system with water we only do this operation when the boiler is cold in order to
prevent its sections from getting broken.
After boiler and heating system refilling operation the all joints must be tested for tightness.
When using the two way safety vent DBV 1 - 02 the cooling water is added gradually to the to the reverse
water.
The assembly and stoking test completion must be recorded in the “Guarantee certificate”.
2.6 Boiler commissioning
This boiler can only be commissioned by a professional assembly firm authorized to do this activity.
2.6.1 Verification activities before commissioning
Before the boiler put into operation it is necessary to check:
a) filling the heating system with water (thermomanometer check) and the system tightness;
b) connection to the chimney – this connection can only be done with the agreement of a chimney firm
(chimney revision);
c) closing of smoke adapter partition (impurities associated with the installation of the boiler chimney system);
d) draught regulator and two-way safety valve DBV 1 - 02.
2.6.2 Boiler commissioning
1. Fire a boiler
2. Bring the boiler to the necessary operating temperature. The recommended output water temperature is 80 C.
3. Adjust the draught regulator including the chain length (according to the enclosed draught regulator manual).
4. Operate the boiler in the operating condition according to the relevant standards.
5. Check again the boiler tightness.
6. Acquaint the user with the operation and maintenance.
7. Make a record in the Guarantee certificate.
2.7 Control and safety elements
Stocking door rosette serves for primary air supply into the combustion chamber. The rosette setting has been
described further in Table no. 6.
Tab. №. 6 Setting of Stocking Door Rosette for Primary Air Supply (mm)
4
5
6
7
Black coal 3 - 4 3 - 4 4 - 6 6 - 8
Brown coal 3 - 4 3 - 4 4 - 6 6 - 8

20
Fig. №. 13 Stocking Door Rosette for Primary Air Supply
The rosette in the boiler back part stays closed. If smoke comes out the chimney, the rosette may be opened a little
bit. By that more tertiary air is admitted into the boiler.
The suffocating throttle of ash pan door controls inlet of secondary combustion air under the boiler grate. It is
controlled by a damper or manually by the adjusting screw of the suffocating throttle.
The removable cover on the small ash pan serves for inlet of tertiary air (see Fig. no. 3 - Pos. 20).
Tab. №. 7 Adjustment of Removable Cover Position towards Small Ash Pan for Inlet of Tertiary Air
(Position)
4
5
6
7
Black coal 2 3 5 O
Brown coal 2 3 5 O
The position is informative only. In a case of smoke coming out the chimney (the same as in the case of stocking
door rosette), it is possible to open the removable cover more to prevent from respective smoking.
U Closed
O Opened
Fig. №. 14 Position of Removable Cover towards Small Ash pan for Inlet of Tertiary Air
The combination appliance – thermo-manometer – is used for the heating water temperature and the water stress
in the heating system detection. The pit of the thermo-manometer sensor is located in the upper part of the front
boiler cell.
