Viadrus Woodpell Instruction Manual

Hercules U26
Návod k obsluze
Woodpell
MANUAL FOR BOILER OPERATION
AND INSTALLATION

Table of contents: page
1. Produced variants of boiler.......................................................................................................................3
1.1 Order......................................................................................................................................................3
2. Use and advantages of boiler...................................................................................................................3
3. Boiler technical data .................................................................................................................................4
4. Boiler description......................................................................................................................................6
4.1 Boiler drum construction........................................................................................................................6
4.2 Control, regulation and safety elements ................................................................................................7
5. Location and installation...........................................................................................................................8
5.1 Regulations and directives.....................................................................................................................8
5.2 Positioning possibilities..........................................................................................................................9
5.3 Delivery and accessories.....................................................................................................................10
5.4 Assembly procedure............................................................................................................................11
5.4.1 Boiler drum installation.................................................................................................................11
5.4.2 Installation of partitions of combustion chambers and turbulators...............................................12
5.4.3 Shells and control box installation................................................................................................12
5.4.4 Fuel reservoir assembly (this part is delivered at customer’s request)........................................15
5.4.5 Burner and fuel feeder mounted on the boiler..............................................................................17
5.4.6 Filling the heating system with water............................................................................................18
6. Putting into operation - instructions for contractual service organization ...............................................19
6.1 Inspections before start-up..................................................................................................................19
6.2 Boiler putting into operation.................................................................................................................19
7. Boiler attendance by user.......................................................................................................................19
7.1 Regulator attendance by user..............................................................................................................19
8. States of failure.......................................................................................................................................27
9. Boiler hydraulic diagram.........................................................................................................................28
10. Circuitry...................................................................................................................................................29
11. IMPORTANT WARNINGS .....................................................................................................................31
12. Maintenance by user ..............................................................................................................................32
13. Guidelines on product disposal after its service life................................................................................33
14. Guarantee and liability for defects..........................................................................................................33

3
Dear customer,
thank you for the purchase of automatic Woodpell boiler; this purchase demonstrates your
confidence in VIADRUS a.s..
In order to get used to a proper treatment of your new product from the start please read these
instructions for its use (first of all the chapter no. 7 – Boiler attendance by user, chapter
no. 11 – Important warnings and chapter no. 12 – Maintenance by user). Please observe the
information given below in order to ensure a longstanding trouble-free operation of boiler so that
both you and we are satisfied.
1. Produced variants of boiler
1.1 Order
In the order it is due to specify following data:
• Order specification code
Woodpell X
• Optional accessories (see chapter no. 5.3)
ATTENTION! Fuel reservoir is not included in the standard accessory of the boiler!
The boiler design you received is only destined for wooden pellets combustion (specification see page 5)
and its trade name is Woodpell. It is the boiler with automatic fuel supply. The burner is cleaned manually.
The boiler is manufactured as warm-water boiler with forced heating water circulation and working
overpressure up to 400 kPa (4 bar). The boiler is tested for tightness by applying 800 kPa (8 bar)
overpressure before despatch.
2. Use and advantages of boiler
The use:
5-section Woodpell boiler is particularly
destined for heating of individual housing
units, weekend houses, cottages etc.
7-section boiler Woodpell is particularly
destined for heating of cottages, weekend
houses, small business premises, smaller
leisure amenities etc.
Advantages of boiler:
automatic boiler operation guarantees the
heating comfort,
mechanical fuel feed from any reservoir
automatic ignition
simple, not time-consuming attendance and
maintenance
high efficiency reaching 85 %
boiler drum construction proven on a long-
term basis
high service life of the cast iron boiler drum
five-year guarantee for the boiler drum
measuring and monitoring the temperature of
combustion products
Fig. no. 1 View of boiler Woodpell with the
fuel reservoir
Size:
5: 5 sections
7: 7 sections

4
3. Boiler technical data
Tab. no. 1 Dimensions, thermal parameters of boiler
Woodpell 5 sections 7 sections
Nominal output kW 16 25
Controllable output kW 5,8 – 16 7,8 – 25
Fuel consumption – nominal output
(calorific value approx. 17,189 MJ.kg
-1
) kg. h
-1
4,5 7,6
Output in „attenuation“ regime kW 1,5
Fuel consumption in „attenuation“ regime kg. h
-
1
0,15 – 0,3 0,5 – 0,7
Efficiency % 85 84,9
Class of boiler according to EN 303-5 3 3
Weight kg 358 433
Volume of water l 40,9 50,3
Diameter of smoke neck mm 160
Inner diameter of smoke pipe mm 156
Capacity of delivered fuel reservoir dm
3
725
kg 470
Burning time at nominal output h 115 72
Burning time at minimal output h 398 286,5
Dimensions of boiler: width x height x depth mm 545 x 1002 x 1091 545 x 1002 x 1283
Dimensions of boiler incl. fuel reservoir:
width x height x depth mm 1820 x 1407 x 1475
Maximum working water overpressure kPa (bar) 400 (4)
Test water overpressure kPa (bar) 800 (8)
Minimum temperature of heating water °C 50
Maximum temperature of heating water °C 80
Minimum temperature of return water* °C 40
Chimney draught Pa 15 – 25 20 – 30
Hydraulic loss (∆T 20 K) Pa 40 80
Temperature of combustion products °C 105 - 175 110 - 200
Mass flow rate of combustion products on the outlet:
- at the nominal output kg. s
-
1
0,015 0,020
- at the minimum output kg. s
-
1
0,010 0,012
Boiler connections - heating water G 1 1/2"
- return water G 1 1/2"
Noise level dB Doesn´t exceed level 60 dB (A)
Connected voltage 1/N/PE230V AC 50 Hz TN - S
Operating electric power/max.
W 70/300
Electric protection of control box with regulator IP 40
* When keeping the minimum temperature of heating water
HYDRAULICKÁ ZTRÁTA KOTLE
0
0,4
0,8
1,2
1,6
2
2,4
2,8
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33
Průtok vody [l/min]
Hydraulická ztráta [mbar]
BOILER HYDRAULIC LOSS
Hydraulic loss (mbar)
water flow (l/min)
5 sect.
7 sect.

5
Specified fuel:
The pellets must comply at least with one of the standards or regulations as follows:
Direction no. 14-2000 MŽP ČR
DIN 517 31
ÖNORM M 7135
Specified pellets granularity: between 6 and 10 mm
Maximum fuel water content. 12%.
Ash content max. 1,5 %
WARNING! A poor quality of fuel can markedly negatively affect the boiler output and emission
parameters.
Size 5 sect. 7 sect.
Length L (mm) 809 1001
Length L1 (mm) 1091 1283

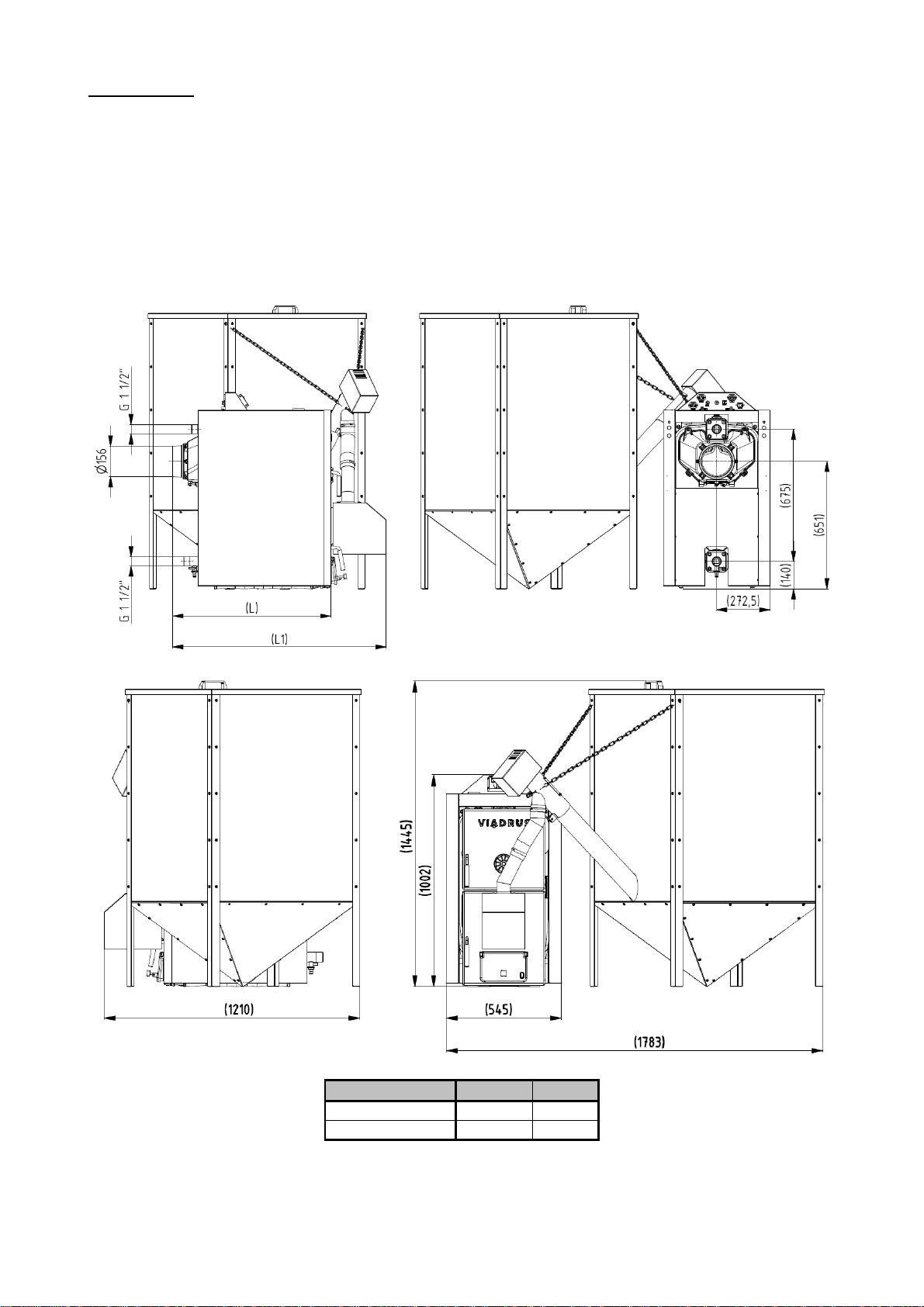

Fig. no. 2 Main dimensions of Woodpell boiler with the fuel reservoir

6
4. Boiler description
4.1 Boiler drum construction
The cast iron section boiler drum is the main part of boiler and it is manufactured of grey cast iron according
to EN 1561
• central sections – quality 150 (previously ČSN 42 2415)
• front and rear sections – quality 200 (previously ČSN 42 2420)
The pressure parts of boiler conform to the strength requirements according to:
EN 303-5 Boilers for central heating– part 5: Solid fuel boilers for central heating, with a manual or
automatic feed, with nominal thermal output max. 300 kW: terminology, requirements, testing
and marking.
1 Boiler drum with ash-pan
2 Boiler shell
3 Stoking door
4 Burner
5 Ash door
6 Fuel reservoir
7 Fuel feeder
8 Transport hose with reinforcing spiral
9 Internal metal plate of the fireplace
10 Control box with regulator
11 Manometer
12 Set of heating water flanges
13 Set of return water flange
14 Inlet and outlet cocks
15 Sealing
16 Pendant chainlet
17 Set of the smoke adapter
18 Insulation of protective plate
19 Turbulators
20 Partitions in combustion space
21 Hose clamp

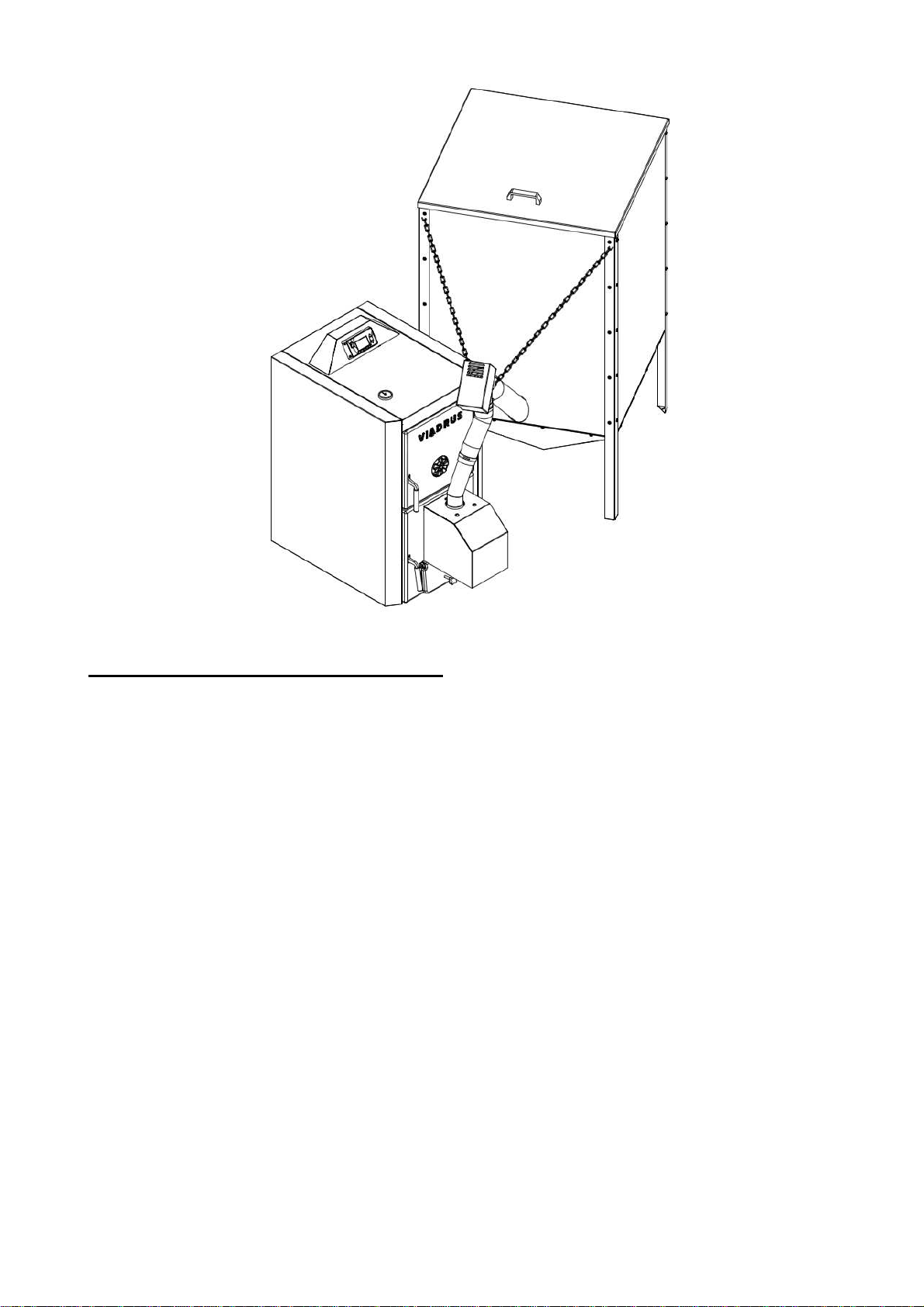

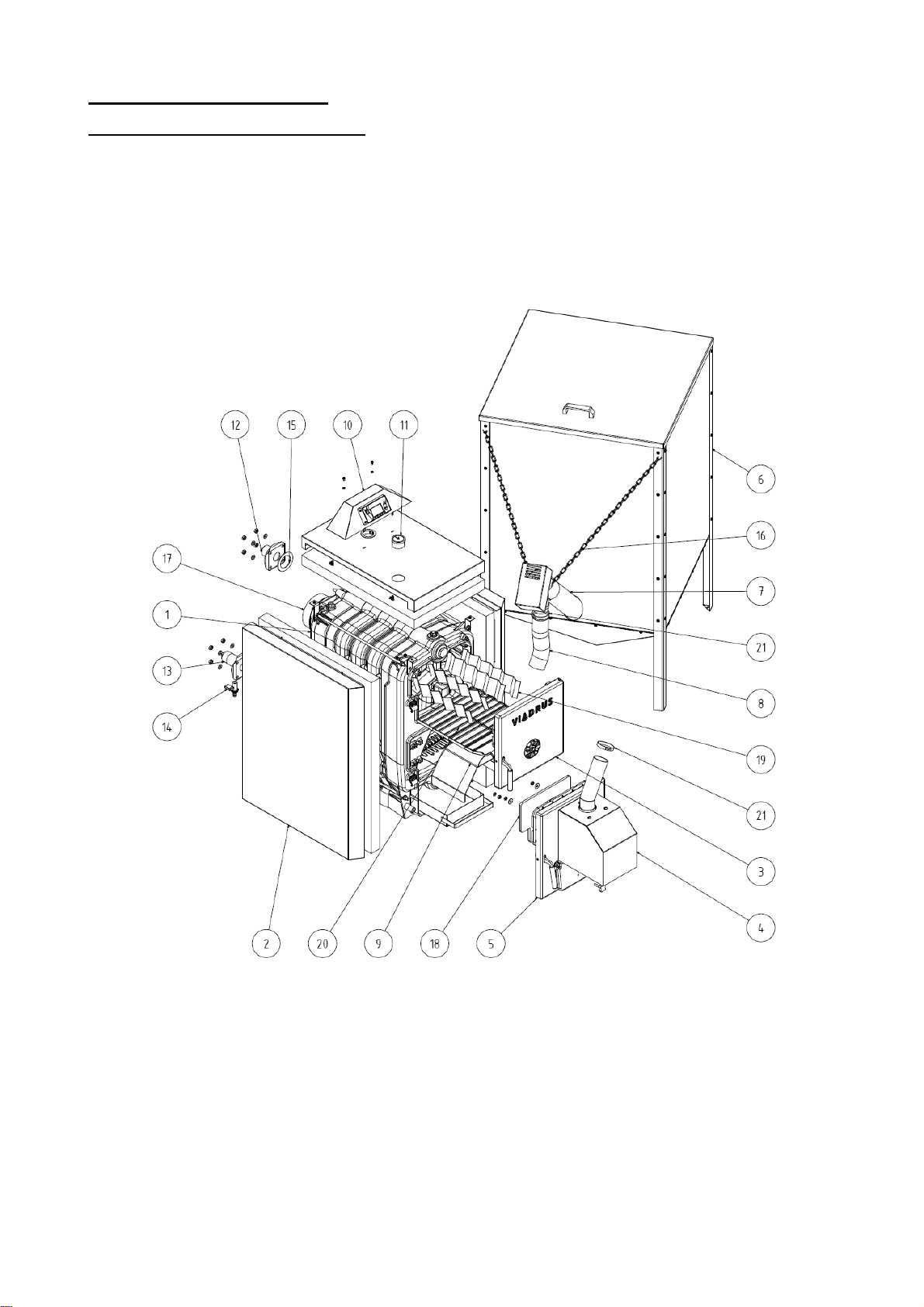

Fig. no. 3 Woodpell boiler scheme

7
The boiler drum is assembled of sections by means of pressed on boiler insertions and secured by means of
anchor bolts. The sections create the combustion and ash-pan space, the water space and convection part.
The inlet and outlet of heating water are situated in the rear part of boiler.
The rear section of boiler in its upper part has a smoke extension piece and heating water flange, in the lower
part there is the return water flange with a sleeve piece for inlet and outlet cocks. To the front section there is
attached the stoking door and ash door with the mounted burner.
The whole boiler drum is insulated by means of a health harmless mineral insulation which reduces the
losses caused by the heat transfer into ambient. The steel shell colour is treated by means of high-quality
komaxit spray.
4.2 Control, regulation and safety elements
Regulator of boiler it serves for automatic control of boiler activities and its elements. It processes the input
data from flue gases and outlet water temperature sensors and according to parameters set by the
manufacturer or user it automatically controls the boiler in the required regimes.
The regulator also allows the manual regime of boiler control which can be advantageously used when
putting the boiler into operation.
Regulator has an automatic electric ignition system and it is developed for the modulation control of fuel
(wooden pellets) supply and modulation control of fan delivery.
The regulator measures the temperature of boiler start and the temperature of combustion products so that
we can regulate the heating output.
The pressure gauge is used to measure water pressure in the heating system and is located in the upper
part of the shell. The check valve for pressure gauge connection is in the top part of the rear boiler section.
Forced-draught fan for the combustion air is mounted directly in the combustion chamber body. The volume
of combustion air is regulated by an air strangler.
The air rosette of stoking door and lower strangler are not used at the Woodpell boiler with an automatic
combustion of wooden pellets and it must be permanently closed.
Cleaning cover of the smoke extension piece is situated in its lower part and it serves for cleaning the
combustion products lines. JS 130 bulb for pro flue gases sensor is mounted in it.
The safety thermostat is positioned in the regulator control box and it serves for heating system prevention
from overheating. It is set by the manufacturer to 95°C temperature it means the temperature higher than the
required temperature possible to be set at the boiler. When the safety thermostat is switched off ( is
shown on the regulator display – see chapt. 8) its deblocking must be carried out manually. The safety
thermostat can only be switched on after the temperature has dropped below the set value. We unscrew the
black cover of the safety thermostat and depress the push button with a suitable object.
In case the safety thermostat is switching off repeatedly the boiler must be put out of operation and the
reason of repeated boiler overheating must be identified.

8
5. Location and installation
5.1 Regulations and directives
The solid fuel boiler can only by mounted by a company holding a valid authorization to install these
equipments.
A project according to the valid regulations must be prepared for the installation.
The heating system must be filled with water that matches the requirements of ČSN 07 7401 and
especially its hardness must not exceed the required parameters.
Recommended values
Hardness mmol/l 1
Ca
2+
mmol/l 0,3
Concentration of total Fe + Mn mg/l (0,3)*
*) Recommended value
WARNING!!! The use of anti-freeze mixture is not recommended by the manufacturer.
a) regarding the heating system
ČSN 06 0310 Thermal systems in buildings – Design and installation
ČSN 06 0830 Thermal systems in buildings – Protecting devices
ČSN 07 7401 Water and steam for thermal energetic devices with steam working pressure up
to 8 MPa.
EN 303-5 Boilers for central heating – Part 5: Solid fuel boilers for central heating with
manual or automatic feed and max. 300 kW nominal thermal output:
terminology, requirements, testing and marking.
b) regarding the chimney
ČSN 73 4201 Chimneys and flue gas ducting– designing, implementation and connection of
fuel consumers.
We recommend that Woodpell boiler is connected to the smoke flue with min. 160 mm diameter and the
chimney draught must be 15 - 30 Pa – see tab. no. 1.
c) regarding the fire regulations
ČSN 06 1008 Fire safety of thermal equipments
EN 13 501-1 + A1 Fire classification of construction products and building elements – Part 1:
Classification using test data from reaction to fire tests.
d) regarding the electric network
ČSN 33 0165 Electrical regulations; marking the leading wires by colours or digits;
implementing regulations
ČSN 33 1500 Electrical regulations; revision of electrical equipments
ČSN 33 2000-1 ed. 2 Low-voltage electrical installations – Part 1: Fundamental principles,
assessment of general characteristics, definitions.
ČSN 33 2000-4-41 ed. 2 Low voltage electrical installations - Part 4- 41: Protection for safety - Protection
against electric shock
ČSN 33 2000-5-51 ed. 3 Electrical installations of buildings – Part 5-51: Selection and erection of
electrical equipment – Common rules
ČSN 33 2130 ed. 2 Low-voltage electrical installations – Internal electric distribution lines
ČSN 33 2180 Electrical regulations: Connection of electric instruments and appliances
ČSN 34 0350 ed. 2 Safety requirements for flexibile cords and cables
EN 60 079-10 Electrical regulations: Regulations for electrical equipments at the places with
explosion hazard with flammable gases and vapours.
EN 60 252-1 Capacitors for AC motors – Part 1: In general – Design, testing, dimensioning –
Safety requirements – Instructions for installation and operation.
EN 60 335-1 ed.2 Electric appliances for household and similar purposes – Safety – Part 1:
General requirements
EN 60 335-2-102 Electric appliances for household and similar purposes – Safety – Part 2-102:
Special demands on appliances containing the electric connections and burning
the gas, oil and solid fuels
EN 60445 ed. 4 Basic and safety principles for man-machine interface, marking and
identification – Identification of equipment terminals, conductor terminations and
conductors
e) regarding the system for HWS heating
ČSN 06 0320 Thermal systems in buildings– Hot water preparation– Design and project
engineering
ČSN 06 0830 Thermal systems in buildings – Protecting devices
ČSN 75 5409 Water installations inside buildings

9
5.2 Positioning possibilities
Boiler positioning in the living space (including corridors) is prohibited!
The installation of the boiler must comply with all requirements of ČSN 06 1008.
Boiler positioning with regard to the fire regulations:
1. Positioning on the floor made of incombustible material:
- put the boiler on a fireproof pad exceeding the boiler plan by 20 mm on the sides and only up to the
depth of the boiler drum. Boiler must stand horizontally.
- In case the boiler is installed in a cellar it should be put on a minimally 50 mm high bedding and the
boiler must stand horizontally.
Fig. no. 4 Dimensions of supporting brickwork
2. Safety distance from the combustible materials:
- when installing and operating the boiler it is necessary to keep a safety distance of 200 mm from the
materials of combustibility grade A1, A2, B and C (D);
- for easily combustible materials of combustibility grade E (F), which quickly burn and burn
themselves even after removal of ignition source (such as paper, cardboard, asphalt and tar paper,
wood and wood-fiber boards, plastics, floor coverings) the safe distance has to be doubled, i.e. to
400 mm;
- safe distance should be doubled as bulb where the grade of reaction to fire has not been proved.
Tab. no. 2 Grade of reaction to fire
Grade of reaction to fire Examples of building materials and products included in the reaction to fire
(Extract from EN 13 501-1 + A1)
A1 – incombustible Granite, sandstone, concrete, bricks, ceramic tiles, mortars, fireproof plasters, …
A2 – combustible with difficulty
acumin, izumin, heraklit, lignos, boards and basalt felt, fibreglass boards,...
B– hardly combustible Beech and oak wood, hobrex boards, plywood, werzalit, umakart, sirkolit,...
C (D) – medium combustible Pinewood, larch, whitewood, chipboard and cork boards, rubber flooring,...
E (F) – easily combustible Asphaltboard, fibreboards, cellulose materials, polyurethane, polystyrene,
polyethylene, PVC,…
Boiler positioning with regard to the necessary handling space:
• Basic environment AA5/AB5 according to ČSN 33 2000-1 ed. 2
• 2100 mm is the minimal height of the boiler
Boiler positioning with regard to electricity network:
• The boiler must be placed so that the plug in socket (230 V/50 Hz) is always accessible.
• the boiler is connected to the mains by a fixed movable inlet with a normalized plug
• the electric shock prevention must be guaranteed according to valid EN (see chap. 5.1.)

10
Fuel placing:
• dry fuel (up to the 12%
moisture) must be used in
order to guarantee the
correct combustion in the
boiler. The pellets should be
stored in their original packing
from the manufacturer
(e.g. PET sacks) at a dry place.
• it is impossible to store fuel
behind the boiler or unload it
next to the boiler in a distance
smaller than 400 mm
• the manufacturer recommends
that min. 1000 distance is kept
between the boiler and fuel or
the fuel is placed in a room
different from that where the
boiler is installed

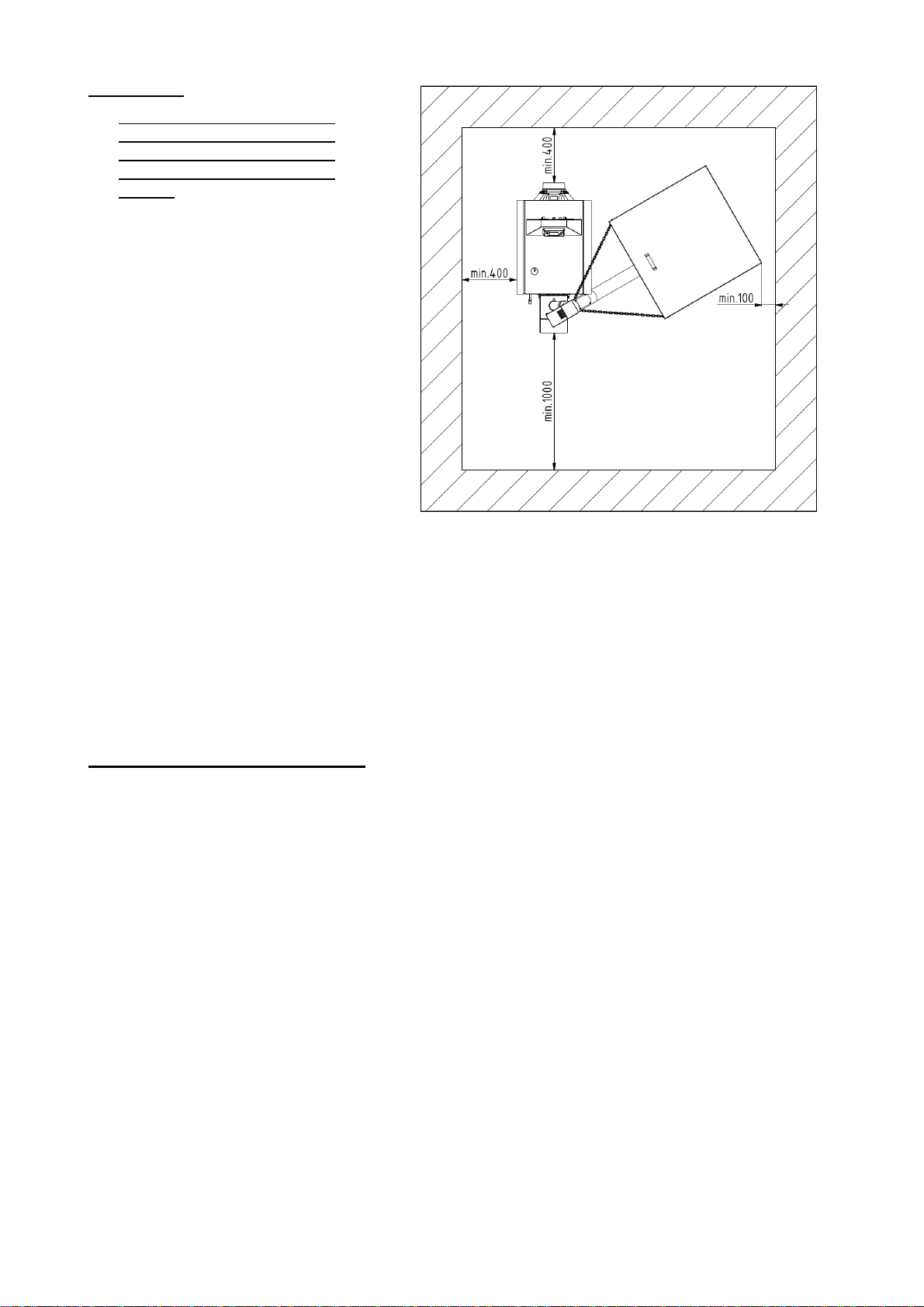

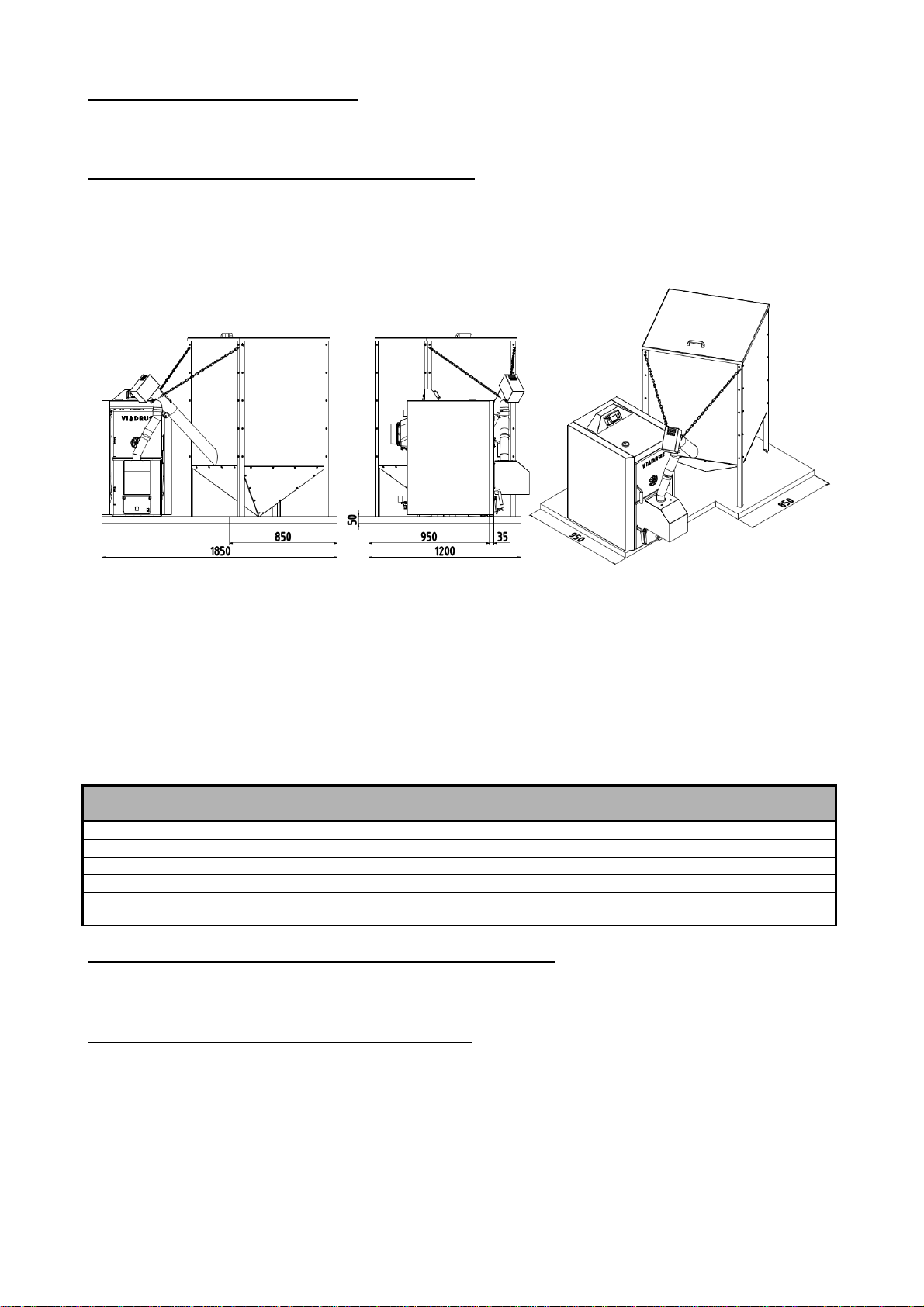

Fig. no. 5 Boilers positioning in the boiler room
A permanent air supply for combustion and ventilation must be guaranteed in the room where
the boiler is installed (the air consumption of Woodpell 5 sect. boiler amounts to approx. 80 m
3
.h
-1
,
the air consumption of Woodpell 7 sect. boiler amounts to approx. 160 m
3
.h
-1
).
The connection of heating system piping must be carried out by a person authorised according to the valid
regulations.
.
CAUTION: When connecting the boiler to the heating system there must be installed a inlet and
outlet cocks in the lowest point and as near as possible to the boiler (at the return
water flange).
5.3 Delivery and accessories
Woodpell boiler is delivered according to the order; the complete boiler drum without the ash door and burner
is placed on the pallet and in the side of it there is attached the wrapped boiler shell. The accessories are in a
box. Then on the pallet there is placed a box with ash-pan door and burner, control box with regulator, fuel
feeder and internal metal plate of the fireplace.
The boiler is wrapped in shipping package and it must not be tipped during the transport. It is only allowed to
tilt it aside in order to remove the packing from the boiler drum.
Standard accessories to boiler:
• boiler on the pallet
• ash door
• connection accessories for the ash-pan door assembly
- nut M8 2 pcs
- washer 8,4 2 pcs
• burner incl. cover
• material for burner assembly
- internal metal plate of the fireplace 1 pc
- fuel feeder 1 pc
- elbow 1 pc
- transport hose with reinforcing spiral 1 pc
- hose clip ESK 58-75 W12 2 pcs
• control box with regulator PUMA incl. the sensors and cables
• connection accessories for the control box assembly
- screw M5 x 12 2 pcs
- serrated lock washer 5,3 2 pcs
• shells in the carton incl. ash pan

11
• connection accessories for the shell installation
- nut M10 8 pcs
- washer 10,5 8 pcs
- connecting stud 4 pcs
- spring clip 4 pcs
- screw M5 x 12 4 pcs
- washer 5,3 4 pcs
- bushing HEYCO 3 pcs
- washer 5,3 4 pcs
- screw ST 4,2 x 9,5 6 pcs
• cleaning tools (hook, brush with a handle, spike)
• holder for cleaning tools 1 pc
• manometer 1 pc
• inlet and outlet cocks Js 1/2“ 1 pc
• turbulators 4 pcs
• partitions in combustion space 4 pcs (7 sect. 5 pcs)
• plug Js 6/4“ dummy 1 pc
• setscrew of the throttle 1 pc
• heating water flange G 1 1/2" 1 pc
• return water flange G 1 1/2"with a sleeve piece Js 1/2“ for inlet and outlet cock 1 pc
• sealing φ90 x 60 x 3 2 pcs
• sealing φ60 x 48 x 2 1 pc
• Cable clamp 4 pcs
• Bulb for flue gas sensor 1 pc
• capillary spring 1 pc
• power flexible cord 4,5 m; CGLG 3Cx0,75 1 pc
• mating connector GST 3G 1 pc
• mating connector GST 749 3 pcs
• handling key 1 pc
• business technical documentation
Accessories delivered by request:
• fuel reservoir 725 l
- the side of fuel reservoir 3 pcs
- the side of fuel reservoir with the hole for spiral worm 1 pc
- the foot of fuel reservoir 4 pcs
- the bottom of fuel reservoir 2 pcs
- the bottom of fuel reservoir A 2 pcs
- the cover of fuel reservoir 1 pc
- handle 1 pc
• connection accessories for fuel reservoir assembly
- pendant chainlet 1 pcs
- screw M6 x 12 72 pcs
- washer 6,4 72 pcs
- nut M6 72 pcs
- screw M6 x 16 2 pcs
- washer 8,4 2 pcs
The boiler equipment delivered “by request“ is not included in the basic price of boiler
5.4 Assembly procedure
5.4.1 Boiler drum installation
1. Put the boiler drum on the supporting brickwork.
2. Mount the plug Js 6/4“ (1 pc) including sealing φ60 x 48 x 2 (1 pc).to the front section
3. Insert the sealing ∅90 x 60 x 3 on the upper flanged part of the rear boiler section and bolt the flange of
heating water and connect the other end with the heating system.
4. Insert the sealing ∅90 x 60 x 3 on the bottom flanged part of the rear boiler section and bolt the flange of
return water with a sleeve for the filling and discharge cock and connect the other end with the heating
system.
5. After the boiler connection to the heating system screw the filling and discharge valve into the return water
flange sleeve.
6. Put the smoke pipe on the smoke extension piece and insert it into the chimney hole.

12
5.4.2 Installation of partitions of combustion chambers and turbulators
1. According to Fig.6 insert 4 pcs turbulators and partitions of the combustion chamber (for 5-sectional
size) or 5 pcs (for 7-sectional size)
1. Partition of the combustion chamber– front part
2. Partition of the combustion chamber
3. Turbulator
Fig. No. 6 Installation of the partitions of the combustion chamber and turbulators
5.4.3 Shells and control box installation
1. Remove the shells from the cardboard cover.
2. Carry out the assembly according to Fig. no. 7.
3. Put the consoles 1 (2) and 2 (5) to the thread of the right upper anchor bolt and screw them by means of
2 nuts M10 and 2 washers 10,5.
4. Mount two connecting studs (8) to the right side part of the shell (1); then insert the insulation (9). Put the
shell on the lower anchor bolts and connect the upper part with consoles 1 and 2 by means of
2 screws M5 x12 (3, 6) and 2 washers 5,3 (4, 7).
5. Put the consoles 1 (11) and 2 (14) to the thread of the light upper anchor bolt and screw them by means
of 2 nuts M10 and 2 washers 10,5.
6. Mount two connecting studs (17) to the left side part of the shell (10); then insert the insulation (18). Put
the shell on the lower anchor bolts and connect the upper part with consoles 1 and 2 by means
of 2 screws M5 x12 (12, 15) and 2 washers 5,3 (13, 16).
7. Mount the insulation on the rear part of the shell (27) to the rear part of jacketing (28) and screw it to the
side parts of jacketing by means of screws ST 4,2 x 9,5 (29).
8. Mount four spring clips (20) to the upper part of the shell (19), insert the manometer (25) and bushing
(24).
9. By means of screws M5 x 12 (22) and washers 5,3 (23) fix the control box (21) to the upper part of the
shell (19) and the boiler temperature sensor, combustion products temperature sensor and safety
thermostat capillary push through the opening.

13
1 Right side part of the shell
2 Console 1
3 Screw M5 x 12
4 Washer 5,3
5 Console 2
6 Screw M5 x 12
7 Washer 5,3
8 Connecting stud
9 Insulation of the side part of the shell
10 Left side part of the shell
11 Console 1
12 Screw M5 x 12
13 Washer 5,3
14 Console 2
15 Screw M5 x 12
16 Washer 5,3
17 Connecting stud
18 Insulation of the side part of the shell
19 Upper part of the shell
20 Spring clip
21 Control box with regulator
22 Screw M5 x 12
23 Washer 5,3
24 Bushing HEYCO
25 Manometer
26 Insulation of the upper part of the shell
27 Insulation of the rear part of the shell
28 Rear part of the shell
29 Screw ST 4,2 x 9,5
Fig. no. 7 Boiler shell assembly

14
10. Insert the boiler temperature sensor, safety thermostat capillary and secure by means of the spring.
Screw the manometer pressure capillary into the check valve for the manometer in the rear section of
the boiler drum.

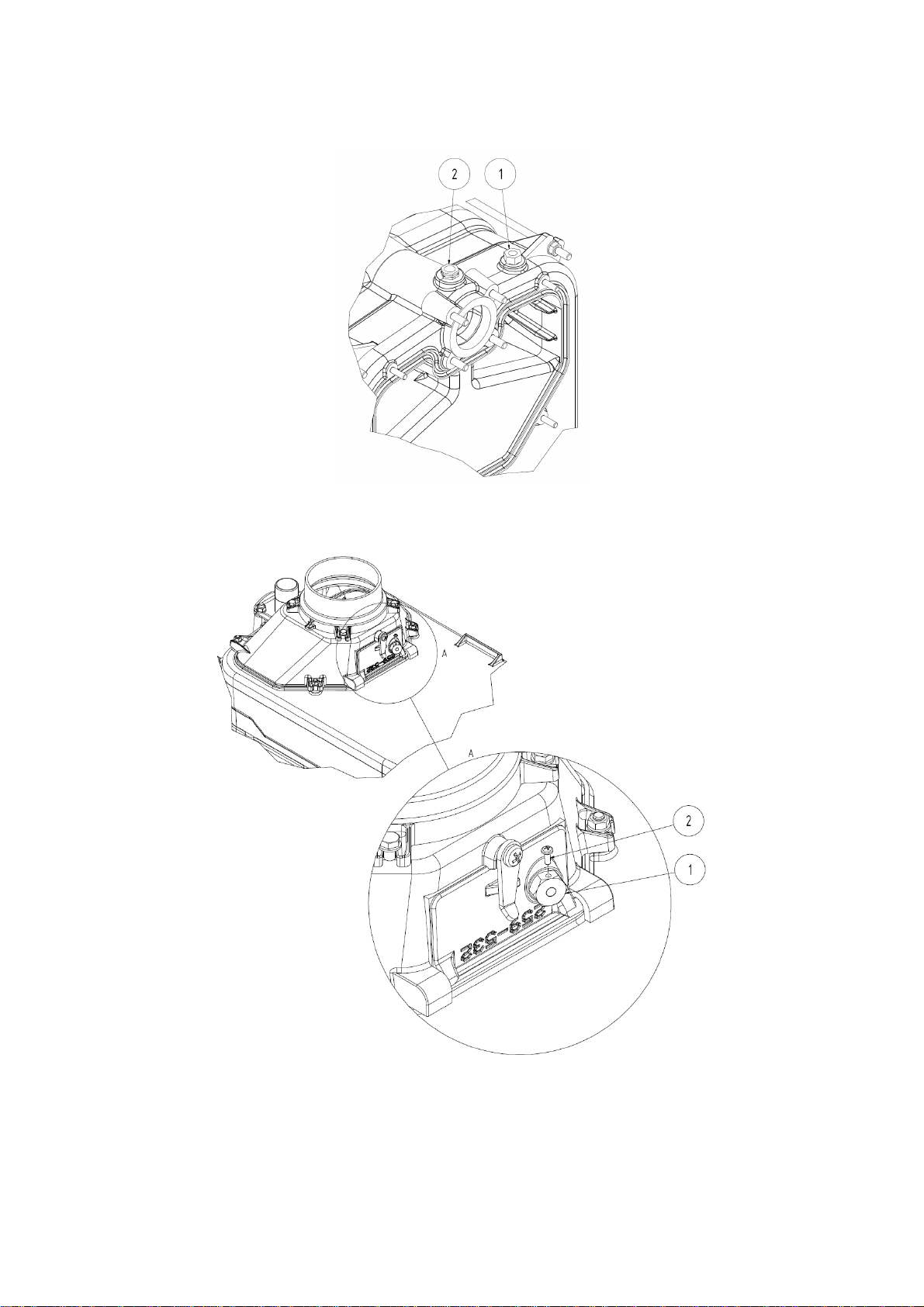

Fig. no. 8
11. Mount the combustion products temperature sensor into the smoke adapter basin and secure by means
of screw M4.
Fig. no. 9
12. According to wiring diagram (see chap. 10) connect the connectors:
X10.1 to X10 (connector of burner)
X11.1 to X11 (connector of mains)
X12.1 to X12 (connector of circulating pump of heating circuit)
X13.1 to X13 (connector of pump for charging the hot water tank)
X14.1 to X14 (connector of screw of tank)
1 Check valve for
the manometer
2 Boiler basin
1 Basin of combustion
products
temperature sensor
2 Screw M4

15
Fig. No. 10 Recommended placement of cable clamps
Warning! The cables must not come into contact with hot parts of the boiler.
5.4.4 Fuel reservoir assembly (this part is delivered at customer’s request)
1. Screw together the bottoms of the fuel reservoir. The bottom of the fuel reservoir must alternate with the
bottom of fuel reservoir A. Connection accessories are as follows:
- washers 6,4 72 pcs
- nuts M6 72 pcs
- screws M6 x 12 72 pcs
- screws M6 x 16 2 pcs
- washers 8,4 2 pcs
2. Then the side and foot of the fuel reservoir can be gradually screwed to this unit
3. Similarly the other 3 vertical walls of the fuel reservoir are assembled.
4. Screw the pendant chainlets to the fuel reservoir according to Fig. no. 12.
5. The complex is covered by the fuel reservoir cover.
Note: Alternatively the rivets can be used as the connection accessories for the fuel reservoir assembly,
except 6 and 7 positions.
1. Cable clamp
2. Cable

16
1 The side of fuel reservoir
2 The side of fuel reservoir with the hole for spiral worm
3 The foot of fuel reservoir
4 The bottom of fuel reservoir
5 The bottom of fuel reservoir A
6 Screw M6 x 16
7 Washer 8,4
8 The cover of fuel reservoir
9 Handle
10 Screw M6 x 12
Fig. no. 11 Fuel reservoir assembly
Fig. no. 12 Pendant chainlets mounted on the fuel reservoir
1. Pendant chainlet
2. Nut M6
3. Washer 6,4
4. Washer 8,4
5 Screw M6 x 16

17
5.4.5 Burner and fuel feeder mounted on the boiler
1. Insert the internal metal plate of the fireplace (2) into the opening in the section approx. 2 cm behind its
front edge.
2. Mount the ash-pan door (5) on the boiler by means of two nuts M8 and two washers 8,4.
3. Insert the burner bowl (6) into the holder of the burner bowl (7).
4. Insert the elbow (1) into the burner.
5. Mount the fuel feeder in 45 degrees gradient.
6. The neck of the elbow and the feeder must be in such a
position that after inserting the transport hose its blockage
with pellets cannot occur.
7. Then interconnect the neck of the feeder with the neck of the
elbow and secure both ends by means of hose clamps.
8. Demount the burner cover and insert the seven-pole
connector for connection of the burner to the connector
counterpart positioned on the burner.
9. Mount the burner cover.
10. Connect 3-pin connector with the fuel feeder in the back
panel of the controller with the symbol .
Fig. no. 13

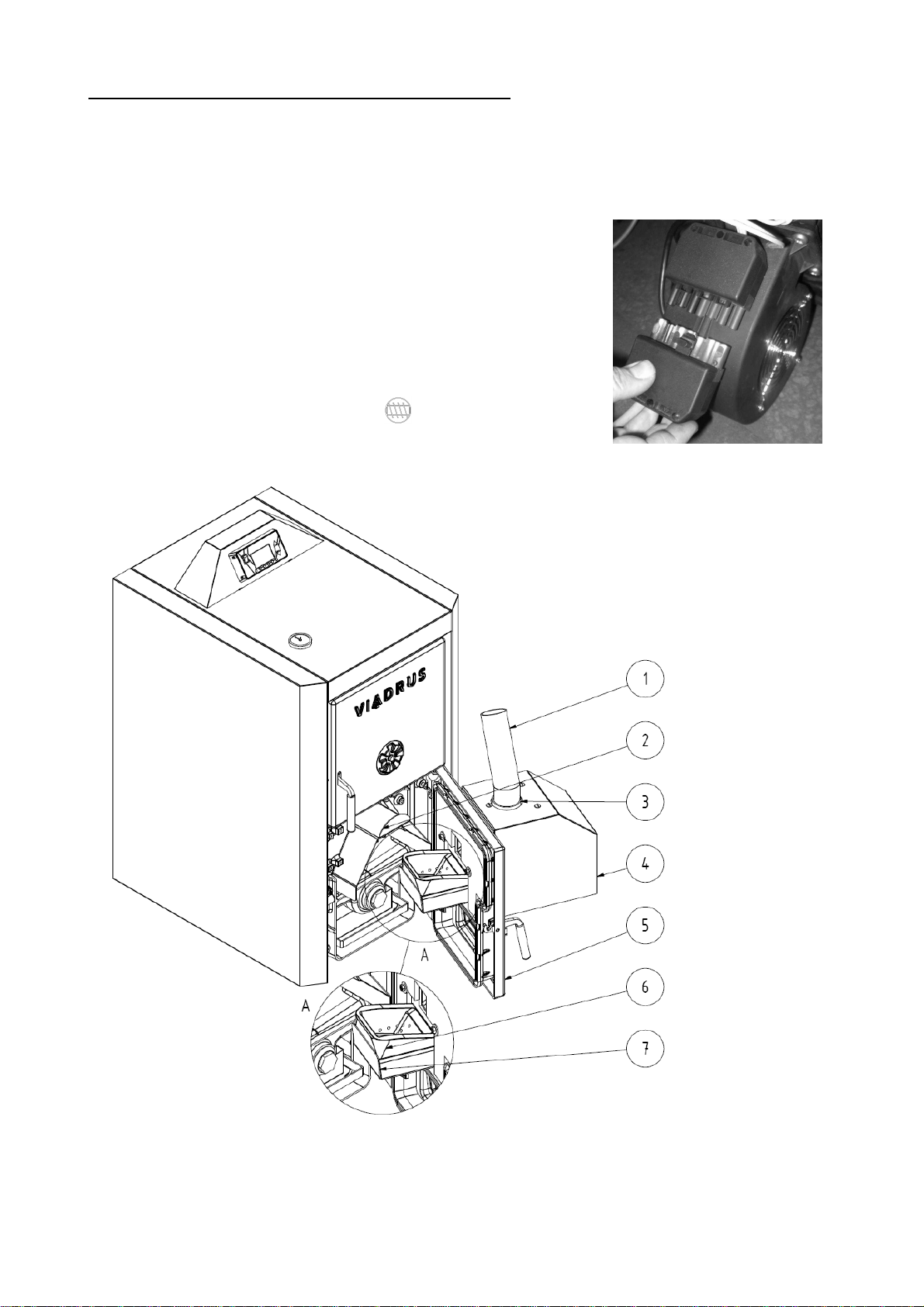

Fig. no. 14 Burner and fuel feeder mounted on the boiler
1. Elbow
2. Internal metal plate of
the fireplace
3. Burner neck
4. Burner cover
5. Ash-pan door
6. Burner bowl
7. Holder of the burner
bowl

18
Fig. no. 15 Boiler burner and fuel reservoir interconnection
5.4.6 Filling the heating system with water
Water for filling the boiler and heating system must be clear and colourless, without any suspended
substances, oil and chemically aggressive substances. Its hardness must correspond to ČSN 07 7401 and it
is essential that in case the water hardness is unsuitable the water must be treated. Even the multiple heating
of water with a higher hardness does not prevent the salts from precipitation on the walls of the boiler drum.
The precipitation of 1 mm of calcite in a given place reduces the heat transfer from metal to water by 10 %.
Heating systems with an open expansion tank allow the direct contact between the heating water and
atmosphere. During the heating season the water expanding in the tank absorbs oxygen which increases its
corrosive effects and at the same time a considerable volume of water evaporates. Only water treated
according to ČSN 07 7401 can be used for refilling.
The heating system must be thoroughly flushed in order to wash out all impurities.
During the heating season it is necessary to keep a constant volume of water in the heating system. When
refilling the water in the heating system you must be careful of air sucked in the system, which must not
happen. Water taken or discharged from boiler and heating system must never be used with the exception of
exigencies as are the repairs etc. By water discharging and new water filling the risk of corrosion and scale
formation is increased. If it is necessary to refill water in heating system we only refill the cooled down
boiler in order to prevent the sections from disruption.
After filling the boiler and heating system it is necessary to check the tightness of all joints.
The assembly completion and heating test execution must be recorded in the „Guarantee certificate“.

19
6. Putting into operation - instructions for contractual service
organization
The boiler can only be put into operation by a contractual service organization authorized to carry out
this activity.
6.1 Inspections before start-up
Before putting the boiler into operation it I necessary to check:
a) Filling the heating system with water (check of the manometer).
b) Tightness of heating system.
c) Connection to the chimney – it must be approved by a chimney-sweepers’ company.
d) Connection to the electricity network - it must be approved by an authorized company.
When connecting the sockets the grounding pin must be upward and the phase conductor is connected
to the left female connector in front view. The same applies to the double receptacles.
6.2 Boiler putting into operation
1. Fire the boiler (see chap. 7.). When firing up the protective spraying of boiler section is baked and this
process is accompanied by a slight smell. Mind the boiler room ventilation.
2. Bring boiler to the necessary service temperature. The recommended heating water temperature is
between 60 and 80 °C.
3. Recheck visually the boiler tightness.
4. Carry out the heating test according to relevant standards (see the Guarantee certificate).
5. Make the user acquainted with boiler attendance (see chap. 7).
6. Make a registration in the Guarantee certificate.
7. Boiler attendance by user
7.1 Regulator attendance by user
Puma PID 46 controller is characterized by continuous boiler control. Mutually independently it evaluates the
increase in water temperature and flue gas temperature. It is equipped with 3 temperature sensors and
5 controlling outputs:
• fan
• feeder
• pump CH
• pump HWS
• lighter
The controller enables collaboration with room
thermostat.
The controller will turn on the CH pump at the
moment of switching the thermostat, so the room
is heated to the desired temperature. The pump
runs in the mode: 18 minutes working, 2 minutes
pause.If the thermostat does not require the
heating, the CH pump operates in the mode: 2
minutes working, 18 minutes pause. This setting is
because of the minimum supply of hot water into
system. Thus the room is protected against
freezing when the room thermostat has a flat
battery.
For room thermostat connection and activation
please contact the service organization.

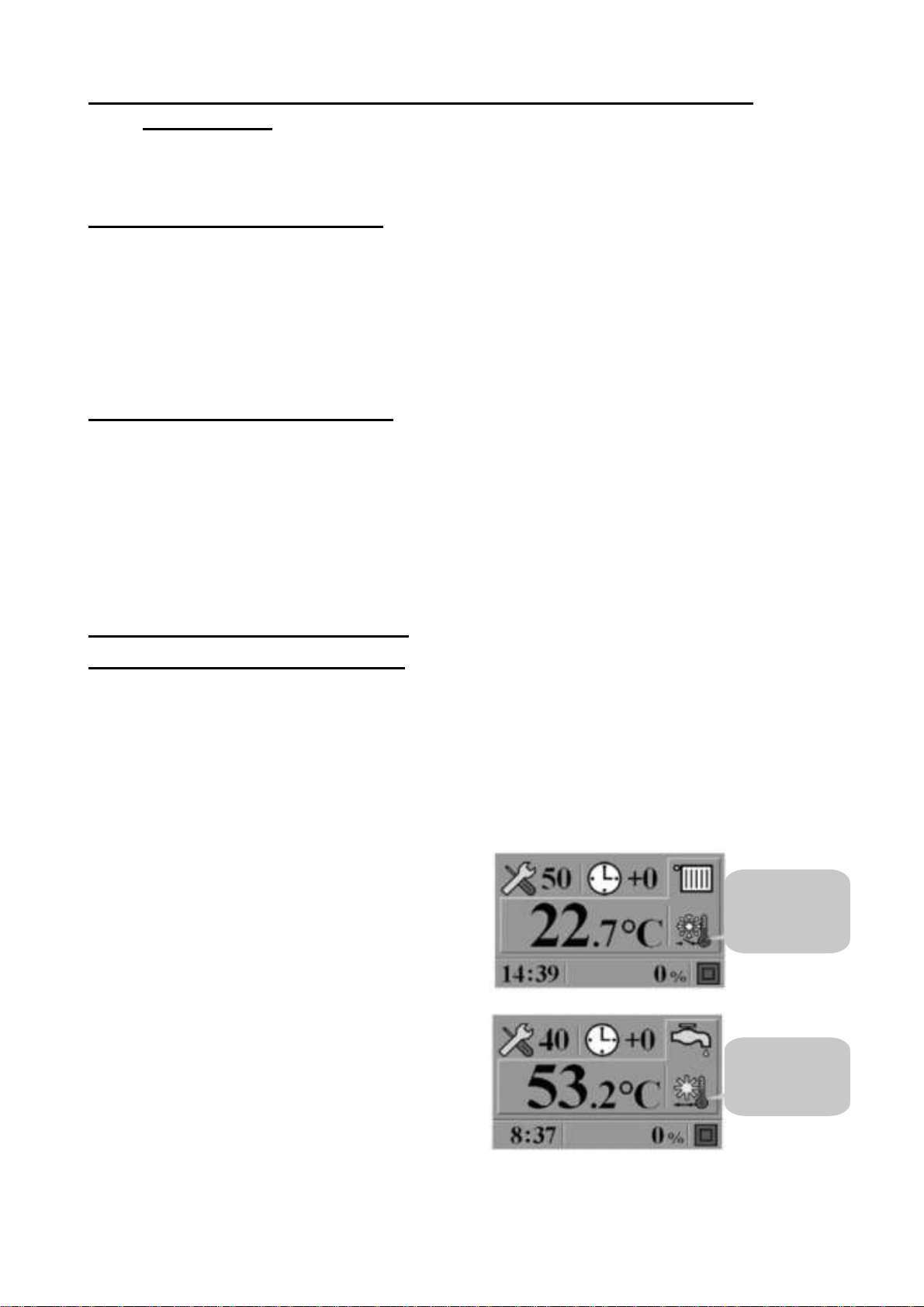

After the room thermostat activation the display
shows an icon signalling the room thermostat.
The controller ensures the rpm control of the pump. The pump must be set in position II.
In the event that to the system there are connected the pumps which are equipped with automatic rpm control
it is necessary to switch off the function of pump rpm control in the controller.
Room termostat
switched off
Room termostat
switched on

20
Technical parameters
• Temperature control range CH: 40 – 80 ºC
• Temperature control range HWS: 40 – 80 ºC
• Power supply: 230V AC 50 Hz, power 1,5 W
• Colour display LCD TFT 400 x 240 pixels
• Load of outputs:
• At lighter – 300 W
• At other outputs – 100 W
• Operating temperature 0 ºC – 50 ºC
• Humidity 5 – 95 %
• Panel mounting hole dimensions 62 mm x 133
mm, distance of fasteners 58 mm x 157 mm
• Degree of protectionIP40
• Insulation class I
• Weight 0,3 kg
Keyboard and indicators
button
• Turn on/off supply of driver
button
• Brief pressing on working display starts editing
of setting the temperature CH
• Long pressing on operating display starts the
user menu
• During editing – increase of value or turning
on the parameter
button
• Brief pressing – turn on/off of control
• Long pressing on display starts menu of
manual control
• During editing – confirming the editing of
parameter and selection of a next one
button
• Brief pressing on display starts editing of
setting the temperature HWS
• Long pressing on display starts the installation
menu
• During editing – reduction of value or turning
off the parameter
Temperature switch AM 03
Function expanding
Voltage do 250 V; 50 ¸ 60 Hz
Max. current at the inductive load (cos φ= 0.6) 1,6 A
Hysteresis 30 ± 15 °C
IP code IP 00
Insulation resistance ≥2 MΩ
Specific dielectric strength 2000 V; 50 Hz; 1 min .
Cross-section of connecting conductors 0,25 mm
2
Indicator
of fan
Indicator of
feeder Indicator of pump CH Indicator of pump HWS Indicator of ignition
Indicator of
power supply
