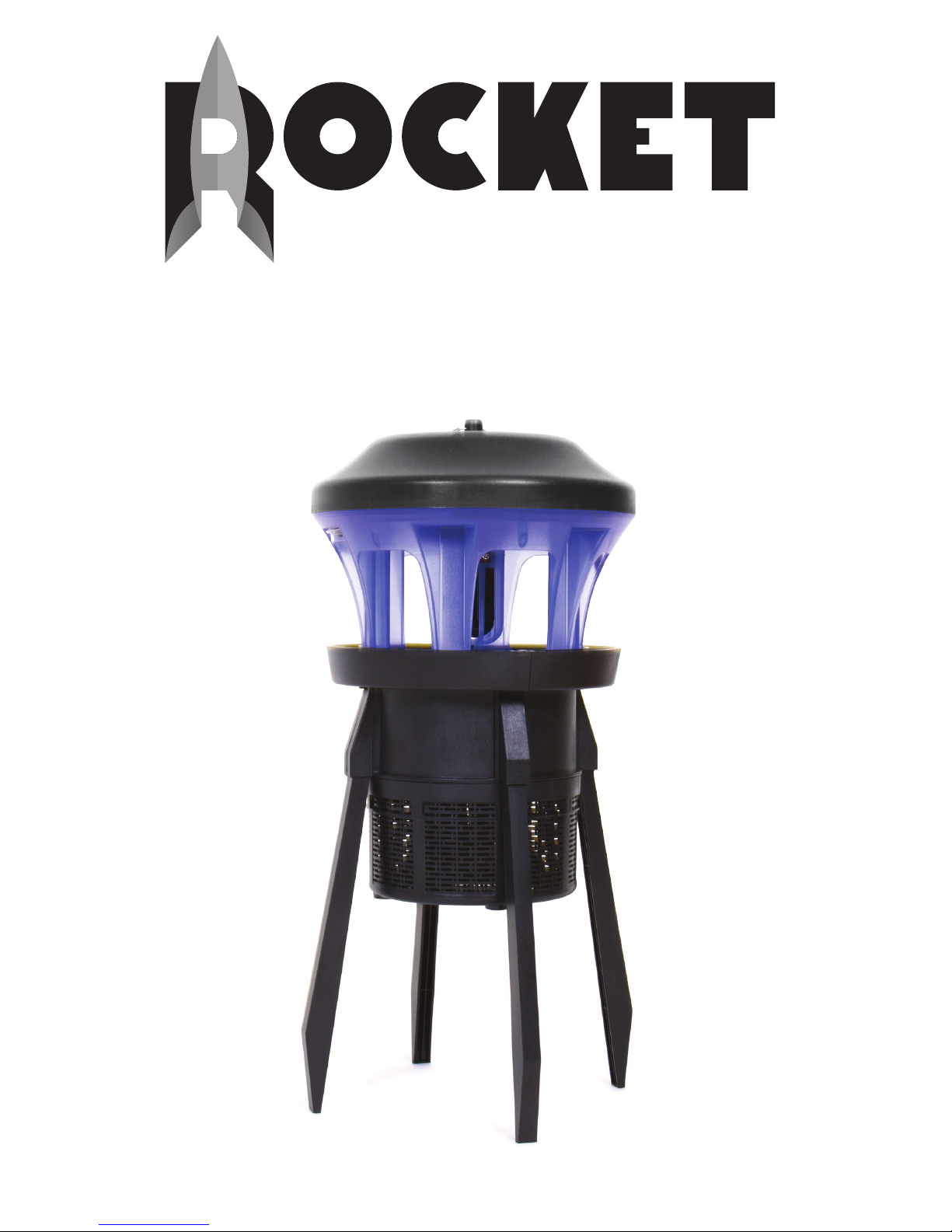

Viatek Rocket MK03 User manual
Instructions for Use
INSECT TRAP
TM
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions before using this product.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS
WARNING - When using electric appliances, basic precautions should always be
followed, including the following:
1. Read all the instructions before using the appliance.
2. To reduce the risk of injury, close supervision is necessary when an appliance is
used near children.
3. Do not contact moving parts.
4. Only use attachments recommended or sold by the manufacturer.
5. Household use only. Suitable for indoor and outdoor use.
6. To disconnect, turn all controls to the o (“0”) position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Unplug
from outlet when not in use and before servicing or cleaning. Do not operate the
appliance with a damaged cord or plug, or after the appliance malfunctions or is
dropped or damaged in any manner. Return appliance to the nearest authorized
service facility for examination, repair, or electrical or mechanical adjustment.
7. To reduce the risk of electrical shock, do not put the appliance in water or other
liquid. Do not place or store appliance where it can fall or be pulled into a tub or
sink.
8. The lamp in this appliance cannot be replaced. Scrap the appliance when the lamp
ceases to operate.
9. This appliance is provided with double insulation and has no serviceable parts. See
additional information for Double Insulated Appliances in the Installation Instructions.
10. Never put metal objects inside the grids while in operation.
11. Keep away from ammables.
12. Check the local voltage before operating.
13. Hang on ceiling on a place where children cannot reach.
14. Keep the appliance and its cord out of reach of children.
15. The insect trap cannot be used in barns, stables and similar locations.
16. The appliance is not to be used in locations where ammable vapor or explosive
dust is likely to exist.
17. To reduce the risk of injury from moving parts, unplug before servicing. Unplug the
appliance before removing the insect collection tray or cleaning.
18. The appliance complies with the Performance Standards for Light-Emitting
Products, 21 CFR, Part 1040, Chapter 1, Subchapter J, Radiological Health.
19. WARNING: Keep out of reach of children.
20. Do not use this product for anything other than its intended use.
21. Use only as described in this manual.
22. Do not insert ngers or any foreign objects into the unit while it is ON or connected
to a power source.
23. To avoid re, clean dead insects from the unit frequently.
24. Do not cover the product with cloth, paper, or any other material when in use.
25. Store product indoors when not in use.
26. To reduce the risk of electrical shock, always turn product OFF and disconnect
from power source before cleaning.
27. All power connections should be kept o the ground and dry.
SAVE THESE INSTRUCTIONS
Specications:
Input: 110-120V 60Hz
Lamp type: 7W 2U UV-A
Average lifetime of bulb: 8,000 hours
ASSEMBLY
1. Place each side of the lure ring around the insect
trap so that the open sides are facing upward (g. 1).
2. Slide the lure ring joints together (g. 2 & 3).
3. Twist the ring around until it ts into place and
resists twisting. This will happen when two of the leg
sockets catch on the small tabs on either side of the
ring (g. 4).
4. If using as a standing model, insert the tops of the
legs into the leg sockets (g. 5).
HANGING RING
POWER CORD COLLECTION CHAMBER
4 LEG SOCKETS
UV LIGHT LURE RING
DISASSEMBLED
4 LEGS
PARTS DIAGRAM
TOPS
POWER SWITCH
Fig. 1 Fig. 2
Fig. 4
Fig. 5
Fig. 3
For customer service call 888.784.2835 (+1.423.402.9010 for outside the United States) or visit us online at viatekproducts.com
Pour le service a la clientele appelez le 888.784.2835 (+1.423.402.9010 a l’extérieur des États-Unis) ou visitez viatekproducts.com
Para servicio al consumidor llame al 888.784.2835 (fuera de Estados Unidos marque +1.423.402.9010) o visite viatekproducts.com
MADE IN
CHINA
Read Instructions
Before Operating
PATENT
PENDING
DO NOT DISPOSE OF BATTERIES IN FIRE. ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES.
© 2017 VIATEK CONSUMER PRODUCTS GROUP, INC. All specications are subject to change without notice. All rights reserved.
Viatek Consumer Products Group, Inc. 6011 Century Oaks Dr. Chattanooga, TN 37416
Rev:
Model: MK03 (GF-7CN)
032317
EPA EST NO 81827-HKG-001
SETUP
USING THE LURE RING: Some insects are attracted to scents more than they are attracted to UV
light, so it is important to utilize the lure ring to get the best results. Simply place a lure such as fruit
juice or sugar water into the lure ring.
SELECTING A LOCATION: The insect trap lures insects toward it, so it’s best to place the unit
away from the area to be protected. Ideally, place the unit between the source of insects (such as a
lawn, wooded area, or pond) and activity areas (such as a deck or patio).
PLACEMENT: The unit can be placed on a at surface or hung up using the hanging ring. Always
use a safety cable when hanging, and only hang from places that can support at least 9 lb (4 kg). Be
sure to place in a location out of reach of children.
OPERATION: Plug the unit in and press the power switch. The UV light and the internal fan will turn
on. As insects are attracted by the UV light and lure, the insect trap’s internal fan pulls them into the
collection chamber where they dehydrate and die.
NOTE: Be sure to keep the plug dry. During outdoor use, plug into an outlet with a code-approved “while in use”
electrical outlet cover.
Maintenance & Storage
Always unplug the unit for maintenance and storage.
Insects will accumulate in the collection chamber over time. To empty, twist the collection chamber
counterclockwise to detach it from the unit. After disposing of the contents, you may wipe the inside
of the chamber clean with a damp cloth. Be sure the chamber is completely dry before reattaching
it to the unit. Reattach the chamber to the bottom of the unit and twist clockwise until it snaps into
place. The chamber may need to be cleaned as often as once a week.
Do not submerge unit in liquid to clean. Use a damp cloth with or without detergent to wipe the
outside of the unit clean. Dry thoroughly with a soft cloth.
The lure ring can be removed and hand washed. This part may be submerged in water once it is
separated from the unit. Dry thoroughly with a soft cloth.
Store indoors when not in operation. Do not leave exposed to extreme weather such as high winds
or heavy rain.
4008295
POLARIZED ATTACHMENT PLUG
To Reduce the Risk of Electric Shock, this appliance has a polarized plug
(one blade is wider than the other). This plug will t in a polarized outlet only
one way. If the plug does not t fully in the outlet, reverse the plug. If it still
does not t, contact a qualied electrician to install the proper outlet. Do not
change the plug in any way. Keep the plug away from rain or any liquid.
SERVICING OF DOUBLE-INSULATED APPLIANCES
In a double-insulated appliance, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-
insulated appliance, nor should a means for grounding be added to the
appliance. Servicing of a double-insulated appliance requires extreme care
and knowledge of the system, and should be done only by qualied service
personnel. Replacement parts for a double-insulated appliance must be
identical to those parts in the appliance. A double-insulated appliance is
marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED.”
The symbol may also be marked on the appliance.
