Viavito SUMI User manual

Owner’s Manual.
SUMI
Rowing Machine
www.viavito.com
Manual version: 2.2

02 www.viavito.com
Congratulations
on purchasing your
very own SUMI
Rowing Machine.
Manual Contents.
You have chosen a high-quality, safe and
innovative piece of exercise equipment as
your training partner and we are certain
it will keep you motivated on the way to
achieving your personal tness goals.
Please take the time to read this owner’s
manual as it will help you to get the most
out of your new rowing machine.
For more information, or if you require
any assistance please email us at
[e-mail]
Safety Information 03/04
Machine Assembly 05/10
Contents Checklist 05
Assembly Instructions 06/09
Folding & Storage 10
Console Instructions 11/13
Console Diagram 11
Display Functions 12
Button Functions 12
Operation 13
Changing The Resistance 13
Conditioning Guidelines 14/20
Why Exercise? 14
Target Heart Rate 15
Beginner’s Guide to Exercise 16
Workout Tips 16
How to Begin 17
How Hard Should You Work? 17

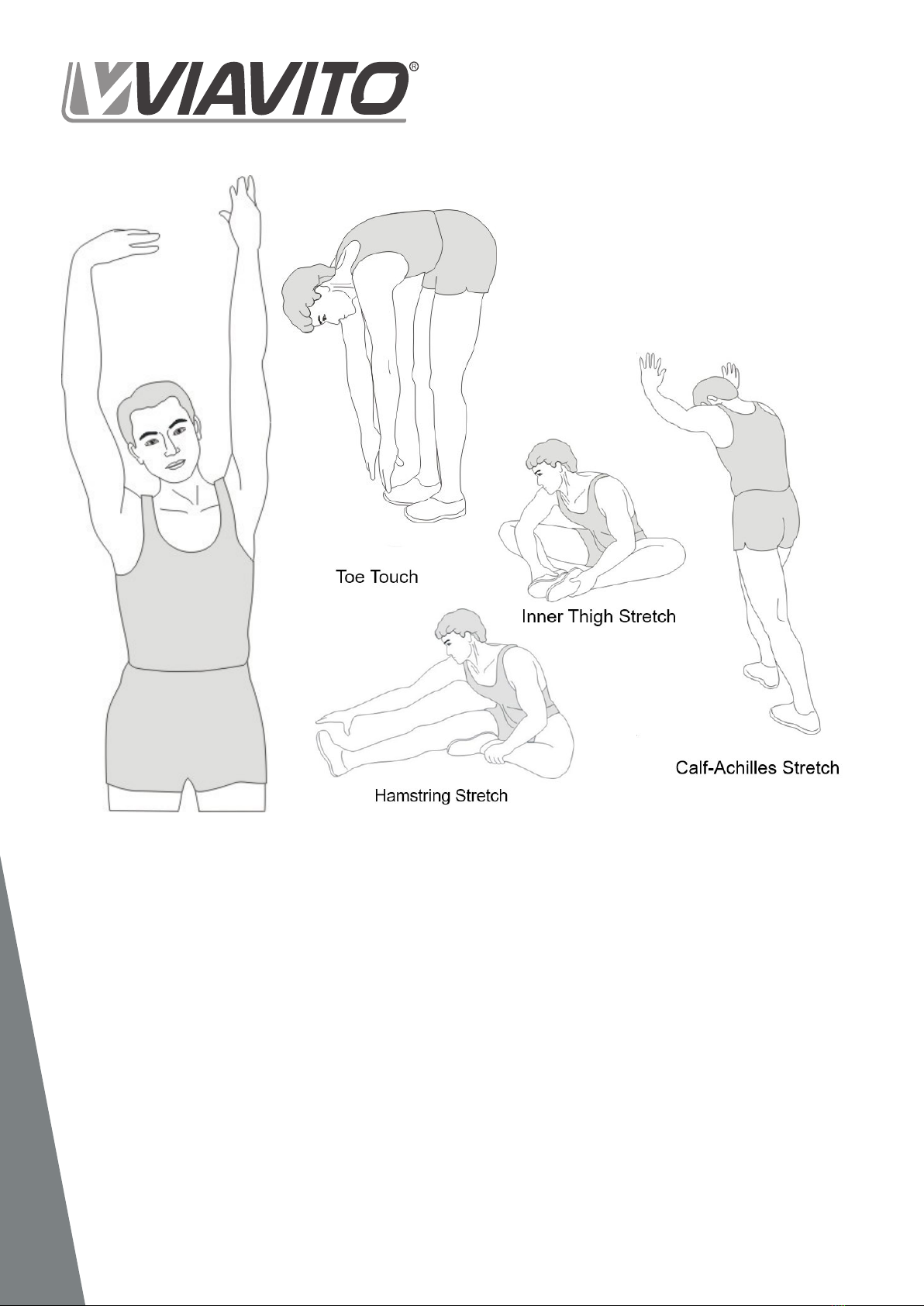

Tips For Stretching 18
Warm-Up and Cool-Down 19/20
Customer Support 21/22
Contact Information 21
Manufacturer’s Warranty 22
Technical Information 23/28
Space Required 23
Specications 24
Maintenance 24
Replacing The Batteries 24
Parts List 25/27
Exploded Diagram 28

03www.viavito.com
Safety Information.
• Please read all the instructions carefully
before using this product.
• Retain this manual for future reference.
• The specications of this product may
vary slightly from the illustrations and are
subject to change without notice.
IMPORTANT SAFETY NOTICE:
note the following precautions
before using the product.
01 Assemble the machine exactly as per the
descriptions in the instruction
manual, using only the supplied
tools to assemble it.
02 Check all the screws, nuts and other
connections before using the machine
for the rst time and ensure that it
has been built correctly and is safe
to be used.
03 This machine is for indoor, home use only.
Position the machine on a clear, dry and
level surface. DO NOT position it near
water or outdoors.
04 Place a suitable base (e.g. rubber
mat, wooden board etc.) beneath
the machine in the assembly area
to protect it from dirt.
05 Make sure there is sucient free space
around the rowing machine when you
set it up.
06 Before beginning training, remove all
objects within a 2-metre radius of the
machine.
07 Use the machine only for its intended
purpose as described in the manual.
08 This machine may only be used by one
person at a time.
09 Always wear appropriate workout
clothing when exercising. Aerobic shoes
are required when using this machine.
10 Before exercising on this machine, always
warm up and do the stretching exercises
listed in this manual rst.
11 When altering any adjustable parts, make
sure they are adjusted properly within
the maximum position for each part.
12 DO NOT use aggressive cleaning
products such as detergents to clean the
machine. Remove drops of sweat from
the machine immediately after nishing
training.
13 Your health can be aected by
incorrect or excessive training. Consult
a doctor before beginning a training
program. This machine is not suitable for
therapeutic or medical purpose.
14 WARNING! Heart rate monitoring
systems may be inaccurate. Over
exercising may result in serious injury
or death. If you experience dizziness,
nausea, chest pain, or any other
abnormal symptoms STOP EXERCISING
IMMEDIATELY AND CONSULT A
PHYSICIAN WITHOUT DELAY.
15 Disabled persons should not use this
machine without a qualied person
or physician in attendance.

04
16 Children should be kept away from the
machine at all times.
17 The maximum user weight is 120kg
(265lbs). Safety standards: EN-957
Certicate - European Safety compliant.
18 WARNING: the safety level of the machine
can be maintained only if it is examined
regularly for damage and wear, e.g. the
pull strap, seat roller wheels, foot pedals
and straps, connection points.
19 Examine the machine carefully before you
use it, especially the components most
susceptible to wear, e.g. pull strap, seat
roller wheels, foot pedals and straps, and
connection points.
20 Stop using the machine immediately if
there are any defective components and
keep it out of use until you replace the
components or it is repaired by a
qualied engineer.
21 Use only original spare parts for any
necessary repairs.
22 WARNING! Inappropriate use of this
machine such as while under the
inuence of drugs or alcohol, not in line
with instructions or excessive usage,
may result in serious injury or death.
WARNING: Before beginning using this
machine or doing any exercise program,
consult your doctor. This is especially
important for people over the age of
35 or those with pre-existing health
problems. Read all instructions
before using the rowing machine.
VIAVITO ASSUMES NO RESPONSIBILITY
FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH
THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
RECYCLING INFORMATION
Used electrical and electronic equipment (WEEE) should not be mixed with general
household waste. For proper treatment, recovery and recycling, please take this
product to designated collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your products to your
local retailer upon purchase of an equivalent new product. Disposing of this product
correctly will help save valuable resources and prevent any potential negative
eects on human health and the environment, which could otherwise arise from
inappropriate waste handling. Please contact your local authority for further details
of your nearest designated collection point. Penalties may be applicable for incorrect
disposal of this waste, in accordance with your national legislation
SAFETY STANDARDS
This equipment meets the requirements of European safety directives such as: the
Electromagnetic Compatibility (EMC) Directive and the Low Voltage Directive (LVD).
www.viavito.com

05
www.viavito.com
NOTE:
Most of the listed assembly hardware
has been packaged separately, but some
hardware items have been pre-installed.
In these instances, simply remove and
reinstall the hardware as required. Please
refer to the individual assembly steps and
make a note of all pre-installed hardware.
PREPARATION:
Before assembling the rowing machine,
make sure that you have enough space
around it, and check whether all the parts
needed are present. To assemble, use only
the supplied tools. It is strongly recom-
mended that this machine be assembled
by two people to avoid possible injury.
Machine Assembly.
Contents Checklist
PART NO. DESCRIPTION QTY
12 Bolt M2X155 2
14 Bolt M10X100 1
25 Bolt M10X95 1
2 Knob M10X25 1
10 Washer D13 2
8 Washer D10X2 4
35 Washer D10X2.5 1
9 Nut M10 2
70 Cap S17 2
15 Knob M16X1.5 1
Wrench (S17, S19) 2
Wrench (13, 14, 15, Ф5) 1

步骤一：
1：先将纸筒(A)、方颈螺栓（30）、弧形垫片（31）、盖形螺母（32） 从前底管（33）上卸下。
2：用卸下的方颈螺栓（30）、弧形垫片（31）、盖形螺母（32） 将前底管（33）锁紧在车架
（1）上。
06 www.viavito.com
Assembly Instructions
Attention: Please follow these assembly instructions step by
step to assemble this rowing machine.
Step One.

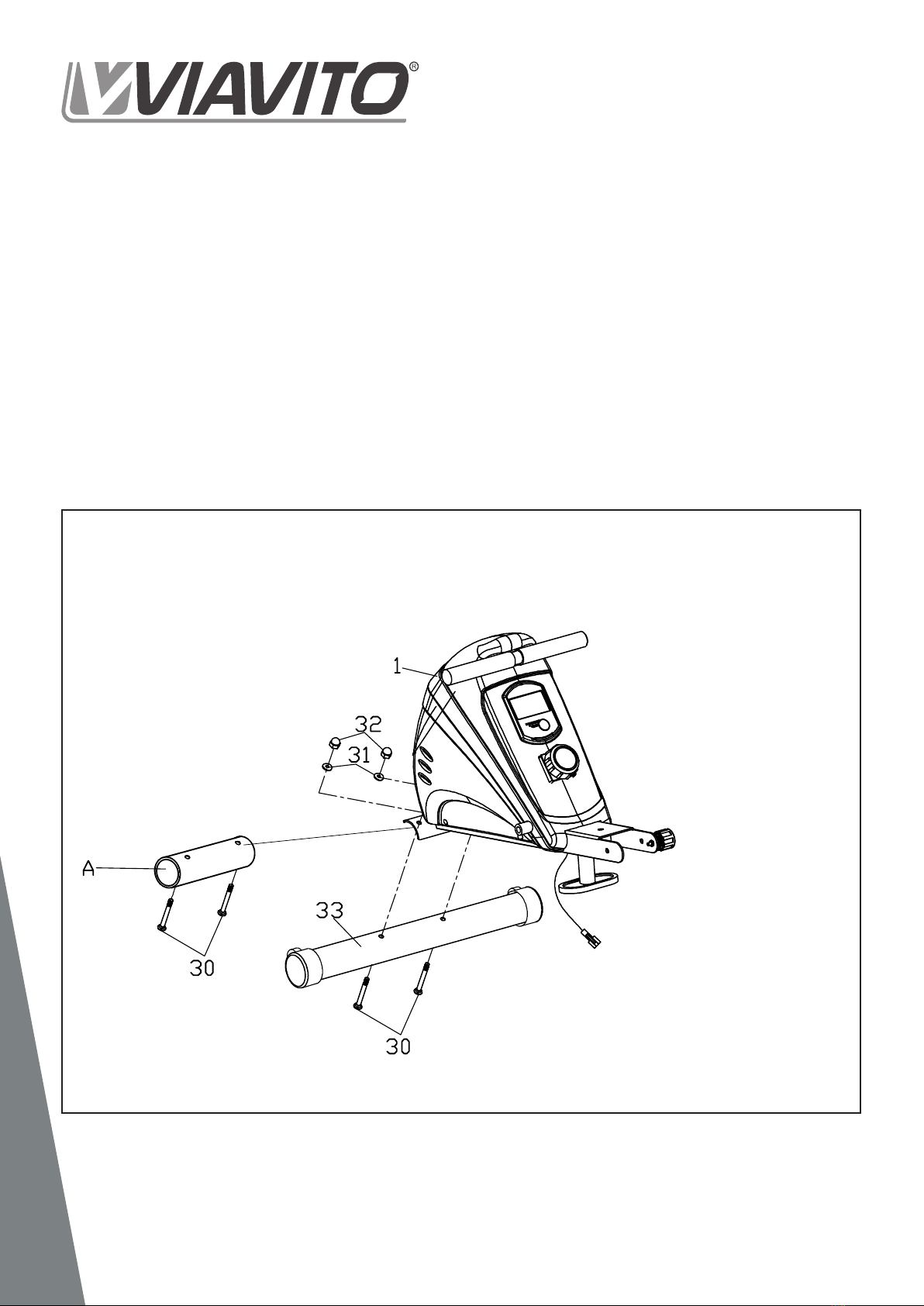

01 Remove the cardboard tube from the main frame (1) and attach and tighten the front
stabiliser (33) in its place using the carriage bolts (30), the curved washers (31),
and the cap nuts (32).

07
www.viavito.com
Step Two.

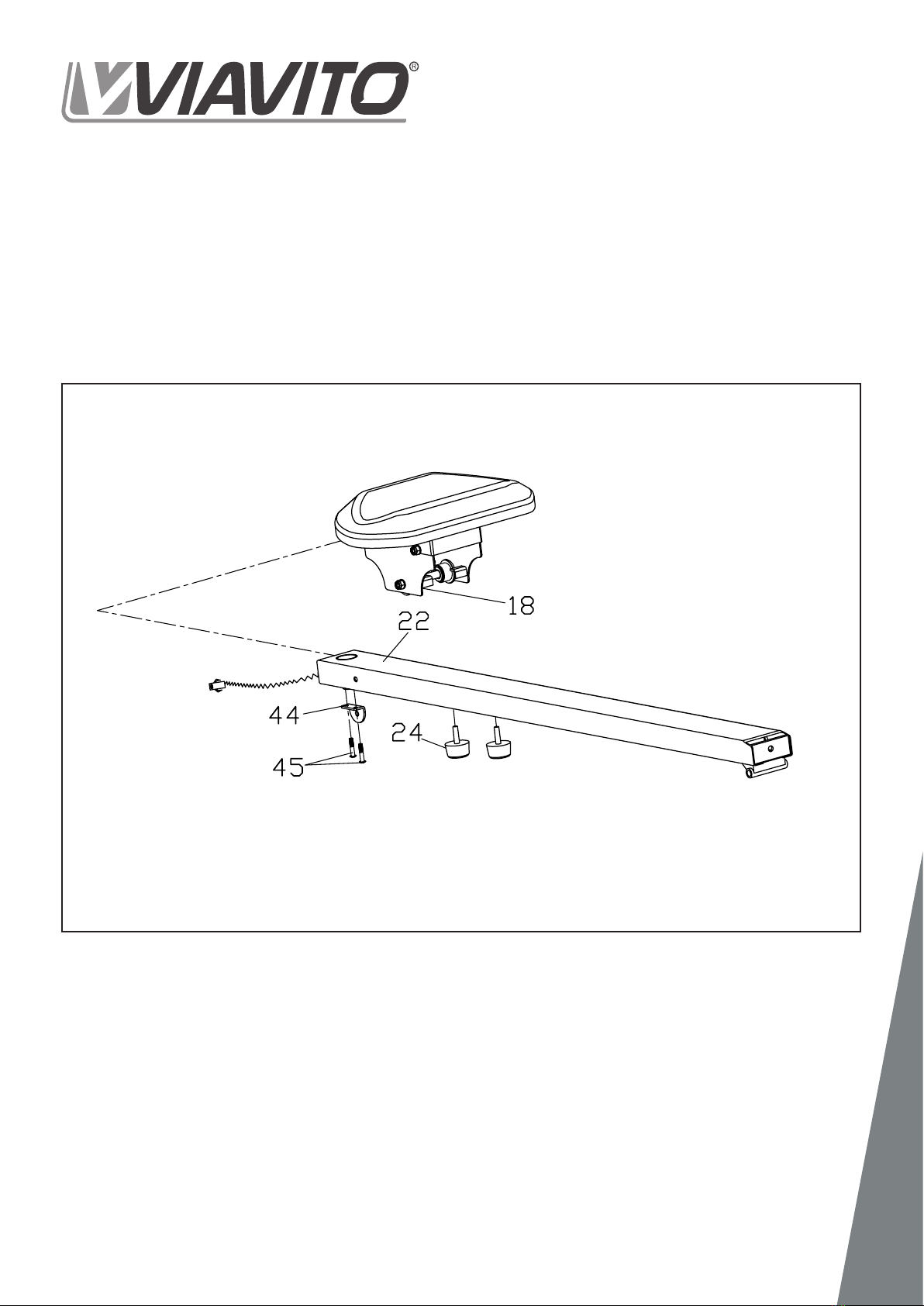

01 Take o the cushion stops (24), the
screws (45) and the plate (44), then
insert the seat (18) onto the rail (22),
and screw the cushion stops (24)
back onto the rail (22).
02 Tighten the plate (44) to the rail (22)
using the screws (45).

08 www.viavito.com
Step Three.
01 Attach the stand (29) to the rail (22)
using the hexagon bolt (25), the knob
(2), the at washer (8), and the nylon
nut (9).
02 Remove the screws (27) from the
protective guard (28) and then attach
the protective guard (28) to the stand
rail (29) using these screws (27).

09
www.viavito.com
Step Four.

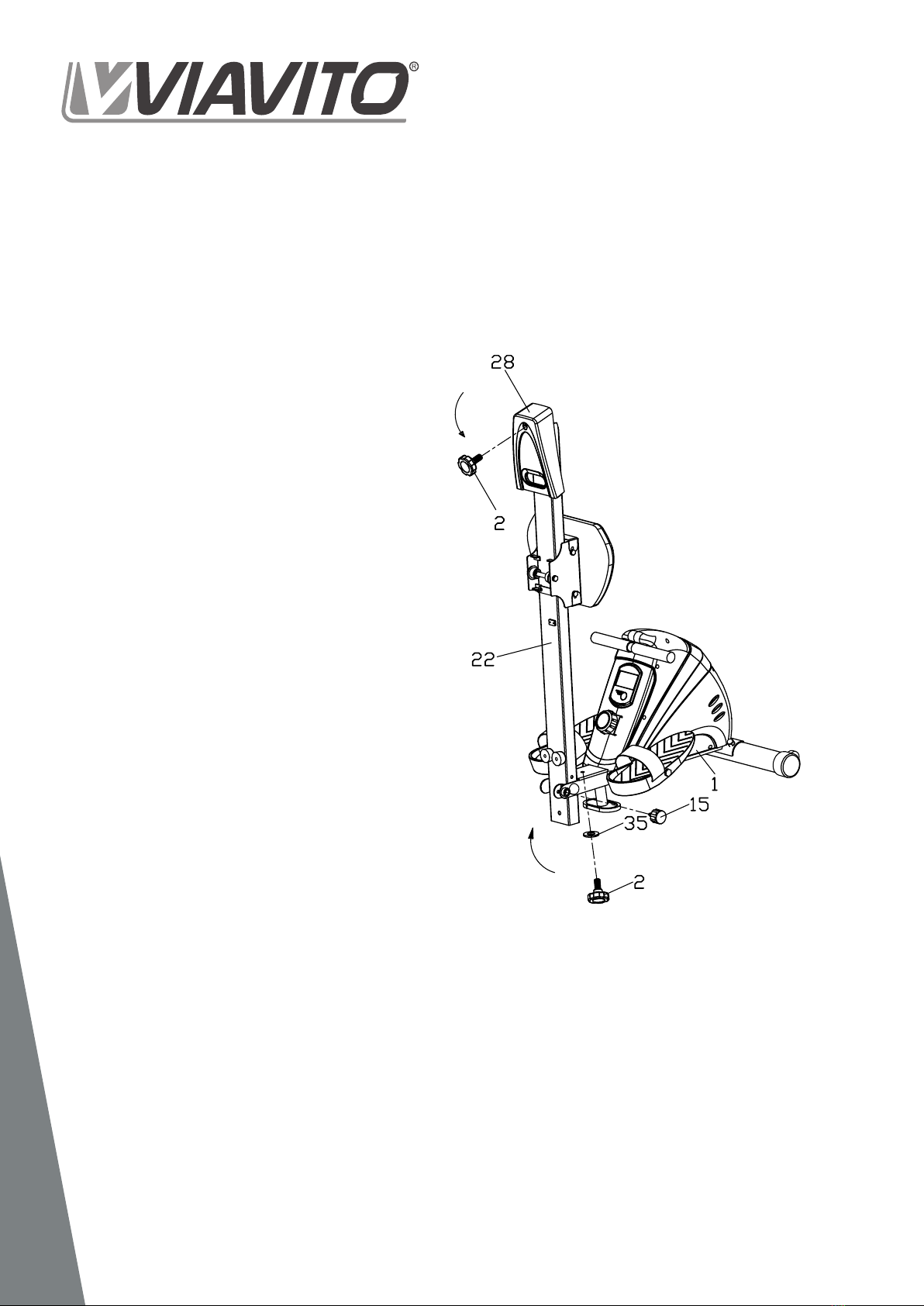

01 Connect the connection wire (46) to
the sensor wire (36).
02 Tighten the rail (22) to the main frame
(1) using the knob (2) and the at wash-
er (35).
03 Fix the hexagon bolt (14) in place
using the at washer (8), the nylon nut
(9) and the plastic cap (70). Then screw
in the knob (15) at the side and the
knob (2) at the rear.
04 Attach the pedals (11) to the main
frame (1) using the bolt (12) and
the at washer (10).

10 www.viavito.com
Folding & Storage
The SUMI rowing machine is foldable. Take extra care when folding or
unfolding the machine.
The machine can be folded when
not in use. First, take o the knob
(2) and the at washer (35) that
attach the rail (22) to the main
frame (1). Loosen the other knob
(15), then carefully lift the rail
upwards. Insert the knob and the
at washer into the back of the rail.
Take o the other knob (2), found
at the back end of the rail, and fold
the protective guard (28) against
the rail, reinserting this knob to x
it in place.
Keep the rowing machine in a clean
dry place indoors.
Grasp the frame to move the
rowing machine. Do not use the
seat to move it as the seat will
move and may cause injuries.

11
www.viavito.com
Console diagram
TOTAL COUNT
CALORIE
COUNT/MIN
COUNT
DISTANCE
SCAN
TIME
Console Instructions.

12 www.viavito.com
Display Functions
TOTAL COUNT Shows the total number of rowing strokes from when the battery
was installed, with a display range of 0-9999
CALORIES Shows the number of calories burnt during your workout with a
display range of 0.0-999.9KCAL
COUNT/MIN Shows your current number of rowing strokes per minute, or the
frequency per minute, with a display range of 0-1200
COUNT Shows the number of rowing strokes during your current workout,
with a display range of 0-9999
DISTANCE Shows the total distance of your current workout, with a display
range of 0.00-99.99 KM
TIME Shows the total workout time, with a display range of 00:00-99:59
All data displayed is approximate guidance and cannot be used in any medical application.
Heart rate displayed is an approximate read-out and may not be used as guidance in any
cardiovascular-related medical or paramedical program.
Button Functions
The button on the console is the MODE button. Press it to select functions. Press and
hold it for 2 seconds to reset all values, except total count.

13
www.viavito.com
Changing The Resistance
Resistance is increased or decreased by turning the resistance knob clockwise and
anti-clockwise respectively.
To begin your workout simply start rowing.
Operation
1. Auto ON/OFF
The console will turn on when the MODE button is pressed or when you start rowing.
The console will automatically turn o approximately 4 minutes after no buttons are
pressed or you stop rowing.
2. Reset
The units can be reset either by changing the batteries in the console or by pressing and
holding the MODE key for 2 seconds.
3. Scan/Lock
During your workout, the console can be locked to display a single unit of feedback or
scan through all the metrics. Hold the MODE button to switch between SCAN and LOCK.

14 www.viavito.com
Conditioning Guidelines.
Why Exercise?
Exercise has been proven essential for good health and general wellbeing. Regular
exercise will:
• Relieve tension and stress
• Provide enjoyment and fun
• Stimulate the mind
• Help maintain stable weight
• Control appetite
• Boost self-image
• Improve muscle tone and strength
• Improve exibility
• Lower blood pressure
• Relieve insomnia
The following guidelines will help you to plan your exercise program and exercise safely.
Remember that proper nutrition and adequate rest are essential for successful results.
WARNING: Before beginning to use this rowing machine or starting any other exercise
program consult your doctor. This is especially important for pregnant women and new
mothers, all people over the age of 35, and those with medical problems such as heart
disease, high or low blood pressure, injuries, joint problems, obesity and asthma.

15
www.viavito.com
Target Heart Rate
To train eectively you should aim to work in the heart rate zone appropriate to your
age as stipulated below. Please note this is a guide and your heart rate at rest and during
training is determined by your tness level and other lifestyle factors as well as your age.
If you reach the recommended beats per minute below and feel you’re over-exerting
yourself stop, rest and when you feel recovered return to exercise at a lower intensity.
AGE TRAINING ZONE - MIN - MAX (BPM)
20 133 - 167
25 132 - 166
30 130 - 164
35 129 - 162
40 127 - 161
45 125 - 159
50 124 - 156
55 122 - 155
60 121 - 153
65 119 - 151
70 118 - 150
75 117 - 147
80 115 - 146
85 114 - 144

16 www.viavito.com
Beginner’s Guide to Exercise
Workout Tips
If you’re beginning an exercise program for the rst time or starting a new exercise pro-
gram, you must check with your doctor that you are t to do so particularly if:
• You have been diagnosed with heart
problems, high blood pressure or other
medical conditions
• You have not exercised for over a year
• If you are over 35 and do not currently
exercise
• You are pregnant or are a new mother
• You have diabetes
• You have chest pain, or experience
dizziness or fainting spells
• You are recovering from an injury or
illness
• Always perform a warm-up and stretching exercises before your workout and a cool-
down and stretching exercises at the end
• Start slowly and build up your time, speed and resistance gradually; doing too much too
soon can lead to injuries
• If you are sore or tired, give yourself a few extra days to recover.

17
www.viavito.com
How To Begin
How Hard Should You Work?
• Start with two or three 15-minute
sessions per week with a rest day
between workouts
• Warm up for 5 to 10 minutes with gentle
movements incorporating the whole
body such as walking while swinging
your arms in a circle and then stretch the
muscles you’ll use during your workout
• Increase the pace and resistance to slight-
ly harder than comfortable and exercise
for as long as you can. You may only be
able to exercise for a few minutes at a
time, but that will change quickly when
you exercise regularly
• End each workout with a 5-minute cool-
down with the resistance set to a low
level. You should then stretch the mus-
cles you’ve just worked to develop exi-
bility, reduce muscle soreness and
prevent injury
• Increase your workout time by a few
minutes each week until you can work
continuously for 30 minutes per session
• Don’t worry about distance or pace for
the rst few weeks, focus on endurance
and conditioning.
When exercising, you should try to stay within your target heart rate (THR) zone.
The table on page 15 will tell you the THR for your age.
Always be aware of how you feel when you exercise. If you feel dizzy or light-headed,
stop immediately and rest.

18 www.viavito.com
Tips For Stretching
• Begin with small mobility exercises of all
the joints e.g. simply rotate the ankles,
bend the knees and roll your hips.
Gradually make the movements larger and
faster. This will allow the body’s
natural lubrication (synovial uid) to
protect the surface of your bones
at these joints
• Always warm up the body before
stretching, as this increases blood ow
around the body, creating warmth which
makes the muscles more supple
• Start with your legs, and steadily work up
the body
• Each stretch should be held for at least
10 seconds (working up to 20 to 30
seconds) and usually repeated
about 2 or 3 times
• Do not stretch until it hurts. If there’s any
pain, ease o
• Don’t bounce. Stretching should be
gradual and relaxed
• Don’t hold your breath during a stretch
• Stretch after exercising to prevent
muscles from tightening up
• Stretch at least three times a week to
maintain exibility.

19
Warm-Up and Cool-Down
A successful cardio-vascular exercise program consists of a full-body warm-up, aerobic
exercise, and a cool-down. Do the entire program at least two and preferably three times
a week, resting for a day between workouts. After several months, you can
increase your workouts to four or ve times per week.
WARM-UP
The purpose of warming up is to prepare your body for exercise and to minimise injuries.
Warm up for ve minutes before strength training or exercising aerobically. Perform
activities that raise your heart rate and warm the working muscles. Activities may include
brisk walking, jogging, jumping jacks, jump rope, and running on the spot. Try to
incorporate moves that take the joints through their full range of motion.
STRETCHING
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at
these times because of their elevated temperature, which greatly reduces the risk
of injury. Stretching develops exibility and reduces muscles soreness.
Stretches should be held for 15 to 30 seconds.
DO NOT BOUNCE OR OVER-STRETCH
Take your time on each stretch. Gradually take each stretch a little deeper on every out
breath to your personal maximum.

Side Stretch
20 www.viavito.com
COOL-DOWN
The purpose of cooling down is to return the body to its normal or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart
rate, allows blood to return to the heart and helps prevent muscle soreness
caused by the build-up of lactic acid in the muscles.
