Viavito SUMI User manual

Owner’s Manual.
Rowing Machine
SUMI
www.viavito.com

02
Congratulations
on purchasing your
very own SUMI
Rowing Machine.
Manual Contents.
www.viavito.com
You have chosen a high quality, safe and
innovative product, and we are certain
it will keep you entertained for hours.
Please take the time to read this owner’s
manual as it will help you to get the most
out of your new product.
For more information, or if you require
any assistance please email us at
[e-mail]
Safety Information 03/04
Machine Assembly 05/10
Contents Checklist 05
Assembly Instructions 06/09
Folding & Storage 10
Console Instructions 11/13
Button Functions 12
Specications 13
Operating Resistence Levels 13
Usage Safety Precautions 13
Storage and Maintenance 14
Battery Replacement 14
Conditioning Guidelines 15/21
Why Exercise? 15
Target Heart Rate 16
Beginners Guide to Exercise 17
Workout Tips 17
How to Begin 18
How Hard Should You Work? 18
Tips For Stretching 19
Warm-Up and Cool-Down 20/21
Customer Support 22/23
Contact Information 22
Manufacturers Warranty 23
Space Required 24
Replacement Parts 25/28
Parts List 25/27
Exploded Diagram 28

03
Safety Information.
www.viavito.com
• Please read all instructions carefully
before using this product.
• Retain this manual for future reference.
• The specications of this product may
vary slightly from the illustrations and
are subject to change without notice.
IMPORTANT SAFETY NOTICE:
note the following precautions
before using the product.
01 Assemble the machine exactly as per
the descriptions in the instruction
manual, using only the supplied
tools to assemble it.
02 Check all the screws, nuts and other
connections before using the machine
for the rst time and ensure that it
has been built correctly and is safe
to be used.
03 This machine is for indoor, home use
only. Position the machine on a clear,
dry and level surface. DO NOT position
it near water or outdoors.
04 Place a suitable base (e.g. rubber
mat, wooden board etc.) beneath
the machine in the assembly area
to protect it from dirt.
05 Before beginning training, remove all
objects within a 0.6-metre radius of
the machine.
06 Use the machine only for its intended
purpose as described in the manual.
07 This machine may only be used by one
person at a time.
08 Always wear appropriate workout
clothing when exercising. Running or
aerobic shoes are required when using
this machine.
09 Before exercising on this machine,
always warm up and do the stretching
exercises listed in this manual rst.
10 DO NOT use aggressive cleaning
products such as detergents to clean
the machine. Remove drops of sweat
from the machine immediately after
nishing training.
11 Your health can be aected by
incorrect or excessive training. Consult
a doctor before beginning a training
program. This machine is not suitable
for therapeutic or medical purpose.
12 WARNING! Heart rate monitoring
systems may be inaccurate. Over
exercising may result in serious injury
or death. If you experience dizziness,
nausea, chest pain, or any other
abnormal symptoms STOP EXERCISING
IMMEDIATELY AND CONSULT A
PHYSICIAN WITHOUT DELAY.
13 Disabled persons should not use this
machine without a qualied person
or physician in attendance.

04 www.viavito.com
14 The power of the machine increases
as speed increases, and vice versa.
The machine is equipped with an
adjustable knob which adjusts the
resistance. Reduce the resistance by
turning the adjustable knob towards
resistance setting stage 1. Increase the
resistance by turning the adjustable
knob towards the maximum stage.
15 The braking system is adjustable to
increase or decrease the load.
16 The maximum user weight is 120kg (265lbs).
17 WARNING: the safety level of the
machine can be maintained only if it is
examined regularly for damage and wear,
e.g. the pull strap, seat roller wheels, foot
pedals and straps, connection points.
18 Examine the machine carefully before
you use it, especially the components
most susceptible to wear, e.g. pull strap,
seat roller wheels, foot pedals and straps,
and connection points.
19 Stop using the machine immediately if
there are any defective components and
keep it out of use until you replace the
components or it is repaired by a
qualied engineer.
20 Use only original spare parts for any
necessary repairs.
21 Children should be kept away from the
machine at all times.
22 WARNING! Inappropriate use of this
machine such as while under the
inuence of drugs or alcohol, not in line
with instructions or excessive usage,
may result in serious injury or death.
WARNING: Before beginning using this
machine or doing any exercise program,
consult your doctor. This is especially
important for people over the age of
35 or those with pre-existing health
problems. Read all instructions
before using the rowing machine.
VIAVITO ASSUMES NO RESPONSIBILITY
FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH
THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
RECYCLING INFORMATION
Used electrical and electronic equipment (WEEE) should not be mixed with general
household waste. For proper treatment, recovery and recycling, please take this
product to designated collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your products to your
local retailer upon purchase of an equivalent new product. Disposing of this product
correctly will help save valuable resources and prevent any potential negative
eects on human health and the environment, which could otherwise arise from
inappropriate waste handling. Please contact your local authority for further
details of your nearest designated collection point. Penalties may be applicable
for incorrect disposal of this waste, in accordance with your national legislation
SAFETY STANDARDS
This equipment meets the requirements of European safety directives such as: the
Electromagnetic Compatibility (EMC) Directive and the Low Voltage Directive (LVD).

05
www.viavito.com
NOTE:
Most of the listed assembly hardware has
been packaged separately, but some hardware
items have been pre-installed in the identied
assembly parts. In these instances, simply
remove and reinstall the hardware as
assembly requires. Please refer to the
individual assembly steps and make a
note of all pre-installed hardware.
PREPARATION:
Before assembling, make sure that you will
have enough space around the item, and
please check whether all the parts needed are
included. To assemble, use the supplied tools.
It is strongly recommended that this machine
is assembled by two or more people to avoid
possible injury.
Machine Assembly.
Contents Checklist
PART NO. DESCRIPTION QTY
12 Bolt M2X155 2
14 Bolt M10X100 1
25 Bolt M10X95 1
2 Knob M10X25 1
10 Washer D13 2
8 Washer D10X2 4
35 Washer D10X2.5 1
9 Nut M10 2
70 Cap S17 2
15 Knob M16X1.5 1
Wrench (S17, S19) 2
Wrench (13, 14, 15, Ф5) 1

06 www.viavito.com
Assembly Instructions
Attention: Please follow these assembly instructions step by step
to assemble this rowing machine.
Step One.
Remove the cardboard tube from the
Main frame (1) and attach and tighten the
Front stabiliser (33) in its place using the
Carriage bolt (30), the Arc washer (31),
and the Cap nut (32).

07
www.viavito.com
Step Two.
1: Take o the Cushion stops (24), the
Screws (45) and the Plate (44), then
insert the Seat (18) onto the Rail (22),
and screw the Cushion stops (24)
back onto the Rail (22).
2: Tighten the Plate (44) to the Rail (22)
using the Screw (45).

08 www.viavito.com
Step Three.
Attach the Stand (29) to the Rail (22) using
the Hexagon bolt (25), the Knob (2), the
Flat washer (8), and the Nylon nut (9).
Remove the Screws (27) from the
Protective guard (28) and then attach
the Protective guard (28) to the Stand rail
(29) using these Screws (27).

09
www.viavito.com
Step Four.
1: Connect the Connection wire (46) to
the Sensor wire (36). Tighten the Rail
(22) to the Main frame (1) using the
Knob (2) and the Flat washer (35).
Fix the Hexagon bolt (14) in place
using the Flat washer (8), the Nylon nut
(9) and the Plastic cap (70). Then screw
in the Knob (15) at the side and the
Knob (2) at the rear.
2: Attach the Pedals (11) to the Main
frame (1) using the Bolt (12) and
the Flat washer (10).

10 www.viavito.com
Folding & Storage
The SUMI rower is foldable. Take extra care when folding or
unfolding the machine.

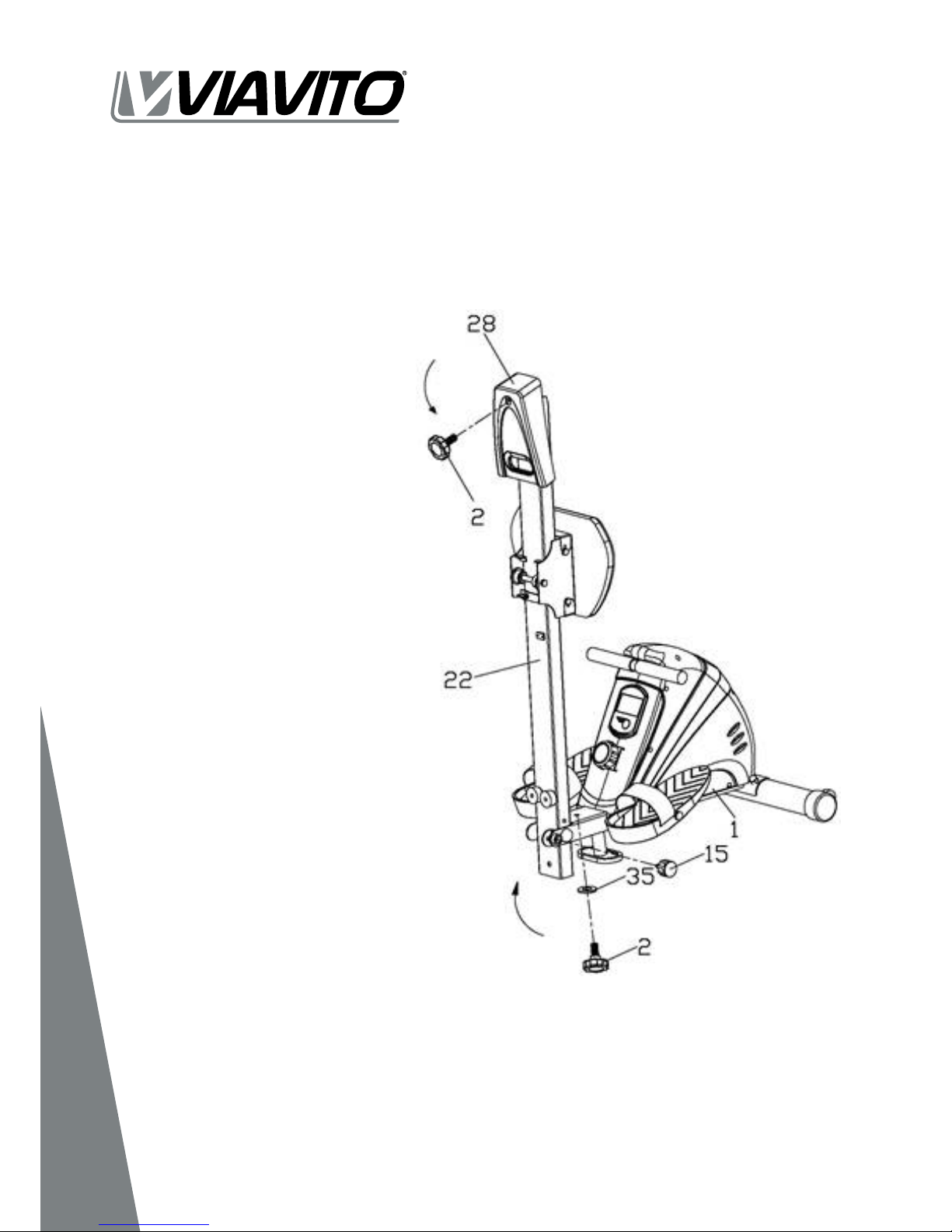

The machine can be folded when
not in use. First, take o the Knob
(2) and the Flat washer (35) that
attach the Rail (22) to the Main
frame (1). Loosen the Knob (15),
then lift the Rail (22) as shown.
Insert the Knob (2) and the Flat
washer (35) into the back of
the Rail (22).
Take o the other Knob (2), found
at the back end of the Rail (22),
and fold the Protective guard (28)
against the Rail (22), reinserting
this Knob (2) to x it in place.
PRODUCT WEIGHT 26.1KG

11
www.viavito.com
Console Instructions.

12 www.viavito.com
Button Functions
FUNCTIONAL BUTTON:
MODE - Push down to select functions
- Push down and hold for 2 seconds to reset all functional values,
except total count.
FUNCTIONS AND OPERATIONS:
SCAN
When in SCAN mode the bottom display row will rotate through the following functions:
time, total count, calorie, count/min, count and pulse if using a wireless heart rate
transmitter. Each display will show for 6 seconds.
DISTANCE
Top row displays rowing distance in kilometers (Km).
TIME
Displays rowing time from start to end of session.
TOTAL COUNT
Displays total rowing strokes from when the battery was installed.
CALORIES
Displays total calories from start to end of session.
COUNT/MIN
Displays current rowing strokes per minute, or the frequency per minute.
COUNT
Displays the number of rowing strokes from start to end of current session.
PULSE RATE
Press MODE until you reach PULSE and, when wearing a compatible wireless heart rate
transmitter, the meter will display your pulse rate.
AUTO ON/OFF & AUTO START/STOP
The system turns on when the button is pressed or when it senses an input from a
rowing stroke. The system automatically turns o 4 minutes after the last rowing
stroke or button press.

13
www.viavito.com
Specications
Operating Resistance Levels
Usage Safety Precautions
All data displayed is approximate guidance and cannot be used in any medical
application.
Heart rate displayed is an approximate read-out and may not be used as guidance
in any cardiovascular-related medical or paramedical program.
Resistance is increased or decreased by turning the resistance knob clockwise and
anti-clockwise respectively. Once resistance is set, start rowing to begin your workout.
• Always ensure that only one person at a time uses the machine.
• Never push too hard in your exercise. If you feel faint STOP EXERCISING IMMEDIATELY.
• Never use the machine when another person is standing within the free space as
shown in the diagram above.
• This product is not suitable for children.
FUNCTION
AUTO SCAN Every 6 seconds
DISTANCE 0.00-99.99KM
TIME 0:00 ~ 99.59 (MINUTES : Seconds)
TOTAL COUNT 0 ~ 9999
CALORIES 0 ~ 9999Kcal
COUNT/MIN 0 ~ 1200
COUNT 0 ~ 9999
PULSE (if have) 40-240BPM (beats per minute)
BATTERY TYPE 2pcs of SIZE-AA or UM-3
OPERATING TEMPERATURE 0°C~+40°C(32°F~104°F)
STORAGE TEMPERATURE 10°C~+60°C(14°F~168°F)

14 www.viavito.com
Storage and Maintenance.
Battery Replacement
1: Keep the rowing machine in a clean dry place indoors.
2: Grasp the frame to move the rowing machine. Do not use the seat to move it as the
seat will move and may injure your hand and ngers.
3: Remove the battery before storing the machine for a long time.
4: Clean the seat with an absorbent cloth.
5: Always make sure all nuts and bolts are properly tightened.
6: Regular maintenance is required.
7: Replace any worn or damaged parts immediately using only original spare parts.
Push the Clip at the bottom of the
Computer as shown and remove the
Computer from its hole, being careful
with the connective Computer Wire.

15
www.viavito.com
Conditioning Guidelines.
Why Exercise?
Exercise has been proven essential for good health and general wellbeing. Regular
exercise will:
• Relieve tension and stress
• Provide enjoyment and fun
• Stimulate the mind
• Help maintain stable weight
• Control appetite
• Boost self-image
• Improve muscle tone and strength
• Improve exibility
• Lower blood pressure
• Relieve insomnia
The following guidelines will help you to plan your exercise program and exercise safely.
Remember that proper nutrition and adequate rest are essential for successful results.
WARNING: Before beginning this or any other exercise program consult your doctor.
This is especially important for pregnant women and new mothers, all people over the
age of 35, and those with medical problems such as heart disease, high or low blood
pressure, injuries, joint problems, obesity and asthma.

16 www.viavito.com
Target Heart Rate
To train eectively you should aim to work in the heart rate zone appropriate to your
age as stipulated below. Please note this is a guide and your heart rate at rest and during
training is determined by your tness level and other lifestyle factors as well as your age.
If you reach the recommended beats per minute below and feel you’re over-exerting
yourself stop, rest and when you feel recovered return to exercise at a lower intensity.
AGE TRAINING ZONE - MIN - MAX (BPM)
20 133 - 167
25 132 - 166
30 130 - 164
35 129 - 162
40 127 - 161
45 125 - 159
50 124 - 156
55 122 - 155
60 121 - 153
65 119 - 151
70 118 - 150
75 117 - 147
80 115 - 146
85 114 - 144

17
www.viavito.com
Beginners Guide to Exercise
Workout Tips
If you’re beginning an exercise program for the rst time or starting a new exercise pro-
gram, you must check with your doctor that you are t to do so particularly if:
• You have been diagnosed with heart
problems, high blood pressure or other
medical conditions
• You have not exercised for over a year
• If you are over 35 and do not currently
exercise
• You are pregnant or are a new mother
• You have diabetes
• You have chest pain, or experience
dizziness or fainting spells
• You are recovering from an injury or
illness.
• Always perform a warm-up and stretching exercises before your work-out and a cool
down and stretching exercises at the end
• Start slowly and build up your time, speed and resistance gradually; doing too much
too soon can lead to injuries
• If you are sore or tired, give yourself a few extra days to recover.

18 www.viavito.com
How To Begin
How Hard Should You Work?
• Start with two or three 15-minute
sessions per week with a rest day
between workouts
• Warm-up for 5 to 10 minutes with gentle
movements incorporating the whole
body such as walking while swinging
your arms in a circle and then stretch the
muscles you’ll use during your work-out.
Seated cycling works mainly the
quadriceps (thighs) and hamstrings
• Increase the pace and resistance to
slightly harder than comfortable and
exercise for as long as you can. You
may only be able to exercise for a few
minutes at a time, but that will change
quickly when you exercise regularly
• End each workout with a 5-minute cool
down with the resistance set to a low
level. You should then stretch the
muscles you’ve just worked to develop
exibility, reduce muscle soreness and
prevent injury
• Increase your work-out time by a few
minutes each week until you can work
continuously for 30 minutes per session
• Don’t worry about distance or pace for
the rst few weeks, focus on endurance
and conditioning.
When exercising, you should try to stay within your target heart rate (THR) zone.
The table on the previous page will tell you the THR for your age.
Always be aware of how you feel when you exercise. If you feel dizzy or light-headed,
stop immediately and rest.

19
www.viavito.com
Tips For Stretching
• Begin with small mobility exercises of all
the joints e.g. simply rotate the ankles,
bend the knees and roll your hips.
Gradually make the movements larger
and faster. This will allow the body’s
natural lubrication (synovial uid) to
protect the surface of your bones
at these joints
• Always warm up the body before
stretching, as this increases blood ow
around the body, creating warmth which
makes the muscles more supple
• Start with your legs, and steadily work up
the body
• Each stretch should be held for at least
10 seconds (working up to 20 to 30
seconds) and usually repeated
about 2 or 3 times
• Do not stretch until it hurts. If there’s any
pain, ease o
• Don’t bounce. Stretching should be
gradual and relaxed
• Don’t hold your breath during a stretch
• Stretch after exercising to prevent mus-
cles from
tightening up
• Stretch at least three times a week to
maintain exibility.

20 www.viavito.com
Warm-Up and Cool-Down
A successful cardio-vascular exercise program consists of a full body warm-up, aerobic
exercise, and a cool-down. Do the entire program at least two and preferably three
times a week, resting for a day between workouts. After several months, you can
increase your workouts to four or ve times per week.
WARM-UP
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for ve minutes before strength-training or exercising aerobically. Perform
activities that raise your heart rate and warm the working muscles. Activities may include
brisk walking, jogging, jumping jacks, jump rope, and running on the spot. Try to
incorporate moves that take the joints through their full range of motion.
STRETCHING
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at
these times because of their elevated temperature, which greatly reduces the risk
of injury. Stretching develops exibility and reduces muscles soreness.
Stretches should be held for 15 to 30 seconds.
DO NOT BOUNCE OR OVER-STRETCH
Take your time in each stretch. Gradually take each stretch a little deeper on every out
breath to your personal maximum.
