Vibe qb69 User manual

Instruction Manual
To ensure maximum performance and safety,
please follow this manual. Please retain the
manual for future reference after installation

Introduction
This manual is for your safety and must be adhered to at all times, please read this manual and ensure that you fully
understand the installation and set up procedures explained in this manual before any work on the vehicle is attempted.
If you have any doubts about the installation of the VIBE QB69 speakers please contact your nearest authorised VIBE
dealer.
Contents
2 x QB69 speakers
2 x 2 way passive crossover units with speaker cable
2 x ABS grills
12 x mounting screws
1 x mounting template
Standard features
20% more cone area than conventional 6 x 9 speakers due to unique rectangular shape Ultra stiff IMPP injection moulded
polypropylene woofer cone. New aluminium POWER TWEETER delivers ultra extended high frequency response.
Subwoofer motor structure allows massive power handling and delivers boosted powerbassTM Separate screw down
input terminals for woofer and tweeter for maximum system flexibility. A new revised and unique grill design. The new grill
protects the speaker whilst showcasing their unique attributes and styling.
2 way passive crossover with speaker cable included.
WARNING
DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE - doing so may result in fire, shock or damage to the product.
BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL - failure to do so may result in
electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS - failure to make the correct connections may result in fire or damage to
the product.
DO NOT USE FUNCTIONS OF THIS EQUIPMENT THAT MAY TAKE YOUR CONCENTRATION AWAY FROM DRIVING YOUR
VEHICLE - do not set up your amplifier whilst driving, doing so may result in an accident. For prolonged setting up, make
sure that your vehicle is stationary and in a safe location.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE - failure to do this may result in an accident.
VIBE equipment is capable of producing sound levels that can permanently damage your hearing. VIBE recommends
caution when listening at high volume. For safe and enjoyable listening the sound should be comfortable and clear without
distortion.
CAUTION
Never connect any speaker lead to the car chassis. This can cause severe damage to your speaker /car radio /amplifier.
Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
Use caution when working near the fuel / hydraulic lines and electrical wiring.
Observe the correct polarity when wiring, improper phasing may cause a loss of bass response.
Ensure that no moving parts catch on the speaker or grill (e.g. window or door handles, or window glass inside the door)
Installation
The quality of the installation will affect the system performance and reliability.
Contact your nearest authorised VIBE dealer if you are unsure on the installation of this product.
Please mount this unit away from any potential hazards.
Minimising the length of wires will provide higher audio output from the system.
The speaker should be securely fastened to the mounting position using the screws provided.
Pre drill your mounting holes using a drill and position with the template provided.
Be sure to investigate your mounting area thoroughly for electrical wires, brake or fuel lines or fuel tank to prevent causing
any damage.
Firstly make sure that the speakers will fit in your chosen location. This may involve the removal of the standard vehicle
speakers. Please use the mounting depth and hole cut dimensions as detailed in this manual for guidance.

Before you begin please read all instructions that come with your power tools and wear all recommended safety equipment, also
remember the rule - measure twice cut once, please ensure that the QB69 will actually fit in its intended location as replacing
metalwork is a costly business.
●Find a suitable position for the crossover, this should not interfere with any moving parts of the vehicle.
●Please ensure that correct polarity is observed as incorrect wiring will result in poor sound quality and loss of bass
●The positive and negative lead of the crossover input must be connected to the positive and negative terminal of the amplifier.
●The woofer positive and negative lead of the crossover must be connected to the positive and negative woofer input terminal of
the QB69.
●The tweeter positive and negative lead of the crossover must be connected to the positive and negative tweeter input terminal
of the QB69.

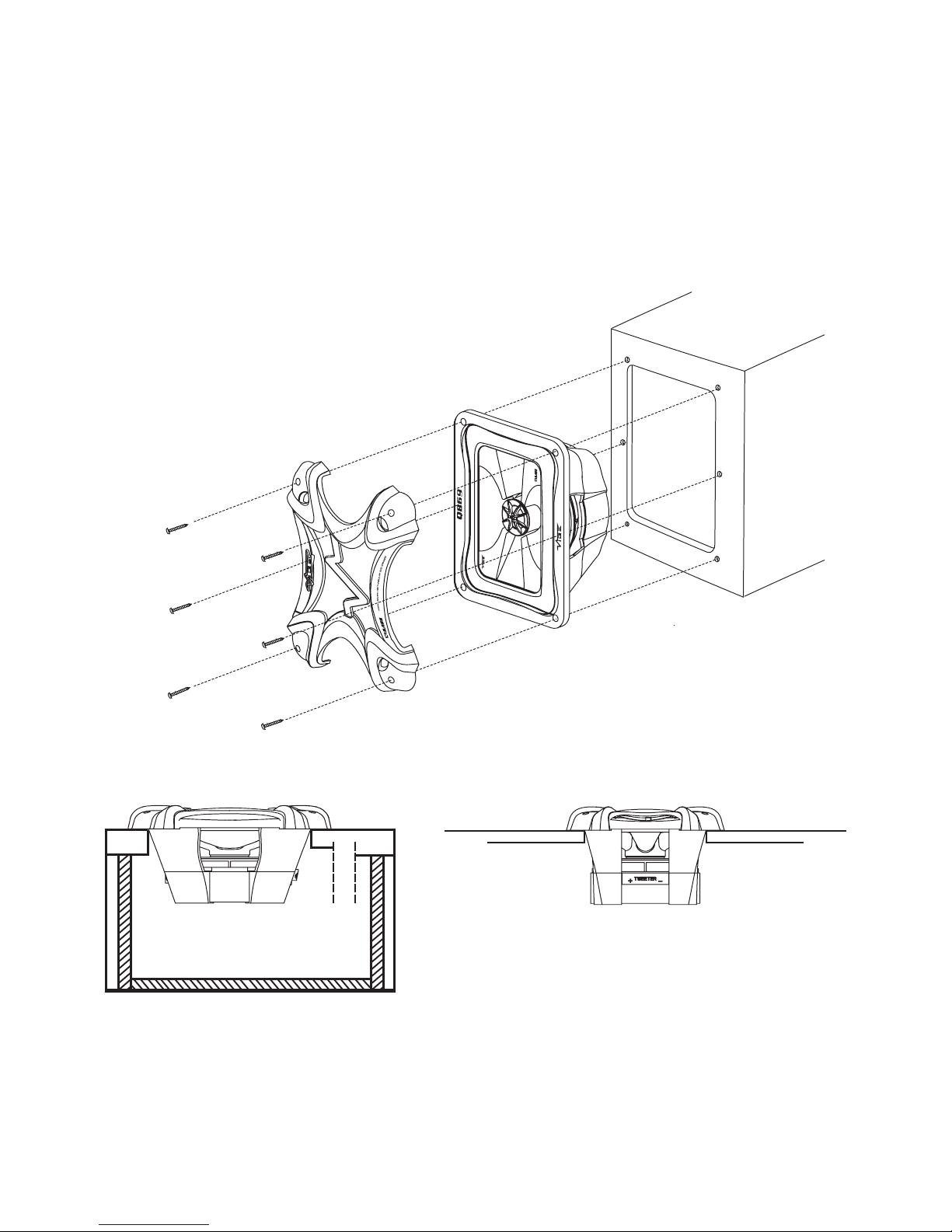

●Using the template provided, mark out with a pen the hole that is to be cut out of the aperture.
●Carefully cut out the mounting hole with an appropriate tool.
●Markout for the 6 mounting screw holes and pre drill if screwing into metal.
●Secure the2 side screws first and then fasten the 4 corner screws through the grill and the speaker to secure the speaker in
place.
Congratulations you have completed the installation of the VIBE QB69
Speakers can be enclosed ,
or mounted free air, For best results
ensure a rigid mounting surface.

In order to protect your purchase and aid your
warranty please fill in the following form and
keep it safe for your future reference:
Model Number:
Serial Number:
Purchased From:
Date of Purchase:
KEEP IT SAFE
Staple your receipt here:
Parameters
RMS Power = 200 watts
Peak Power = 600 watts
Miminum recommended amplifier input = 100 Watts RMS
Sensitivity = 93dB
Frequency response = 30Hz – 25KHz
Mounting cutout = 170mm x 220mm
Mounting depth = 100mm
Recv = 3.600 ohms
Fo = 45.272 Hz
Sd = 28.400 mm
Vas = 31.383 ltr
Cms = 274.008 u M/N
Mmd = 31.081 MKg
Mms = 33.833 g
Bl = 7.032 Tm
Qms = 2.368
Qes = 0.809
Qts = 0.503
Levc = 191.015 uH
No = 0.536%
SPLo = 89.3.8dB
