Vicon SurveyorVFT SVFT-M User manual

Vicon part number 8009-8157-15-01 Section 3 Rev 209
XX157-15-01
SVFT-M Maximum Security
Camera Dome
Warning: To reduce a risk of fire or electric shock, do not expose
the indoor unit to rain or moisture.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2009 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
SurveyorVFT and Kollector are trademarks and ViconNet a registered trademark of Vicon Industries Inc.
ExView is a trademark of Sony Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: www.vicon-cctv.com

Important Safeguards – Outdoor Use
GRAPHIC SYMBOL EXPLANATION
The lightening bolt symbol alerts the user to the presence of
dangerous voltage that may present the risk of electric shock.
The exclamation point symbol alerts the user to the presence of
important operating and maintenance instructions.
1. Read Instructions - Read all safety and operating instructions
before the product is operated.
2. Retain Instructions - Retain all safety and operating
instructions for future reference.
3. Heed Warnings - Pay attention to all product warnings.
4. Follow Instructions - Follow all operating instructions.
5. Cleaning -(Do not use caustic, abrasive or aerosol
cleaners)
a) For units that CAN BE DISCONNECTED from the power
source, use a damp cloth for cleaning.
b) For units that CANNOT BE DISCONNECTED from the
power source, use a damp cloth for cleaning and do not
allow moisture or liquids to enter vents.
6. Attachments - Use only UL Listed Vicon recommended
attachments to prevent unit damage and personal injury.
7. Water and Moisture - Use only products designed for outdoor
environments where they will be exposed to water or moisture.
8. Accessories - Do not place the unit on an unstable surface to
avoid falling. Use only UL Listed Vicon recommended mounting
accessories.
9. Ventilation - Do not block ventilating slots and openings as
they ensure reliable operation. Do not place the unit near a heat
source or into an enclosure unless recommended by Vicon.
10. Power Sources - The product should only be operated from
the recommended power source. Use only a UL Class 2
indoor/dry or Class 3 outdoor/wet power supply.
11. Grounding - Only products equipped with a 3-prong
grounded plug should be inserted into a grounded power outlet.
Contact an electrician to replace an obsolete outlet. Do not force
a plug into a non-grounded outlet.
12. Power Cord Protection - Power supply cords should not be
routed in trafficked areas or in tight spaces where they will be
pinched or used to bear weight. Allow some slack in the cord
where it enters the unit.
13. Outdoor Cable Grounding - Use only grounded outdoor
cables to protect against voltage surges and static charges.
Section 810 of the National Electrical Code, ANSI/NFPA 70-1984,
provides information on proper grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors and the
requirements of grounding electrodes.
14. Lightning - Disconnect the product from its power source and
cable system when possible to prevent damage due to lightning
and power-line surges.
15. Power Lines - Do not locate outside cables over power or
utility lines where they can fall and make direct contact. Contact
with power lines can be fatal.
16. Overloading - Do not overload wall outlets and extension
cords to prevent risk of fire and electric shock.
17. Object and Liquid Entry - Never probe through, or spill liquid
into, enclosure openings to prevent risk of fire or electric shock.
18. Servicing - Refer all servicing to qualified service personnel.
19. Damage Requiring Service - Obtain service when:
a) The power-supply cord or plug is damaged.
b) Objects have fallen or liquid has been spilled into the
product.
c) The product is not designed for outdoor use and has been
exposed to water or moisture.
d) The product does not operate per the operating instructions.
Perform Vicon recommended adjustments, modifications and
troubleshooting only to avoid unit damage and personal
injury.
e) The product has been dropped.
f) The product shows a significant change in performance.
20. Replacement Parts - Use only Vicon specified replacement
parts or an approved equivalent to prevent unit damage and
injury.
21. Safety Check - Request safety checks to be performed
following repair or maintenance to verify proper operation.
22. ESD Precaution - Take all normal electrostatic discharge
precautions to avoid component damage during installation and
operation.
23. For 230 VAC Devices Only - When the disconnect device is
not incorporated in the equipment or when the plug on the power
supply is intended to serve as the disconnect device, follow the
guidelines below:
a) For permanently connected 230 VAC units, a readily
accessible disconnect device must be incorporated into the
site wiring.
b) For 230 VAC units with a plug, the outlet must be installed
near the unit and be easily accessible.
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System0BImportant Safeguards – Outdoor Use •3

FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television
reception. It has been type tested and found to comply with the limits for a Class A computing device in
accordance with the specification in subpart B of part 15 of the FCC rules, which are designed to provide
reasonable protection against such interference in a commercial installation. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning equipment off and on, the user is encouraged to
try and correct the interference by one or more of the following measures:
•Reorient the receiving antenna.
•Relocate the equipment with respect to the receiver.
•Relocate the equipment away from the receiver.
•Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge

XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System •iii
Contents
INTRODUCTION...................................................................................................................1
How to Use this Manual.................................................................................................................................3
Accessory Kits................................................................................................................................................4

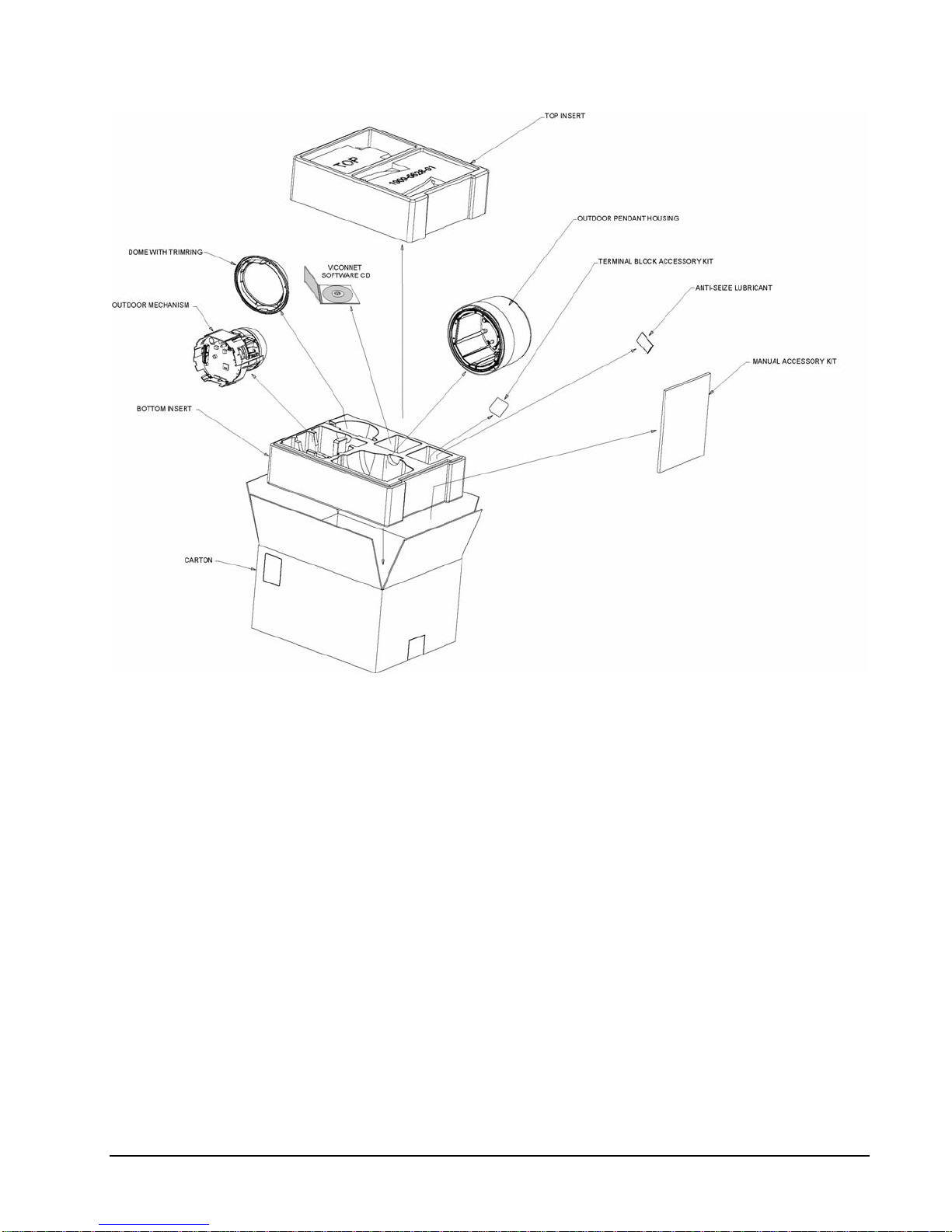

Unpacking and Inspection.............................................................................................................................4
SVFT-M Components.....................................................................................................................................6
Housing.....................................................................................................................................................6
Camera Drive............................................................................................................................................6
Shroud.......................................................................................................................................................6
Lower Dome..............................................................................................................................................6
Sunshield...................................................................................................................................................6
INSTALLATION....................................................................................................................8

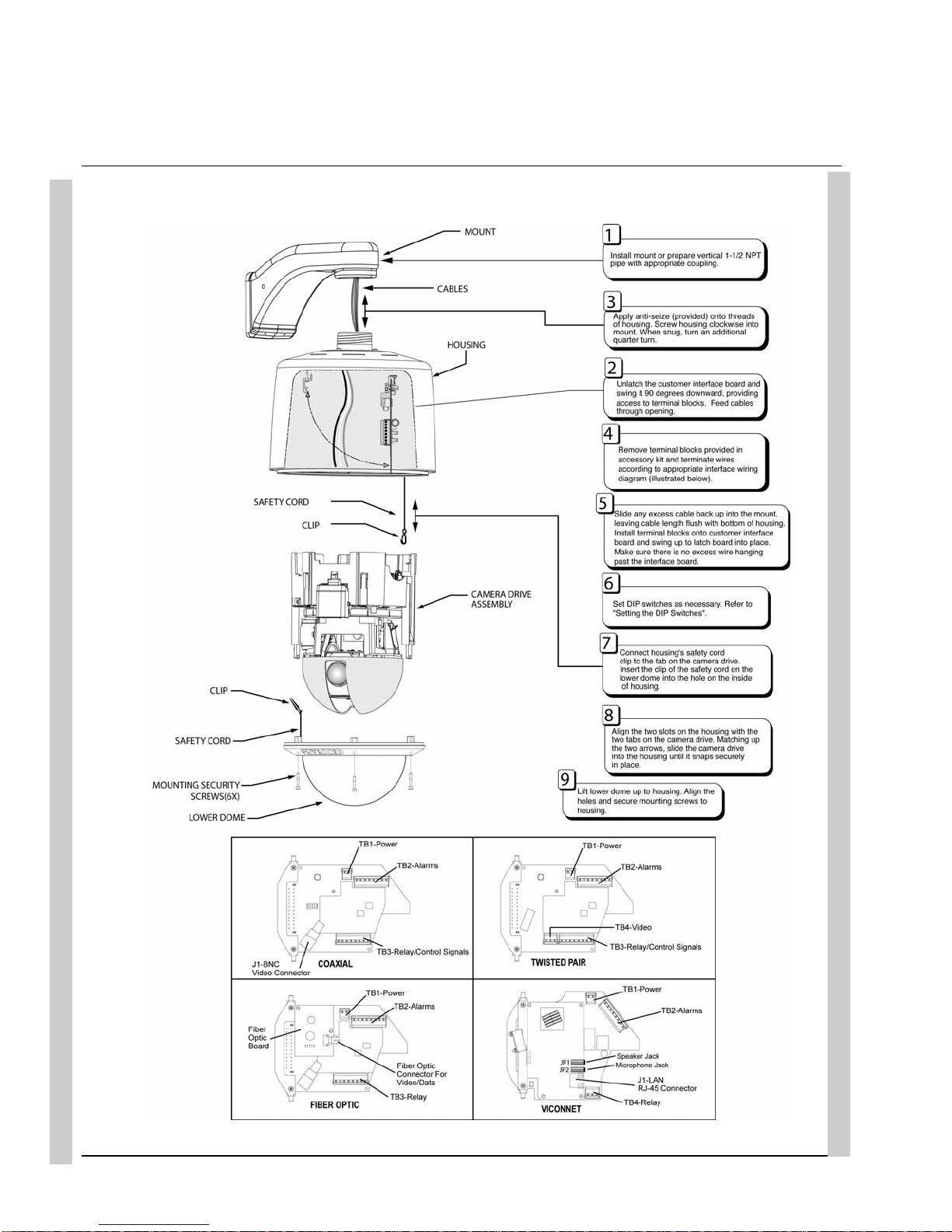

Quick Installation............................................................................................................................................8
Detailed Installation .......................................................................................................................................9
WIRING...............................................................................................................................14
Typical Relay and Alarm Connections.......................................................................................................16
Installing the Cables ....................................................................................................................................17
Installation Configurations..........................................................................................................................21
Installing the Flash Upgrade and PC Direct Control ................................................................................22
Standalone Configuration...........................................................................................................................22
Star Configuration.......................................................................................................................................23
CONFIGURATION..............................................................................................................25
Setting the DIP Switches.............................................................................................................................25
For RS-422/485 Mode:............................................................................................................................25
For Vicoax Mode:....................................................................................................................................25
Setting the End-of-Line Jumpers JP1, JP2 & JP3 for RS-485 Protocol Operation ................................28
Configuring the ViconNet (IP/LAN) Version................................................................................................28
Configuring the Network Settings ...........................................................................................................29
Using the VNSetup Utility....................................................................................................................29
ViconNet Configuration...........................................................................................................................35
ViconNet (IP/LAN) Version Operation........................................................................................................36
UNINSTALLING THE SVFT-M...........................................................................................37

OPERATION......................................................................................................................38
Initial Power-Up ......................................................................................................................................38
Verifying Proper Operation.........................................................................................................................39
Testing Preset 93.......................................................................................................................................39
Use of the Auto-Baud Detect Feature........................................................................................................39
Troubleshooting...........................................................................................................................................40
COMPETITIVE PROTOCOLS............................................................................................ 41
Testing Conditions..................................................................................................................................41
MAINTENANCE................................................................................................................. 49
Care and Cleaning of Polycarbonate Domes............................................................................................49
Fuse Replacement.......................................................................................................................................49
SHIPPING INSTRUCTIONS............................................................................................... 50
REFERENCE ..................................................................................................................... 51
Coaxial Cable Recommendations..............................................................................................................51
Twisted-Pair Cable.......................................................................................................................................52
1.5-inch Pipe Designation...........................................................................................................................52
Network Cable..............................................................................................................................................53
TECHNICAL INFORMATION............................................................................................. 54
VICON STANDARD EQUIPMENT WARRANTY............................................................... 58
iv •2BContents XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System

Introduction
The information in this manual covers the installation, configuration and operation of the SurveyorVFT
SVFT-M Camera Dome. This system should only be installed by a qualified technician using common hand
tools and approved materials and wiring methods in accordance with the National Electrical Code
ANSI/NFPA 70, state and local wiring codes.
NOTE: Read all instructions before beginning any installation.
The SVFT-M SurveyorVFT Maximum Security Camera Dome (SVFT-M) is a compact, lightweight intelligent
security device comprised of a camera, pan/tilt drive, receiver and CPU-based electronics all in an attractive
and covert rugged enclosure. The SVFT-M offers a rugged, tamperproof, IP66-rated housing for the Camera
Dome consisting of an all metal housing and an impact-resistant polycarbonate lower dome. SVFT-M can be
programmed and operated using any V1300X/V1400X/1500 series of NOVA communication devices and
enhanced Vicoax II protocol. Refer to Table 1 for a complete list of model numbers.
The basic SVFT-M provides video transmission over coaxial cable. Options are available that provide TCP/IP
(ViconNet), fiber-optic and twisted-pair (UTP/NVT) video transmission. Each of these options includes an
interface board that allows the specific type of video transmission. An appropriate receiver is required for
UTP/NVT and fiber optic versions. The ViconNet option provides support for direct network connection to
Kollector Elite Digital Video Recorders and ViconNet Workstations via ViconNet Version 5 software. A pre-
installed LAN interface board allows direct plug-in to a system network hub, switch or router. Video from the
camera is available to all network recorders and workstations for live view and recording. The Vicon SVFT-M
camera dome can be used in conjunction with competitive PTZ drivers through DIP switch selection. Audio
input capability is available on the ViconNet version.
The SVFT-M is designed for easy snap-in installation. The drive simply snaps into the housing. When
removed, the housing retains all programmed functions in its on-board memory. The customer interface
board snaps down for easy access and the PCB provides removable terminal blocks for simple wiring
connections. Several mounting accessories are available to fit almost any installation need.
There are four camera types available, each with NTSC and PAL versions. The basic model is a 22X high-
resolution camera/lens. Another 22X model is available with ExView CCD technology (22XEX). The third
version is a 23X day/night camera/lens with wide dynamic range. The fourth version is a 35X day/night
camera with image stabilization and wide dynamic range. See Technical Information for camera features.
Refer to tables below for specific model numbers and options available. Call your Vicon representative for
model availability. All versions use the same firmware for programming and operation. For programming,
refer to the most recent version of SurveyorVFT Programming Manual XX134-4X. The SVFT-M Camera
Dome is compatible with the SVFT-UWM and SVFT-WM Wall Mounts, SVFT-UCM Ceiling Mount, SVFT-
URM-1 Roof Mount and SVFT-UPM-1 Parapet Mount.
SVFT-M meets requirements for an FCC Class A computing device. SVFT-M complies with the fire code of
certain local municipalities. The fire code for any given municipality should be verified for SVFT-M’s
compliance at the installation site.
The electronic components within the SVFT-M are sensitive to damage from ESD (Electro-Static Discharge).
Appropriate precautions and proper use of a ground strap should be observed at all times when handling the
unit or its subassemblies.
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 3BIntroduction •1

Table 1
Models and Descriptions
Model Number Product
Code Environment/ Cable Type Camera Type/Format Mount Type Optical Zoom/ Total Zoom Lower Dome Type
SVFT-M22 8747-00 Outdoor/Coax Color/NTSC Pendant 22x/264x Clear
Polycarbonate
SVFT-M22-C 8747-01 Outdoor/Coax Color/PAL Pendant 22x/264x Clear
Polycarbonate
SVFT-M22E 8748-00 Outdoor/Coax Color/NTSC Pendant ExView
22x/264x Clear Polycarbonate
SVFT-M22EC 8748-01 Outdoor/Coax Color/PAL Pendant ExView
22x/264x Clear Polycarbonate
SVFT-M23 8749-00 Outdoor/Coax Color/NTSC
(day/night) Pendant 23x/276x Clear Polycarbonate
SVFT-M23C 8749-01 Outdoor/Coax Color/PAL
(day/night) Pendant 23x/276x Clear Polycarbonate
SVFT-M35 9104-00 Outdoor/Coax Color/NTSC
(day/night) Pendant 35x/420x Clear Polycarbonate
SVFT-M35C 9104-01 Outdoor/Coax Color/PAL
(day/night) Pendant 35x/420x Clear Polycarbonate
For the ViconNet (V5) option, add -75 to the product code (-76 PAL); for Fiber Optic (F) option, add -30 to the
product code (-31 PAL); for the Twisted Pair (T) option, add -40 to the product code (-41 PAL).
Power Table
Power*
(W) Current Rating (A)
Model Number Coax, UTP, Fiber ViconNet Coax, UTP, Fiber ViconNet
SVFT-M22/
SVFT-M22-C 44 54 1.8 2.3
SVFT-M22E/
SVFT-M22EC 44 54 1.8 2.3
SVFT-M23/
SVFT-M23C 44 54 1.8 2.3
SVFT-M35/
SVFT-M35C 44 54 1.8 2.3
*Power @ 24 VAC
2 •3BIntroduction XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System

How to Use this Manual
This manual was designed to provide the best overall instructions for the installation and operation of the
SurveyorVFT Maximum Security Camera Dome. The graphics and terminology used in this manual have
been carefully selected to enable a clear and distinct understanding of the SVFT-M and its components. This
manual has been formatted to present distinct methods of installation for qualified service personnel only.
For a quick overview of product installation, see the Quick Installation sub-section of the Installation section.
Follow the references provided in the text for items such as wiring tables, DIP switch settings and lower dome
care. Refer to the subsequent sections of Installation, Wiring, Configuration and Operation for detailed
descriptions of any method.
The Operation section of this manual was written using the available features in the latest revision of the
SurveyorVFT software. The actual version of software may vary in any particular camera dome and support
different features than actually described here.
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 3BIntroduction •3

Accessory Kits
There are 3 different accessory kits included with the different configurations of SVFT-M; Standard/Fiber-
Optic Option, Twisted Pair (UTP/NVT) Option and ViconNet (LAN/TCP/IP) Option. These kits provide the
necessary items for installation as follows:
Standard/Fiber-Optic Versions
Description Quantity
8-position terminal block (1302-3313-02) 2
2-position terminal block (8004-8084-02) 1
Twisted Pair Version Description Quantity
8-position terminal block (1302-3313-02) 2
2-position terminal block (8004-8084-02) 1
3-position terminal block (1302-3313-01) 1
ViconNet Version Description Quantity
8-position terminal block (1302-3313-02) 1
2-position terminal block (8004-8084-02) 1
3-position terminal block (1302-3313-01) 1
NOTE: A packet of anti-seize lubricant and a security bit are included in all the housing accessory kits.
Refer to the Wiring section of this manual for details on using the supplied removable termination blocks. The
scribe is supplied to accurately measure the opening for the in-ceiling model. The lubricant is used for sealing
and to prevent galling at the end of the 1.5-inch NPT pipe on the outdoor pendant model. Refer to the outdoor
pendant model sub-section of the Installation section for details on applying the lubricant.
Unpacking and Inspection
All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to
provide suitable delivery.
Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then,
obtain the carrier agent’s signature and file a damage claim as soon as possible.
Open the cartons and inspect the equipment for damage. Save the cartons and packing material. If damage
is present, contact the carrier and file a damage claim immediately. If the equipment must be returned for
repair, follow the instructions in the Shipping Information section of this manual.
4 •3BIntroduction XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System

Unpacking the SVFT-M
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 3BIntroduction •5

SVFT-M Components
All SVFT-M units are comprised of a Rugged Housing, a Camera
Drive, a Shroud and a Lower Dome. Figure 1 shows these
components.
Figure 1
SVFT-M Components
Housing
The housing for the SVFT-M has a die-cast aluminum housing with a
sunshield. The housing has a 1.5-inch NPT pipe flange mount. In
addition, the housing is equipped with a safety cord and clip that is
used to suspend the camera drive during installation. Another safety
cord connects the lower dome to the housing. A customer interface
board, that can be unlatched or removed for easy access, is installed in
the top of the enclosure. All wiring is done to this board.
Camera Drive
The camera drive is comprised of an integral camera, pan-and-tilt drive
and CPU. It is designed for easy “snap-in” installation into the
enclosure or housing. The camera drive quickly and accurately
positions the camera in 360°of pan angle and 95°of tilt angle. There
are variations in camera type for magnification and color or day/night
usage. An additional thermostatically-controlled heater is provided for
temperature control on outdoor units.
Shroud
The shroud is a 5.4 in. (137 mm) textured black ABS plastic shell. It
has a 1.4 in. (35.6 mm) slotted opening for the camera. This shroud
conceals the position of the camera and snaps onto the camera drive.
Lower Dome
The lower dome is an assembly comprised of a 5.98 inch (152 mm)
diameter polycarbonate plastic shell, a trim ring and a safety cord.
Lower domes are clear and use 6 screws for additional support. All
lower domes are anchored to the enclosure by the safety cord. Refer to
the Maintenance section for care.
Sunshield
The sunshield is pre-installed over the housing to minimize the effects
of solar radiation.
6 •3BIntroduction XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System

XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 3BIntroduction •7

Installation
Quick Installation
8 •4BInstallation XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System
Q
U
I
C
K
I
N
S
T
A
L
L
A
T
I
O
N
Q
U
I
C
K
I
N
S
T
A
L
L
A
T
I
O
N

Detailed Installation
These steps provide the most thorough and accurate instructions
The SVFT-M model mounts on a Vicon mount (refer to the Introduction section) or a 1.5-inch vertical pipe
with appropriate coupling. The pipe is a standard 1.5-inch NPT type and must be oriented vertically so the
SVFT-M can effectively hang from the pipe. The unit includes a sunshield, heater and weather protection.
Overview
The mount is installed with all the cables run through it or the 1.5-inch NPT pipe is prepared with lubricant for
the housing and the SVFT-M installation. The cables are routed through the housing and the housing is
screwed tightly to the pipe. Then the customer interface board is wired. The SVFT-M housing is hung from
the housing safety cord. Failure to do so could cause damage to unit or be a safety hazard. The SVFT-M
drive is then carefully snapped into the housing. The entire SVFT-M is supported by the mount. The lower
dome is then snapped on and screwed tight to the SVFT-M. See Figure 2. Detailed installation instructions
will follow.
The accessory kit contains the removable terminal blocks to be used for connections in this installation. The
mount must provide a support of suitable strength for the SVFT-M weight of 9.6 lb (4.4 kg).
1. Install the mount in accordance with the installation manual included with the mount or prepare the
vertical 1.5-inch NPT pipe.

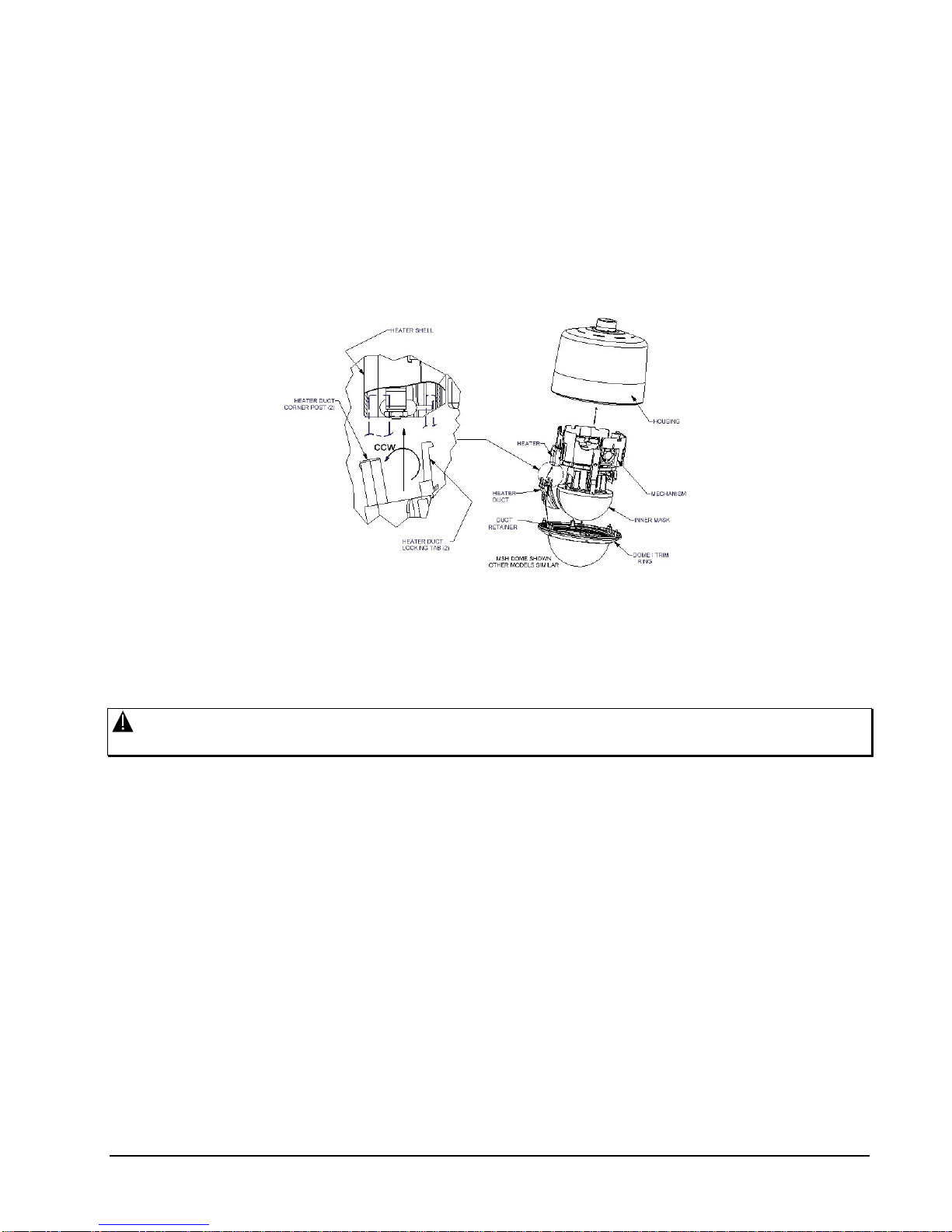

Figure 2
Exploded View
2. Feed all necessary cables through the back of
the mount or out the end of the
1.5-inch NPT pipe.
3. Unlatch and rotate the customer interface board
90º downward to provide access to the terminal
blocks. (The board can be completely removed if
necessary by snapping it out of the hinge after
rotated to the 90º downward position.)
4. Apply the provided anti-seize lubricant to the first
2-3 unpainted threads of the housing.
5. Lift the sunshield/housing up to the mount and
feed the cables through its top opening.
6. Place the housing onto the 1.5-inch pipe and
screw clockwise, looking up at the housing.
When it becomes snug, turn it an additional
quarter-turn.
7. If using an alternate mounting configuration that
uses an external 1-1/2-in. pipe thread, a coupling
adapter is required. Repeat steps 4, 5 and 6.
Apply a watertight silicone (or equivalent) sealant
after installation to avoid leakage. Refer to
Alternate Mounting Configuration figure.
8. Remove terminal blocks from the accessory kit. The 2-pin is for power, the two (2) 8-pin are for alarms
and control/relay; the 3-pin is for UTP option. Terminate all the cables as follows:
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 4BInstallation •9

a) Strip approximately 1 inch (25 mm) of the cable outer jacket to be terminated in terminal blocks TB1
and TB3. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire.
b) Refer to Wiring section and Table 2 to
make all connections to terminal block TB1
(power), TB2 (alarms), TB3 (relays/control
signals) and TB4 UTP video). On TB3, the
COMMAND IN + (CI+) and COMMAND IN
- (CI-) connections must be used for
Simplex operation. For Half Duplex
operation, the additional signals
RESPONSE OUT + (RO+) and
RESPONSE OUT - (RO-) must also be
used. Insert each wire into its proper
terminal block location and tighten the
screw.

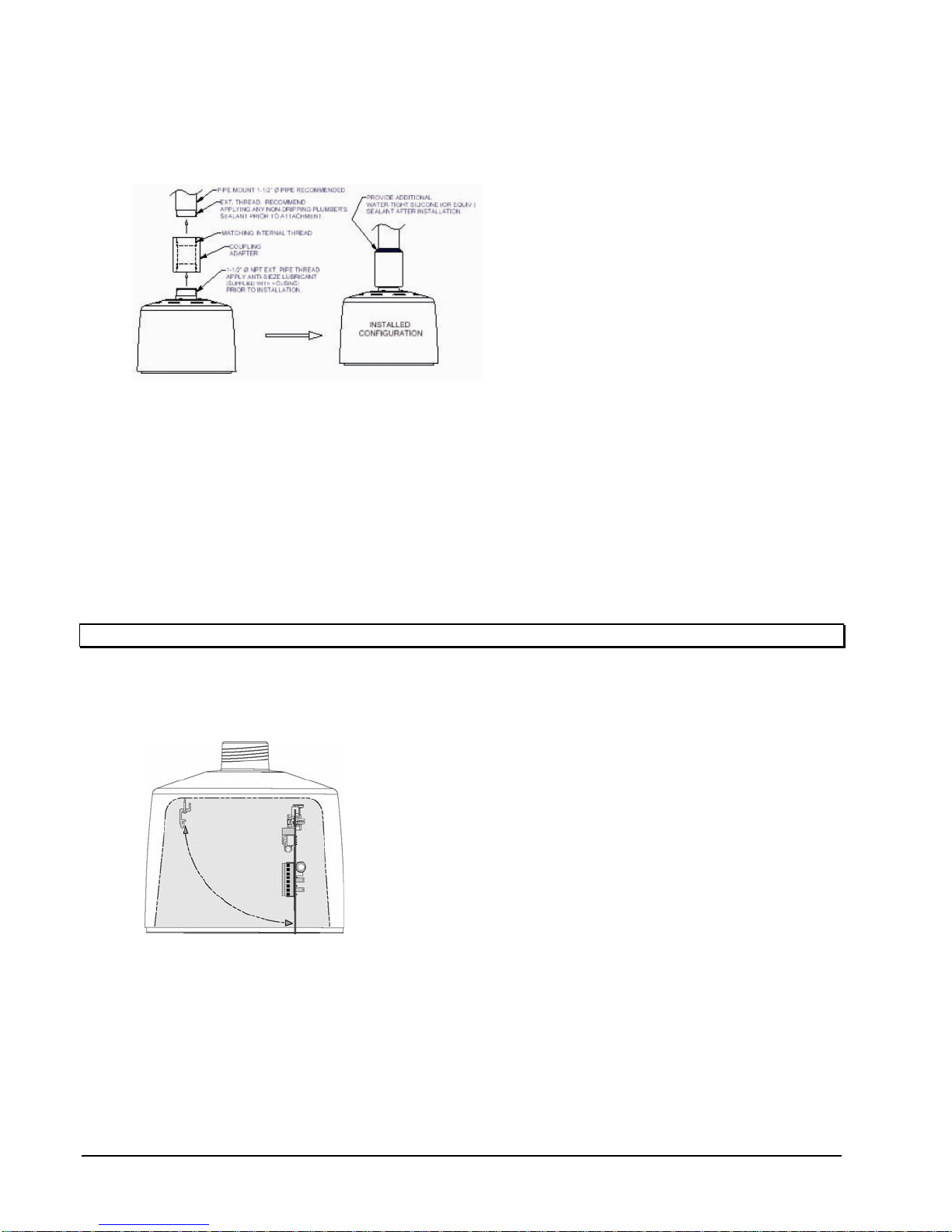

Alternate Mounting Configuration
c) Terminate the video (coaxial) cable with a
BNC type male connector, if not previously
done. Refer to Wiring section for video
connections for fiber-optic or ViconNet
optional video transmissions.
d) Terminate the 8-conductor alarm cable or communication/relay cable.
9. Slide excess cable back up into the mount/pipe so that cable length is flush with the bottom of the
housing, approximately 8 - 9 inches (203 - 229 mm).
Note: There should be minimal wire slack at all connection points.
10. Install the terminal blocks TB1, TB2, TB3 and TB4 into the Customer Interface Board at the proper block
frames. Install the video BNC cable connector to the Customer Interface Board’s mating BNC connector
at location J1 (for coax installations) or connect twisted-pair video wires to screw terminal TB4 (for UTP
installations). Refer to the Wiring section for video connections for fiber-optic and ViconNet versions.
Figure 3
Unlatching the Customer Interface
Board
11. Swing the customer interface board back into place. If
interface board was completely removed, be sure to
reinstall it correctly, with the white connector near the wall
of the enclosure. Refer to Figure 3. After wiring is complete,
dress cables up over board
12. Configure the SVFT-M communication/protocol and
address DIP switches on the main board at this time. Refer
to the Setting the DIP Switch section of this manual.
10 •4BInstallation XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System

13. Install the provided optional heater duct (recommended to minimize condensation problems). It is used to
redirect warm air onto the lower dome surface. The duct snaps directly into the heater shell. Rotate the
duct slightly counter-clockwise and insert the duct locking tabs into the heater shell. Refer to Figure
below. Squeeze the tabs by slightly pushing the duct against the heater shell and inserting the corner
posts into the heater shell. Push the duct vertically into the shell until it can’t go anymore, incurring that
the edges of the duct and heater shell are aligned. The dome/trim ring assembly includes a retainer.
When this is attached to the upper housing, it fits into the tabs on the heater duct, locking the duct in
position. For the duct to work properly, fan operation must be set to Defog mode. Refer to the
SurveyorVFT Programming Manual, XX134-4X, for instructions on menu selections.
Heater Duct Installation
14. Lift the SVFT-M camera drive up to the housing and attach the housing’s safety cord clip to the camera
drive’s tab. See Figure 4. Allow the drive to hang from the housing. Insert the clip of the safety cord from
the lower dome into the hole on the inside of the housing. See label inside housing.
15. Align the tabs on the camera drive with the slots in the housing, matching up the two arrows on the
camera drive and the housing.
WARNING: Cables having excessive slack can cause damage to the SVFT-M when installed into the
housing.
XX157-15-01 Rev 209 SVFT-M Maximum Security Camera Dome System 4BInstallation •11

16. Push the camera drive straight up
into the housing until it snaps into the
housing. Do not use excessive force.
In the event that it does not snap
easily, remove the SVFT-M and
verify proper cabling.

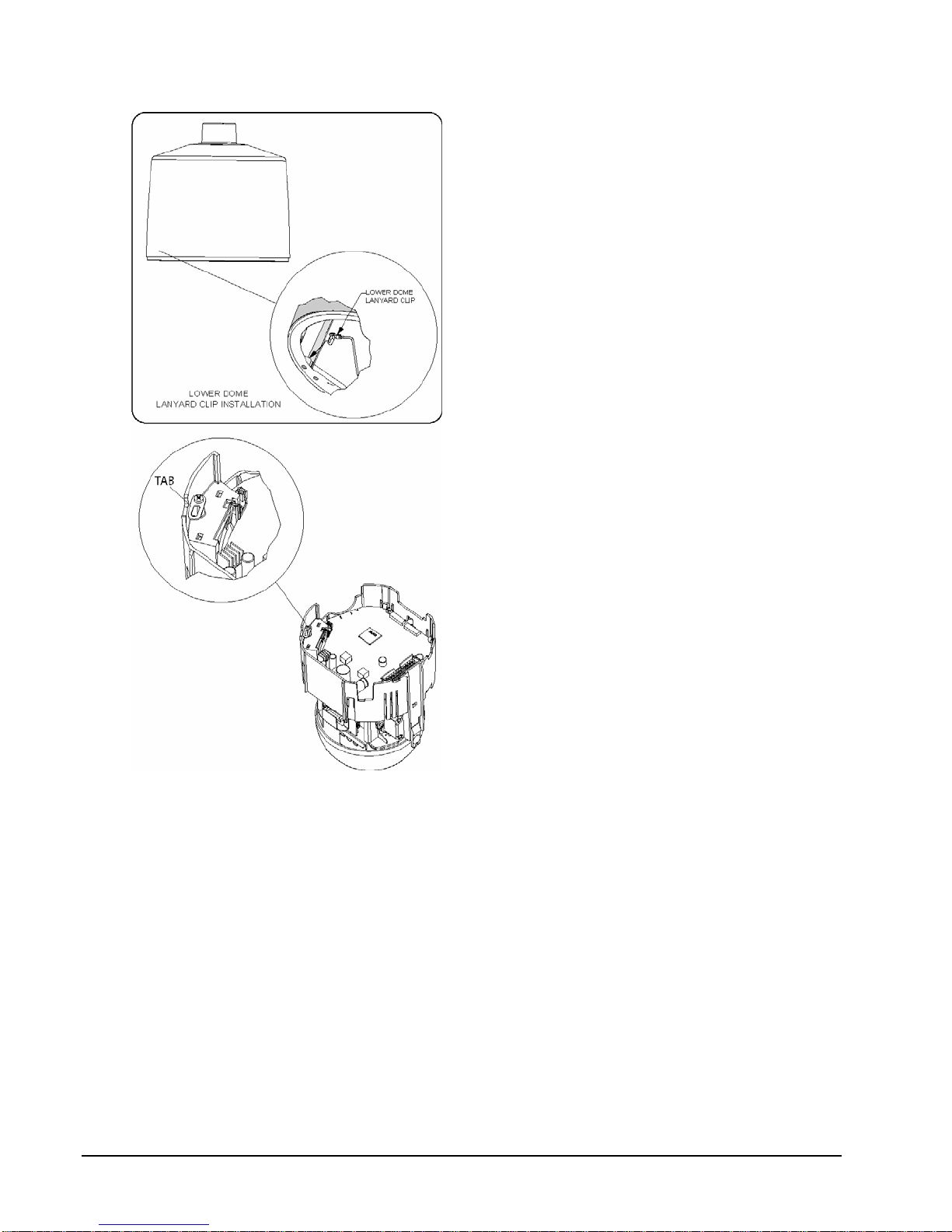

Figure 4
Installing the Safety Cords
17. Holding the lower dome, line up the 2
molded tabs on the lower dome with
the 2 parallel surfaces of the housing.
Push the lower dome up and verify
that it snaps into place on both sides.
See Figure 5.
18. Tighten the 4 trim ring captive screws
to hold the lower dome in place.
Verify proper orientation of the
grommet.
19. Proceed to the Operation section of
this manual.
