Vicon VICOAX V1961VCR-1 User manual

X356
MODEL V1961VCR-1 AND V1961VCR-2
VICOAXÒRECEIVERS
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788-9633
TELEPHONE: 516-952-CCTV (2288) FACSIMILE: 516-951-CCTV (2288)
TOLL FREE: 1-800-645-9116 UK: 44/(0) 1489-566300 INFOFAX: 1-800-287-1207

V1961VCR-1 AND V1961VCR-2 Instruction Manual
V1961VCR-1 AND V1961VCR-2
Vicoax Receivers
Copyright © 1998 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Vicon Part No. 8006-8356-05-00 Section 10 Rev 598

Dear Valued Customer:
Thank you for selecting Vicon systems and products for your
video needs.
Since Vicon’s beginning in 1967, our only business has been the
design, engineering, and production of the highest quality video systems
and equipment for use in a wide variety of security, safety, control,
surveillance, and communication applications.
We stand behind the quality and dependability of every product
with an industry leading Beneficial Use warranty.
If you are not satisfied with a Vicon product or service, I would
like to know. Your complete satisfaction is the mission of every Vicon
employee.
Sincerely,
Kenneth M. Darby
President

FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
It has been type tested and found to comply with the limits for a Class A computing device in accordance with
the specification in subpart B of part 15 of the FCC rules, which are designed to provide reasonable protection
against such interference in a commercial installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the equipment with respect to the receiver.
• Relocated the equipment away from the receiver.
• Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge.

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Contents •
••
•i
Contents
Introduction......................................................................................................................... 1
Installation .......................................................................................................................... 3
Unpacking and Inspection............................................................................................................................ 3
Inspection for Visible Damage...................................................................................................................... 3
Inspection for Concealed Damage............................................................................................................... 3
Installation Preparation................................................................................................................................. 3
Installing and Wiring the Receiver............................................................................................................... 4
Operation ............................................................................................................................ 7
Maintenance........................................................................................................................ 9
Printed Circuit Boards................................................................................................................................... 9
Fuse Replacement......................................................................................................................................... 9
Shipping Instructions....................................................................................................... 10
Reference.......................................................................................................................... 11
Technical Information.................................................................................................................................. 12

ii •
••
•List of Figures X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers
List of Figures
Figure 1
Cable Entry Location .........................................................................................................................................4
Figure 2
Location of Adjustable and Replaceable Parts...............................................................................................5

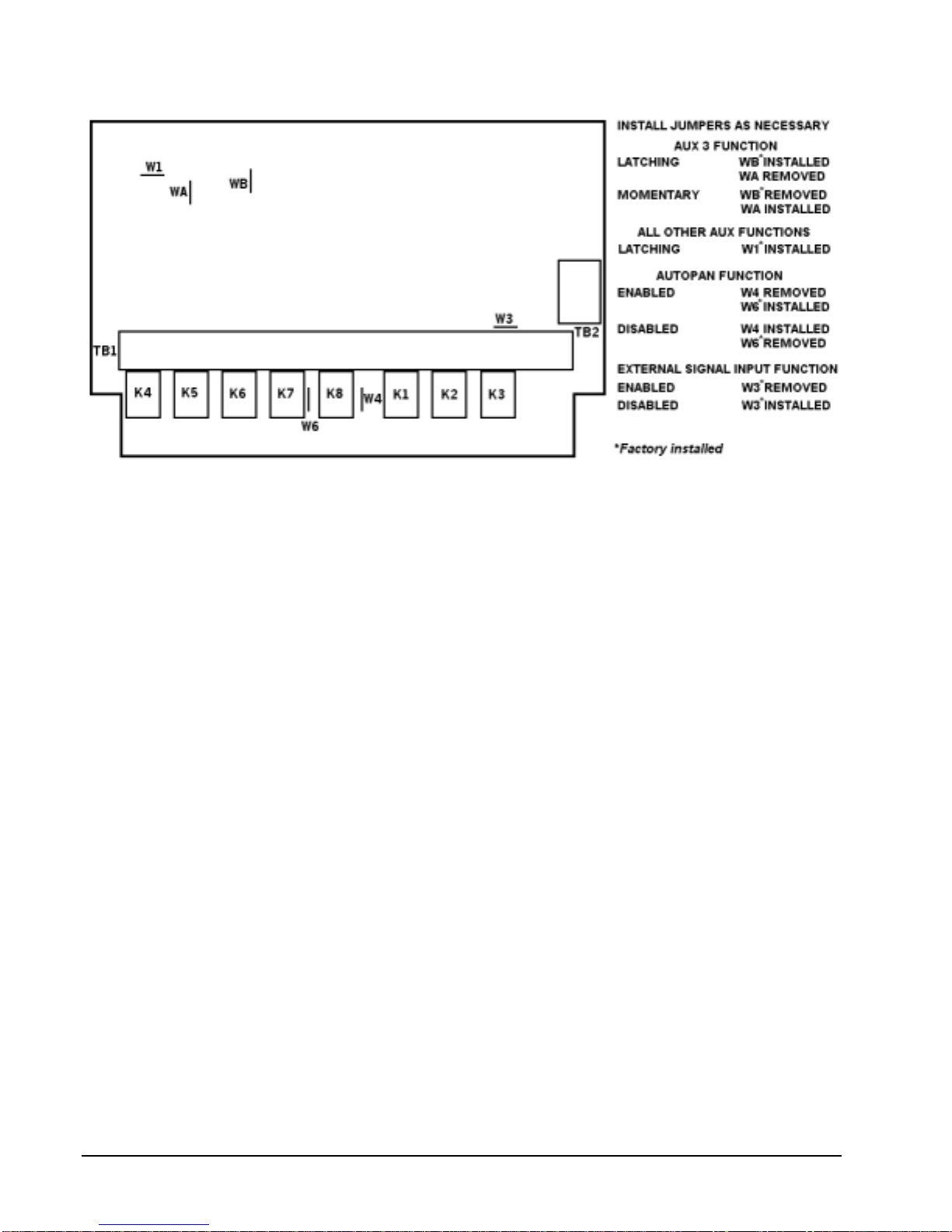

Figure 3
Location of Jumpers..........................................................................................................................................6

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Important Safeguards •
••
•iii
Important
Safeguards
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the unit.
1. Read Instructions - All the safety and operating
instructions should be read before the video product is
operated.
2. Retain Instructions - All the safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the video product
and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Cleaning - Step aapplies to equipment that can be
disconnected from the CCTV system without seriously
jeopardizing security. Step b applies to equipment that
must operate continuously such as video switching
equipment at military installations.
a. Disconnect this video product from its power
source before cleaning. Do not use caustic,
abrasive, or aerosol cleaners. Use a damp cloth for
cleaning.
b. Use a damp cloth to clean the equipment. Do not
allow moisture or liquids to enter any vents. Do not
use caustic, abrasive, or aerosol cleaners.
6. Attachments - Do not use attachments not
recommended by Vicon as they may cause hazards.
7. Water and Moisture - Do not use this video product
in any location where it may be exposed to water or
moisture. This does not apply to outdoor camera
housings, outdoor pan-and-tilt drives, and other
equipment designed for direct exposure to outdoor
environments.
8. Accessories - Do not place this video product on
any unstable surface or table. The video product may
fall, causing serious injury to a person and serious
damage to the video product. Use only with a mounting
accessory recommended by Vicon, or sold with the video
product. Any mounting of the video product should
follow Vicon’s instructions, and a mounting accessory
recommended by Vicon should be used.
9. Ventilation - Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the video product and to protect it from overheating,
and these openings must not be blocked or covered.
The openings should never be blocked by placing the
video product on a rug or other similar surface. This
video product should never be placed near or over a
radiator or heat register. This video product should not
be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or Vicon’s
instructions have been adhered to.
10. Power Sources - This video product should be
operated only from the type of power source indicated
on the marking label. If you are not sure of the type of
power supplied to your installation site, consult your
Vicon dealer or local power company. For video

iv •
••
•Important Safeguards X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers
products intended to operate from battery power, or
other sources, refer to the operating instructions.
11. Grounding - This applies to video products
equipped with a 3-wire grounding-type plug, a plug
having a third (grounding) pin. This plug only fits into a
grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
12. Power-Cord Protection - Power supply cords
should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the video product.
13. Outdoor Cable Grounding - If an outside cable
system is connected to the video product, be sure the
cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Section 810 of the National Electrical Code,
ANSI/NFPA 70-1984, provides information with respect
to proper grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode.
14. Lightning - For added protection for this video
product when it is not used for long periods of time,
disconnect it from its power source and from the cable
system. This prevents damage to the video product due
to lightning and power-line surges.
15. Power Lines - An outside cable system should not
be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an
outside cable system, extreme care should be taken to
keep from touching such power lines or circuits as
contact with them might be fatal.
16. Overloading - Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock.
17. Object and Liquid Entry - Never push objects of
any kind into this video product through openings as
they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never
spill liquid of any kind on the video product.
18. Servicing - Do not attempt to service this video
product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
19. Damage Requiring Service - Disconnect this video
product from its power source and refer servicing to
qualified service personnel under the following
conditions. Note that step cdoes not apply to outdoor
camera housings, outdoor pan-and-tilt drives and other
equipment specifically designed for direct exposure to
outdoor environments.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the video product.
c. If the video product has been exposed to rain or
water.
d. If the video product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an improper adjustment of other
controls may result in damage and will often require
extensive work by a qualified technician to restore
the video product to its normal operation.
e. If the video product has been dropped or the cabinet
has been damaged.
f. When the video product exhibits a distinct change in
performance - this indicates a need for service.
20. Replacement Parts - When replacement parts are
required, be sure the service technician has used
replacement parts specified by Vicon or that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
21. Safety Check - Upon completion of any service or
repairs to this video product, ask the service technician
to perform safety checks to determine that the video
product is in proper operating condition.

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Introduction •
••
•1
Introduction
The information in this instruction manual covers the installation and maintenance of the V1961VCR-1 and
V1961VCR-2 Vicoax receivers. Throughout this manual, the term V1961VCR refers to all models unless
otherwise stated. This unit should only be installed by a qualified technician using approved materials and
wiring practices in accordance with national, state, and local wiring codes. Read these instructions thoroughly
before beginning an installation.
Vicoax is a digital remote control system designed for use in short-range CCTV applications. Built for
reliability and cost-effectiveness, this system transmits control signals over the video coaxial cable, eliminating
the need for expensive cable runs.
Model V1961VCR Vicoax receiver is designed for use with Vicoax Control Systems. Vicoax systems transmit
video and control information over a single cable. This receiver is an integral part of the complete system.
The system consists of a control transmitter located at the control site and a receiver located at the remote
station. The transmitter sends encoded signals for various control functions over a video coaxial cable to the
receiver. The receiver then decodes the signals into commands that operate the equipment at the remote
station. Transmitters and receivers may both be cascaded in a Vicoax system. Cascading multiple receivers
requires the use of a passive video switcher such as the V1404L.
The V1961VCR may be used with either the V1902VCT or the V1119VCT Vicoax Control Transmitter. The
V1902VCT has a built-in bidirectional amplifier that increases the usable distance between it and the
V1961VCR. Refer to the Reference section, Table A, of this manual for maximum operating distances. The
V1961VCR does not offer preset-position, autoiris, or variable-speed operation, so those functions on the
V1902VCT may not be used. The V1961VCR can accommodate a variety of supply voltage inputs and pan-
and-tilt drive outputs. Models are available for 120 VAC or 230 VAC input with 24 VAC or 120 VAC pan-and-
tilt drive outputs. Refer to the Technical Information section of this manual for specific models. A heater
option, model V1960VCR-H, is available to provide the interior of the housing with thermostatically controlled
temperature. The V1961VCR is housed in an enameled steel case that provides excellent protection from
radio-frequency interference (RFI) and from electromagnetic interference (EMI) in general. The V1961VCR
complies with UL standard 1409, the requirements for an FCC Class A computing device and NEMA
standards for fire safety. Models V1961VCR-1-230 and V1961VCR-2-230 comply with European Community
EMC Directive 89/336. The product was subjected to the testing outlined In the European Normalization
Standard EN 50081-1 (Electromagnetic Compatibility - General Emissions Standard Part 1: Residential,
Commercial and Light Industry), and EN 50082-1 (Electromagnetic Compatibility - Generic Immunity Standard
Part 1: Residential, Commercial, and Light Industry).
Fiber optics provides a very effective method of maximizing the transmission distance of the Vicoax system
while immunizing the signal from electrical disturbances or radio-frequency interference. The V2750-1 fiber-
optic transmission system is designed for use with Vicoax. A complete fiber-optic link requires one V2750T-1
transmitter and one V2750R-1 receiver. These are available in either standalone or rack-mounted model
variations. The V2750T-1 transmitter is located at the camera station, while the V2750R-1 is located with the
transmitter. A single coaxial cable carries both control and video to and from the V2750T-1 and V2750R-1.

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Installation •
••
•3
Installation
Unpacking and Inspection
All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to
deliver the equipment in the same condition as it left the factory.
Inspection for Visible Damage
Immediately inspect the cartons upon delivery. On all copies of the carrier’s freight bill, make a note of any
visible damage.
Make sure the carrier’s agent (the person making the delivery) signs the note on all copies of the bill. If the
agent does not have claim forms, contact the carrier’s office.
Inspection for Concealed Damage
As soon as possible after delivery, unpack the unit and inspect it for concealed damage. Do not discard the
carton or packing materials. If the unit is damaged, contact the carrier immediately and request forms for filing
a damage claim. Make arrangements for a representative of the carrier to inspect the damaged equipment.
If the equipment must be returned for repair, follow the Shipping Instructions at the end of this manual.
Installation Preparation
The V1961VCR must be used in conjunction with a Vicoax transmitter. Refer to instruction manual X735 for
the V1902VCT and X482 for the V1119VCT. The V1961VCR has two UHF video connectors used for the
loop-through of the video signal. See Figure 1. Barrier-type screw terminal blocks are provided for the wiring
of the pan-and-tilt, lens, power, and auxiliary functions.
An information label is affixed to the inside cover of each V1961VCR. See Figure 2. Refer to the label to
ensure proper installation and connection between the receiver and the remote units.

4 •
••
•Installation X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers
Installing and Wiring the Receiver
1. Mount the receiver box to a wall, or other vertical structure, near the camera to be controlled. The
maximum operating distance between the receiver and the camera station is determined by the particular
pan-and-tilt drive and motorized lens. Refer to the instruction manuals for the motorized lens and pan-
and-tilt units to establish this distance.
Caution: The receiver box must be positioned with the cable entry fittings facing downward and protected
from exposure to moisture when mounted outdoors. In addition, all unused cable entries must be
covered and moisture protected to prevent internal damage to the receiver.
Caution: The receiver must be properly grounded to ensure proper operation and protection.
2. Open the receiver by loosening the four captive screws and raise the hinged cover.
3. Route the receiver cables through the appropriate fittings and inside the box to the screw terminal block.
Refer to Figure 1.
Figure 1
Cable Entry Location
Note: The cable fittings accommodates 0.27 in. (0.69 cm) to 0.48 in. (1.22 cm) diameter cables.
4. Unscrew the domed sealing nut of each cable entry fitting used. Slip the nut over the cable, threads
facing the cable end, and slide the nut approximately 20 in. (51 cm) from the end of the cable. Feed the
cable through the cable entry fitting and tighten the domed sealing nut to firmly compress the compression
gland and secure the cable.
5. Strip approximately 6 in. (15 cm) of the outer cable covering. Strip 0.4 in. (1.0 cm) of insulation from each
wire and form a small loop of bare wire for terminal screw placement.
6. Wire TB1 according to Figure 2.
7. Set switch S1 to the closed position for RS-170 cameras and to the open position (1) for all other
cameras. See Figure 2.

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Installation •
••
•5
Figure 2
Location of Adjustable and Replaceable Parts
8. Connect a video cable from the camera video out to one of the two receiver video connectors. See
Figure 1.
9. Connect a video cable from the transmitter video in to the remaining receiver video connector. See
Figure 1.
Caution: All video lines must be properly terminated at 75 ohms for proper operation.
10. Install or remove jumpers as necessary for pan-and-tilt drives or auxiliary functions. The V1961VCR is
packaged with jumpers WB, W1, W3 and W6 installed. To disable the autopan function, install jumper
W4 and remove W6. To use an external signal input, connect the signal input to the appropriate TB1
“ACK” terminals and remove jumper W3. To enable a latching or momentary AUX 3 output, WB or WA,
respectively must be installed (WB comes installed). For momentary AUX 3 output, remove WB and
install WA. Do not install both WB and WA together. Refer to Figure 3.
11. If the receiver requires a heater, install the Heater and Thermostat Assembly option in accordance with
Instruction X424.
12. Connect the AC power source leads to receiver terminal block TB2. See Figure 2.
13. Close the receiver by folding over the hinged cover and tightening the four captive screws.

6 •
••
•Installation X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers
Figure 3
Location of Jumpers

X356 Rev 598 V1961VCR-1 and V1961VCR-2 Vicoax Receivers Operation •
••
•7
Operation
The Vicoax Control System is operated by the transmitter. Refer to the instruction manual for the transmitter
operating instructions.
