Victorio VKP1144 User manual

VICTORIO
ICE SHAVER
VKP1144
Instruction Manual

Table of Contents
Parts Diagram...........................................................................................1
Safety Instructions ...................................................................................2
Operating Precautions.............................................................................3
Product Overview....................................................................................3
Product Specications.............................................................................3
Care Instructions......................................................................................4
Use Instructions .......................................................................................4
Helpful Tips..............................................................................................5
Warranty/Contact Info ........................................................ Back Cover
*For the most up-to-date manual, or for more information regarding
this product, visit our website: www.Victorio.info.
Copyright © 2013 Victorio Kitchen Products. All Rights Reserved.

1

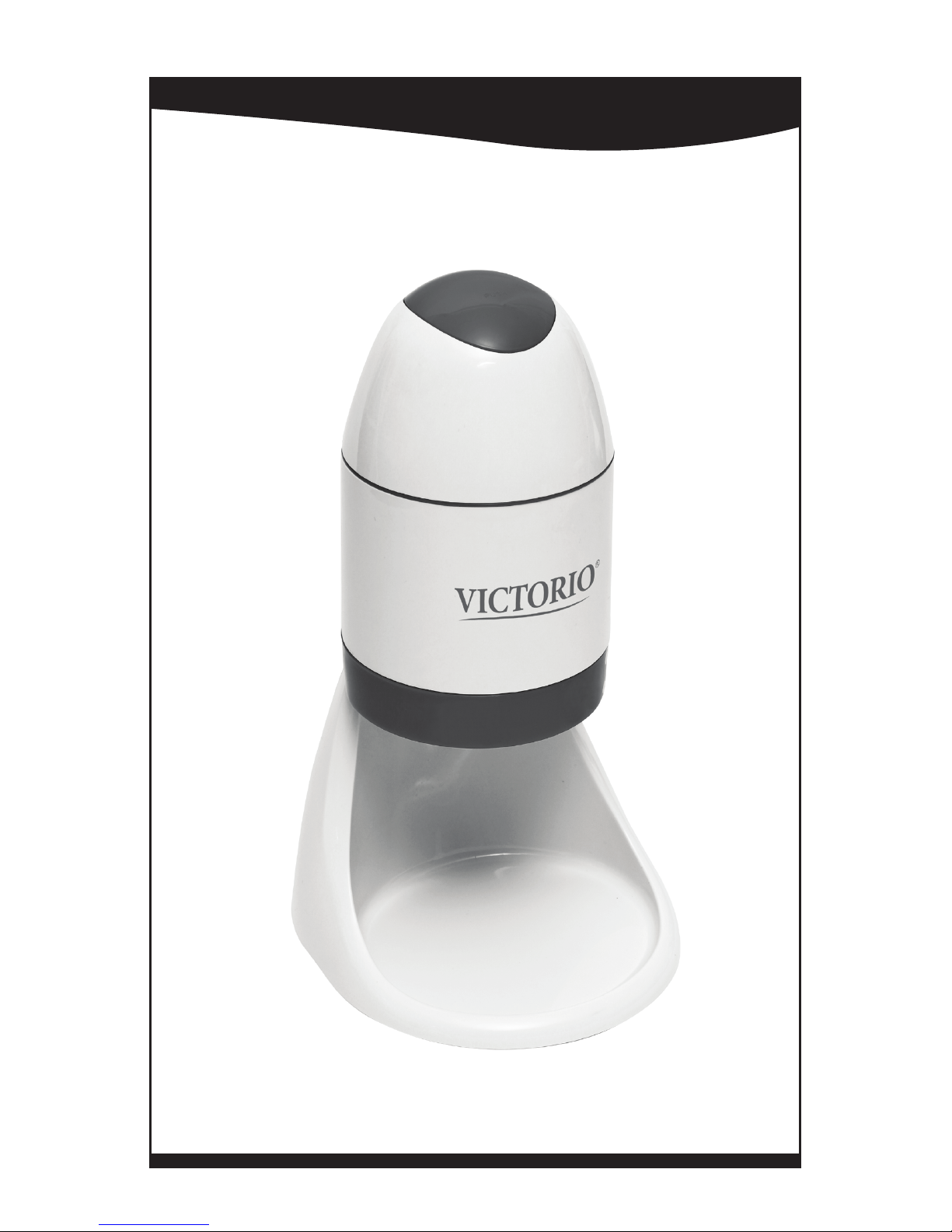

Victorio Ice Shaver
Model VKP1144
Parts Diagram:
Your complete Ice Shaver includes everything shown below:
Parts List:
(1) Electric Motor Unit- Not Sold Separately
(2) Ice Shaver Base - Not Sold Separately
(3) VKP1144-1 - Stainless Steel Blade
(4) VKP1144-2 - Ice Mold
(1)
(2)
(3)
(4)

2
IMPORTANT SAFETY INSTRUCTIONS
WARNING! - Failure to follow these safety
instructions correctly will lead to a risk of re, electric
shock or personal injury.
SAVE THESE INSTRUCTIONS
When using electric appliances, basic precautions should always be
followed, including the following:
• Read and follow all instructions before operating the motor.
• Do not operate if the cord or plug is damaged, or after the appliance
malfunctions, or is dropped or damaged in any way. Return the
appliance to the manufacturer for examination, repair, or electrical or
mechanical adjustment.
• Do not disassemble. The motor must be serviced by qualied
technicians only.
• To disconnect the motor, release the top switch, then remove the plug
from the outlet.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not
the cord.
• Do not leave the motor plugged in when not in use and before
servicing or cleaning.
• Do not use the motor unit on anything other than ice.
• To reduce the risk of electric shock, do not immerse the motor in water
or other liquid. Do not place or store the motor where it can fall or be
pulled into a tub or sink.
• Not for use by or near children.
• Do not contact any moving parts and keep all hair, clothing and any
other objects away from the motor while in use.
• Make sure the motor is placed on top of the ice shaver base properly
before operating.
• Do not use outdoors.
• This appliance is for household use only.

3
Operating Precautions
Read and follow ALL instructions and warnings before
operating your Ice Shaver for the rst time. If certain
precautions are not taken, damage to the Ice Shaver and/or
personal injury could result.
• Never put any foreign objects into the Ice Shaver. Small rocks or pieces
of metal could damage the blade and motor.
• Never put ngers near the shaving blade.
• Do not set the Ice Shaver near or on stove tops, sinks or tubs.
• Never operate the Ice Shaver if any parts are missing or damaged.
• Do not clean any part of the Ice Shaver in a dishwasher.
• Do not immerse the top motor unit in water.
• Not intended for use by children.
• For household use only.
Product Overview
Congratulations on your purchase of the Victorio Ice Shaver! It will be
a very valuable tool in your kitchen. Create soft, uffy shaved ice for
beverages, food platters and desserts of any kind. You’ll nd shaved ice to
be a very versatile ingredient. The procedure is simple and you’ll love how
fast it is.
Caring well for your Ice Shaver will help it last, so be sure to read through
all the instructions contained in this manual before using it for the rst
time.
Product Specications
The Ice Shaver comes with a stainless steel shaving blade that is replaceable.
The ice molds are made of a polyethylene plastic material that is food safe
and recyclable. The motor specications are as follows:
• 120V
• 60Hz
• 55W

4
Care Instructions
To ensure your Ice Shaver works properly at all times, please follow the care
and handling instructions below:
1. Before using your Ice Shaver wash all ice molds in warm, soapy water
and wipe down the base with a damp cloth. This removes any residue
left over from manufacturing and packaging.
2. Use caution near the shaving blade, as it is very sharp and could
cause serious injury.
3. Follow the steps above after each subsequent use, and before storage.
4. Never place any part of the Ice Shaver in the dishwasher.
Use Instructions
Follow steps 1-10 when using ice molds. Follow steps 4-10 when using ice
cubes.
1. Fill the ice mold with water until it is 1/4” from the top.
2. Place the mold on a at shelf in your freezer, so the water freezes as
level as possible. This will help during the shaving process.
3. Once the water has frozen, turn the ice mold upside down on the top
of the Ice Shaver base (see diagram 1). If it doesn’t readily fall out, run
the outside of the mold under warm water until the ice block releases
from the plastic.
4. When using ice cubes, do not overll the ice chamber. Leave at
least 1/2” space between the ice and the top of the chamber.
5. Place the motor unit gently on top of the Ice shaver base (see diagram
2). Center the motor and hold it in place rmly with one hand while
pressing down on the top switch with the other hand (see diagram 3).
6. It is normal for the motor to move slightly in your hands as the ice is
shaved. When using ice cubes it will move even more. In either case,
keep the motor centered on the base while in use.
7. As you press down, the ice will continue to be shaved, until you release
the switch, or the motor unit reaches the bottom.
8. There will be a thin disk of ice remaining (when using the ice molds) in
the bottom of the ice chamber when the motor is done shaving. This
is intentional in order to protect the motor from the shaving blade. If
ice cubes are used, there will be small pieces of ice left in the bottom
instead.

5
9. Be sure to have a bowl ready to catch the shaved ice (see diagram 4).
10. For storage, clean all parts of the Ice Shaver as recommended in the
“Care Instructions” on p. 4. Place the unit in the original product
packaging and store in a cool, dry area, away from direct sunlight,
moisture and extreme temperatures.
Helpful Tips
• Use fruit syrups on shaved ice to make homemade snow cones and
slushes.
• For a healthy frozen treat, freeze 100% juice in the ice molds or ice
cube trays. Frozen juice shaves easier than regular ice and produces a
soft uffy snow cone, free of articial sweeteners.
• Use shaved ice to keep vegetable, fruit and seafood platters cold while
entertaining guests.
• For crystal clear ice, freeze distilled water in the ice molds or ice cube
trays instead of tap water.
• Use ice cubes when you want coarsely shaved ice.
• Use the ice molds when you want ne, uffy shaved ice.
134
2

Product Warranty
Model VKP1144 - Ice Shaver Warranty: 1 year
We are condent in the quality of our products and back each
one with a limited warranty for the length of time specied above.
Should you experience any problems with your product, please
contact our Customer Service Department.
All warranty claims must be accompanied by a proof of purchase
and are only valid if the appliance has been operated within the U.S.
or Canada and used for its intended purposes. These products are
for household use only.
Items Not Covered:
• Return shipping costs or returned items lost in transit.
• Damages to the product due to accident, misuse, abuse,
negligence, or if the appliance has been altered in any way.
• Products used outside of the United States or Canada.
Victorio Kitchen Products
1804 Sandhill Rd
Orem UT, 84058
By Phone: [phone]
By Email: [e-mail]
www.Victorio.info
© Copyright 2013 Victorio Kitchen Products, Inc. All rights reserved.
