VideoComm Technologies EV-L1R2409D1 User manual

It’s About Real-Time
Wireless Elevator Video System
EV-L1R2409D1
OWNER’S MANUAL
VideoComm Technologies
[phone] US Toll Free
[phone] Phone
[phone] Fax
www.VideoTransmitters.com

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
2
Table of Contents
SAFETY NOTICES.……………………………………………………………………………………………………....3
INTRODUCTION……..…………………………………………………………………………………………………..4
Advantages.....….………………..…..……………………………………………….……………...4
PRE INSTALLATION…………………………………………………………………………………...……………….5
Site Evaluation….………………..…..……………………………………………….……………...5
Tools Required…….………..……….……………………………..……………………………...…6
Camera Parts List………..…………..…………………………………………………………….…7
Parts List………………………………………………………….…………………………..………8
Preparing Camera for Installation…...…………………………………………………………….....9
CORNER-MOUNT CAMERA INSTALLATION………………………………...………………………………….10
Corner-Mount Camera Installation….……………………………………………………………....11
ADJUSTING CAMERA FOCUS & TILT…...………………………………………………………………………...12
SECURING CAMERA FACEPLATE……….……………………………………………………………………...…13
SECURING POWER & VIDEO CABLES TO CAB………..…………………………….…………………………..14
OPENING & CLOSING THE ALL WEATHER ENCLOSURE……………………….………………..…………..15
MOUNTING THE TRANSMITTER……...…………………………………………………………………………....16
INSTALLATION APPLICATION DIAGRAMS……...……………………………………………………………....17
VIDEO & AUDIO CABLE TERMINATION................…...………………………………………………………….18
POWER SUPPLY CONNECTION...............................……...……………………………………………..…………19
PAIRING TRANSMITTER & RECEIVER.................……...……………………………………………..…………19
VIDEO LOSS INDICATOR..........................................……...……………………………………………..…………19
MOUNTING THE RECEIVER…...………………………………………………………………………………….20
WARRANTY INFORMATION & RETURNS………………………………………….…….……………………..21
- APPENDIX -
PRODUCT SPECIFICATIONS

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
3
Safety Notice
I. THIS DEVICE COMPLIES WITH FCC RULES PART 15. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITONS:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device
II. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
III. In order to comply with the FCC/IC adopted RF exposure requirements, this transmission system will
be installed by a professional installer. Installation of all antennas must be performed in a manner that
will provide at least 2.4 feet clearance from the front radiating aperture, to any member of the public.
IV. This is NOT an intrinsically safe device. Do not take into an area where intrinsic safety is required.
Bodily harm may result if warning is ignored.
V. DO NOT OPERATE TRANSMITTER OR RECEIVER WITHOUT ANTENNAS CONNECTED TO
ANTENNA PORTS. Failure to do so will result in damage to the unit and void the warranty.
VI. DO NOT OPERATE THE SYSTEM WHEN the transmitter and receiver are closer than 10 feet to
each other. The devices may not work properly and permanent damage can occur.
VII. The system has been certified by the FCC for use with other products without any further certification
(as per FCC section 2.1091).
Warning:Changes or modifications not expressly approved by VideoComm Technologies could void the
user’s authority to operate the equipment

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
4
Introduction
The All New 2.4GHz FHSS, Wireless Elevator Video System delivers D1 Quality (720 x 480)
encrypted digital video up to 200 Floors. Featuring a pre-configured plug & play design and a
vandal-proof corner mount 480 line CCD Camera, this system is the most economical elevator
surveillance solution. Perfect for identifying, monitoring and recording employees and residents
while deterring vandalism and unwanted visitors.
ADVANTAGES
Revolutionary Pre-configured “Plug & Play” Design
Embedded 2-Wire RS-485 PTZ / Data Control
Transmits D1 Quality (720 x 480) Video up to 200 Floors
2.4GHz FHSS Digital Immunity to Signal Interference
Convenient On-Screen Display Signal Strength Indicator
Power & Video Loss Indicators for Trouble Free Installations
No Connections to the Elevator Mechanics or Traveling Cable
No Maintenance or Inspections Required
Deters Vandalism, Trespassing & other Criminal Behavior
Easily Identify Employees, Residents, and Visitors
FCC & IC Approved for License Free Use
VideoComm Technologies
Customer Service
Bus (905)-336-9665
US Toll Free 888-379-2666
Fax [phone]
E-mail- [email protected]
Web Site- www.VideoTransmitters.com
Monday - Friday 8:30am- 5:00pm
Eastern Standard Time

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
5
Pre-Installation
Site Evaluation
The following must be determined prior to installation:
Power Source
The transmitter, receiver and corner-mount camera will each require a power source.
Ensure there is a 115 Volt electrical outlet available on the rooftop of the elevator cab;
this outlet will power both the transmitter and corner-mount camera.
A 115 Volt AC electrical outlet will also be required at the receiver location in the pit.
Cabling routes
Hardwiring the video cable from the receiver to your monitoring location will be required;
consider this in determining whether your receiver will be mounted in the elevator pit
or in the mechanical penthouse.
Clearances
The transmitter and receiver location must be clear of any moving mechanisms including but not
limited to traveling cable, counter-weight, cabling trough, guide rails, brakes, door mechanics,
sensors and safety devices.
Line-of-Sight
Consider the path that the wireless video will travel between the transmitter and receiver.
Line-of –sight is defined as a clear and unobstructed view between the transmitter and receiver.
This will determine where you will mount the transmitter (roof or under-carriage of elevator cab)
and the receiver (mechanical penthouse or elevator pit).
Every elevator installation is unique – These guidelines may or may not apply to your particular application.
For additional application design assistance contact VideoComm Technologies Customer Service
VideoComm Technologies
Customer Service
Bus (905)-336-9665
US Toll Free 888-379-2666
Fax [phone]
E-mail- [email protected]
Web Site- www.VideoTransmitters.com
Monday - Friday 8:30am- 5:00pm
Eastern Standard Time

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
6
Tools Required
The Wireless Elevator Camera System is designed to be “Plug & Play”
and simple to install with minimal tools. The following is a list
of recommended tools to setup your system.
Drill - Used to create holes for the mounting bracket screws and the video cable,
which will be fed through the roof of the elevator cab.
Drill Bits - Standard drill bit set and ¾” hole saw (used for drilling hole through the roof of the cab)
Wire Stripper – For preparing power wires.
Philips Screw Driver – Used for unscrewing the front cover of the IP-67 enclosure to gain access to video,
audio and power terminations.
Micro-Phillips Screw Driver –Used for adjusting the focus on the camera lens
Metric 20mm Socket & Wrench (Closest Imperial Size – 13/16”) –Used to tighten or loosen the larger all
weather cable glands. Do not use pliers as they may cause damage to the cable glands
Metric 13mm Socket & Wrench (Closest Imperial Size – 5/8”) – Used for tightening or loosening the single
small all weather cable gland. Do not use pliers as they may cause damage to the cable glands
Hand Held LCD Monitor – Recommended for verifying video images at input to transmitter
and output from receiver. Perfect for camera angle and focus adjustment.
Multimeter – Measures voltage output, amperage, resistance and cable continuity.
Do Not Use Pliers - The pliers rigid grip may cause permanent damage to the cable glands
on the all weather IP-67 enclosure.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
7
Camera Parts List

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
8
PARTS LIST
The Wireless Elevator Video System has been carefully manufactured, tested, inspected and packaged.
Please inspect the packaging carefully to ensure you have received all the necessary parts and accessories
listed. Refer to the following chart to determine which parts are included with your product. If any parts are
missing or damaged, contact VideoComm Technologies, Customer Service or your re-seller immediately.
VideoComm Technologies
Customer Service
Bus (905)-336-9665
US Toll Free 888-379-2666
Fax [phone]
E-mail- [email protected]
Web Site- www.VideoTransmitters.com
Monday - Friday 8:30am- 5:00pm
Eastern Standard Time
PARTS
1 x Transmitter Unit
1 x Receiver Unit
4 x Grommet Seal Plugs
8 x Plastic Lid Screws
2 x Universal Mounting Brackets
3 x 12VDC Power Supplies
2 x 3dB Rubber Duck Antennas
25’ Video / Power Cable
Vandal-Proof Corner Mount Camera
Operating Instructions

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
9
Preparing Camera for Installation
Use the security key to remove three security screws
on the camera faceplate. Remove the camera faceplate from
camera and mounting bracket.
Use the security key to remove four
security screws from the camera’s protective dome.
Remove the dome.
Remove camera shroud from lens.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
10
Using a Phillips screwdriver, remove the four screws from the camera base plate (Figure A)
and remove base plate from the triangular mounting bracket (Figure B).
Figure A Figure B
Corner-Mount Camera Installation
Place mounting bracket in the corner flush
with the desired location. Mark the wall and
ceiling for the location of the mounting
screws. Depending on wall material type,
wall plugs may be required.
Warning: Mounting holes no greater than 5mm in diameter
Drill a larger (imperial size 1/2”) hole in the roof behind
the bracket where the video and power cables
will be fed-through.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
11
Secure mounting bracket to the wall.
From the rooftop of the elevator, connect the 12VDC
power supply to a 115 Volt electrical outlet.
Feed the power barrel jack and 18” of video cable
into the cab through the ½” hole previously drilled in the roof.
Using a Philips screwdriver, re-attach
the camera base plate on to the mounting
bracket using four screws imperial Size 3/32”

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
12
Adjusting Camera Focus & Tilt
To adjust the camera tilt use a Phillips
screwdriver. Loosen the two lock-tight screws on
both sides of the support bracket.
Adjust tilt up / down and re-tighten to set.
I) To adjust camera focus: Use a micro Philips screwdriver
to loosen the lock-tight screw on the top of the lens.
Warning: Camera has a wide depth of field
and may not require adjustment
II) Adjust the focus by carefully rotating the lens left and right.
III) Turn the lock-tight screw clockwise to tighten and set the lens.
Power the camera and your LCD monitor
locally to verify focus and viewing angle.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
13
Securing Vandal-Proof Enclosure
Place the black camera shroud around the lens
to conceal the camera’s components
Attach the protective dome enclosure
to the camera base plate using four security screws
Connect the video output jack to the 25’ video
cable previously fed through the roof.
Connect the power jack to the included 12VDC
power supply previously fed through the roof.
Using the security key, attach the steel
faceplate to the mounting bracket.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
14

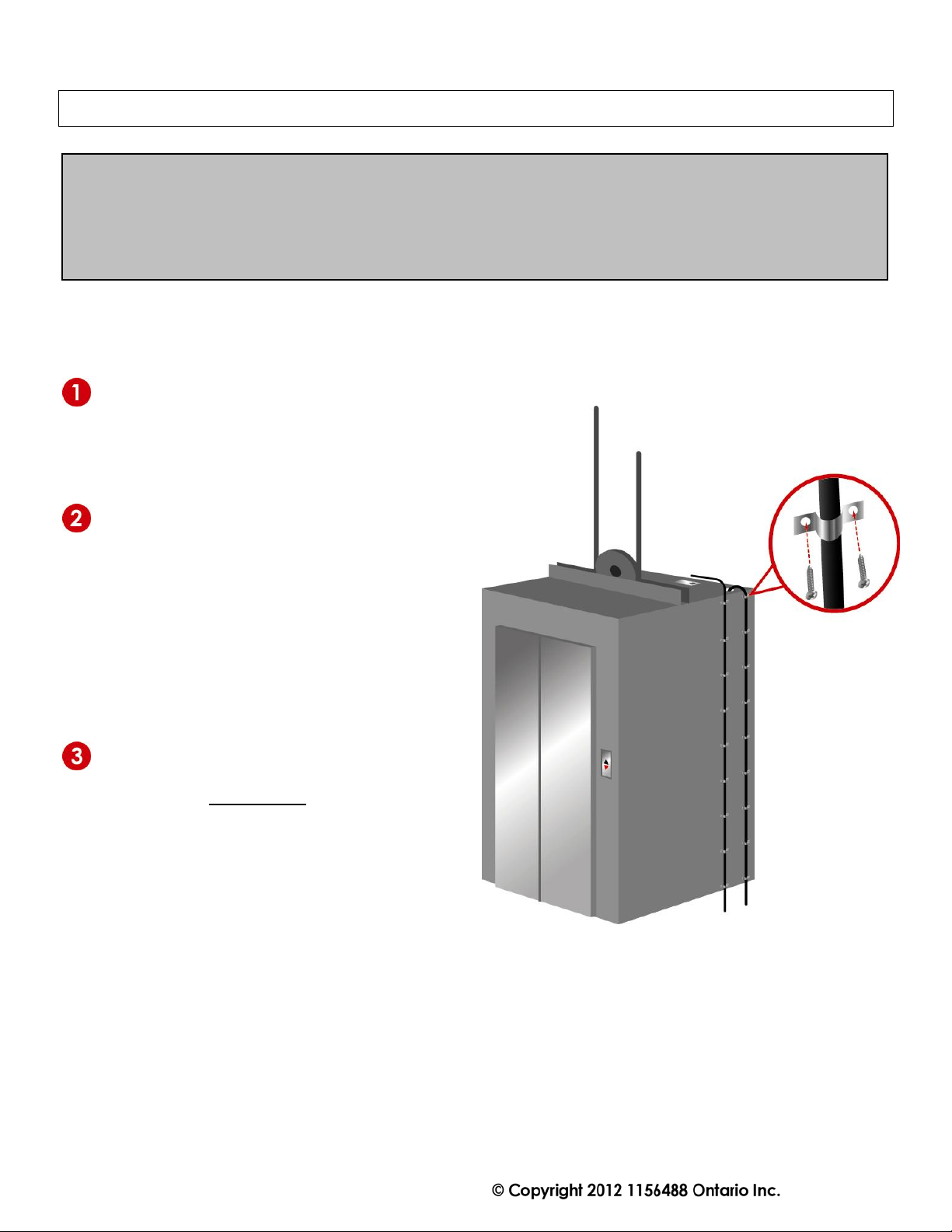

Securing Power & Video Cable to Exterior Cab
Warning!!! The video cable must be clear of any moving mechanisms including but not limited to:
Traveling cable, counter-weight, cabling trough, guide rails, brakes, door mechanics, sensors and safety
devices. To ensure compliance with the safety standards and laws in your Country, State or City, consult
with your local Elevator authority for guidelines pertaining to properly securing cable
to the roof, exterior wall and cab platform prior to installation.
Your 25’ video cable is connected to your camera and now on the roof of the elevator cab.
Run the video cable, which is attached
to your camera from the rooftop
of the elevator to the undercarriage of the cab
where your transmitter will later be mounted.
Run the 25’ power cord included in your kit
from the rooftop of the elevator to the undercarriage
of the cab, which will power your transmitter
after installation.
Important: To prevent injury and damage
to the system, do not connect the power
until after your transmitter is fully installed.
Secure both the video cable and power cable
with conduit or cable-clips to the elevator cab
to ensure they do not move after installation.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
15
Opening & Closing the All Weather Enclosure
To make video and power connections we must access the interior of the enclosure by removing the front
cover. The front cover can be removed two ways:
Loosen screws using a Phillips or flat head
(slot)
screwdriver
WARNING!!! When closing the
enclosure do not over-tighten.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
16
Attach the base plate and enclosure pivot
plate of the BRK-250 bracket using
two 4” x 11/32” mounting screws, one
screw per side.
Mounting the Transmitter
Warning: Not all elevator cabs are the same. The following is for illustration purposes only.
Consult with the elevator manufacturer for detailed information pertaining to the layout
and construction of the elevator undercarriage, shaft and ideal Tx & Rx mounting locations.
Mount the base plate of the BRK-250 mounting bracket
to the under-carriage of the elevator cab using four
screws or bolts (not included). Ensure the mount is
secure and capable of supporting the weight of the
transmitter. Mounting plugs are suggested.
Insert the four 4” x 11/32” mounting screws
into each screw port of the all weather
enclosure.
Fasten the mounting bracket to the IP-
67 enclosure by tightening the
11/32”bolts until snug.
Do not over tighten.
Replace the front cover of the transmitter.
Do not over tighten the screws as this can
crack or cause damage to the front cover of
the unit.

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
17
SINGLE ELEVATOR SHAFT APPLICATION DIAGRAM
MULTIPLE ELEVATOR SHAFTS APPLICATION DIAGRAM

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
18
VIDEO & AUDIO CABLE TERMINATION
Do not use video or audio cable that is less than ¼” in diameter, as this may not
allow a proper seal when the cable gland is tightened. If a tight seal is not made
between the cable gland and the video cable, there is a chance of water leaking into the
enclosure, causing serious damage and voiding the warranty.
Loosen the desired cable gland.
Feed the video and audio coax cable starting from the outside of the
IP-67 enclosure through the cable gland hole. VideoComm Technologies
recommends the use of RG-59 or higher grade coaxial cable for video
and audio terminations. At this time, attach your BNC-Male connector to
your Coax Cable and terminate inside.
Tighten the cable gland to ensure a water tight seal.
SEAL UN-USED GROMMETS
If there are cable glands not being used this means
that water can enter the enclosure, causing damage.
To prevent this from happening, use the included
black plugs to seal off any unused cable glands.
If you do not tighten the cable gland you do not have a water
tight seal which may cause water damage and void the warranty

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
19
POWER SUPPLY CONNECTION
WARNING! Unplug power supply before connecting raw leads to power input
terminal. An electrical short can occur, causing harmful damage to the unit. Each unit is Polarity
Protected.
Turn the small cable gland counter clock wise
Feed the power cable wire through the cable gland.
Insert wire leads into the polarity protected power
input terminal and secure.
Assuming that the power wire leads have been terminated properly,
plug in the power supply to an available AC source.
If the GREEN LED power level indicator light turns ON, your power is
within the acceptable operating range. If the system is receiving less
than 12VDC, the RED LED power indicator light will turn ON and the
system will not function. (See Figure B)
Now tighten the grommet to seal the cable
to prevent water damage.
PAIRING THE TRANSMITTER & RECEIVER
VIDEO LOSS LED INDICATOR
Transmitter: If the Yellow LED video loss indicator is ON -
the transmitter is not receiving video from the camera. Check
your video source, cables and connections to the transmitter.
.
Power your Transmitter and Receiver ON. Press and
hold the Pairing Button on both devices within 30
seconds of each other until the power LED indicator light
begins to flash.
Once the power LED indicator light stops flashing, both
devices will be successfully paired (linked)
For assistance, contact VideoComm Technical Support
[phone] or Direct [phone]

EV-L1R2409D1 WIRELESS ELEVATOR CAMERA SYSTEM REV. A
20
Attach the base plate and enclosure pivot plate
of the BRK-250 bracket using two 4 x 11/32”
mounting screws, one screw per side.
Mounting the Receiver
Warning!!! The receiver must be clear of any moving mechanisms including but not limited to: traveling
cable, counter-weight, cabling trough, guide rails, brakes, door mechanics, sensors and safety devices. To
ensure compliance with the safety standards and laws in your Country, State or City, consult with your local
Elevator authority for guidelines pertaining to mounting a device in an elevator shaft prior to installation.
Mount the base plate of the BRK-250 to the wall using
four screws or bolts (not included). Ensure the mount is
secure and capable of supporting the weight of the
receiver. Mounting plugs are suggested.
Insert the four 4 x 11/32” mounting screws into
each screw port of the all weather enclosure.
Fasten the mounting bracket to the IP-67 enclosure
by tightening the 11/32” bolts until snug. Do not
over tighten.
After all connections have been made, replace
the front cover of the receiver.
Do not over tighten the screws as this can crack or cause
