1 Company information
SVS-VISTEK GmbH
Mühlbachstr. 20
82229 Seefeld
Germany
Tel.: [phone]
Fax: [phone]
Mail: [e-mail]
Web: https://www.svs-vistek.com
1.1 Standards
This manual is based on the following standards:
lDIN EN 62079
lDIN EN ISO 12100
lISO Guide 37
lDIN ISO 3864-2
lDIN ISO 3864-4
lDIN ISO 16016:2002-5
1.2 Disclaimer
This manual contains important instructions for safe and efficient handling of
SVCam cameras (hereinafter referred to as „camera“). This manual is part of the
camera and must be kept accessible in the immediate vicinity of the camera for
any person working on or with this camera.
Read carefully and make sure you understand this manual prior to starting any
work with this camera. The basic prerequisite for safe work is compliant with all
specified safety and handling instructions.
Accident prevention guidelines and general safety regulations should be applied.
Illustrations in this manual are provided for basic understanding and can vary from
the actual model of this camera. No claims can be derived from the illustrations in
this manual.
The camera in your possession has been produced with great care and has been
thoroughly tested. Nonetheless, in case of any complaint, please contact your
local SVS-VISTEK distributor. You will find a list of distributors in your area on
www.svs-vistek.com
1 Company information 5

1.3 Copyright notice
Forwarding and duplicating of this document, as well as using or revealing its con-
tents are prohibited without written approval. All rights reserved with regard to pat-
ent claims or submission of design or utility patent.
1 Company information 6

2 Legal information
Errors and omissions excepted.
These products are designed for industrial applications only. Cameras from SVS-
Vistek are not designed for life support systems where malfunction of the
products might result in any risk of personal harm or injury. Customers, integ-
rators and end users of SVS-Vistek products might sell these products and agree
to do so at their own risk, as SVS-Vistek will not take any liability for any damage
from improper use or sale.
2.1 USA and Canada
This device complies with part 15 of the FCC Rules. Operation is subject to the
following conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that
may cause undesired operation.
NOTICE This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC rules.
It is necessary to use a shielded power supply cable. You can then use the “shield
contact” on the connector which has GND contact to the camera housing. This is
essential for any use. If not done and camera is destroyed due to Radio Magnetic
Interference (RMI) WARRANTY is void!
lPower: US/UK and European line adapter can be delivered. Otherwise use
filtered and stabilized DC power supply.
lShock & vibration resistance is tested. For detailed specifications refer to the
section on specifications ("Specifications").
2.2 Europe
This camera is CE tested, rules of EN 55022:2010+AC2011 and EN61000-6-
2:2005 apply.
The product is in compliance with the requirements of the following European dir-
ectives:
l2014/30/EU Electromagnetic compatibility (EMC)
l2011/65/EU Restriction of the use of certain hazardous substances in elec-
trical and electronic equipment (RoHS)
All SVS-VISTEK cameras comply with the recommendation of the European
Union concerning RoHS Rules.
2 Legal information 7

3 The HR camera series
3.1 Focusing on details
The SVCam HR series is a series of industrial machine vision cameras featuring
especially on very high image resolutions and interface high speed without com-
promising on image quality. Camera sensors and interfaces are built to deliver
maximum sensor and interface bandwidth.
These high resolution sensors in most cases are large, thus the HR series comes
with an M58 mount with the possibility to adapt for any kind of lens.
High-quality image sensors with high resolutions allow fast and effortless acquis-
ition of a large field of view. This makes this camera series your first choice for
demanding applications such as optical meteorology, quality monitoring, wide
field surveillance or traffic monitoring.
3.2 10 GigE Vision
The 10GigE interface is a cost-effective, easily scalable and networkable suc-
cessor to the proven 1GigE standard. 10GigE keeps the 1GigE benefits in net-
work topology. Network access is transparent.
10 GigE on copper lines is a standard existing for years already in professional
internet technology. Basically, it keeps the benefits and fundamental ideas of
GigE and adds the ten times higher speed. There are 2 main disadvantages com-
pared to GigE:
lHigher heat dissipation in 10 GigE devices
lReduced cable lengths
By using high-quality (CAT6 and better) cables, cable lengths of up to 100 m are
possible and compensating the first disadvantage. Nonetheless, despite using
the latest 10 GigE transceivers in the devices, the increased power dissipation
still will result in slightly larger camera housings.
3.3 Speed is king
The benefit of 10 GigE is the higher speed: Up to 1.1 GB/s of data are possible,
what is matching the speed-range of latest high-performance image sensors.
3.4 Optimized network adapter tuning
For best performance on Windows, 10 GigE adapters still need some manual tun-
ing. Please refer to the latest “Optimal network adapter settings for GigE/10GigE”
in the downolad section.
INFO All known 10GigE interface cards require Windows 10 as minimum version.
Latest Linux versions are supported as well.
3 The HR camera series 8

3.5 4I/O adds light and functionality
Fig.: 3-1: Illustration of 4I/O concept of switching LEDs
Your SVS-Vistek camera is equipped with the innovative 4I/O-interface allowing
full light control, replacing external strobe controllers. Each of the outputs can be
individually configured and managed using pulse width modulation. With its high
current output, the camera is able to drive LED lights directly without external light
controller.
The integrated sequencer allows multiple exposures with settings to be pro-
grammed, creating new and cost effective options. Logical functions like AND /
OR are supported.
lUp to 4 x open drain high power OUT
lUp to 4 x high voltage IN – TTL up to 25 Volts
lPower MOSFET transistors
lPWM strobe control
lSequencer for various configurations
lPLC fuctionality with AND, OR and timers
lSafe Trigger (debouncer, prescaler, high low trigger)
INFO Find an example how to operate light control in the section on sequencer
("Sequencer" on page 78).
3.6 Use of Canon lenses
We are supporting Canon EF lenses. The SVCam-EF adapter gives you the pos-
sibility to mount Canon EF lenses with full control of focus and iris. Canon lenses
are well known for their optical excellence and combine perfectly to high res-
olution machine vision cameras.
This camera series does have the firmware support already included in the
GenICam tree and provides you with Canon lens control in all GenICam based
software packages.
3 The HR camera series 9

4 Connectors
Cameras from SVS-Vistek feature a combined I/O and power supply connector
(Hirose) and a data connector.
4.1 GigE IP Setup
Your GigEVision camera needs a working network connection. Make sure the
camera is attached to the network and is powered on. Make sure everything is
plugged in properly and that the firewall settings are not blocking the connection to
the camera or SVCapture.
4.1.1 Automatic camera detection
By default, SVS-Vistek GigE Vision cameras are trying to acquire a valid network
address via LLA or DHCP from the network.
INFO Please make sure to have valid network protocol with "Jumbo frames" on
page 12 enabled on your host computer.

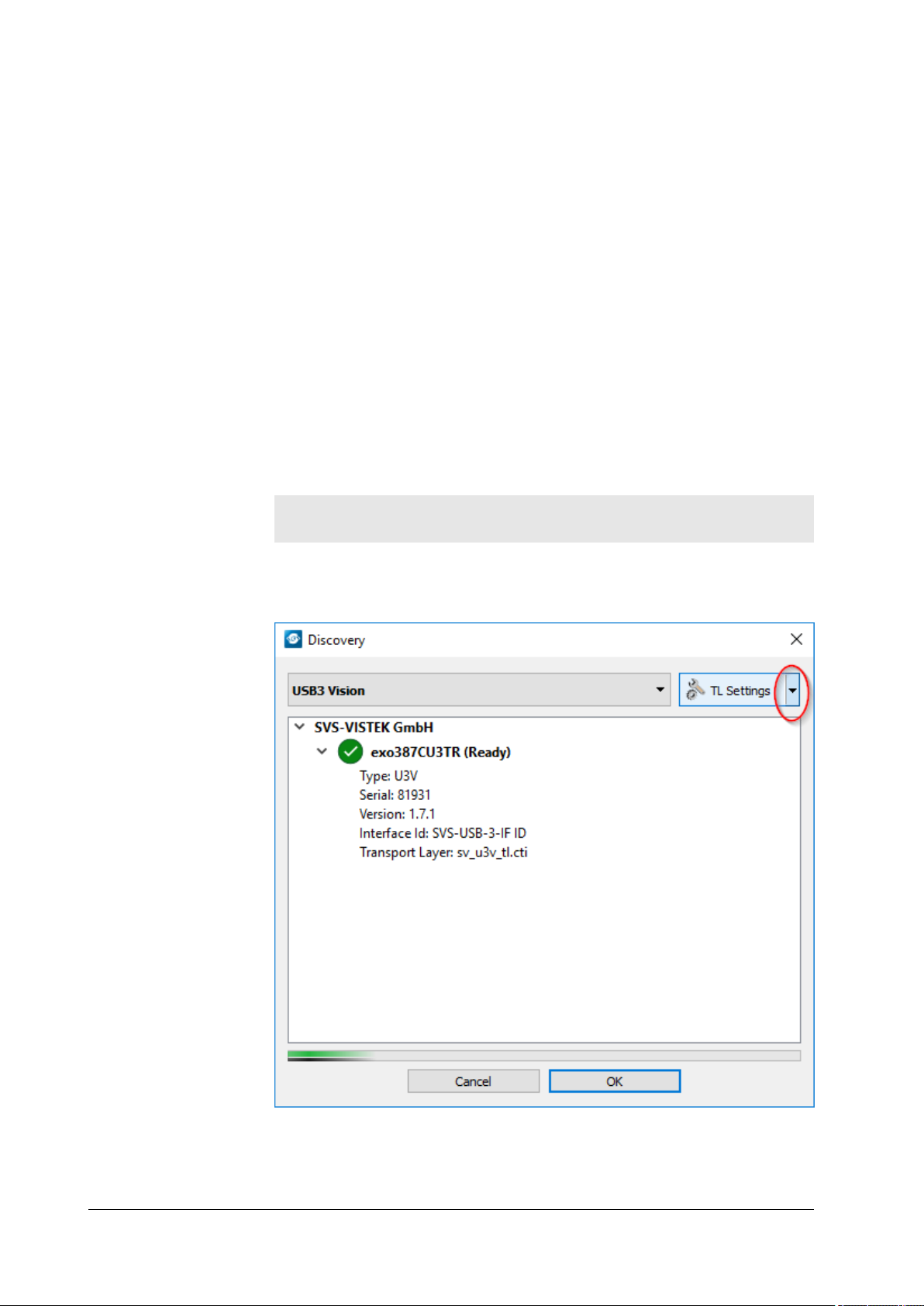

For finding and accessing your camera, start SVCapture on your computer. As
soon as the camera has booted, all SVS-Vistek GigE cameras are showing up in
the main window. Select the camera you want to connect to and press ok.
If you want to change automatic address or go back to automatic mode, configure
the IP settings manually. You will find this in the drop down marked above.
4 Connectors 10

lManual IP configuration will permit you to
lAssign a new IP address
(make sure the new address is unique and valid in the current subnet)
lSave a specific address as a permanent address to the camera
(Persistent)
lSave automatic address mode or the manually configured address to the
camera
For saving an persistent IP configuration (configuration will survive power off) you
need to check the „Persistent IP address“.
4 Connectors 11

4.2 GigE Vision
4.2.1 Network (TCP/IP)
Address Assignment
By default, the camera does not have a persistent IP address.
When forcing an IP address by using the PC internal network dialog, changes are
only valid until the next restart of the Camera.
For a peer-to-peer connection of a GigE camera to a PC a network address assign-
ment based on LLA (Local Link Address) is recommended. This involves a net-
work mask “255.255.0.0” as well as a fixed preamble “169.254.xxx.xxx” of the
network address range. A GigE camera will fall back to LLA when no DHCP
server is available and no fixed network address was assigned to the camera.

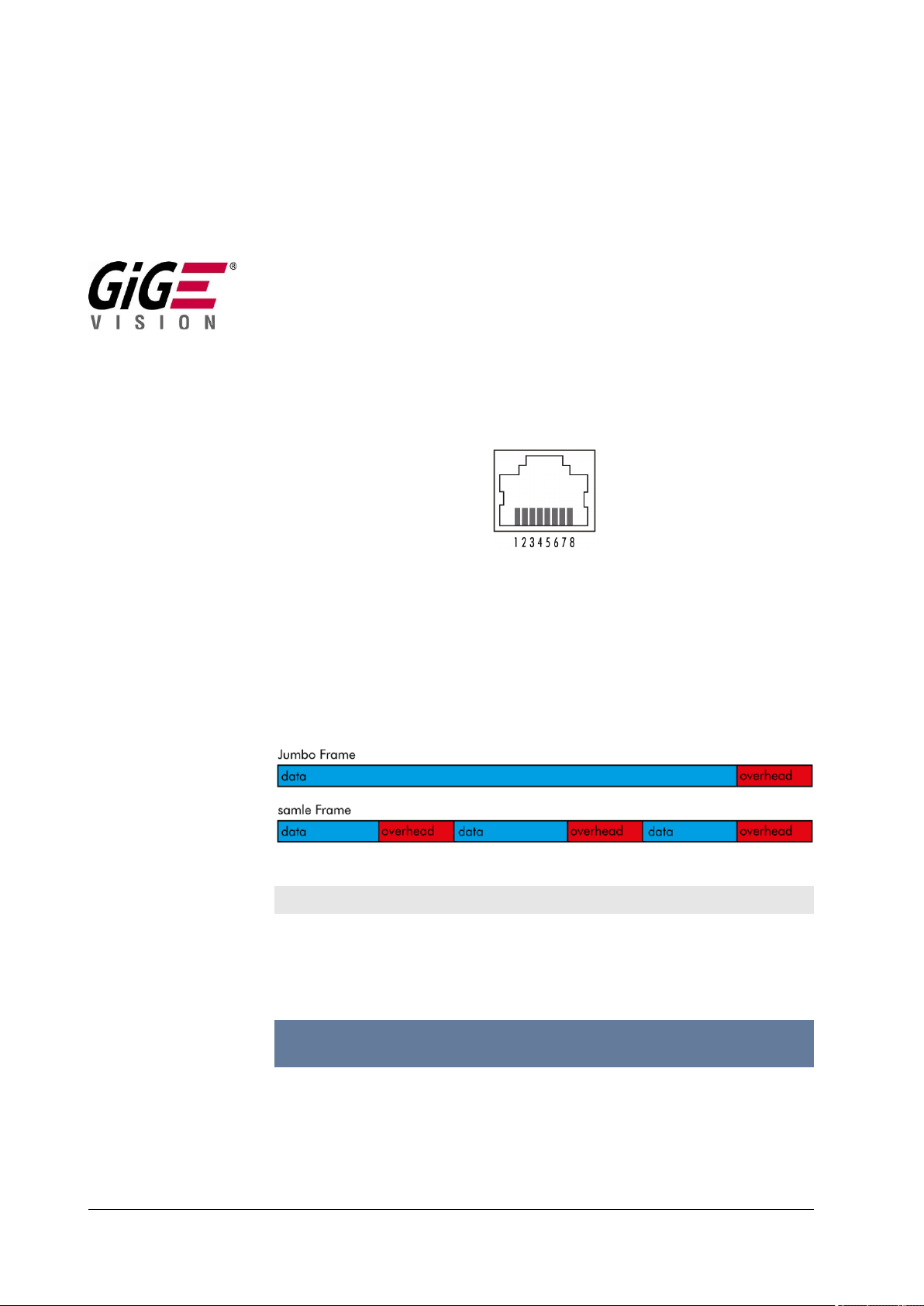

Fig.: 4-1: RJ45 socket connector
Jumbo frames
The transport efficiency in the streaming channel can be improved by using
“jumbo frames”. This will reduce overhead caused by maintaining header data
upon each data packet sent. Jumbo frames increase the data size per Ethernet
packet.
Fig.: 4-2: Data reduction with jumbo frames
INFO Higher packet sizes require network cards that support jumbo packets.
Lost packets
In accordance with the TCP protocol, lost or corrupted packets will be resent.
NOTICE Resends result in higher consumption of bandwidths and will lead to drop
frames. High quality cables prevent resends.
Connecting multiple cameras
Multiple GigE cameras can be connected to a PC either via a switch or using dual
or quad port network interface connectors (NIC).
4 Connectors 12

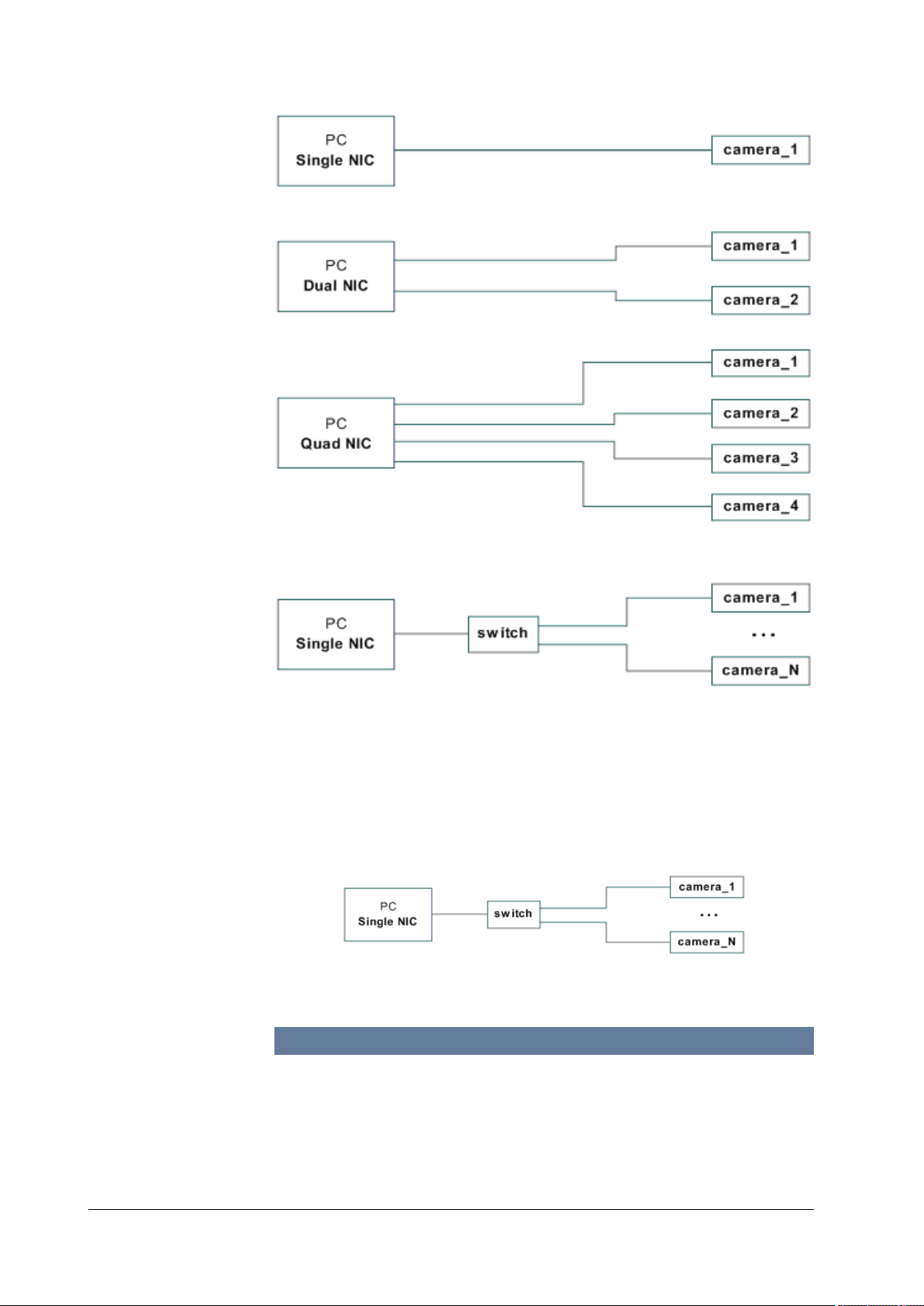

Fig.: 4-3: Connecting multiple cameras on multi NICs
Multiple cameras connected by a switch
To connect multiple cameras by a switch, the switch must be managed. It might
also be necessary to operate the cameras in an “inter packet delay” applying a
smother image data stream.
Fig.: 4-4: Illustration of connecting multiple cameras by a switch
Dual GigE connection is not supported when using a switch.
NOTICE Performance might be lost using multiple Cameras on a single port NIC.
Multicast
When images from a single camera need to be delivered to multiple PCs, mul-
ticast (RFC 2236) is used. A switch receives an image data stream from a
4 Connectors 13

camera and distributes it to multiple destinations in this mode.
Since a GigE camera always needs a single controlling application, there will be
only one master application. The controlling master application has to open a cam-
era in multicast mode (IP 232.x.x.x for local multicast groups) in order to allow
other applications to connect to the same image data stream. Other applications
will become listeners to an existing image data stream. They do not have control
access to the camera; however, potential packet resend requests will be served
in the same manner as for the controlling application.

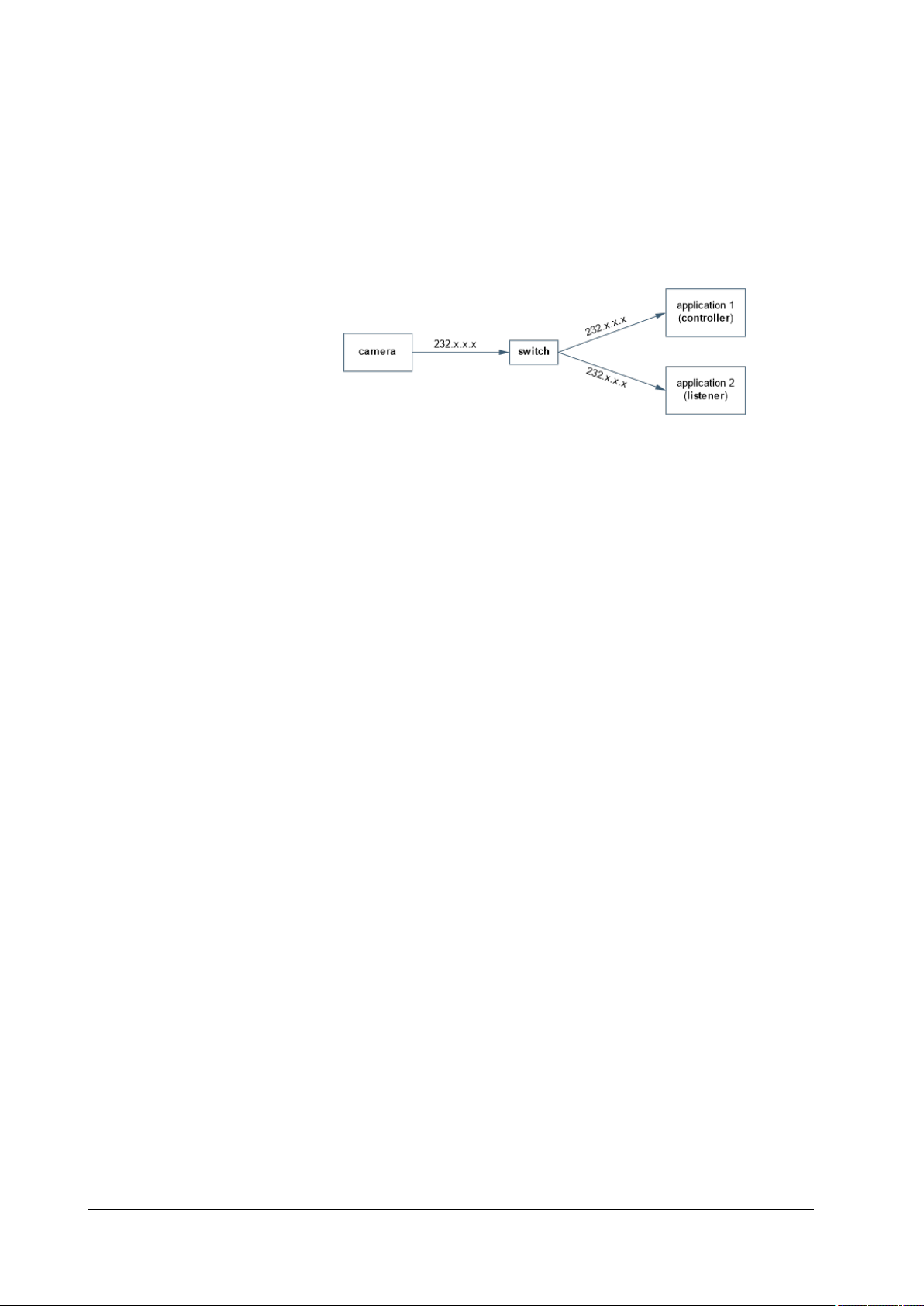

Fig.: 4-5: Camera casting to multiple receivers (multicast)
4.2.2 XML files
According to the GigE Vision standard a GigE camera provides an XML file that
defines the camera’s capabilities and current settings.
The XML file can be processed by software like SVCapture allowing displaying
and saving it to disk. Settings can also be saved and restored on the Camera
internal EEPROM.
4 Connectors 14

4.3 10GigE limitations and issues
10GigE is a high performance network protocol. Make sure your computer per-
formance is sufficient to digest the amount of data in terms of software and in
terms of hardware components, especially the combination of motherboard and
NIC.
4.3.1 Compatibility to nBase-T
Our 10GigE cameras supports 1GigE, 2.5 GigE and 5 GigE
(nBase-T), upgradeable with firmware update. At the moment of
writing, only some models with latest firmware support nBase-T
and 1GigE. The FXO series will be the first one to provide this fea-
ture.
4.3.2 Bandwidth limitation
With certain computer motherboards / 10 GigE NIC combinations, a reliable data
connection might not be possible. Frame drops are the result.
To get rid of these frame drops, the 10GigE interface of the camera does have an
adjustable bandwidth limit. Reducing the bandwidth will reduce your maximum
framerate, obvoiusly. It might be not sufficient to reproduce stable bandwidth,
though.
A solution might be a different motherboard / NIC combination together with the
latest software and firmware update of your NIC and motherboard manufacturer.
Latest firmware versions improve data stability.
Special NICs support 100% connections without frame drops.
4.3.3 Recommended setup
It is recommended to use a 10GigE Ethernet card with grabber capabilities. All
SVS-Vistek certification setups are using this kind of cards.
Contact [e-mail] for details and more recommendations.
lUse high performance PC (such as Intel Core i5 or Core i7 with 16 GB, and
mainboard with PCIe Gen 3)
lUse direct NIC-to-camera connections, no switches.
lReliable 10 GigE connections are reported with Myircom
MYR-10G-PCIE2-8C2-2T+MVA Dual LAN port and
MYR-10G-PCIE2-8C-T+MVA single LAN port with installed MVA license
4 Connectors 15

4.4 Hirose I/O connector
The Hirose™ connector provides power, input and output signal access. Max
power out is 2 Amperes peak.
Fig.: 4-6: I/O Hirose connector layout
Inputs and outputs connect via 4I/O-matrix in the GenICam software tree to the
appropriate actions. For detailed information about switching lights with the power
outputs via GenICam, refer to "LED strobe control" on page 76.
Type HR10A-10R-12P
Matching Connector HR10A-10P-12S
Table: 4-1: Hirose connector types
INFO PoE (Power over Ethernet) models do not support RS232 on pins 3 & 4.
4 Connectors 16

5 Getting started
5.1 Get help
In case of issues with the camera we are happy to help. For being able to help you
in a fast and efficient way, we ask you for a description of the issues using cam-
era in your support request.
You can put your support request to us via our support form:
https://www.svs-vistek.com/en/support/svs-support-request.php
Please fill the form with special attention to camera model, frame grabber model
and operating system. Our support team will come back to you.
5.2 Find camera specs
Our website does have all technical data of all our cameras online. Go to
https://www.svs-vistek.com/en/industrial-cameras/svs-cameras.php for getting
technical data sheets.
Cameras can be found by searching with series and model name or by using the
SVCam camera finder. Having found the requested camera, the details/download
section provides you with manuals, drawings, soft- and firmware for your camera.
5.3 Power supply
For safety reasons, for protection of the camera and users, use certified power
supplies only. Please refer to specifications for your camera model. Appropriate
power supplies can be ordered at SVS-VISTEK GmbH.
5.3.1 Power safety
The camera does not have a power switch. The camera is powered on as soon
power is available to the camera. This might happen via the Hirose connector or
through the interface cables.
For making sure the camera is not connected to power
lDisconnect Hirose (or M12) plug from camera
lDisconnect power plug from power AC wall outlet to disable the DC power
supply as well.
NOTICE The power supply must be easily accessible at all times! For Power specs,
refer to the data sheet of your model.
5.3.2 Connect the camera
The camera is powered on by connecting power to to the camera. Connect the
power supply with the Hirose connector. When using your own power supply
(voltage range 10 -25 V DC) see also Hirose™ 12-Pin layout of the power con-
nector. For power input specifications refer to specifications.
5 Getting started 17

Generally external power supply for USB3 Vision, CoaXPress (if PoCXP
enabled) or PoE cameras is not needed. Nonetheless, you might want to use a
separate power on the Hirose connector to reduce load on the data port. The
external power on the Hirose connector is the preferred power source.
The power up is defined as follows:
lPower over USB3, CoaXPress port or GigE port (with PoE) or on the Hirose
connector will power on the camera
lIf power is found on the Hirose connector, camera power supply will switch
to the Hirose connector
lIf Hirose power supply is cut, camera power supply will switch back to power
over USB3, PoE or power over CXP supply
INFO Camera power supply is not powering 4I/O LED lights.
When using your own power supply (voltage range 10-25 V DC) see also Hirose
12- pin layout of the power connector. For power input specifications refer to spe-
cifications.
5.4 Camera status LED codes
On power up, the camera will indicate its current operation status with a flashing
LED on its back. The LED will change color and rhythm.
The meaning of the blinking codes translates as follows:
Fig.: 5-1: Camera status LED codes
5 Getting started 18

5.5 Software and firmware
Further information, documentations, release notes, latest software and applic-
ation manuals can be downloaded in the download area on SVS-Vistek download
area. Depending on the type of camera you bought, several software packages
apply.
If you are logged in, this is the location to find latest releases of firmware
upgrades of your camera model as well.
5.5.1 SVCapture 2.x
SVCapture is the recommended, GenICam-based software to operate SVCam
industrial cameras. Your SVCam combined software installer including:
lSVCapture 2.x
(a viewer/controller program for SVCam cameras)
lPC USB3 driver & filter driver
lGenTL_Drivers
(GenICam drivers and transport layer DDLs for Camera Link, CoaXPress,
USB3, GigE / 10 GigE)
lC/C# programming libs and interface
SVCapture 2.x is a GenICam/XML based software tool provided for free. It is cre-
ated to show the capabilities of your SVS-Vistek camera and to show/modify val-
ues to your cam.
Get control of exposure timing, trigger delay, image correction etc. or control up to
4 LED lights connected to the SVCam directly via "GenICam" on page 65control.
Use the built-in "Sequencer" on page 78to program several intervals executed by
a single trigger impulse.
Fig.: 5-2: Screenshot of SVCapture 2.x: GenICam tree and current image
Setup of SVCapture2
Installation procedure may differ from PC to PC. It is recommended to install the
whole software package. For this step it is necessary to have root access to your
computer.
5 Getting started 19

1. Copy or expand the installation executable file to your hard drive.
2. Start installation. Read and accept the terms of license agreement.
3. Choose destination folder and select necessary modules / drivers. The
TLxxx modules are the GenTL drivers, necessary as well if you want to use
SVS-Vistek driver with third party software.
4. In case of system warnings regarding modification of USB3 drivers or
GigE/10GigE filter drivers: The specified performance is possible only with
these highly optimized drivers. Accept these modifications.
5 Getting started 20
