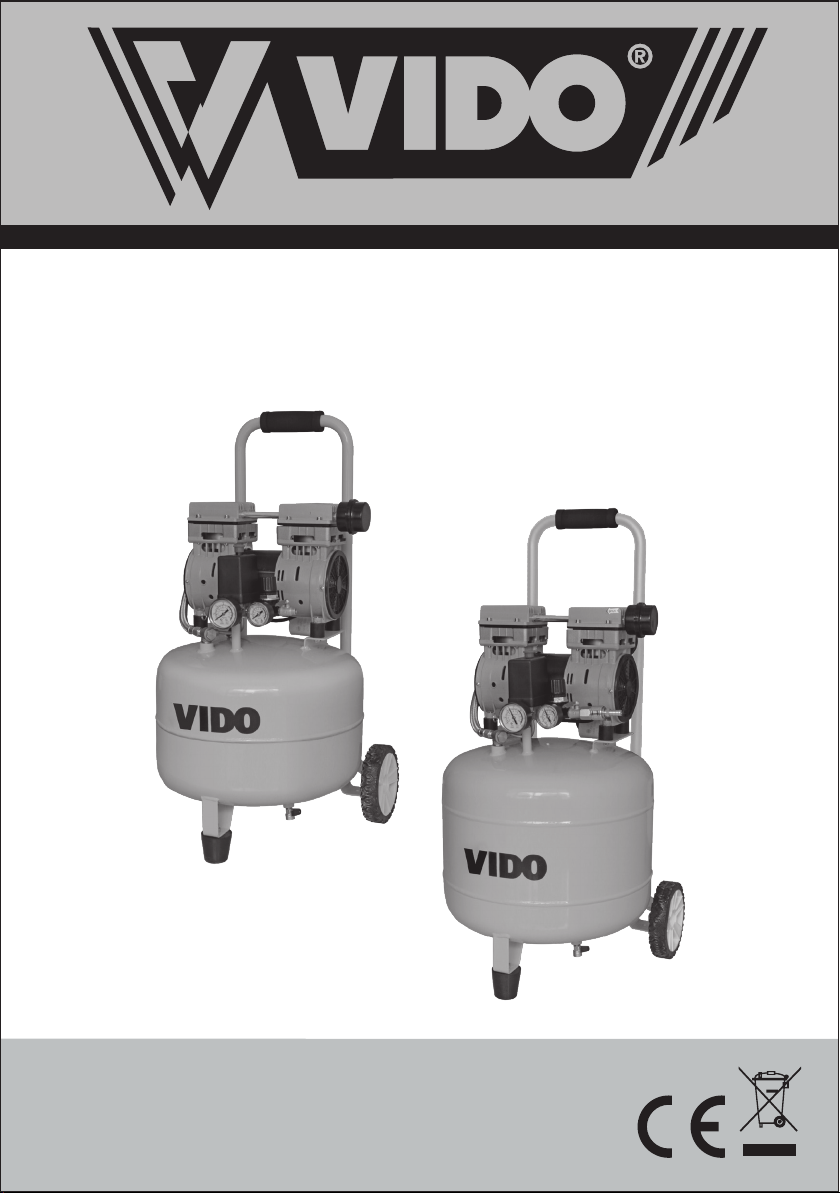

Vido WD060213010 User manual

Silent oil free
air compressor
30L/38L
WD060213010
WD060213810

WD060213010/WD060213810
Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.
2

WD060213010/WD060213810
1 2 3
4 5 6
7 8 9
+-
1
2
3
4
5
6 7
8
9
10
11
12
13
3

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
COMPONENT LIST
1) Air tank
2) Tank pressure gauge
3) Outlet pressure gauge
4) Pressure switch
5) Power switch button
6) Crankcase
7) Handle
8) Air filter
9) Pressure regulator
10) Air cock
11) Tank drain valve
12) Fixed knob for hand
13) Safety release valve
NORMAL ACCESSORIES
1) Quick coupler: 2set
We recommend that you purchase your accessories from the same store that sold you the air
compressor. Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for further details.
Store personnel can assist you and offer advice.
4

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
GENERAL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1) Work area
a) Keep your work area clean and well lit. Cluttered benches and dark areas increase the risks of
accidents, electric shock, fire, and injury to persons.
b) Do not operate air compressor in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Keep work area well ventilated. Always locate the air
compressor at least 6.0 m (20 ft) away from work area if spraying flammable materials. Do not
smoke if spraying flammable materials. The air compressor is able to create sparks which may
ignite the dust or fumes. Never use the air compressor in sites containing lacquer, paint, benzene,
thinner, gasoline, gases, adhesive agents, and other materials which are combustible or explosive. A
longer hose may be required.
c) Always operate the air compressor in a well ventilated area. Follow all safety instructions
and use a respirator as directed in the safety instructions provided with the material to be
sprayed. Some sprayed materials such as paint, paint solvents, paint remover, insecticides, weed
killers, etc contain harmful vapors and poisons.
d) Keep bystanders, children, and visitors away while operating an air compressor. Do not
allow children to operate air compressor. Distractions may cause loss of control of the tools which
may cause injury to bystanders.
e) Never engage in horseplay with the air compressor. Respect the air compressor as a working
implement.
f) Always operate the air compressor from a stable secure position. Never operate the air
compressor from a roof or table. Use additional air hose to allow tools to reach high locations.
g) Equip the work area with a suitable fire extinguisher.
2) Personal safety
a) Do not remove, tamper with, or otherwise cause the tool operating controls to become
disabled or Inoperable. This will cause the tool to work irregularly and may result in the risk of injury.
b) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in
moving parts and increases the risk of injury.
c) Always wear eye and ear protection when using this tool. Use additional personal protective
equipment as appropriate when operating this tool. Operators and others in work area must wear
safety glasses. Prolonged exposure to high intensity noise is able to cause hearing loss. Dust mask,
non-skid safety shoes, hard hat and other personal protective equipment, must be used for appropriate
conditions.
d) Do notoperate the air compressor unless you are familiar with controls. Users unfamiliar with
controls may operate air compressor in an unsafe manner, injuring themselves or others.
e) Keep handles and controls dry, clean and free from oil and grease. Slippery hands cannot
safely control them tool.
f) Stay alert. Watch what you are doing, and use common sense when operating an air
5

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
compressor. Do not use air compressor while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating the air compressor may result in serious personal
injury.
g) Do not direct air stream at people or animals. High pressure air can propel dust and debris at
high speed. Compressed air from an air compressor can contain water, oil, metal particles or other
contaminants which can cause serious injury.
h) Do not use compressed air for breathing or respiration. Never inhale air directly from air
compressor or from breathing apparatus connected to air compressor. Compressed air stream
may contain carbon monoxide, toxic vapors or solid particles from air tank which if inhaled could cause
serious injury or death.
i) Use care when touching exposed metal surfaces of air compressor. Many components such
as air compressor head, engine/motor, and tubing will remain hot even after the air compressor as
been shut down. Allow air compressor to cool before moving or attempting maintenance.
j) Do not stand on air compressor. Keep proper footing and balance at all times. Proper footing
and balance enable better control of tools in unexpected situations.
k) Make sure air hose is free of snags and obstructions. Do not attach an air hose or tool to
your body. Entangled or snarled hoses can cause a loss of balance or footing in addition to
unintentional tool operation. Attach the hose to the structure to reduce the risk of loss of balance if the
hose shifts.
l) Do not abuse the air hose. Protect all hoses from kinks, restrictions, solvents or sharp
objects. Keep air hose away from heat, oil, sharp edges or moving parts. Replace damaged
hoses immediately. Damaged hoses can burst or whip around work area.
m) Only use hoses with a minimum rating of 200 PSI. Use of hoses with a high pressure rating to
reduce the risk of injury from a hose bursting.
n) Firmly grasp hose in hand when installing hoses. If hose is not held firmly or correctly installed,
hose may whip and injure personnel in the operating area.
o) Use care when lifting and carrying the air compressor. Some air compressors are too heavy to
be lifted by one person. Get assistance before attempting to lift an air compressor to reduce the risk of
injury.
p) When moving or loading a wheeled air compressor ensure that the air compressor is
always on a level surface. If the air compressor is placed on a sloped surface, it may move
unexpectedly and result in personal injury.
3) Tool use and care
a) Use this air compressor and all accessories in accordance with the instructions. Air
compressor and accessories must be used for the purpose for which they are designed. Use of the air
compressor for operations other than what is described in this manual can result in a hazardous
situation.
b) Use only accessories that are recommended for your particular model. Accessories that may
be recommended for a particular model tool may not be suitable on other model tools and may result in
personal injury.
c) Before each use, inspect all fittings, hoses, pipes, connections of the air compressor. Do
not operate if any portion of the air compressor is loose, missing, damaged, malfunctioning,
disconnected or altered. Never use an air compressor that appears damaged or is operating
abnormally. If the air compressor appears to be operating unusually and/or making strange noises,
6

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
stop using it immediately and contact your local service center. There is a risk of bursting if the air
compressor is damaged.
d) Before each use inspect air compressor for signs of leaks or damage. If leaks are found in
the air compressor pump, air tanks or tubing, replace air compressor immediately. Never
attempt repair leaks, weld or make modifications to the air tank or other fluid confining parts as there is
a risk of bursting.
e) Never operate the air compressor without the safety valve. Verify operation of the safety
valve on adaily basis. Do notuse the safety valve for complete tank drainage. The safety valve is
designed to relieve tank pressure to reduce the risk of bursting.
f) Never operate air compressor without all guards and other safety features in place and
performing intended function. If maintenance or servicing requires removal of guard or safety feature,
be sure to replace the guard or safety feature before resuming operation of the air compressor.
Replace damaged guards or safety features immediately.
g) Never touch moving parts. Do not place any part of your body near air compressor moving parts.
Do not reach around guards to reduce the risk of injury.
h) Do notoperate air compressor without the air filter. Filters prevent large particles from entering
the air stream and damaging air compressor internal components.
i) Do not allow particulates such as sawdust to fall into crankcase when crankcase is open for
inspection.Particulates in oil may reduce air compressor life.
j) Do not use air compressor for unattended operation. Always remain in area when air
compressor is operating and turn off air compressor when not in use to reduce the risk of fire.
k) Never place objects on top or next to air compressor. Locate air compressor at least 30
cm (12 in) away from all obstructions. Restricting any of the air compressor’s ventilation openings
can cause overheating and could cause a fire.
l) Do not operate the air compressor with any power source other than that specified in the
tooloperating/safety instructions. Use of alternative power sources may result in malfunctions of the
air compressor and the power source which may lead to serious injury of you or others in your
surroundings.
m) Follow all recommendations for sizes of hoses, fittings and other compressed air
accessories. Improperly sized fitting or components may result in the risk of injury or property damage.
n) Never move the air compressor by pulling on a hose. The air compressor, air fittings and the air
hose may become damaged and burst.
o) Check air supply lines for restrictions before adjusting tool. Air volume is as important as air
pressure. Restricted air flow will prevent the tools from operating as designed.
p) Never exceed the maximum allowable pressure rating marked on tools and attachments. Do
not use air compressor to inflate low pressure objects such as toys. Exceeding the maximum
recommended pressure of tools and attachments can cause them to burst. The correct pressure is the
lowest pressure hat will do the job.
q) Drain condensate from air tanks daily with drain valve. Draining water from the air compressor
reduces the risk of air tank corrosion. Corroded air tanks increase the risk of bursting.
r) Stop the air compressor, drain air tanks and allow it to cool before making adjustments,
moving the air compressor, leaving the work area, performing maintenance or storing the air
compressor. Such precautionary safety measures reduce a risk of injury.
s) Do not modify this air compressor or operate air compressor at pressures or speeds
greater than designed. Any alteration or modification is a misuse and may result in a dangerous
7

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
condition such as fire or bursting.
t) When transporting air compressor, keep level and place on a protective mat. Do not place
air compressor on its side. Such precautions reduce the risk of fire or danger to personnel from oil
fumes.
4) Service
a) Maintenance performed by unauthorized personnel may result in misplacing of the internal
components which could cause serious hazard. We recommend that all air compressor service be
performed by an authorized service station.
b) Develop a periodic maintenance schedule for your tool. When cleaning an air compressor
be careful not to disassemble any portion of the tool since internal components may be
misplaced or safety components may be improperly mounted. Certain cleaning agents such as
gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts and o-rings.
c) When servicing the air compressor, use only recommended replacement parts. Follow
instructions in the maintenance section of this manual. Use of unauthorized parts or failure to
follow maintenance Instructions can cause a risk of injury.
d) Replace missing or damaged warning labels. Refer to schematic for correct placement and part
number.
e) Maintain air compressor with care. Keep the air compressor clean and lubricated. Properly
maintained tools are less likely to break and cause injury. Any alteration or modification is a misuse and
may result in a dangerous condition. Clean the tool at least daily and lubricate as required.
f) When not in use, store the air compressor out of reach of children and other personnel
unfamiliar with air compressor operation. When not in use, the tool should be disconnected and
stored in a dry place. Vent the air tank. Keep out of reach of children. Lock the storage area. Air
compressor can be dangerous in the hands of users unfamiliar with its operation.
SAFETY RULES FOR AIR COMPRESSORS
a) Power cord plugs must match the outlet. Never modify the plug in any way. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators. There is an
increased risk of electric shock if your body is earthed or grounded.
c) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging. Keep cord
away from heat, oil, sharp edges or moving parts. Replace damaged cord immediately. Damaged
or entangled cords increase the risk of electric shock.
d) Do not expose this air compressor to rain. Do not use in damp or wet locations. Moisture
increases the risk of electric shock with this equipment.
e) Do not touch plug with wet hands. Moisture increases the risk of electric shock with this
equipment.
f) Keep all electrical connections dry and off the ground. Do not allow electrical connections
to lay in water or in such a position where water could come into contact with cord and
connection. Moisture increases the risk of electric shock with this equipment.
g) When operating a tool outdoors, use an extension cord suitable for outdoor use and with
correct amperage capacity. Use of a cord rated for outdoor use reduces the risk of electric shock.
h) Always disconnect air compressor from power supply, vent air tanks, and allow air
compressor to cool before servicing. Air compressors with automatic pressure controls can restart
8

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
at any time.
i) Always turn off the motor when not in use and before moving air compressor. Stopping the
motor prevents unintentional starting of the air compressor.
GROUNDING INSTRUCTIONS
This air compressor should be grounded while in use to protect the operator from electric shock. The air
compressor is equipped with a three-core cable and grounding type plug to fit the proper grounding
type receptacle. The green and yellow or green (for 120V) conductor in the cable is the grounding wire.
Never connect the green and yellow or green (for 120V) wire to a live terminal.
IMPORTANT NOTE
Be sure the supply is the same as the voltage and frequency given on the rating plate.
Remove the main plug from socket before carrying out any adjustment or servicing.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Do not disassembly on working condition
Do not direct air stream at people or animals
Burns risk
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
9

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
TECHNICAL DATA
Note: For air compressor specifications refer to the nameplate on your air compressor.
Model WD060213010
Rated voltage 110-120V AC 220-240V AC
Frequency 60Hz 50Hz
Power input 750W (1.0HP) 750W (1.0HP)
Rated speed 1700/min 1400/min
Tank volume 30L 30L
Max work pressure 8bar (116psi) 8bar (116psi)
Air flow 224L/min(7.9CFM) 184L/min(6.5CFM)
Protection class I I
Machine weight 25.5Kg 25.5Kg
Model WD060213810
Rated voltage 110-120V AC 220-240V AC
Frequency 60Hz 50Hz
Power input 750W (1.0HP) 750W (1.0HP)
Rated speed 1700/min 1400/min
Tank volume 38L 38L
Max work pressure 8bar (116psi) 8bar (116psi)
Air flow 224L/min(7.9CFM) 184L/min(6.5CFM)
Protection class I I
Machine weight 28.5Kg 28.5Kg
10

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
OPERATING INSTRUCTIONS
Note: Before using the air compressor, read the instruction manual carefully.
1. Intended use
This air compressor is intended for operation paint sprayers, air tools, grease gun, airbrusher, caulking
guns, sandblasters, inflating tires and plastic toys, spraying weed killer and insecticides etc. An air
pressure regulator is usually necessary for most of these applications.
2. General description of operation
To compress air, the pistons move up and down in the cylinder. On the down stroke, air is drawn in
though the valve inlet. The discharge valve remains closed. On the up stroke, air is compressed. The
inlet close and compressed air is forced out through the discharge valve, through the check valve and
into air receiver. Work air is not available until the air compressor has the air receiver pressure above
that required at the air service connection. The air inlet filter openings must be kept clear of
obstructions, which could reduce air delivery of the air compressor.
3. Working environment
Under comparative dry environment, the environment temperature should be between 00C and +400C,
avoid working in the sun or rain, avoid working in the environment where there is much dust or
corrosive gas.
Note: Always operate the air compressor in well-ventilated areas free of gasoline or other combustible
vapors. If the air compressor is being used to operate a sprayer do not place near the spray area.
4.Power requirements
This air compressor is designed to operate on a properly grounded 110-120V 60Hz or 220-240V 50Hz,
single-phase alternating current (AC) power source.
Warning:This product must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock byproviding an escape wire for the electric current.
This product is equipped with a cable having a grounding wire with an appropriate grounding
plug. The plug must be inserted into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
5. Installation and location of the air compressor
Locate the air compressor in a clean, dry and well ventilated area. The air compressor should be
located at least 0.3m away from the wall or other obstructions that will interfere with the flow of air.
Place the air compressor on a firm level surface. The air compressor is designed with heat dissipation
fins that allow for proper cooling. Keep the fins and other parts that collect dust or dirt clean. A clean air
compressor runs cooler and provides longer service. Do not place rags, or other containers on top of
the air compressor or near these openings. Installation air filter (See Fig 1) and tank wheels on air
compressor before starting air compressor.
6. Before using your air compressor
Before first use of this air compressor or after the air compressor pump/motor has been replaced,
perform the following:
11

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
1) Ensure the power switch is in the off position (See Fig 2). This air compressor has an integrated
power and pressure switch. When the power is on the pressure switch will automatically start the air
compressor motor any time the tank pressure drops below the factory set cut-in pressure and stop the
motor when the tank pressure stops at the factory set cut-out pressure.
2) Open the drain valve to permit air to escape the tank and prevent air pressure build up during the
break-in period (See Fig 3). The drain valve is located at the base of the air tank and is used to drain
condensation from the tanks at the end of each use.
3) Plug the power cable into the correct branch circuit receptacle.
4) Pull the power switchto the on position (See Fig 4). The air compressor will start.
5) Run the air compressor for 10 minutes.
6) After 10 minutes, close the drain valve. The tank will fill to cut-out pressure and the air compressor
motor will stop.
7) Push the power switch to the off position and unplug the air compressor.
8) Pull the safety valve and allow tovent until tank pressure is under 0 psi (See Fig 5).The safety valve
is designed to protect against high pressure by releasing high pressure air from the air tank when its
factory set pressure is exceeded.
Warning: If the safety release valve vents under normal operating conditions, stop using
the air compressor immediately. Send your air compressor for service.
9) Open the drain valve to permit air to escape the tank and to drain any moisture or particles from tank.
When tank is emptied, close drain valve.
10) Air compressor is now ready for first use.
7. Adjusting regulator
This air compressor is provided with a regulator that controls the output pressure. Regulated pressure
will be equal to or less than tank pressure depending on user setting.
To adjust regulated pressure (See Fig 6):
1) To increase pressure, turn regulator clockwise. Output pressure is displayed on the pressure gauge.
2) To decrease pressure, turn regulator counterclockwise. Output pressure is displayed on the
pressure gauge.
Warning: Too much air pressure causes a hazardous risk of bursting. Check the
manufacturer’s maximum pressure rating for air tools and accessories. The regulator outlet
pressure must never exceed the maximum pressure rating.
8. Starting the air compressor
1) Position air compressor on a flat surface or one with an inclination of 10° or less, in a well ventilated
area away from vapors.
2) Ensure the power switch is in the off position.
4) Plug the power cable into the correct grounding receptacle.
5) Ensure drain valve is closed.
6) Ensure air cock is closed.
7) Ensure safety valve is functioning properly by pulling on the valve ring and allow the valve to reset.
8) Attach hose and accessories to air compressor (See Fig 7,8,9).
9) Turn the power switch to on, and verify that the air compressor is functioning. Adjust the air pressure
the desired level for the accessory as described in adjusting regulator. Verify that the air compressor
motor stops when cut out pressure is reached.
12

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
10) Turn the power switch to the off position and disconnect the plug from the receptacle after your
work is finished.
Warning: Many components such as air compressor head, motor, and tubing will remain
hot even after the air compressor has been shut down. Allow air compressor to cool before
moving or attempting maintenance.
9. Motor Thermal protecting
If your air compressor is overload, the air compressor may suddenly stop working. That is the inner
thermal parts work because of over-loading. Under this circumstance, no need to turn off the power
switch. Start the air compressor automatically after the motor be cooled to lower the temperature.
10. Draining Tanks
1) Place the air compressor on a level surface. If air compressor is not level, water will not drain from
tanks causing corrosion, which may cause the tanks to burst.
2) Use air cock to reduce tank pressure.
WA Warning: Do not open drain valve with pressure greater than 0 psi in tanks. Such
precautionary measures reduce the risk of injury.
3) Open the drain valve on bottom of tank counterclockwise. After the water has been drained, close
the drain valve by clockwise. The air compressor can now be stored.
MAINTENANCE
Your air compressor requires periodic maintenance, in order to keep your air compressor in peak
condition.
Warning: Remove the plug from the socket，drain air tanks and allow it to cool before
making adjustments, moving the air compressor, leaving the work area, performing
maintenance or storing the air compressor.
1. Check safety valves by pulling on rings daily.
2. Drain moisture from tanks daily or after each use daily.
3. Clean the cooling surfaces of the air compressor with damp cloth weekly.
4. Check system for air leaks by applying soapy water to all joints monthly. If leaks are found in the air
compressor pump, air tanks or tubing, replace air compressor immediately. Never attempt repair leaks,
weld or make modifications to the air tank or other fluid confining parts as there is a risk of bursting.
5. Change the air filter every 200 hours.
6. When not in use, the air compressor should be disconnected and stored in a warm and dry place.
Coil the electric cord and place within frame for protection.
7. Check all cords periodically. They must be in good condition and not cracked. If the cord is damaged,
it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard.
13

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
TROUBLESHOOTING
Problem Possible Cause Solution
Excessive air tank
pressure – safety valve
pops off
Pressure switch does not shut
when air compressor reaches
cut-out pressure
Set the on/off switch to off, if the
unit does not shut off contact an
authorized service center.
Pressure switch cut-out too high Contact an authorized service
center.
Air leaks Tube fittings are not tight enough Tighten fittings where air can be
heard escaping. Check fittings with
soapy water solution. Do not over
tighten.
Air leaks in air tank or at
air tank welds
Defective air tank Air tank must be replaced. Do not
repair the leak.
Warning: Risk of bursting. Do not
drill into, weld or otherwise modify
air tank or it will weaken. The air
tank can rupture or explode.
Air leaks between head
and valve plate
Leaking seals Contact an authorized service
center.
Air leaks from safety
valve
Defective safety valve Operate safety valve manually by
pulling on ring. If valve still leaks, it
must be replaced.
Knocking noise Defective safety valve Operate safety valve manually by
pulling on ring. If valve still leaks, it
must be replaced.
Carbon build-up in pump Contact an authorized service
center.
Pressure reading on the
regulated pressure
gauge drops when an
accessory is used
Regulator is not adjusted
correctly for accessory being
used
It is normal for some pressure drop
to occur when an accessory is
used, adjust the regulator.
Note: Adjust the regulated
pressure under flow conditions
while accessory is being used.
Air compressor is not
supplying enough air to
operate accessories
Prolonged excessive use of air Decrease amount of air usage.
Air compressor is not large
enough for accessory
Check the accessory air
requirement. If it is higher than the
SCFM or pressure supplied by
your air compressor, a larger air
compressor is needed to operate
accessory.
14

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
Hole in air hose Replace air hose.
Check valve restricted Remove, clean or replace.
Air leaks
Tighten fittings.
Restricted air intake filter Change air intake filter.
Regulator knob has
continuous air leak
Regulator is damaged Replace.
Regulator will not shut
off air outlet
Regulator is damaged Replace.
Moisture in pump
crankcase
Unit operating in damp or humid
conditions
Move unit to a dry well-ventilated
area.
Motor will not run Check valve restricted Remove, clean or replace.
Motor overload protection switch
has tripped
Let the motor be cooled to lower
the temperature
Loose electrical connections Contact an authorized service
center.
Possible defective motor or
starting capacitor
Contact an authorized service
center.
Fuse blown, circuit breaker
tripped
Check fuse box for blown fuse and
replace as necessary. Reset circuit
breaker. Do not use a fuse or
circuit breaker with higher rating
than that specified for your
particular branch circuit.
Check for proper fuse. Use only a
time delay fuse.
Check for low voltage conditions
and/or proper extension cord.
Disconnect the other electrical
appliances from circuit or operate
the air compressor on its own
branch circuit.
Tank pressure exceeds pressure
switch cut-in pressure
Motor will start automatically when
tank pressure drops below cut-in
pressure of pressure switch.
Pressure release valve on
pressure switch has not
unloaded head pressure
Set the pressure switchto off. If the
valve does not open, replace
switch. Contact an authorized
service center.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
15

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
EXPLOSIVE VIEW
1
2
3
4
5
6
711
12
13 14
15
16
17
18
19
20
21
8
9
10
22
23
25
26
27
28
29
30 31
24
16

30L/38L SILENT OIL FREE AIR COMPRESSOR ENG
PART LIST
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1 Soft grip 1 17 Nut 4
2 Handle 1 18 Fixing plate for capacitor 1
3 Air filter 1 19 Nut 2
4 Compressor 1 20 Screw 1
5 Pressure switch 1 21 Fixing knob of handle 2
6 Pipe joint 1 22 Check valve 1
7 Pipe 1 23 Bolt 2
8 Safety valve 1 24 Air tank 1
9 Pressure regulator knob 1 25 Nut 2
10 Air cock 2 26 Cushion foot 1
11 Pressure gauge for tank 1 27 Washer 1
12 Pressure gauge for outlet 1 28 Bolt 1
13 Pipe 1 29 Drain valve 1
14 Capacitor 1 30 Washer 2
15 Cushion foot 4 31 Wheel 2
16 Bolt 2
17

18
WD060213010/WD060213810

19
WD060213010/WD060213810

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
