Vido WD010810320 User manual

Finishing sander
WD010810320
320W

WD010810320
Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.
2

WD010810320
1 2 3
6
4 5
5.5mm
3
2
1
3 4 5
6
7

320W FINISHING SANDER ENG

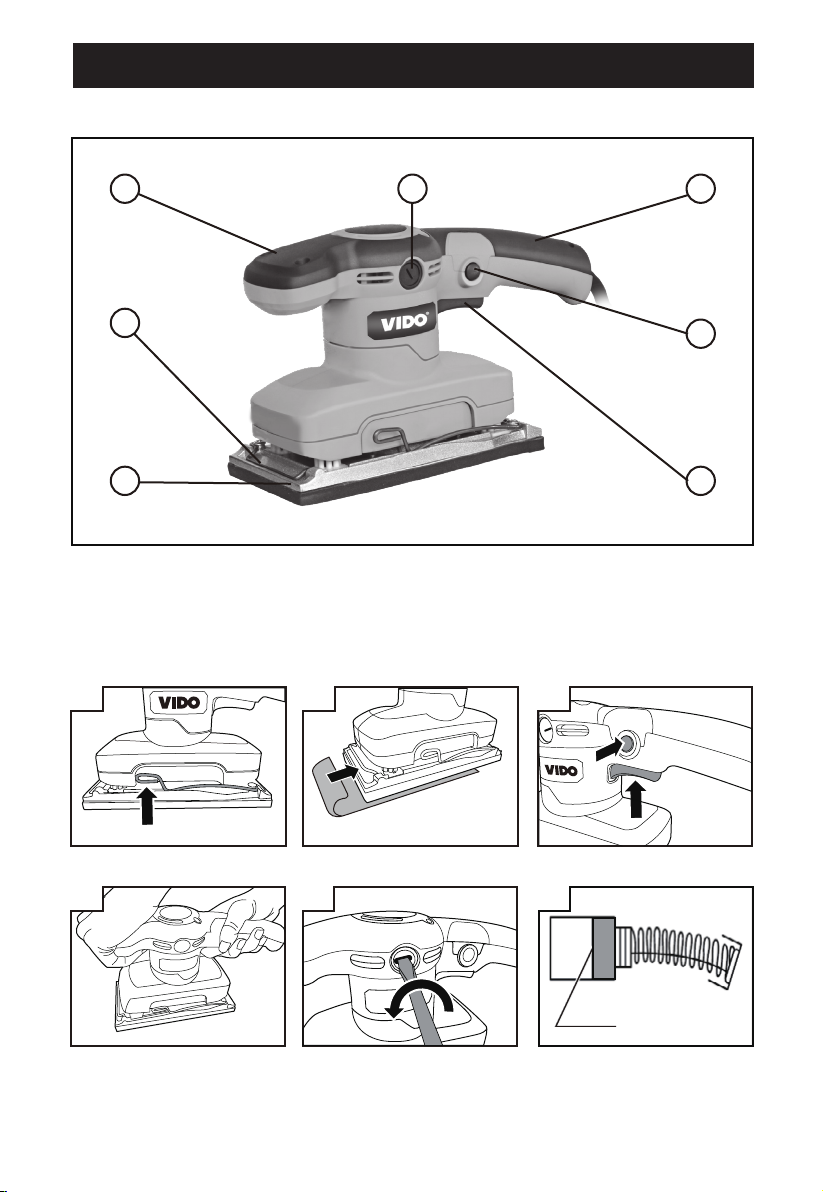

COMPONENT LIST
1) Sanding base
2) Sanding sheet clamp
3) Auxiliary handle
4) Cap of brush holder
5) Handle
6) Lock-on button for on/off switch
7) On/off switch
NORMAL ACCESSORIES
1) Spare carbon brush: 1set
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the
work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can
assist you and offer advice.
4

320W FINISHING SANDER ENG
GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch isin the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
b)
f)
5

320W FINISHING SANDER ENG
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection ofdust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow personsunfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL
1) Always wear dust mask or respirator to minimize breathing in the fine dust created while sanding.
2) Do not allow other person to enter the working area without wearing a dust mask or respirator.
3) Do not sand magnesium material due to the risk of fire
4) Use the power tool only for dry sanding. Penetration of water into the machine increases the risk of
an electric shock.
5) Always hold the power tool firmly with both hands. Loss of control can cause personal injury.
6) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure
than by hand.
7) Make sure if the sanding sheet or the base plate is crackled or damaged. Crackled or damaged
base plate would result in personal injury.
8) When an extension cord is required you must ensure it has the correct ampere rating for your power
tool and that it is in a safe electrical condition. Fully unwind extension cords to avoid potential
overheating.
6

320W FINISHING SANDER ENG
Warning: Some dust created by power sanding contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
•Lead from lead-based paints,
•Crystalline silica from bricks and cement and other masonry products,
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
DOUBLE INSULATION
The power tool is double insulated. This means that all the external metal parts are electrically insulated
from the main power supply. This is done by placing insulation barriers between the electrical and
mechanical components making it unnecessary for the power tool to be earthed.
IMPORTANT NOTE
Be sure the supply is the same as the voltage given on the rating plate. The power tool is fitted with a
two-core cable and plug.
Remove the main plug from socket before carrying out any adjustment or servicing.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
7

320W FINISHING SANDER ENG
TECHNICAL DATA
Note: For power tool specifications refer to the nameplate on your power tool.
OPERATING INSTRUCTIONS
Note: Before using the power tool, read the instruction manual carefully.
1. Intended use
The machine is intended for dry sanding of wood, plastic, filler and coated surfaces.
2. Before using your power tool
1) Before sanding, check the area is free of nails, screws, etc.
2) Selecting the sanding sheet depending on the material to be worked and the required rate of material
removal, different sanding sheets are available:
3. Installing or removing sanding sheets
1) When installing a new sanding sheet, lift up the clamp lever and move away from the clamp lever
lock (See Fig 1). The sanding sheet clamp is loose now. Repeat with the other clamp on the opposite
side of your power tool.
2) Insert one end of the sanding sheet under the sanding sheet clamp (See Fig 2). Lift up the clamp
lever and move it to the lever lock position. Press the sanding sheet around the sanding base shape as
tight as possible and fix the end under the other sanding sheet clamp. Check the sanding sheet is
square to the sanding base and remove and refit it if not correct.
Model WD010810320
Voltage 110-120V AC 220-240V AC
Frequency 50-60Hz 50-60Hz
Power input 320W 320W
No load speed 14000/min 14000/min
Sanding base 7-1/4″X3-5/8″90X180mm
Protection class
Machine weight 1.8kg 1.8kg
Material Working object Type Grain size
All wooden
materials
Coarse-sanding, unplaned beams and boards Coarse 40, 60
Face sanding and planing small irregularities Medium 80, 100, 120
Finish and fine sanding of hard woods Fine 180, 240, 320, 400
Paint / enamel
coats or
primers and
fillers
Sanding off paint Coarse 40, 60
Sanding primer Medium 80, 100, 120
Final sanding of primers before coating Fine 180, 240, 320
8

320W FINISHING SANDER ENG
3) Always ensure the sanding sheet is tight over the sanding base and secured underneath both locked
clamps. This will ensure safe and efficient sanding performance.
4. Switching On and Off
1) To start the sander, simply depress the switch trigger. Release the switch trigger to stop your sander.
2) If you wish to use the sander continuously, depress switch trigger and then lock on button, release
switch trigger first and lock on button second (See Fig 3). Your switch is now locked on for continuous
use. To turn off your sander just depress and release the switch trigger. The switch will return to "off"
position automatically.
5. Operation
1) Always hold the sander firmly while it is on and apply it gently to the workpiece, it may kickback
slightly on first contact. Hold the sander so that it is flat on the workpiece and move the sander slowly,
preferably in parallel lines, circles or crosswise movements (See Fig 4). Upon completion of sanding,
release the switch trigger and wait until the sander comes to a complete stop before lifting it from the
workpiece.
2) For a finer finish, always use a fine grain sanding sheet and only move the sander in the direction of
the grain and never across the grain. Do not allow your sander to remain in the same position otherwise
you will remove material and create an uneven surface.
Note: If the workpiece is small or it may move during sanding, it must be held in a vice or suitably
clamped.
WORKING HINTS FOR YOUR POWER TOOL
1. Use coarse grit sanding sheet to sand rough surfaces, medium grit for smooth surfaces and fine grit
for the final surfaces. If necessary, first make a test on scrap material. Use only good quality sanding
sheet.
2. A sanding sheet that has been used for metal should not be used for other materials.
3. Do not start sanding without sanding sheet fitted.
4. Start your sander before sanding and turn off only after stopping sanding.
5. For best results sand wood in the direction of the grain.
6. Pay attention to apply uniform sanding pressure, this increases the working life of the sanding
sheets.
7. Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to
increased wear of the machine and the sanding sheet.
8. Replacing the sanding sheet regularly will maintain optimum sanding efficiency.
9. Do not sand in one spot for too long because the sander’s rapid action may remove too much
material and make the surface uneven.
9

320W FINISHING SANDER ENG
MAINTENANCE
Warning: Remove the plug from the socket before carrying out any adjustment, servicing
or maintenance.
1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed
air into the vents to clear any internal dust (safety goggles must be worn when undertaking this
process).
2. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
3. Always store your power tool and accessories in a dry place.
4. If you see some sparks flashing in the ventilation slots, this is normal and will not damage your power
tool.
5. The carbon brushes should be inspected frequently when power tools are used continuously. To
inspecting or replacing the carbon brushes, use a screwdriver to remove the carbon brush caps (See
Fig 5). Take out the carbon brushes. If it becomes worn to or near “wear limit” (See Fig 6), replacing the
new ones, reinstall the holder cap firmly.
Note:
•If your power tool runs sporadically, loses power, makes unusual noises or runs at a reduced speed,
check the carbon brushes. To continue using the power tool in this condition will permanently damage
your power tool.
•Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Keep
the carbon brushes clean and free to slip in the holders.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
TROUBLESHOOTING
1. If your power tool will not operate, check the power at the mains plug, or check the carbon brushes.
2. If your power tool doesn’t work properly, check that sanding sheet be worn away, replace it with a
new one if worn away.
3. If a fault can’t be rectified, return the power tool to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
10

11
320W FINISHING SANDER
ENG
EXPLOSIVE VIEW

320W FINISHING SANDER ENG
PART LIST
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1
Foam base
1
21
Support of bearing
1
2 Screw 8 22 Rear cover 1
3
Aluminum plate
1
23
Switch
1
4 O ring 1 24 Housing 1
5
Sanding base
1
25
Brush holder
2
6 Screw 2 26 Carbon brush 2
7
Sanding sheet clamp
2
27
Cap of brush holder
2
8 Screw 10 28 Stator 1
9
Pressure plate of base support
2
29
Screw
2
10 Base support 2 30 Bearing 1
11
Screw
1
31
Dust ring
1
12 Washer 1 32 Rotor 1
13
Balance weight
1
33
Washer
1
14 Screw 3 34 Bearing 1
15
Pressure plate of bearing
1
35
Washer
1
16 Bearing 1 36 Screw 2
17
Washer
1
37
Cable clamp
1
18 Fan 1 38 Cable protector 1
19
Screw
4
39
Cable and plug
1
20 Screw 2
12

13
WD010810320

14
WD010810320

15
WD010810320

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
