Viessmann Vitocrossal 200 CM2 Series Operating instructions

Service instructions
for contractors
VIESMANN

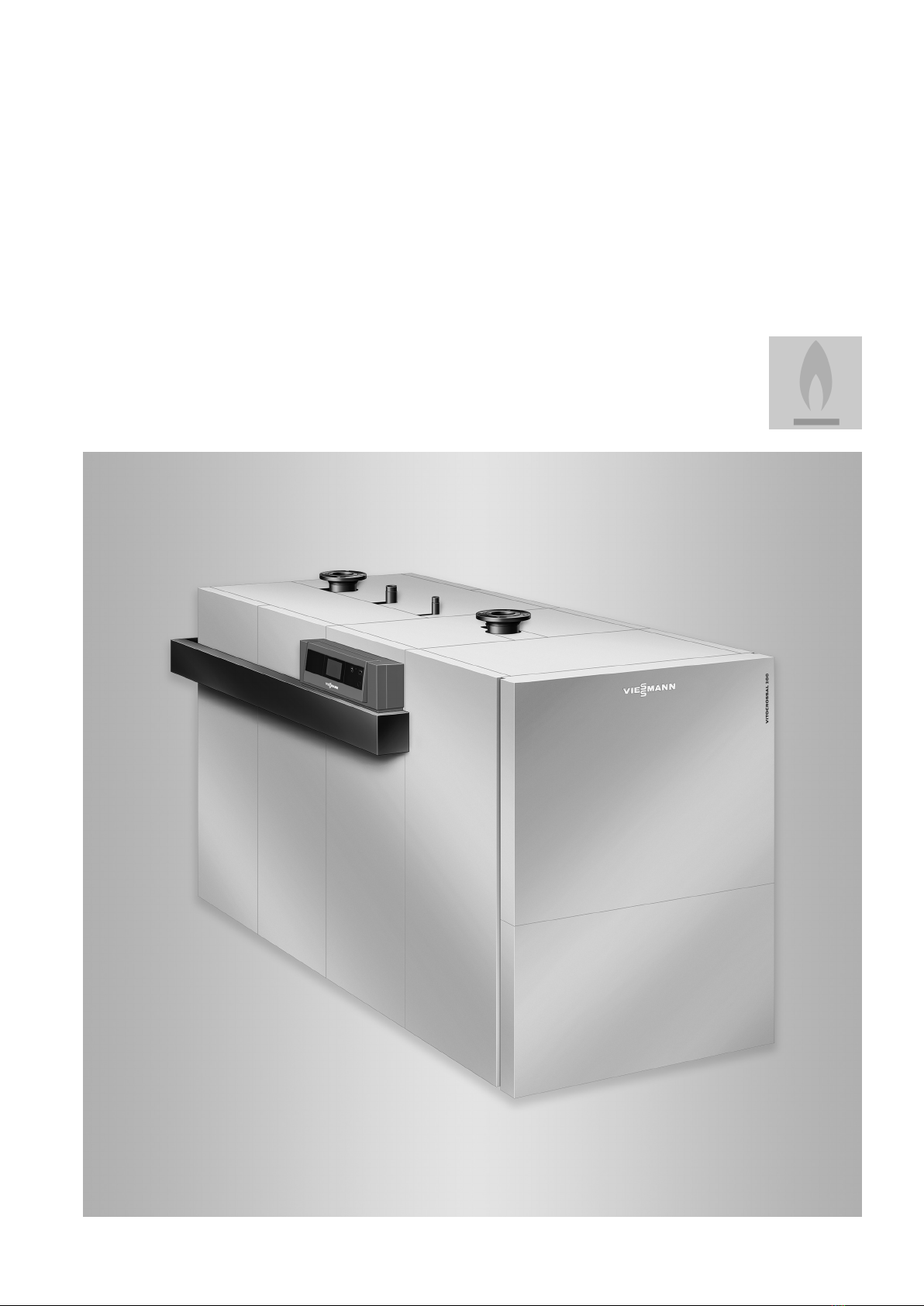

Vitocrossal 200
Type CM2, 400 to 620 kW
Gas condensing boiler with MatriX cylinder burner
For open flue and room sealed operation
Permissible operating pressure 6 bar
VITOCROSSAL 200
5833544 GB 6/2018 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on gas installations may only be carried out by
a registered gas fitter.
■Work on electrical equipment may only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, TRGI, TRF, VDE and all locally applicable
standards
aÖNORM, EN, ÖVGW G K directives,
ÖVGW-TRF and ÖVE
cSEV, SUVA, SVGW, SVTI, SWKI, VKF and
EKAS guideline 1942: LPG, part 2
Safety instructions for working on the system
Working on the system
■Where gas is used as the fuel, close the main gas
shut-off valve and safeguard it against unintentional
reopening.
■Isolate the system from the power supply, e.g. by
removing the separate fuse or by means of a mains
isolator, and check that it is no longer live.
■Safeguard the system against reconnection.
■Wear suitable personal protective equipment when
carrying out any work.
Danger
Hot surfaces and fluids can lead to burns or
scalding.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
Safety instructions
5833544

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions for operating the system
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Do not smoke. Prevent naked flames and
sparks. Never switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas or electricity supply utility from
outside the building.
■Have the power supply to the building shut off
from a safe place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close doors to living spaces to prevent flue
gases from spreading.
What to do if water escapes from the appliance
Danger
If water escapes from the appliance there is a
risk of electrocution.
Switch OFF the heating system at the external
isolator (e.g. fuse box, domestic distribution
board).
Danger
If water escapes from the appliance there is a
risk of scalding.
Never touch hot heating water.
Condensate
Danger
Contact with condensate can be harmful to
health.
Never let condensate touch your skin or eyes
and do not swallow it.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other external causes.
Avoid continuous condensate disposal with a wind pro-
tector.
Ensure an adequate supply of combustion air.
Inform system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an inade-
quate supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in good working order.
Vents for supplying combustion air must be non-
sealable.
Extractors
Operating appliances that exhaust air to the outside
(extractor hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to a reverse flow of flue
gas.
Danger
The simultaneous operation of the boiler and
appliances that exhausts air to the outside can
result in life threatening poisoning due to a
reverse flow of flue gas.
Fit an interlock circuit or take suitable steps to
ensure an adequate supply of combustion air.
Safety instructions
Safety instructions (cont.)
5833544

4
1. Information Disposal of packaging ............................................................................ 5
Key to date of manufacture .................................................................... 5
Symbols ................................................................................................. 6
■Intended use ....................................................................................... 6
2. Commissioning, inspec-
tion, maintenance
Steps – commissioning, inspection and maintenance ........................... 8
3. Control unit Adjusting codes at the control unit ......................................................... 33
4. Burner control unit ................................................................................................................ 34
5. Flow diagram for burner
control unit
................................................................................................................ 38
6. Troubleshooting Fault indicator ........................................................................................ 40
■Fault display ....................................................................................... 40
■Fault memory ...................................................................................... 40
Fault codes ............................................................................................ 40
■General process errors ....................................................................... 40
■Internal system faults .......................................................................... 43
Faults without fault display ..................................................................... 45
7. Parts lists Overview of assemblies ......................................................................... 47
Boiler assembly ..................................................................................... 48
Thermal insulation assembly ................................................................. 50
Cable set assembly ............................................................................... 52
Burner assembly .................................................................................... 54
Parts not shown ..................................................................................... 56
8. Component overview ................................................................................................................ 57
9. Functions Air pressure switch ................................................................................ 58
■Fan pressure monitoring function (LDW1) .......................................... 58
■Combustion chamber pressure monitoring function (LDW2) .............. 58
10. Connection diagrams Burner control unit connection diagrams ............................................... 59
■Mains filter unit connection diagram ................................................... 61
11. Reports Water quality .......................................................................................... 62
Settings and test values ......................................................................... 62
12. Specification ................................................................................................................ 66
13. Final decommissioning
and disposal
................................................................................................................ 69
14. Certificates EU Declaration of Conformity ................................................................ 70
Manufacturer's certificate ....................................................................... 70
15. Keyword index ................................................................................................................ 71
Index
Index
5833544

5
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.

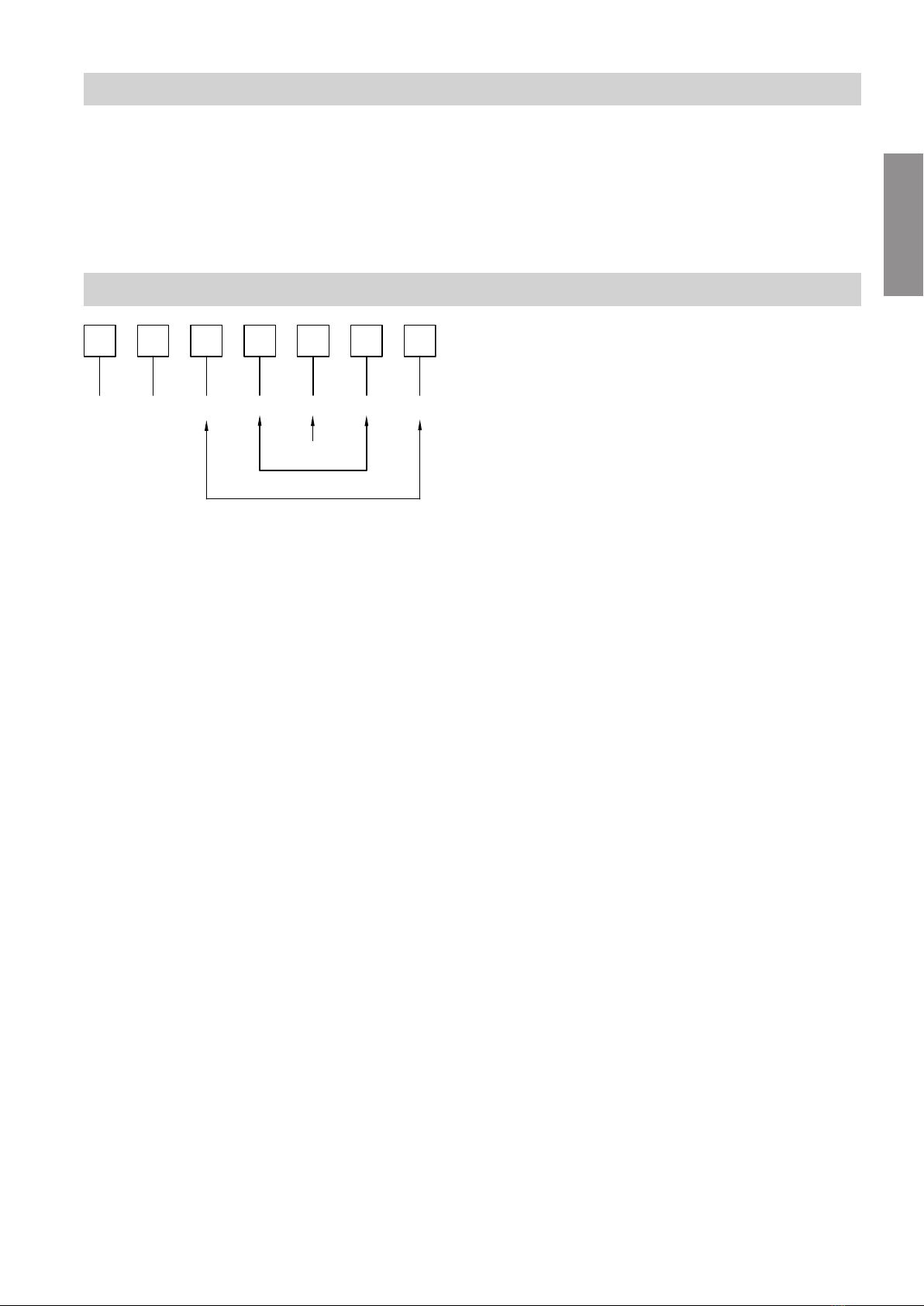

Key to date of manufacture
1 2 43 5 6 7
X X 0 1 2 5 5
Day
Year
Week
Fig. 1
Digits 1 and 2Internal Viessmann information
Digits 3 and 70 and 5 = calendar week 05 = 5th calendar week
Digits 4 and 61 and 5 = year 2015
Digit 52 = 2nd day of the working week
(Monday = 1, Tuesday = 2, etc.)
Example 0501255 corresponds to date of manufacture: 27 January 2015
Information
Disposal of packaging
5833544
Information

6
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
The steps in connection with commissioning, inspec-
tion and maintenance are found in the "Commission-
ing, inspection and maintenance" section and identified
as follows:
Symbol Meaning
Steps required during commissioning
Not required during commissioning
Symbol Meaning
Steps required during inspection
Not required during inspection
Steps required during maintenance
Not required during maintenance
Intended use
The appliance is only intended to be installed and
operated in sealed unvented heating systems that
comply with EN 12828, with due attention paid to the
associated installation, service and operating instruc-
tions as well as the details in the datasheet.
It is only designed for the heating up of heating water.
Commercial or industrial usage for a purpose other
than the heating up of heating water shall be deemed
inappropriate.
Intended use presupposes that a fixed installation in
conjunction with permissible components designed for
this purpose has been carried out.
Information
Symbols
5833544
Information

7
Every other use will be deemed to be inappropriate.
Any resulting losses are excluded from the manufac-
turer's liability.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Intended use also includes the adherence to mainte-
nance and inspection intervals.
Product information
Vitocrossal 200, type CM2
■Gas condensing boiler:
–400 to 620 kW rated heating output with modulat-
ing MatriX radiant burner for natural gas E and LL
(also for room sealed operation; accessories
required)
■Permissible operating pressure 6 bar (0.6 MPa)
■Permissible operating temperature up to 95 °C. Per-
missible safety temperature up to 110 °C
■Delivery:
Boiler body on pallet
Thermal insulation, burner, electronics unit with cable
harnesses and programming unit packed separately
Information
Symbols (cont.)
5833544
Information

8
Commissioning steps
Inspection steps
Maintenance steps Page
•1. Checking the high limit safety cut-out setting................................................................ 10
•2. Filling the heating system with water and venting......................................................... 10
•3. Filling the trap with water.................................................................................................. 10
••• 4. Opening the boiler.............................................................................................................. 10
•5. Checking the gas type....................................................................................................... 12
•6. Converting to natural gas LL............................................................................................ 13
•7. Conversion to LPG P......................................................................................................... 14
••• 8. Commissioning the system............................................................................................... 15
•9. Reducing operational output (if necessary).................................................................... 16
••• 10. Checking the static pressure and supply pressure........................................................ 17
••• 11. Checking the rotary damper setting................................................................................. 18
••• 12. Checking the CO2 content................................................................................................. 21
• • 13. Checking the CO content.................................................................................................. 23
• • 14. Checking the flue gas temperature.................................................................................. 23
• • 15. Displaying the ionisation current..................................................................................... 23
• • 16. Opening the boiler door..................................................................................................... 24
• • 17. Cleaning the combustion chamber and heating surfaces............................................. 24
• • 18. Checking gaskets and thermal insulation sections........................................................ 25
• • 19. Checking all connections on the heating water side for tightness............................... 25
• • 20. Cleaning and reconnecting the condensate drain system............................................. 25
• • 21. Checking the condensate drain and the neutralising system (if installed).................. 26
• • 22. Checking the burner gauze assembly.............................................................................. 26
• • 23. Checking the ignition electrodes and ionisation electrode........................................... 28
• • 24. Cleaning the burner........................................................................................................... 28
•25. Fitting the fan...................................................................................................................... 28
•26. Closing the boiler door...................................................................................................... 29
•27. Burner electrical connection............................................................................................. 29
• • 28. Checking for tightness on the flue side........................................................................... 30
• • 29. Automatic tightness test of gas train valves................................................................... 30
• • 30. Checking the gas train filter element............................................................................... 30
• • 31. Checking the filter element in the gas line...................................................................... 31
••• 32. Checking the connections on the gas side for tightness............................................... 31
•33. Performing final checks..................................................................................................... 31
• • 34. Checking the water quality................................................................................................ 31
••• 35. Checking the safety valve function
••• 36. Checking the temperature controller setting if a building management system is
used (DCC system)............................................................................................................ 31
• • 37. Checking the expansion vessel and system pressure................................................... 32
• • 38. Checking the mixer for ease of operation and leaks...................................................... 32
Commissioning, inspection, maintenance
Steps – commissioning, inspection and maintenance
5833544

9
Commissioning steps
Inspection steps
Maintenance steps Page
••• 39. Checking the thermal insulation for firm seating
• • 40. Checking the ventilation air aperture in the installation room (only for open flue
operation)
•41. Instructing the system user.............................................................................................. 32
Commissioning, inspection, maintenance
Steps – commissioning, inspection and… (cont.)
5833544

10
The high limit safety cut-out is preset to 110 °C and, if
required, can only be adjusted by changing the coding
card.
Filling the heating system with water and venting
Record the volume filled, water hardness and pH value
on page 62.
Note
Observe the "Water quality requirements" on
page 64.
Filling the trap with water
Fig. 2
1. Undo 4 screws. Remove the centre and bottom
back panels.
2. Undo the siphon and fill with water so that no flue
gas can escape.
Danger
Flue gas escaping from the trap or conden-
sate drain can cause life threatening carbon
monoxide poisoning. To prevent flue gas
from escaping, always connect the conden-
sate drain with a trap. Always fill the trap
with water before commissioning.
3. Check that the condensate can drain freely.
4. Refit the trap.
Note
The hose connection to the on-site condensate
system or to the neutralising system must not be
permitted to sag. Support the hose connection with
pipe if necessary.
Opening the boiler
1. Switch OFF the mains isolator or the power supply,
and safeguard against unauthorised reconnection.
Danger
Mains voltage can be life threatening.
For maintenance work, isolate the system
from the power supply.
Commissioning, inspection, maintenance
Checking the high limit safety cut-out setting
5833544

11
M5
3x
Fig. 3
2. Remove front panels and, if necessary, the front of
the top panel and the side panel (on the side
where the boiler door is hinged). For this, undo the
M5 screw from the top of the front panel.
Disengage the location studs from the side panels,
tip the front panel slightly forward and lift away
from the lower front panel.
Fig. 4
3. Unhook the lower front panel from the side panels.
Commissioning, inspection, maintenance
Opening the boiler (cont.)
5833544

12
Fig. 5
4. To remove the side panel and top panel, undo the
M6 screws on the top rail and on the lower support.
5. Close the gas shut-off valve.
Checking the gas type
1. Check with your gas supply utility regarding the
gas type and Wobbe index (Wo).
■With the natural gas E setting, boilers can be
operated in the Wobbe index range 12.0 to
16.1 kWh/m3 (43.2 to 58.0 MJ/m3).
■With the natural gas LL setting, boilers can be
operated in the Wobbe index range 10.0 to
13.1 kWh/m3 (36.0 to 47.2 MJ/m3) (not in a or
c).
■With the LPG P setting, boilers can be operated
in the Wobbe index range 20.3 to 22.5 kWh/m3
(72.9 to 81.2 MJ/m3).
2. In the delivered condition, the burner is set up for
natural gas E. If required, convert the burner to a
different gas type in accordance with the details
provided by your gas supply utility: See page 13
onwards.
3. Record the gas type in the report on page 62.
Commissioning, inspection, maintenance
Opening the boiler (cont.)
5833544

13

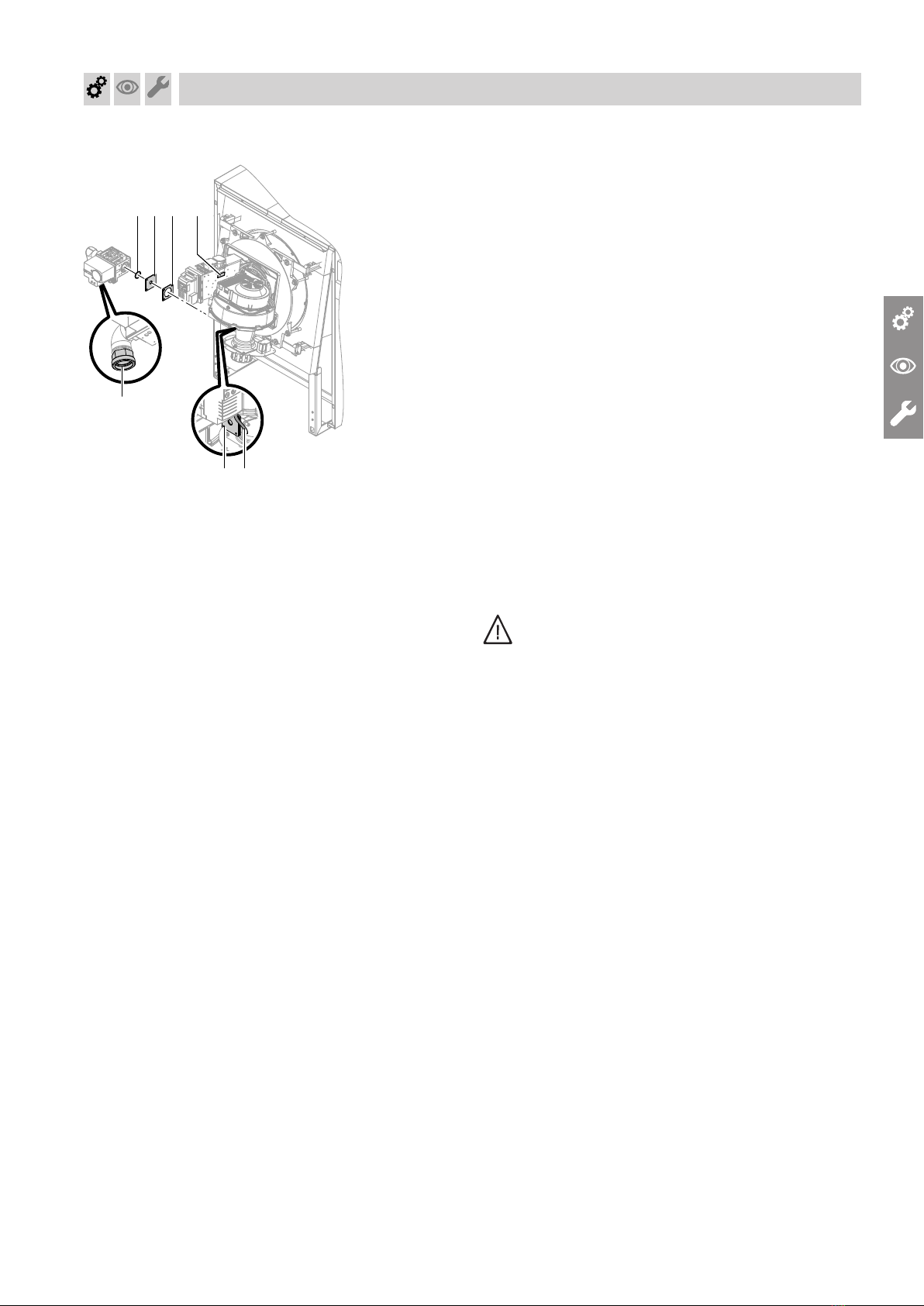

(Not in a or c)
B
C
D
EG
F
A
Fig. 6
01. Close the gas shut-off valve.
02. Turn OFF the ON/OFF switch on the control unit.
03. Switch OFF the mains isolator (outside the instal-
lation room) or power supply and secure against
unintentional reconnection.
04. Undo fitting A from the gas supply pipe.
05. Disconnect control cables G from the gas train.
06. Release the gas train from flange E.
07. Remove restrictor C with rubber cork gasket D.
08. Secure the gas train (without restrictor C and
without rubber cork gasket D) with inserted O-
ring B to flange E. For this, replace the factory-
fitted M5 x 16 screws with the M5 x 12 ones sup-
plied.
09. Tighten the M5 x 12 screws diagonally.
Torque: 1.5 Nm.
10. Secure fitting A.
11. Plug control cable G into the gas train.
12. Check control cables:
■Connection and kink-free routing
■Fixing and firm seating of retaining clips
13. Affix the label "Set to ..." F supplied over existing
label.
14. Start the burner (see page 15).
15. Check for gas tightness.
Danger
Escaping gas leads to a risk of explosion.
Check all fittings for gas tightness.
!Please note
The use of leak detection spray can result in
faulty operation.
Leak detection spray must not come into contact
with electrical contacts.
Commissioning, inspection, maintenance
Converting to natural gas LL
5833544

14

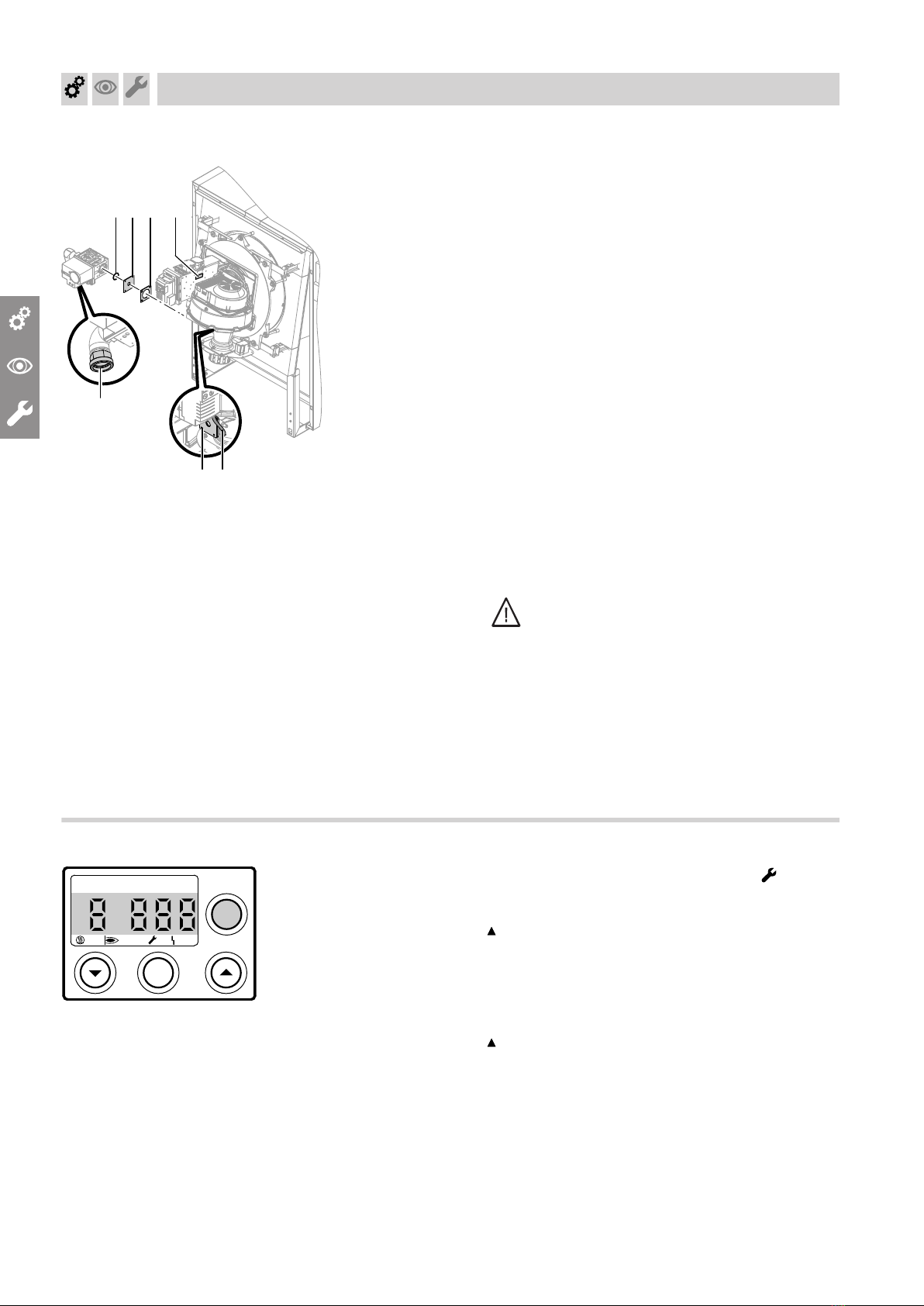

Restrictor installation
B
C
D
EG
F
A
Fig. 7
01. Close the gas shut-off valve.
02. Turn OFF the ON/OFF switch on the control unit.
03. Switch OFF the mains isolator (outside the instal-
lation room) or power supply. Safeguard against
unauthorised reconnection.
04. Undo fitting A from the gas supply pipe.
05. Disconnect control cable G from the gas train.
06. Release the gas train from flange E.
07. Insert O-ring B, LPG restrictor C and rubber
cork gasket D.
Note
The bevel on the LPG restrictor must point
towards the gas train.
08. Tighten the M5 x 16 screws diagonally.
Torque: 1.5 Nm.
09. Secure fitting A.
10. Plug control cable G into the gas train.
11. Check control cables:
■Connection and kink-free routing
■Fixing and firm seating of retaining clips
12. Affix the label "Set to ..." F supplied over existing
label.
13. Check for gas tightness.
Danger
Escaping gas leads to a risk of explosion.
Check all fittings for gas tightness.
!Please note
The use of leak detection spray can result in
faulty operation.
Leak detection spray must not come into
contact with electrical contacts.
14. Start the burner (see page 15).
Changing gas type on the burner control unit
Status Service
S
R
Fig. 8
1. Press "S" and hold for longer than 2 s. " "
flashes.
2. should be pressed until the display shows "6"
under "Service".
3. Press "S" until the display shows "6" under "Sta-
tus".
4. should be pressed until the display shows "2"
under "Service".
5. Press "S" to confirm until the display shows "2"
under "Status" and the current gas type is shown
under "Service" (0 = natural gas or 1 = LPG).
Commissioning, inspection, maintenance
Conversion to LPG P
5833544

15

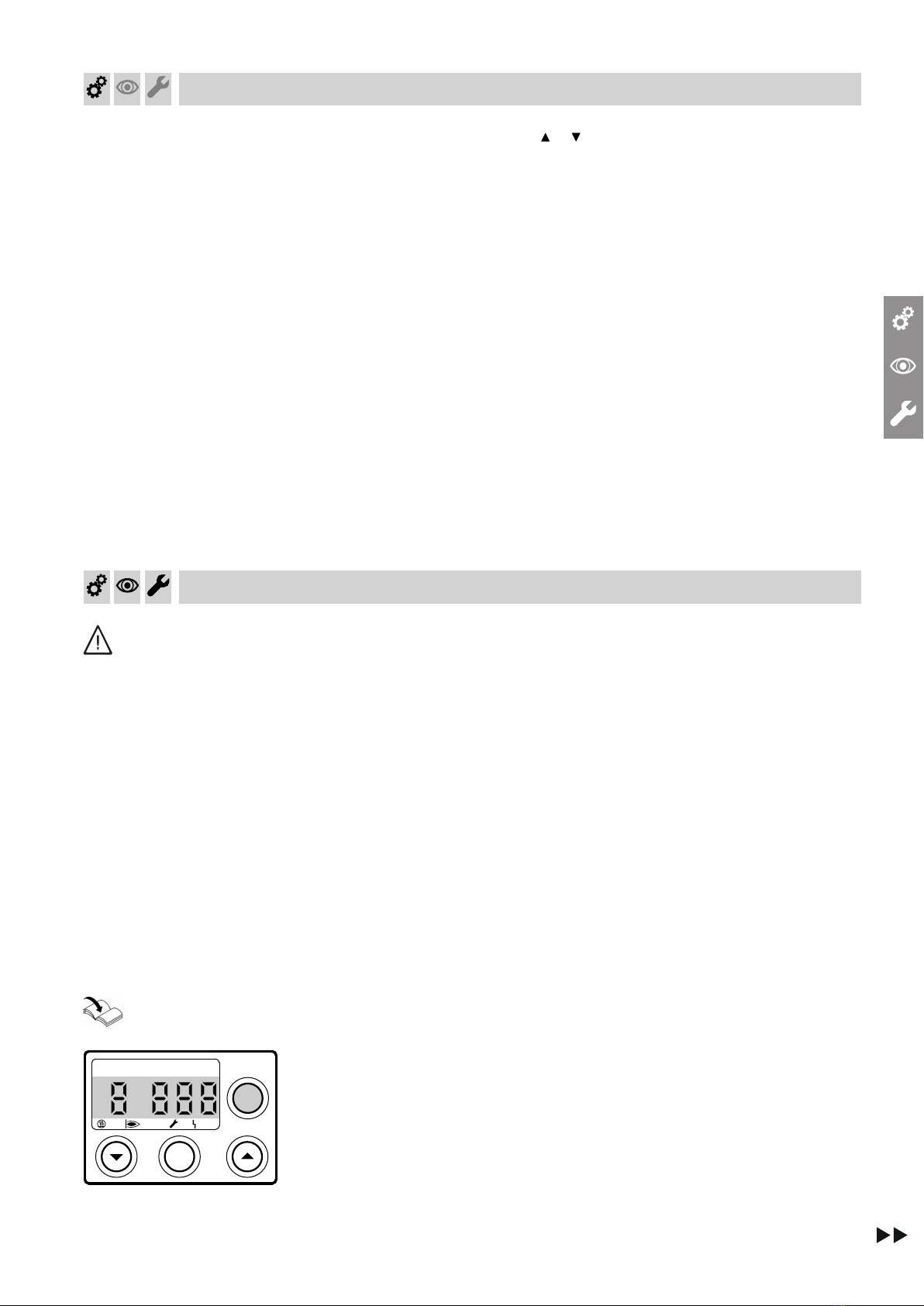

6. Use or to select "1" for LPG and confirm with
"S". If applied successfully, "1" will be shown briefly
on the display under "Service", or "0" will be shown
if unsuccessful.
7. Press "S" again to switch to the operating display.
8. Press "R".
The system will be restarted.
Note
The setting parameters are displayed each time
the system is restarted.
1 Max. output (70-100 %)
The output setting is not limited. The base load
can also be set (CS configuration).
2 Gas type (NG = natural gas or LPG = liquid gas)
3 Installation height (LA or HA)
(not available)
4 Temperature of temperature limiter
5 Integral for minimum pause time
6 Cycle protection method
Commissioning the system
Danger
CO formation as a result of incorrect burner
adjustment can have serious health implications.
Always carry out a CO test before and after
work on gas appliances.
Tightness test
Gaskets on the boiler door and components that route
flue gas can be checked during operation with an
inspection mirror.
If required, remove the thermal insulation components.
Traces of condensate on the outside of the flue gas
collector or on sections of thermal insulation also indi-
cate leaks.
Note
It is essential to check the burner settings with the
boiler heated to operating temperature (min. 40 °C).
Also check in the partial load range.
Boiler control unit service instructions
Status Service
S
R
Fig. 9
01. Check the heating system pressure.
Permissible operating pressure: 6 bar/0.6 MPa
02. For open flue operation:
Check that the ventilation facility in the installation
room is open.
03. Check control cables:
■Connection and kink-free routing
■Fixing and firm seating of retaining clips
04. Check the gas supply pressure (for set value, see
page 18).
05. Open the gas line shut-off valves.
06. Switch ON the mains isolator (outside the installa-
tion room).
Commissioning, inspection, maintenance
Conversion to LPG P (cont.)
5833544

16
07. Turn ON the system ON/OFF switch on the control
unit.
Note
The burner will start with a delay of approx. 3 min.
If a fault is shown on the control unit and the dis-
play on the burner control unit is flashing, first per-
form a reset. Press reset button R on the burner
control unit and reset the burner at the control unit.
Vitotronic operating instructions
Note
The appliance can enter a fault state during com-
missioning if there is still air in the gas line (fault
indicator on the control unit illuminates). Purge the
gas line again and reset the burner control unit.
If the fault persists, the inlet strainer of the gas
train may have become blocked by work carried
out on the gas line.
Danger
Escaping gas leads to a risk of explosion.
First close the shut-off valves in the gas line
again.
Unscrew the flange on the gas train and clean the
strainer. A blocked strainer is not recognised by
the gas pressure test at the flange.
08. Adjust the codes at the boiler control unit.
Control unit installation and service instruc-
tions
09. Check the function of the neutralising system (if
installed), including the hydraulic seal in the
siphon.
Neutralising system operating instructions
10. Check all gaskets and plugs, and retighten if nec-
essary.
Note
We recommend checking all connections on the
heating water side for tightness approx. every 500
hours run.

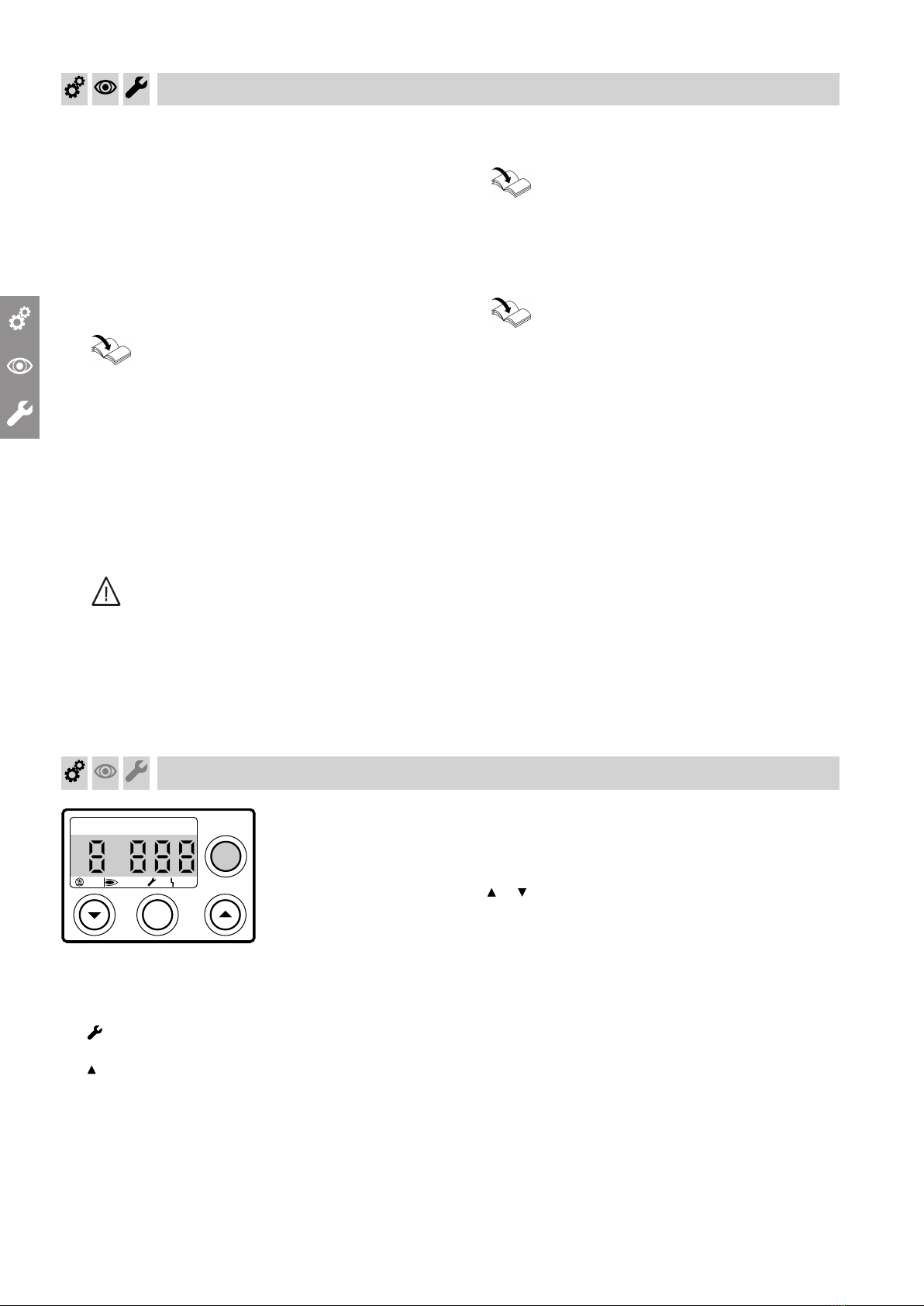

Reducing operational output (if necessary)
Status Service
S
R
Fig. 10
1. Press "S" and hold for longer than 2 s.
flashes.
2. should be pressed until the display shows "6"
under "Service".
3. Press "S"; the display shows "6" under "Status".
4. Press "S"; the display shows "1" under "Status"
and the current value for the maximum heating out-
put is shown in % under "Service".
5. or should be pressed for the required maximum
heating output.
6. Press "S" to confirm. If applied successfully, the
display shows "1" under "Service", or "0" will be
shown if unsuccessful.
7. Press "S" to switch to the operating display.
8. Press "R".
The system will be restarted.
Commissioning, inspection, maintenance
Commissioning the system (cont.)
5833544

17
A

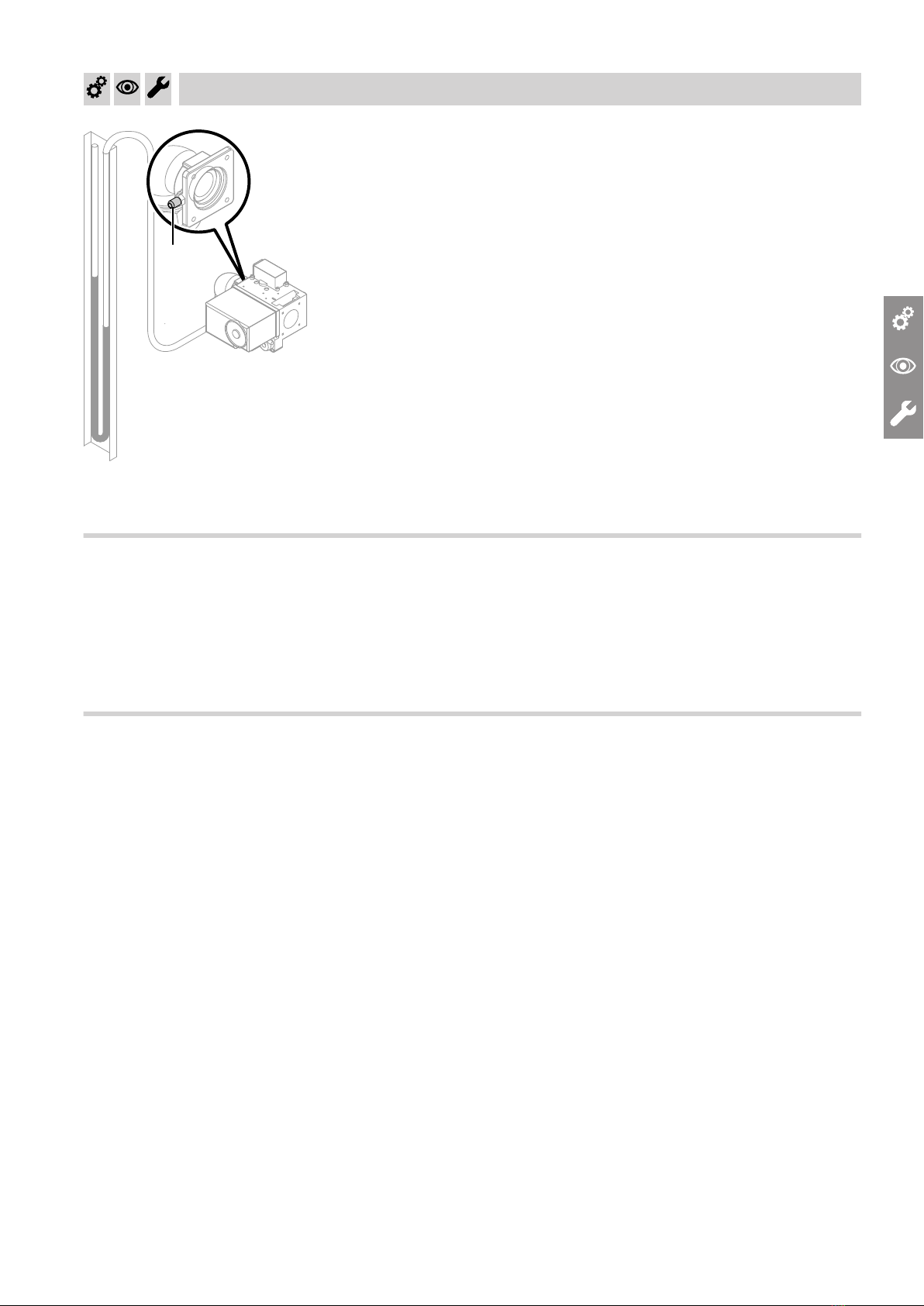

Fig. 11
Static pressure
1. Close the gas shut-off valve.
2. Undo the screw in test connector A. Do not
remove.
3. Connect the pressure tester at test connector A.
4. Open the gas shut-off valve.
5. Check the static pressure (max. 60 mbar/6 kPa).
6. Record the actual value in the report (on
page 62).
Supply pressure
1. Start the burner.
Note
For commissioning, see page 15. Switch the
burner to maximum heating output. For this, acti-
vate the emissions test switch at the control unit.
2. Check the supply pressure (flow pressure); see the
following table.
Note
The supply pressure (flow pressure) for natural gas
should be between 18 and 50 mbar (1.8 and
5 kPa), and for LPG between 42.5 and 57.5 mbar
(4.25 and 5.75 kPa).
Nominal supply pressure for natural gas: 20 mbar
(2 kPa)
Nominal supply pressure for LPG: 50 mbar (5 kPa)
The boiler is factory-fitted with 2 gas pressure
switches. The gas pressure switches are set to
10 mbar (1 kPa). For LPG, set the two gas pres-
sure switches to 20 mbar (2 kPa).
3. Record the actual value in the report (on
page 62).
4. Close the gas shut-off valve.
5. Remove the pressure tester and then close test
connector A.
Commissioning, inspection, maintenance
Checking the static pressure and supply pressure
5833544

18
Supply pressure (flow pressure) Measure
Natural gas LPG
< 15 mbar
< 1.5 kPa
< 20 mbar
< 2 kPa
Do not adjust any settings. Notify your gas supply utility or
LPG supplier.
15 to 18 mbar
1.5 to 1.8 kPa
20 to 42.5 mbar
2 to 4.25 kPa
Please note: The boiler may only be operated temporarily
with this setting (emergency mode).
Notify your gas supply utility or LPG supplier.
18 to 50 mbar
1.8 to 5 kPa
42.5 to 57.5 mbar
4.2 to 5.75 kPa
Start the boiler.
> 50 mbar
> 5 kPa
> 57.5 mbar
> 5.75 kPa
Install a separate gas pressure governor with zero off up-
stream of the boiler system, and set the pressure to
20 mbar/2 kPa for natural gas, or 50 mbar/5 kPa for LPG.
Notify your gas supply utility or LPG supplier.
Checking the rotary damper setting
0
0
AC D
B
Fig. 12
1. Open the gas shut-off valve.
2. Check the position of the rotary damper with the
burner in idle mode. Rotary damper windows B
must be fully opened. Scale ring D on the air
damper servomotor must be set to "0", relative to
marking C.
3. Check control cable A:
■Connection and kink-free routing
■Fixing and firm seating of retaining clips
4. Start the burner.
Commissioning, inspection, maintenance
Checking the static pressure and supply pressure (cont.)
5833544

19
5. Check the position of the rotary damper during the
start-up phase. Rotary damper windows B must
be almost closed for approx. 5 s. During this time,
scale ring D must be at the following settings:
Rated heating
output
Rated heat in-
put
Rotary damper
setting
Pmax
(50/30 °C)
Qmax (Hi) [net
cv]
in kW in kW in °
400 381 30
500 474 20
620 593 20
Control cables – delivered condition
Note
The control cables must be routed without kinks and
plugged in correctly. The hose ends of the control
cables must be secured with wire clamps to prevent
them from being pulled off/falling off.
Burner 400 kW
C B A
D
Fig. 13
AControl cable between LDW2 Plus and combustion
chamber
BControl cable between LDW1 Minus and Venturi
CControl cable between LDW1 Plus and Venturi
DControl cable between gas train and Venturi
Commissioning, inspection, maintenance
Checking the rotary damper setting (cont.)
5833544

20

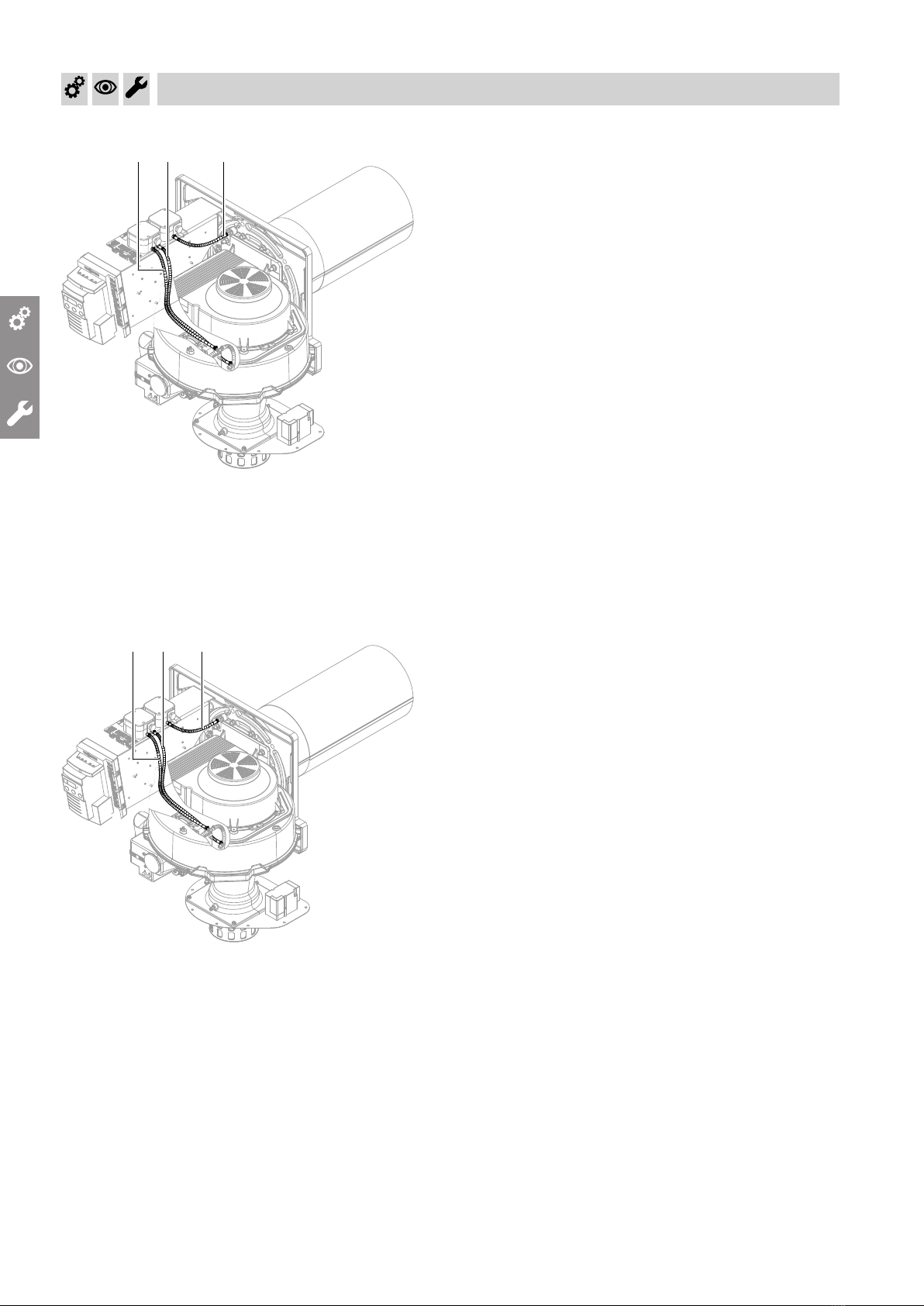

Burner 500 kW
C B A
Fig. 14
AControl cable between LDW2 Plus and combustion
chamber
BControl cable between LDW1 Minus and Venturi
CControl cable between LDW1 Plus, gas train and
rotary damper mounting plate
Burner 620 kW
C B A
Fig. 15
AControl cable between LDW2 Plus and combustion
chamber
BControl cable between LDW1 Minus and Venturi
CControl cable between LDW1 Plus, gas train and
rotary damper mounting plate
Commissioning, inspection, maintenance
Checking the rotary damper setting (cont.)
5833544
