Viessmann Vitocell 100-E Quick guide

Installation and service instructions
for contractors
VIESMANN

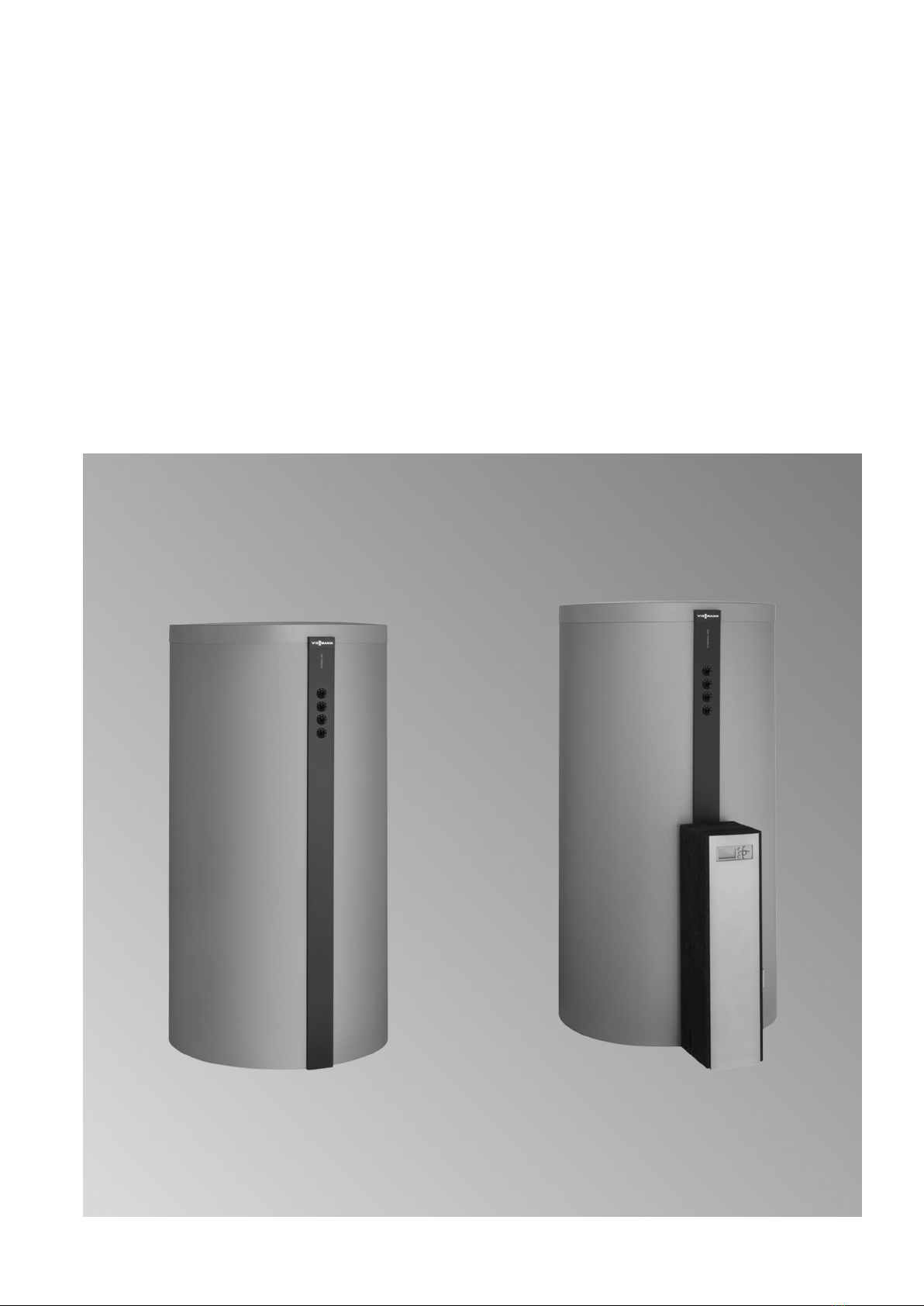

Vitocell 100-E/100-W
Type SVW, SVP/SVPA
Heating water buffer cylinder
For applicability, see the last page
VITOCELL 100-E/100-W
5517 175 GB 3/2014 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations
Observe the following when working on this system:
■National installation regulations
■Statutory regulations regarding the prevention of
accidents
■Statutory regulations regarding environmental pro-
tection
■The Code of Practice of relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, VDE and all locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI and SWKI
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close all doors in the living space.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other causes. Ensure a sufficient supply of
combustion air.
Instruct system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an insuffi-
cient supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in proper working
order. Apertures for supplying combustion air
must be non-closable.
Extractors
Operating appliances that extract air to the outside
(cooker hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to reverse flow of the
flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Fit an interlock circuit or take suitable steps to
ensure a sufficient supply of combustion air.
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Danger
Hot surfaces can cause burns.
■Before maintenance or service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Before beginning work, touch earthed objects,
such as heating or water pipes, to discharge
static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Faulty components must be replaced with origi-
nal Viessmann spare parts.
Safety instructions
Safety instructions
5517 175 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate the warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions (cont.)
5517 175 GB

4
1. Intended use
2. Installation information Product information ................................................................................ 6
■Vitocell 100-E/100-W, type SVW (200 l capacity) ............................ 6
■Vitocell 100-E, type SVP/SVPA (400, 750 and 950 l capacity) ....... 6
■Connections ........................................................................................ 6
3. Installation sequence Installing the Vitocell .............................................................................. 11
■Vitocell with immersion heater, type SVW .......................................... 11
■Vitocell 100-E/100-W, type SVW ........................................................ 11
Connecting the equipotential bonding ................................................... 11

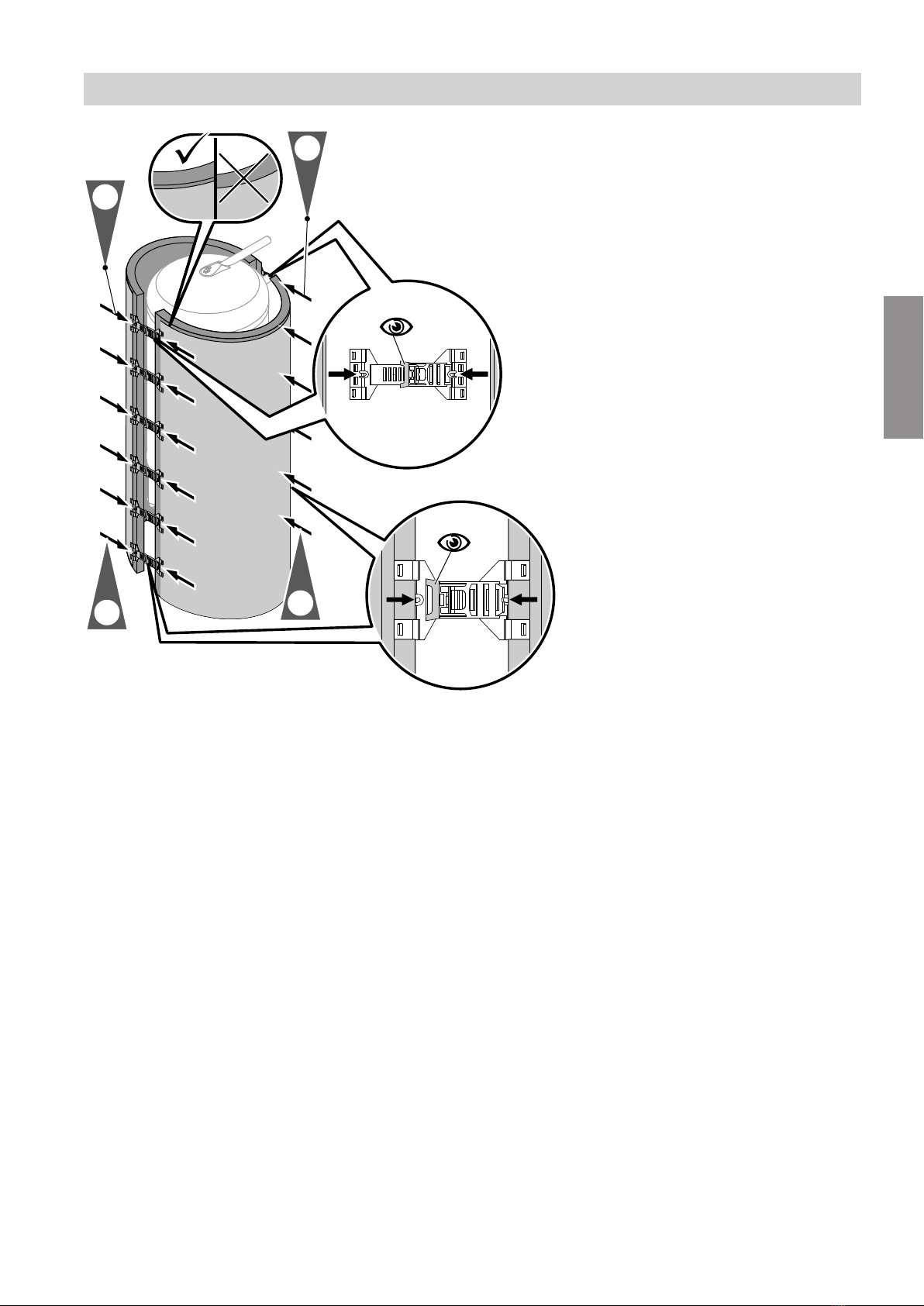

Fitting the thermal insulation, type SVP ................................................. 12
■Fitting the lower thermal insulation mat .............................................. 12
■Fitting the thermal insulation jacket .................................................... 12
■Fitting the thermometer, thermometer sensor and cover strips .......... 14

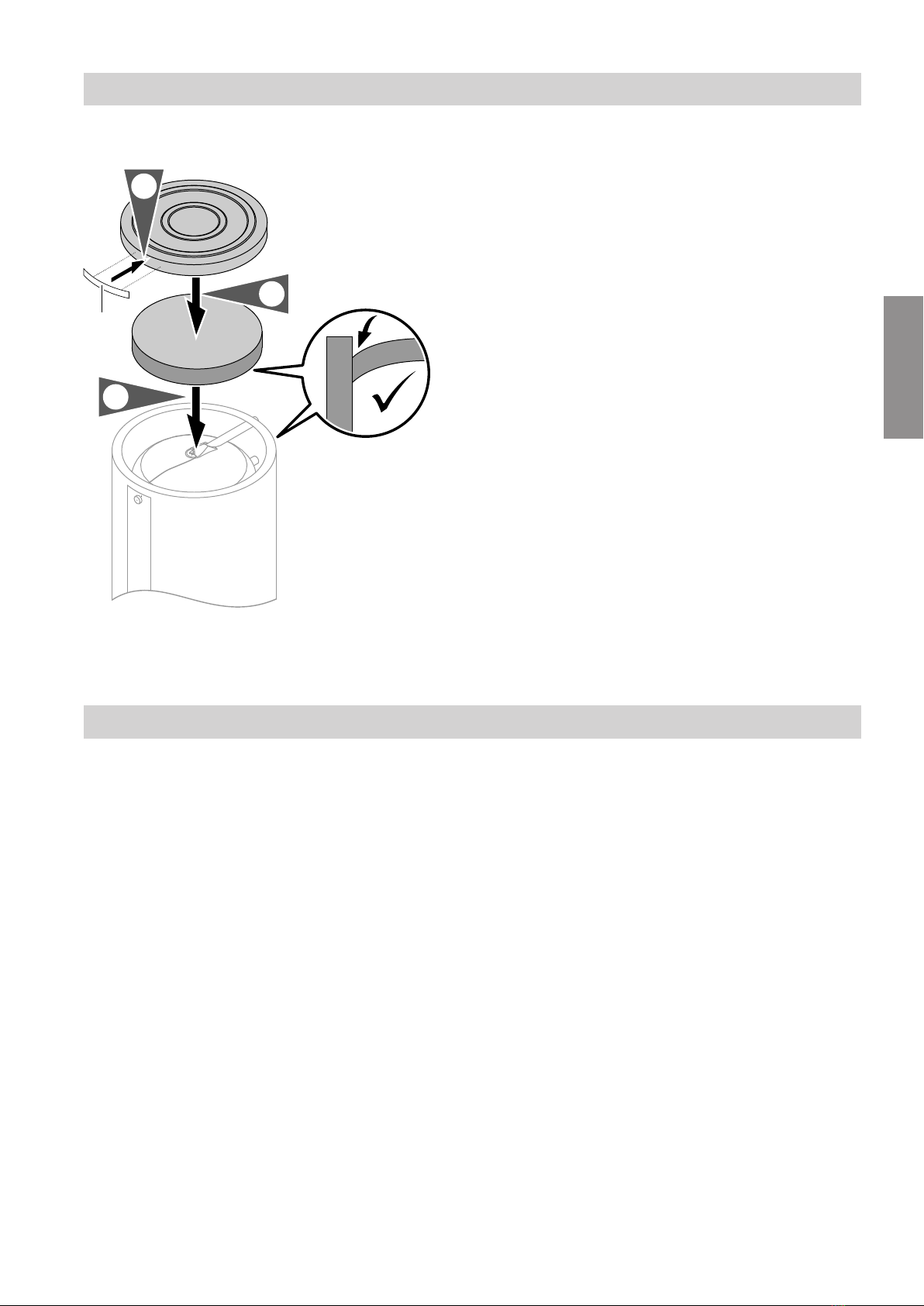

■Fitting the cover .................................................................................. 15

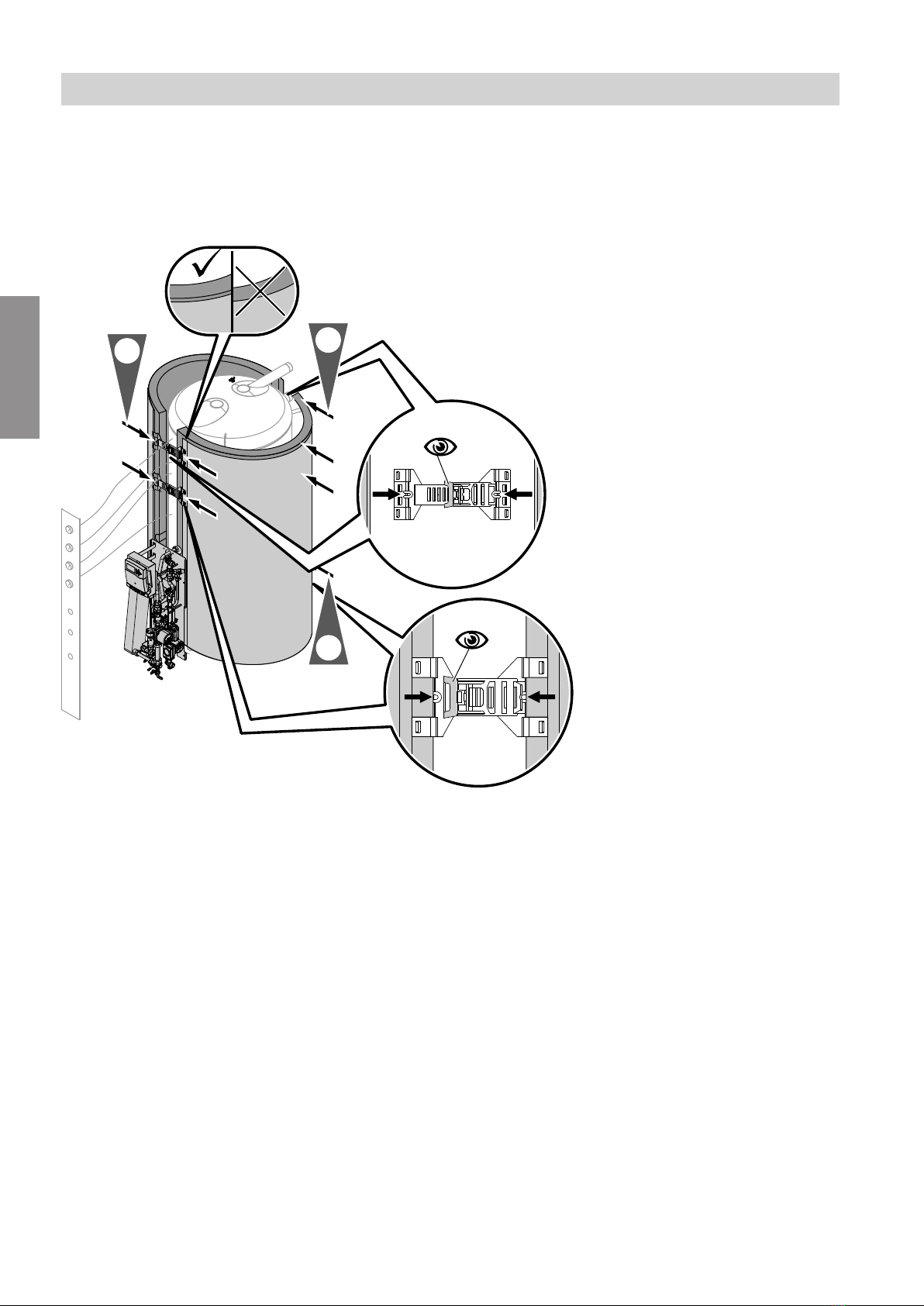

Fitting the Vitotrans and thermal insulation, type SVPA ........................ 15
■Fitting the lower thermal insulation mat, aligning the Vitocell ............. 16
■Fitting the thermometer sensor (if applicable) .................................... 17

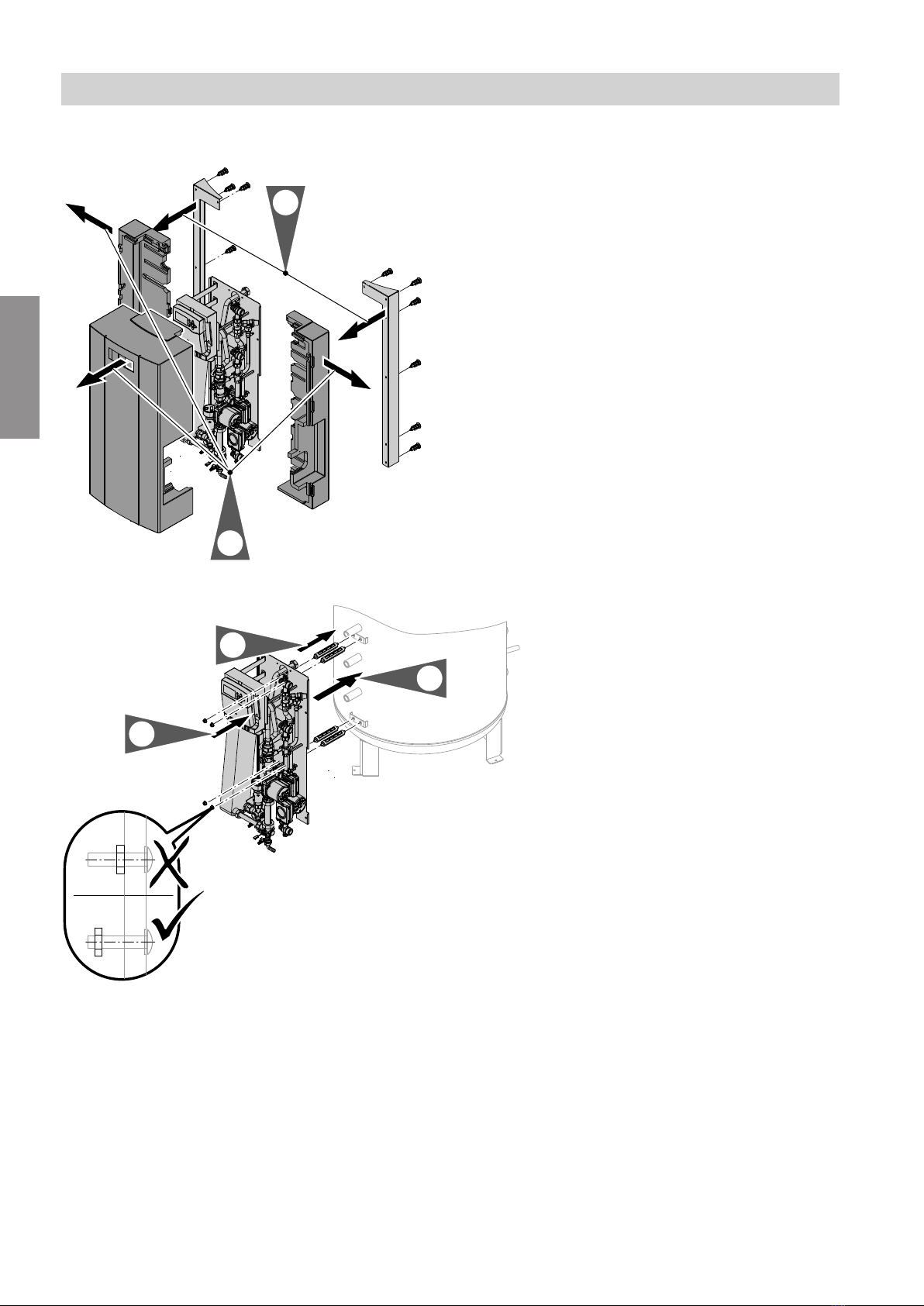

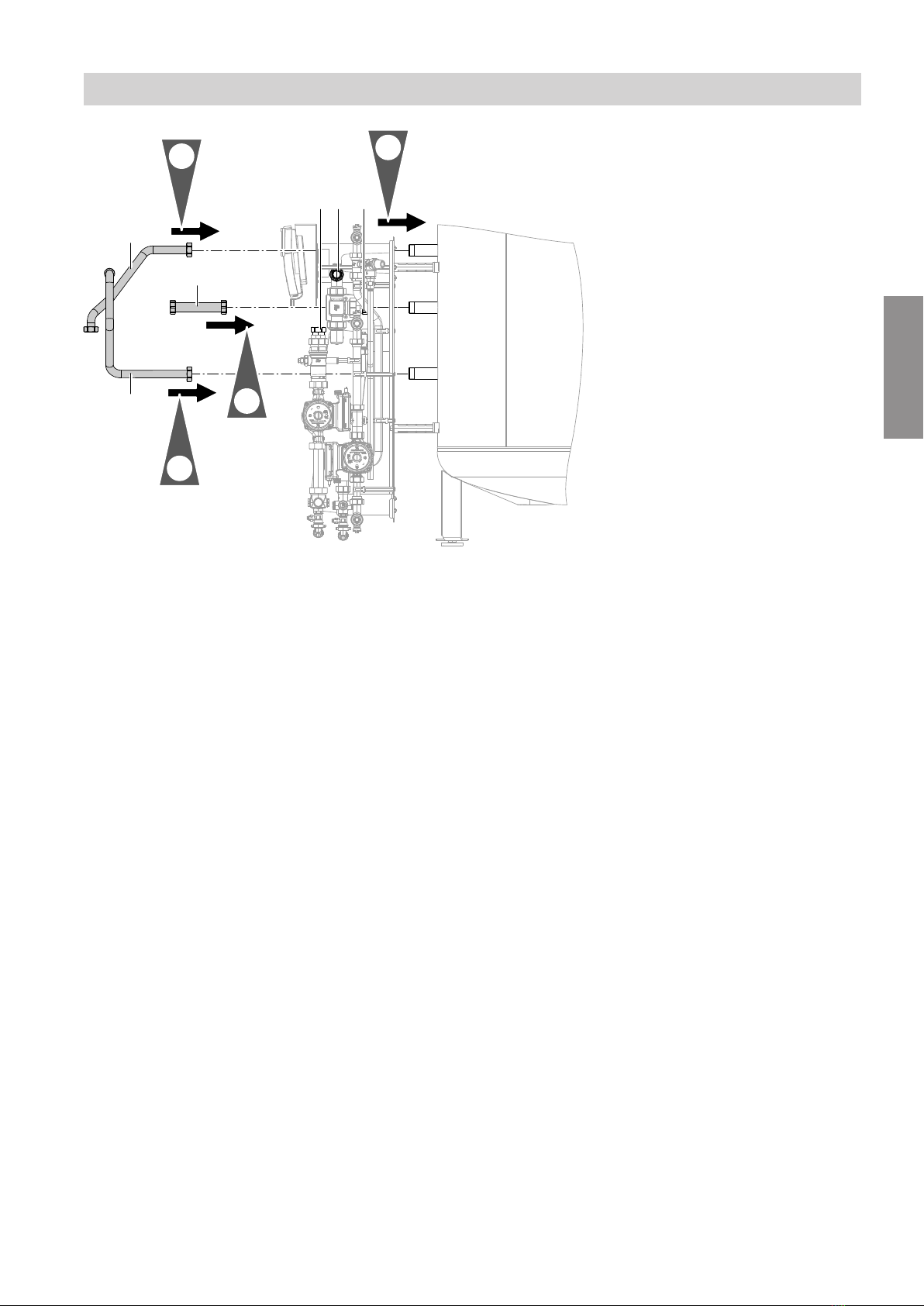

■Fitting the Vitotrans ............................................................................. 18
■Fitting the thermal insulation jacket .................................................... 20
■Fitting the cover strips ........................................................................ 21
■Fitting the cover .................................................................................. 22
■Fitting the cylinder temperature sensor .............................................. 23
Connections on the heating water side .................................................. 23
4. Parts list, type SVW (200 l) .................................................................................................................. 26
5. Parts list, type SVP (400 l) .................................................................................................................. 28
6. Parts list, type SVPA
(750/950 l)
Cylinder assembly ................................................................................. 29
Thermal insulation assembly ................................................................. 29
Pipework assembly ................................................................................ 31
7. Commissioning/service
reports
Index
Index
5517 175 GB

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
Intended use
5517 175 GB
Service

6
Vitocell 100-E/100-W, type SVW (200 l capacity)
Steel heating water buffer cylinder for storing heating
water in combination with heat pumps and solid fuel
boilers, with optional electric heater (immersion
heater).
Suitable for systems to EN 12828 and DIN 4753.
Vitocell 100-E: In Vitosilver
Vitocell 100-W: In white
Vitocell 100-E, type SVP/SVPA (400, 750 and 950 l capacity)
Heating water buffer cylinder for storing heating water
in combination with heat pumps, solar thermal sys-
tems, solid fuel boilers and heat recovery.
Suitable for systems to EN 12828 and DIN 4753.
Connections
Type SVW (200 l capacity)
Fig. 1 Front
AThermometer sensor retainer
BThermometer (TH)
CFemale connection for immersion heater (EHE)
Installation information
Product information
5517 175 GB
Installation

7

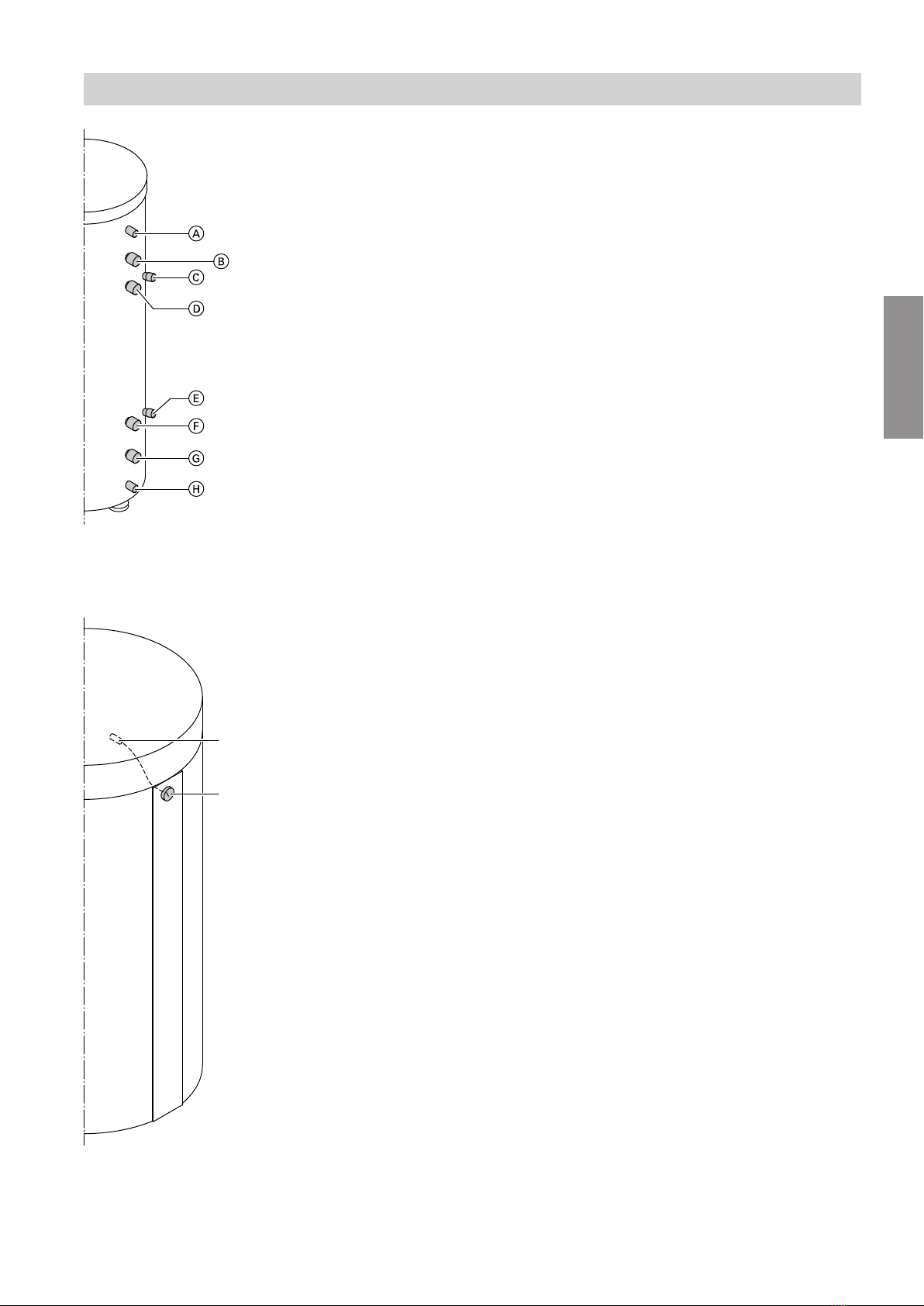

Fig. 2 Back
AAir vent valve (EL)
BHeating water flow 1 (HV1)
to the heating circuits
CSensor well 1 (SPR1)
for cylinder temperature sensor
DHeating water flow 2 (HV2)
from the heat source
ESensor well 2 (SPR2)
for cylinder temperature sensor
FHeating water return 2 (HR2)
from the heating circuits
GHeating water return 1 (HR1)
to the heat source
HDrain outlet (E)
Type SVP (400 l capacity)
B
A
Fig. 3 Front
AThermometer sensor retainer
BThermometer (TH)
Installation information
Product information (cont.)
5517 175 GB
Installation

8
B
A
C
D
F
H
E
G
Fig. 4 Back
AHeating water flow 1 (HV1) to the heating
circuits/air vent valve (EL)
BSensor well 1 (SPR1)
for cylinder temperature sensor
CHeating water flow 2 (HV2)
from the heat source
DSensor well 2 (SPR2)
for cylinder temperature sensor
EHeating water flow 3 (HV3) / heating water return
1 (HR1)
FSensor well (SPR3)
for cylinder temperature sensor
GHeating water return 2 (HR2)
from the heating circuits
HHeating water return 3 (HR3) to the heat source /
drain outlet (E)
Installation information
Product information (cont.)
5517 175 GB
Installation

9
Type SVPA (750 and 950 l capacity)
A
B
C
D
E
Fig. 5 Front
AThermometer sensor retainer
BThermometer (TH)
up to 4 pce (accessories)
CHeating water flow G 1
DReturn stratification G 1
EHeating water return G 1
Installation information
Product information (cont.)
5517 175 GB
Installation

10
B
A
C
E
G
M
F
L
D
H
K
N

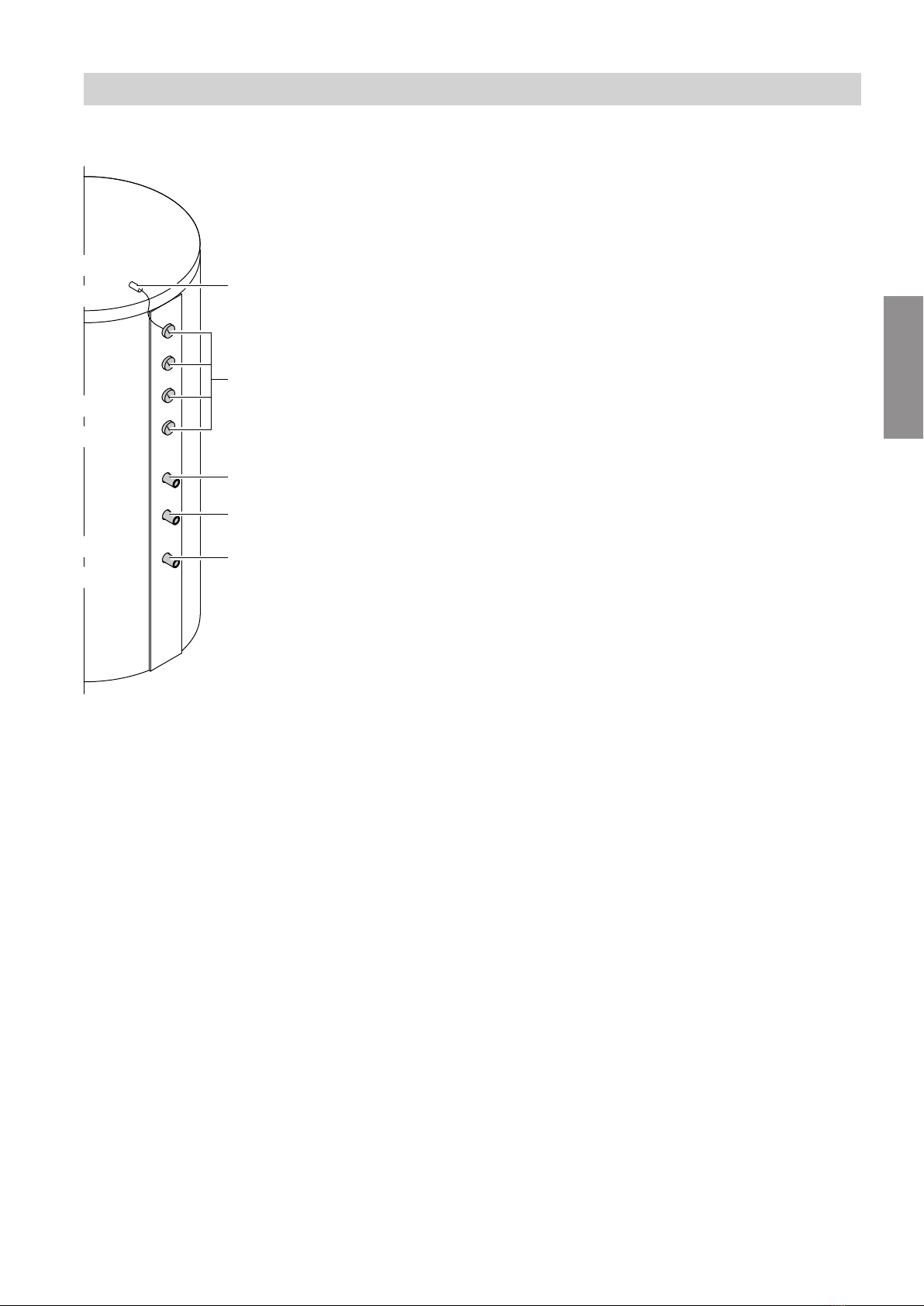

Fig. 6 Back
AHeating water flow 1 (HV1) to the heating
circuits/air vent valve (EL)
BHeating water flow 2 (HV2)
from the heat source
CSensor well (SPR1)
for cylinder temperature sensor
DThermometer sensor retainer
ESensor well 2 (SPR2)
for cylinder temperature sensor and thermometer
sensor
FHeating water flow 3 (HV3) / heating water return 1
(HR1)
GHeating water return 2 (HR2)
from the heating circuits
HSensor well 3 (SPR3) for cylinder temperature
sensor and thermometer sensor
KHeating water return 3 (HR3)
from the heating circuits
LSensor well 4 (SPR4)
for cylinder temperature sensor
MHeating water return 4 (HR4) to the heat source /
drain outlet (E)
NThermometer sensor retainer
Installation information
Product information (cont.)
5517 175 GB
Installation

11
!Please note
To prevent material damage, install the buffer
cylinder in a draught-free room free from the risk
of frost.
Otherwise the buffer cylinder will have to be
drained if there is a risk of frost while it is not in
use.

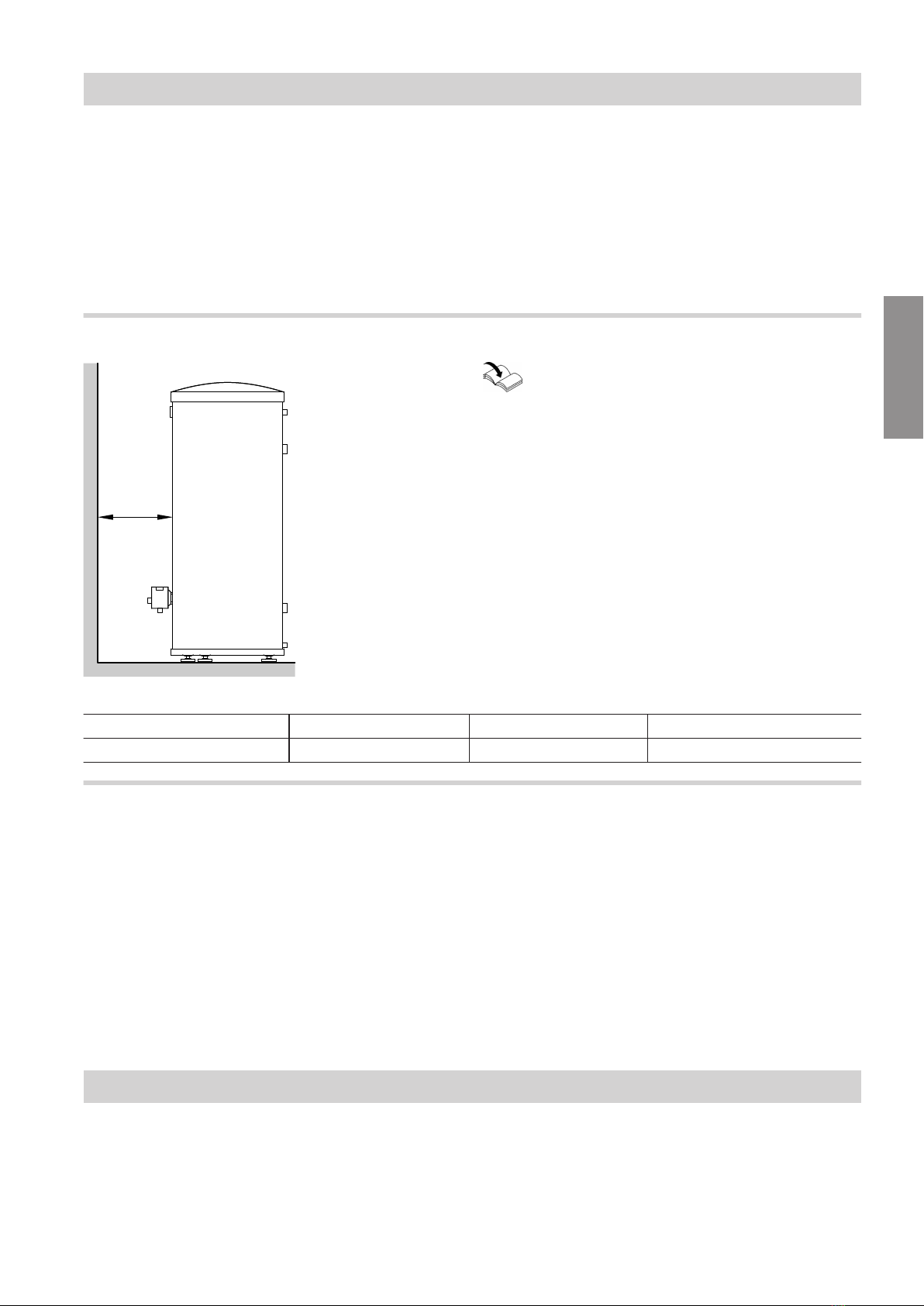

■Provide adequate clearance from the wall so that the
temperature controller can be operated (if installed).
■Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
■Use the adjustable feet to level the buffer cylinder.
Note
Never extend the adjustable feet beyond a total length
of 35 mm.
Vitocell with immersion heater, type SVW
a
Fig. 7
Immersion heater installation instructions
Maintain the minimum clearance.
Note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
Vitocell Capacity Dim. a Immersion heater output
Type SVW 200 l min. 650 mm 6 kW
Vitocell 100-E/100-W, type SVW
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
1. Install the cylinder temperature sensors; see
page 23.
2. At heating water flow temperatures above 95 °C,
remove the cover bezels from the pipe outlets
(bezels have l.h. threads).
3. If no immersion heater is being installed, seal the
front female connection with the plug supplied and
fit the cover.
4. Affix the type plate supplied to the back of the heat-
ing water buffer cylinder.
Connecting the equipotential bonding
Connect the equipotential bonding in accordance with
the requirements stipulated by your local power supply
utility and VDE [or local] regulations.
c Carry out the equipotential bonding in accordance
with the technical requirements stipulated by the local
power supply utility and SEV regulations.
Installation sequence
Installing the Vitocell
5517 175 GB
Installation

12
Fitting the lower thermal insulation mat
2.
1.
Fig. 8
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Fitting the thermal insulation jacket
Note
Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connections.
Installation sequence
Fitting the thermal insulation, type SVP
5517 175 GB
Installation

13
1.
6x
6x
3.
4. 6x
2. 6x
Fig. 9
Note
2 people are required for the following work.
1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
insulation jacket and lay the thermal insulation
jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. At the front of the cylinder: Attach 6 clip fasteners to
the edges of the right and left sections of the insula-
tion jacket.
3. Push the clip fasteners at the back of the cylinder
as close together as they will go.
4. Push the clip fasteners at the front of the cylinder
as close together as they will go.
Installation sequence
Fitting the thermal insulation, type SVP (cont.)
5517 175 GB
Installation

14
Fitting the thermometer, thermometer sensor and cover strips
A
4.
3.
6.
7.
2.
5.
1.
Fig. 10
AType plate (self-adhesive)
Fit the thermal insulation jacket evenly around the cyl-
inder body by patting it.
Note
Slide the thermometer sensor into the clamping
bracket at the upper base as far as possible and
tighten the wing nut.
Installation sequence
Fitting the thermal insulation, type SVP (cont.)
5517 175 GB
Installation

15
Fitting the cover
1.
2.
A
3.
Fig. 11
AViessmann logo
Fitting the Vitotrans and thermal insulation, type SVPA
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Installation sequence
Fitting the thermal insulation, type SVP (cont.)
5517 175 GB
Installation

16
Fitting the lower thermal insulation mat, aligning the Vitocell
A
B
3.
3x
1.
4.
2.
Fig. 12
AType plate
BBag with adjustable feet
Insert the adjustable feet into the legs as far as possi-
ble, then adjust them to level the cylinder.
Note
Never extend the adjustable feet beyond a total length
of 35 mm.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation

17
Fitting the thermometer sensor (if applicable)
7.
2.
4.
5.
6.
3.
1.
Fig. 13
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
2. Guide the upper thermometer sensor through the
lifting eye, insert it into the clamping bracket as far
as possible and tighten the wing nut.
Note
The cover strip is held in its vertical position by the
straight capillaries. This is necessary for the rest of
the installation.
3. Route the thermometer sensor capillaries to the
back.
Note
Repeat the following steps for each of the thermom-
eters installed.
4. Depending on where the thermometer sensor is to
be fitted, secure it in the clamping bracket or pull
the sensor retainer out of the sensor well.
5. Secure the sensor to the outside of the sensor
retainer contact spring so that it is flush with the
front of the spring.
Note
Never wrap insulating tape around the thermometer
sensor.
6. Secure the thermometer sensor capillaries.
7. Insert the sensor retainer.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation

18
Fitting the Vitotrans
1.
2.
Fig. 14
2.
3.
1.
Fig. 15
1. Fit the bolts to the cylinder.
2. Fit the module.
3. Wind the nuts onto the bolts until hand-tight.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation

19
C
A
B
DE F
3.
1.
2.
4.
Fig. 16
1. Connect heating water flow connection pipe A to
connection D on the Vitotrans.
2. Connect heating water return connection pipe B to
connection E on the Vitotrans.
3. Connect heating water stratification connection pipe
C to connection F on the Vitotrans.
4. Connect the pipes to the cylinder connections.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation

20
Fitting the thermal insulation jacket
Note
Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connections.
3.
1.
2.
Fig. 17
Note
2 people are required for the following work.
1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
insulation jacket. Place the thermal insulation jacket
around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. Fit 4 clip fasteners above and 2 clip fasteners
behind the Vitotrans so that they are evenly
spaced.
3. Push the clip fasteners as close together as possi-
ble.
Installation sequence
Fitting the Vitotrans and thermal insulation,… (cont.)
5517 175 GB
Installation
