Viessmann VITODENS 100-W B1HE User manual

Please file in Service Binder
6167 819 - 01 03/2021
Operating Instructions
VITODENS 100-W
Read and save these instructions
for future reference.
Product may not be exactly as shown
IMPORTANT
Do not store or use gasoline or other
flammable liquids in the vicinity of this
or any other boiler.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any boilers.
Do not touch any electrical switches,
do not use any phone in your building.
Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WARNING
Improper installation, adjustment, and/
or operation could cause carbon monoxide
poisoning resulting in injury or loss of life.
This product must be installed and serviced
by a professional service technician who is
experienced and qualified in hot water boiler
installation and gas combustion.
WARNING
Vitodens 100-W
B1HE Series and B1KE Combi Series
Wall mounted gas-fired condensing boiler with 3.5 inch black/white display
On demand domestic Hot Water with Combi Boilers
For operation with natural gas or liquid propane gas
Heating Input: 8.5 to 199 MBH
2.5 to 58.3 kW
for the system user
H

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
Safety
Safety, Installation and Warranty Requirements
Please ensure that these instructions are read and understood before commencing installation. Failure to comply with
the instructions listed below and details printed in this manual can cause product/property damage, severe personal
injury, and/or loss of life. Ensure all requirements below are understood and fulfilled (including detailed information
found in manual subsections).
WARNING
Installers must follow local regulations with respect to
installation of carbon monoxide detectors. Follow the
Viessmann maintenance schedule of the boiler contained
in this manual.
Product documentation
Read all applicable documentation before commencing
installation. Store documentation near boiler in a
readily accessible location for reference in the future
by service personnel.
For a listing of applicable literature,
please see section entitled “Important
Regulatory and Safety Requirements”.
Warranty
Information contained in this and
related product documentation must
be read and followed. Failure to do
so renders the warranty null and void.
Licensed professional heating contractor
The installation, adjustment, service and maintenance
of this equipment must be performed by a licensed
professional heating contractor.
Please see section entitled
“Important Regulatory and Installation
Requirements”.
Contaminated air
Air contaminated by chemicals can cause by-products
in the combustion process, which are poisonous to
inhabitants and destructive to
Viessmann equipment.
For a listing of chemicals which
cannot be stored in or near the
boiler room, please see subsection
entitled “Mechanical room” in the
“Installation Instructions”.
Advice to owner
Once the installation work is complete, the heating
contractor must familiarize the system operator/
ultimate owner with all equipment, as well as safety
precautions/requirements, shutdown procedure, and
the need for professional service annually before the
heating season begins.
Carbon monoxide
Improper installation, adjustment, service and/or
maintenance can cause flue products to flow into
living space. Flue products contain poisonous carbon
monoxide gas.
For information pertaining to the
proper installation, adjustment, service
and maintenance of this equipment to
avoid formation of carbon monoxide,
please see subsection entitled
“Mechanical room” and “Venting
requirements” in the “Installation Instructions”.
Fresh air
This equipment requires fresh air for
safe operation and must be installed
ensuring provisions for adequate
combustion and ventilation air exist.
For information pertaining to the
fresh air requirements of this product,
please see subsection entitled
“Mechanical room” in the “Installation
Instructions”.
Equipment venting
Never operate boiler without an installed venting
system. An improper venting system can cause
carbon monoxide poisoning.
For information pertaining to
venting and chimney requirements,
please see section entitled “Venting
Connection”. All products of
combustion must be safely vented
to the outdoors.
Operating and Service Documentation
It is recommended that all product documentation such
as parts lists, operating and service instructions be handed
over to the system user for storage. Documentation is to
be stored near boiler in a readily accessible location for
reference by service personnel.
WARNING
This boiler requires fresh air for safe operation and must
be installed with provisions for adequate combustion
and ventilation air (in accordance with local codes and
regulations of authorities having jurisdiction).
Do not operate this boiler in areas with contaminated
combustion air. High levels of contaminants such as
dust, lint or chemicals can be found at construction
sites, home renovations, in garages, workshops, in dry
cleaning/laundry facilities, near swimming pools and in
manufacturing facilities.
Contaminated combustion air will damage the boiler
and may lead to substantial property damage, severe
personal injury and/or loss of life. Ensure boiler/burner
is inspected and serviced by a qualified heating
contractor at least once a year in accordance with the
Service Instructions of the boiler.
2

Table of Contents
3
Page
Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
Safety
General Information
Operation
Time Programs
DHW Heating
Further Adjustments
Safety, Installation and Warranty Requirements............. 2
About these Instructions.............................................5
For your Safety ......................................................... 5
Operation ............................................................. 5
Working on the equipment...................................... 5
Maintenance and cleaning....................................... 5
Flue gas smell ....................................................... 5
Dangerous conditions............................................. 5
Technical Information............................................. 5
Carbon monoxide .................................................. 6
For safe operation.................................................. 6
Frozen water pipe hazard........................................ 7
Replacement components, spare and wear parts........ 7
Installation area conditions...................................... 7
Sources of combustion and ventilation air ..............
contaminants ........................................................ 7
Intended Use ............................................................ 8
Product Information................................................... 8
Software Licences..................................................... 9
Commissioning ........................................................ 9
Your System is Preset................................................ 9
Energy Saving Tips...................................................10
Tips for Greater Comfort ......................................... 10

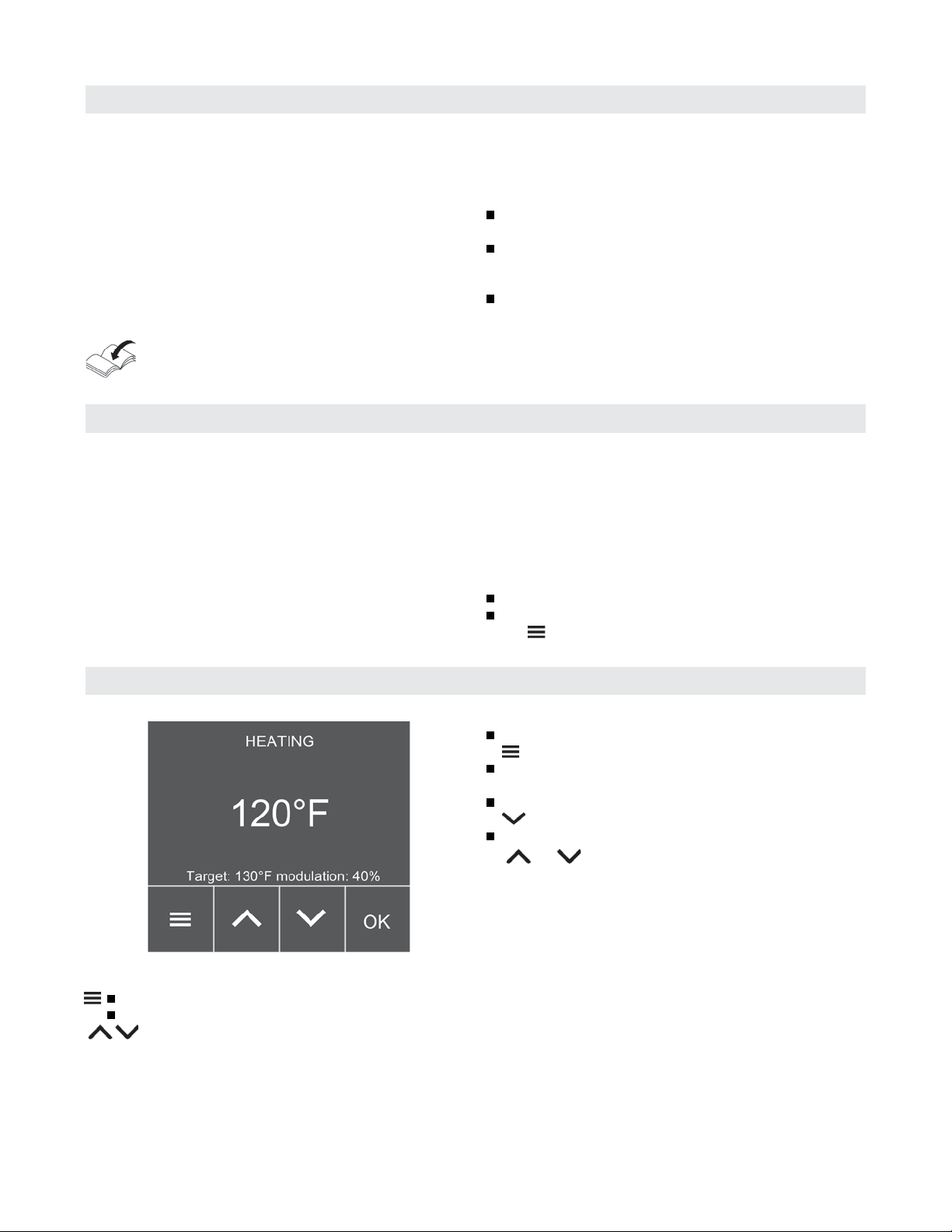

Operating Principles................................................ 11
Screen Displays ..................................................... 11
Buttons ................................................................ 11
System Overview.....................................................12
Overview of the “Main menu”....................................12
Procedure for Setting Program ...................................13

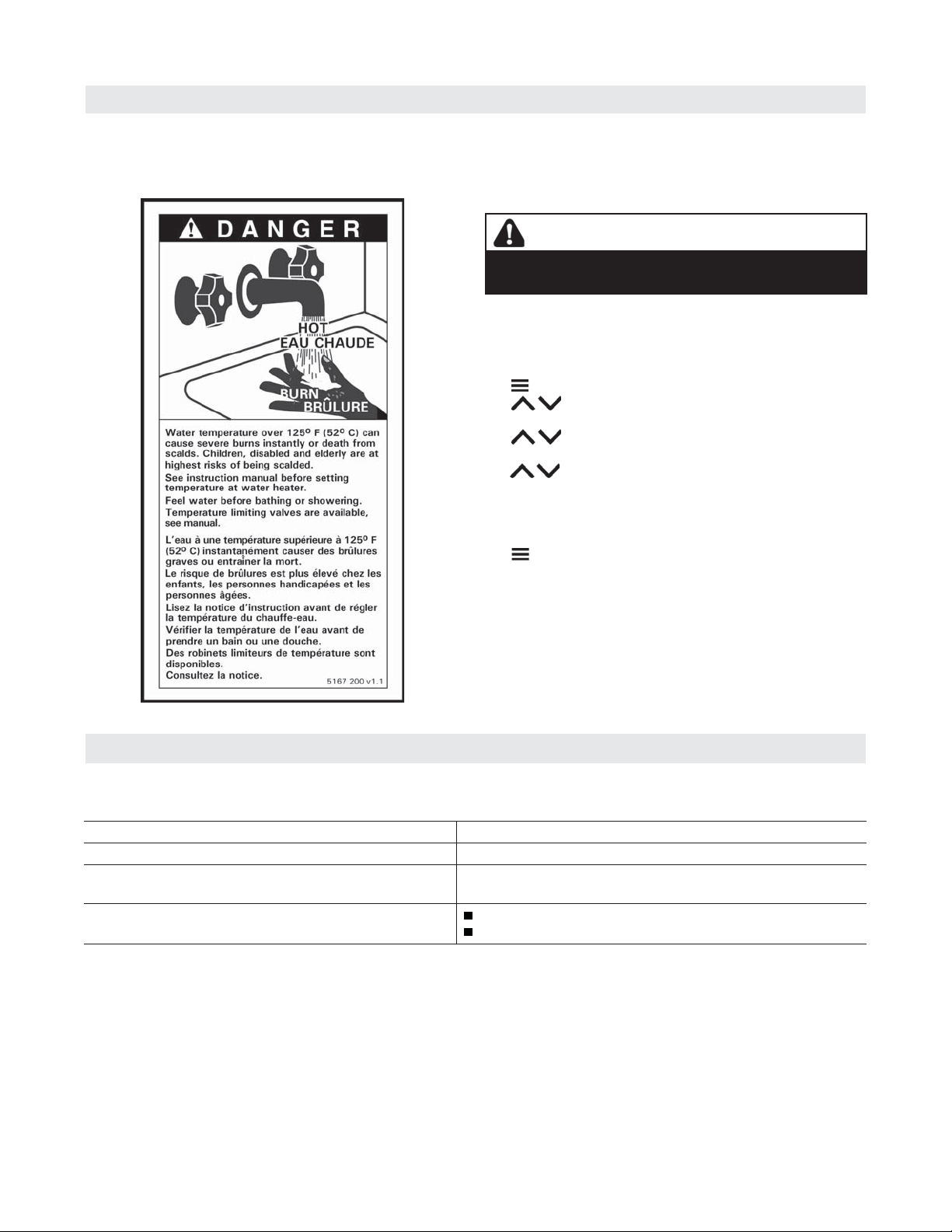

DHW Temperature....................................................16
Operating Programs for DHW Heating .........................16
Switching DHW Heating On or Off .............................17
One-off DHW Heating Outside the Time Program..........17
Increased DHW Hygiene............................................18
Setting the Display Brightness....................................19
Switching the “Lightguide” On and Off .......................19
Setting the “Time” and “Date”...................................20
Summertime/Wintertime Automatic Changeover...........21
Setting the “Language”.............................................21
Setting “Units” ........................................................21
Switching Internet Access On or Off...........................22
Energy Metering Settings ..........................................22
Restoring Factory Settings.........................................22

Table of Contents
4
Page
Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
Calling Up Information
Emissions Test Mode
Switch On and Off
What to do if...
Maintenance
Appendix
Calling Up Help Messages .........................................23
Checking Information................................................23
Checking the Energy Metering....................................23
Calling Up Licences for the Programming Unit ..............23
Calling Up Licences for the Integrated Wireless Module.. 23
Checking Service Messages.......................................24
Checking Fault Messages ..........................................25
Acknowledging Messages ....................................... 26
Checking Messages................................................ 26
Calling Up the Message History ................................ 26
Emissions Test Mode.............................................. 27
High Limit Safety Cut-Out Test ..................................27
Switching Off t
he Boiler Without Frost
Protection Monitoring ...............................................28
Switching on the Boiler .............................................28
Rooms are too Cold .................................................29
Rooms are too Hot ..................................................29
There is no Hot Water ..............................................30
The DHW is too Hot.................................................30
“Burner fault” is Displayed.........................................30
“Active messages” is Displayed .................................30
“Trade fair mode” is Displayed...................................30
Cleaning..................................................................31
Inspection and Maintenance ......................................31
Overview of “Main menu” .........................................32
Terminology ............................................................35
Lighting and Operating Instructions.............................38

5
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating Safety
About these Instructions
Take note of all symbols and notations intended to draw attention to potential hazards or important product
information. These include “WARNING”, “CAUTION”, and “IMPORTANT”. See below.

IMPORTANT
Warnings draw your attention to the presence of
potential hazards or important product information.
Cautions draw your attention to the presence of
potential hazards or important product information.
Helpful hints for installation, operation or maintenance
which pertain to the product.
This symbol indicates that additional, pertinent
information is to be found.
This symbol indicates that other instructions must
be referenced.
WARNING
Indicates an imminently hazardous situation which,
if not avoided, could result in loss of life, serious injury
or substantial product/property damage.
CAUTION
Indicates an imminently hazardous situation which,
if not avoided, may result in minor injury or product/
property damage.
For your Safety
Operation
Before operating the boiler, make sure you fully
understand its method of operation. Your heating
contractor should always perform the initial start-up
and explain the system. Any warranty is null and void
if these instructions are not followed.
Working on the equipment
All personnel working on the equipment or the heating
system must have the proper qualifications and hold all
necessary licenses.
Ensure main power to equipment, heating system, and
all external controls has been deactivated. Close main
gas supply valve. Take precautions in all instances to
avoid accidental activation of power during service work.
Maintenance and cleaning
Regular inspection and service by a qualified heating
contractor is important to the performance of the
Viessmann Vitodens 100-W. Neglected maintenance
impacts on warranty; regular inspection ensures clean,
environmentally friendly and efficient operation. We
recommend a maintenance contract with
a qualified heating contractor.
Flue gas smell
- Deactivate heating equipment.
- Open windows and doors.
- Inform your heating contractor.
Dangerous conditions
- Deactivate main power immediately.
- Close gas supply valve.
Technical information
Literature applicable to all aspects of the Vitodens 100-W
- Technical Data Manual
- Installation and Service Instructions
- Operating Instructions and User’s Information Manual
Additional applicable literature:
- Accessory manuals

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
6
For your Safety (continued)
Safety
Carbon monoxide
The U.S. Consumer Product Safety Commission strongly
recommends the installation of carbon monoxide
detectors in buildings in which gas-burning equipment
is installed. Carbon monoxide (CO) is a colorless,
odorless gas, which may be produced during incomplete
combustion of fuel and/or when the flame does not
receive an adequate supply of combustion air.
Carbon monoxide can cause severe personal injury or
loss of life.
Therefore, carbon monoxide detectors that are in
compliance with a nationally recognized standard (e.g.
ANSI/UL 2034, CSA 6.19 latest edition) should be
installed and maintained in buildings that contain gas-
burning equipment.
Note: Viessmann does not test any detectors and makes
no representation regarding any brand or type of
detector.
For safe operation
We recommend that you frequently:
- Check for debris which could obstruct the flow of
flue gases. The vent or chimney must not be blocked.
A blocked or partially blocked vent or chimney can
cause flue gases to leak into the structure.
Flue gases leaking into the house can cause injury
or loss of life. Blocked or partially blocked chimneys
must have the blockage removed by a qualified
heating contractor.
- Check pressure gage for correct system (water)
pressure. Check for water on the floor from the
discharge pipe of the pressure relief valve or any
other pipe, pipe joint, valve or air vent.
- Check for moisture, water, or appearance of rust
on the flue gas pipes, their joints as well as vent
dampers, or side wall vent terminals (if so equipped).
- Ensure that nothing is obstructing the flow of
combustion and ventilation air and no chemicals,
garbage, gasoline, combustible materials, flammable
vapors and liquids are stored (not even temporarily)
in the vicinity of the boiler.
- Do not allow unsupervised children near the boiler.
Service/inspection of the boiler and the system is
recommended once a year. Maintenance, service and
cleaning are specified in the Installation Instructions.
Before the heating season begins, it is recommended that
the boiler and burner be serviced by a qualified heating
contractor. Service contracts may be established through
gas suppliers or other licensed contractors in your area.
WARNING
As there are no user-serviceable parts on the boiler,
burner or control, the end-user must not perform
service activities or adjustments of any kind on system
components. Failure to heed this warning can cause
property damage, severe personal injury, or loss of life.
CAUTION
Should overheating occur or the gas supply fail to
shut off, do not disconnect the electrical supply to the
pump. Instead, shut off the gas supply at a location
external to the boiler.
WARNING
The operator/ultimate owner is required to have the
heating boiler, burners, and controls checked, as a
minimum once per year, by the original installer or
by a competent heating contractor familiar with the
equipment. Defects must be corrected immediately.
CAUTION
Do not use this boiler if any part has been under water.
Immediately call a qualified heating contractor to
inspect the boiler and to replace any part of the control
system and any gas control which has been under
water.
WARNING
Improper installation, adjustment, service, or
maintenance can cause flue products to flow into
living space. Flue products contain poisonous carbon
monoxide gas which can cause nausea or asphyxiation
resulting in severe personal injury or loss of life.
WARNING
Do Not operate the boiler without the cover in place.

7
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating
For your Safety (continued)
Safety
Frozen water pipe hazard
Your heating boiler is designed to provide a warm and
comfortable living environment. It is not designed to
ensure against freezing of water pipes.
The boiler is equipped with several safety devices that
are designed to shut down the boiler and to prevent it
from restarting in the event of various unsafe conditions.
If your boiler remains off for an extended period of time
during cold weather, water pipes may freeze and burst,
resulting in extensive water damage and conditions in
which mold could grow. Certain molds are known to
cause respiratory problems, as well as to pose other
serious health risks. In case of water damage, immediate
measures should be taken to dry out affected areas as
quickly as possible to prevent mold from developing.
If your home will be unattended for an extended period
of time during cold weather, you should...
Shut off the water supply to the building, drain the
water pipes and add an antifreeze for potable water
to drain traps and toilet tanks. Open faucets where
appropriate.
or..
Have someone check the building frequently during cold
weather and call a qualified service agency if required.
or...
Install a reliable remote temperature sensor that will notify
somebody of freezing conditions within the home.
WARNING
Failure to protect against frozen pipes could result in
burst water pipes, serious property damage and/or
personal injury. Boiler may shut down. Do not leave
your home unattended for long periods of time during
freezing weather conditions without turning off the
water supply and draining water pipes or otherwise
protecting against the risk of frozen pipes.
Replacement components, spare and wear parts
Components which are not tested with the heating
system may damage the heating system or affect its
functions. Installation or replacement may only be
performed by a qualified heating contractor.
IMPORTANT
Ensure ambient temperatures are higher than 32°F (0°C)
and lower than 95°F (35°C).
Prevent the air from becoming contaminated by
halogenated hydrocarbons (e.g. as contained in
paint solvents or cleaning fluids) and excessive dust
(e.g. through grinding or polishing work).
Combustion air for the heating process, and
ventilation of the boiler room must be free of
corrosive contaminants. To that end, any boiler
must be installed in an area that has no chemical
exposure.
The list below indicates the main, currently known
sources.
Avoid continuously high levels of humidity
(e.g. through frequent drying of laundry).
Never close existing ventilation openings.
Sources of combustion and ventilation air contaminants
Areas likely to contain contaminants:
New building construction
Swimming pools
Remodelling areas, hobby rooms
Garages with workshops
Furniture refinishing areas
Dry cleaning/laundry areas and establishments
Auto body shops
Refrigeration repair shops
Metal fabrication plants
Plastic manufacturing plants
Photo processing plants
Beauty salons
Products containing contaminants:
Chlorine-type bleaches, detergents and cleaning
solvents found in household laundry rooms
Paint and varnish removers
Hydrochloric acid, muriatic acid
Chlorine-based swimming pool chemicals
Spray cans containing chlorofluorocarbons
Chlorinated waxes and cleaners
Cements and glues
Refrigerant leaks
Calcium chloride used for thawing
Sodium chloride used for water softening salt
Permanent wave solutions
Adhesives used to fasten building products and
other similar items
Antistatic fabric softeners used in clothes dryers
WARNING
Incorrect ambient conditions can lead to damage to
the heating system and put safe operation at risk.
Installation area conditions
WARNING
Fire causes a risk of burns and explosion!
j Shut down the boiler
j Close fuel shut-off valves
j Use a tested fire extinguisher, class ABC.
WARNING
If you notice fire coming from the boiler, call the fire
department immediately! Do not attempt to extinguish
the fire unless qualified to do so.

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
8
Intended Use
General Information
Product Information
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific components
has been carried out.
Commercial or industrial usage for a purpose other than
heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the
manufacturer in each individual case.
Incorrect usage or operation of the boiler (e.g. the boiler
being opened by the system user) is prohibited and results
in an exclusion of liability. Incorrect usage also occurs if
the components in the heating system are modified from
their intended use (e.g. if the flue gas and ventilation air
paths are sealed).
The control unit is a boiler and heating circuit control unit
for the following operating modes:
Weather-compensated operation
Constant (continuous) operation
Your heating contractor will configure the operating mode
during commissioning in accordance with your heating
system. These instructions describe both operating
modes.
Weather-compensated operation
In weather-compensated operation, the supply water
temperature is controlled according to the outside
temperature.
The lower the outside temperature, the higher the supply
temperature. This means that more heat is provided for
central heating on cold days than on warmer days.
Constant operation
In constant operation the boiler provides heating water
with a constant supply temperature regardless of the
outside temperature.
Operation
The control unit is integrated into the boiler and controls
all functions of your system. The control unit is operated
via a 3.5 inch black/white screen.
A wireless (WiFi) module is integrated into the control
unit.
This means the system can also be operated remotely
via the internet using the “ViCare” app.
The boiler is only intended to be installed and operated
in sealed unvented heating systems with due attention
paid to the associated installation, service and operating
instructions. It is only designed for the heating of water
that is of potable water quality.

9
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating
Software Licences
General Information
This product contains third party software, including
open source software. You are authorized to use this
third party software in compliance with the relevant
licensing terms.
Licences for the integrated wireless module:
See page 23.
Licences for the programming unit: See page 23.
Commissioning
The commissioning and matching of the boiler to local
conditions and building characteristics, as well as
instructing the user in the operation of the system, must
be carried out by your contractor.
Your System is Preset
DHW tank heating
Between 05:30 and 22:00, the DHW is heated to
122°F (50°C) (“Standard” temperature level).
Between 22:00 and 05:30, the DHW tank is not
reheated.
DHW tank heating
Between 05:30 and 22:00, the DHW is heated to
122°F (50°C) “Set DHW temperature”. Any installed
DHW recirculation pump is switched on.
Between 22:00 and 05:30, the DHW tank is not
reheated. Any installed DHW recirculation pump is
switched off.
Note: Any DHW heating started before 22:00 remains
on until the target DHW temperature has been
reached.
DHW comfort function
Only for Vitodens 100-W B1KE boilers. Your heating
contractor can activate the DHW comfort function.
This makes DHW available faster.
Frost protection
Your boiler and DHW tank (if installed) are
protected against frost.
Wintertime/summertime changeover
This changeover is automatic.
Date and time
The date and time were set by your heating contractor.
You can change these settings at any time to suit your
individual requirements.
Power failure
All settings are saved if there is a power failure.
Your heating system is preset at the factory and is
therefore ready for operation following commissioning
by your contractor:
Note: The following paragraph “DHW heating” is not valid
for operation with a DHW tank with temperature
switch (such as an Aquastat).

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
10
Energy Saving Tips
General Information
Tips for Greater Comfort
Saving energy on DHW heating
At night or during regular absences, heat the DHW
to a lower temperature. To do so, adjust the time
program for DHW heating: See page 13.
Switch on DHW recirculation only for those times in
which you regularly use hot water. For additional
energy saving functions, please contact your
contractor.
Saving energy when using central heating
Do not overheat your home. Every degree of room
temperature reduction saves up to 6% on your
heating bills.
Weather-compensated operation:
Do not set your standard room temperature
(temperature level “Standard”) higher than 68°F (20°C)
Heat your home to the reduced temperature at night
or during regular absences:
– Weather-compensated operation:
Reduced room temperature
– Constant operation:
Reduced supply temperature
Sufficient DHW heating for your needs
Adjust the time program for DHW heating so that
there is always sufficient hot water in accordance
with your habitual routines: See page 13.
Example: You need more DHW in the morning than
in the daytime.
If you need a higher DHW temperature for a short
while, select “One-off heating DHW”: See page 17.

11
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating
Operating Principles
Operation
Screen Displays
Status display with Lightguide
A red illuminated strip (Lightguide) is displayed at the
lower or upper edge of the control unit during operation.
Meaning of the display:
Lightguide pulsates slowly:
Display is in standby mode.
Lightguide is illuminated constantly:
You are operating the control unit. Every input
operation is confirmed by a brief flashing.
Lightguide flashes quickly:
There is a fault in the system.
Note: You can switch off the Lightguide. See page 19.
Home screen
After starting or activating the control unit the home
screen is shown.
The home screen shows information about the DHW.
Call up the home screen as follows:
Standby is active: Tap any button.
From anywhere in the menu:
Tap repeatedly, until the home screen is displayed.
Standby
The display backlighting is switched off after approximately
2 minutes.
Display
You can adjust any setting on your system centrally at
the control unit.
The control unit is equipped with a black/white screen.
For settings and to call up information, tap the on screen
buttons.
Room temperature controller for room temperature-
dependent operation
If a room temperature controller is installed in one of
your rooms, you can adjust some settings at your room
temperature controller.
Operating instructions for room temperature
controller
Buttons
Calls up the main menu.
Takes you one step back.
To select a menu or adjust values.
OK Confirms your selection or saves the setting made.
Special key combinations:
Direct to system overview from a menu:
press and hold for approx. 4 sec.
Establishing internet connection:
In the home screen, press and hold OK for approx. 4 sec.
Switching WiFi on and off:
+OK: Press and hold simultaneously for approx. 4 sec.
Calling up burner status:
+ : Press and hold simultaneously for approx.
4 sec.

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
12
Operation
System Overview
Overview of the “Main menu”
Depending on the system equipment level, you can check
the most important information in the system overview:
Heating
DHW (home screen)
Note: Not valid for systems with a DHW tank with
temperature switch (such as an Aquastat).
Network
Outside temperature (for weather-compensated
operation)
Date and time (for constant operation)
Tap the following buttons:
1. Call up the home screen.
2. for the required information
Calling up further information: See page 23.
In the main menu, you can check and adjust all of the
settings for the boiler’s range of functions. You can
find the menu overview on page 32.
Available menus:
Active messages (if available)
Turn on/off
DHW
Network
Energy metering
Information
Settings
Tap the following buttons:
1. Call up the home screen.
2.
3. for the required menu
4. OK to confirm

13
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating Time Programs
Procedure for Setting a Time Program
The following explains how to input the settings for a
time program. The specifics of the individual time
programs can be found in the relevant chapters.
Time programs and time phases
Not valid for operation with a DHW tank with temperature
switch (such as an Aquastat).
In the time programs you determine what your heating
system should do at what time. To do so, divide the day
into sections. These are called time phases.
Different temperature levels are active within and outside
these time phases.
You can set up a time program for the following functions:
Function Temperature level
Within the time phase Outside the time phase
Central heating A time program for central heating can be set at the room temperature controller (field supplied).
Operating instructions for room temperature controller
DHW heating DHW heating is switched on.
The water in the DHW tank is heated
to the target DHW temperature.
DHW heating is switched off.
The time programs can be set individually to be the same,
or different, for every day of the week.
Setting time phases
Not valid for operation with a DHW tank with temperature
switch (such as an Aquastat).
You can set up to 4 time phases in each time program.
For each time phase, you select the start and end points.
Note: DHW is not heated between the time phases.
Frost protection for the DHW tank is active if
no DHW tank with temperature switch is active.
When setting time programs, bear in mind that
your system needs some time to heat the DHW
tank to the required temperature.
Note: With a “Combi boiler”, the “DHW comfort function”
is active during the set time phases (plate heat
exchanger is kept at temperature).
The time phases need to be deleted to switch off
the comfort function.
Example:
Time program for “Monday” for DHW
Time phase 1: 06:30 to 12:00
Time phase 2: 15:00 to 21:00

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
14
Procedure for Setting a Time Program (continued)
Time Programs
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time programs”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Monday” (required day of the week)
12. OK to confirm
13. for the time phase “06:00 - 22:00”
(required time phase that needs to be changed)
14. OK to confirm
15. for “Edit”
16. OK to confirm
17. for the start time “06” (hour)
18. OK to confirm
19. for the start time “30” (minutes)
20. OK to confirm
21. for the end time “12” (hour)
22. OK to twice confirm
23. for the end time “00” (minutes)
24. OK to confirm
25. for “Add” (further time phase)
26. OK to confirm
27. for the start time “15” (hour)
28. OK to confirm
29. for the start time “00” (minutes)
30. OK to confirm
31. for the end time “21” (hour)
32. OK to confirm
33. for the end time “00” (minutes)
34. OK twice to confirm
35. for approx. 4 sec, to exit the menu.
Copying the time program to other days of the week
Explanation of the procedure for DHW.
Example:
You want to copy the time program for “Monday” over
to “Thursday” and “Friday”.
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time programs”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Monday” (required days to which the
time program is to be copied)
12. OK to confirm
13. for “Copy”
14. OK to confirm
15. for “Thursday” (required days to which the
time program is to be applied)
16. Place a tick next to Thursday with OK
17. for “Friday” (required days to which the
time program is to be applied)
18. Place a tick next to Friday with OK
19. for “Copy to”
20. OK to confirm
21. OK to acknowledge the information
22. for approx. 4 sec, to exit the menu.
Additional time programs can be copied and applied
correspondingly:
You can simultaneously transfer time programs for DHW
heating to the DHW recirculation pump or vice versa.
Copy “DHW” or “DHW circulation pump” for this.
Setting a time program for the DHW recirculation pump
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time programs”
6. OK to confirm
7. for “DHW circulation pump”
8. OK to confirm
For further steps, see above, from step 8.

15
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating Time Programs
Procedure for Setting a Time Program (continued)
Changing time phases
Explanation of the procedure using DHW as an example.
Example:
For “Monday”, you want to change the end time for
time phase 2 to 19:00.
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time programs”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Monday” (required day of the week)
12. OK to confirm
13. for the time phase “15:00 - 21:00”
(required time phase that needs to be changed)
14. OK to confirm
15. for “Edit”
16. OK to confirm
17. OK twice to confirm the unchanged start time
(hour and minutes)
18. for the end time “19” (hour)
19. OK to confirm the new end time (hour)
20. OK to confirm the unchanged entries for the end
time (minutes)
21. OK to acknowledge the information
22. for approx. 4 sec, to exit the menu
Deleting time phases
Explanation of the procedure using DHW as an example.
Example:
For “Monday”, you want to delete time phase 2.
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time programs”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Monday” (required day of the week)
12. OK to confirm
13. for the time phase “15:00 - 19:00”
(required time phase that needs to be deleted)
14. OK to confirm
15. for “Delete”
16. OK to confirm
17. OK to acknowledge the information
18. for approx. 4 sec, to exit the menu

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
16
DHW Heating
DHW Temperature
Note: When operating with a DHW tank with temperature
switch (such as an Aquastat), the maximum target
value of the boiler applies (depending on the boiler)
and cannot be changed.
Note: For reasons of good hygiene, you should not set the
DHW temperature lower than 122°F (50°C).
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Temperature level”
6. OK to confirm
7. for “Standard”
8. OK to confirm
9. Set the target value
10. OK to confirm
11. OK to acknowledge the information
12. for approx. 4 sec, to exit the menu.
WARNING
Hot water can cause serious injuries.
Do not touch hot water.
Operating Programs for DHW Heating
Note: Not valid for systems with a DHW tank with
temperature switch (such as an Aquastat).
Operating program Function
DHW heating
“DHW” “ON” DHW is heated in accordance with the DHW temperature
and time program specified (see chapter “DHW heating”).
“DHW” “OFF” No DHW heating
Frost protection for the DHW tank is active.
For the Vitodens 100-W B1KE with instantaneous DHW
a scalding label is placed on the side of the boiler.

17
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating DHW Heating
One-off DHW Heating Outside the Time Program
Switching DHW Heating On or Off
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Turn on/off”
4. OK to confirm
5. for “DHW”
6. OK twice to confirm
7. for “ON” or “OFF”
8. OK to confirm
9. OK to acknowledge the information
10. for approx. 4 sec, to exit the menu.
Note: To set a time program, see page 13.
Note: Not valid for systems with a DHW tank with
temperature switch (such as an Aquastat).
If you require hot water outside the set time phases,
switch on “One-off heating DHW”. The DHW tank is
heated once to the set DHW temperature.
This function has a higher priority than other functions,
such as the time program for example.
Switching on “One-off heating DHW”
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “One-off heating”
6. OK to confirm
7. to activate
8. OK to confirm
9. OK to acknowledge the information
Switching off “One-off heating DHW”
“One-off heating DHW” ends as soon as the target
DHW temperature has been reached.
To terminate “One-off heating DHW” early, tap the
following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “One-off heating” (active)
6. OK to confirm
7. for “Stop”
8. OK to confirm
9. OK to acknowledge the information

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
18
DHW Heating
Increased DHW Hygiene
Switching off the “Hygiene program”
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time program”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Hygiene program”
12. OK to confirm
13. for “Stop”
14. OK to confirm
15. OK to acknowledge the information.
Switching DHW scald protection on/off
Note: Not valid for systems with a DHW tank with
temperature switch (such as an Aquastat).
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Temperature level”
6. OK to confirm
7. for “Scald protection”
8. OK to confirm
9. for “On” or “Off”
10. OK twice to confirm
Note: With scald protection switched off, a target DHW
temperature of over 140°F (60°C) can be set,
depending on the boiler. There is an increased risk
of scalding!
Switching on the “Hygiene program”
Tap the following buttons:
1. Call up the home screen.
2.
3. for “DHW”
4. OK to confirm
5. for “Time program”
6. OK to confirm
7. for “DHW”
8. OK to confirm
9. for “DHW”
10. OK to confirm
11. for “Hygiene Program”
12. OK to confirm
13. for the required day or everyday
14. OK to confirm
15. for required time (hour)
16. OK to confirm
17. for required time (minutes)
18. Press twice to confirm
19. for approx. 4 sec, to exit the menu.
WARNING
High DHW temperatures can cause scalding,
e.g. if the DHW temperature is above 140°F (60°C).
Mix with cold water at the draw-off points.
You can heat the water in the DHW tank to above
140°F (60°C) once a week or for an hour every day.
This function is regularly carried out at the specified time.
Note: Not valid for systems with a DHW tank with
temperature switch (such as an Aquastat).

19
6167 819 - 01
Vitodens 100-W B1HE/B1KE Operating Further Adjustments
Setting the Display Brightness
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Display brightness”
6. OK to confirm
7. for “Display”
8. OK to confirm
9. for the selected value
10. OK to confirm
11. for approx. 4 sec, to exit the menu.
Switching the “Lightguide” On and Off
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Display brightness”
6. OK to confirm
7. for “Lightguide”
8. OK to confirm
9. for “ON” or “OFF”
10. OK to confirm
11. for approx. 4 sec, to exit the menu.
Note: Faults are shown by flashing lights even if the
Lightguide is switched off.
Depending on the type of boiler, a red illuminated strip
(Lightguide) is displayed at the lower or upper edge of the
control unit during operation.
In the delivered condition, the Lightguide is switched on.
You can switch off the Lightguide.
Meaning of the display:
Lightguide pulsates slowly:
Display is in standby mode.
Lightguide is illuminated constantly:
You are operating the control unit. Every input
operation is confirmed by a brief flashing.
Lightguide flashes quickly:
There is a fault in the system.

Vitodens 100-W B1HE/B1KE Operating
6167 819 - 01
20
Further Adjustments
Setting the “Time” and “Date”
Set the date
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Date and time”
6. OK to confirm
7. for “Date”
8. OK to confirm
9. for “Date”
10. OK to confirm
11. for the year
12. OK to confirm
13. for the month
14. OK to confirm
15. for the day
16. OK to confirm
17. for approx. 4 sec, to exit the menu.
Setting the format for the date
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Date and time”
6. OK to confirm
7. for “Date”
8. OK to confirm
9. for “Format”
10. OK to confirm
11. for the required format:
“DD.MM.YY”
“MM/DD/YY”
“YY-MM-DD”
12. OK to confirm
13. for approx. 4 sec, to exit the menu.
Setting the format for the time
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Date and time”
6. OK to confirm
7. for “Time”
8. OK to confirm
9. for “Format”
10. OK to confirm
11. for the required format:
“12 h”
“24 h”
12. OK to confirm
13. for approx. 4 sec, to exit the menu.
The “Time” and “Date” are set at the factory. If your
system has been shut down for a prolonged period,
you may need to reset the “Time” and “Date”.
Set time
Tap the following buttons:
1. Call up the home screen.
2.
3. for “Settings”
4. OK to confirm
5. for “Date and time”
6. OK to confirm
7. for “Time”
8. OK to confirm
9. for “Time”
10. OK to confirm
11. for the hour
12. OK to confirm
13. for the minute
14. OK to confirm
15. for approx. 4 sec, to exit the menu.
