Viessmann Vitodens 100-W WB1B Series User manual

Installation Instructions
Flexible Pipe Venting System
5547 910 - 05 02/2015
for use by heating contractor
for Vitodens 100-W WB1B Series,
Vitodens 200-W WB2B Series,
Vitodens 200-W B2HA/B2HB Series and
Vitodens 222-F B2TA/B2TB Series
All boilers listed come with a preinstalled
coaxial vent pipe adaptor.
Please file in service binder
Read and save these instructions
for future reference.
Product may not be exactly as shown
IMPORTANT

2
5547 910 - 05
Flexible Venting Installation
About these Installation Instructions
Take note of all symbols and notations intended to draw attention to potential hazards or important product
information. These include “WARNING”, “CAUTION”, and “IMPORTANT”. See below.
These Instructions cover the following venting systems
for the Vitodens 100-W, 200-W ande 222-F boilers.
Refer to the section applicable to your application for
pertinent installation information.
Note: Not all products shown or stated in the vent
manufacturers instructions are offered or approved
or use with the Vitodens boilers. Use Viessmann
Flexible Pipe Venting System Installation Instructions.
Before proceeding with the installation, please read
sections entitled Safety and General Information.
These sections are applicable to all venting systems listed
and must be read before commencing the installation.
Information specific to...
Direct Vent Installations (Two-pipe System) is found
in the Direct Vent Section starting on page 13.
Single Pipe Vent Installations (Room Air Dependent)
is found in the Single Pipe Venting Section starting
on page 22.

Warnings draw your attention to the presence of
potential hazards or important product information.
Cautions draw your attention to the presence of
potential hazards or important product information.
Helpful hints for installation, operation or maintenance
which pertain to the product.
This symbol indicates that additional, pertinent
information is to be found in the right-hand column.
This symbol indicates that other instructions must be
referenced.
WARNING
Indicates an imminently hazardous situation which, if
not avoided, could result in substantial product/property
damage, serious injury or loss of life.
CAUTION
Indicates an imminently hazardous situation which, if not
avoided, may result in minor injury or product/property
damage.
IMPORTANT
Introduction

3
5547 910 - 05
Flexible Venting Installation Table of Contents
Safety
General Information
Direct Venting
(Two-pipe System)
Single Pipe Venting
(Room Air Dependent)
Componentry
Page
About these Installation Instructions..............................2
Safety, Installation and Warranty Requirements..............4
Product documentation...........................................4
Licensed professional heating contractor...................4
Equipment venting..................................................4
Carbon monoxide...................................................4
Warranty...............................................................4
Advice to owner....................................................4
Important Regulatory and Installation Requirements.........5
Exhaust Vent Requirements........................................10
Vent system suppliers...........................................10
General Installation Information...................................11
Exhaust vent installation steps..............................11
Recommended venting practice.............................12
Ceiling / roof opening...........................................12
Combustion Air Supply..............................................13
Venting Options (Two-pipe System)............................14
Starter Adaptor.........................................................15
Vent Requirements - Flexible Vent System /
Connector Pipes........................................................17
Additional requirements for UL/ULC-listed
flexible vent system/connector vent pipe material....17
Exhaust vent/air intake connection to boiler............17
Side Wall Air Intake Termination.................................18
Vent Length Requirements.........................................19
Maximum exhaust vent pipe length vertical and
air intake pipe length vertical.................................19
Vertical Vent Installation.......................................19
Maximum exhaust vent pipe length vertical and
air intake pipe length horizontal.............................20
Standard long sweep elbows
(for CPVC / PVC / ABS pipes air intake use only).....21
Combustion Air Supply..............................................22
Venting Options (Room Air Dependent)........................24
Adaptors. ................................................................25
Increaser / transition adaptors................................25
Vent Length Requirements..........................................25
Maximum vent pipe length - vertical.......................25
Component Installation Guide.....................................26
Single pipe vent starter adaptor installation.............26
General Component Parts of the Venting System..........27

4
5547 910 - 05
Flexible Venting Installation
Safety, Installation and Warranty Requirements
Please ensure that these instructions are read and understood before commencing installation. Failure to comply with
the instructions listed below and details printed in this manual can cause product/property damage, severe personal
injury, and/or loss of life. Ensure all requirements below are understood and fulfilled (including detailed information
found in manual subsections).
Safety
WARNING
Installers must follow local regulations with respect
to installation of carbon monoxide detectors. Follow
manufacturer’s maintenance schedule of boiler.
Product documentation
Read all applicable documentation before commencing
installation. Store documentation near boiler in a
readily accessible location for reference in the future
by service personnel.
For a listing of applicable literature,
please see section entitled “Important
Regulatory and Safety Requirements”.
Licensed professional heating contractor
The installation, adjustment, service and maintenance
of this equipment must be performed by a licensed
professional heating contractor.
Please see section entitled
“Important Regulatory and Installation
Requirements”.
Equipment venting
Never operate boiler without an installed venting
system. An improper venting system can cause carbon
monoxide poisoning.
Carbon monoxide
Improper installation, adjustment, service and/or
maintenance can cause flue products to flow into
living space. Flue products contain poisonous carbon
monoxide gas.
For information pertaining to the
proper installation, adjustment, service
and maintenance of this equipment to
avoid formation of carbon monoxide,
please see sections entitled
“Mechanical Room” and “Venting
Connection” in the Installation Instructions.
Warranty
Information contained in this and
related product documentation must
be read and followed. Failure to do
so renders the warranty null and void.
Advice to owner
Once the installation work is complete, the heating
contractor must familiarize the system operator/
ultimate owner with all equipment, as well as safety
precautions/requirements, shutdown procedure, and
the need for professional service annually before the
heating season begins.

5
5547 910 - 05
Flexible Venting Installation Safety
Important Regulatory and Installation Requirements
For installations on the Commonwealth of Massachusetts, the following modifications to NFPA-54 chapter 10 apply:
Excerpt from 248 CMR 5-08:
2(a) For all side-wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used
in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where
the side-wall exhaust vent termination is less than (7) feet above finished grade in the area of the venting,
including but not limited to decks and porches, the following requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side-wall horizontal
vented gas fueled equipment, the installing plumber or gas fitter shall observe that a hard wired carbon
monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment
is to be installed. In addition, the installing plumber or gas fitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building
or structure served by the side-wall horizontal vented gas fueled equipment. It shall be the responsibility of
the property owner to secure the services of qualified licensed professional for the installation of hard-wired
carbon monoxide detectors.
a. In the event that the side-wall horizontally vented gas fueled equipment is installed in a crawl space or an
attic, the hard-wired carbon monoxide detector with alarm and battery back-up may be installed on the next
adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however,
that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall
be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance
with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building
at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no
less than one-half (b) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side-wall horizontally vented gas fueled equipment shall
not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a) 1 through 4:
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current
edition of NFPA 54 as adopted by the Board; and
2. Product Approved side-wall horizontally vented gas fueled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or in part for residential purposes.

6
5547 910 - 05
Flexible Venting Installation
Important Regulatory and Installation Requirements (continued)
Safety
When replacing parts, use original Viessmann or
Viessmann approved replacement parts.
The venting system must be installed by a licensed
professional heating contractor familiar with the
operation and maintenance of heating appliances and
venting. Before installing this product, ensure that the
complete installation literature has been read. Failure to
follow proper installation procedures as stated in these
instructions, including vent pitch and proper appliance
connections, may violate local, provincial/state, or
national codes and cause unsafe conditions which may
lead to severe property damage or personal injury.
The venting system must be installed in accordance with
local building code requirements as well as national codes.
For installations in Canada use CAN/CSA-B149.1 Natural
Gas Installation Code or CAN/CSA-B149.2 Propane
Installation Code as applicable; in the U.S. use the
National Fuel Gas Code ANSI Z223.1 or NFPA
Standard 54.
To ensure safe operation of the appliance, Viessmann
recommends that the system be inspected once a year
by a qualified service technician.
Every venting system must be planned and installed for
optimum performance and safety. These Installation
Instructions are designed to help you determine venting
requirements and limitations with respect to installation.
Please read and follow these instructions carefully.
It is the responsibility of the installer to contact local
building and fire officials concerning any installation
restrictions and/or inspection requirements that may
apply. Permits may be required before commencement
of the installation.
The air intake termination for side wall air intake
installations should be located on a wall that is least
affected by prevailing winds. High winds may affect boiler
operation.
Because of its sealed combustion chamber, the Vitodens
gas-fired condensing boiler is suitable for operation with
balanced flue.
The Vitodens boiler, flue gas adaptor and parallel adaptor
(if used) are approved together under CSA 4.9. ANSI
Z21.13 - 2010 Standard.
The venting system components are tested and listed to
ULC S636 or UL 1738 by Intertek and are marked and
labelled on each component.
DO NOT mix pipe, fittings, or joining methods from different
vent system manufacturers.
DO NOT use adhesives of any kind with this venting system.
The vent length requirements stated in this manual
(starting on page 13 for direct vent installations and page
22 for single pipe vent installations) must be observed.
Flue gases are discharged via rigid PP(s) vent components
into the flexible vent pipes to the outdoors. This vent
system is constructed from flame-retardant plastic
[polypropylene rated for a maximum temperature of
230ºF (110ºC)].
IMPORTANT
IMPORTANT

7
5547 910 - 05
Flexible Venting Installation Safety
Important Regulatory and Installation Requirements (continued)
1..directly above a paved sidewalk or paved driveway
which is located between two single-family dwellings
and serves both dwellings.
2..less than 7 ft. (2.13 m) above a paved sidewalk or a
paved driveway located on public property.
3..within 6 ft. (1.83 m) of a mechanical air supply inlet*1
to any building (dryer vents, non-sealed combustion
furnace and hot water heater vents are considered to
be mechanical air inlets).
4..above a meter/regulator assembly within 3 ft. (0.9 m)
horizontally of the vertical centerline of the regulator vent
outlet and to a maximum vertical distance of 15 ft. (4.5 m).
5..within 3 ft. (0.9 m) of any gas service regulator vent outlet.
6..less than 1 ft. (0.3 m) above grade level or anticipated
snow level (consult local building authorities or local
weather office). Locate the vent termination in such a
way that it cannot be blocked by snow.
7..within the following distances of a window or door
which can be opened in any building, any
non-mechanical air supply inlet to any building or the
combustion air inlet of any other appliance:
1 ft. (0.3 m) for inputs up to and including 100,000
Btu/h (30 kW).
3 ft. (0.9 m) for input exceeding 100,000 Btu/h (30 kW).
1..less than 7 ft. (2.13 m) above a paved sidewalk or a
paved driveway located on public property.
2..within 4 ft. (1.2 m) horizontally from service regulator
vents, electric and gas meters as well as relief equipment.
3..at least 3 ft. (0.9 m) above any forced air inlet located
within 10 ft. (3 m).
4..less than 1 ft. (0.3 m) above grade level or anticipated
snow level (consult local building authorities or local
weather office). Locate the vent termination in such a
way that it cannot be blocked by snow.
5..within 1 ft. (0.3 m) of a window or door which can
be opened in any building, any non-mechanical air
supply inlet to any building or the combustion inlet of
any other appliance.
8..underneath a veranda, porch or deck, unless:
the veranda, porch, or deck is fully open on a
minimum of two sides beneath the floor, and
the distance between the top of the vent termination
and the underside of the veranda, porch, or deck is
greater than 1 ft. (0.3 m).
9..in areas where condensation may cause problems,
such as above planters, patios, or adjacent to windows
where flue gases may cause fogging.
10..within 3 ft. (0.9 m) to the property line (advisable,
not mandatory; please check with local building
authorities and municipal bylaws).
11..at a location where ice formation on the ground can
present a hazard.
12..so that the flue gases are directed toward brickwork,
siding, or other construction, in such a manner that
may cause damage from heat or condensate from the
flue gases.
13..where discharging hot flue gases may cause property
damage or personal injury.
14..within 3 ft. (0.9 m) from an inside corner of outside
walls.
*1Including heat recovery units.
6..in areas where condensation may cause problems,
such as above planters, patios, or adjacent to windows
where flue gases may cause fogging.
7..within 3 ft. (0.9 m) to the property line (advisable, not
mandatory; please check with local building authorities
and municipal bylaws).
8..at a location where ice formation on the ground can
present a hazard.
9..so that the flue gases are directed toward brickwork,
siding, or other construction, in such a manner that
may cause damage from heat or condensate from the
flue gases.
10..where discharging hot flue gases may cause property
damage or personal injury.
11..within 3 ft. (0.9 m) from an inside corner of outside
walls.
Vent termination location requirements (for installations in Canada)
The vent must be installed observing local regulations in addition to National Codes, CAN/CSA-B149.1 or 2.
The flexible vent pipe can only be used in vertical installations.
A vent must NOT terminate...
Vent termination location requirements (for installations in the U.S.A.)
The vent must be installed observing local regulations in addition to National Codes, ANSI-Z223.1 or NFPA 54.
The flexible vent pipe can only be used in vertical installations.
A vent must NOT terminate...

8
5547 910 - 05
Flexible Venting Installation
Important Regulatory and Installation Requirements (continued)
Safety
Table 1. Clearance to combustibles
Top Front Rear Left Right Vent pipe
0 in. (mm) 0 in. (mm) 0 in. (mm) 0 in. (mm) 0 in. (mm) 0 in. (mm)
Top Front Rear Left Right
12 in. (305 mm) 28 in. (711 mm) 0 in. (mm) 6 in. (152 mm) 0 in. (mm)
Table 2. Recommended minimum service clearance
For details refer to Vitodens 100-W, 200-W and 222-F Installation Instructions (as may be applicable).
The venting system may be concealed in a chase. Flexible
vent pipe may be installed as a liner within a masonry,
metal or factory-built chimney.
If the venting system passes through an unheated space,
such as an attic, it must be insulated. The insulation must
have an R value sufficient to prevent freezing of the
condensate. Armaflex insulation with bin. thickness and
higher can be used.
WARNING
The Vitodens 100-W, 200-W and 222-F boilers are
NOT approved for common-venting applications. Do not
attempt to common-vent the Vitodens boilers with
any other appliance.
CAUTION
Under certain climatic conditions some building
materials may be affected by flue products expelled
in close proximity to unprotected surfaces. Sealing
or shielding of the exposed surfaces with a corrosion
resistant material (e.g. aluminum sheeting) may be
required to prevent staining or deterioration. The
protective material should be attached and sealed (if
necessary) to the building before attaching the vent
termination. It is strongly recommended to install the
vent termination on the leeward side of the building.
WARNING
Failure to ensure that all flue gases have been safely
vented to the outdoors can cause property damage,
severe personal injury, or loss of life. Flue gases may
contain deadly carbon monoxide.

9
5547 910 - 05
Flexible Venting Installation Safety
Important Regulatory and Installation Requirements (continued)
Part Material Certified to Standards Applicability
Exhaust rigid-pipe /
fittings and flexible
vent system
PP(s)
Polypropelene
UL1738
“Venting systems for
gas-burning appliances,
Categories II, III, IV”
U.S.A./Canada
ULC S636
“Standard for Type BH gas
venting systems”
Combustion air intake pipe
and fitting
Stainless steel n.a.
PVC-DWV
Schedule 40
ANSI/ASTM D2661
CSA B181.1
ULC S102.2
ANSI/ASTM D2665, D1785
CSA B137.3, B181.2
ANSI/ASTM F441
CPVC
Schedule 40
ANSI/ASTM D2661
CSA B181.1
ULC S102.2
ANSI/ASTM D2665, D1785
CSA B137.3, B181.2
ANSI/ASTM F441
ABS-DWV
Schedule 40
ANSI/ASTM D2661
CSA B181.1
ULC S102.2
ANSI/ASTM D2665, D1785
CSA B137.3, B181.2
ANSI/ASTM F441
Pipe cement,
primer (for combustion air
intake pipe)
PVC ANSI/ASTM D2564
CSA B137.3
CPVC ANSI/ASTM F493
CSA B137.6
ABS ANSI/ASTM D2235
CSA B181.1/B182.1
Table 3. Approved materials for two-pipe system
CAUTION
On the job site, ensure that non-listed combustion air
pipe materials are not inadvertently used instead of
listed vent pipe material.
CAUTION
Do not use PVC material in exhaust system.
CAUTION
Do not use cellular (foam) core pipe material to vent this
Vitodens boiler.

10
5547 910 - 05
Flexible Venting Installation
Exhaust Vent Requirements
General Information
The Vitodens 100-W, 200-W and 222-F boilers must be
located in such a way that the vent length is as short as
possible and that the vent can be routed as directly (and
with as few bends) as possible.
See pages 19 and 20 for maximum vent lengths.
All products of combustion must be safely vented to the
outdoors.
The Vitodens boiler is not approved for common-venting
applications. Do not common-vent with any other
appliance. The Vitodens boiler vents under positive
pressure and is a Category IV boiler.
Viessmann recommends that the entire vent system be
checked by a licensed professional heating contractor at
least once each year following initial installation.
Do not install vent pipe in a way that flue gases flow
downwards. The direction of flue gas flow must be
vertically upwards or horizontal with an upward slope.
Ensure there is no flue gas leakage into the area in which
the boiler is installed.
Check proper location of gaskets in rigid PP(s) pipe collars.
(Only use supplied parts with the polypropylene venting
system).
Apply water to lubricate the joint ends of the vent pipe
collar and if used, the air intake pipe collar.
Slide pipes into each other with a gentle twisting motion.
Check joints for leaks with the gas supply turned off and
the fan running. Use a soapy solution to check for vent
leaks.
Condensate must drain from the flue pipe to the boiler.
Ensure a suitable gradient of at least 3º [approx. 2 in.
per 3.3 ft. (50 mm per 1 m)].
No condensate trap is required in the vent pipe system.
If exhaust vent pipe system passes through an unheated
space, such as an attic, it must be insulated. The
insulation must have an R value sufficient to prevent
freezing of the condensate. Armaflex insulation with
bin. thickness and higher can be used.
The connection between the boiler and the base of the
flexible pipe is made with rigid vent components (flexible
pipe cannot be run directly to the boiler).
The flexible pipe can only be used in vertical installations.
Direct venting (two-pipe system) or single pipe (room
air independent) is acceptable (refer to page 22 for
combustion air requirements for room air dependent
installations.
For direct venting applications the air intake pipe can be
installed through the sidewall or vertical through the roof.
Any increaser used in the exhaust vent/air intake pipe
must be installed in the vertical position.
The remaining space surrounding a chimney liner, gas
vent, or special gas vent or plastic piping installed within
a masonry, metal or factory-built flue shall not be used
to supply combustion air (a separate combustion air pipe
routed back to the boiler can be used in the remaining
space if required).
WARNING
Different manufacturers offer a number of different joint
systems and adhesives. Do not mix pipes, fittings and/
or joining methods from different manufacturers. Failure
to comply could result in leakage, potentially causing
personal injury or death.
WARNING
Failure to ensure that all flue gases have been safely
vented to the outdoors can cause property damage,
severe personal injury, or loss of life. Flue gases may
contain deadly carbon monoxide.
Vent System Suppliers
Use special venting system (UL/ULC listed for Category
IV) for exhaust vent material of the Vitodens boilers.
Contact on of the following suppliers to order parts.
All manufacturers deliver PP(s) rigid and flexible vents
in three sizes.
2 in. (60 mm) 2 in. (60 mm)
3 in. (80 mm) 3 in. (80 mm)
4 in. (100 mm) 4.3 in. (110 mm)
M&G / Duravent
Tel. [phone]
Fax. [phone]
Fax: [phone]
[email protected]
www.duravent.com
Centrotherm InnoFlue
Eco Systems. LLC
418 South Pearl St.
Albany, New York 12202
Tel. [phone]
Fax. [phone]
[email protected]
www.centrotherm.us.com
PolyFlue - Selkirk
5030 Corporate Exchange
Blvd. SE
Grand Rapids, MI 49512
Canada Contacts
Tel. [phone]
Fax. [phone]
USA Contacts
Tel. [phone]
Fax. [phone]
Z-FLEX US Inc.
NovaFlex Group
20 Commerce Park N.
Bedford, NH 03110
Tel. [phone]
Fax: [phone]
1-800-654-5600

11
5547 910 - 05
Flexible Venting Installation General Information
General Installation Information
Exhaust vent installation steps
The flexible pipes, rigid pipes and components are made
from polypropylene material with excellent resistance
to flue gas condensate formed in the exhaust vent of
a gas-fired condensing heating boiler.
Every venting system must be properly planned and
installed for optimum performance and safety. A flexible
pipe installation always begins with an inspection of the
existing masonry chimney (if being installed in a chimney
as a liner). Inspect the masonry chimney for proper
construction and compliance with applicable building codes.
A thorough cleaning of the chimney should be done prior
to the installation of the chimney liner to ensure that it is
free and clear of obstructions. Should an inspection reveal
that an existing chimney is not safe for the intended
application, it must be repaired or rebuilt to conform to
NFPA 211 or any other applicable standards.
 Make sure you have available manpower in order to
handle the flexible pipe.
 Determine the proposed location of the opening in the
existing chimney. The slope of the connecting rigid flue
pipe should be a minimum of 3º [equivalent to 2 in. per
3.3 ft. (50 mm per 1 m)].
 The length of the flexible vent system can be determined
two ways: use a plumb line to measure the existing
chimney length (add an extra 16 in. (40 cm) for each
bend). The flexible vent system can be shortened by
cutting with a saw or scissors within a groove. The
correct length can also be determined after installing
it in the existing chimney by cutting the flex pipe at
the top of the chimney.
Two lengths of the flexible vent system can be
connected to each other with a flex pipe coupling
(if required). See manufacturer’s catalogue.
 Mount the spacer cross with a maximum distance of
6bft. (2 m) apart or as specified by the manufacturer.
Some installations may require the use of a rope
connected to a pulling cone or directly to the bottom
connector.
 With the adaptor and spacers connected, start installing
the flex pipe from the top of the chimney and carefully
feed the liner down through the middle. To prevent
damage to the flex pipe additional manpower may be
required to guide the flex pipe with a rope from the
bottom of the chimney.
WARNING
Ensure that the entire venting system is protected from
physical damages. A damaged venting system may
cause unsafe conditions.
WARNING
The venting system is approved for indoor installations
only.
Do not install the venting system outdoors.

12
5547 910 - 05
Flexible Venting Installation
General Information
Exhaust vent installation steps (continued)
 Once the bottom of the flex pipe and adaptor has
reached the desired position, insert into the support
elbow/support strip assembly.
 Choose the required size and install the galvanized wall
sleeve (cut to the width of the wall if required) and seal
the space between the sleeve and the wall with mortar.
 Proceed with installing the rigid pipes and wall plate.
Start from the chimney support elbow to the boiler
adaptors (rigid pipes can be cut to the correct length if
required).
 Seal the top wall of the chimney with a water resistant
sealant.
When cutting rigid pipes to length, debur and clean pipes.
For flexible vent systems:
In conjunction with these instructions, follow the
installation instructions supplied by the special venting
manufacturer.
General Installation Information (continued)
Recommended venting practice
When installing a venting system the following
recommended venting practices apply:
Keep length and number of 90º elbows to a minimum.
Try not to use back-to-back 90º elbows.
Use 45º elbows where possible to minimize the number
of 90º elbows in case redirection of flue gas is required.
Ceiling / roof opening
Cut an opening for the vent pipe. Size opening at least
1 in. (25 mm) larger than vent pipe diameter (for
combustible as well as non-combustible material).
IMPORTANT

13
5547 910 - 05
Flexible Venting Installation Direct Venting (Two-pipe System)
Combustion Air Supply
The Vitodens boiler is suitable for vertical venting using
rigid pipe and flexible pipe vent system material. The
Vitodens 100-W, 200-W and 222-F boilers are approved
for both direct vent (sealed combustion), as well as direct
exhaust (non-sealed combustion) operation in vertical
arrangements. For non-sealed combustion vent systems
(i.e. room-air dependent), see appropriate section under
“Single Pipe Venting" starting on page 22 in this manual.
The boiler must be connected to a direct vent system
in which all air for combustion is taken from the outside
atmosphere and all combustion products are discharged
safely to the outdoors.
The boiler must be vented and supplied with combustion
air and exhaust vent as described in this section. Ensure
the vent and combustion air supply comply with these
instructions.
* Typically when the boiler is used as a temporary heat
source during the building construction phase.
Inspect all finished exhaust vent/air intake piping to ensure:
Vent/air intake pipe and fittings are of approved material.
Acceptable size, length and number of elbows on
combined vent/air intake system.
Installation is in accordance with prevailing provisions
of local codes.
Installation complies with the requirements of these
instructions, as well as the exhaust vent/air intake
supplier's instructions.
The exhaust vent and combustion air intake system and
terminations may be installed in one of the following type
terminations (2-pipe system):
1. Vertical air intake and exhaust vent pipes.
2. Horizontal air intake pipe and vertical exhaust vent pipe.
CAUTION
If the boiler has been exposed to high dust levels, all
burners and the heat exchanger must be cleaned prior
to use.
CAUTION
Do not install boiler during construction involving drywall
or heavy dust of any kind. Dust can accumulate in the
burners and cause sooting. Install boiler after all heavy
dust construction is completed.
CAUTION
If above criteria are not properly observed and boiler
damage results, any warranty on the complete boiler
and related components will be null and void.
CAUTION
Do not locate boiler in areas where high dust levels or
high humidity levels are present.

14
5547 910 - 05
Flexible Venting Installation
Venting Options (Two-pipe System)
Boiler models;
Vitodens 100-W WB1B 26, 35,
Vitodens 200-W WB2B 19, 26, 35,
Vitodens 200-W B2HA 19, 28, 35,
Vitodens 200-W B2HB 19, 26, 35,
Vitodens 222-F B2TA 19, 35
Vitodens 222-F B2TB 19, 35
Boiler models Vitodens 200-W WB2B 45, 60, 80, 105
and B2HA 45, 60, 80, 100, 112, 150
The two-pipe venting system draws combustion air
Athrough a separate air intake pipe from the outdoors.
Flue gases Bare discharged to the outdoors via the
single-pipe rigid-pipe and flexible vent system.
The two-pipe system is flexible in the selection of
materials offered by different manufacturers and the
location of the air intake termination.
Read the following exhaust vent/air intake requirements
carefully before commencing with the installation.

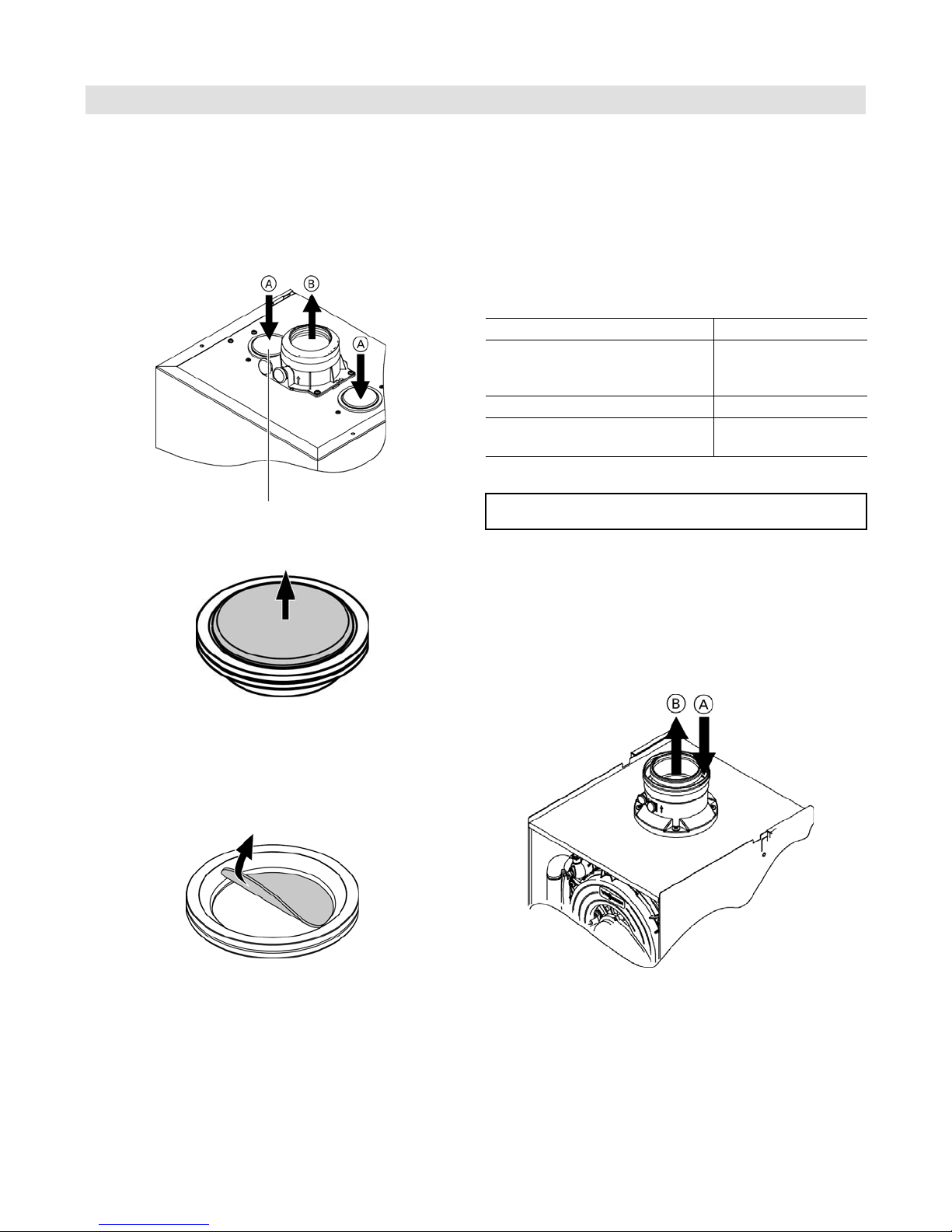

Fig. 5 Single or two-pipe installation
Legend
ACombustion air (requires 2 in. CPVC adaptor)
BFlue gas exhaust
Fig. 6 Single or two-pipe vent system
(parallel adaptor not shown, see page 16)
Legend
ACombustion air
BFlue gas exhaust
Direct Venting (Two-pipe System)
Boiler Flue Gas Exhaust Size
WB1B 26, -35 WB2B 19, 26, 35,
B2HA 19, 28, 35, B2HB 19, 26, 35
B2TA 19, 35, B2TB 19, 35
2 in. (60 mm)
WB2B 45, -60, B2HA 45, 60 3 in. (80 mm)
WB2B 80, -105
B2HA 890, 100, 112, 150
4ein. (110 mm)
IMPORTANT
For Vitodens 100 series boilers, remove the plastic plug
for the combustion air connection. For Vitodens 200/222
series boilers, tear out the center section of the rubber
gasket only.
When utilizing the combustion air inlet seal Afor Vitodens
200 B2HA/B and 222 B2TA/B series boilers, remove the
inlet seal A, tear out center section and install the remaining
rubber seal back into the air inlet opening.
for Vitodens 100 series and 200 WB2B boilers
for Vitodens 200 B2HA/B and 222 B2TA/B boilers
When utilizing the combustion air inlet seal Afor Vitodens
100 series and 200 WB2B boilers, remove the plastic
center section and leave the rubber seal in place.

15
5547 910 - 05
Flexible Venting Installation Direct Venting (Two-pipe System)
Starter Adaptor
Vent pipe starter adaptors for WB1B 26, 35,
WB2B 19, 26, 35, B2HA 19, 28, 35, B2HB 19, 26, 35,
B2TB 19, 35, B2TA 19, 35
*1 For system Ø of 4 in. (100 mm), an increaser adaptor
3 to 4 in. (80 to 100 mm) in addition to this increaser
adaptor must be used.
Legend
APP(s) slip joint vent starter adaptor
(60 to 80 mm) *1
B2 in. CVPC starter adaptor,
ViPN 7134 769
a 3 in. (80 mm) nominal
b 2 in. (50 mm)
c 5bin. (140 mm)
e 3 in. (80 mm)
Air inlet (intake)
cover must be in place.
DO NOT remove!
Flue
Air
Optional left
connection for air
intake.
WARNING
(For this type of installation only:)
Boiler comes with pre-installed combustion air cover
mounted on the concentric vent pipe adaptor. Do not
remove combustion air intake cover. Removing this cover
may cause unintended room air dependent operation
(non-direct vent). Room air dependent operation requires
provision of combustion and ventilation air (as per
section “Single Pipe Venting”, page 22.
Fig. 7
Note: This adaptor Amay not be required, contact vent
manufacturer for available vent sizes.

16
5547 910 - 05
Flexible Venting Installation
Parallel Adaptor
Table 4. Parallel adaptor for two-pipe system
Supplier Boiler Model Ø in. (mm) Quantity
Viessmann or Centrotherm WB2B 45, 60
B2HA 45, 60
3 (80)
(see a in fig. 8)
1
Viessmann WB2B 80, 105
B2HA 80, 100, 112, 150
4 (110)
(see a in fig. 8)
1
Parallel vent pipe starter adaptors for WB2B 45, 60, 80, 105,
and B2HA 45, 60, 80, 100, 112, 150
Legend
for 80, 105
AAir intake, max. insertion 2bin. (64 mm)
BViessmann parallel adaptor
CSlip joint vent starter / transition adaptor 4eto 4 in.
(110 to 100 mm) only required if M&G / Duravent
system is used
DViessmann CPVC adaptor
a 4 in. (100 mm)
b 5din. (130 mm)
c 9ein. (237 mm)
d 127/8in. (327 mm)
e 5bin. (140 mm)
Legend
for 45, 60
AAir intake, max. insertion 2bin. (64 mm)
BViessmann or Centrotherm parallel adaptor
CUsed only on WB2B 80, 105, B2HA 80, 100, 112, 150*
DViessmann CPVC adaptor
a 3 in. (80 mm)
b 2cin. (70 mm)
c 7 in. (178 mm)
d Approx. 10cin. (271 mm)
e 4cin. (120 mm)
Flue Air
Direct Venting (Two-pipe System)
Fig. 8

17
5547 910 - 05
Flexible Venting Installation Direct Venting (Two-pipe System)
Vent Requirements - Flexible Vent System / Connector Pipes
Additional requirements for UL/ULC-listed flexible vent system / connector pipe vent material
Exhaust vent/air intake connection to boiler
The vent/air intake connection to the Vitodens boiler must
be made according to table 5. The starter adaptors are
intended for a slip fit and slide into the parallel adaptor or
boiler adaptor with a gentle twisting motion.
For air intake pipe system, one wire mesh screens (bird
screen) must be ordered from Viessmann. These parts
are available in pre-cut diameters of 2 in., 3 in. and 4 in.
Table 5. Required starter adaptors for CPVC air intake system / PPs vent system
Part Boiler Model Diameter Supplier Quantity
Parallel Pipe Adaptor WB2B 45, 60
B2HA 45,60
WB2B 80, 105
B2HA 80, 100, 112, 150
3 in. (80 mm)
3 in. (80 mm)
4 in. (100 mm)
4 in. (100 mm)
Viessmann 1
CPVC Starter Adaptor
for Air Intake
WB1B 26, 35,
WB2B 19, 26, 35
B2HA 19, 28, 35
B2HB 19, 26, 35
B2TA 19, 35
B2TB 19, 35
WB2B 45, 60
B2HA 45, 60
WB2B 80, 105
B2HA 80, 100, 112, 150
2 in. (50 mm)
2 in. (50 mm)
2 in. (50 mm)
2 in. (50 mm)
2 in. (50 mm)
2 in. (50 mm)
3 in. (80 mm)
3 in. (80 mm)
4 in. (100 mm)
4 in. (100 mm)
Viessmann 1
Wire Mesh Screen
for Air Intake
Termination
WB1B 26, 35
WB2B 19, 26, 35
B2HA 19, 28, 35
B2HB 19, 26, 35
B2TA 19, 35
B2TB 19, 35
WB2B 45, 60
B2HA 45, 60
WB2B 80, 105
B2HA 80, 100, 112, 150
2 in. (50 mm)
3 in. (80 mm), 4 in. (100 mm) if used
3 in. (80 mm), 4 in. (100 mm) if used
3 in. (80 mm), 4 in. (100 mm) if used
3 in. (80 mm), 4 in. (100 mm) if used
3 in. (80 mm), 4 in. (100 mm) if used
3 in. (80 mm)
3 in. (80 mm)
4 in. (100 mm)
4 in. (100 mm)
Viessmann 1
Increaser Adaptor
for Exhaust Pipe
WB1B 26, 35
WB2B 19, 26, 35
B2HA 19, 28, 35
B2HB 19, 26, 35
B2TA 19, 35
B2TB 19, 35
2bto 3 in. (60 to 80 mm)
2bto 3 in. (60 to 80 mm)
2bto 3 in. (60 to 80 mm)
2bto 3 in. (60 to 80 mm)
2bto 3 in. (60 to 80 mm)
2bto 3 in. (60 to 80 mm)
Field supplied 1
Transition Adaptor WB2B 80, 105
B2HA 80, 100, 112, 150
4eto 4 in. (110 to 100 mm)
4eto 4 in. (110 to 100 mm)
Field supplied 1
Note: The Vitodens boiler has passed the zero inches vent
clearance to combustibles testing requirements
dictated by the Harmonized Standard ANSI Z21.13.
CSA 4.9.2007 and therefore is listed for zero
clearance to combustibles when vented with a
single pipe special venting system.
WARNING
The use of vent material other than listed flexible PP(s),
positive pressure vent pipe and fittings can cause property
damage, severe personal injury and/or loss of life.

18
5547 910 - 05
Flexible Venting Installation
Side Wall Air Intake Termination
The air intake system must terminate so that proper
clearances are maintained as cited in local codes or the
latest edition of the “Natural Gas and Propane Installation
Code" CAN/CSA-B149.1 (Canada), or the “National Fuel
Gas Code" ANSI Z223.1 (NFPA 54) (U.S.A.). See pages
6 and 7.
Fig. 9 Installation of field fabricated air intake riser (side view)
Side Wall
Support Bracket
Attach
Termination
Elbow w/Screen
Air Intake
Riser
Caulk
Min. 12 in.
(31 cm)
Grade or max. snow level
Fig. 10 Side wall air intake termination (side view)
Attach Termination
Elbow w/Screen
Air Intake
min. 2 in. (50 mm)
Direct Venting (Two-pipe System)
IMPORTANT
WARNING
Air intake must be at least 12 in. (300 mm) above the
anticipated snow level (consult your local building
authorities or local weather office).
Locate vent termination in such a way that it cannot be
blocked by snow.

19
5547 910 - 05
Flexible Venting Installation Direct Venting (Two-pipe System)
Vent Length Requirements
Maximum exhaust vent pipe length vertical and air intake pipe length vertical
Legend
a Equivalent length (exhaust)
b Equivalent length (air intake)
c 6 in. (152 mm) over max. local snow level
(check with your local weather office for details)
Boiler Model System Ø
See note below
Max. combined equivalent vent length
(a+b)
WB1B 26, 35 2 in. (50 mm)
3 in. (80 mm)
4 in. (100 mm)
65 ft. (20 m)
123 ft. (37 m)
150 ft. (46 m)
WB2B 19, 26, 35, B2HA 19, 28, 35, B2HB 19, 26, 35
B2TA 19, 35, B2TB 19, 35
2 in. (50 mm)
3 in. (80 mm)
4 in. (100 mm)
84 ft. (26 m)
111 ft. (34 m)
135 ft. (41 m)
WB2B 45, 60, B2HA 45, 60 3 in. (80 mm)
4 in. (100 mm)
74 ft. (23 m)
111 ft. (34 m)
WB2B 80, 105, B2HA 80, 100, 112 4 in. (100 mm) or
4.3 in. (110 mm)
98 ft. (30 m)
B2HA 150 4 in. (100 mm)*
5 in. (125 mm)**
98 ft. (30 m)
98 ft. (30 m)
Table 6. Maximum allowable equivalent length
Note: For combination of different vent/air intake pipe diameters, such as Ø 3 in. (80 mm) PP(s) flexible vent with
Ø 2 in. (50 mm) CVPC, PVC, ABS air intake pipe, the total equivalent length must be used for the smaller pipe
diameter.
Fig. 12
Vertical Vent Installation
Vitodens 100-W WB1B 26, 35
Vitodens 200-W WB2B 19, 26, 35,
Vitodens 200-W B2HA 19, 28, 35
Vitodens 200-W B2HB 19, 26, 35
Vitodens 222-F B2TA 19, 35
Vitodens 222-F B2TB 19, 35
Vertical Vent Installation
Vitodens 200-W WB2B 45, 60, 80, 105 and
B2HA 45, 60, 80, 100, 112, 150
* Due to higher exhaust vent pipe resistance, there is an automatic input reduction of 9% for model B2HA 150
when a 4 inch diameter vent pipe is used.
** 4 in. to 5 in. increaser field supplied.
Fig. 11

20
5547 910 - 05
Flexible Venting Installation
Vent Length Requirements (continued)
Maximum exhaust vent pipe length vertical and air intake pipe length horizontal
Legend
a Equivalent length (exhaust)
b Equivalent length (air intake)
Note: must be 6 in. (152 mm) over max. local snow level
(check with your local weather office for details)
1 Pipe support
Table 7. Maximum allowable equivalent length
Fig. 13 Vitodens 100-W WB2B 26, 35 and Vitodens
200-W WB2B 19, 26, 35, B2HA 19, 28, 35,
B2HB 19, 26, 35 and Vitodens 222-F B2TA 19, 35,
B2TB 19, 35
Direct Venting (Two-pipe System)
Fig. 14 Vitodens 200-W WB2B 45, 60, 80, 105,
B2HA 45, 60, 80, 100, 112, 150
Boiler Model System Ø
See note below
Max. combined equivalent vent length
(a+b)
WB1B 26, 35 2 in. (50 mm)
3 in. (80 mm)
4 in. (100 mm)
65 ft. (20 m)
123 ft. (37 m)
150 ft. (46 m)
WB2B 19, 26, 35, B2HA 19, 28, 35, B2HB 19, 26, 35
B2TA 19, 35, B2TB 19, 35
2 in. (50 mm)
3 in. (80 mm)
4 in. (100 mm)
84 ft. (26 m)
111 ft. (34 m)
135 ft. (41 m)
WB2B 45, 60, B2HA 45, 60 3 in. (80 mm)
4 in. (100 mm)
74 ft. (23 m)
111 ft. (34 m)
WB2B 80, 105, B2HA 80, 100, 112 4 in. (100 mm) or
4.3 in. (110 mm)
98 ft. (30 m)
B2HA 150 4 in. (100 mm)*
5 in. (125 mm)**
98 ft. (30 m)
98 ft. (30 m)
Note: For combination of different vent/air intake pipe diameters, such as Ø 3 in. (80 mm) PP(s) flexible vent with
Ø 2 in. (50 mm) CVPC, PVC, ABS air intake pipe, the total equivalent length must be used for the smaller pipe
diameter.
* Due to higher exhaust vent pipe resistance, there is an automatic input reduction of 9% for model B2HA 150
when a 4 inch diameter vent pipe is used.
** 4 in. to 5 in. increaser field supplied.
