Viessmann Vitorond 100 Quick guide

Read and save these instructions
for future reference.
IMPORTANT
VITOROND 100
Installation and
Service Instructions
for use by heating contractor
Vitorond 100
VR1 Series
Oil-Fired Boiler
Heating input 91 to 140 MBH
27 to 41 kW
3 1 290 v2.2 01/2011

Safety, Installation and Warranty Requirements
2
Safety, Installation and arranty Requirements
Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues
listed below and details printed in this manual can cause product/property damage,severe personal injury, and/or loss of life.
Ensure all requirements below are understood and fulfilled (including detailed information found in manual subsections).
HLicensed professional heating
contractor
The installation, adjustment, service,
and maintenance of this equipment
must be performed by a licensed
professional heating contractor.
"
Please see section
entitled “Important
Regulatory and
Installation
Requirements.”
HProduct documentation
Read all applicable documentation
before commencing installation. Store
documentation near boiler in a readily
accessible location for reference in
the future by service personnel.
"
For a listing of
applicable literature,
please see section
entitled “Important
Regulatory and
Installation Requirements.”
HAdvice to owner
Once the installation work is
complete, the heating contractor must
familiarize the system
operator/ultimate owner with all
equipment, as well as safety
precautions/requirements, shut-down
procedure, and the need for
professional service annually before
the heating season begins.
HContaminated air
Air contaminated by chemicals can
cause by-products in the combustion
process which are poisonous to
inhabitants and destructive to
Viessmann equipment.
"
For a listing of
chemicals which cannot
be stored in or near the
boiler room, please see
section entitled
“Combustion Air upply.”
HCarbon monoxide
Improper installation, adjustment,
service and/or maintenance can cause
flue products to flow into living space.
Flue products contain poisonous
carbon monoxide gas.
"
For information
pertaining to the proper
installation, adjustment,
service and maintenance
of this equipment to
avoid formation of carbon monoxide,
please see sections entitled
“Combustion Air upply” and “Venting
Connection.”
HFresh air
This equipment requires fresh air for
safe operation and must be installed
ensuring provisions for adequate
combustion and ventilation air exist.
"
For information
pertaining to the fresh
air requirements of this
product, please see
section entitled
“Combustion Air upply.”
HEquipment venting
Never operate boiler without an
installed venting system. An improper
venting system can cause carbon
monoxide poisoning.
"
For information
pertaining to venting
and chimney
requirements, please
see section entitled “Venting
Connection.” All products of
combustion must be safely vented to
the outdoors.
Harranty
Information contained in
this and related product
documentation must be
read and followed. Failure
to do so renders warranty
null and void.
3 1 290 v2.2
Installers must follow local
regulations with respect to
installation of carbon monoxide
detectors. Follow manufacturer’s
maintenance schedule of boiler.
ARNING

Safety, Installation and Warranty Requirements
3
Safety, Installation and arranty Requirements (continued)
HFiberglass wool and ceramic fiber
materials
The state of California has listed the
airborne fibers of these materials as a
possible cancer hazard through
inhalation. When handling these
materials, special care must be
applied.
Suppliers of ceramic fiber products
recommend the following first aid
measures:
-Respiratory tract (nose and throat)
irritation
If respiratory tract irritation develops,
move the person to a dust free
location.
-Eye irritation
If eyes become irritated, flush
immediately with large amounts of
lukewarm water for at least 1
minutes. Eyelids should be held away
from the eyeball to ensure thorough
rinsing. Do not rub eyes.
-kin irritation
If skin becomes irritated, remove
soiled clothing. Do not rub or scratch
exposed skin. Wash area of contact
thoroughly with soap and water.
Using a skin cream or lotion after
washing may be helpful.
-Gastrointestinal irritation
If gastrointestinal tract irritation
develops, move the person to a dust
free environment.
Suppliers of fiberglass wool products
recommend the following precautions
be taken when handling these
materials:
Precautionary measures
-Avoid breathing fiberglass dust and
contact with skin and eyes.
- Use NIOSH approved dust/mist
respirator.
- Wear long-sleeved, loose fitting
clothing, gloves and eye protection.
- Wash work clothes separately from
other clothing. Rinse washer
thoroughly.
- Operations such as sawing, blowing,
tearout and spraying may generate
airborne fiber concentration requiring
additional protection.
First aid measures
-If eye contact occurs, flush eyes with
water to remove dust. If symptoms
persist, seek medical attention.
- If skin contact occurs, wash affected
areas gently with soap and warm
water after handling.
HHazardous materials
3 1 290 v2.2
Inhalation of fiberglass wool and/or
ceramic fiber materials is a possible
cancer hazard. These materials can
also cause respiratory, skin and eye
irritation.
ARNING Appliance materials of construction,
products of combustion and the fuel
contain alumina, silica, heavy metals,
carbon monoxide, nitrogen oxides,
aldehydes and/or other toxic or
harmful substances which can cause
serious injury or loss of life and which
are known to the State of California
to cause cancer, birth defects and
other reproductive harm. Always use
proper safety clothing, respirators and
equipment when servicing or working
nearby the appliance.
ARNING

Contents
4
Page
Safety Important Regulatory and Installation Requirements 6....
General Information About these Instructions 7.......................................................
Product Information 8................................................................
Mechanical Room 9....................................................................
Fresh Air Combustion Air Supply 10. . ........................................................
Set-up Product Delivery 12.......................................................................
Unpacking Instructions 12..........................................................
Minimum Clearances to Combustibles 13..............................
Recommended Minimum Clearances for Service 14...........
Boiler Set-up and Location 14....................................................
Combustion Chamber Insert 1..................................................
Connections Venting Connection 16................................................................
ater Side Connections (with Aquastat Control) 18..........
Safety Connections (with Aquastat Control) 19...................
Install safety devices on boiler 19.............................................
ater Side Connections (with Vitotronic Control) 21.........
Safety Connections (with Vitotronic Control) 22..................
Install safety devices on boiler 22.............................................
Pressure Testing 24......................................................................
Burner (Beckett) Burner Installation 2....................................................................
Burner Information 2...................................................................
Burner mounting 26........................................................................
Oil piping 27.....................................................................................
Electrical connections (with Aquastat control) 28................
Wiring diagram (with Aquastat control) 30.............................
Wiring diagram (Vitorond 100 with Beckett burner and
Honeywell Aquastat) 31...............................................................
Burner Set-up (Beckett) 32..........................................................
Electrical connections (with Vitotronic control) 32..............
Installation of Vitotronic control 33..........................................
Boiler coding card 3.....................................................................
Electrical connections (with Vitotronic control) 36..............
Wiring diagram (with Vitotronic control) 38...........................
Wiring diagram (Vitorond 100 with Beckett burner,
GeniSys control and Vitotronic control) 39.............................
3 1 290 v2.23 1 290 v2.2

Contents
5
Burner (Riello) Burner Installation 40....................................................................
Burner Information 40...................................................................
Burner Set-up (Riello) 41...............................................................
Burner mounting 41........................................................................
Oil piping 42.....................................................................................
Electrical connections (with Aquastat control) 43................
Wiring harness connection to Honeywell high limit
and Riello burner sub-base (with Aquastat control) 44.......
Wiring diagram (with Aquastat control) 4.............................
Installation of Vitotronic control 46..........................................
Electrical connections (with Vitotronic control) 48..............
Wiring diagram (with Vitotronic control) 1...........................
Boiler coding card 2.....................................................................
Initial Start-up Initial Start-up 3...........................................................................
Burner calibration 4......................................................................
Beckett burner calibration ......................................................
Riello burner calibration 6..........................................................
Barometric draft regulator 6......................................................
Examples Installation Examples 7..............................................................
Installation Examples - Aquastat 8.........................................
Special Applications - Aquastat 9..........................................
Boiler in heating/cooling application 9....................................
Low water cut-off 9....................................................................
Installation Examples - Vitotronic 60.......................................
Special Applications - Vitotronic 62.........................................
Boiler in heating/cooling application 62....................................
Low water cut-off 62....................................................................
Service Service Procedure Overview 63................................................
Necessary Tools 64.......................................................................
Service Procedure 64.....................................................................
Additional Information
Parts List 69....................................................................................
Maintenance Record 71...............................................................
3 1 290 v2.2

6
Important Regulatory and Installation Requirements
Take note of all symbols and notations intended to draw attention to potential hazards or important product
information. These include ” ARNING,” ”CAUTION,” and ”IMPORTANT.” See page 7 for details.
Codes
The installation of this unit shall be in
accordance with local codes. In the
absence of local codes, use:
HCSA B-139 for oil installations in
Canada
HNFPA 31 Standard for the Installation
of Oil Burning Equipment in the US
Always use latest editions of codes.
All electrical wiring is to be done in
accordance with the latest edition of
CSA C22.1 Part 1 and/or local codes. In
the U.S. use the National Electrical
Code ANSI/NFPA 70. The heating
contractor must also conform to the
Standard for Controls and Safety
Devices for Automatically Fired Boilers,
ANSI/ASME CSD-1 where required by
the authority having jurisdiction.
Mechanical room
Ensure the mechanical room complies
with the requirements listed in this
manual. See section entitled Mechanical
Room on page 10.
Please carefully read this manual prior
to attempting installation. Any
warranty is null and void if these
instructions are not followed.
For information regarding other
Viessmann ystem Technology
componentry, please reference
documentation of the respective
product.
We offer frequent installation and
service seminars to familiarize our
partners with our products. Please
inquire.
orking on the equipment
The installation, adjustment, service,
and maintenance of this boiler must be
done by a licensed professional heating
contractor who is qualified and
experienced in the installation, service,
and maintenance of hot water boilers.
There are no end user serviceable parts
on the boiler, burner, or control.
Ensure main power supply to
equipment, the heating system, and all
external controls has been deactivated.
Close main oil supply valve. Take
precautions in both instances to avoid
accidental activation of power during
service work.
The completeness and functionality of
field supplied electrical controls and
components must be verified by the
heating contractor. These include
low-water cut-offs, flow switches (if
used), staging controls, pumps,
motorized valves, air vents,
thermostats, etc.
Technical literature
Literature applicable to all aspects of
the Vitorond 100:
- Installation, Service and Operating
Instructions
- Installation codes mentioned
in this manual
Leave all literature at the installation
site and advise the system
operator/ultimate owner where the
literature can be found. Contact
Viessmann for additional copies.
This product comes with several
safety instruction labels attached.
Do not remove!
Contact Viessmann immediately if
replacement labels are required.
Safety
3 1 290 v2.2

General Information
7
About these Instructions
Symbols and flag words used in these instructions
The following symbols and flag words are utilized in these
Installation Instructions:
Indicates an imminently hazardous
situation which, if not avoided, could
result in death, serious injury or
substantial product/property damage.
Indicates an imminently hazardous
situation which, if not avoided, may
result in minor injury or
product/property damage.
Helpful hints for installation, operation
or maintenance which pertain to the
product.
Helpful hints for installation, operation
or maintenance which pertain to the
product.
This symbol indicates that additional
information is written in column 3.
This symbol indicates that other
instructions must be referenced.
Please note
Viessmann Manufacturing Company Inc. reserves the right to make product
changes or updates without notice and will not be held liable for typographical
errors or omissions in the product literature.
3 1 290 v2.2
arnings draw your attention to the
presence of potential hazards or
important product information.
ARNING
Cautions draw your attention to the
presence of potential hazards or
important product information.
CAUTION
IMPORTANT
3 1 290 v2.2

General Information
8
Product Information
Sectional gray cast-iron boiler with triple-pass design.
For operation in closed loop, forced circulation hot water heating systems. This
boiler does not require a flow switch.
The boiler model size selected should be based on an accurate heat loss calculation
of the building. The boiler selected must be compatible with the connected
radiation.
Maximum adjustable high limit setting (Aquastat): 240°F / 110°C.......................
Maximum allowable working pressure
*1
: 4 psig / 3 bar........................................
Fuel: #2 fuel oil.............................................................................................................
*1
Cast iron sections are A ME stamped for 58 psig / 4 bar and maximum allowable
temperature of 250°F / 121°C.
Supply/return bypass for large water content systems
For boilers connected to large water content systems (typically systems with
volume > 1 USG / 3.8 ltr for every 13000 Btu/h of boiler input), such as a previous
gravity system with large free-standing radiators, a bypass line from the supply pipe
to the return pipe must be used to avoid flue gas condensation in the heat
exchanger and the vent system. A bypass can be installed on any system as a
preventative measure. Viessmann strongly recommends installing a bypass pipe on
all cast iron boilers.
3 1 290 v2.2

General Information
9
Mechanical Room
During the early stages of new home design, we recommend that proper
consideration be given to constructing a separate mechanical room dedicated to gas
or oil fired equipment including domestic hot water storage tanks.
The boiler should be located in a heated indoor space, near a floor drain, and as
close as possible to the vertical chimney or vent.
Install the boiler on a concrete foundation if:
- the floor may be flooded,
- the floor is not level,
- the boiler will be installed in a residential garage (in this case ensure that the
burner is raised at least 18” / 4 7 mm above the floor to avoid contact with
flammable vapors and fumes).
Viessmann strongly recommends installing the boiler on a concrete foundation.
Whenever possible install boiler near an outside wall so that it is easy to duct fresh
air directly to the boiler area. In addition, do not use exhaust fans in the boiler room
and do not install the boiler in rooms with refrigeration equipment. This equipment
requires uncontaminated outside air for safe operation - do not install where
chemicals are stored or in a room with negative pressure. See section entitled
“Combustion Air Supply” for further details regarding the above.
Locate boiler on flooring capable of supporting the weight of the boiler filled with
water. Ensure that the boiler location does not interfere with the proper circulation
of combustion and ventilation air within the mechanical room.
3 1 290 v2.2

Fresh Air
10
Combustion Air Supply
Codes
Provisions for combustion and
ventilation air must be made in
accordance with applicable local codes.
In the absence of local codes, use:
HCSA B-139 for oil installations in
Canada, or
HNFPA 31, Standard for the Installation
of Oil Burning Equipment in the U.S.
Always use latest editions of codes.
General
This equipment requires fresh air for
safe operation and must be installed
ensuring provisions for adequate
combustion and ventilation air exist.
Whenever possible, install boiler near an
outside wall so that it is easy to duct
fresh air directly to the boiler area.
The boiler location must never be under
negative pressure. Exhaust fans, attic
fans, or dryer fans may cause air to be
exhausted at a rate higher than air can
enter the structure for safe combustion.
The heating contractor shall ensure all
of the following requirements are met:
HAn adequate supply of combustion air
must be available to ensure proper
combustion.
HAmbient air temperatures must be
maintained within safe operating
limits.
HWhen a damper is provided in any
opening intended to admit combustion
air into the room within which the
appliance is installed, the damper shall
be interlocked to prevent any burner
from starting before the damper is
fully open.
HEach duct used to convey air from the
outdoors shall have:
1. A cross-sectional area throughout
its length at least equal to the free
area of the inlet and outlet
openings which it connects,
2. A minimum dimension of
3” / 76 mm at any cross-section,
3. When making provision for outside
combustion air, the intake shall not
be less than 1 ft / 0.3 m above the
anticipated snow level for the
location.
HThe heating contractor must check
with local authorities (municipal
building department, gas utility) for
combustion air requirements particular
to the area.
3 1 290 v2.2
Failure to provide an adequate supply
of fresh combustion air can cause
poisonous flue gases to enter living
space. Flue gases entering living
space can cause carbon monoxide
poisoning which can result in severe
personal injury or loss of life.
ARNING
Never cover the boiler or store debris
or other materials near the boiler, or
in any way block the flow of
adequate fresh air to the boiler. Never
cover the combustion air opening.
Advise system operator/ultimate
owner accordingly.
ARNING
The boiler must not be located in
areas or rooms where chemicals are
stored, or aggressive vapors (i.e.
bleach, hair spray, methyl chloride,
carbon tetrachloride or
perchloroethylene) or high dust levels
or humidity levels are present. Heat
exchanger corrosion might occur and
reduce the lifetime of the boiler
significantly. If above criteria are not
properly observed and boiler damage
results, any warranty on the complete
boiler and related components will be
null and void.
ARNING

Fresh Air
11
Combustion Air Supply (continued)
Unconfined spaces
Where the boiler is located in an
unconfined space in a building having
insufficient infiltration, additional air for
combustion and ventilation shall be
obtained from outdoors or from spaces
freely communicating with the
outdoors. Under these conditions,
permanent opening(s) shall be provided
so that the total air received through
these openings will be at least as much
as would be admitted by openings
having a total free area of 1 in
2
/ 000
Btu/h or 4. cm
2
/kWh of the total input
rating of all oil-fired appliances.
Confined spaces
If the boiler is located in a confined
space and that obtains all of its air for
combustion and ventilation from within
the conditioned space, the building shall
be provided with two permanent
openings, one near the top of the
enclosure and another near the bottom.
Each opening shall have a free area of
not less than 1 in
2
/1000 Btu/h or
19. cm
2
/kWh of the total input rating
of all appliances in the enclosure, freely
communicating with interior areas that
have in turn adequate infiltration from
the outside.
If the boiler is located in a confined
space and that obtains all of its air for
combustion and ventilation from
outside, the building shall be provided
with two permanent openings, one near
the top of the enclosure and another
near the bottom. Each opening shall
communicate directly or by means of
ducts with the outdoors or to such
spaces (such as a crawl space) that
freely communicate with the outdoors,
and shall be sized in accordance with
the following methods:
HVertical duct(s) with a free area of not
less than 1 in
2
/4000 Btu/h or
. cm
2
/kWh of the total input rating
of all appliances in the enclosure,
HHorizontal duct(s) with an equivalent
length of less than 0 ft / 1 m,
having a free area of not less than
1 in
2
/2000 Btu/h or 11 cm
2
/kWh of
the total input of all appliances in the
enclosure,
HAir openings that communicate
directly with the outdoors, having a
free area of not less than
1 in
2
/4000 Btu/h or . cm
2
/kWh of
the total input rating of all appliances
in the enclosure.
Louvres and grilles
In calculating free area as specified,
consideration shall be given to the
blocking effect of louvers, grilles, or
screens that protect openings. Screens
used shall be not smaller than
¼” / 6 mm mesh and shall be readily
accessible for cleaning. If the free area
through a design of louvre or grille is
known, it shall be used in calculating
the size of opening required to provide
the free area specified. If the design
and free area are not known, it shall be
assumed that wood louvres have
20-2 % free area and metal louvres
and grills have 60-7 % free area.
Installation
Install a combustion air opening. Round
duct diameters are as follows:
Boiler Model Model No. VR1-22 VR1-27 VR1-33
Round duct for combustion air supply *1 Ø” 6
*1
Round duct diameter given is a minimum.
Ensure that all code requirements are met.
3 1 290 v2.2

Set-up
12”12”
12” 12”
Fig. 2
Fig. 3
12
Product Delivery
Vitorond 100 boilers up to size VR1-33 are shipped in a crate with the combustion
chamber door and boiler jacketry already mounted.
Product delivery
Ensure each of the following has been
delivered:
HCrate with boiler
HCarton with standard installation
equipment
HCarton with burner (shipped
separately)
Unpacking Instructions
To avoid injury and to facilitate boiler manoeuvering, it is strongly recommended that Viessmann carrying handles (Part No.
7189 602) be used. The carrying handles allow easy removal of boiler from skid and enables easy transportation to
permanent location, while reducing the risk of boiler panel damage due to improper lifting or manoeuvering techniques. The
carrying handles are designed to prevent boiler slippage onto hands when carrying up/down inclines.
Legend
Casting
1” pipe, x2
Rear wooden block
Front wooden block
If carrying handles are not available,
follow the steps below.
1. Remove top and sides of crate.
To avoid damage during lifting,
carefully remove front panel by lifting
panel up and out.
2. Place wooden block 12” from rear of
skid.
3. Insert 1” Ø pipes through openings in
casting legs. Ends of pipes should be
centered on wooden block behind
skid (Fig. 2).
4. Lift boiler using pipes until clear from
skid. Remove skid from beneath
boiler (Fig. 3).
5. Lower boiler until pipes rest on front
block.
6. To remove rear block, lift (by casting,
not jacket) to tilt unit forward.
To remove front block, lift (by
casting, not jacket) to tilt unit
backward.
7. Remove pipes. Reinstall front boiler
panel once boiler is in final position.
Fig. 1
3 1 290 v2.2
Do not lift or position boiler alone.
Do not lift by or push against panels.
Do not bump boiler panels against
floor.
Do not drop boiler.
CAUTION
To avoid injury to hands, place
wooden block under pipes in front of
skid.
CAUTION

Set-up
13
Minimum Clearances to Combustibles
For typical installations, Viessmann recommends installing the boiler with
clearances as published on page 14 under Recommended Minimum Clearances for
ervice.
Legend
Boiler
Burner
Legend
Boiler
Burner
The following are clearances to
combustibles:
Standard installation
Boiler
Model
VR1 -22 -27 -33
Rear
Sides
Flue
inches
mm
inches
mm
inches
mm
6
1 0
0
0
9
230
6
1 0
0
0
9
230
6
1 0
0
0
9
230
Floor Combustibles
Alcove installation
Boiler
Model
VR1 -22 -27 -33
Rear
Sides
Flue
Top*
inches
mm
inches
mm
inches
mm
inches
mm
6
1 0
0
0
9
230
6
1 0
6
1 0
0
0
9
230
6
1 0
6
1 0
0
0
9
230
6
1 0
Floor Combustibles
*1
Clearance of 24” / 610 mm required for burner service.
3 1 290 v2.2
min. 6” / 1 0 mm
min. 9” / 230 mm
min. 0” / 0 mm
min.
24”
610 mm *1
Fig. 4
min. 9” / 230 mm
min.
24”
610 mm *1
24” Vitotronic
installation
6” Aquastat
installation
Fig. 5

Set-upSet-up
14
Recommended Minimum Clearances for Service
Boiler
Fig. 6
*1
Minimum access for cleaning and service.

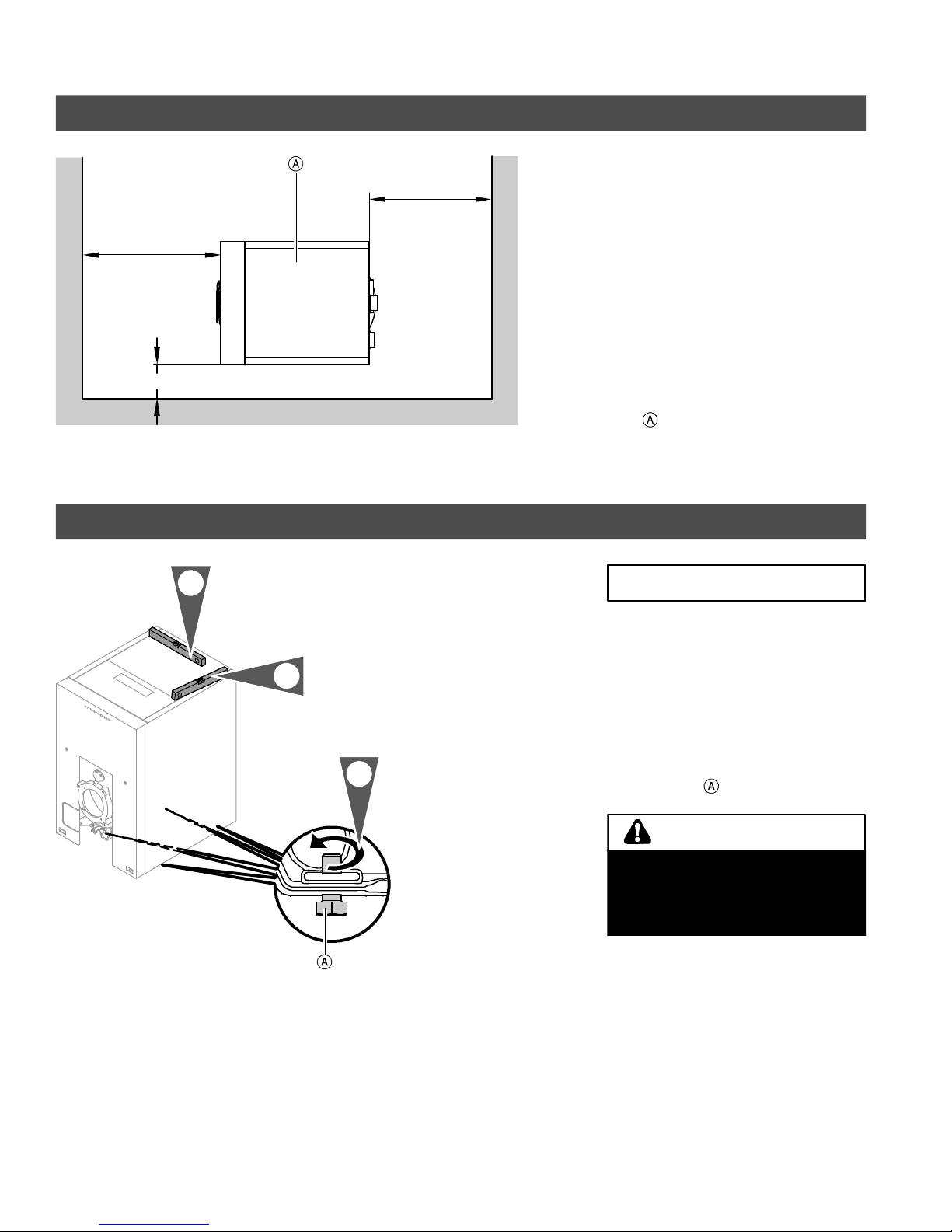

Boiler Set-up and Location
For important information concerning
boiler placement and set-up, refer to the
section entitled “Mechanical Room” on
page 9.
The boiler should be located as close to
the chimney as possible.
Set up/locate boiler with slight incline
towards the rear of the boiler using
levelling bolts .
3 1 290 v2.2
20” / 08 mm
4” / 100 mm
33½” / 8 0 mm
*1
1.
2.
1.
Fig. 7
IMPORTANT
3 1 290 v2.2
Boiler must be installed in such a way
that oil ignition system components
are protected from water (spraying,
splashing, etc) during boiler system
operation and service.
CAUTION

Set-up
15
Combustion Chamber Insert
For optimum, environmentally sound operation, Vitorond boilers are equipped with a
high-grade, corrosion resistant, stainless steel combustion chamber insert.
Fig. 8
Ensure the bolts of the combustion
chamber door are tightened before
installing the burner
Combustion chamber insert sizes
Boiler
Model
VR1 -22 -27 -33
a
b
inches
mm
inches
mm
9 /
8
244
9
231
9 /
8
244
9
231
9 /
8
244
9
231
3 1 290 v2.2
a
b

Connections
16
Venting Connection
Vitorond 100
The vent system must comply with all
applicable local and/or national codes.
If installing boiler with a side wall vent
system, ensure all manufacturer’s
requirements are met.
Venting codes
For oil-fired boilers install venting
system in accordance with all applicable
local codes. In the absence of local
codes, follow national codes
HLocal codes or CSA B139-00 in
Canada, or
HNFPA-31 in the U.S.
Building codes
Masonry or concrete or metal chimneys
(smokestacks) shall be constructed
according to the requirements of the
province/state building code or, in the
absence of such regulations, in
accordance with:
HCSA Standard CAN/CSA-A40
(National Building Code of Canada) in
Canada, or
HNFPA 211 (Standard for Chimneys,
Fireplaces, Vents, and Solid
Fuel-Burning Appliances) in the US.
Metal chimneys also shall meet the
requirements of Chapter 4 of
NFPA 211.
In Canada, factory built chimneys shall:
HConform to ULC Standards
CAN/ULC-S629 for 1202°F / 6 0°C,
CAN/ULC-S604 for Type A, or
CAN/ULC-S609 for Type L chimneys,
HBe certified and installed in
accordance with the manufacturer’s
certified instructions, and
HBe provided with a clean-out opening
that is equipped with a tight-fitting
removable cap, and constructed so
that no air can enter the clean-out
facility when the cap is in place.
In the U.S., factory built chimneys shall:
HMeet the requirements of NFPA, and
HBe listed, installed and used in
accordance with their listings and
manufacturer’s instructions.
General
The heating contractor shall ensure all
of the following requirements are met:
HThe vent system shall ensure that no
hazard is created by the products of
combustion.
HProvision shall be made to vent the
products of combustion safely to
outside the building, and such venting
shall not pass through or be installed
in return air, supply air, ventilating, or
combustion air ducts or shafts.
HSufficient air for combustion of the oil
and ventilation of the appliance shall
be supplied to the space wherein the
appliance is located (see section
entitled Combustion Air Supply).
HThe house and its mechanical
systems shall be inspected to
determine if operation of exhaust
devices could lead to levels of
depressurization of the house that
would adversely affect the operation
of the oil-burning appliance and its
venting system. If such is the case,
the building owner shall be informed
of the situation in writing.
HThe chimney shall be inspected to
ensure that the material construction,
condition, and size are suitable for the
application.
HThis boiler/burner combination shall
not be connected to an unlined
chimney. Such chimneys shall be lined
in accordance with the applicable
codes and standards.
HThe chimney shall be capable of
exhausting the products of
combustion and of producing a draft
not less than that recommended by
the manufacturer of the appliance
connected thereto, during the mildest
weather conditions under which the
appliance is expected to operate.
During cold weather testing, excess
flow performance shall be
demonstrated to ensure that flow is
adequate in warmer weather.
HAn oil burning appliance that depends
on natural chimney draft shall be
connected to an individual chimney
vent used for no other appliance,
except as permitted by the applicable
codes and standards.
HThe vent connector of this boiler must
not be connected into any portion of
mechanical draft systems operating
under positive pressure (such as
Direct Vent application).
HA chimney flue shall extend at least
3 ft / 1 m above the highest point at
which the chimney comes in contact
with the roof, and not less than 2 ft /
0.6 m above the highest roof surface
or structure within 10 ft. / 3 m of the
chimney on a horizontal plane
perpendicular to the chimney. Not
more than 8” / 200 mm of chimney
flue above the top of the chimney cap
shall be considered in computing
height.
HDown draft and condensation
problems must be corrected.
3 1 290 v2.2
Improper sizing, maintenance,
termination of vent or chimney can
cause flue gases to enter living
space. Any blockage of vent or
chimney by birds’ nests, ice, snow,
debris, or other materials can cause
flue gases to enter living space. Flue
gases entering living space can cause
carbon monoxide poisoning which can
result in severe personal injury or loss
of life.
ARNING
Never operate the boiler/burner
without an installed venting system
which safely vents all products of
combustion to the outdoors. The vent
system must comply with all
applicable local and/or national codes.
ARNING

Connections
17
Venting Connection (continued)
Fig. 9
hen installing piping or venting, or
while insulating overhead pipes, do not
stand on top panel of boiler. Advise
other trades accordingly!
Legend
Vitorond boiler with burner
Outside rain cap
Vent, use approved vent material
M-Barometric damper
(field supplied) for oil
*1
Vent pipe adaptor (factory supplied)
For Canada:
Blocked vent safety switch
*1
Install in accordance with the draft
control manufacturer’s instructions.
Installation Instructions
Blocked Vent afety witch
Installation
Use approved vent material only.
1. Install the venting so as to achieve
the shortest possible way with
minimum elbows. If necessary,
rearrange existing water piping to
achieve closest chimney connection.
2. Horizontal runs must be supported by
appropriate means to prevent
sagging. Avoid long horizontal runs of
vent pipe. Horizontal runs should
have not less than ¼” rise per ft.
from the boiler to the vent terminal.
Metal strapping must be used to
support horizontal runs every 4 ft.
3. Connect factory supplied vent pipe
adaptor to flue gas collar. Fasten
using either three equally spaced,
corrosion resistant, self-tapping
screws and high temperature
silicone, or equivalent means.
4. Connect chimney via a 18” / 4 7 mm
long field supplied, slightly inclined
intermediate section of venting. Flue
pipe outside ∅: ”.
5. Drill a ½” opening on the side of the
vent pipe approximately three times
the vent pipe diameter away from the
flue gas collar of the boiler for flue
gas analysis equipment.
6. Seal all flue pipe joints.
7. Viessmann recommends that any
non-insulated vent pipe is insulated
to reduce cooling of flue gas and
velocity noises.
For direct vent application,
please refer to the Direct Vent
ystem Installation
Instructions,
Part No. 5351 050.
IMPORTANT
3 1 290 v2.2
Ø ½” / 10 mm

Connections
18
ater Side Connections (with Aquastat Control)
Fig. 10
Legend
DHoneywell high limit control
EImmersion well
FHex bushing, 1¼” x ¾”
GNipple, 1½” x ”
HPressure relief valve
ITee, 1½” x 1½” x ¾”
JDrain valve (sediment faucet), ¾”
KReducing tee/elbow,
1½” x ¾” x 1½”
LStreet elbow, ¾”
MNipple, ¾” x 3 ½”
NReducing tee, 1½” x 1½” x ½”
OTemperature and pressure gage
PFlue gas adaptor, Ø ”
This boiler is designed for closed loop,
forced circulation heating systems only.
1. Flush heating system thoroughly
(particularly with existing systems
which have been in operation for
years).
e recommend the installation of a
spring-loaded flow-check valve in
heating circuits without mixing valves.
This serves to avoid uncontrolled
gravity circulation of heat into the
heating system during summer months.
2. Remove screw Q.
Remove top back panel before
starting to connect pipe fittings to
boiler water supply connection.
3. Connect system supply to using
NPT fittings, as shown in Fig. 11.
Connect the system return to
using NPT fittings, as shown in
Fig. 11.
See installation examples starting on
page 2.
4. Install temperature and pressure gage
Owith brass extension coupling in
½” opening as shown in Fig. 11.
Use thread sealing compound such
as Loctite or Teflon tape.
ABoiler water supply connection, pressure relief valve 1½” NPT.......................
BHigh limit control location 1¼” NPTF.........................................................................
CBoiler water return, drain and automatic feed 1½” NPT.......................................
Legend
BA
C
Fig. 11
Q
D
E
G
H
I
J
K
L
M
NO
P
F
IMPORTANT
3 1 290 v2.2
CAUTION
Failure to flush the heating system
could cause system sludge to settle
in the boiler, causing overheating and
failure. This type of failure is not
covered under warranty.
IMPORTANT

Connections
19
Safety Connections (with Aquastat Control)
Install safety devices on boiler
HPressure relief valve
Fig. 12
Legend
Pressure relief valve
Nipple, ¾” x 3½”
Tee, 1½” x ¾” x 1½”
HBoiler control
1. Install pressure relief valve. Pipe
pressure relief valve as illustrated
and connect to boiler water supply
connection.
Instructions supplied with
pressure relief valve.
2. Install discharge pipe on pressure
relief valve. The discharge pipe
should terminate approximately
6” / 1 0 mm above a floor drain.
The end of the pipe must not be
threaded.
Minimum connection diameters:
Pressure relief valve
3
/
4
“..........................
Discharge pipe
3
/
4
“.....................................
Piping to precharged
expansion tank
VR1-22 to VR1-33
3
/
4
“............................
This boiler does not require a flow
switch.
Install the (approved) factory supplied
pressure relief valve.
Removal of air from the system must
occur via use of air vent(s) in the
system supply. To ensure the boiler can
be purged of all air, ensure
supply/return water lines do not contain
restrictive piping where air could be
trapped.
1. Install supplied high limit control as
shown in Fig. 13.
Maximum allowable temperature
setting is 240°F / 110°C.
Instructions supplied with
Honeywell aquastat.
Legend
Honeywell high limit control,
7248C1006
Immersion well
Hex bushing
A
C
B
3 1 290 v2.2
IMPORTANT
Do not install an isolation valve
between boiler and pressure relief
valve.
The discharge pipe for the pressure
relief valve must be oriented to
prevent scalding of attendants.
Pipe pressure relief valve discharge
pipe close to floor drain. Never pipe
discharge pipe to the outdoors.
ARNING
A
C
B
Fig. 13

Connections
20
Safety Connections (with Aquastat Control) (continued)
1. To avoid problems with removing the
top panel, we recommend moving the
top panel screw approximately 3” to
the left or right.
To do this, pre-drill the panels with
an
1
/
8
” drill bit. To reinstall the top
panel, drill a new
1
/
8
” pilot hole
through the top back panel and into
the back panel. Reinstall the screw
Pinto this new mounting hole.
P
Fig. 14
3 1 290 v2.2
