Viessmann VITODENS User manual

Operating instructions
for the system user
VIESMANN
Heating system with the Vitotronic 200 control unit, type HO1B, for
weather-compensated mode
VITODENS
VITOLADENS
VITOPEND
5592 682 GB 10/2013 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for heating system users.
This appliance can also be operated by
children of 8 years and older, as well as
by individuals with reduced physical,
sensory or mental faculties or those lack-
ing in experience and knowledge, provi-
ded such individuals are being super-
vised or have been instructed in the safe
use of this appliance as well as in any
risks arising from it.
!Please note
Supervise children in the proxim-
ity of the appliance.
■ Never permit children to play
with the appliance.
■ Cleaning and maintenance
must not be carried out by
unsupervised children.
Danger
Incorrectly executed work on the
heating system can lead to life
threatening accidents.
■ Work on gas installations must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
Danger
The appliance generates heat.
Hot surfaces can cause burns.
■ Never open the appliance.
■ Never touch the hot surfaces of
uninsulated pipes, fittings or
flue pipes.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Do not
switch lights or electrical appli-
ances on or off.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Evacuate any people from the
danger zone.
■ Notify your gas or electricity
supplier and your local heating
contractor from outside the
building.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 682 GB

3
If you smell flue gas
Danger
Flue gas can lead to life threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the installation site.
■ Close all doors in the living
space.
In case of fire
Danger
If there is a fire, there is a risk of
burns and explosion.
■ Shut down the heating system.
■ Close shut-off valves in the fuel
supply lines.
■ Use a tested fire extinguisher,
class ABC.
What to do if the heating system
develops faults
Danger
Fault messages indicate faults in
the heating system. If faults are
not rectified, they can have life
threatening consequences.
Do not acknowledge fault mes-
sages several times in quick suc-
cession. Inform your heating con-
tractor so the cause can be ana-
lysed and the fault rectified.
Installation room conditions
Danger
Sealed vents result in a lack of
combustion air. This leads to
incomplete combustion and the
formation of life threatening car-
bon monoxide.
Never cover or close existing
vents.
Do not make any subsequent
modifications to the building
characteristics that could affect
safe operation (e.g. cable/pipe-
work routing, cladding or parti-
tions).
Danger
Easily flammable liquids and
materials (e.g. naphtha, solvents,
cleaning agents, paints or paper)
can cause deflagration and fire.
Never store or use such materials
in the installation room or in direct
proximity to the heating system.
!Please note
Incorrect ambient conditions can
lead to heating system damage
and can put safe operation at
risk.
■ Ensure ambient temperatures
are above 0 °C and below
35 °C.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through continu-
ous drying of washing).
Safety instructions
For your safety (cont.)
5592 682 GB

4
Extractors
Operating appliances that extract air to
the outside (cooker hoods, extractors, air
conditioning units, etc.) can create neg-
ative pressure. If the boiler is operated at
the same time, this can lead to reverse
flow of the flue gas.
Danger
The simultaneous operation of
the boiler and appliances that
extract air to the outside can
result in life threatening poison-
ing due to reverse flow of the flue
gas.
Take suitable steps to ensure an
adequate supply of combustion
air. If necessary, contact your
heating contractor.
Auxiliary components, spare and
wearing parts
!Please note
Components not tested with the
heating system may damage it or
affect its functions.
Have installation or replacement
work only carried out by qualified
contractors.
Safety instructions
For your safety (cont.)
5592 682 GB

5
Introductory information
Intended use......................................................................................................... 8
Commissioning..................................................................................................... 8
Terminology.......................................................................................................... 8
Your system has been preset............................................................................... 9
Tips on saving energy.......................................................................................... 10
Tips for greater comfort........................................................................................ 11
Operation
Opening the control unit....................................................................................... 12
Programming unit................................................................................................. 12
■ "Help" menu...................................................................................................... 13
■ Symbols............................................................................................................ 13
Standard menu..................................................................................................... 14
Extended menu.................................................................................................... 15
How to use the controls........................................................................................ 16
Operating program............................................................................................... 18
■ Operating programs for central heating, DHW, frost protection........................ 18
■ Special operating programs.............................................................................. 18
Time program....................................................................................................... 19
■ Setting a time program using central heating as an example........................... 19
■ Setting the time program efficiently................................................................... 20
■ Deleting time phases........................................................................................ 21
Start-up/shutdown
Starting the heating system.................................................................................. 22
Shutting down the heating system....................................................................... 23
■ With frost protection monitoring........................................................................ 23
■ Without frost protection monitoring (shutdown)................................................ 23
Central heating
Room temperature............................................................................................... 25
■ Setting the standard room temperature for central heating ............................. 25
■ Setting the reduced room temperature for central heating............................... 25
Operating program............................................................................................... 25
■ Setting the operating program for central heating............................................. 26
Time program....................................................................................................... 26
■ Setting the time program for central heating..................................................... 26
Heating curve....................................................................................................... 26
■ Setting the heating curve.................................................................................. 27
Stopping the central heating................................................................................. 27
Index
Index
5592 682 GB

6
Comfort function "Party mode"............................................................................. 28
■ Setting "Party mode" for central heating........................................................... 28
■ Cancelling "Party mode"................................................................................... 29
Energy saving function "Economy mode"............................................................ 29
■ Setting "Economy mode" for central heating.................................................... 29
■ Cancelling "Economy mode"............................................................................. 29
Energy saving function "Holiday program"........................................................... 30
■ Setting the "Holiday program" for central heating............................................. 30
■ Cancelling or deleting the "Holiday program"................................................... 30
DHW heating
DHW temperature................................................................................................ 31
Operating program............................................................................................... 31
■ Setting the operating program for DHW heating............................................... 31
Time program....................................................................................................... 31
■ Setting the time program for DHW heating....................................................... 31
■ DHW heating once, outside the time program.................................................. 32
■ Setting the time program for the DHW circulation pump................................... 32
Stopping DHW heating......................................................................................... 33
Further adjustments
Setting the display contrast.................................................................................. 34
Setting the display brightness.............................................................................. 34
Naming heating circuits........................................................................................ 34
Setting the preferred heating circuit for the standard menu................................. 35
Setting the time and date..................................................................................... 36
Language selection.............................................................................................. 36
Setting the temperature unit (°C/°F)..................................................................... 36
Restoring factory settings..................................................................................... 36
Scanning
Calling up information........................................................................................... 38
Calling up a service message.............................................................................. 39
Calling up fault messages.................................................................................... 40
Emissions test mode......................................................................................... 43
What to do if...
Rooms are too cold.............................................................................................. 45
Rooms are too hot................................................................................................ 46
There is no hot water............................................................................................ 47
The DHW is too hot.............................................................................................. 47
ã flashes and "Fault" is displayed....................................................................... 48
Index
Index
5592 682 GB

7
ë flashes and "Service" is displayed................................................................... 48
"Controls locked out" is displayed........................................................................ 48
"External hook-up" is displayed............................................................................ 48
"External program" is displayed........................................................................... 48
Repair work
Cleaning............................................................................................................... 49
Inspection and maintenance................................................................................ 49
■ Boiler................................................................................................................. 49
■ DHW cylinder (if installed)................................................................................. 49
■ Safety valve (DHW cylinder)............................................................................. 50
■ Potable water filter (if installed)......................................................................... 50
Damaged connecting cables................................................................................ 50
Ordering fuel oil
Fuel oil quality...................................................................................................... 51
Fuel oil additives................................................................................................... 51
Combustion improvers......................................................................................... 51
Biofuels................................................................................................................. 51
Appendix
Overview of extended menu................................................................................. 53
Calling up options under "Information"................................................................. 54
Terminology.......................................................................................................... 55
Keyword index.................................................................................................... 61
Index
Index (cont.)
5592 682 GB

8
The appliance is only intended to be
installed and operated in sealed unven-
ted heating systems that comply with
EN 12828, with due attention paid to the
associated installation, service and
operating instructions. It is only designed
for the heating of water that is of potable
water quality.
Intended usage presupposes that a fixed
installation in conjunction with permissi-
ble, system-specific components has
been carried out.
Commercial or industrial usage for a pur-
pose other than heating the building or
DHW does not comply with regulations.
Any usage beyond this must be
approved by the manufacturer for the
individual case.
Incorrect usage or operation of the appli-
ance (e.g. the appliance being opened
by the system user) is prohibited and
results in an exclusion of liability. Incor-
rect usage also occurs if the components
in the heating system are modified from
their intended function (e.g. if the flue
gas and ventilation air paths are
sealed).
Commissioning
The commissioning and matching of the
control unit to local conditions and build-
ing characteristics, as well as instructing
the user in the operation of the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector will also inform you [where
appropriate] about work he may be
required to carry out on your combustion
equipment (e.g. regular checks, clean-
ing).
Terminology
To provide you with a better understand-
ing of the functions of your Vitotronic
control unit, some terminology is
explained.
The terms are marked as follows:
Introductory information
Intended use
5592 682 GB

9
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
Your system has been preset
Your heating system is preset at the fac-
tory and is therefore ready for opera-
tion:
Central heating
■ Between 06:00 and 22:00 h, the
rooms are heated to 20 °C "Set room
temperature" (standard heating
mode).
■ Between 22:00 and 06:00 h, the
rooms are heated to 3 °C "Set
reduced room temp" (reduced room
temperature, frost protection).
DHW heating
■ Between 05:30 and 22:00 h, the DHW
is heated to 50 °C "Set DHW temper-
ature". Any installed DHW circulation
pump is switched on.
■ Between 22:00 and 05:30 h, the DHW
cylinder is not reheated. Any installed
DHW circulation pump is switched off.
Note
If DHW heating began before 22:00 h,
it is stopped.
Frost protection
■ Your boiler and DHW cylinder are pro-
tected against frost.
Wintertime/summertime changeover
■ This changeover is automatic.
Date and time
■ The date and time were set by your
heating contractor.
Your heating contractor can make fur-
ther settings for you during commission-
ing.
You can change the settings at any time
to suit your individual requirements.
Power failure
All settings are saved if there is a power
failure.
If the heating system has been shut
down for a prolonged period, reset the
date and time.
Introductory information
Terminology (cont.)
5592 682 GB

10
Central heating
■Standard room temperature ("Set
room temperature", see page 25):
Never overheat your home. Every
degree of room temperature reduction
saves up to 6 % on your heating bills.
Never set your standard room temper-
ature higher than 20 °C.
■Time program (see page 26):
Heat your rooms to the standard room
temperature during the day and the
reduced temperature at night. Set the
time program for this.
■Operating program:
If you do not require central heating,
select one of the following operating
programs:
–"Only DHW" (see page 31):
If you require no heating for your
home in summer, but you need hot
water.
–"Standby mode" (see page 23):
If you don't need to heat your home
and don't need hot water for long
periods.
■Short absence (see page 29):
Reduce the room temperature if you
are going shopping, for example. For
this, select "Economy mode".
■Holidays (see page 30):
If you are going away, select the "Hol-
iday program":
The room temperature will be reduced,
and DHW heating will be turned off.
■Ventilation:
Close the thermostatic valves to ven-
tilate. Open the windows fully for a
brief time.
■Roller shutters:
Close roller shutters (where installed)
at dusk.
■Thermostatic valves:
Ensure that thermostatic valves are
properly set.
■Radiators:
Never cover radiators or thermostatic
valves.
DHW heating
■DHW circulation pump (see
page 32):
Only activate the DHW circulation
pump for periods in which DHW is reg-
ularly drawn off. Set the time program
for this.
■DHW consumption:
Consider showering instead of running
a bath. A shower generally uses less
energy than a full bath.
For additional energy saving functions of
the Vitotronic control unit, please contact
your heating contractor.
Introductory information
Tips on saving energy
5592 682 GB

11
Central heating
■Standard room temperature ("Set
room temperature", see page 25):
You can select your individual prefer-
red temperature at any time in the
standard menu.
■Preferred heating circuit (see
page 35):
If your heating system consists of sev-
eral heating circuits, you can make the
most important adjustments for a pre-
ferred heating circuit directly via the
standard menu.
■Time program (see page 26):
Make use of the time program. In the
time program, you can set time phases
with different room temperatures,
for example different temperatures for
day and night time.
■Heating curve (see page 26):
The heating curve enables you to indi-
vidually adjust the heating system to
the actual heat demand in your home.
If set correctly, your preferred temper-
ature will be achieved all year round.
■"Party mode" (see page 28):
If you want to heat rooms to a different
temperature from the one set in the
time program, select "Party mode".
Example: Late in the evening, the
reduced room temperature is set by
the time program. Your guests stay
longer.
DHW heating
■Time program (see page 31
and 32):
Use the time program for DHW heat-
ing.
Use the time program for the DHW cir-
culation pump. During the selected
time phases, DHW will be available at
the draw-off points at the required tem-
perature.
Introductory information
Tips for greater comfort
5592 682 GB

12
14°C 21°C
Programming unit
You can change any settings on your
heating system centrally at the program-
ming unit of the control unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Note
The programming unit can be placed in
a wall mounting base. The wall mounting
base is available as an accessory. Ask
your heating contractor for more infor-
mation.
14°C 21°C
This takes you to the previous step
in the menu or cancels a setting that
has been started.
Cursor keys
Scroll through the menu or adjust
values.
OK Confirms your selection or saves
the setting.
Calls up "Help" (see following
chapter) or additional information
on the selected menu.
Calls up the extended menu.
Operation
Opening the control unit
5592 682 GB

13
Two control levels are available:
■ The standard menu: See page 14
■ The extended menu: See page 15
Note
The screensaver is activated if you have
not made any adjustments on the pro-
gramming unit for a few minutes (see
page 16).
"Help" menu
Displays explanations about operation in
the form of a short guide.
Call up the short guide as follows:
■ If the screensaver is active (see
page 16):
Press .
■ From anywhere in the menu:
Keep pressing until the standard
menu is shown (see page 14).
Press .
Symbols
These symbols are not always dis-
played, but appear subject to the system
version and the operating condition.
Indicators:
Frost protection is active
Central heating to standard room
temperature
Central heating with reduced room
temperature
Party mode is active
Economy mode is active
In conjunction with a solar thermal
system:
Solar circuit pump is running
Burner in operation
Emissions test mode active
Heating circuits:
HC... Heating circuit ...
Operating programs:
, , :
For explanation of the symbols, see
page 18
Messages:
Fault
Service
Operation
Programming unit (cont.)
5592 682 GB

14
The following settings for preferred heat-
ing circuit D can be called up and adjus-
ted in the standard menu:
■ Set room temperature
■ Operating program
Call up the standard menu as follows:
■ If the screensaver is active (see
page 16):
Press OK.
■ If you are in the extended menu (see
page 15):
Keep pressing until the standard
menu appears.
B
C
A
48 °CBoiler temperature
14 °C 21 °C
HC1
D
AOperating program for preferred
heating circuit D
BCurrent outside temperature
CSet room temperature for preferred
heating circuit D
DPreferred heating circuit (see
page 35)
Not displayed if only one heating
circuit is installed.
Note
■ Settings for the preferred heating cir-
cuit can also be adjusted in the exten-
ded menu (see page 15).
■ The settings for any other connected
heating circuits can only be adjusted
in the extended menu.
■ Your heating contractor can block the
operation of the standard menu. In
such cases, you will not be able to
make adjustments in either the stand-
ard menu or in the extended menu.
Setting the standard room tempera-
ture for the preferred heating circuit
Press the following keys:
/ for the required value
OK
Operation
Standard menu
5592 682 GB

15

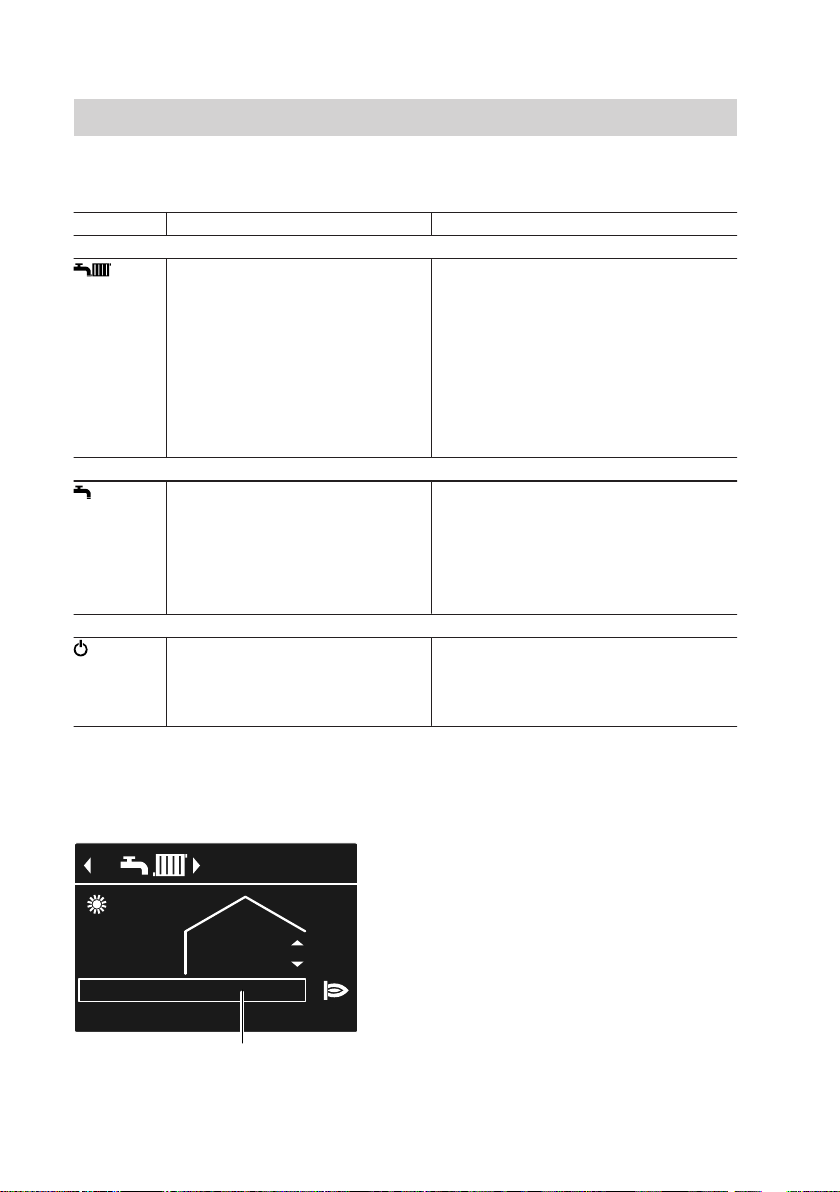

Setting the operating program for the
preferred heating circuit
Press the following keys:
/ for the required operating program
OK
Extended menu
In the extended menu, you can call up
and adjust all the settings from the
Vitotronic control unit range of functions,
e.g. holiday program and time pro-
grams.
You can find the menu overview on
page 53.
Call up the extended menu as follows:
■ If the screensaver is active (see
page 16):
Press OK and then .
■ From anywhere in the menu:
Press .
Note
Your heating contractor can block the
operation of the extended menu. In this
case, you can only call up service and
fault messages.
Menu
Test mode
Continue with
Solar energy
DHW
Heating
OK
E
EDialogue line
Operation
Standard menu (cont.)
5592 682 GB

16
If you have not made any settings for a
few minutes, the screensaver is activa-
ted. The display brightness is reduced.
14 °C 21 °C
B
C
BCurrent outside temperature CSet room temperature
1. Press OK. This takes you to the
standard menu (see page 14).
2. Press . This takes you to the
extended menu (see page 15).
The selected menu point is highligh-
ted in white.
Dialogue line E (see diagram on
page 15) shows the necessary
instructions.
Adjustments to the central heating can
be made for every heating circuit. It is
therefore necessary to select the
required heating circuit prior to making
any adjustments (e.g. room tempera-
ture).
The following diagram shows how to
make adjustments, using the set room
temperature as an example. The dia-
gram shows the adjustment without and
with selection of the heating circuit, as
well as different dialogue lines.
Operation
How to use the controls
5592 682 GB

17
Vv
or
OK
Ú
OK
OK
Heating circuit 1
Economy mode
ÙÚ
Party mode
HC1
Continue with
Htg circ. selection ÙÚ
HC2
Was selected
Heating circuit 2
Set room temperature HC1
20°C
Change with (
Set room temperature HC1
22°C
Adopt with OK
Set room temperature HC1
22°C
Adopted
48°CBoiler temperature
HC1
14°C 21°C
OK
ê
ê
ÙÚ
HC1
Heating circuit 2
Economy mode
ÙÚ
Party mode
HC1
Continue with OK
ê
ê
ÙÚ
HC2
Set reduced room temp
Set reduced room temp
Set room temperature
Set room temperature
Menu
DHW
Continue with OK
Test mode
Solar energy
Heating
Vv
or
OK
Set room temperature HC2
20°C
Change with (
Set room temperature HC2
22°C
Adopt with OK
Set room temperature HC2
22°C
Adopted
OK / /
v v
Heating circuit 1
Economy mode
Party mode
HC1
Continue with OK
ê
ê
Set reduced room temp
Set room temperature
/
v v
OK
OK
Operation
How to use the controls (cont.)
5592 682 GB

18
Operating programs for central heating, DHW, frost protection
Symbol Operating program Function
Central heating and DHW heating
"Heating and DHW" ■ The rooms of the selected heating
circuit are heated in accordance
with the room temperature and time
program specified (see chapter
"Central heating").
■ DHW is heated in accordance with
the DHW temperature and time pro-
gram specified (see chapter "DHW
heating").
DHW heating
"Only DHW" ■ DHW is heated in accordance with
the DHW temperature and time pro-
gram specified (see chapter "DHW
heating").
■ No central heating
■ Frost protection is active.
Frost protection
"Standby mode" ■ No central heating
■ No DHW heating
■ Frost protection for the boiler and
the DHW cylinder is active.
Special operating programs
Display in the standard menu
40°CBoiler temperature
HC1
14°C 21°C
Screed drying
F
Special operating programs F:
■"Screed drying"
This function is activated by your heat-
ing contractor. Your screed is dried in
line with a set time program suitable
for the building material (tempera-
ture:time profile). Your settings for
central heating have no effect for the
duration of the screed drying.
■"External hook-up"
Your heat pump control unit is regula-
ted by a higher control unit.
Operation
Operating program
5592 682 GB

19
■"External program"
The operating program was changed
by a communication interface (e.g.
Vitocom 100).
■"Holiday program" (see page 30)
Note
In the extended menu, you can call up
the set operating program under "Infor-
mation" (see page 54).
Time program
The following explains how to input the
settings for a time program. The special
features of each individual time program
are assigned to the relevant chapters.
You can set up a time program for the
following functions:
■ Central heating (see page 26)
■ DHW heating (see page 31)
■ DHW circulation pump (see
page 32)
In the time program, divide the day into
sections. These are called time pha-
ses. It is for you to decide what happens
in these time phases. For example, they
could specify when your rooms will be
heated to the standard room tempera-
ture.
■ You can set the time program individ-
ually, to be the same, or different, for
every day of the week.
■ You can select up to 4 time phases per
day.
■ For each time phase you select the
start and end points.
The selected time phase is illustrated
by a white bar on the time chart.
■ In the extended menu, you can call up
the time programs under "Informa-
tion" (see page 54).
Setting a time program using central heating as an example
Extended menu:
1.
2. "Heating"
3. / for the required heating circuit if
necessary
4. "Heating time program"
5. Select part of the week or a day.
6. Select a time phase ! to $. The
selected time phase is illustrated by a
white bar on the time chart.
7. Set the start and end points for the
relevant time phase. The length of the
white bar on the time chart is adjusted.
8. To exit the menu, press .
Cancelling the setting of a time phase
early
Press repeatedly until the required
display appears.
Operation
Operating program (cont.)
5592 682 GB

20
Example of time phases within the
time program for central heating
Heating
Select with (
HC1
Mo-Fr
?16:30 - 23:00 u
0 2 4 6 8 10 12 14 16 18 20 22 24
!05:00 - 08:30 u
Normal
Normal
!?
■ Time program for "Monday-Friday"
("Mo-Fr")
■Time phase !:
05:00 to 08:30 h
■Time phase ?:
16:30 to 23:00 h
In between these time phases the sys-
tem heats to a reduced temperature.
Setting the time program efficiently
If you would like to set a different time
program for just one day of the week,
proceed as follows:
Example: You want to set a different time
program for Monday:
1. Select "Monday-Sunday". Set the
time program.
Heating time program
Monday
Saturday-Sunday
Monday-Friday
Monday-Sunday
ê
ê
ê
ç
HC1
Select with (
Note
The tick is always set at the sections
of the week with identical time pha-
ses.
Factory setting: Same for all days of
the week, therefore "Monday-Sun-
day" is ticked.
2. Select "Monday". Set the time pro-
gram for this.
Operation
Time program (cont.)
5592 682 GB
