Viessmann VITOPEND User manual

Operating instructions
for the system user
VIESMANN
Heating system with the Vitotronic 100 control unit, type HC1B
for constant temperature operation
VITODENS
VITOPEND
5592 683 GB 1/2011 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This appliance is not designed to be
used by persons (including children) with
limited physical, sensory or mental
capacities, or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety,
or have received instructions from such
a person as to how to use the appli-
ance.
!Please note
Children should be supervised.
Ensure that children never play
with the appliance.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas installations must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Do not
switch lights or electrical appli-
ances on or off.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your local heating
contractor from outside the
building.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 683 GB

3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Auxiliary components, spare and
wearing parts
!Please note
Components which are not tes-
ted with the heating system may
lead to damage to the heating
system, or may affect their vari-
ous functions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 683 GB

4
Introductory information
Commissioning..................................................................................................... 6
Your system is preset at the factory..................................................................... 6
Terminology.......................................................................................................... 7
Tips on saving energy.......................................................................................... 7
Operation
Controls................................................................................................................ 8
How to use the controls........................................................................................ 9
Symbols................................................................................................................ 9
Start-up/shutdown
Starting the heating system.................................................................................. 10
Shutting down the heating system....................................................................... 11
■ With frost protection monitoring........................................................................ 11
■ Without frost protection monitoring (shutdown)................................................ 11
Central heating
Required settings for central heating.................................................................... 12
Setting the heating flow temperature.................................................................... 12
Setting the heating program (central heating)...................................................... 12
Stopping the central heating................................................................................. 13
DHW heating
Required settings (DHW heating)......................................................................... 14
Setting the DHW temperature.............................................................................. 14
Setting the heating program (DHW heating)........................................................ 14
Stopping the DHW heating................................................................................... 15
Comfort function (if available)............................................................................... 15
Further adjustments
Setting the temperature unit (°C/°F)..................................................................... 17
Restoring factory settings..................................................................................... 17
Scanning
Scanning information............................................................................................ 18
Scanning the service messages........................................................................... 19
Scanning fault messages..................................................................................... 20
Multi boiler systems
Special considerations for multi boiler systems.................................................... 22
Emissions test mode......................................................................................... 23
Index
Index
5592 683 GB

5
What to do if...
Rooms are too cold.............................................................................................. 24
Rooms are too hot................................................................................................ 25
There is no hot water............................................................................................ 25
The DHW is too hot.............................................................................................. 26
"ã" flashes on the display .................................................................................. 26
"E" flashes on the display .................................................................................. 26
"ë" flashes on the display .................................................................................. 27
Maintenance........................................................................................................ 28
Keyword index.................................................................................................... 31
Index
Index (cont.)
5592 683 GB

6
The commissioning and matching of the
control unit to local conditions and build-
ing characteristics, as well as instructing
the user in the operation of the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector will also inform you [where
appropriate] about work he may be
required to carry out on your combustion
equipment (e.g. regular checks, clean-
ing).
Your system is preset at the factory
The control unit is factory-set to " "
for central heating and DHW heating.
Your heating system is therefore ready
for use:
Central heating
■ The rooms are heated in accordance
with the settings on your control unit
and room temperature control unit.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating").
DHW heating
■ The DHW is heated to 50 °C.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Your boiler and DHW cylinder are pro-
tected against frost.
Power failure
■ All data is saved if there is a power
failure.
Introductory information
Commissioning
5592 683 GB

7
To provide you with a better understand-
ing of the functions of your control unit,
the appendix contains the chapter "Ter-
minology" (see page 29).
Tips on saving energy
Utilise the setting options on the control
unit and the room temperature control
unit:
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6 % on heating
costs.
Never set your room temperature
higher than 20 °C (see page 12).
■ Never set the DHW temperature too
high (see page 14).
■ Select the heating program that meets
your current requirements:
– In the summer, if you do not want to
heat any rooms but require hot
water, select the " " heating pro-
gram (see page 14).
– If you do not want to heat any rooms
and require no hot water for a pro-
longed period of time, select the
" " heating program (see
page 11).
Further recommendations:
■ Correct ventilation/airing.
Briefly open windows fully and at the
same time close the thermostatic radi-
ator valves.
■ Close roller shutters (if installed) at
dusk.
■ Set thermostatic valves correctly.
■ Never cover radiators or thermo-
static valves.
■ Controlled DHW consumption: A
shower generally uses less energy
than a full bath.
Introductory information
Terminology
5592 683 GB

8

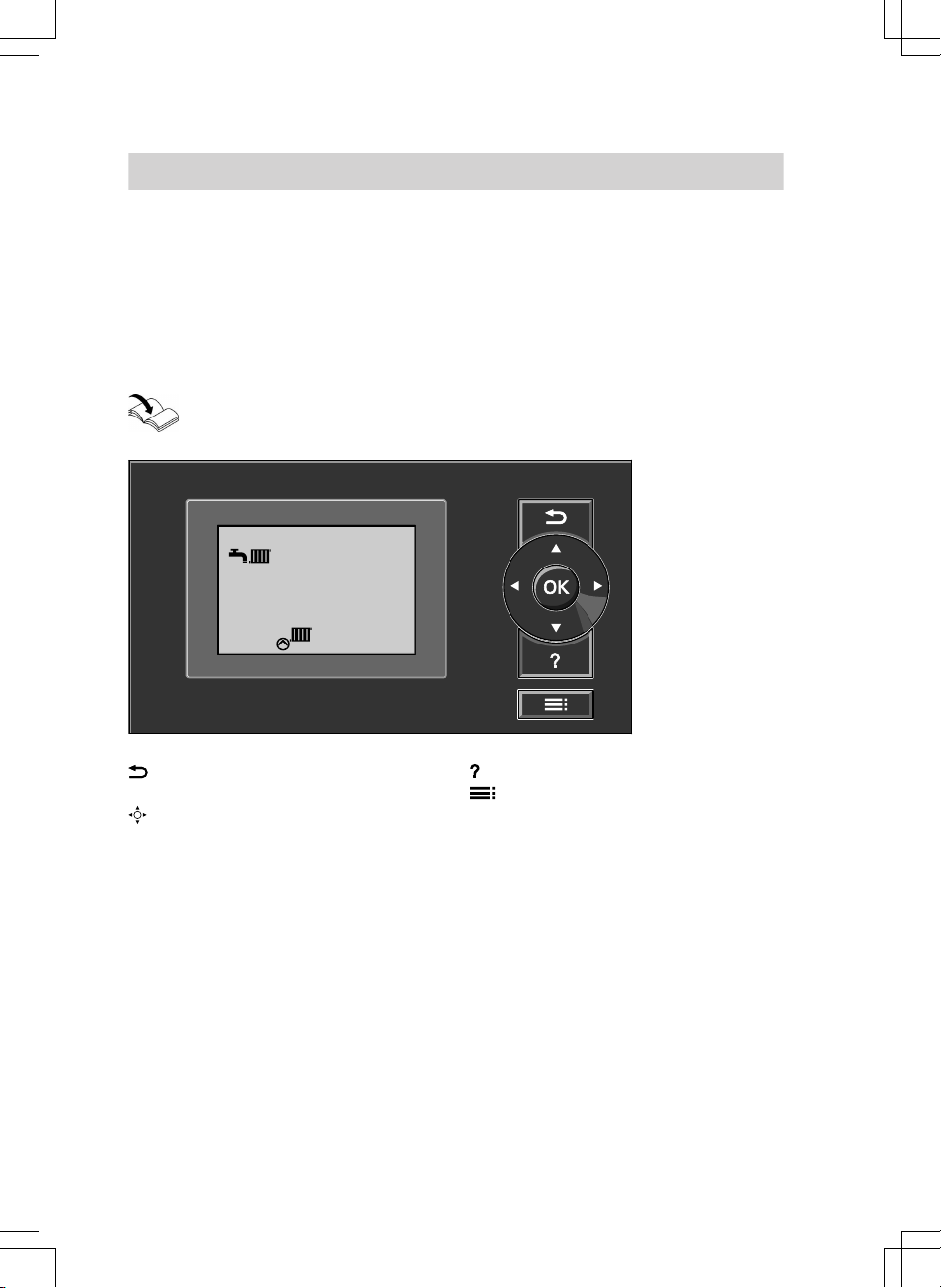

You can change the settings for your
heating system centrally at the program-
ming unit of the control unit.
If you have a room temperature control
unit installed in your rooms, you can also
change the settings on the room temper-
ature control unit.
Room temperature control unit
operating instructions
Note
The programming unit can be placed in
a wall mounting base. This is available
as an accessory. Ask your heating con-
tractor for more information.
4 8°C
s A
Takes you one step back in the
menu
Cursor keys
To scroll in the menu or set values
OK Enables you to confirm your selec-
tions or setting
No function
Enables you to call up the menu for
settings and scanning
Operation
Controls
5592 683 GB

9
Standard display
4 8°C
Press . This takes you to the menu for
settings and scanning.
Symbols
These symbols are not always dis-
played, but appear subject to the system
version and the operating state. Flashing
displays indicate that modifications can
be made.
Menu
Central heating
DHW heating
Information
Emissions test mode
Additional settings
Heating program
Frost protection monitoring
(standby mode)
DHW heating
Central heating and DHW heat-
ing
COMF Comfort mode for DHW heating
ECO Without comfort mode for DHW
heating
Messages
Service message
The service interval has expired
Fault message
Fault message for burner
Displays
Temperature
Frost protection monitoring
Central heating
Heating circuit pump running
Cylinder primary pump running
In conjunction with a solar thermal
system:
Solar circuit pump is running
Burner running
Standard factory setting
Operation
How to use the controls
5592 683 GB

10
0
123
4
bar
C D
E
BA
4 8°C
s A
AFault indicator (red)
BON indicator (green)
CReset button
DON/OFF switch
EPressure gauge
1. Check the heating system pressure
at the pressure gauge. The system
pressure is too low if the indicator
points to the area below 1.0 bar. In
this case, top up with water or notify
your local heating contractor.
2. For open flue operation:
Check that the ventilation apertures
of the installation room are open and
unrestricted.
Note
With open flue operation, the com-
bustion air is drawn from the installa-
tion room.
3. Open the gas shut-off valve.
Note
Ask your heating contractor to
explain the positioning and handling
of these components.
4. Switch ON the power supply, e.g. at
a separate MCB/fuse or a mains iso-
lator.
5. Turn the ON/OFF switch " " ON.
After a short time, the standard dis-
play appears and the green ON indi-
cator illuminates. Your heating sys-
tem and room temperature control
unit are now ready for operation.
Start-up/shutdown
Starting the heating system
5592 683 GB

11
With frost protection monitoring
Select heating program " " for frost pro-
tection monitoring (standby mode).
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm; frost protection mon-
itoring is activated.
■ No central heating.
■ No DHW heating.
■ Frost protection for the boiler and the
DHW cylinder is enabled.
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
Terminating heating program " "
Select another heating program.
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes: The rooms
are heated and DHW is provi-
ded.
or
until " " flashes: DHW is
heated but central heating is not
active.
5. OK to confirm; the selected heating
program is activated.
Without frost protection monitoring (shutdown)
1. Switch the ON/OFF switch " "
OFF.
2. Close the gas shut-off valve.
Note
Ask your heating contractor to
explain the positioning and handling
of these components.
3. Isolate the heating system from its
main power supply, e.g. at a separate
MCB/fuse or a mains isolator.
4. Where outside temperatures of
below 3 °C are anticipated, please
take suitable measures to protect the
heating system against frost. If nec-
essary, contact your heating contrac-
tor.
Start-up/shutdown
Shutting down the heating system
5592 683 GB

12
If you want central heating, check the
following points:
■ Have you set the required room tem-
perature?
Room temperature control unit
operating instructions
■ Have you set the heating flow temper-
ature at a sufficiently high level?
For settings, see the next chapter.
■ Have you set the correct heating pro-
gram?
For settings, see page 12
and
Room temperature control unit
operating instructions
■ Have you set the required time pro-
gram?
Room temperature control unit
operating instructions
Setting the heating flow temperature
Set the heating flow temperature suffi-
ciently high so the required room tem-
perature can be achieved.
Factory setting: 74 °C
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. for boiler water temperature;
" " flashes.
4. OK to confirm; the selected temper-
ature value flashes.
5. / for the required boiler water
temperature.
6. OK to confirm; the new temperature
value is saved.
Setting the heating program (central heating)
Factory setting: " " for central heat-
ing and DHW heating (winter mode).
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm.
4. / until " " flashes.
5. OK to confirm; the rooms are
heated and DHW is provided.
Central heating
Required settings for central heating
5592 683 GB

13
You do not want to heat any rooms
but you want to heat the DHW.
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm; the central heating is
deactivated and DHW is heated
(summer mode).
You do not want to heat any rooms or
DHW.
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm; the central heating
and DHW heating are deactiva-
ted, frost protection monitoring
is activated (standby mode).
Central heating
Stopping the central heating
5592 683 GB

14
If you want DHW heating, check the fol-
lowing points:
■ Have you set the required DHW tem-
perature?
For settings, see the next chapter.
■ Have you set the correct heating pro-
gram?
For settings, see page 14.
Setting the DHW temperature
Factory setting: 50 °C
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm; temperature value
flashes.
4. / for required DHW temperature.
5. OK to confirm; the new temperature
value is saved.
Setting the heating program (DHW heating)
Factory setting: " " for central heat-
ing and DHW heating (winter mode).
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. / until " " flashes for DHW heat-
ing (summer mode, no central
heating)
or
until " " flashes for central
heating and DHW heating (win-
ter mode).
5. OK to confirm; the selected heating
program is activated.
DHW heating
Required settings (DHW heating)
5592 683 GB

15
You do not want DHW, but do want to
heat the rooms.
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm; the rooms are
heated and DHW is provided
(winter mode).
6. for settings; " " flashes.
7. for " ".
8. OK to confirm; temperature value
flashes.
9. to 10 °C.
10. OK to confirm; the new tempera-
ture value is saved.
You do not want to have DHW or heat
your rooms.
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm; DHW heating and
central heating are stopped,
frost protection monitoring is
activated (standby mode).
Comfort function (if available)
With the comfort function you can pre-
heat the water volume in the plate heat
exchanger to the selected DHW temper-
ature. This makes DHW available imme-
diately.
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm, "COMF ECO"
flashes.
4. OK to confirm; "ECO" flashes.
5. for "COMF".
6. OK to confirm; the comfort function
is activated.
DHW heating
Stopping the DHW heating
5592 683 GB

16
Ending the comfort function
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm, "COMF ECO"
flashes.
4. OK to confirm; "COMF" flashes.
5. for "ECO".
6. OK to confirm; the comfort function
is terminated.
DHW heating
Comfort function (if available) (cont.)
5592 683 GB

17
Factory setting: °C
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm; " " flashes.
4. / for required temperature unit
("°C" or "°F").
5. OK to confirm; the new temperature
unit is saved.
Restoring factory settings
You can simultaneously reset all
changed values to the factory settings.
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm; " " flashes.
4. OK to confirm; the factory setting is
reinstated.
Factory settings:
■ Heating program: " "
■ Temperature unit: °C
■ Boiler water temperature: 74 °C
■ DHW temperature: 50 °C
Further adjustments
Setting the temperature unit (°C/°F)
5592 683 GB

18
Subject to the connected components
and settings made, you can scan current
temperatures and operating conditions.
Press the following keys:
1. for settings; " " flashes.
2. for " ".
3. OK to confirm.
4. / for the required information.
5. OK to confirm; if you want to reset
the value to "0" (see following
table), " " flashes.
6. OK to confirm; the value is reset.
Example:
On the display, you can see the number
"3" which shows the boiler water temper-
ature. The current boiler water tempera-
ture is 65 °C.
¸
3 6 5°C
Note
The scan mode terminates automatically
after 30 min or if you press .
The information appears in the following sequence:
Display Explanation Notes
0 0 Boiler number Displayed only on multi boiler sys-
tems.
1 15 °C Outside temperature Displayed only if an outside temper-
ature sensor is connected.
3 65 °C Boiler water temperature --
5 50 °C DHW temperature Displayed only if a DHW cylinder is
connected.
5□ 45 °C DHW temperature with
solar operation
Displayed only if a solar thermal
system is connected.
53 50 °C Temperature sensor /Displayed only if the Viessmann
solar control module is available
and a third temperature sensor has
been connected.
54 50 °C Temperature sensor aÖ Displayed only if the Viessmann
solar control module is available
and a fourth temperature sensor
has been connected.
6 70 °C Collector temperature Displayed only if a solar thermal
system is connected.
Scanning
Scanning information
5592 683 GB

19
Display Explanation Notes
2 6 3 5 7 2 h Burner hours run Number of hours run (only approxi-
mate values).
The hours run can be reset to "0" by
pressing "D".
1
0 3 0 5 2 9 Burner starts The number of burner starts can be
reset to "0" by pressing "D".
3
0 0 1 4 1 7 h Solar circuit pump hours
run
Displayed only if a Viessmann solar
control module is installed.
The hours run can be reset to "0" by
pressing "D".
5
0 0 1 4 2 5 Pump starts, solar circuit
pump
Displayed only if a Viessmann solar
control module is installed.
The pump starts can be reset to
"0" by pressing "D".
6
0 0 0 5 0 6 h Hours run, output 22 Displayed only if the Viessmann
solar control module is available
and a second circulation pump has
been connected.
The hours run can be reset to "0" by
pressing "D".
7
0 0 0 5 0 6 Pump starts, output 22 Displayed only if the Viessmann
solar control module is available
and a second circulation pump has
been connected.
The pump starts can be reset to
"0" by pressing "D".
8
0 0 2 8 5 0 Solar yield in kWh Displayed only if a Viessmann solar
control module is installed.
The solar energy can be reset to
"0" by pressing "D".
9
Scanning the service messages
Your heating contractor can set a service
interval. For example, burner service
after 2500 hours run or service after 12
months.
If your heating system is due for a serv-
ice, the symbol " " flashes on the dis-
play and the expired service interval is
shown.
Scanning
Scanning information (cont.)
5592 683 GB

20
Example:
Service display with the service interval
of 2500 hours run by the burner:
0
ë
2 5 0h
Service display with the service interval
of 12 months:
1
ë
2
u
Notify your local heating contractor and
acknowledge the service message by
pressing OK.
Note
If the service can only be carried out at a
later point in time, the service message
will reappear after 7 days.
Calling up an acknowledged service
message
Press OK for approx. 4 s.
Scanning fault messages
If any faults have occurred in your heat-
ing system, the symbol " " flashes on
the display and the fault code is shown.
In addition, the red fault indicator flashes
(see page 10).
Example:
Fault code shown: "50"
1 5 0
ã
1. Notify your heating contractor of the
fault code. This enables the heating
contractor to be better prepared for
the service call and may save addi-
tional travelling costs.
Scanning
Scanning the service messages (cont.)
5592 683 GB
