Viessmann VITOCAL 222-G User manual

Operating instructions
for the system user
VIESMANN
Compact heat pumps with electric drive
VITOCAL 222-G
VITOCAL 242-G
VITOCAL 333-G
VITOCAL 333-G NC
VITOCAL 343-G
5592 628 GB 8/2009 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for system users.
This appliance is not designed to be
used by persons (including children) with
limited physical, sensory or mental
capacities, or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety,
or have received instructions from such
a person as to how to use the appli-
ance.
!Please note
Children should be supervised.
Ensure that children never play
with the appliance.
Danger
Incorrect work on the system can
lead to life-threatening acci-
dents.
Work on electrical equipment
must only be carried out by a
qualified electrician.
In case of fire
Danger
With fire there is a risk of burn-
ing.
■ Shut down the system.
■ Use a tested fire extinguisher,
class ABC.
Installation room conditions
!Please note
Incorrect ambient conditions can
lead to system damage and can
put the safe operation at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Avoid air contamination
through halogenated hydrocar-
bons (e.g. as in paints, solvents
and cleaning agents).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
Safety instructions
For your safety
5592 628 GB

3
Auxiliary components, spare and
wearing parts
!Please note
Components that are not tested
with the system may cause sys-
tem damage, or may affect its
functions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 628 GB

4
Introductory information
Device description................................................................................................ 6
Commissioning..................................................................................................... 7
Your system is preset at the factory..................................................................... 7
Terminology.......................................................................................................... 8
Energy saving tips................................................................................................ 8
Operation
Controls................................................................................................................ 10
Menu.................................................................................................................... 11
How to use the controls........................................................................................ 12
Start-up/shutdown
Starting the heat pump......................................................................................... 15
Stopping the heat pump....................................................................................... 15
■ With frost protection monitoring........................................................................ 15
■ Without frost protection monitoring (shutting down the system)....................... 16
Central heating/cooling
Central heating/cooling......................................................................................... 17
Required settings (heating/cooling)...................................................................... 17
Selecting the heating/cooling circuit..................................................................... 18
Setting the room temperature............................................................................... 18
Enabling electric heater for central heating.......................................................... 19
Setting the heating/cooling operating program.................................................... 19
Setting the time program for heating/cooling........................................................ 20
Change the heating curve.................................................................................... 22
Stopping the central heating/cooling.................................................................... 23
Comfort and energy saving functions.............................................................. 24
DHW heating
Required settings (DHW heating)......................................................................... 27
Setting the DHW temperatures............................................................................ 27
Enabling electric heater for DHW heating............................................................ 27
Setting the operating program for DHW heating.................................................. 28
Setting the time program for DHW heating.......................................................... 29
Setting the time program for DHW circulation pump............................................ 31
Switching off DHW heating................................................................................... 33
Heating water buffer cylinder
Setting a time program for the heating water buffer cylinder................................ 35
Index
Index
5592 628 GB

5
Further adjustments
Setting the display brightness.............................................................................. 37
Setting the display contrast.................................................................................. 37
Entering designations for the heating circuits....................................................... 37
Setting the time and date..................................................................................... 38
Language selection.............................................................................................. 38
Selecting a temperature unit (°C/°F).................................................................... 38
Restoring factory settings..................................................................................... 39
Scanning
Scanning information............................................................................................ 40
Scanning messages............................................................................................. 41
Manual mode...................................................................................................... 43
What to do if...
Rooms are too cold.............................................................................................. 44
Rooms are too hot................................................................................................ 44
There is no hot water............................................................................................ 45
" " flashes and "Note" is displayed...................................................................... 45
" " flashes and "Warning" is displayed............................................................... 45
" " flashes and "Fault" is displayed..................................................................... 45
"Power-OFF C5" is displayed............................................................................... 46
"External program" is displayed........................................................................... 46
Maintenance
Repairs................................................................................................................. 47
■ Cleaning............................................................................................................ 47
■ Inspection and maintenance............................................................................. 47
Appendix
Menu overview..................................................................................................... 48
■ Standard menu................................................................................................. 48
■ Extended menu................................................................................................. 49
Terminology.......................................................................................................... 51
Keyword index.................................................................................................... 57
Index
Index (cont.)
5592 628 GB

6
The Vitocal 222-G/242-G/333-G/343-G
are brine/water heat pumps with integral
DHW cylinder. Solar collectors can be
connected to the Vitocal 242-G and 343-
G to provide DHW heating.
An instantaneous heating water heater
(accessory) can be integrated into all of
these appliances to cover peak demand
for central heating and DHW heating.
All connected components are operated
and controlled via the integral heat pump
control unit Vitotronic 200, type WO1A
with plain text menu prompts.
The individual appliances are differenti-
ated according to the following product
features:
Vitocal 222-G 242-G 333-G 333-G NC 343-G
DHW cylinder capacity 170 l 220 l 170 l 170 l 220 l
Number of heating circuits that
can be connected
2 2 3 3 3
Natural cooling function 0 0 0 X0
Variable speed high efficiency
[HE] pumps
– – X X X
Connections for solar collectors
and integral solar control unit
– X – – X
X Standard delivery
0Incl. accessories
– Not available
Note
These operating instructions also
describe functions that are not available
with all models or only with accessories.
These functions are not universally iden-
tified in each case.
The type and extent of menu entries in
the heat pump control unit also depend
on the equipment level of your heating
system and the selected settings/adjust-
ments on the heat pump control unit.
In case of questions relating to the extent
of functions and accessories for your
heat pump and your heating system,
check with your local heating contrac-
tor.
Introductory information
Device description
5592 628 GB

7
The commissioning and matching up of
the heat pump control unit to local con-
ditions and to the structural characteris-
tics of the building, plus the instruction of
the user in operating the system, must
be carried out by your heating contrac-
tor.
Your system is preset at the factory
At the factory, the heat pump control unit
is set to"Heating and DHW".
Your heating system is therefore ready
for use:
Central heating/cooling
■ Your rooms are heated to 20 °C "Set
room temperature" around the clock
(standard heating mode).
■ If a heating water buffer cylinder is
installed, it will be heated.
■ Cooling will be switched OFF.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating/
cooling").
DHW heating
■ DHW is heated around the clock every
day. DHW is heated to 50 °C.
■ Any installed DHW circulation pump is
OFF.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Frost protection for your heat pump,
the DHW cylinder and any heating
water buffer cylinder that may be
installed is enabled.
Winter/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Power failure
■ All data is saved if there is a power
failure.
Introductory information
Commissioning
5592 628 GB

8
To provide you with a better understand-
ing of the functions of your heat pump
control unit, the appendix contains the
chapter "Terminology" (see page 51).
Energy saving tips
B
C
D
A
Utilise the setting options offered by the
heat pump control unit A and by the
remote control (if installed):
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6% on heating
costs.
Set your room temperature no higher
than 20 ºC (see page 18).
■ Never set the DHW temperature too
high (see page 27).
■ Only activate the DHW circulation
pump for when DHW is drawn off reg-
ularly. Set the time program for this
(see page 31).
■ Select the program that meets your
current requirements:
– For short absences (e.g. shopping
trips), select "Economy mode"
(see page 25).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, set the "Hol-
iday program" (see page 25).
As long as the holiday program is
activated, the room temperature is
reduced and DHW heating is OFF.
– In summer, when you don't want to
heat any rooms but do need DHW,
select the operating program "DHW
only" (see page 28).
– If you don't want to heat the rooms
and you don't require DHW for an
extended period, select the operat-
ing program "Standby mode" (see
page 15).
For additional energy saving functions of
the heat pump control unit, please con-
tact your heating contractor.
Introductory information
Terminology
5592 628 GB

9
Further recommendations:
■ Correct ventilation/airing.
Briefly open windows B fully and at
the same time close thermostatic radi-
ator valves C (if no domestic ventila-
tion system is installed).
■ Close roller shutters (if installed) at
dusk.
■Set thermostatic valves C correctly.
■Never cover radiators D or thermo-
static valves C.
■ Controlled DHW consumption: A
shower generally uses less energy
than a full bath.
Introductory information
Energy saving tips (cont.)
5592 628 GB

10
You can change any settings on your
heat pump centrally at the programming
unit of the heat pump control unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Note
The programming unit can be placed in
a wall mounting base. This is available
as an accessory. Ask your heating con-
tractor about it.
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
This takes you to the previous step
in the menu or cancels a setting that
has been started
Cursor keys
To scroll in the menu or set values
OK Confirms your selection or saves
the setting
You call up the help text relevant to
the selected menu point
Calls up the "Extended menu"
Menu "Help"
This displays a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 18).
Call up the short guide as follows:
■ Screensaver is active:
Press .
■ You will be somewhere in the menu:
Keep pressing until the "Standard
menu" appears (see page 11).
Call up the "Help" menu option.
Operation
Controls
5592 628 GB

11
You have two control levels available, the "Standard menu" and the "Extended
menu".
Standard menu
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
In the "Standard menu", you can adjust
and scan the settings used most fre-
quently:
■ Adjusting the room temperature
■ Selecting the operating program
■ Setting the comfort function "party
mode"
■ Selecting the energy saving function
"Economy mode"
■ Adjusting the DHW temperature
■ Starting once-only DHW heating
■ Scanning the solar yield
■ Scanning information
– Temperatures, e.g. outside or col-
lector temperature
– Operating state of pumps, compres-
sor and cooling function
– Seasonal performance factors
(SPF)
■ Selecting manual mode
■ Scanning information, warning and
fault messages
The menu overview can be found on
page 48.
You call up the "Standard menu" as fol-
lows:
■ Screensaver is active:
Press any key.
■ You will be somewhere in the menu:
Keep pressing until the "Standard
menu" appears.
Operation
Menu
5592 628 GB

12
Extended menu
DHW
System
Information
Select with
Heating/cooling
Menu
(
i
In the "Extended menu", you can adjust
and scan the settings from the control
unit's range of functions used less fre-
quently, e.g. holiday program and time
programs.
The menu overview can be found on
page 49.
You call up the "Extended menu" as fol-
lows:
■ Screensaver is active:
Press any key and then .
■ You will be somewhere in the menu:
Press .
How to use the controls
The screensaver will be active if you have not adjusted any settings on the program-
ming unit for some time.
Press OK. This takes you to the "Stand-
ard menu" (see page 11).
Operation
Menu (cont.)
5592 628 GB

13
A
DHW
Solar energy
Information
40 °C
Heating/cooling
Flow temperature
Select with
i
ADialogue line
The selected menu option is highlighted
white.
The dialogue line then shows the neces-
sary instructions.
The following example shows the setting
procedure with the possible dialogue
lines.
Operation
How to use the controls (cont.)
5592 628 GB

14

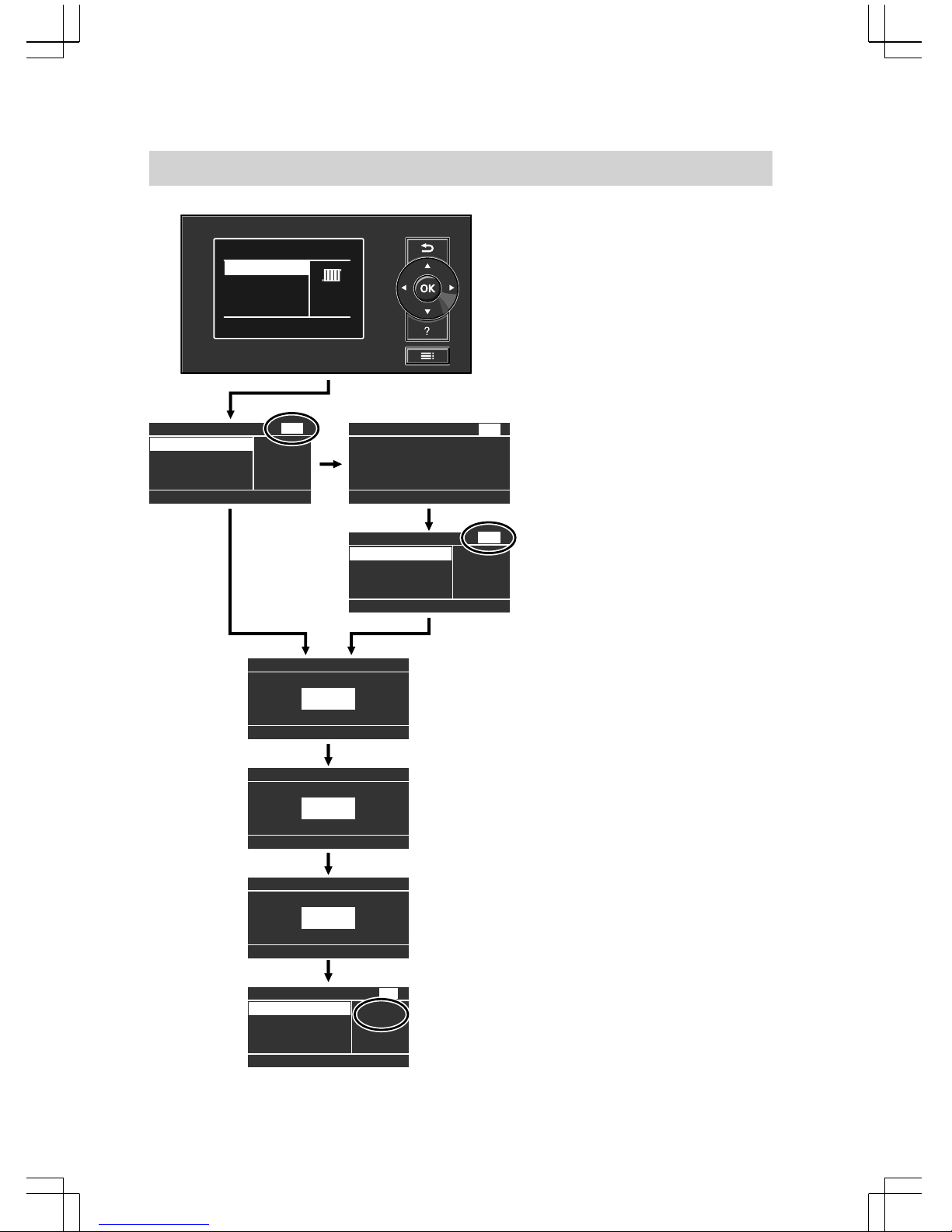

Heating circuit 1
Heating program
Party mode
Economy mode
ß
22°C
ÙÚ
Set room temp.
HC1
22°C
(
Set room temperature HC1
22°C
OK
Vv
or
OK
Ú
OK
Select heating circ ÙÚ
HC2
Was selected
Heating circuit 2
OK
Set room temperature HC1
22°C
Adopted
DHW
Solar energy
Information
40°C
Heating/cooling
Flow temperature
Select with (
OK
Heating circuit 1
Heating program
Party mode
Economy mode
ß
20°C
ÙÚ
Set room temp.
HC1
Select with (
ÙÚ
HC1
Heating circuit 2
Heating program
Party mode
Economy mode
ß
20°C
ÙÚ
Set room temp.
HC2
(
ÙÚ
HC2
Select with
Set room temperature HC1
20°C
(Change with
Accept with
Select with
i
Operation
How to use the controls (cont.)
5592 628 GB

15
A
Flow temperature
DHW
Solar energy
Information
Select with
40 °C
Heating/cooling
i

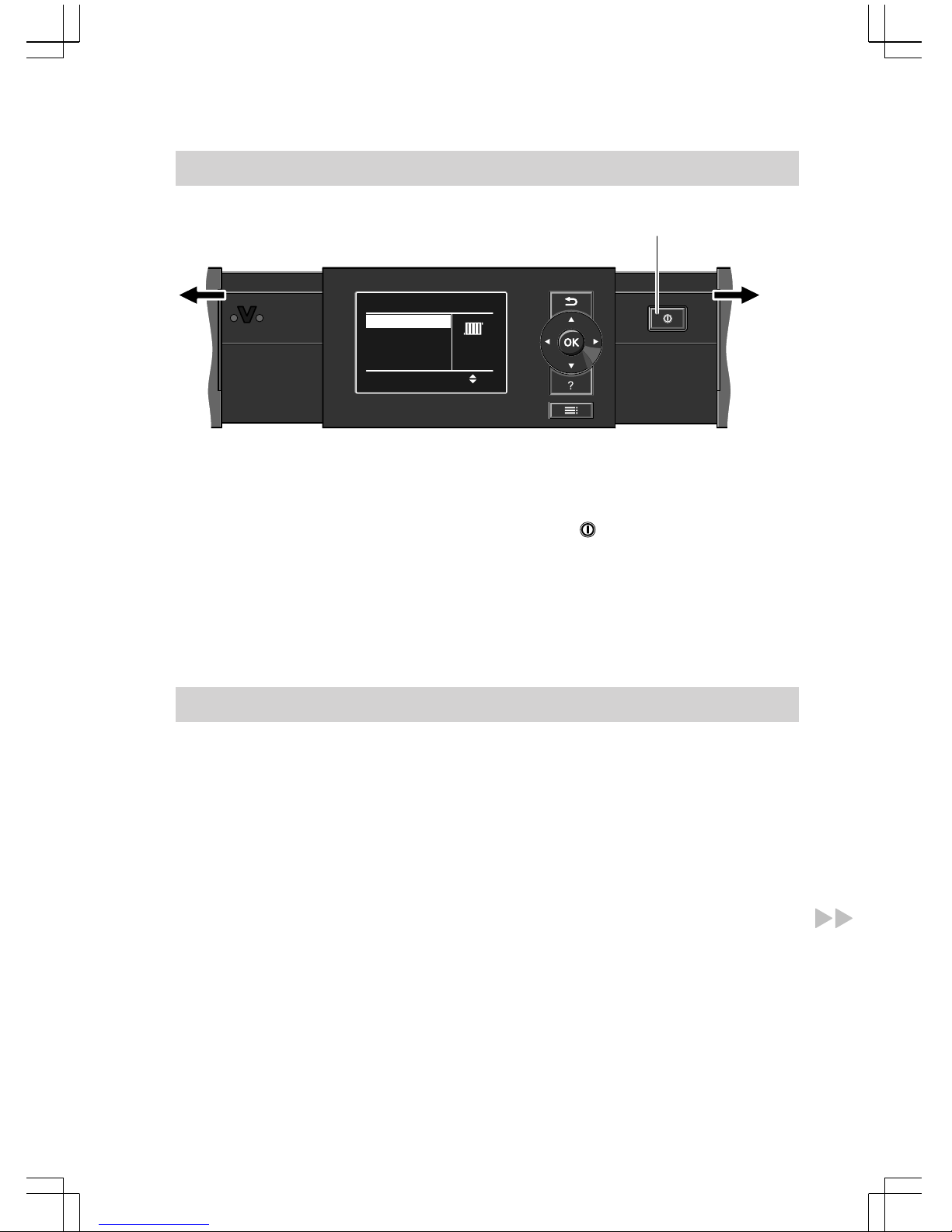

AON/OFF switch
1. Switch ON the power supply, e.g. at
a separate MCB/fuse or a main iso-
lator.
2. Switch ON the system ON/OFF
switch" ".
After a short time, the "Standard
menu" is displayed (see page 11).
Your heat pump and, if installed, your
remote control units are now ready to
operate.
Stopping the heat pump
With frost protection monitoring
For every heating circuit, select the operating program "Standby mode".
Standard menu
1. "Heating" or "Heating/cooling"
2. Select a heating/cooling circuit or the
separate cooling circuit (see
page 18).
3. "Operating program"
4. "Standby mode"
■ No central heating.
■ No cooling.
■ No DHW heating.
■ Frost protection for your heat pump,
the DHW cylinder and any heating
water buffer cylinder that may be
installed is active.
Start-up/shutdown
Starting the heat pump
5592 628 GB

16
Note
At temperatures below
−
20 °C, the
frost protection of the heat pump, the
DHW cylinder and the heating water
buffer cylinder is only ensured if an
instantaneous heating water heater
(accessory) is installed.
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
End operating program "Standby
mode"
Select another operating program.
Standard menu
1. "Heating" or "Heating/cooling"
2. Select a heating/cooling circuit or the
separate cooling circuit (see
page 18).
3. "Operating program"
4. "Only DHW" (no central heating or
central cooling)
or
"Heating and DHW" (central heating
and DHW heating)
or
"Heating/cooling and DHW" (central
heating/cooling and DHW heating)
Without frost protection monitoring (shutting down the system)
1. Switch the ON/OFF switch " "
OFF.
2. Isolate the heat pump from its main
power supply, e.g. at a separate
MCB/fuse or a main isolator.
3. If outside temperatures of below
3 °C are expected, please take
appropriate measures to protect the
heat pump and the heating system
from frost. If necessary, contact your
heating contractor.
Note
After an extended shutdown, it may be
necessary to reset the date and time
(see page 38).
Start-up/shutdown
Stopping the heat pump (cont.)
5592 628 GB

17
Central heating
■ Central heating is only activated if the
outside temperature falls below the
heating limit. The heating limit can be
set by your local heating contractor.
Cooling via a heating/cooling circuit
■ Cooling via the heating circuit, e.g. an
underfloor heating system (see 54)
only occurs when the outside tem-
perature has exceeded the cooling
limit. The cooling limit can be set by
your local heating contractor.
Cooling via a separate cooling circuit
■ Cooling with a separate cooling circuit,
e.g. chilled ceiling or fan convector
(see page 54) occurs independent of
the outside temperature. The cooling
capacity is automatically regulated so
that the selected set room temperature
is achieved (room temperature-
dependent cooling operation, see
page 55).
This enables a separate cooling circuit
to provide cooling all year round, e.g.
for a storage room.
Note
No time program can be set for the
separate cooling circuit.
Required settings (heating/cooling)
If you want central heating or cooling,
check the following points:
■ Have you selected the heating or cool-
ing circuit?
For settings, see chapter "Selecting
the heating/cooling circuit or a sepa-
rate cooling circuit".
■ Have you set the required room tem-
perature?
For settings, see page 18.
■ Have you set the correct operating
program?
For settings, see page 19.
■ Have you set the required time pro-
gram?
For settings, see page 20.
Central heating/cooling
Central heating/cooling
5592 628 GB

18
Central heating can be split over several
heating circuits (heating circuit 1, 2 or 3).
Cooling results either through one of
these heating circuits or via a separate
cooling circuit.
For all settings relating to central heat-
ing/cooling, first select the heating/cool-
ing circuit or the separate cooling circuit
to which your changes should apply.
Example:
■"Heating circuit 1" is the heating cir-
cuit for the rooms occupied by you.
■"Heating circuit 2" is the heating cir-
cuit for the rooms of a separate apart-
ment.
■"Cooling circuit SKK" represents a
fan convector in a storage room.
Ú

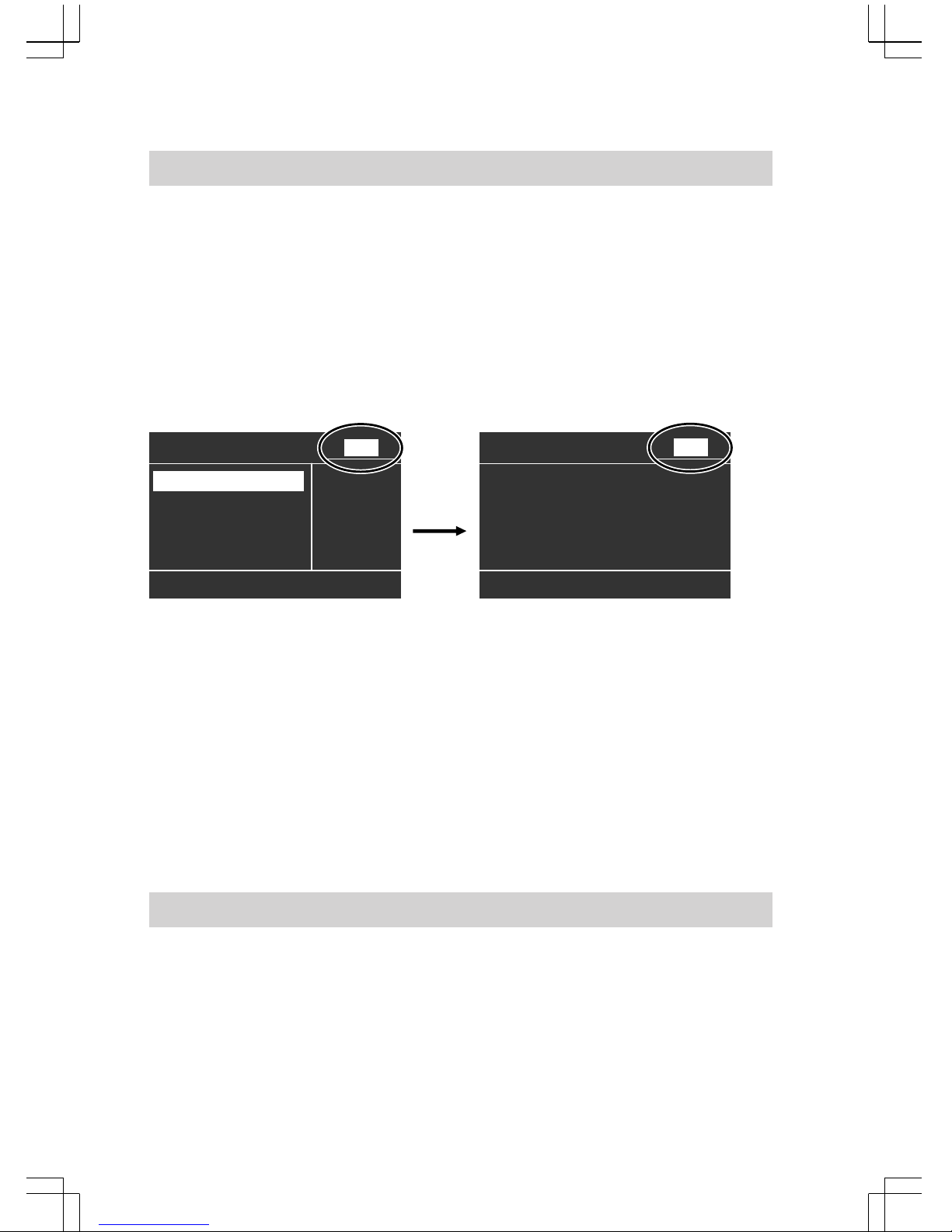

Select heating circ HC2
Was selected
Heating circuit 2
Heating circuit 1 HC1
Economy mode
Select with (
Party mode
Heating program
Set room temp.
ß
21°C
ÙÚ
HC2
ÙÚ
HC1
At the factory, the heating/cooling cir-
cuits are designated "Heating circuit
1" (HC1), "Heating circuit 2" (HC2),
"Heating circuit 3" (HC3) and the sep-
arate cooling circuit with "Cooling cir-
cuit SKK" (SKK).
These factory-set designations can be
changed (see page 37). In place of, for
example "Cooling circuit SKK" the
modified designation "Storage" will be
displayed.
Note
The abbreviated designations "HC1",
"HC2", "HC3" and "SKK" cannot be
modified.
Setting the room temperature
Setting the room temperature for
standard heating or cooling mode
Factory setting: 20 °C
Standard menu
1. "Heating" or "Heating/cooling"
2. Where appropriate, select a heating/
cooling circuit or separate cooling cir-
cuit.
3. "Set room temp."
4. Set the required value.
Central heating/cooling
Selecting the heating/cooling circuit
5592 628 GB

19
Setting the room temperature for
reduced heating mode (night set-
back)
Factory setting: 16 °C
Extended menu
1.
2. "Heating" or "Heating/cooling"
3. Where appropriate, select the heat-
ing/cooling circuit.
4. "Red. Set room temp."
5. Set the required value.
The room will be heated to this temper-
ature,
■ if, in the time program, the operating
status "Reduc." has been activated
(see page 21).
■ if the holiday program has been star-
ted (see page 25).
Enabling electric heater for central heating
If the heat pump on its own cannot ach-
ieve the selected set room temperature,
an instantaneous heating water heater
(accessory) can be started automatically
to boost central heating.
The constant use of an instantaneous
heating water heater results in higher
power consumption, so therefore it
requires enabling.
Extended menu
1.
2. "System"
3. "Heating with electro"
Note
To prevent the instantaneous heating
water heater from being started auto-
matically to boost central heating, you
can disable it at any time.
Setting the heating/cooling operating program
Factory setting: "Heating and DHW" or
"Heating/cooling and DHW"
Standard menu
1. "Heating" or "Heating/cooling"
2. Select a heating/cooling circuit or the
separate cooling circuit.
3. "Operating program"
4. "Heating and DHW", "Heating/cool-
ing and DHW" or "Cooling"
■ The rooms of the selected heating/
cooling circuit are heated or cooled in
accordance with the parameters for
room temperature and time program.
■ A separate cooling circuit is constantly
cooled.
■ DHW is heated in accordance with the
parameters for the DHW temperature
and time program.
Central heating/cooling
Setting the room temperature (cont.)
5592 628 GB

20
Note
No time program can be set for any sep-
arate cooling circuit.
■ The time program for central heating/
cooling is made up of time phases. Set
an operating status for each time
phase ("Reduc.", "Normal", "Fixed
val.", see page 21).
At the factory, central heating is set to
operate 24/7 (one time phase from
0:00 to 24:00 h for every day of the
week with the operating status "Nor-
mal").
■ You can select up to 8 time phases.
Set the start and end points for each
time phase. Rooms are neither heated
nor cooled between these time pha-
ses; only frost protection is active.
■ You can set the time program individ-
ually.
When making adjustments, bear in
mind that your heat pump requires
some time to heat or cool the rooms to
the required temperature.
■ In the "Extended menu", you can scan
the current time program under
"Note" (page 40).
Settings in the extended menu:
1.
2. "Heating" or "Heating/cooling"
3. Where appropriate, select the heat-
ing/cooling circuit.
4. "Heating time program"
or
"Time prog htg cool"
5. Select the part of the week or day.
6. Select a time phase ! to (. The
selected time phase is illustrated by a
white bar inside the time diagram.
7. Set the start and end points for the
relevant time phase. The length of the
white bar inside the time diagram is
matched accordingly.
8. Select the required operating status.
The individual operating status is dis-
played by bars of different heights
inside the time diagram (see the fol-
lowing example).
Note
Where several time phases overlap,
the operating status with the highest
bar takes priority.
Example:
■ Time program for Monday to Sunday
("Mo-Su")
■Time phase !:
0:00 to 8:30 h: "Reduc."
■Time phase ?:
8:30 to 12:10 h: "Normal"
■Time phase §:
13:00 to 18:30 h: "Reduc."
■Time phase $:
20:00 to 22:00 h: "Fixed value"
■Time phase %:
22:00 to 24:00 h: "Reduc."
Central heating/cooling
Setting the time program for heating/cooling
5592 628 GB
