Vitocal 151-A
Type AWOT(-M)-E-AC/AWOT(-M)-E-AC-AF 151.A
Air source heat pump, monoblock version for heating and cooling operation, with
1 integral heating/cooling circuit
VITOCAL 151-A
6171787 GB 10/2021 Please keep safe.

2
Please follow these safety instruc-
tions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the risk
of injury.
!Please note
This symbol warns against the risk
of material losses and environmen-
tal pollution.
Note
Details identified by the word "Note"
contain additional information.
The outdoor unit contains easily flamma-
ble refrigerant in safety group A3
according to ISO 817 and
ANSI/ASHRAE Standard 34.
Target group
These instructions are exclusively inten-
ded for qualified contractors.
■Work on the refrigerant circuit with
flammable refrigerant in safety group
A3 may only be carried out by author-
ised heating contractors. These heat-
ing contractors must be trained in
accordance with EN 378 Part 4 or
IEC 60335-2-40, Section HH. The cer-
tificate of competence from an industry
accredited body.
■Brazing/soldering work on the refriger-
ant circuit may only be carried out by
contractors certified in accordance with
ISO 13585 and AD 2000, Datasheet
HP 100R. And only by contractors
qualified and certified for the processes
to be carried out. The work must fall
within the range of applications pur-
chased and be carried out in accord-
ance with the prescribed procedures.
Soldering/brazing work on accumulator
connections requires certification of
personnel and processes by a notified
body according to the Pressure Equip-
ment Directive (2014/68/EU).
■Work on electrical equipment may only
be carried out by a qualified electrician.
■Before initial commissioning, all safety-
relevant points must be checked by the
particular certified heating contractors.
The system must be commissioned by
the system installer or a qualified per-
son authorised by the installer.
Safety instructions
Safety instructions
6171787

3
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention
of accidents
■Statutory regulations for environmental
protection
■Statutory requirements for pressure
equipment:
Pressure Equipment Directive
2014/68/EU
■Codes of practice of the relevant trade
associations
■Relevant country-specific safety regu-
lations
■Applicable regulations and guidelines
for operation, service, maintenance,
repair and safety of cooling, air condi-
tioning and heat pump systems con-
taining flammable and explosive refrig-
erant.
Safety instructions for working on the system
The outdoor unit contains flammable
refrigerant R290 (propane C3H8). If
there is a leak, the escaping refrigerant
may form a flammable or explosive
atmosphere in the ambient air. A safety
zone is defined in the immediate vicinity
of the outdoor unit, in which special
rules apply when working on the appli-
ance.
Working in the safety zone
Danger
Risk of explosion: Escaping refrig-
erant may form a flammable or
explosive atmosphere in the ambi-
ent air.
Take the following measures to pre-
vent fire and explosion in the safety
zone:
■Keep ignition sources away, e.g. naked
flames, hot surfaces, electrical devices
not free of ignition sources, mobile
devices with integrated batteries (e.g.
mobile phones, fitness watches, etc.).
■Permissible tools:
All tools for working in the safety zone
must be designed and explosion pro-
tected in accordance with the applica-
ble standards and regulations for
refrigerant in safety groups A2L and
A3, e.g. brushless machines (cordless
screwdrivers), extraction equipment,
disposal containers, installation aids,
vacuum pumps, conductive hoses,
mechanical tools of non-sparking
material, etc.
Note
The tools must also be suitable for the
pressure ranges in use.
Tools must be in perfect maintenance
condition.
■The electrical equipment must meet
the requirements for areas at risk of
explosion, zone 2.
■Do not use flammable materials, e.g.
sprays or other flammable gases.
■Discharge static: Before beginning
work, touch earthed objects, such as
heating or water pipes.
Safety instructions
Safety instructions (cont.)
6171787

4
■Do not remove, block or bridge safety
equipment.
■Do not make any changes:
Do not modify the outdoor unit, inlet/
outlet lines, electrical connections/
cables or the surroundings. Do not
remove any components or seals.
Working on the system
■Switch off the power supply to the
indoor unit and outdoor unit, e.g. at a
separate fuse or mains isolator. Check
that the system is no longer live.
Note
In addition to the control circuit there
may be several power circuits.
Danger
Contact with live components can
result in severe injuries. Some
components on PCBs remain live
even after the power supply has
been switched off.
Prior to removing covers from the
appliances, wait at least 4 minutes
until the voltage has completely
dropped out.
■Safeguard the system against recon-
nection.
■Wear suitable personal protective
equipment when carrying out any work.
Danger
Hot surfaces and fluids can result in
burns or scalding. Cold surfaces
may cause frostbite.
■Prior to servicing or maintenance
tasks, switch off and allow the
equipment to cool down or warm
up.
■Do not touch hot or cold surfaces
on the appliance, fittings or pipe-
work.
!Please note
Electronic assemblies can be dam-
aged by electrostatic discharge.
Before beginning work, touch
earthed objects, such as heating or
water pipes, to discharge any static.
Work on the refrigerant circuit
R290 refrigerant (propane) is an air dis-
placing, colourless, flammable, odour-
less gas which forms explosive mixtures
with air.
Refrigerant drained must be properly
disposed of by authorised contractors.
Perform the following measures before
beginning work on the refrigerant circuit:
■Check the refrigerant circuit for leaks.
■Ensure very good ventilation especially
in the floor area and sustain this for the
duration of the work.
■Secure the area surrounding the work
area.
■Inform the following persons of the
type of work to be carried out:
–All maintenance personnel
–All persons in the vicinity of the sys-
tem.
■Inspect the area immediately around
the heat pump for flammable materials
and ignition sources:
Remove all flammable materials and
ignition sources.
■Before, during and after the work,
check the surrounding area for escap-
ing refrigerant using an explosion-proof
refrigerant detector suitable for R290.
This refrigerant detector must not gen-
erate any sparks and must be suitably
sealed.
Safety instructions
Safety instructions (cont.)
6171787

5
■A CO2 or powder extinguisher must be
to hand in the following cases:
–Refrigerant is being drained.
–Refrigerant is being topped up.
–Soldering or welding work is being
carried out.
■Display signs prohibiting smoking.
Danger
Escaping refrigerant can lead to fire
and explosions that result in very
serious injuries or death.
■Do not drill or apply heat to a
refrigerant circuit filled with refrig-
erant.
■Do not operate Schrader valves
unless a fill valve or extraction
equipment is attached.
■Take measures to prevent electro-
static charge.
■No smoking! Prevent naked
flames and sparks. Never switch
lights or electrical appliances on
or off.
■Components that contain or con-
tained refrigerant must be label-
led, and stored and transported in
well ventilated areas in accord-
ance with the applicable regula-
tions and standards.
Danger
Direct contact with liquid and gas-
eous refrigerant can cause serious
damage to health, e.g. frostbite
and/or burns. There is a risk of
asphyxiation if it is breathed in.
■Prevent direct contact with liquid
and gaseous refrigerant.
■Wear personal protective equip-
ment when handling liquid and
gaseous refrigerant.
■Never breathe in refrigerant
vapours.
Danger
Refrigerant is under pressure:
Mechanical loading of lines and
components can cause leaks in the
refrigerant circuit.
Do not apply loads to the lines and
components, e.g. by supporting or
placing tools.
Danger
Hot and cold metallic surfaces of
the refrigerant circuit may cause
burns or frostbite if skin contact is
made.
Wear personal protective equip-
ment to protect against burns or
frostbite.
!Please note
When refrigerant is being removed,
hydraulic components may freeze.
Drain heating water from the heat
pump beforehand.
Danger
Damage to the refrigerant circuit
can cause refrigerant to enter the
hydraulic system.
After completion of the work, vent
the hydraulic system correctly.
When doing so, ensure the area is
sufficiently ventilated.
Safety instructions
Safety instructions (cont.)
6171787

6
Installation
Frost protection
!Please note
Freezing can cause damage to the
heat pump.
■Thermally insulate all the
hydraulic lines.
■In order to activate the frost pro-
tection function, electrically con-
nect the heat pump before filling
the secondary circuit. Switch on
the power supply. Switch on the
ON/OFF switch on the indoor unit.
■Only fill the secondary circuit with
suitable fill water in accordance
with VDI 2035, not with media
containing antifreeze.
Connecting cables
Danger
With short electrical cables, should
there be leakage in the refrigerant
circuit, gaseous refrigerant may
reach the inside of the building.
Min. length of the electrical con-
necting cables between the indoor
and the outdoor unit: 3 m
Repair work
!Please note
Repairing components that fulfil a
safety function can compromise the
safe operation of the system.
■Replace faulty components only
with genuine Viessmann spare
parts.
■Do not undertake any repairs on
the inverter. Replace the inverter if
there is a defect.
Auxiliary components, spare and
wearing parts
!Please note
Spare and wearing parts that have
not been tested together with the
system can compromise its func-
tion. Installing non-authorised com-
ponents and making non-approved
modifications or conversions can
compromise safety and may invalid-
ate our warranty.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Safety instructions
Safety instructions (cont.)
6171787

7
Safety instructions for operating the system
What to do if refrigerant escapes
Danger
Escaping refrigerant can lead to fire
and explosions that result in very
serious injuries or death. There is a
risk of asphyxiation if it is breathed
in.
■Ensure very good ventilation
especially in the floor area of the
outdoor unit.
■No smoking! Prevent naked
flames and sparks. Never switch
lights or electrical appliances on
or off.
■Evacuate any people from the
danger zone.
■From a safe position, switch off
the electricity supply for all system
components.
■Remove ignition sources from the
danger zone.
■Let the system user know that no
ignition source may be brought
into the danger zone for the dura-
tion of the repair.
■Repair work must be carried out
by an authorised contractor.
■Only recommission the system
after it has been repaired.
Danger
Direct contact with liquid and gas-
eous refrigerant can cause serious
damage to health, e.g. frostbite
and/or burns. There is a risk of
asphyxiation if it is breathed in.
■Prevent direct contact with liquid
and gaseous refrigerant.
■Never breathe in refrigerant
vapours.
If water escapes from the appliance
Danger
If water escapes from the appliance
there is a risk of electric shock.
Switch off the heating system at the
external isolator (e.g. fuse box,
domestic distribution board).
Danger
If water escapes from the appli-
ance, there is a risk of scalding.
Never touch hot heating water.
What to do if the outdoor unit ices up
!Please note
A build-up of ice in the condensate
pan and in the fan area of the out-
door unit can cause damage to the
equipment.
Please note the following:
■Do not use mechanical items/aids for
the removal of ice.
■Before using electrical heating applian-
ces, check the refrigerant circuit for
leaks with a suitable measuring device.
–The heating appliance should not be
a source of ignition.
–The heating appliance must meet the
requirements of EN 60335-2-30.
■If ice regularly builds up on the outdoor
unit (e.g. in areas where frost and
heavy fog occur frequently), install fan
ring heating (accessories) that is suita-
ble for refrigerant R290 and/or an elec-
tric ribbon heater in the condensate
pan (accessories or factory-fitted).
Safety instructions
Safety instructions (cont.)
6171787

8
Safety instructions for storage of the outdoor unit
The outdoor unit is charged at the fac-
tory with refrigerant R290 (propane).
Danger
Escaping refrigerant can lead to fire
and explosions that result in very
serious injuries or death. There is a
risk of asphyxiation if it is breathed
in.
Store the outdoor unit in the follow-
ing conditions:
■An explosion prevention plan must be
in place for storage.
■Ensure there is sufficient ventilation at
the storage location.
■Temperature range for storage: –25 °C
to 70 °C
■Only store the outdoor unit in its ex-
factory protective packaging.
■Protect the outdoor unit against dam-
age.
■The maximum number of outdoor units
that may be stored in one place is
determined by local conditions.
Safety instructions
Safety instructions (cont.)
6171787

9
1. Notes Notes ..................................................................................................... 10
Operating medium ................................................................................. 10
Colour coding ......................................................................................... 10
2. Connection and wiring dia-
gram: Indoor unit
Sheet 1: HPMU electronics module, plug 1, 5, 74, 91 ........................... 11
Sheet 2: HPMU electronics module, plug X4, X5 .................................. 12
Sheet 3: HPMU electronics module, 230 V~ components ..................... 13
Sheet 4: HPMU electronics module, 230 V~ mains connections .......... 14
Sheet 6: EHCU electronics module, plug X4, X10, X11, X20 ................ 15
Sheet 7: EHCU electronics module, plug X1, X2, X5, X17 .................... 16
Sheet 8: EHCU electronics module, plug X7, X19, X22, X23, X26 ....... 17
Sheet 9: EHCU electronics module, plug X3, X6, X12, X18, X25 ......... 18
Sheet 10: EHCU electronics module, instantaneous heating water
heater ..................................................................................................... 19
3. Connection and wiring dia-
gram: Outdoor unit
Sheet 102: Compressor 400 V~ ............................................................ 20
Sheet 104: Compressor 230 V~ ............................................................ 21
Sheet 106: VCMU refrigerant circuit controller ...................................... 22
Index
Index
6171787

10
■Observe the information on electrical connections in
the installation and service instructions.
■In the case of a power supply with power-OFF
facility, the power to the control circuit (heat pump
control unit) must be supplied without interruption by
the power supply utility.
■Example for reading the references to other sheets
Example: /7.5
/ = cross-reference
7. = sheet number
5 = current path
Operating medium
B Pressure switch, temperature switch, thermal relay
E Oil sump heater, instantaneous heating water heater
F Fuse, thermal relay, flow switch
J Plug-in connector
K Contactors, relays
M Motor, circulation pump, motorised valve, compressor
N Controller
Q Mains isolator, power contactor, output relay
R Choke coil
S Control switch
T Inverter
X Terminals, plugs
Y Valve
Colour coding
BK Black
BN Brown
BU Blue
GN Green
GNYE Green/yellow
GY Grey
RD Red
WH White
YE Yellow
Notes
Notes
6171787
Service

11
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 151-A, indoor unit
Sheet 1
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
HPMU electronics module, extra low voltage (ELV), plug 1, 5, 74, 91
A
1
3
2
1
3
2
3
2
1
1
22
1
3
2
1
4
3 4
1
2
BN BU
1
2
6
5
/7.7
/8.7
HPMU_X2:1/7.3 HPMU_X2:2/7.3 HPMU_X8:1/7.3 HPMU_X8:2/7.3 HPMU_X8:3/7.3
Ext. CAN-Gnd
Ext. CAN-L
Ext. CAN-H
91
Ext. CAN-Gnd
Ext. CAN-L
Ext. CAN-H
74 1
5
ATS
GND
STS
GND
1
B
C
D
E
F
74 1
5
91 91
Fig. 1
AHPMU electronics module
BPlusBus
CCylinder temperature sensor
DOutside temperature sensor
ECAN bus when integrated into an external
CAN bus system as the first or last subscriber
(plug 91 in the HPMU electronics module without
terminator)
FCAN bus when integrated into an external
CAN bus system as the middle subscriber (plug 91
in the HPMU electronics module with terminator)

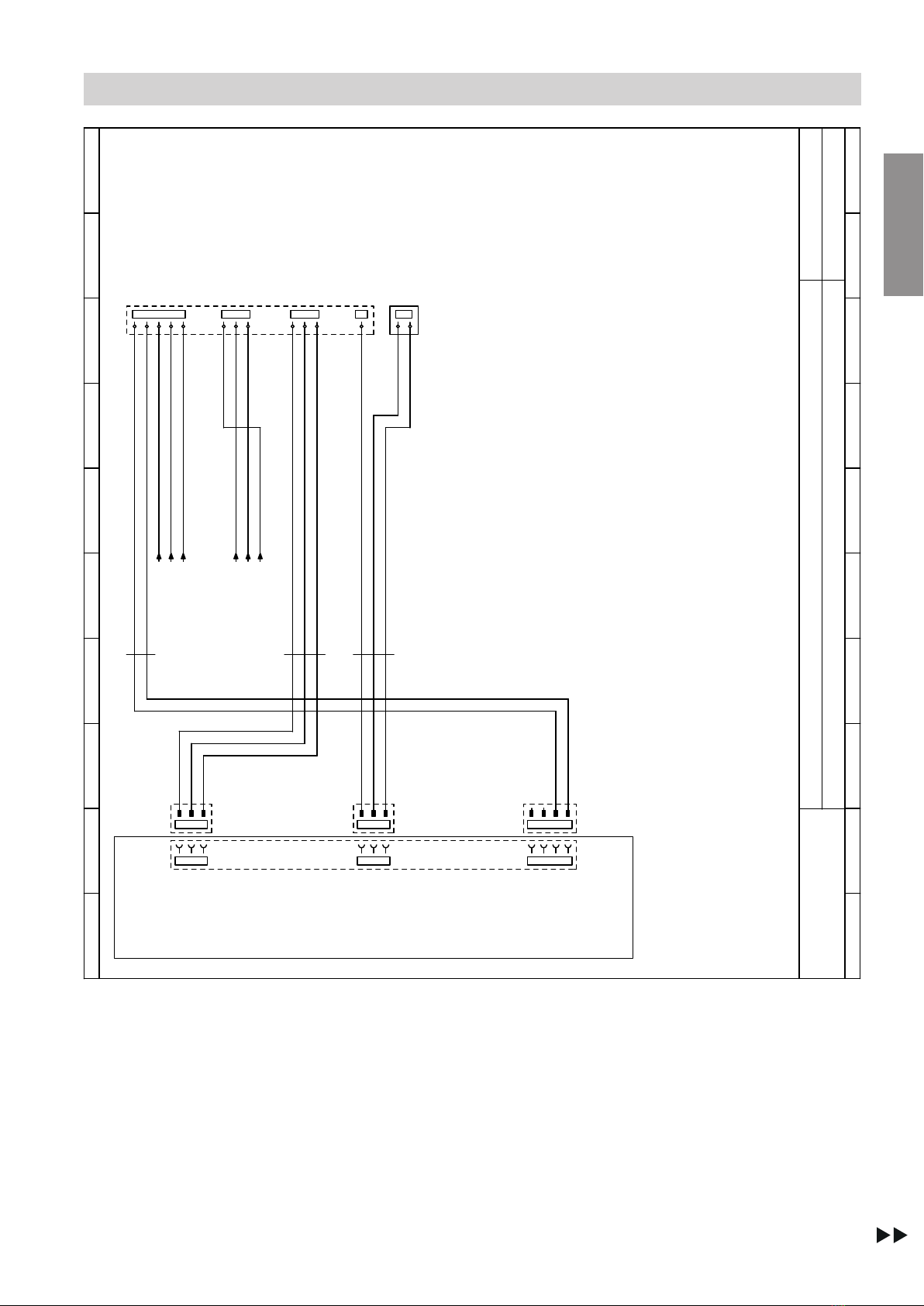

Connection and wiring diagram: Indoor unit
Sheet 1: HPMU electronics module, plug 1, 5, 74, 91
6171787
Service

12
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 150-A/151-A, indoor unit
Sheet 2
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
HPMU electronics module, extra low voltage (ELV), plug X4, X5
A
24V
X4
CAN-H
GND
CAN-L
GND
24V
X5
CAN-H
GND
CAN-L
GND
24V
GND
24V
6 5 4 3 2 11
2 3 4 5 6
1 2 3 4 5 6 7 8 9
10
HPMU_X4:1 / 6.4 HPMU_X4:2 / 6.4 HPMU_X4:3 / 6.4 HPMU_X4:4 / 6.4 HPMU_X4:5 / 6.4
B
C
Fig. 2
AHPMU electronics module
BCAN bus cable to the EHCU electronics module
CConnecting cable to the HMI programming unit
Connection and wiring diagram: Indoor unit
Sheet 2: HPMU electronics module, plug X4, X5
6171787
Service

13
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 150-A/151-A, indoor unit
Sheet 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
HPMU electronics module, 230 V~ components
A
11 12 13
14
15
16
17 18
19
20
2
3
1
3
4 2
1
1
2
3
11
10
9
8
7
6
5
4
BN BU
2
3
1
BU BN GNYE
12
1
2
BU BN GNYE
EHCU_X18:1
/9.4
EHCU_X18:2
/9.4
EHCU_X18:3
/9.4
EHCU_X25:1
/9.4
EHCU_X25:2
/9.4
EHCU_X25:3
/9.4
N
PE
L
N
PE
N
PE
L L 1
P1 96
P2
28 96
171
143 P1
20
P2 P2
B
C D E
Fig. 3
AHPMU electronics module
BPower supply for digital inputs and digital inputs,
connections 143.1 to 143.5
CAC contact for active cooling function
DCirculation pump, e.g. heating circuit pump
EDHW circulation pump
Connection and wiring diagram: Indoor unit
Sheet 3: HPMU electronics module, 230 V~ components
6171787
Service

14
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 151-A, indoor unit
Sheet 4
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
HPMU electronics module, 230 V~ mains connections
A
2a 2
1a 1
2 1
2
3
3
2
1
1
5 6
4 3 2
7
8
9
10
11
BU BN GNYE
1
1
1
1
S1 S2
S3 S4
1
PE_2
BN BU
BN BU
GNYE
GNYE 1
1
2
3
HPMU_X1.3:2 /9.4 HPMU_X1.3:1 /9.4 HPMU_X1.3:3 /9.4
40 156
N
L
PE
N
PE
L
N
PE
L
40 156 156
PE
PE
6.3 A (slow)
40
B
C
D
Fig. 4
AHPMU electronics module
BPower supply to control unit/PCB
CPower supply, EHCU electronics module
DSwitched mains output for mains connection,
accessories, e.g. mixer extension kit
Connection and wiring diagram: Indoor unit
Sheet 4: HPMU electronics module, 230 V~ mains connections
6171787
Service

15
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 150-A/151-A, indoor unit
Sheet 6
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
EHCU electronics module, extra low voltage (ELV), plug X4, X10, X11, X20
X4
GND GND
X11
GND
5V
X20 X10
GND
GND
IN
GND
5V
IN
CAN-L
CAN-H
24V
1 2 3 4
1 2 3 4
1 2 3
1 2 3
1 2 3 1 2 3
1 2 3
4 5 6
4 5 6
1 2 3 4
1 2 1 2
GND +5V DC Signal out
BU
BN BU BN
HPMU_X4:1 / 2.4 HPMU_X4:2 / 2.4 HPMU_X4:3 / 2.4 HPMU_X4:4 / 2.4 HPMU_X4:5 / 2.4
A
B C
D
5V 5V
E
F
Fig. 5
AEHCU electronics module
BFlow temperature sensor, heating/cooling circuit 1
CReturn temperature sensor
DPressure sensor
EDo not connect anything here!
FCAN bus cable to the HPMU electronics module
Connection and wiring diagram: Indoor unit
Sheet 6: EHCU electronics module, plug X4, X10, X11, X20
6171787
Service

16
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 151-A, indoor unit
Sheet 7
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
EHCU electronics module, extra low voltage (ELV), plug X1, X2, X5, X17
A
+24VDC
GND 0-10V out 0-10V in nc GND M
1 2
3 4 5 6
3 2 1
X5 X1
3 2 1 4
X17
3 2 1 4
1 2 3 4 5 6
1 2 3 4
1 2 3
1 2 3 4
55
1 2 3 8 7 6 5 4
X105
8
7
X106
/1.7
HPMU_X2:1
/1.4
HPMU_X2:2
/1.4
HPMU_X8:1
/1.4
HPMU_X8:2
/1.4
HPMU_X8:3
/1.4
CAN-L
CAN-H
GND
AN OUT
AN IN
GND 1
24V
5V
GND
GND 2
74 72 91 9
X2
3 2 1 4
G
B
C D E F
Fig. 6
AEHCU electronics module
B4/3-way valve motor
CPlusBus subscriber
DCAN bus communication cable to indoor/outdoor
unit
ECAN bus when integrated into an external
CAN bus system as the first or last subscriber
FE.g. temperature sensor, external buffer cylinder
GDo not connect anything here!
Connection and wiring diagram: Indoor unit
Sheet 7: EHCU electronics module, plug X1, X2, X5, X17
6171787
Service

17
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 151-A, indoor unit
Sheet 8
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
EHCU electronics module, extra low voltage (ELV), plug X7, X19, X22, X23, X26
A
1 2
X23 X19
3 2 1 4
X7
3 2 1
X26
1 2
X22
4 3 2 1
1 2 3
1 2 3 4
1 2
X106
/1.7
1 2
1 2 3 4
EHCU_X7:3 /9.7 EHCU_X7:2 /9.7 EHCU_X7:1 /9.7
GND
IN
ALL TX
ALL RX
GND
5V
PWM OUT
GND
PWM IN
PWM OUT
PWM IN
GND GND
IN
Rx data GND +5VDC
Tx data
92 A
92B
3
2 1
B
D
F
E
C
Fig. 7
AEHCU electronics module
BDo not connect anything here!
CContact humidistat 24 V for heating/cooling cir-
cuit 1
DFlow sensor
EDo not connect anything here!
FPWM signal for secondary pump/heating circuit
pump, heating/cooling circuit 1
Connection and wiring diagram: Indoor unit
Sheet 8: EHCU electronics module, plug X7, X19, X22, X23, X26
6171787
Service

18
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 150-A/151-A, indoor unit
Sheet 9
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
EHCU electronics module, 230 V~, plug X3, X6, X12, X18, X25
M
1~
PE
N
X6 1
2 3
1 2 3
L
PE
N
X25 1
2 3
L
PE
N
X3 1
2 3
1 2 3
L
X18 1
2 3 4
1 2 3 4
X12 1
2
1 2 33
2 1
EHCU_X18:1 / 3.4 EHCU_X18:2 / 3.4 EHCU_X18:3 / 3.4
H
BU GNYE BN BK BU BN
HPMU_X1.3:3 / 4.4 HPMU_X1.3:2 / 4.4 HPMU_X1.3:1 / 4.4
F
EHCU_X7:1 / 8.4 EHCU_X7:2 / 8.4 EHCU_X7:3 / 8.4 D
BK WH BN
PWM out
GND
PWM in
A
PE
N
L
1 2 3
1 2 3
EHCU_X25:1 / 3.4 EHCU_X25:2 / 3.4 E
1 2 3EHCU_X25:3 / 3.4
C
GNYE BU BN
40
B
G
Fig. 8
AEHCU electronics module
BPower supply, secondary pump/heating circuit
pump, heating/cooling circuit 1
CSecondary pump/heating circuit pump, heating/
cooling circuit 1
DPWM signal for secondary pump/heating circuit
pump, heating/cooling circuit 1
EAC contact for active cooling function
FPower supply EHCU
GDo not connect anything here!
HDigital inputs
Connection and wiring diagram: Indoor unit
Sheet 9: EHCU electronics module, plug X3, X6, X12, X18, X25
6171787
Service

19
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 151-A, indoor unit
Sheet 10
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 8 9
EHCU electronics module, instantaneous heating water heater
A
1211 2221 3231 1STB.32
1STB.22
STB.12
1
PE_4
12 1
1
2
K3
1
2
K7
1
2
K5
STB
1
STB.11
1
STB.21
1
STB.31
HWDE
PE
2
1
2
1
2
1
3 2
X102
1 5 4
X103
3 2 1
1
PE_3
NO
COM
NO
COM
NO
COM
136
WH RD BK
WH RD
BK
GNYE
BC
D
E
136
N3 N2 N1 NPE L3 L2 L1
Fig. 9
AEHCU electronics module
BHigh limit temperature cut-out device
CInstantaneous heating water heater
DPower supply to instantaneous heating water
heater with 3 x 230 V~ connection
EPower supply to instantaneous heating water
heater, 400 V~ and 230 V~
Connection and wiring diagram: Indoor unit
Sheet 10: EHCU electronics module, instantaneous heating water heater
6171787
Service

20
PE
1
-PE1
/3.2
-PE
x1 x2
-C1
470 nF
x1
x2
-C2
470 nF
x1
x2
-C3
470 nF
-X70 1
x1 x2
-C4
/4.1
470 nF
-ID 1
2
3 4
5 6
-X41 L1 L2 L3 N PE
1
-X42
3
-X42
2
-X42
L1VL2VL3VNV PE
1
-PE1
/3.2 /3.2
1 2
-F2
6.3 A
/3.2
3
-X46
2
-X46
U1 V1 W1
-M1
/3.5 3
M
-I1
/3.4 L1
-J1 L2 L3 PE
U
-J3 V W PE 7
-P1 6 5
1 2
3
-M8
/3.4
Fan 2
M
1~
12
3
-M6
/3.3
Fan1
M
1~
3
-P2
4
11 12
-SHD
/3.8
13 14
1
-X68
1
-X69
2
-X68
2
-X69
8 9
+ --DLT
/1.7
/3.7
/4.7
3
-L1O´/1.2 -NO /1.2
-GND
1.6 /
-+
/1.6
--
/1.6
-GNDL
2.3
PWM
2.3 Tacho
2.3
+10V
2.3
PWM
2.4
+10V
2.4 -GNDL
2.4
Tacho
2.4
Mains 3/N/PE 400V/50Hz
-N -PE
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
viesmann Vitocal 150-A/151-A, outdoor unit
Sheet 102
0 1 2 3 4 5 6 7 8 9
0 1 2 3 4 5 6 8 9
Compressor 400-V
P
A
CD
G H
B
E
F
K
L
M
-Klixon
117 °C
30.3 bar
(3.03 MPa)
GND
Rx/Tx+
Rx/Tx-
1
-X46
2
-F4
6.3 A
/3.2
X1 X21
13A 25mH
/4.1
-L2 1
-156
Fig. 10
ACompressor power supply
BMains terminals, compressor
CLower fan
DUpper fan
EChoke coils, inverter
FInverter
GHot gas temperature sensor
HHigh pressure switch PSH
KInterior temperature sensor
LModbus to VCMU refrigerant circuit controller
MCompressor motor
Connection and wiring diagram: Outdoor unit
Sheet 102: Compressor 400 V~
6171787
Service
