Viessmann VITOCAL 300-G User manual

Operating instructions
for the system user
VIESMANN
Compact heat pump with electric drive
Single and two-stage, type BW/BWS, WW/WWS
VITOCAL 300-G
5592 637 GB 11/2009 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for system users.
This appliance is not designed to be
used by persons (including children) with
limited physical, sensory or mental
capacities, or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety,
or have received instructions from such
a person as to how to use the appli-
ance.
!Please note
Children should be supervised.
Ensure that children never play
with the appliance.
Danger
Incorrect work on the system can
lead to life-threatening acci-
dents.
Work on electrical equipment
must only be carried out by a
qualified electrician.
In case of fire
Danger
With fire there is a risk of burn-
ing.
■ Shut down the system.
■ Use a tested fire extinguisher,
class ABC.
Installation room conditions
!Please note
Incorrect ambient conditions can
lead to system damage and can
put the safe operation at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Avoid air contamination
through halogenated hydrocar-
bons (e.g. as in paints, solvents
and cleaning agents).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
Safety instructions
For your safety
5592 637 GB

3
Auxiliary components, spare and
wearing parts
!Please note
Components that are not tested
with the system may cause sys-
tem damage, or may affect its
functions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 637 GB

4
Introductory information
Device description................................................................................................ 6
Commissioning..................................................................................................... 6
Your system is preset at the factory..................................................................... 7
Terminology.......................................................................................................... 7
Energy saving tips................................................................................................ 8
Operation
Controls................................................................................................................ 10
Menu.................................................................................................................... 11
How to use the controls........................................................................................ 13
Start-up/shutdown
Starting the heat pump......................................................................................... 16
Stopping the heat pump....................................................................................... 16
■ With frost protection monitoring........................................................................ 16
■ Without frost protection monitoring (shutting down the system)....................... 17
Central heating/cooling
Central heating/cooling......................................................................................... 18
Required settings (heating/cooling)...................................................................... 19
Selecting the heating/cooling circuit..................................................................... 19
Setting the room temperature............................................................................... 20
Enabling electric heater for central heating.......................................................... 20
Setting the heating/cooling operating program.................................................... 21
Setting the time program for heating/cooling........................................................ 21
Changing the heating curve................................................................................. 23
Enabling and disabling the active cooling mode.................................................. 24
Stopping the central heating/cooling.................................................................... 25
Comfort and energy saving functions
Selecting party mode............................................................................................ 26
Selecting economy mode..................................................................................... 27
Selecting the holiday program.............................................................................. 27
DHW heating
Required settings (DHW heating)......................................................................... 29
Setting the DHW temperatures............................................................................ 29
Enabling electric heater for DHW heating............................................................ 29
Setting the operating program for DHW heating.................................................. 30
Setting the time program for DHW heating.......................................................... 31
■ DHW heating outside the time program............................................................ 33
Setting the time program for DHW circulation pump............................................ 34
Index
Index
5592 637 GB

5
Switching off DHW heating................................................................................... 36
Heating water buffer cylinder
Setting a time program for the heating water buffer cylinder................................ 37
Further adjustments
Setting the display brightness.............................................................................. 39
Setting the display contrast.................................................................................. 39
Entering designations for the heating circuits....................................................... 39
Setting the time and date..................................................................................... 40
Language selection.............................................................................................. 40
Selecting a temperature unit (°C/°F).................................................................... 40
Restoring factory settings..................................................................................... 41
Scanning
Scanning information............................................................................................ 42
Scanning messages............................................................................................. 43
Manual mode...................................................................................................... 45
What to do if...
Rooms are too cold.............................................................................................. 46
Rooms are too hot................................................................................................ 46
There is no hot water............................................................................................ 47
" " flashes and "Note" is displayed...................................................................... 47
" " flashes and "Warning" is displayed............................................................... 47
" " flashes and "Fault" is displayed..................................................................... 47
"Power-OFF C5" is displayed............................................................................... 48
"External program" is displayed........................................................................... 48
Maintenance
Servicing............................................................................................................... 49
■ Cleaning............................................................................................................ 49
■ Inspection and maintenance............................................................................. 49
Appendix
Menu overview..................................................................................................... 50
■ Standard menu................................................................................................. 50
■ Extended menu................................................................................................. 51
Terminology.......................................................................................................... 53
Keyword index.................................................................................................... 60
Index
Index (cont.)
5592 637 GB

6
The Vitocal 300-G is a brine/water heat
pump with electric drive. It can be oper-
ated in single stage (type BW/WW) or
two-stage (type BW/WW + type BWS//
WWS) mode.
■ Heating circuits:
Up to 3 heating circuits (2 with mixers)
can be heated.
■ Dual-mode:
The heat pump supports dual mode
operation with an additional external
heat source, e.g. oil condensing boiler.
■ Cooling:
The natural cooling and active cooling
functions are supported if the required
accessories are installed. Cooling is
provided via a heating circuit, e.g.
underfloor heating circuit, or via a sep-
arate cooling circuit, e.g. chilled ceiling
or fan convector.
■ DHW heating:
The control side of this equipment is
prepared for DHW heating using an
external DHW cylinder, and the control
of a DHW circulation pump.
■ Heat pump control unit:
All connected components are oper-
ated and controlled via the integral
heat pump control unit Vitotronic 200,
type WO1A with plain text menus.
Note
These operating instructions also
describe functions that are only available
with accessories. These functions are
not universally identified in each case.
The type and extent of menu entries in
the heat pump control unit also depend
on the equipment level of your heating
system and the selected settings/adjust-
ments on the heat pump control unit.
In case of questions relating to the extent
of functions and accessories for your
heat pump and your heating system,
check with your local heating contrac-
tor.
Commissioning
The commissioning and matching up of
the heat pump control unit to local con-
ditions and to the structural characteris-
tics of the building, plus the instruction of
the user in operating the system, must
be carried out by your heating contrac-
tor.
Introductory information
Device description
5592 637 GB

7
At the factory, the heat pump control unit
is set to "Heating and DHW".
Your heating system is therefore ready
for use:
Central heating/cooling
■ Your rooms are heated to 20 °C "Set
room temperature" around the clock
(standard heating mode).
■ If a heating water buffer cylinder is
installed, it will be heated.
■ Cooling will be switched OFF.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating/
cooling").
DHW heating
■ DHW is heated around the clock every
day. DHW is heated to 50 °C.
■ Any installed DHW circulation pump is
off.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Frost protection for your heat pump,
the DHW cylinder and any heating
water buffer cylinder that may be
installed is enabled.
Winter/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Power failure
■ All data is saved if there is a power
failure.
Terminology
To provide you with a better understand-
ing of the functions of your heat pump
control unit, the appendix contains the
chapter "Terminology" (see page 53).
Introductory information
Your system is preset at the factory
5592 637 GB

8
CE
AB
D

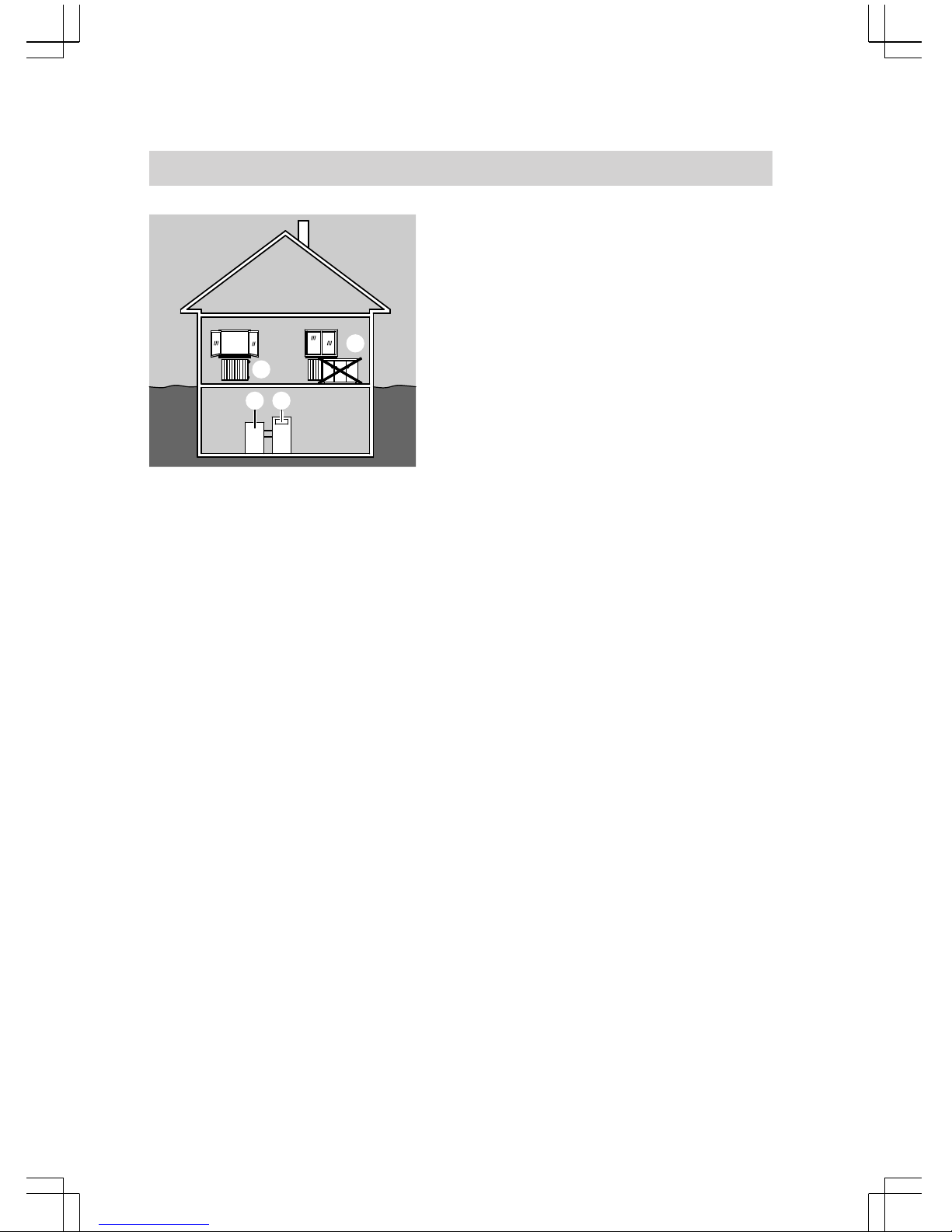

Utilise the setting options offered by the
heat pump control unit A and by the
remote control (if installed):
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6% on heating
costs.
Set your room temperature no higher
than 20 ºC (see page 20).
■ Heat your rooms with the standard
room temperature during the day and
the reduced temperature at night. Set
the time program for this. Select the
time phases according to your needs,
e.g. differently at the weekend to the
weekdays (not for underfloor heating
systems, see page 9).
■ For room heating or room cooling,
select the heating program that meets
your current requirements:
– For short absences (a couple of
hours, e.g. shopping trips), select
"Economy mode" (not for under-
floor heating systems, see
page 9).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, set the "Hol-
iday program" (see page 27).
As long as the holiday program is
activated, the room temperature is
reduced and DHW heating is OFF.
– In summer, if you do not want to heat
any rooms but do need DHW, select
the operating program "Only
DHW" (see page 30).
– If you don't want to heat the rooms
and don't require DHW for an exten-
ded period, select the operating pro-
gram "Standby mode" (see
page 16).
■ Do not set the DHW cylinder temper-
ature B too high (see page 29).
■ Only activate the DHW circulation
pump for when DHW is drawn off reg-
ularly. Set the time program for this
(see page 34).
Introductory information
Energy saving tips
5592 637 GB

9
Information regarding heating sys-
tems with underfloor heating
Underfloor heating systems are slow,
low temperature heating systems and
only respond very slowly to short-term
temperature changes.
■ Therefore, heating with the reduced
room temperature at night and ena-
bling of "Economy mode" during
short absences do not result in signif-
icant energy savings.
■ As heat pumps are largely operated in
conjunction with underfloor heating
systems, no reduction of the room
temperature is preset at the factory.
For additional energy saving functions of
the heat pump control unit, please con-
tact your heating contractor.
Further recommendations:
■ Correct ventilation.
Briefly open windows C fully and at
the same time close thermostatic radi-
ator valves D (if no domestic ventila-
tion system is installed).
■ Close roller shutters (if installed) at
dusk.
■Set thermostatic valves D correctly.
■Never cover radiators E or thermo-
static valves D.
■ Controlled DHW consumption: A
shower generally uses less energy
than a bath.
Introductory information
Energy saving tips (cont.)
5592 637 GB

10
You can change any settings on your
heat pump centrally at the programming
unit of the heat pump control unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Pivoting up the top part of the control unit
AB
C
i
(
D
Note
The top part of the control unit will latch in a specific position. You can change this
position by pressing button C on the side.
AON indicator " " (green)
BFault indicator "«" (red)
CButton for changing the latching
position
DTop part of the control unit with inte-
grated programming unit
Operation
Controls
5592 637 GB

11

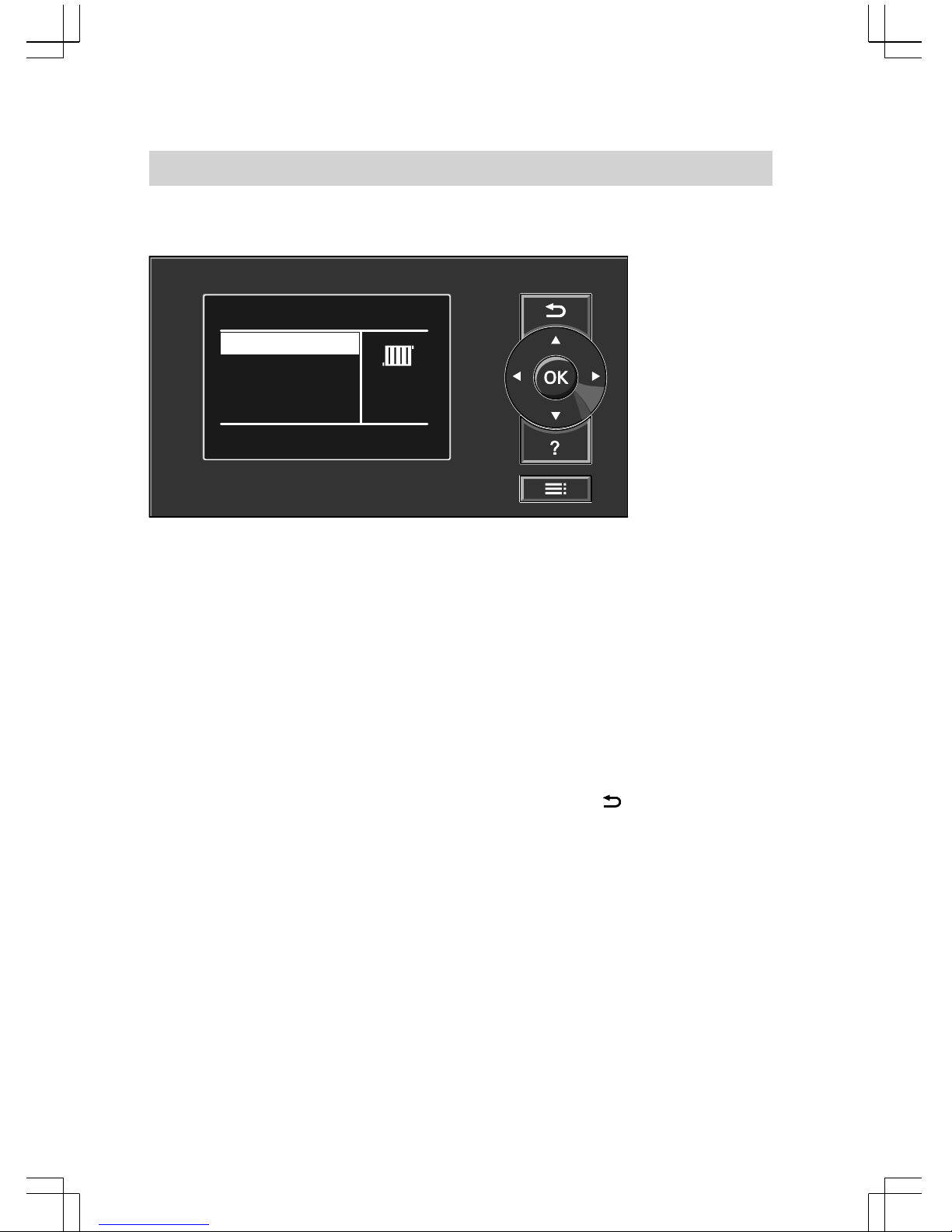

Programming unit
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
Note
The programming unit can also be used in a wall mounting base near the boiler. This
is available as an accessory. Ask your heating contractor about this.
This takes you to the previous step
in the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or set values.
OK Confirms your selection or saves
the setting.
Calls up the help text relevant to the
selected menu point.
Calls up the "Extended menu".
"Help" menu
This displays a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 19).
Call up the short guide as follows:
■ Screensaver is active (see page 13):
Press .
■ You will be somewhere in the menu:
Keep pressing until the "Standard
menu" appears (see page 12).
Call up the "Help" menu option.
Menu
You have two control levels available, the "Standard menu" and the "Extended
menu".
Operation
Controls (cont.)
5592 637 GB

12
Standard menu
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
In the "Standard menu", you can adjust
and scan the settings used most fre-
quently:
■ Adjusting the room temperature
■ Selecting the operating program
■ Setting the comfort function "Party
mode"
■ Selecting the energy saving function
"Economy mode"
■ Adjusting the DHW temperature
■ Starting once-only DHW heating
■ Scanning the solar yield
■ Scanning information
– Temperatures, e.g. outside or col-
lector temperature
– Operating state of pumps, compres-
sor and cooling function
– Seasonal performance factors
(SPF)
■ Selecting manual mode
■ Scanning information, warning and
fault messages
The menu overview can be found on
page 50.
You call up the "Standard menu" as fol-
lows:
■ Screensaver is active:
Press any key.
■ You will be somewhere in the menu:
Keep pressing until the "Standard
menu" appears.
Operation
Menu (cont.)
5592 637 GB

13

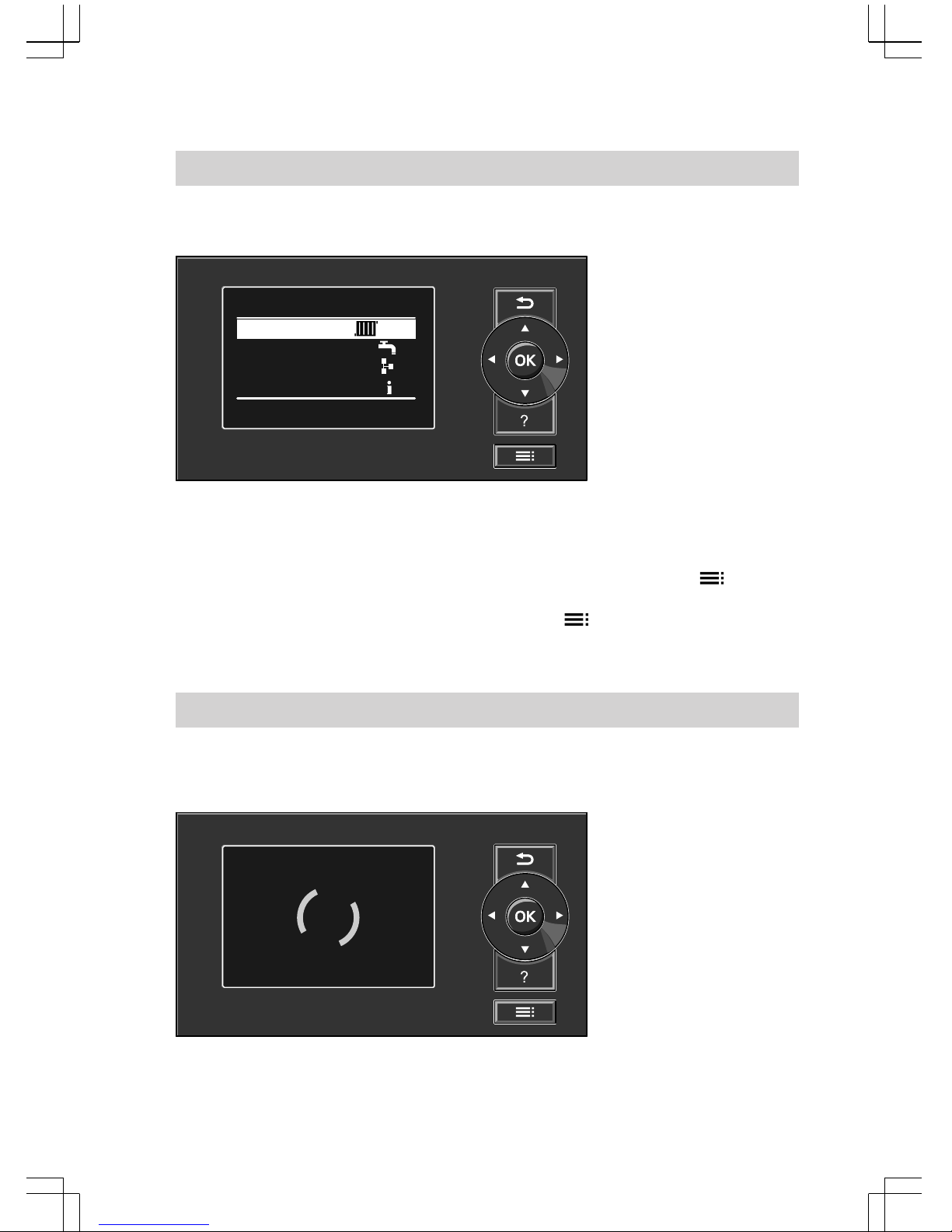

Extended menu
DHW
System
Information
Select with
Heating/cooling
Menu
(
i
In the "Extended menu", you can adjust
and scan the settings from the control
unit's range of functions used less fre-
quently, e.g. holiday program and time
programs.
The menu overview can be found on
page 51.
You call up the "Extended menu" as fol-
lows:
■ Screensaver is active:
Press any key and then .
■ You will be somewhere in the menu:
Press .
How to use the controls
The screensaver will be active if you have not adjusted any settings on the program-
ming unit for a few minutes.
Press OK. This takes you to the "Stand-
ard menu" (see page 12).
Operation
Menu (cont.)
5592 637 GB

14
A
DHW
Solar energy
Information
40 °C
Heating/cooling
Flow temperature
Select with
i

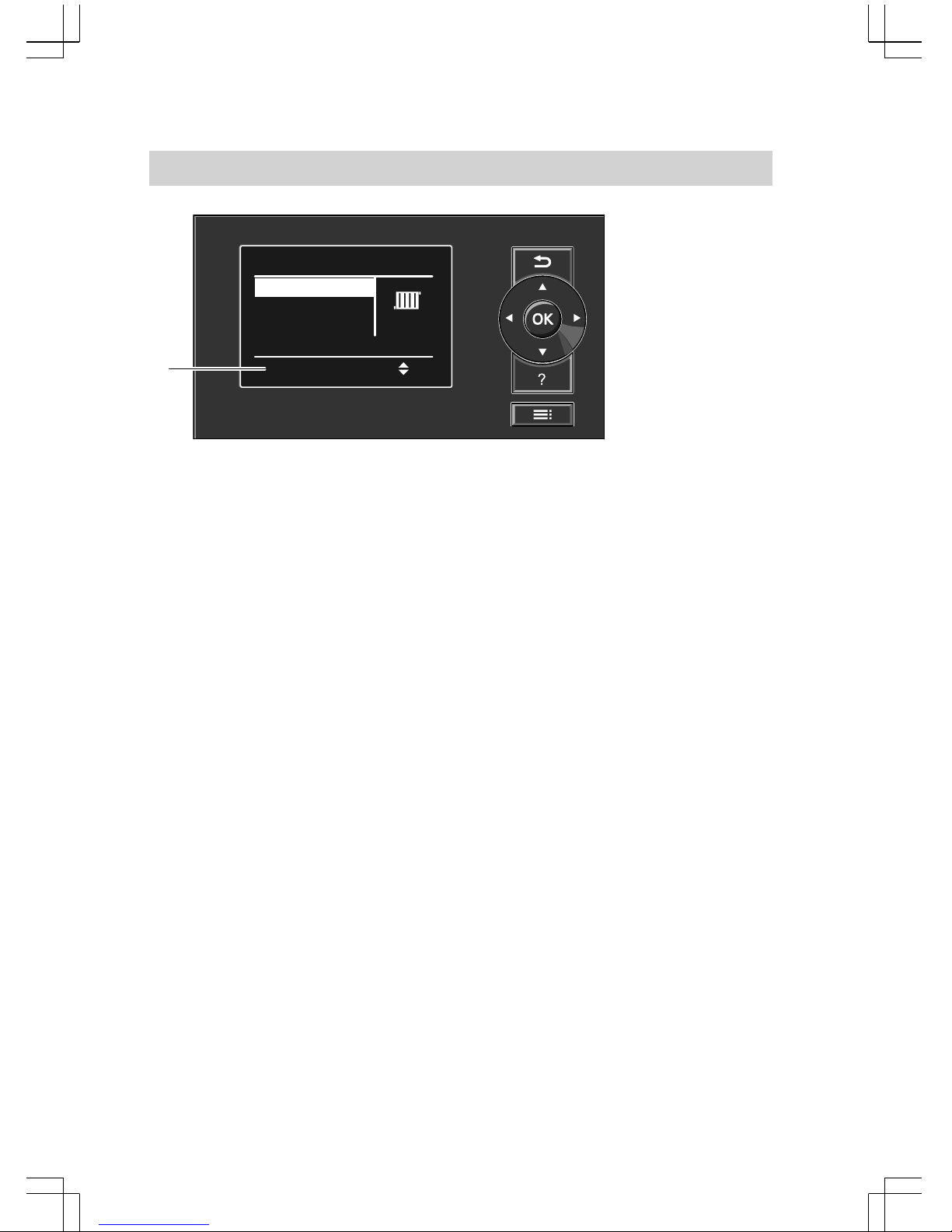

ADialogue line
The selected menu option is highlighted
white.
The dialogue line then shows the neces-
sary instructions.
The following example shows the setting
procedure with the various dialogue
lines.
Operation
How to use the controls (cont.)
5592 637 GB

15
Heating circuit 1
Heating program
Party mode
Economy mode
ß
22°C
ÙÚ
Set room temp.
HC1
22°C
(
Set room temperature HC1
22°C
OK
Vv
or
OK
Ú
OK
Select heating circ ÙÚ
HC2
Was selected
Heating circuit 2
OK
Set room temperature HC1
22°C
Adopted
DHW
Solar energy
Information
40°C
Heating/cooling
Flow temperature
Select with (
OK
Heating circuit 1
Heating program
Party mode
Economy mode
ß
20°C
ÙÚ
Set room temp.
HC1
Select with (
ÙÚ
HC1
Heating circuit 2
Heating program
Party mode
Economy mode
ß
20°C
ÙÚ
Set room temp.
HC2
(
ÙÚ
HC2
Select with
Set room temperature HC1
20°C
(Change with
Accept with
Select with
i
Operation
How to use the controls (cont.)
5592 637 GB

16
Warmwasser
Solarenergie
Information
Wählen mit
40°C
Heizung/Kühlung
Vorlauftemperatur
i
(

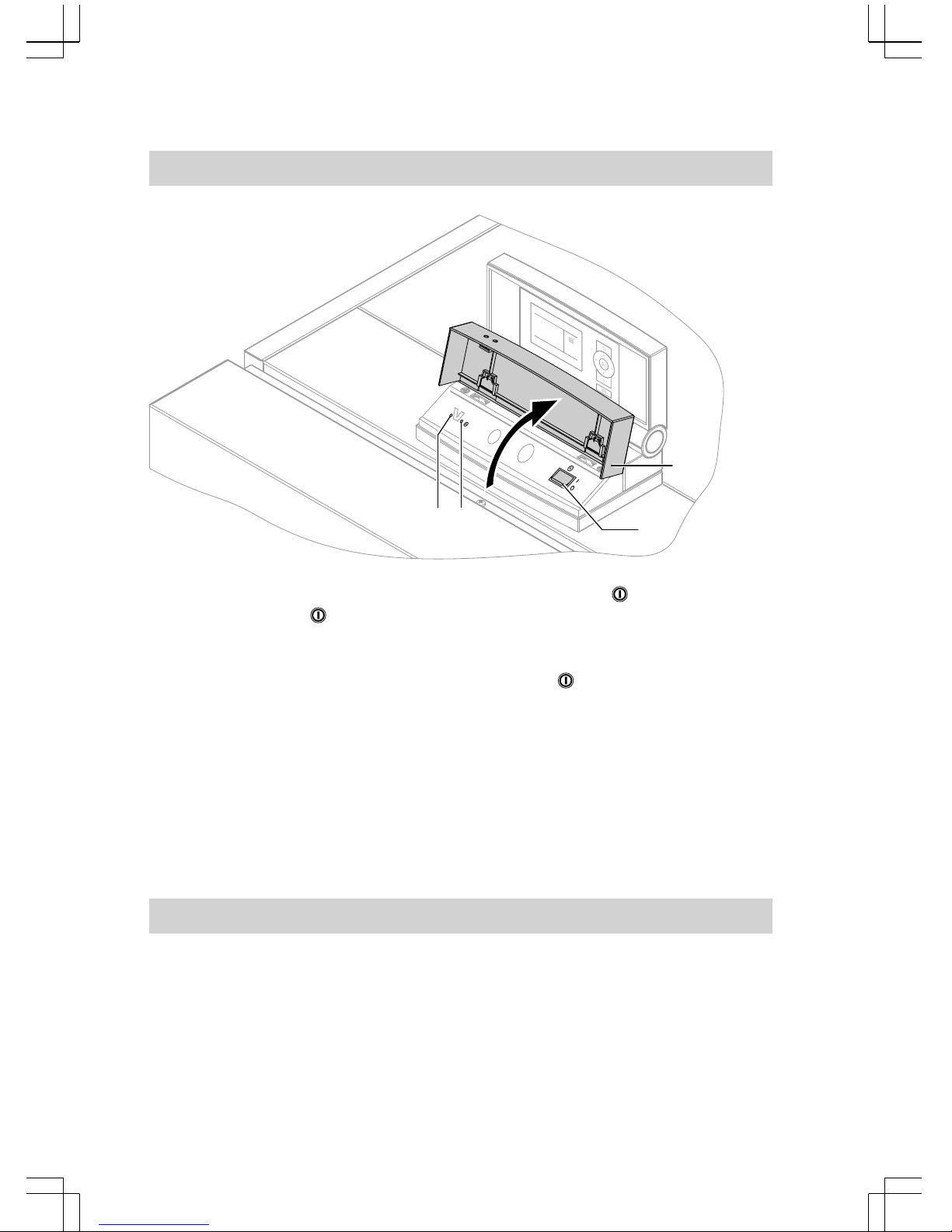

A
C
DB
ACover flap
BON/OFF switch " "
CON indicator " " (green)
DFault indicator "«" (red)
1. Switch ON the power supply, e.g. at
a separate MCB/fuse or a main iso-
lator.
2. If the control unit is closed, pivot the
top of the control unit up (see
page 10).
3. Open cover flap A to gain access to
the ON/OFF switch.
4. Switch ON the system ON/OFF
switch " ".
After a short time, the "Standard
menu" is displayed (see page 12).
Your heat pump and, if installed, your
remote control units are now ready to
operate.
Stopping the heat pump
With frost protection monitoring
For every heating circuit, select the operating program "Standby mode".
Start-up/shutdown
Starting the heat pump
5592 637 GB

17
Standard menu
1. "Heating" or "Heating/cooling"
2. Select a heating/cooling circuit or the
separate cooling circuit (see
page 19).
3. "Heating program"
4. "Standby mode"
■ No central heating.
■ No cooling.
■ No DHW heating.
■ Frost protection for your heat pump,
the DHW cylinder and any heating
water buffer cylinder that may be
installed is active.
Note
At temperatures below
−
20 °C, the
frost protection of the heat pump, the
DHW cylinder and the heating water
buffer cylinder is only ensured if an
instantaneous heating water heater is
installed (on site).
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
End operating program "Standby
mode"
Select another operating program.
Standard menu
1. "Heating" or "Heating/cooling"
2. Select a heating/cooling circuit or the
separate cooling circuit (see
page 19).
3. "Heating program"
4. "Only DHW" (no central heating or
central cooling)
or
"Heating and DHW" (central heating
and DHW heating)
or
"Heating/cooling and DHW" (central
heating/cooling and DHW heating)
or
"Cooling" (cooling via a separate
cooling circuit and DHW heating)
Without frost protection monitoring (shutting down the system)
1. Switch the ON/OFF switch " "
OFF.
2. Isolate the heat pump from its main
power supply, e.g. at a separate
MCB/fuse or a main isolator.
3. If outside temperatures of below
3 °C are expected, please take
appropriate measures to protect the
heat pump and the heating system
from frost. If necessary, contact your
heating contractor.
Note
After an extended shutdown, it may be
necessary to reset the date and time
(see page 40).
Start-up/shutdown
Stopping the heat pump (cont.)
5592 637 GB

18
Central heating
■ Central heating is only activated if the
outside temperature falls below the
heating limit. The heating limit can be
set by your local heating contractor.
Cooling via a heating/cooling circuit
■ Cooling via the heating circuit, e.g. an
underfloor heating system (see
page 57) only occurs when the out-
side temperature has exceeded the
cooling limit. The cooling limit can be
set by your local heating contractor.
Cooling via a separate cooling circuit
■ Cooling with a separate cooling circuit,
e.g. chilled ceiling or fan convector
(see page 57) occurs independently
of the outside temperature. The cool-
ing capacity is automatically regulated
so that the selected set room temper-
ature is achieved (room temperature-
dependent cooling operation, see
page 58).
This enables a separate cooling circuit
to provide cooling all year round, e.g.
for a storage room.
Note
No time program can be set for the
separate cooling circuit.
Cooling functions
Subject to the accessories installed, the
heat pump supports the natural cooling
and active cooling functions.
■ In natural cooling mode, the lower tem-
peratures underground are transfer-
red directly to the heating circuit or the
separate cooling circuit. This function
is very efficient as it only requires the
operation of the circulation pumps.
■ If the natural cooling capacity is insuf-
ficient and the required accessories
are installed, the control unit can auto-
matically switch to the active cooling
mode. The heat pump will start in addi-
tion to the circulation pumps resulting
in higher electricity costs. For this rea-
son, the active cooling function must
be enabled once separately (see
page 24).
Central heating/cooling
Central heating/cooling
5592 637 GB

19
If you want central heating or central
cooling, check the following points:
■ Have you selected the heating or cool-
ing circuit?
For settings, see chapter "Selecting
the heating/cooling circuit or a sepa-
rate cooling circuit".
■ Have you set the required room tem-
perature?
For settings, see page 20.
■ Have you set the correct operating
program?
For settings, see page 21.
■ Have you set the required time pro-
gram?
For settings, see page 21.
Selecting the heating/cooling circuit
Central heating can be split over several
heating circuits (heating circuit 1, 2 or 3).
Cooling results either through one of
these heating circuits or via a separate
cooling circuit.
For all settings relating to central heat-
ing/cooling, first select the heating/cool-
ing circuit or the separate cooling circuit
to which your changes should apply.
Example:
■"Heating circuit 1" is the heating cir-
cuit for the rooms occupied by you.
■"Heating circuit 2" is the heating cir-
cuit for the rooms of a separate apart-
ment.
■"Cooling circuit SKK" represents a
fan convector in a storage room.
Ú
Select heating circ HC2
Was selected
Heating circuit 2
Heating circuit 1 HC1
Economy mode
Select with (
Party mode
Heating program
Set room temp.
ß
21°C
ÙÚ
HC2
ÙÚ
HC1
At the factory, the heating/cooling cir-
cuits are designated "Heating circuit
1" (HC1), "Heating circuit 2" (HC2),
"Heating circuit 3" (HC3) and the sep-
arate cooling circuit with "Cooling cir-
cuit SKK" (SKK).
These factory-set designations can be
changed (see page 39). In place of, for
example "Cooling circuit SKK", the
modified designation "Storage" will be
displayed.
Central heating/cooling
Required settings (heating/cooling)
5592 637 GB

20
Note
The abbreviated designations "HC1",
"HC2", "HC3" and "SKK" cannot be
modified.
Setting the room temperature
Setting the room temperature for
standard heating or cooling mode
Factory setting: 20 °C
Standard menu
1. "Heating" or "Heating/cooling"
2. Where appropriate, select a heating/
cooling circuit or separate cooling cir-
cuit.
3. "Set room temp"
4. Set the required value.
Setting the room temperature for
reduced heating mode (night set-
back)
Factory setting: 16 °C
Extended menu
1.
2. "Heating" or "Heating/cooling"
3. Where appropriate, select the heat-
ing/cooling circuit.
4. "Set red. room temp."
5. Set the required value.
The room will be heated to this temper-
ature if:
■ The operating status "Reduc." has
been activated in the time program
(see page 23).
■ The holiday program has been started
(see page 27).
Enabling electric heater for central heating
If the heat pump alone cannot achieve
the selected set room temperature, an
(on-site) instantaneous heating water
heater can be started automatically to
boost central heating.
The constant use of an instantaneous
heating water heater results in higher
power consumption, which therefore
requires it to be enabled.
Extended menu
1.
2. "System"
3. "Heating with electro"
Note
Using the same menu sequence, you
can stop the instantaneous heating
water heater from boosting central
heating at any time.
Central heating/cooling
Selecting the heating/cooling circuit (cont.)
5592 637 GB
