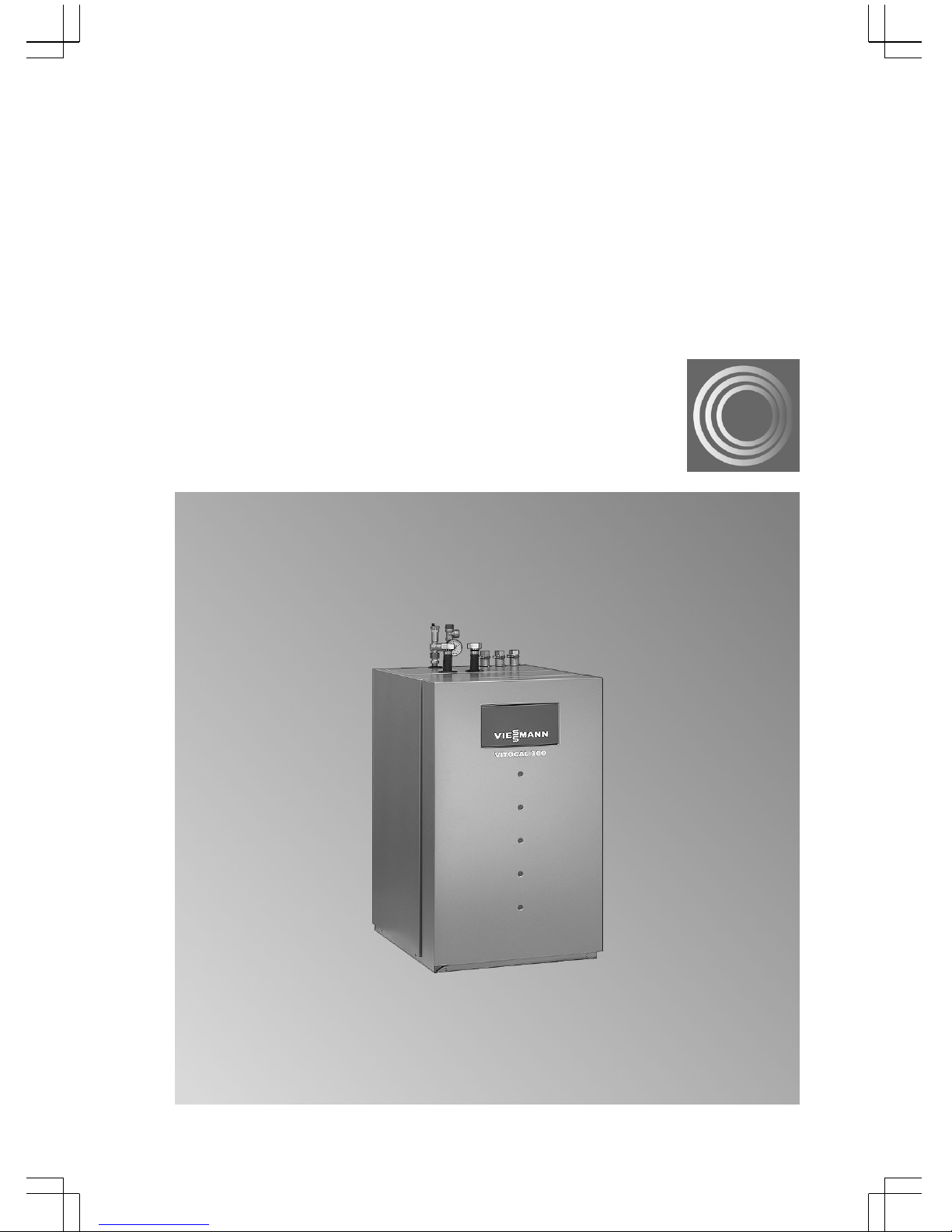

Compact heat pump
with electric drive, type BW/BWC and WW/WWC
VITOCAL 300-G
5592 568 GB 4/2008 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for system users.
This appliance is not designed to be
used by persons (including children) with
limited physical, sensory or mental
capacities, or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety,
or have received instructions from such
a person as to how to use the appli-
ance.
!Please note
Children should be supervised.
Ensure that children never play
with the unit.
Danger
Incorrect work on the system can
lead to life-threatening acci-
dents.
Work on electrical equipment
must only be carried out by a
qualified electrician.
In case of fire
Danger
With fire there is a risk of burn-
ing.
■ Shut down the system.
■ Use a tested fire extinguisher,
class ABC.
Installation room conditions
!Please note
Incorrect ambient conditions can
lead to system damage and can
put the safe operation at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
Safety instructions
For your safety
5592 568 GB

3
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the system may lead to sys-
tem damage, or may affect its
functions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 568 GB

4
Introductory information
Device description................................................................................................ 7
Your system is preset at the factory..................................................................... 7
Off-periods............................................................................................................ 7
Where to find the controls
Summary of controls and indicators..................................................................... 8
■Opening the control unit.................................................................................... 8
■Functions.......................................................................................................... 8
■Symbols on the display..................................................................................... 10
■ Heating circuits................................................................................................. 11
■ Control principles.............................................................................................. 11
Menu tree
Menu tree overview.............................................................................................. 13
Start-up/shutdown
Starting the heat pump......................................................................................... 16
Stopping the heat pump....................................................................................... 16
Switching on central heating / cooling and DHW heating.................................... 17
■ Cooling function................................................................................................ 17
■ Central heating according to time program u.................................................. 18
■ Central heating with standard room temperature s......................................... 18
■ Central heating with reduced room temperature m.......................................... 19
Switching off central heating / cooling and DHW heating (standby 9)................ 19
Starting DHW only w........................................................................................... 19
Manual modeh..................................................................................................... 20
Adjusting the room temperature
Setting a permanent room temperature............................................................... 21
■ Selecting a standard room temperature............................................................ 21
■ Selecting a reduced room temperature............................................................. 22
■ Altering programmed standard and reduced room temperatures..................... 22
■ Setting switching times (time program u)........................................................ 23
Changing the room temperature for a few days only........................................... 25
■ Selecting the holiday program.......................................................................... 25
■ Terminating the holiday program...................................................................... 26
Changing the room temperature for a few hours only.......................................... 26
■ Selecting the party program.............................................................................. 27
■ Terminating the party program.......................................................................... 27
Index
Index
5592 568 GB

5
Selecting DHW heating
Selecting constant DHW heating.......................................................................... 29
■ Selecting the DHW temperature....................................................................... 29
■ Setting switching times (time program u)........................................................ 30
■ Setting switching times of the auxiliary output (e.g. DHW circulation pump).... 31
Selecting DHW heating only once........................................................................ 33
■ Terminating once-only DHW heating................................................................ 33
Auxiliary function (DHW)...................................................................................... 34
Set temperature 2 (DHW)..................................................................................... 34
Start optimisation for cylinder heating.................................................................. 35
Stop optimisation for cylinder heating.................................................................. 36
Further adjustments
Switching times for the heating water buffer cylinder........................................... 37
Modifying the heat pump characteristics.............................................................. 38
Cooling with a separate cooling circuit................................................................. 40
■ Setting the room temperature........................................................................... 40
■ Changing the cooling characteristics of the separate cooling circuit................ 41
■ Cooling with active cooling................................................................................ 41
Date and time....................................................................................................... 41
Language selection.............................................................................................. 42
Restoring the delivered condition ("Reset").......................................................... 42
■ Restoring values individually............................................................................. 43
■ Restoring all values simultaneously.................................................................. 43
Scanning options
Scanning temperatures........................................................................................ 44
Scanning switching times..................................................................................... 44
Scanning statistics................................................................................................ 45
■ Scanning the "Energy statement"..................................................................... 46
■ Scanning the "Message history"....................................................................... 46
Operating conditions in system overview............................................................. 46
■ Explanations regarding the displayed system diagram..................................... 47
■ System overview (function groups)................................................................... 48
■ System overview (values/operation of system components)............................ 49
Scanning messages............................................................................................. 50
■ Dealing with messages..................................................................................... 50
■ Displaying messages........................................................................................ 51
■ Acknowledging messages................................................................................ 51
■ Recalling acknowledged messages.................................................................. 52
What to do if...
No display............................................................................................................. 53
Index
Index
5592 568 GB

6
"¸ C5 power-OFF" appears on the display........................................................... 53
A message symbol flashes on the display: "U", "¸" or "!"...................................... 53
Maintenance
Cleaning............................................................................................................... 54
Inspection and maintenance................................................................................ 54
■ DHW cylinder (if installed)................................................................................. 54
■ Safety valve (DHW cylinder)............................................................................. 54
■ Potable water filter (if installed)......................................................................... 55
Energy saving tips............................................................................................. 56
Keyword index.................................................................................................... 57
Index
Index (cont.)
5592 568 GB

7
Vitocal 300-G is a brine/water heat pump
with electric drive for supplying heat to
up to three heating circuits and one DHW
cylinder.
With matching accessories, the heat
pump can also be used to cool the build-
ing.
Your system is preset at the factory
The control unit is preset at the factory.
Your heating system is ready for use
after selecting a specific operating mode
(see from page 18):
■ Central heating with standard room
temperature (20 °C) all day.
■ DHW is heated all day (50 °C).
Any installed heating water buffer cyl-
inder will be heated up.
The DHW circulation pump is switched
OFF.
■Day and time (CET) were set up in the
factory.
Winter/summertime changeover
will be implemented automatically.
You may change the standard settings
preset at the factory in accordance with
personal requirements.
Note
All data is saved in case of power fail-
ure.
Off-periods

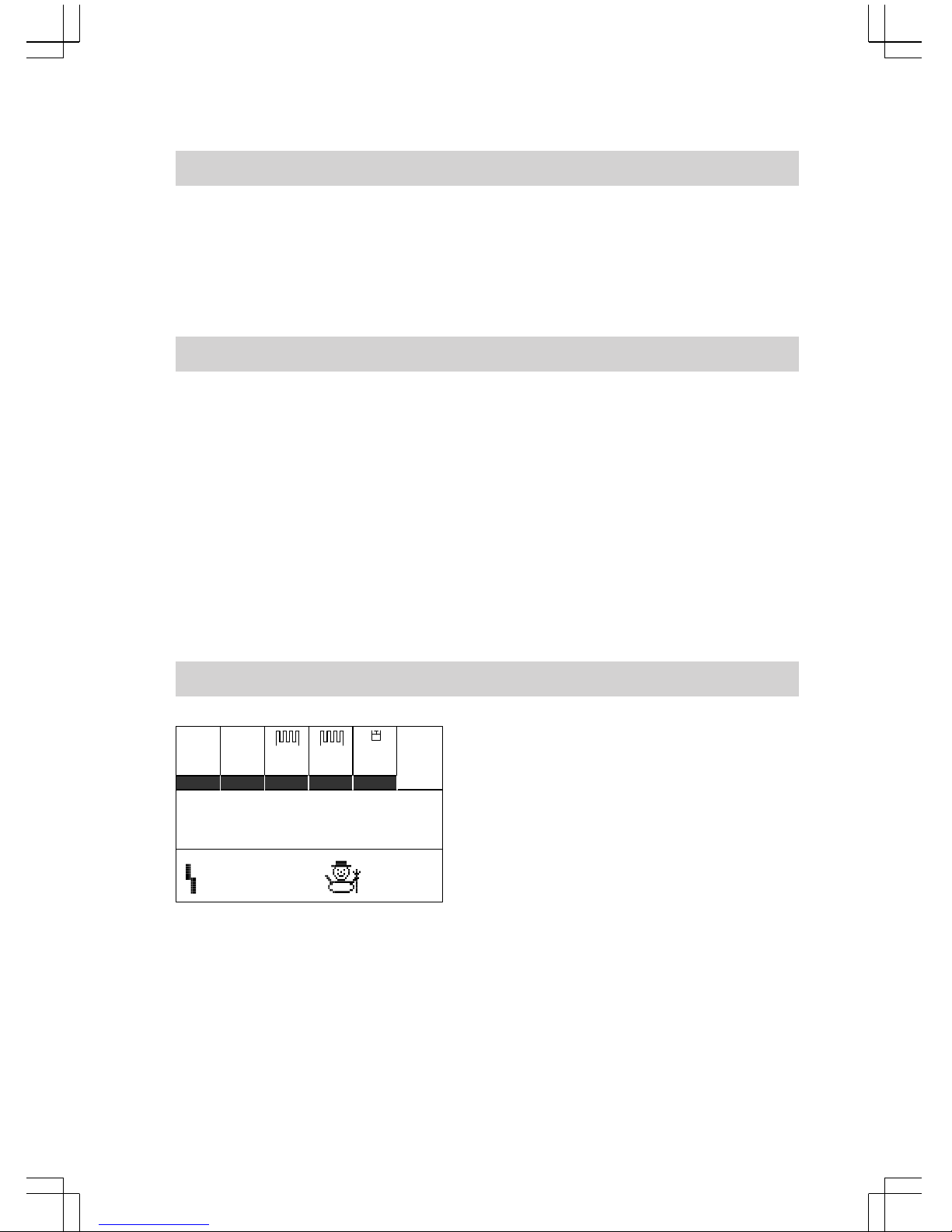

THU 27.03.08
11:55
TYPE VX.XX
}W
§
D°} }
C5 Power-OFF
O
51 °C 21 °C 22 °C 23 °C 21 °C
1 1 1
During any power interruption by the
power supply utility, the display shows
the text in the screenshot.
The control unit restarts in accordance
with the selected operating mode as
soon as the power supply utility restores
the power supply.
It is technically possible to provide cen-
tral heating during power interruptions
subject to the heating system being
equipped with a heating water buffer cyl-
inder. For this, consult your local heating
contractor.
Introductory information
Device description
5592 568 GB

8
You can change all settings for your heating system centrally at the programming
unit.
You can also make some adjustments at the remote control, if your system is equip-
ped with one.
Remote control operating instructions
Opening the control unit
Open the programming unit flap in the
front panel by pressing on the flap.
Functions
Operating and display elements/indi-
cators

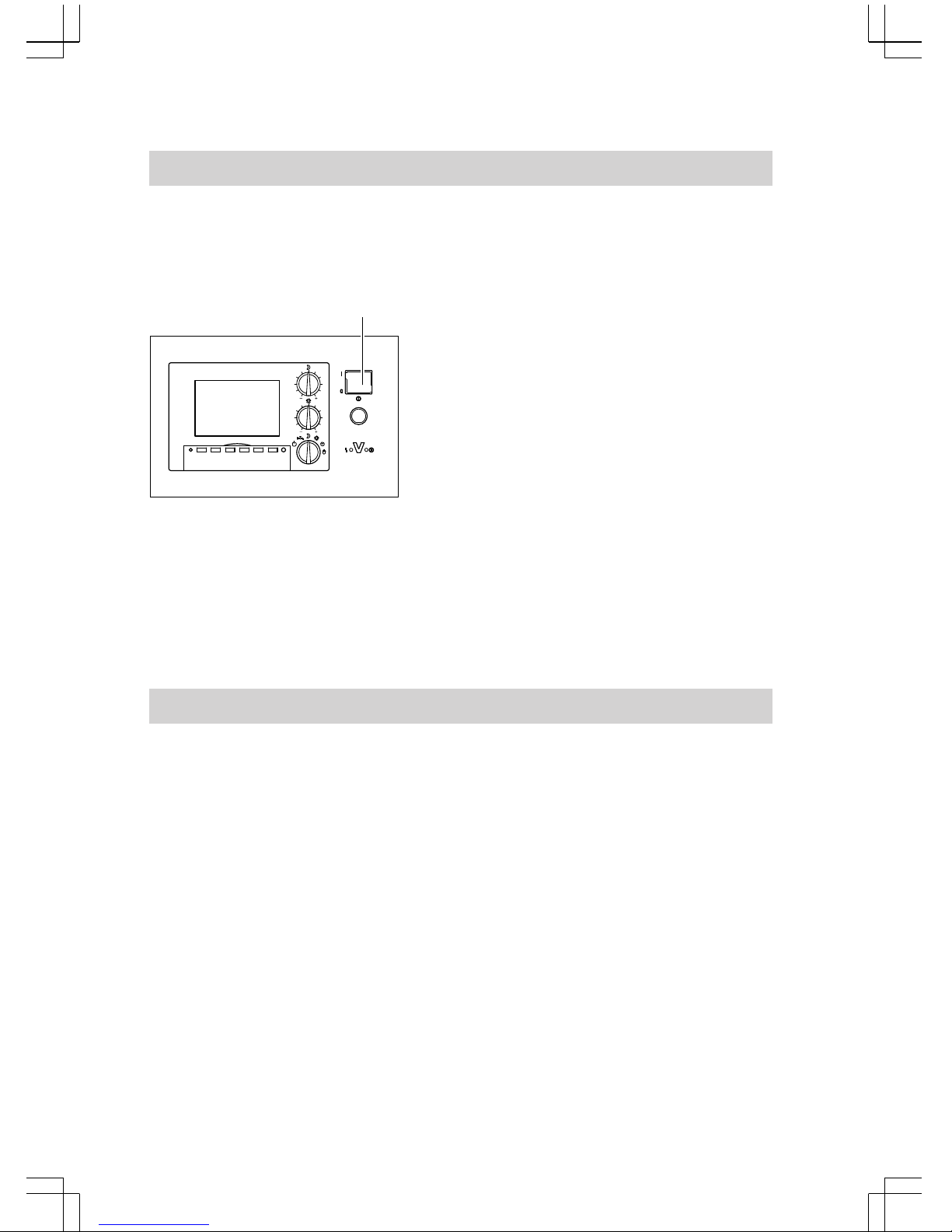

A
C B
D
AON/OFF switch
BON indicator (green)
CFault display (red)
DProgramming unit
Where to find the controls
Summary of controls and indicators
5592 568 GB

9

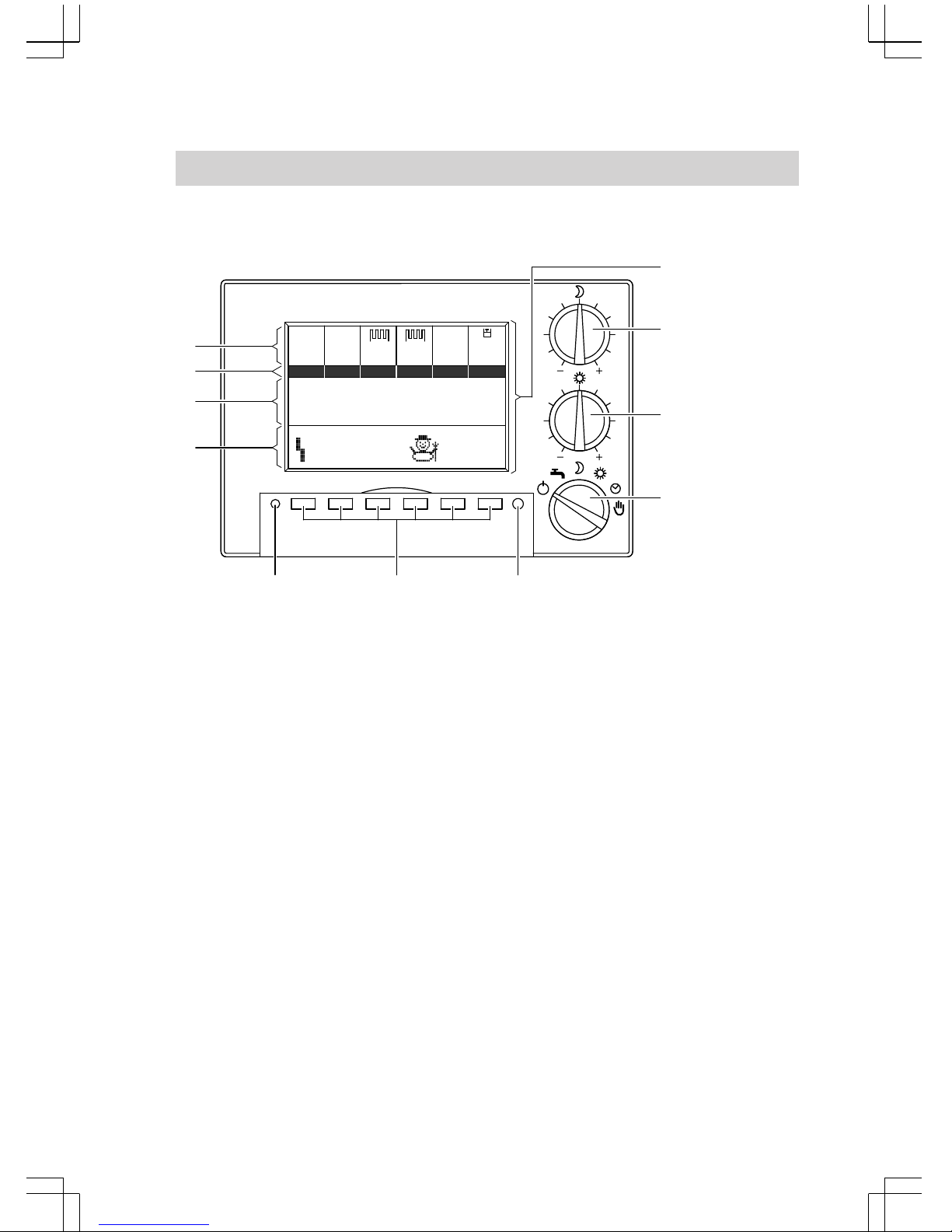

Programming unit
M
K
H
L
A
B
C
D
G F E
485THU 27.03.08
11:55
TYPE VX.XX
}W
§
DW
°} }
¯
51 °C 21 °C 22 °C 23 °C 24 °C 21 °C
1 2 3
AStandard display
BRotary selector "reduced room tem-
perature"
CRotary selector "standard room
temperature"
DOperating mode selector
E"Standard display" key
FSelection keys
GNo function
HDisplay area for current operating
conditions
KMessage display area
LSet temperature display area
MEnabled system components dis-
play area
Where to find the controls
Summary of controls and indicators (cont.)
5592 568 GB

10
C
Main menu
Set DHW temp.
A: Information
DCBA F
B: Device settings
C: DHW
D: Active cooling
F: Reset
B A
AStandard display key
BSelection keys
CDisplay with main menu
Display layout
At any one time, the display shows
seven lines of the selected menu.
Use the selection keys (see B in dia-
gram above) to select the relevant
menu.
If more than seven menus are available,
navigate to them with the selection key
"Further menu items".
Symbols on the display
The symbols described below appear only on the standard display (see page 8).
These symbols are not always displayed, but appear subject to the system version
and the prevailing operating conditions. The respective symbols will move if the com-
pressor or pumps are running.
Possible symbols in display area M
(see page 8):
9DHW cylinder
°Heating circuit A1 (without mixer)
ÌHeating circuit M2/3 (with mixer)
¯Separate cooling circuit
«Fault
!Warning
ONote
AStandby
ÍSwimming pool
WReduced mode; heating circuit
}Standard mode; heating circuit
µFixed value regulator; heating circuit
¦DHW (total volume)
Where to find the controls
Summary of controls and indicators (cont.)
5592 568 GB

11
§DHW (reduced volume)
¨Heating up to set DHW temperature
2
Possible displays in area H(see
page 8):
«Fault
4Holiday program enabled
_Party mode enabled
8DHW cylinder heating enabled
5Frost protection enabled
²Drying buildings enabled
(Winter mode enabled
¡Cooling enabled
%Summer mode enabled
hManual mode enabled
Heating circuits
Your building may be heated by several
independent heating circuits (e.g. under-
floor heating circuits or radiator cir-
cuits).
■ If several heating circuits are connec-
ted, any adjustments made at operat-
ing mode selector D (see page 9)
affect all heating circuits.
If you want to make changes, contact
your local heating contractor, who can
set a fixed temperature value for indi-
vidual heating circuits.
■ If a remote control (e.g. Vitotrol 200) is
connected to a heating circuit, the
operating mode set at the remote con-
trol applies to this heating circuit.
Note
If the operating mode selector D (see
page 9) is set to
h
, this manual mode
also applies to the heating circuits with
remote control.
Control principles
■ All operating steps start from "Main
menu".
■ If the menu items listed cannot be dis-
played in their entirety, use the key
"Further menu items" to jump to fur-
ther menu items.
Call display menus and system compo-
nents by pressing the following keys:
■"Standard display" with change to
"Main menu"
■"Device settings"
■"Programming"
Subject to system version, the options
available can be found in the menu tree
(see page 13).
Where to find the controls
Summary of controls and indicators (cont.)
5592 568 GB

12
Note
Use the
ª
key to restore a highlighted
and modified parameter to the delivered
condition (see "Reset" on page 42).
This is also possible by reselecting the
relevant menu.
Skipping messages
Press "Standard display"E (see
page 9) to display messages.
■ You can skip messages and return to
the main menu with "BACK".
■ You can acknowledge messages with
"ALL" (º appears next to the mes-
sage) (see page 50) and return to
the "Main menu" with "BACK".
Where to find the controls
Summary of controls and indicators (cont.)
5592 568 GB

13
Date and time
Information Device settings
Main menu
DHW
Outside Flow primary Flow secondary Secondary return Ext. heat source
Switching times DHW Wtimer DHW Circ. Switch t buffer cyl. Switching times HC1 Switching times HC2 Hours run Average runtime No. of starts
Compressor Primary source Inst.water heat st.1 Secondary pump Ext. heat source Cylinder reheating
Energy statem
Pump heat. circuit 1 Pump heat. circuit 3 Pump heat. circuit 2 Active Cooling
Act. cooling
Single reheating
Sensor temps
Switching times
Fault messages
Statistics
System overview
Programming
Contractor level
Access rights
Primary off Flow system Buffer cylinder Room heat. circ. 1 Flow NC Flow heat. circuit 2 Room heat. circ. 2 DHW cylinder top DHW cylinder bottom Flow heat. circuit 3 Room heat. circ. 3
Inst.water heat st.2 DHWcirServ Heating/DHW Swimming pool Cyl. primary pump Central fault mess. Natural Cooling
A
Room NC
Switching times HC3 Message history
Main menu Reset
Active Cooling
Secondary return 2 Solar collector DHW solar
Compressor 2 Primary source 2 Lag heat pump 1 Lag heat pump 2 Lag heat pump 3
Solar yield
ASee the following illustration
Menu tree
Menu tree overview
5592 568 GB

14
Date and time
Information Device settings
Main menu
DHW
Single reheating
Sensor temps
Switching times
Fault messages
Statistics
System overview
Programming
Contractor level
Access rights
Date and time Holidays program Party program DHW
Electric heater Buffer cylinder Room temp.
Start optimisation DHW with e heating Switching times DHW Set DHW temp. Set temp. 2 Pasteurisation
Heat. curve slope Heating curve level Switching times HC Room t reduced Room t standard
Stop optimisation
Heating circ. 1 Heating circ. 2
Switch t buffer cyl.
AAA
System definition Heating circ. 3 Cooling
Heating with electro
Language
Reset
Active Cooling
DHWcirServ
Act. cooling
ASee the previous screen
Menu tree
Menu tree overview (cont.)
5592 568 GB

15
Note
Subject to the system equipment level, not all menu items will be made available.
Menu tree
Menu tree overview (cont.)
5592 568 GB

16
The commissioning and adaptation of the control unit to local conditions and the
structural characteristics of the building must be carried out by your heating contrac-
tor.
A
1. Check the system pressure at the
pressure gauge: The system pres-
sure is too low if the indicator points
to the area below 1.2 bar. In such
cases contact your local heating con-
tractor.
2. Switch ON the power supply, e.g. at
a separate MCB/fuse or a main iso-
lator.
3. Turn the ON/OFF switch A ON.
After a short while, the current oper-
ating conditions and selected set
temperatures appear on the display.
Your heat pump is now ready to oper-
ate.
Stopping the heat pump
If you do not want to use your heat pump
for a short time, e.g. during a holiday,
enable the holiday program (see
page 25) or switch the operating mode
selector to standby 9 (see page 19).
We also recommend you switch your
heat pump to standby, if it will not be
required for longer periods (several
months).
■ The frost protection of the system is
ensured in standby mode; however, at
temperatures below −20 °C, only if an
electric heater (instantaneous heating
water heater in the heating flow,
accessory) is installed.
■ The circulation pumps are briefly star-
ted every 24 hours to prevent them
from seizing up.
If you do not want to use your heat
pump, you can stop it at the ON/OFF
switch.
■ Frost protection is no longer enabled.
■ All control unit settings remain intact.
We recommend you contact your local
heating contractor before and after shut-
ting down your heat pump for longer peri-
ods.
Where necessary, your contractor can
then take certain steps, e.g. protecting
the system against frost.
Start-up/shutdown
Starting the heat pump
5592 568 GB

17
You want to heat your rooms and have DHW available, or cool your rooms at high
outside temperatures.
Note
Central heating will only take place during the heating season. The heating season
is calculated from the difference between the outside temperature and the default
room temperature. The starting limit (heating temperature differential) that relates to
the outside temperature can be set by your heating contractor.
Cooling function
"Natural Cooling" (NC)
During the summer months the temper-
ature level of the brine or water circuit
can be used to cool the building "natu-
rally".
The natural cooling (NC) function is a
method of cooling buildings that saves a
considerable amount of energy.
All that is needed is a small amount of
electricity for the circulation pumps to
access the "cooling source" in the
ground.
The capacity of the natural cooling func-
tion cannot generally be compared with
that of air-conditioning systems. Natural
cooling provides no dehumidification.
The refrigerating capacity depends on
the temperature, which is subject to sea-
sonal fluctuations. Experience has
shown that the cooling capacity is higher
at the beginning of summer than at the
end.
Underfloor heating systems and con-
crete core tempering are available for
cooling the building; radiator heating
systems are unsuitable for this pur-
pose.
"Active Cooling" (AC)
Together with the heat pump, the AC-
Box (accessory) enables active cooling
(AC mode) and natural cooling (NC
mode). The AC-Box is linked directly to
the heat pump and enables an external
circulation reversal to actively cool living
areas in summer. The following can, for
example, be connected to the AC-Box:
Fan convectors, cooling ceilings/sails
and underfloor cooling. The active cool-
ing function has a greater capacity than
natural cooling.
■ If the cooling function is integrated into
a heating circuit, it is only activated
when outside temperatures are high.
■ The starting limit (cooling temperature
differential) that relates to the outside
temperature can be set by your heat-
ing contractor.
■ The cooling function will be enabled
via the room temperature if the natural
cooling function is designed as a sep-
arate cooling circuit.
Start-up/shutdown
Switching on central heating / cooling and DHW heating
5592 568 GB

18

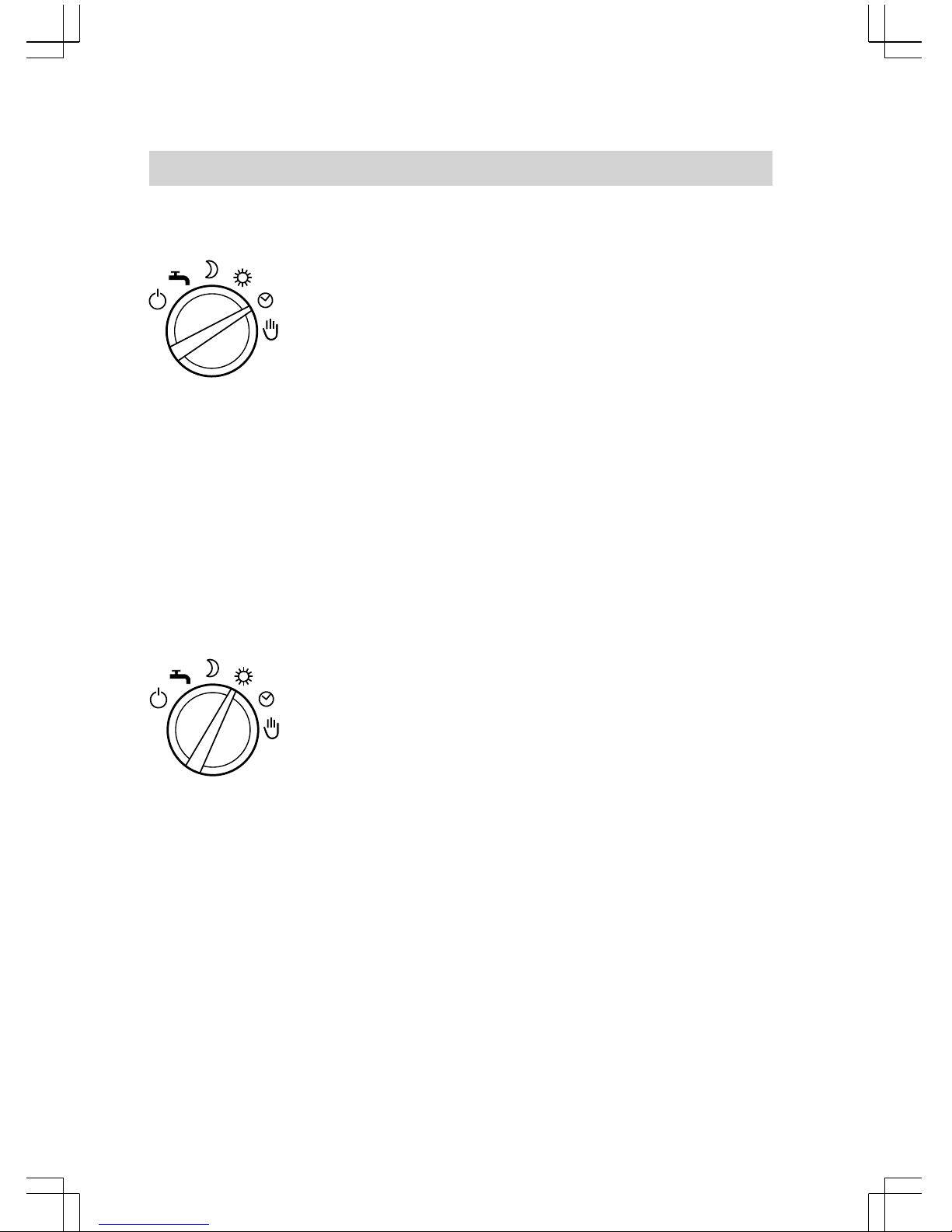

Central heating according to time program u
Set the operating mode selector to u.
■ Central heating during the heating
season in accordance with the selec-
ted switching times and operating
modes (see page 23)
■ DHW heating in accordance with the
selected switching times and operat-
ing modes (see page 30)
■ Frost protection for the heat pump,
DHW cylinder and heating water buffer
cylinder (if installed) is enabled
■ Cooling via the heating circuit or sep-
arate cooling circuit (if installed).
Central heating with standard room temperature s
Set the operating mode selector to s.
■ All-day central heating with the stand-
ard room temperature during the heat-
ing season (see page 21)
■ DHW heating in accordance with the
selected switching times and operat-
ing modes (see page 30)
■ Frost protection for the heat pump,
DHW cylinder and heating water buffer
cylinder (if installed) is enabled
■ Cooling via the cooling functions AC
and NC (if installed).
Start-up/shutdown
Switching on central heating / cooling and DHW… (cont.)
5592 568 GB

19

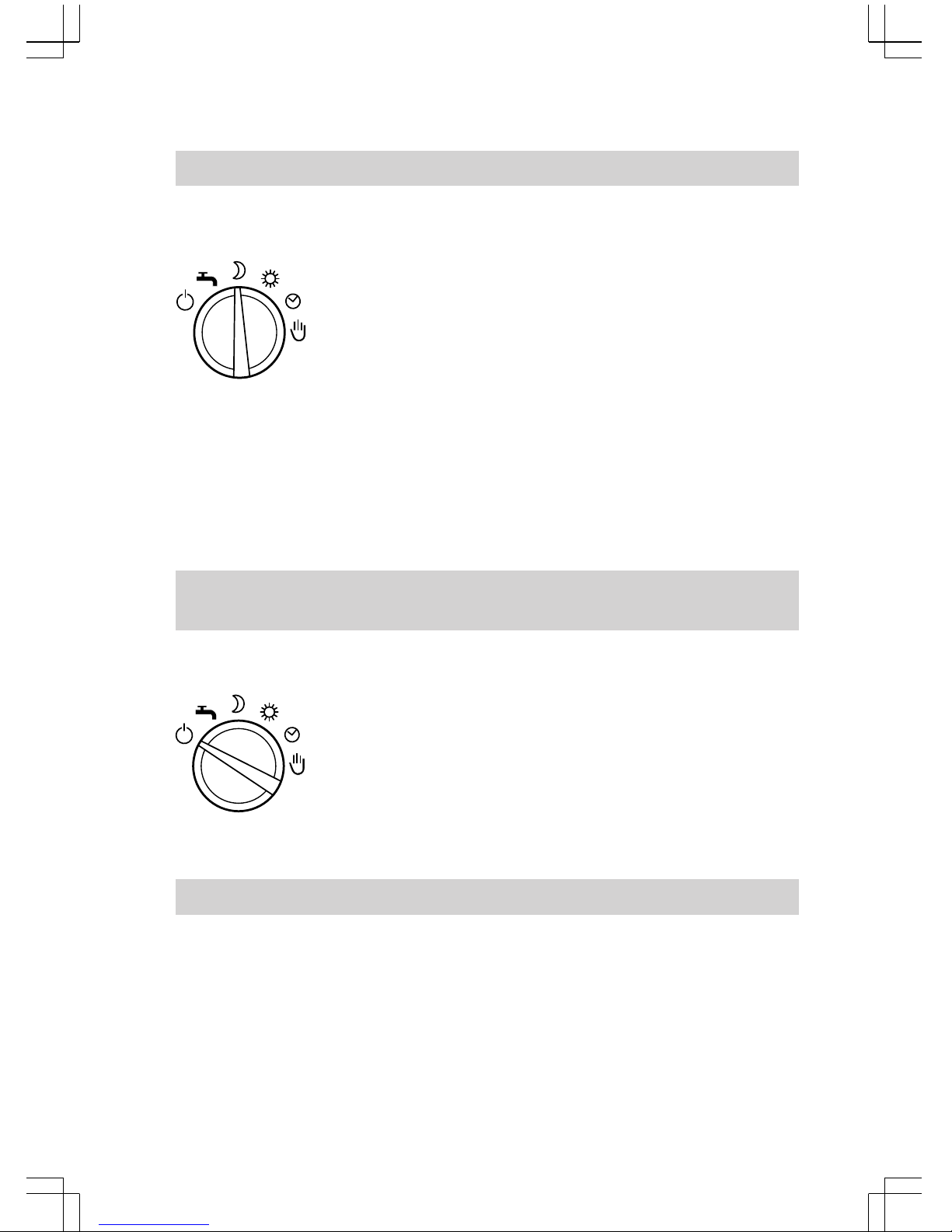

Central heating with reduced room temperature m
Set the operating mode selector to m.
■ All-day central heating with the
reduced room temperature during the
heating season (see page 22)
■ DHW heating in accordance with the
selected switching times and operat-
ing modes (see page 30)
■ Frost protection for the heat pump,
DHW cylinder and heating water buffer
cylinder (if installed) is enabled
■ Cooling via the cooling function only in
separate cooling circuit (if installed)
Switching off central heating / cooling and DHW heating
(standby 9)
You do not wish to heat any rooms or make DHW available.
Set the operating mode selector to 9.
■ Frost protection for the heat pump,
DHW cylinder and heating water buffer
cylinder (if installed) is enabled
■No central heating
■No cooling by the NC or AC functions

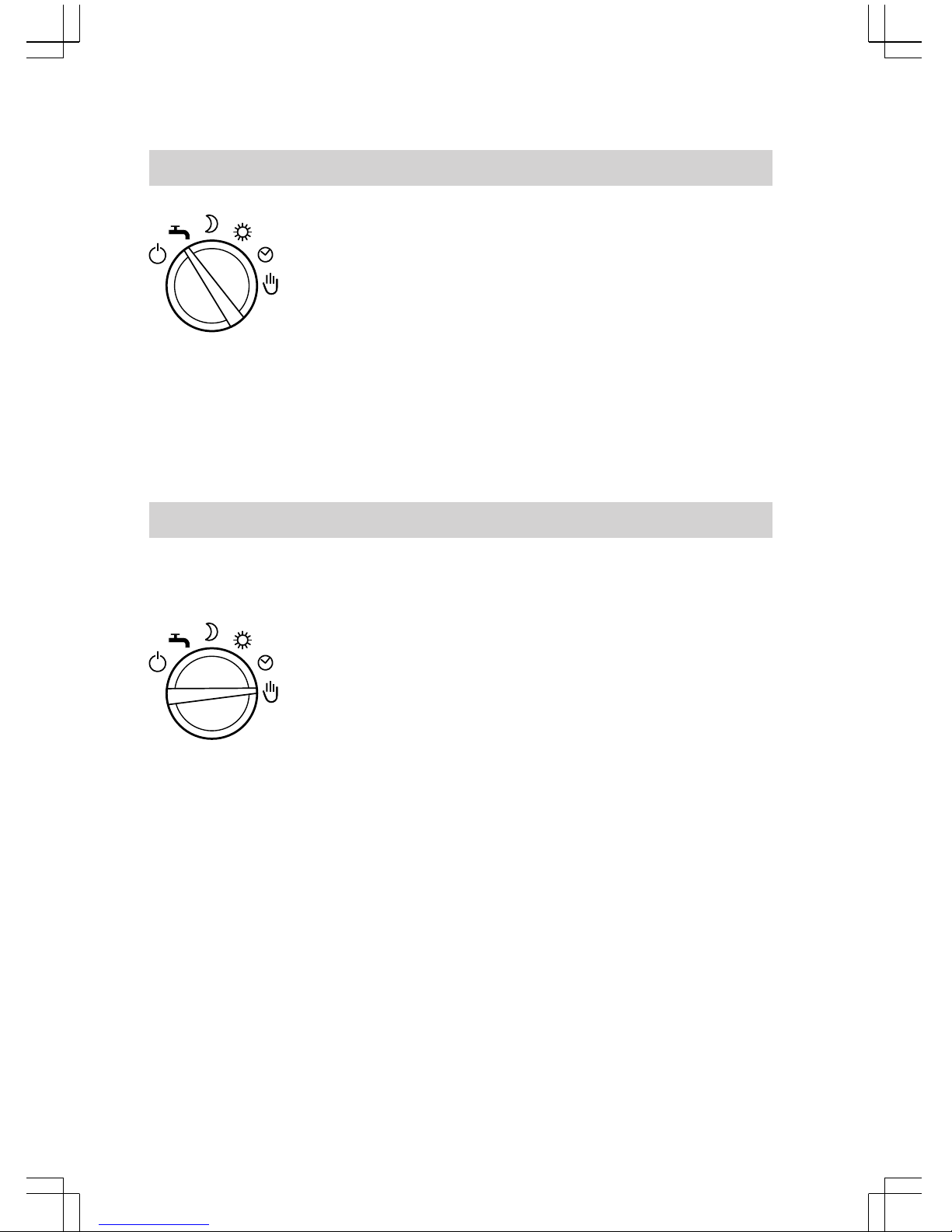

Starting DHW only w
You do not wish to heat any rooms, but you want to make DHW available.
Start-up/shutdown
Switching on central heating / cooling and DHW… (cont.)
5592 568 GB

20
Set the operating mode selector to w.
■ DHW heating in accordance with the
selected switching times and operat-
ing modes (see page 30)
■ Frost protection for the heat pump,
DHW cylinder and heating water buffer
cylinder (if installed) is enabled
■No central heating
■Cooling via the NC or AC functions
only if a separate cooling circuit has
been installed for this purpose
■No cooling by the NC or AC functions
if integrated into a heating circuit
Manual modeh
Note
Use this operating mode only after checking with your local heating contractor.
Set the operating mode selector to h.
The display will then show symbol h.
■Unregulated heating of the connected
heating circuits with a set flow temper-
ature of up to 45 °C
■ DHW heating to the second set tem-
perature (delivered condition 60 °C;
see page 34)
■No cooling
Start-up/shutdown
Starting DHW only w (cont.)
5592 568 GB
