Viessmann Vitobloc 200 EM-20/39 User manual

6130264 GB 04/2019 Please retain
Operating instructions
for the user
VITOBLOC 200
Type EM-20/39
Best.-Nr. 7727270
Combined heat and power unit for natural gas and LPG operation

Imprint
2 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
This equipment meets all basic
requirements of the applicable standards
and guidelines. Conformity has been
verified. All associated documents and the
original Declaration of Conformity are
available from the manufacturer.
NOTE
The Vitobloc 200 CHP unit is not suitable
for 60 Hz operation. It is therefore not
available in certain markets, in particular
America and Canada.
Service partner
Viessmann Kraft-Wärme-Kopplung GmbH
D-86899 Landsberg am Lech
phone: [phone]
fax. [phone]
E-Mail: CHP[email protected]
www.viessmann.de
These instructions are protected by copyright. All rights
derived from this copyright are reserved (even when only
excerpts are used), unless a contractual agreement is
reached in this regard.
In the absence of any other agreements, Viessmann
Werke GmbH&Co KG reserves itself the right to modify
the product described here at any time and without
announcement to keep up with technical progress.
Original document

Table of contents
VITOBLOC 200 EM-20/39 Operating instructions 3
6130264 GB
1Introduction......................................................................................4
1.1 Structure of the safety instructions............................................................................. 4
1.2 Depiction of safety instructions................................................................................... 4
1.3 Safety signs...................................................................................................................5
1.4 Trademarks ...................................................................................................................5
2Intended use.....................................................................................6
3Safety................................................................................................7
3.1 Legal disclaimer............................................................................................................7
3.2 Safety equipment.......................................................................................................... 7
3.3 Safety equipment.......................................................................................................... 7
3.4 Personnel ......................................................................................................................8
3.5 General safety regulations........................................................................................... 9
3.6 Special safety regulations.......................................................................................... 10
3.7 Information regarding particular types of hazard..................................................... 11
4Product description .......................................................................14
4.1 Overview...................................................................................................................... 14
4.2 Casing.......................................................................................................................... 15
4.3 Control panel............................................................................................................... 15
4.4 Control unit ................................................................................................................. 15
4.5 Type plate.................................................................................................................... 16
5Operation........................................................................................17
5.1 Switching on................................................................................................................ 17
5.2 Switching off ............................................................................................................... 18
5.3 Remote monitoring with TeleControl LAN ................................................................ 18
5.4 Requirements for optimal operation.......................................................................... 18
5.5 Control unit functions................................................................................................. 19
5.6 Default screens (control level 1)................................................................................ 21
5.7 Operating screens (control level 2) ........................................................................... 23
5.8 Emergency operation ................................................................................................. 36
5.9 Faults and troubleshooting........................................................................................ 37
6Information regarding service and maintenance.........................38
7Shutdown and decommissioning .................................................39
7.1 Temporary decommissioning.................................................................................... 39
7.2 Final decommissioning .............................................................................................. 40
8Appendix.........................................................................................41
8.1 Operating log form...................................................................................................... 41

Introduction
4 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
1 Introduction
This document applies to the Vitobloc 200 EM-20/39
combined heat and power (CHP) unit –also referred
to hereinafter as the "machine". This document must
always be stored within easy reach of the system.
Constant development may result in minor changes to
the illustrations, functional steps and specifications.
Viessmann Kraft-Wärme-Kopplung GmbH expressly
disassociates itself from all content of all linked
websites and does not consider such content its own.
This declaration applies to all external links and
references to the internet specified within this
document.

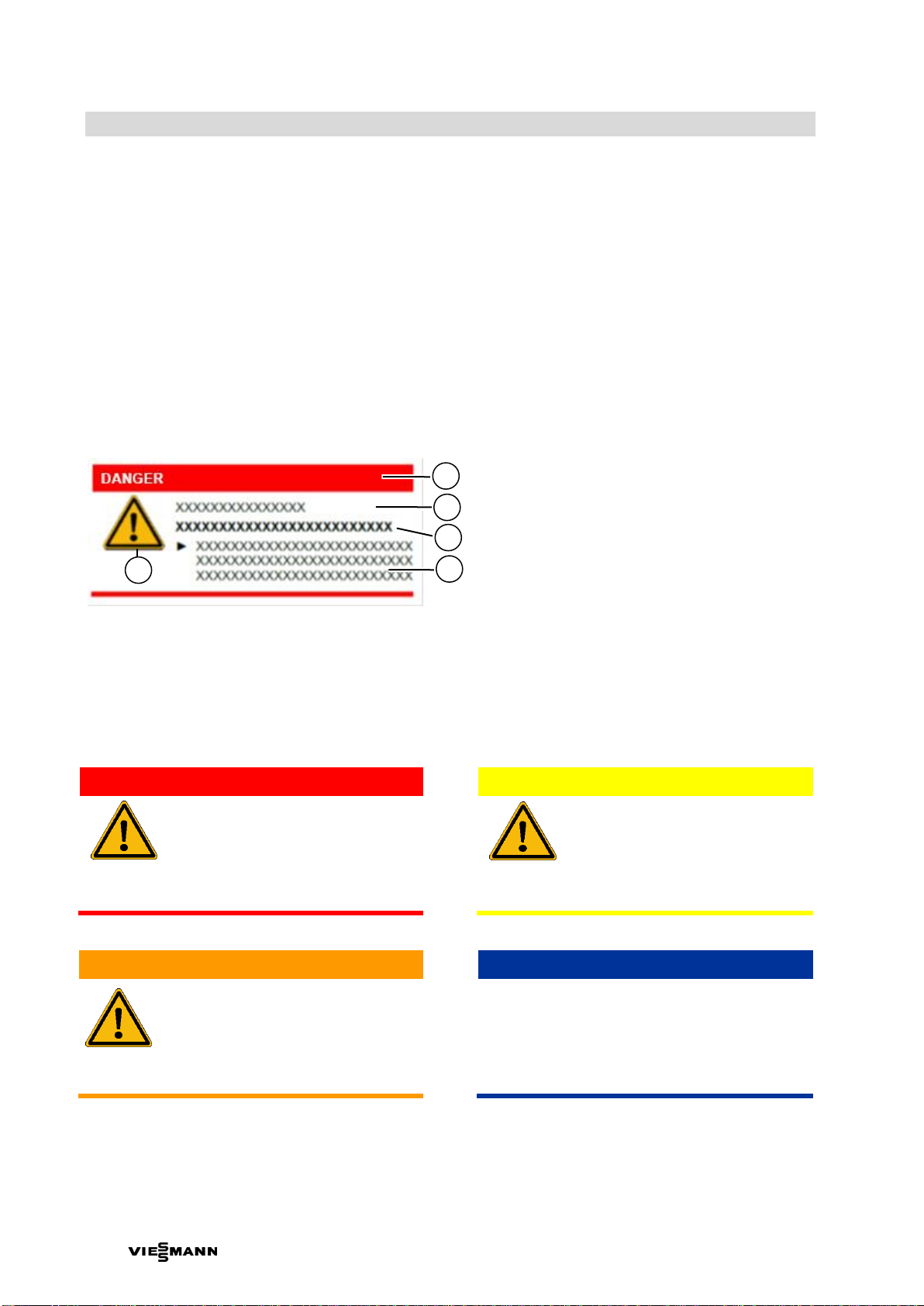

1.1 Structure of the safety instructions
Each safety instruction consists of 5 elements.
Fig. 1 Safety instruction structure
1 Keyword
2 Type and source of hazard
3 Potential consequences of the hazard
4 Avoidance of the hazard
5 Hazard symbol
1.2 Depiction of safety instructions
The notes in this documentation are important for
safety and must be observed.
DANGER
Meaning
Designates an immediately imminent
danger
►If it is not avoided, it will result in
death or serious, irreversible injury.
WARNING
Meaning
Designates a potentially dangerous
situation
►If it is not avoided, it will result in
death or serious, irreversible injury.
CAUTION
Meaning
Designates a potentially dangerous
situation
►If it is not avoided, then it may
result in slight or minor, reversible
injury.
CAUTION
Meaning
Designates a potentially harmful
situation
►If it is not avoided, then the
machine or an object in its vicinity
may be damaged.
1
2
3
4
5

Introduction
VITOBLOC 200 EM-20/39 Operating instructions 5
6130264 GB
1.3 Safety signs
The following signs (safety signs) are attached to the
machine or must be affixed on/in the plant room by
the operator:
1.3.1 Prohibition signs
Access for unauthorised persons
forbidden!
Areas identified in this way may only
be accessed by people who have
been expressly authorised to do so,
e.g. in connection with work to be
performed there. Access is
prohibited for all other people.
Fire, naked flames and smoking
forbidden!
Identifies danger zones in which fire,
naked flames and smoking are
prohibited.
Access prohibited for persons
with active implants!
(e.g. cardiac pacemakers)
Identifies danger zones that must
not be accessed by persons with
active implants.
Access prohibited for persons
with passive implants!
(e.g. artificial joints)
Identifies danger zones that must
not be accessed by persons with
metal implants.
1.3.2 Warning signs
Warning of dangerous electrical
voltage!
Means "stop" before entering danger
zones containing live parts.
Warning of hot surfaces!
Means "stop" before entering danger
zones that may contain hot surfaces.
1.3.3 Command signs
Wear safety shoes!
Prescribes that protective footwear
must be worn during transportation
and installation.
1.4 Trademarks
Reference is made in this document to various
registered trademarks that are not specifically
identified as such within the text. The absence of any
identification does not necessarily mean that the
corresponding product name is free of third party
rights.

Intended use
6 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
2 Intended use
The operator of the Vitobloc 200 EM-20/39 CHP unit
must observe country-specific legislation and
regulations.
Regulations
Observe the following when working on this system:
●all legal instructions regarding the prevention of
accidents,
●all legal instructions regarding environmental
protection,
●the Code of Practice of relevant trade
associations,
●all current safety regulations as defined by DIN,
EN, DVGW, TRGI, TRF, VDE and all locally
applicable standards,
●Gas Safety (Installation & Use) Regulations
–the appropriate Building Regulation either
the Building regulations, the Building
Regulation (Scotland), Building Regulations
(Northern Ireland),
–the Water Fittings Regulation or Water
Bylaws in Scotland,
–the current I.E.E. Wiring Regulations.
Target group
This document is intended solely for use by
contractors; see chapter 3.4 Personnel.
This appliance has not been designed to be operated
by individuals (including children) with limited
physical, sensory or mental capacities or who lack the
appropriate experience and/or knowledge, unless they
are supervised by a person responsible for their
safety.
Children must be supervised to ensure that they never
play with the appliance.
Application
The Vitobloc 200 EM-20/39 CHP unit is intended
exclusively for generating 400 V, 50 Hz, three-phase
power and domestic hot water with a temperature
level (flow/return) of 85/65 °C at full load and a
standard temperature spread of 20 K in natural gas
operation.
It is only intended for industrial and commercial
applications.
The heating output of the CHP unit decreases at
heating water return temperatures greater than 30 °C.
Any use that differs from or goes beyond this is
considered inappropriate. The manufacturer rejects all
liability for any losses arising from such inappropriate
use. The operator alone bears the associated risks.
Correct use also includes observance of these
instructions and compliance with the inspection and
servicing terms and conditions.
Incorrect use
All applications deviating from the intended use are
deemed to be impermissible incorrect use. This
includes:
●Application areas not listed under "Application".
●Use of operating fluids that do not correspond to
the manufacturer's specifications.
●Use outside the permissible technical operating
limits.
●Use in areas at risk of explosion.
●Use outdoors.
●Bypassing of safety equipment.
●Operation as an emergency generator.
●Use only for heat generation if power is not drawn
off simultaneously.
●Siting in the same room/air ratio as a boiler
system with atmospheric burner or an NH3
refrigeration unit.
EC Declaration of Conformity and Declaration of
Incorporation
This CHP unit is considered a complete machine in
the context of the EC Machinery Directive.
The machine complies with the EC Machinery
Directive. This has been established by means of a
conformity assessment process.
Declaration of Conformity
The Declaration of Conformity is the basis for the
system's CE designation. The CHP unit may only be
operated in accordance with country-specific
legislation, regulations and standards.
The control unit has a CE designation in accordance
with the EMC Directive and the Low Voltage Directive.

Safety
VITOBLOC 200 EM-20/39 Operating instructions 7
6130264 GB
3 Safety
3.1 Legal disclaimer
The CHP unit is built in accordance with the latest
engineering standards and recognised safety
regulations. Nevertheless, impermissible use can still
result in risk to life and limb or to machine impairment
and other material losses.
Only use the CHP unit if it is in perfect technical
condition in accordance with its intended use, with
awareness of all safety and risk-relevant factors. Only
use it with due regard to the operating instructions.
Faults that may have a detrimental impact on safety
must be corrected without delay.
Use of prescribed and/or approved operating fluids in
line with the specification is a prerequisite for the
recognition of warranty claims.
Operation of the CHP unit at levels exceeding the
limits invalidates the warranty. The manufacturer
accepts no liability for faults and/or damage
(corrosion, contamination, wear) caused by gases or
materials that were not known and agreed to at the
time the contract was concluded.
Safety information
Information concerning safety cannot be interpreted
against Viessmann Kraft-Wärme-Kopplung GmbH.
Even if all safety instructions are followed, there is no
guarantee that the CHP unit will not cause any injuries
or damage.
No modifications may be made to the CHP unit without
the approval of Viessmann Kraft-Wärme-Kopplung
GmbH. Additional components not included in the
standard delivery may be integrated into the system.
The operator is responsible for any damage to the CHP
unit or other material assets caused by such
components.
DANGER
Impermissible modifications to the
machine.
Risk to life, serious personal injury
with irreversible damage
►Never perform any modifications or
alterations to the machine without
permission.
3.2 Safety equipment
The installer protects the CHP unit from unauthorised
access by installing it in a locked plant room. The
installer is also responsible for ensuring that all safety
equipment is fully installed and fully functional.
Furthermore, the installer is responsible for attaching
the safety signs.
DANGER
Missing or non-functional safety
equipment.
Risk to life, serious personal injury
with irreversible damage
►NEVER remove or disable safety
equipment.
3.3 Safety equipment
DANGER
Removal of the silencer hood panels
Risk to life, serious personal injury
with irreversible damage
►The silencer hood panels may only
be removed for repair and
maintenance by qualified and
authorised personnel.
►The complete enclosure of the
machine with the silencer hood
panels is necessary for protection
from fire, rotating parts, hot
surfaces and noise

Safety
8 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
3.4 Personnel
All personnel working on the CHP unit must be
trained in its use. They must also have read and
understood the documentation, including the chapter
concerning safety. We recommend that this is
confirmed with their signature.
The term “personnel” includes the installer, the
operator and the user of the machine.
CAUTION
Failure to observe the installation
instructions.
Serious material damage to the
machine and its surroundings
►The specifications in the installation
instructions must be observed.
►Siting, replacement, adjustment,
servicing and maintenance may
only be carried out by personnel
with specific training on the relevant
component of the machine.
Installer (e.g. specialist company)
The installer must integrate the CHP unit safely into a
system.
DANGER
Missing or non-functional safety
equipment.
Risk to life, serious personal injury
with irreversible damage
►NEVER remove or disable safety
equipment.
CAUTION
Installation, control and operation by
unauthorised or unqualified personnel.
Serious material damage to the
machine and its surroundings
►No unauthorised personnel are
permitted within the working area.
►Only employ qualified, trained
personnel.
The installer is responsible for the following tasks:
●Installing the CHP unit.
●Connecting the CHP unit.
●Installing the prescribed safety and protective
equipment.
●Attaching the necessary safety signs.
●Displaying the Declaration of Conformity for the
system.
●Preparing the operating instructions for the
system.
●Training the operator/user. The latter must confirm
participation in this training with their signature.
Installation personnel
The responsibilities of the installation and
commissioning personnel must be defined.
The personnel must meet the following requirements:
●They must have read and understood all the
documentation, including the chapter concerning
safety.
●They must be trained and instructed in the work to
be performed.
●They must use the personal protective equipment.
●Only qualified personnel may carry out work on
the machine. Qualified personnel are people who
can assess the work to be performed and identify
potential risks based on their technical training
and experience as well as their knowledge of
applicable standards.
●Depending on country-specific legislation,
regulations and standards, the installer may need
to adapt these conditions.
Operator
The operator of the CHP unit is responsible for its
correct use. The operator must ensure safe,
technically flawless operation of the machine as well
as define and comply with all safety regulations for
the personnel.
The operator is responsible for compliance with
country-specific legislation, regulations and
standards.

Safety
VITOBLOC 200 EM-20/39 Operating instructions 9
6130264 GB
3.5 General safety regulations
Only use the CHP unit if it is in perfect technical
condition in accordance with its intended use and with
awareness of all safety-relevant factors. Incorrect
handling may result in personal injury and material
damage.
In the event of any defects or faults being identified
with regard to operational safety or operational
reliability, the CHP unit must be shut down
immediately or not started up in the first place.
DANGER
Incorrect handling of the machine with
regard to operational safety.
Risk to life, serious personal injury
with irreversible damage
►Refrain from all unsafe working
methods.
►Do not carry out any modifications,
additions or alterations to the
machine which may adversely affect
safety.
►Take measures to ensure safe, fully
functional operation.
►Only operate the machine if all
protective and safety equipment is
fully functional.
►Comply with the safety regulations.
CAUTION
Unauthorised modification to
programmable control systems.
Serious material damage to the
machine and its surroundings
►No unauthorised personnel are
permitted within the machine's
working area.
►Only qualified, trained personnel
may operate the machine.
●In the event of any functional faults, shut down the
machine and make it safe. Correct all faults
immediately.
●Spare parts must meet the technical requirements
stipulated by the manufacturer. This is always
guaranteed in the case of original spare parts.
●Appropriate workshop equipment is essential for
carrying out the installation work.
●The location of fire extinguishers and how they are
used must be made known.
●Observe the fire alarm and firefighting procedures.

Safety
10 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
3.6 Special safety regulations
3.6.1 Siting and storage
CAUTION
Incorrect siting or storage.
Material damage due to corrosion
►Protect the machine and its parts
from rust.
►Prevent the formation of
condensation.
3.6.2 Assembly work and installation
●Adhere to the settings prescribed in the installation
instructions. Only qualified personnel may perform
such work.
●For all work involved in operating or setting up the
machine and its safety equipment, observe the
start-up and shutdown procedures described in
the operating instructions.
●When replacing larger assemblies, attach them
carefully to lifting gear and secure them in such a
way that no risk can arise from this. Only use
appropriate, technically flawless lifting gear and
lifting accessories with sufficient load bearing
capacity. Do not stand or work under suspended
loads.
●Only entrust experienced people with the
fastening of loads and guidance of crane drivers.
The person providing guidance must remain within
sight or in voice contact with the operator.
●When performing overhead installation work,
always use the intended or other safe climbing
aids and working platforms. Do not use machine
parts as climbing aids. Wear safety harnesses
when carrying out servicing work at a height.
●Always retighten any threaded connections that
have been loosened during installation work.
●If any safety equipment needs to be removed
during installation, it must be inspected
immediately after completing the installation work.
●Ensure safe and environmentally responsible
disposal of operating fluids and fuels.
●Installation of the machine and its peripheral
connection systems may only be carried out by
authorised personnel from a specialist company,
who have been instructed in these tasks by the
manufacturer.
●Work on parts carrying gas must be carried out by
a licensed specialist.
●The applicable engineering standards as well as
all building and legal regulations apply to the
practical execution of this work.
●Design the safety equipment in accordance with
all locally applicable regulations.
●Observe the accident prevention regulations.
3.6.3 Commissioning
●Observe start-up and shutdown procedures,
machine ramp-up and control displays.
●Before switching on/commissioning the machine,
ensure that no-one can be put at risk by the
machine starting up.
●Before commissioning the machine, check all
safety equipment and other protective devices for
completeness and correct function. Check all
machine parts for the presence of any foreign
bodies.
●Before commissioning, it is essential to check that
the operating fluids comply with the
manufacturer's specifications.
●No unauthorised people or objects are permitted
within the danger zone during commissioning.
CAUTION
Unsuitable operating fluids.
Serious material damage to the
machine
►Gases and combustion air must
meet the manufacturer's
specifications in accordance with
chapter 10.5 of the installation
instructions.

Safety
VITOBLOC 200 EM-20/39 Operating instructions 11
6130264 GB
3.7 Information regarding particular types of hazard
3.7.1 Thermal hazards
WARNING
In the event of a fault, safety pressure
limiters can be triggered and discharge
hot coolant.
Risk of scalding
►Take particular care in this area in
the event of faults.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).
CAUTION
Pipework and components can heat up
during operation.
Risk of burns!
►Wear personal protective
equipment (e.g. protective gloves).
WARNING
Breakage and leaks due to load.
Risk of splashing with hot water or
engine oil
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).
3.7.2 Radiation
DANGER
The generator's electromagnetic fields
can cause faults in active implants
(e.g. cardiac pacemakers)!
Circulatory collapse
►Observe prohibition signs.
►Do not enter the danger zone.
DANGER
The generator's electromagnetic fields
can heat up passive implants made of
metal!
Severe internal burns
►Observe prohibition signs.
►Do not enter the danger zone.
3.7.3 Hazards caused by materials and
substances
DANGER
Leaks in the gas and exhaust system
can cause gas to escape.
Risk of poisoning
►No naked flames.
►Ventilate the area adequately.
►If gas escapes, shut down machine
and leave danger zone.
WARNING
Batteries contain sulphuric acid.
Risk of acid burns
►Avoid skin and eye contact.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).

Safety
12 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
3.7.4 Hazards during transportation
DANGER
Suspended loads.
Falling loads can cause death or
serious injury
►Never stand under suspended
loads.
►Observe all transport instructions.
WARNING
Risk of slippage.
Serious personal injury due to
crushing or material damage to the
machine and its surroundings
►Use transport brackets.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).
3.7.5 Gas, dust, steam, smoke
WARNING
Dust and dirt.
Restricted visibility
►Cover machine adequately.
►Close or cover control panels.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles) during welding and
grinding/polishing work.
3.7.6 Oils, greases and other chemical
substances
WARNING
Take care when handling oils, greases
and other chemical substances.
Personal injury or irreversible
damage due to burns, scalding or
chemical burns
►Observe safety instructions.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).
Observe the safety instructions applicable to the
product when handling oils, greases and other
chemical substances. The operator must procure
safety datasheets from the manufacturer and keep
them available.

Safety
VITOBLOC 200 EM-20/39 Operating instructions 13
6130264 GB
3.7.7 Electrical energy/equipment
DANGER
Live components!
Death by electrocution on contact
►Only trained, authorised, specialist
personnel may perform work on
the machine.
►Observe the safety instructions
listed in the machine.
►Isolate the machine from its power
supply before commencing
electrical work.
►Five safety regulations specified in
standard series DIN VDE 0105
must be observed.
DANGER
Incorrect fuses!
Increased fire hazard due to
incorrect or improperly installed
fuses
►Insert fuses without applying force.
Position the fuse correctly.
►Only use identically constructed
types with the indicated triggering
characteristics.
PLEASE NOTE
Installation or repair work performed
incorrectly.
Serious material damage to the
machine and its surroundings
►Only have service and repair work
carried out by authorised technical
personnel.
►Only use the original components
permitted by the manufacturer.
►Observe all safety and hazard
warnings.
●Only equip and operate the machine with
products permitted by the manufacturer.
●Only use original fuses/MCBs with the
prescribed current strengths. Shut down the
machine immediately in the event of faults in the
power supply.
●Observe all safety and hazard warnings on the
electrical equipment.
●Installation work on electrical equipment or
operating materials may only be carried out by
an electrician or trained personnel under the
supervision and guidance of an electrician, in
accordance with the electrical regulations.
●All work on live parts is prohibited.

Product description
14 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
4 Product description
4.1 Overview
The Vitobloc 200 EM-20/39 CHP unit consists of the
following components assembled on a base frame:
●Gas engine
●Gas supply unit
●Synchronous generator
●Lubricating oil system
●Sealed unvented cooling circuit with heat
extraction
●Exhaust system with heat extraction in the cooling
circuit and insulation
●3-way catalytic converter
The control panel with programming and display unit
is mounted on the front of the casing.

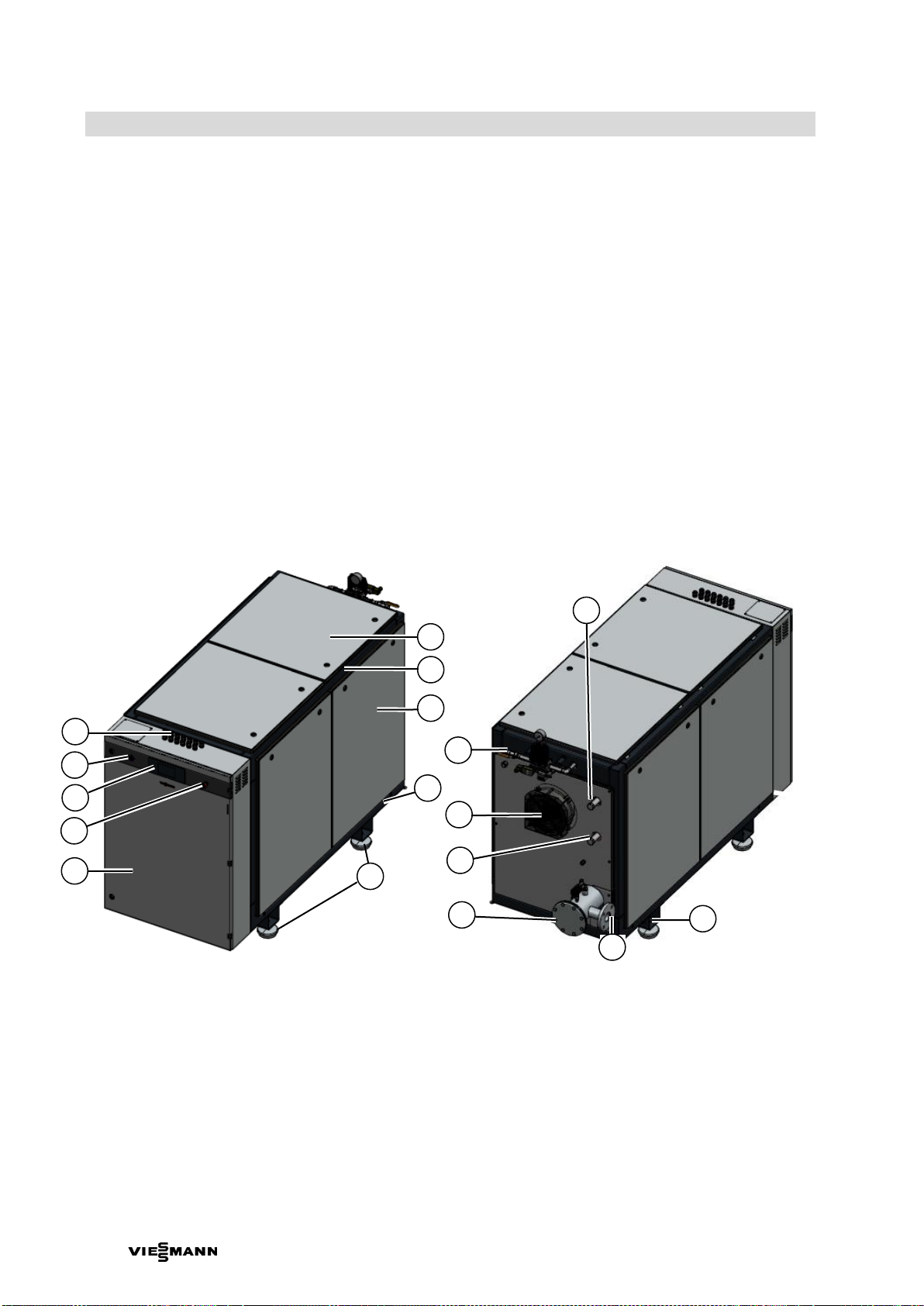

Fig. 2 Overview –operating side
1 Control panel
2 Programming and display unit
3 EMERGENCY STOP button
4 "Heat selection" switch
5 Cable entry points
6 Noise attenuating element, top
7 Noise attenuating element, side
8 Casing (removable)
9 Base frame
10 Adjustable feet
Fig. 3 Overview –connection side
1 Gas connection GAS
2 Heating circuit flow connection HV
3 Heating circuit return connection HR
4 Extract air outlet (extract air fan) AL
5 Exhaust gas outlet AGA with test connector
6 Condensate outlet KO
7 Earth connection
7
4
5
3
2
1
6
2
4
5
7
10
6
9
8
1
3

Product description
VITOBLOC 200 EM-20/39 Operating instructions 15
6130264 GB
4.2 Casing
The casing of the EM-20/39 consists of a frame with
noise attenuating elements for the engine/generator
unit. Ventilation is ensured by the extract air fan at the
back.
Supply air is drawn in via the floor pan.
The average frequency of the sound insulation of the
hood is approx. 20 dB.
Noise attenuating elements can be removed
individually for the purpose of installation work.
4.3 Control panel
The control panel is attached to the front of the base
frame and contains the electrical components for
operating and controlling the EM-20/39.
4.4 Control unit
The control unit is integrated into the control panel.
The EM-20/39 is programmed and operated via the
control unit.
4.4.1 Programming and display field
The programming and display field consists of a touch
display.
The default screen display shows the CHP system
with its components. During correct operation, an "All
OK check mark" is displayed for each component.

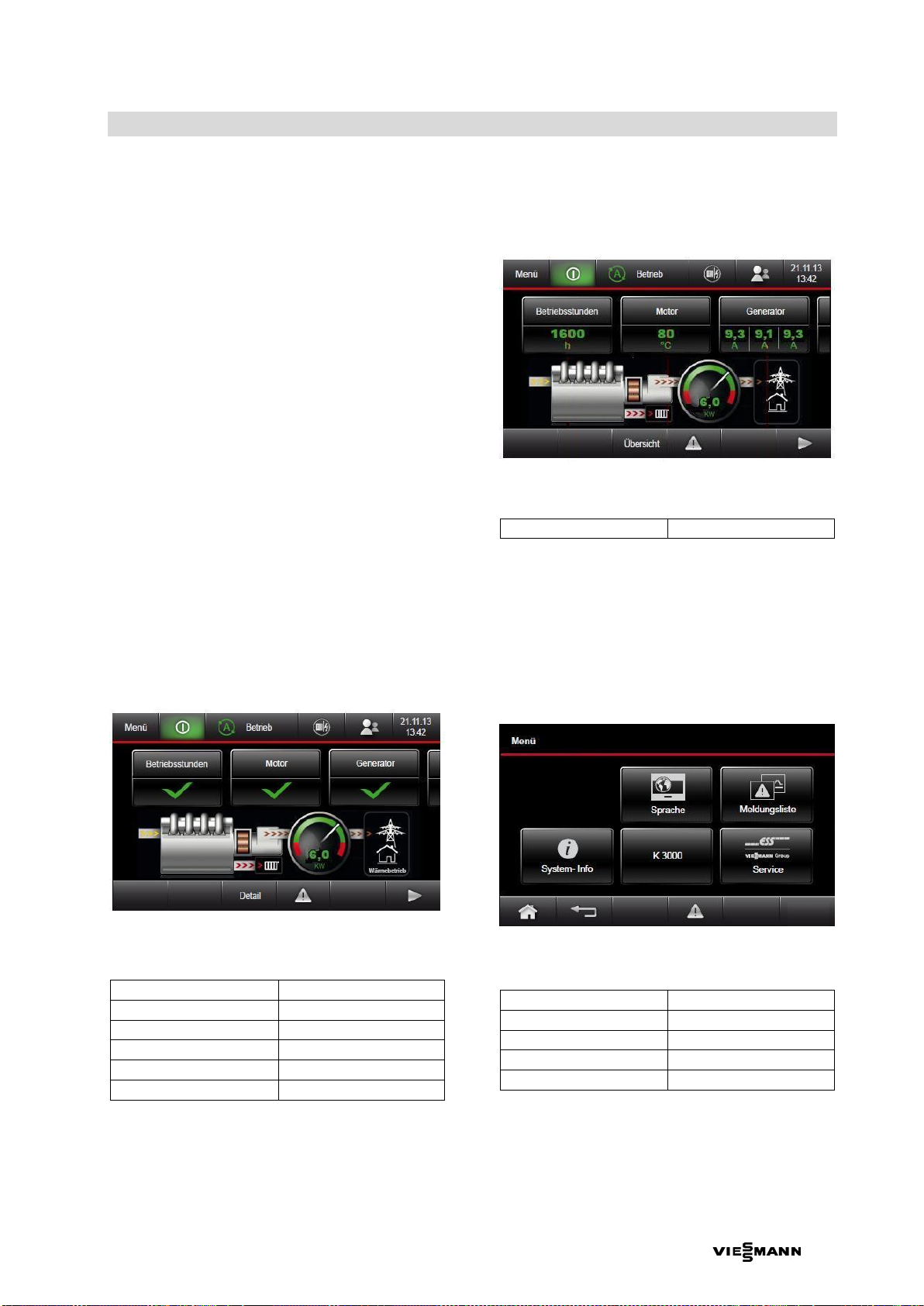

Fig. 4 Default screen of the programming and display
field with "All OK check marks"
Menü
Menu
Betrieb
Operation
Betriebsstunden
Hours run
Motor
Motor
Generator
Generator
Detail
Detail
4.4.2 Display of current operating data
Alternatively, the default screen of the control unit can
be set to display current operating data and actual
values.
Fig. 5 Default screen of the programming and display
field with details
Übersicht
Overview
4.4.3 Customer-specific settings
Touch the "Menu" button in the top left-hand corner of
the touch display to enter the menu for customer-
specific settings.
Here you can call up the language selection and
service data as well as the operating and fault
message lists.
Fig. 6 "Menu" default screen
Menü
Menu
Sprache
Language
Meldungsliste
Message list
System- Info
System info
Service
Service

Product description
16 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
4.5 Type plate
The type plate is located on the connection side of the
CHP unit.
Fig. 7 Type plate Vitobloc 200 EM-20/39 CHP unit

Operation
VITOBLOC 200 EM-20/39 Operating instructions 17
6130264 GB
5 Operation
DANGER
Leaks in the exhaust system can cause
gas to escape.
Risk to life due to explosion or
poisoning
►No naked flames; do not smoke.
►Shut down machine; switch on
ventilation.
►Leave danger zone.
►Call maintenance service.
WARNING
Damage and injury due to incorrect
operation.
Serious material damage to the
machine and its surroundings
►Pay particular attention to the
safety instructions in section 3.
Keep a written record (operating log –see appendix
8.1) of operation of the EM-20/39. Copy the form from
the appendix for this purpose and fill it out accordingly.

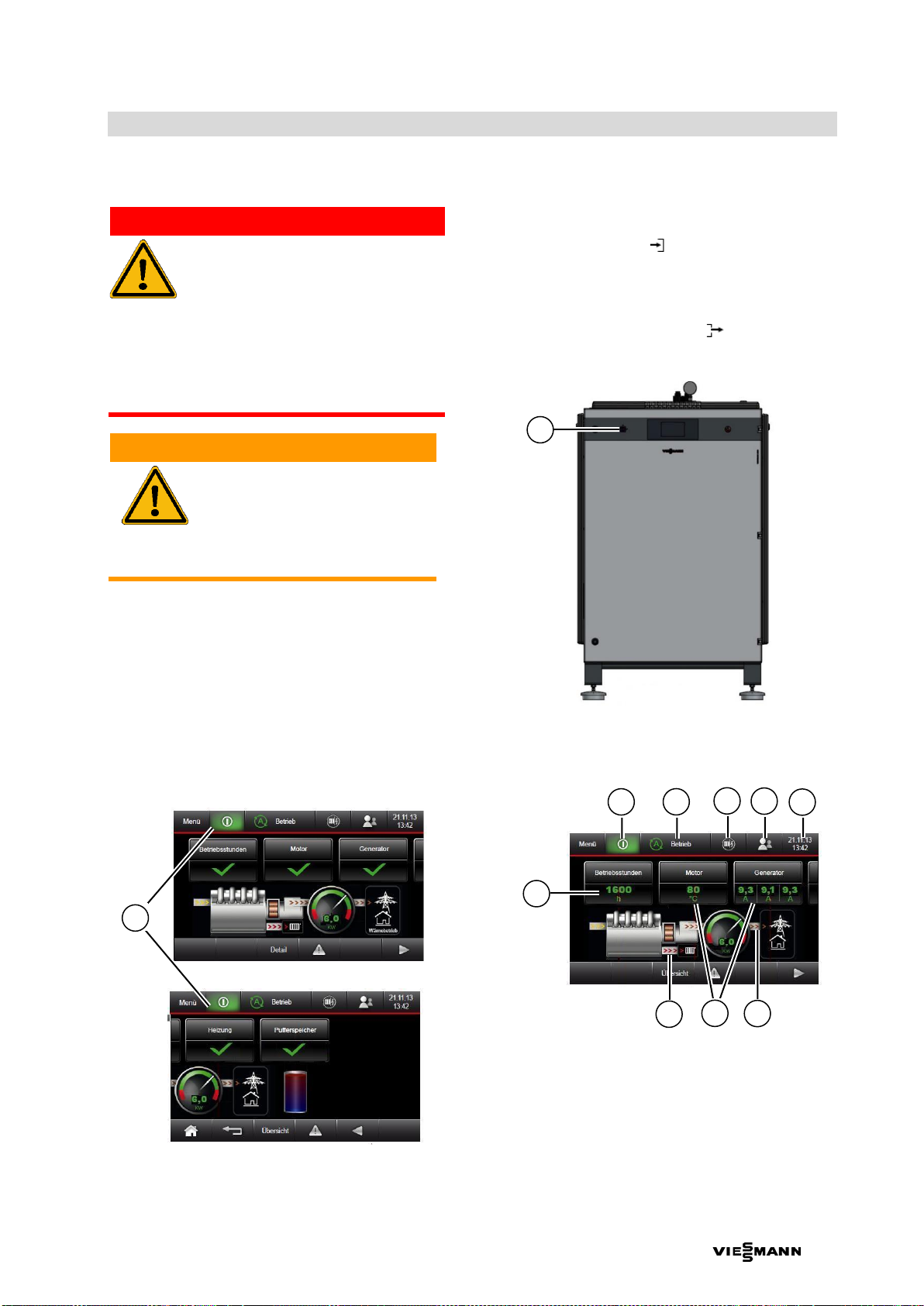

5.1 Switching on
(1) Check that all safety equipment is installed and
fully functional. The gas tap must be open. The gas
pressure must be 20-50 mbar.
(2) The CHP unit must first be set to automatic mode.
Touch the start button on the touch display. The
ON button and the "Automatic mode" indicator turn
green.
1 Start button
Fig. 8 Starting automatic mode on the display
(3) Turn the "Heating mode selection" switch on
the control panel (Fig. 9/1) to the position
"Internal control" –the CHP unit will start in
automatic mode.
(4) If the CHP unit is to be started via a higher
ranking control system, the "Heating mode
selection switch" has to be turned to the
position "External control" –the CHP unit
will start once the start signal has been initiated
by the control system.
Fig. 9 Switching on
(5) Operating values are updated and shown on
the display.
1 Start/Stop CHP unit
2 Automatic mode ON
3 Heating mode ON
4 User
5 Current date and time
6 Total hours run
7 Current operating data
8 Gen. contactor feedback ON
9 Grid coupling switch feedback ON
Fig. 10 Display in automatic mode
(6) Visual inspection for leaks.
1
1
1
2
5
6
8
9
7
3
4

Operation
18 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB
5.2 Switching off
WARNING
Leaks and breakage can cause oil
and steam to escape.
Serious injury due to burns or
scalding
►Observe safety instructions.
►Wear personal protective
equipment (e.g. protective gloves,
safety goggles).
(1) Touch the "Start/Stop" button on the touch display
(page 17 Fig. 8). The button will turn black.
(2) Turn the "Heating mode selection" switch
(page 17 Fig. 9/1) to the position.
(3) Close the gas tap.
5.3 Remote monitoring with
TeleControl LAN
Every Vitobloc 200 CHP unit is equipped as standard with
the TeleControl LAN module. It is used for remote
monitoring of the CHP unit and provides the operating
data via the LAN/internet.
The only requirement is a network connection with free
access to the internet at the system.
Note:
The Telecontrol LAN gets its network settings via
DHCP. The Internet connection must be able to assign
the IP address, subnet mask, standard gateway and
nameserver via DHCP. The Telecontrol LAN sends
UDP packets via port 3003 to the server "ess-
telecontrol.de". The Internet connection must allow UDP
packets over port 3003 direction "ess-telecontrol.de".
There are no incoming packets.
When the CHP unit is switched on, the TeleControl LAN is
recognised automatically and is operational immediately.
After commissioning, you should contact the CHP Service
department at Viessmann Landsberg (Tel. [phone] /
9279-60) to check whether the data from the
corresponding CHP unit is being received at the
Viessmann data server.
How to install and use the client software for calling up
operating data is described in the TeleControl GPRS /
TeleControl LAN operating instructions.
After registering as the operator, it is also possible to
access the CHP unit operating data directly via the
internet.
(http://www.bhkw.de/de/service-dienstleistung.html
--> Remote monitoring login (operator & service)
The CHP TeleControl app for use with iOS and Android
mobile devices is also available for download.
5.4 Requirements for optimal
operation
●Faults and consequential losses resulting from
prohibited operating conditions are not covered
by the warranty or any service contract.
●Always avoid shutting down on full load, as this
would subject the components to the highest
mechanical loads.
●Avoid cyclical on-off operation and provide a
buffer if necessary. The ratio of hours run to
starts relative to average hours run must be
greater than 3, i.e. after 3000 hours run, the unit
should have started less than 1000 times. The
greater the ratio of hours run to starts, the
better.
●Ensure a constant, adequate heating water flow
rate.
●The combined heat and power (CHP) unit must
be protected against silting from the existing
heating system. It is recommended that you
install a dirt catcher and a dirt separator in the
return line to the CHP unit.
●Include an optional heat meter in the return
temperature raising facility to detect the amount
of heat generated.
●Ensure gas flow pressure of 20 mbar to 50
mbar.
●Ensure an adequate supply of fresh air and that
extract air is discharged securely.
●The condensate line must be checked regularly
blockages and sufficient water seal. Hydraulic
seals must be executed, so that the water level
can be checked and filled.
●Regular servicing and maintenance by qualified
personnel in accordance with the manufacturer's
maintenance instructions. We recommend a
service contract.
●The batteries must be disconnected by the
manufacturer's technicians in the event of
prolonged idle periods or decommissioning of
the CHP unit. In the case of idle periods lasting
longer than 12 weeks, the CHP unit must be
preserved by the manufacturer's technicians.

Operation
VITOBLOC 200 EM-20/39 Operating instructions 19
6130264 GB
5.5 Control unit functions
5.5.1 Programming and display field on control panel

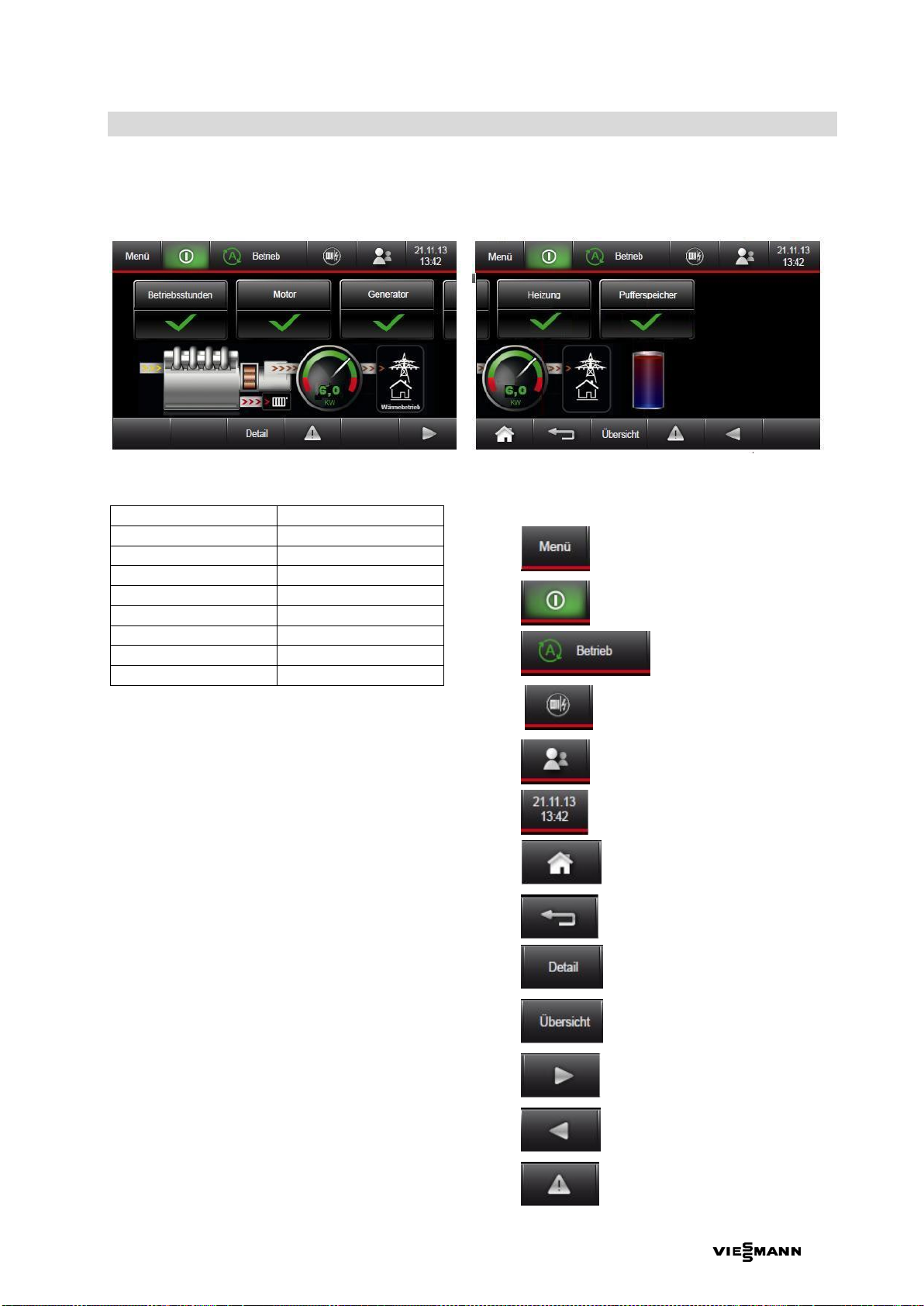

Fig. 11 Programming and display field with 2 default screens
Menü
Menu
Betrieb
Operation
Betriebsstunden
Hours run
Motor
Motor
Generator
Generator
Detail
Detail
Heizung
Heating
Pufferspeicher
Buffer cylinder
Übersicht
Overview
The default screen as start screen shows the CHP
system with its components.
The graphics on the display and the self-explanatory
icons enable simple and intuitive operation of the
control unit.
Control level 1 includes all default screens.
Subject to the number of components to be controlled,
one or more default screens are possible. They are
selected using the arrow buttons "more ►" and "more
◄".
All default screens are available with the "All OK check
mark" or with current operating data.
Control level 2 includes the operating level.
Touch the relevant component field in the default
screen to open the respective operating screen for the
component.
In the operating level, additional operating and
measurement data can be called up and a limited
number of settings can be made.
Control level 3 is the setting level. It is reserved for
trained service personnel with password authorisation.
Display button functions
Calls up menu
"Customer-specific
settings"
Start/Stop
button
Automatic mode
ON/OFF
indicator
:
Heating operation
ON/OFF
indicator
User
Display of current
date and time
Back
to default screen with check
marks
Back
to previous screen
Change from default screen
with "All OK check marks" to
display of operating data
Change from default screen
with operating data to display
with "All OK check marks"
Arrow button RIGHT
Change to further default
screens
Arrow button LEFT
Change to further default
screens
Display
of current faults

Operation
20 Operating instructions VITOBLOC 200 EM-20/39
6130264 GB

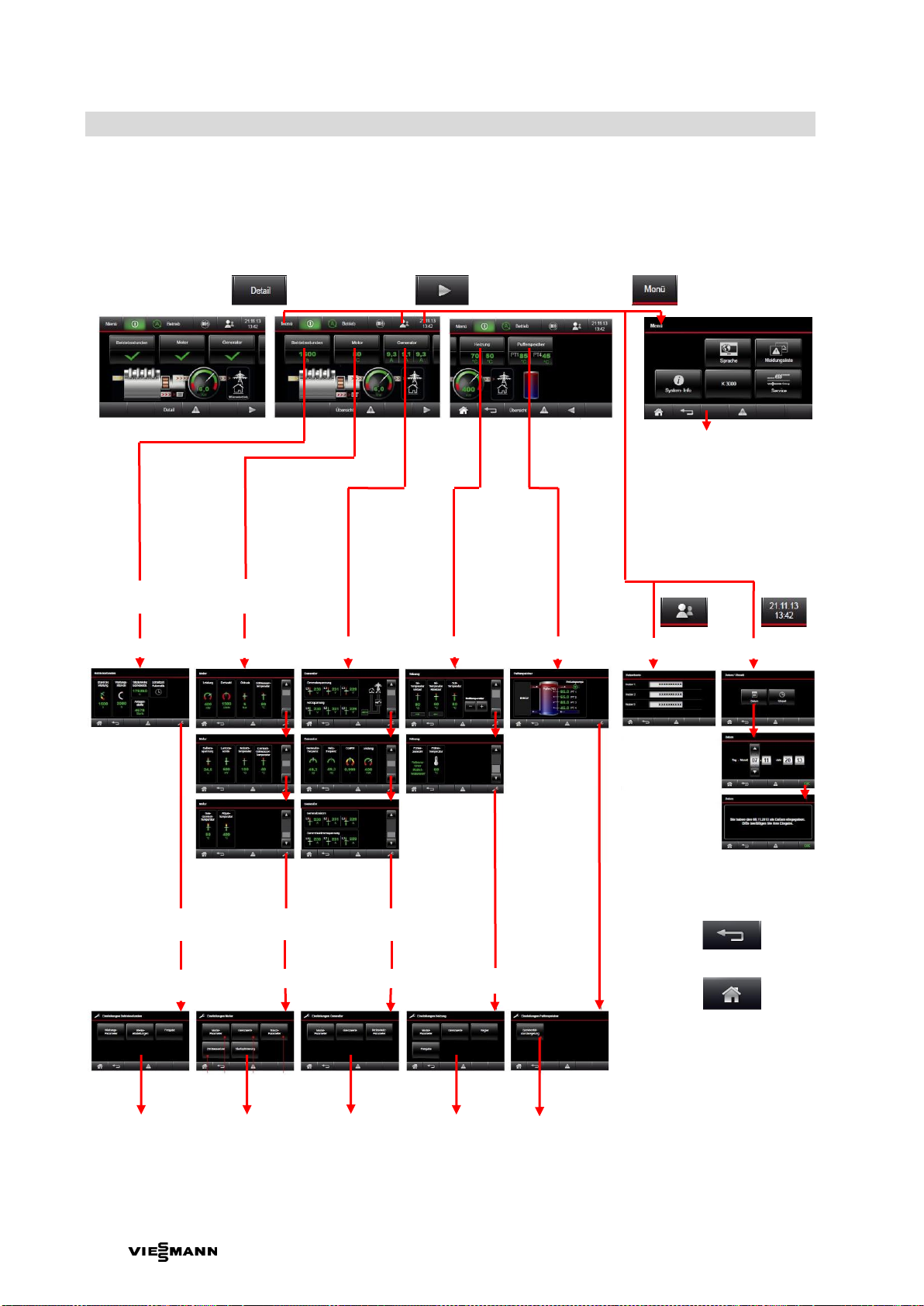

5.5.2 Control levels
Level 1 - Default screens
Default screen with "All OK check marks" Default screens with details Customer-specific settings menu
Level 2 –Operating level
Hours run Motor Generator Heating Buffer cylinder User accounts Date/time
Level 3 –Setting level (requires password)
Settings Settings Settings Settings Settings
Hours run Motor Generator Heating Buffer cylinder
- Temperatures
Flow/return
- Set value
settings
- Sensor scan
- Current
motor
operating data
- Hours run
- System starts
- Service interval
- Time switch
Panel settings
Language selection
List of operating and fault
messages
System info
K 3000 settings
Service data
Maintenance schedule
Operating log
Back to
previous screen
Back to
default screen
with "All OK
check marks"
Additional setting options only for
qualified contractors with password authorisation
Setting according to
SFR 3000
operating instructions
- Current
generator
operating data
- Temperatures
Buffer cylinder
- Settings
User accounts
- Password
- Setting
Date and time
