Viessmann Solar-Divicon PS10 Quick guide

5773 841 GB 7/2014
Installation and service
instructions
for contractors
VIESMANN
Solar-Divicon and solar pump assembly
Safety instructions
Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Note
Details identified by the word "Note" con-
tain additional information.
Installation, commissioning, inspection,
maintenance and repairs must only be
carried out by a competent person (heat-
ing engineer/installation contractor).
Before working on the equipment/heat-
ing system, isolate the power supply
(e.g. by removing a separate mains fuse
or by means of a main isolator) and safe-
guard against unauthorised reconnec-
tion.
Repairing components that fulfil a safety
function can compromise the safe oper-
ation of your heating system.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Versions
Solar control unit Circulation pump
With-
out
Vitosolic 100,
type SD1
Solar control
module,
type SM1
Multi stage Highly effi-
cient, with
PWM control
Solar-Divicon
PS10 x x x x x
PS20 x — — — x
Solar pump assembly
P10 x — — x x
P20 x — — — x

2
■ Pre-assembled and sealed valve and
safety assembly
■ Flow rate indicator (see page 4) for
checking the solar thermal system dur-
ing commissioning and operation
■ Ball valve with integrated check valve
in flow and return lines
■ Drain & fill valve
■ Air separator (see page 4)
■ Shut-off valve (adjusting screw above
the flow rate indicator, see page 4)
■ Solar control unit, subject to version
E
A
E
D
C
P
N
K
F
H
F
M
C
G
E
L
C
G
K
F
H
C
G
E
L
B
VL RL
C
O
O
ASolar-Divicon
BSolar pump assembly
CThermometer
DSafety assembly
ECirculation pump
FShut-off valves
GNon-return valves
HShut-off valve
KDrain valve
LFlow rate indicator
MAir separator
NFill valve
Components
5773 841 GB

3
OExpansion vessel connection
RL Return
VL Flow

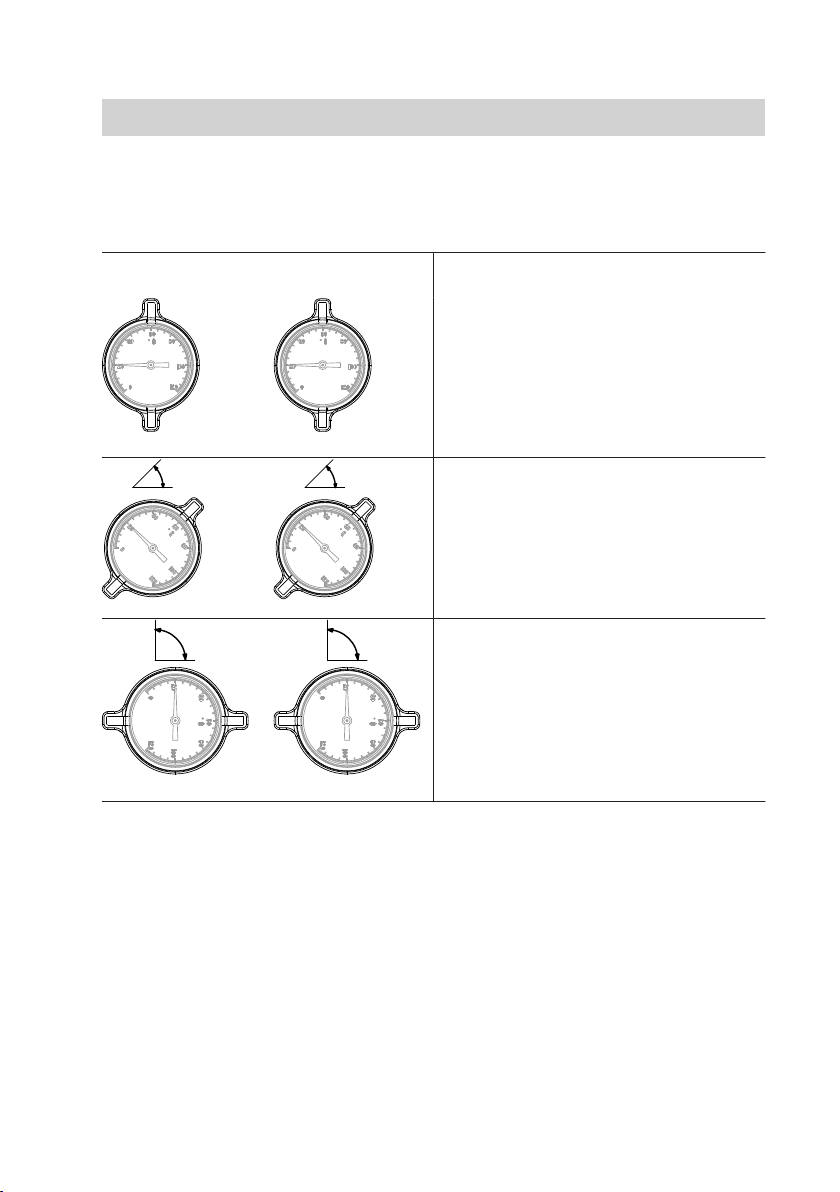

Function of the shut-off and non-return valves
Left: Flow line
Right: Return line
Operating position
Vertical position
45° 45°
Filling/draining
Rotated clockwise by 45°
90° 90°
Closed
Rotated clockwise by 90°
Components (cont.)
5773 841 GB

4
Shut-off valve and flow rate indicator
A
B
1 2
4
3
AShut-off valve (adjusting screw)
1 Flushing
2 Draining
3 Flow rate regulation
4 Operating position (depicted in
the diagram)
BFlow rate indicator
Check the flow rate at the top edge of
the float
20
5
15
25
10
35
30
l/min
Air separator
B
A
AAir vent valve
BHose connection
Components (cont.)
5773 841 GB

5

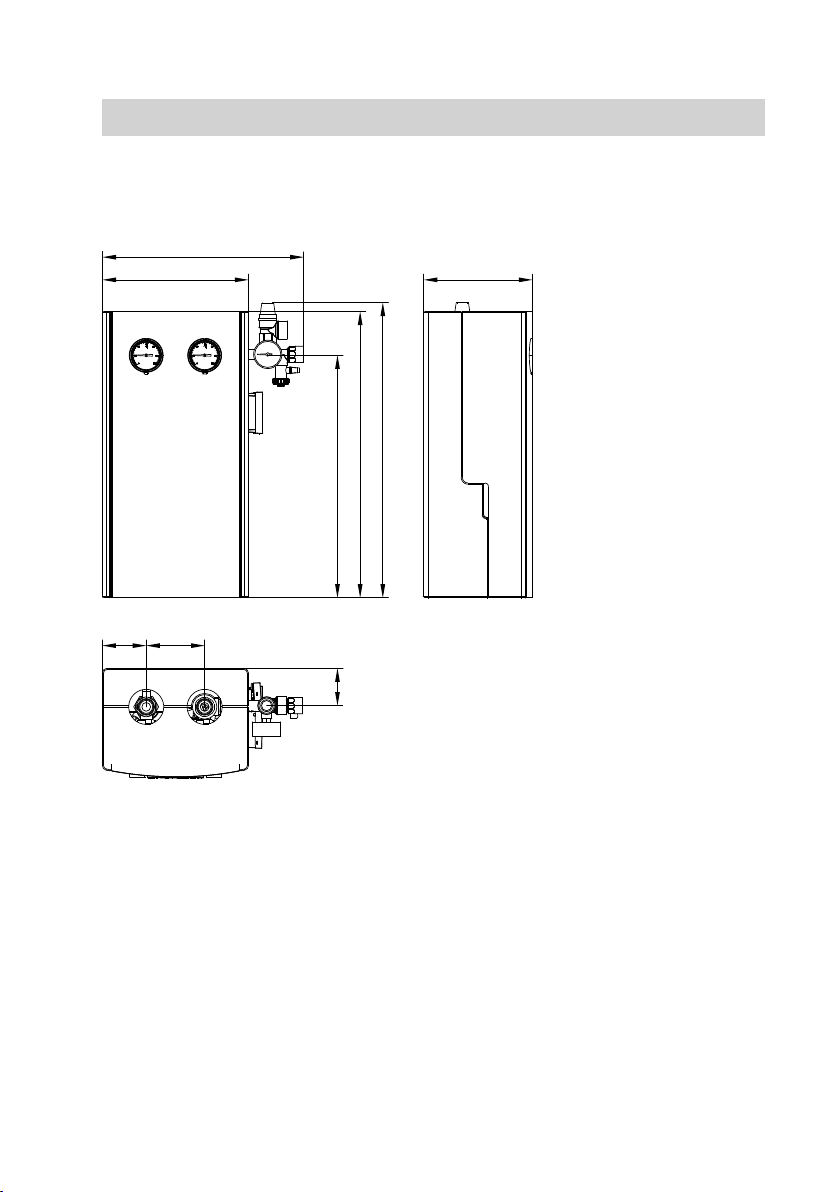

Dimensions
Solar-Divicon
250
346
186
415
490
505
66
75 100
Installation information
5773 841 GB

6

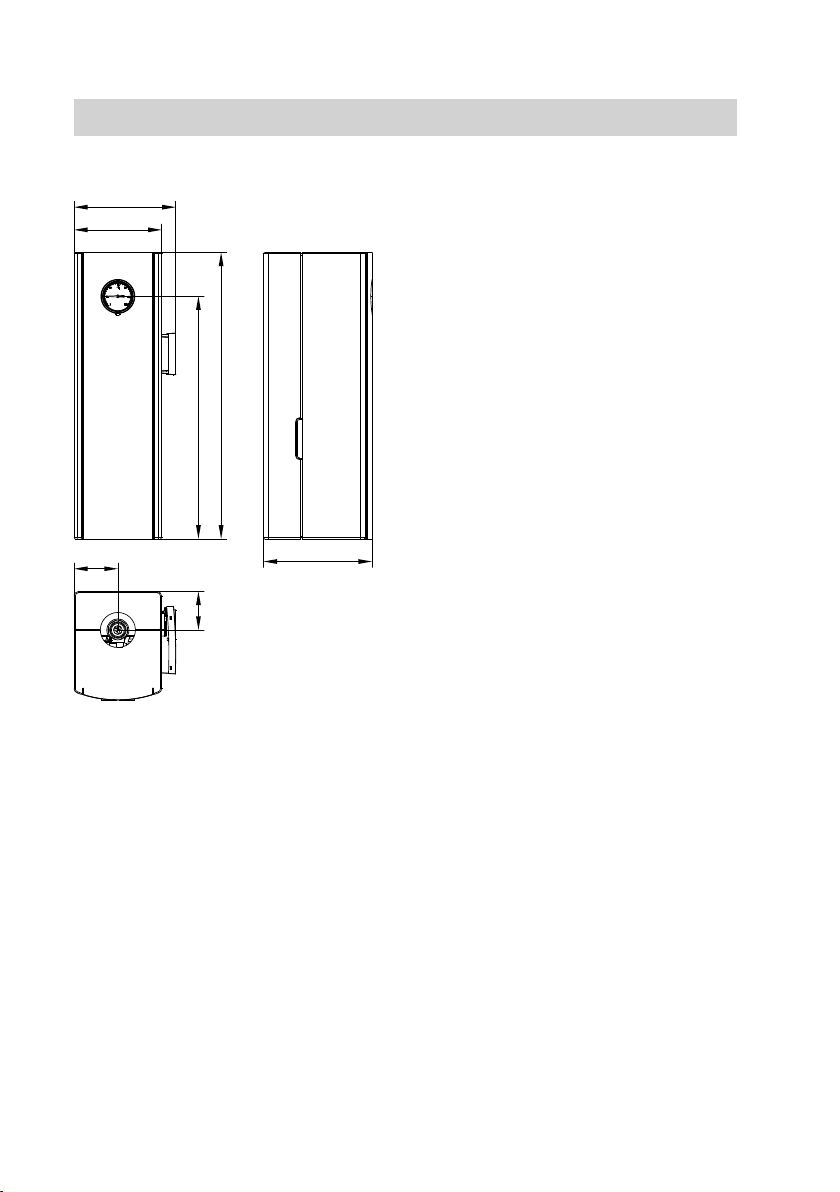

Solar pump assembly
150
174
415
490
186
75
66
Installing the locking ring fittings
■ All pipes must be cut at right angles
and deburred.
■ Insert support sleeves into pipework.
■ Push the union nut and the locking ring
onto the pipe and lightly lubricate the
threads with oil.
■ Push the pipe into the locking ring fit-
ting as far as it will go.
■ Initially tighten union nut by hand, then
tighten with an open-ended spanner
by a further ¾ revolution.
■Never fit annealed copper pipes onto
the locking ring fittings.
Installation information (cont.)
5773 841 GB

7
Solar pump assembly to the right of
the Solar-Divicon
Solar pump assembly to the left of the
Solar-Divicon
PS10
PS20
P10
P20
300
900
200
PS10
PS20
P10
P20
900
200 300
Fitting the Solar-Divicon
■ The Solar-Divicon and the solar pump
assembly are unsuitable for direct con-
tact with swimming pool water.
■ Every time the system is drained, flush
the system with heat transfer medium.
■ A tee connection is available for the
purpose of connecting the expansion
vessel and the stagnation heat sink in
the flow.
■ Install a thermal insulation loop if the
expansion vessel is installed higher
than the Solar-Divicon.
■ Use only bronze, brass or stainless
steel fittings, copper or stainless steel
pipes or Viessmann stainless steel
solar circuit pipes for the installation.
Use hemp only in conjunction with
pressure and temperature-resistant
sealants.
■ Check the sealing faces for cleanli-
ness and damage before assembly.
■ The discharge pipe must exit into an
open container.
Clearances
5773 841 GB

8
Note the information regarding individual steps.
Ø10
8.
5.
2.
7.
1.
3. 6.
10.
4.
9.
9.
Fitting the Solar-Divicon (cont.)
5773 841 GB

9
Information on step 1:
After you have removed the upper insu-
lation shell, remove the transport protec-
tion cardboard.
Information on step 3:
Remove the flow and return lines to
make installation easier.
If you are installing a Solar-Divicon, type
PS20, remove the spring clip before
removing the flow and return lines.
Information on step 9:
Versions:
■Installation with copper pipes
Insert the support sleeves into the
solar circuit pipes and secure with
valve connections.
■Installation with stainless steel
solar circuit pipe
Trim and deburr in the valley of the
corrugation; do not damage the peak
of the corrugation.
Fit the union nut, half washer (in the
5th valley) and O-rings (in the 1st and
3rd valley).
Information on the Solar-Divicon,
type PS10 with solar control unit
For maintenance and service work, the
solar control unit can be hooked into the
side of the circulation pump.
Electrical connections
■Version with solar control unit:
The circulation pump is connected to
the solar control unit at the factory.
See the installation and service
instructions for further connections.
■Version without solar control unit:
Route the connecting cable for the cir-
culation pump downwards through the
cable trunking and connect it to the
solar control unit.
See the installation and service
instructions for further connections.
Fitting the Solar-Divicon (cont.)
5773 841 GB

10
Observe the clearances on page 7.
Note the information regarding individual steps.
Ø10
1.
4.
7.
3.
2.
5.
6.
6.
Mounting the solar circuit pump assembly
5773 841 GB

11
Information on step 2:
Remove the return line to make installa-
tion easier.
If you are installing a Solar-Divicon, type
P20 remove the spring clip before
removing the return line.
Information on step 6:
Versions:
■Installation with copper pipes
Insert the support sleeves into the
solar circuit pipes and secure with
valve connections.
■Installation with stainless steel
solar circuit pipe
Trim and deburr in the valley of the
corrugation; do not damage the peak
of the corrugation.
Fit the union nut, half washer (in the
5th valley) and O-rings (in the 1st and
3rd valley).
Flushing and filling the solar thermal system
Solar collector service instruc-
tions.
Electrical connections
Route the connecting cable for the cir-
culation pump downwards through the
cable trunking and connect it to the solar
control unit.
Solar control unit installation and
service instructions
Replacing the circulation pump
1. Close shut-off valve F in the return
line (see page 3).
2. Close shut-off valve H in the return
line: Use a screwdriver to turn the slot
on the adjusting screw above the flow
rate indicator to position "E".
Mounting the solar circuit pump assembly (cont.)
5773 841 GB

12
K
3. Open drain valve K and drain the
heat transfer medium.
4. Replace the circulation pump.
Replacing the circulation pump (cont.)
5773 841 GB

13

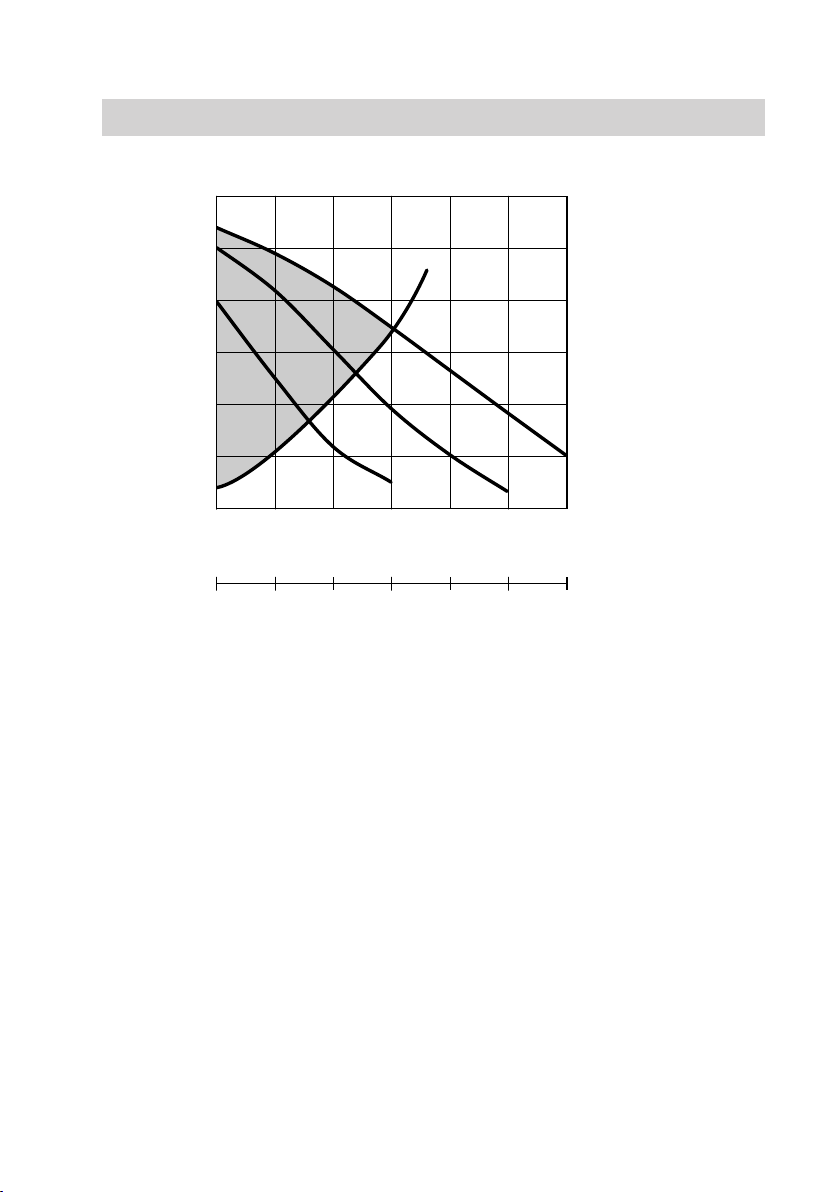

3-stage circulation pump
0 1 2 3
Pump rate in m³/h
Head
0
10
20
30
40
D
50
60
0.5 1.5 2.5
A
016.7 33.2 508.3 25 41.7
Pump rate in l/min
C
B
kPa mbar
0
100
200
300
400
500
600
APressure drop curve
BHead at output stage I
CHead at output stage II
DHead at output stage III
Pump curves
5773 841 GB

14
HE circulation pump with PWM control, types PS10 and P10
0 0.5 1.0 1.5
Pump rate in m³/h
Head
0
20
40
60
80
2.0
A
B
Pump rate in l/min
0 8.3 16.7 25 33.2
kPa
0
200
400
600
800
mbar
APressure drop curve BMax. head
HE circulation pump with PWM control, types PS20 and P20
Pump rate in m³/h
Head
2.0
Pump rate in l/min
0 8.3 16.7 25 33.2
0 0.5 1.0 1.5
0
20
40
60
80
2.5
41.7
200
400
600
800
kPa
0
mbar
A
B
APressure drop curve BMax. head
Pump curves (cont.)
5773 841 GB

15
LED Meaning Cause Remedy
Illuminated green Circulation pump in
operation
— —
Flashes green in
short intervals
Circulation pump in
standby
— —
Fault indications
■ Flashes red and
green alternately
Circulation pump is
ready for operation
but not running.
Note
The circulation
pump starts auto-
matically after the
cause of the fault
has been re-
moved.
■ Undervoltage
(< 160 V~)
■ Overvoltage
(> 253 V~)
Check the power
supply. (195 V~ < U
< 253 V~)
Motor temperature
too high
Check ambient and
heat transfer medi-
um temperatures.
■ Flashes red Circulation pump
switched off
(blocked)
Circulation pump
does not start auto-
matically.
Replace circulation
pump (see
page 11)
■ LED off — No operating volt-
age.
Check connecting
cable.
LED faulty Check whether the
circulation pump is
running.
PCB faulty Replace the circula-
tion pump (see
page 11).
LED on the HE circulation pump
5773 841 GB

16
Type PS10, P10 PS10, P10 PS20, P20
Wilo circulation pump ST15/6ECO PARA 15/7.0 PARA 15/7.5
Multi stage
circulation
pump
HE circulation pump with
PWM control
Rated voltage V~ 230 230 230
Power consumption
■ Output stage I W 36 — —
■ Output stage II W 43 — —
■ Output stage III W 49 — —
■ Min. W — 3 3
■ Max. W — 45 73
Flow rate indicator l/min 1 to 13 1 to 13 5 to 35
Safety valve (solar) bar 6 6 6
Max. operating temperature °C 120 120 120
Max. operating pressure bar 6 6 6
Connections (locking ring fit-
ting/double O-ring)
■ Solar circuit mm 22 22 22
■ Expansion vessel mm 22 22 22

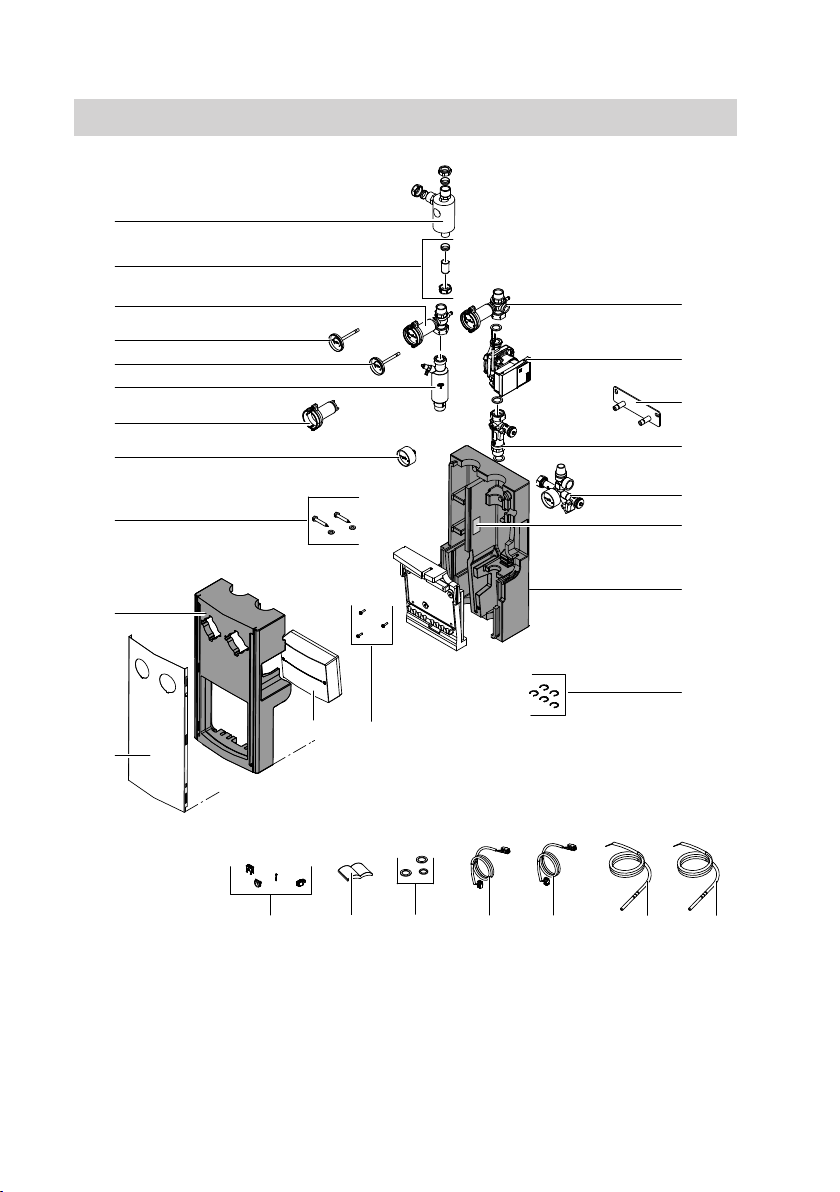

Parts list for Solar-Divicon, type PS10
Without solar control unit
Pos. Part
0001 Insulation shell
0002 Gasket set
0003 Type plate
0004 Circulation pump connecting cable, 230 V~
0005 Fixings
0006 Ball valve, return, DN 15
0007 Safety assembly
0008 Circulation pump
0009 Flow rate indicator
0010 Cover
0011 Mounting plate
0012 Thermometer, blue
0013 Thermometer, red
0014 Air separator, DN 15
Specification
5773 841 GB

17
Pos. Part
0015 Ball valve handle, DN 15
0016 Retaining clip (5 pce)
0017 Tee connection, flow
0018 Locking ring fitting (5 pce)
0019 Ball valve, flow, DN 15
0020 Pressure gauge
0021 Installation and service instructions
0022 Circulation pump connecting cable, PWM (only for Solar-Divicon with HE cir-
culation pump)
Parts list for Solar-Divicon, type PS10 (cont.)
5773 841 GB

18
0002 0004
0001
0001
0005
0011
0008
0016
0017
0015
0013
0012
0019
0018
0006
0007
0010
0014
0020
0021 0022
0009
0003
Parts list for Solar-Divicon, type PS10
With solar control module, type SM1
Parts list for Solar-Divicon, type PS10 (cont.)
5773 841 GB

19
Pos. Part
0001 Insulation shell
0002 Solar control module, type SM1
0003 Type plate
0004 Ball valve, flow, DN 15
0005 Circulation pump connecting cable, 230 V~
0006 Fixings
0007 Screws 40 x 16 mm
0008 Cover
0009 Gasket set
0010 Ball valve, return, DN 15
0011 Safety assembly
0012 Circulation pump
0013 Flow rate indicator
0014 Mounting plate
0015 Thermometer, blue
0016 Thermometer, red
0017 Air separator, DN 15
0018 Ball valve handle, DN 15
0019 Retaining clip (5 pce)
0020 Cylinder temperature sensor
0021 Tee connection, flow
0022 Locking ring fitting (5 pce)
0023 Collector temperature sensor NTC
0024 Pressure gauge
0025 Circulation pump connecting cable, PWM (only for Solar-Divicon with HE cir-
culation pump)
0026 Screwless terminals
0027 Installation and service instructions
Parts list for Solar-Divicon, type PS10 (cont.)
5773 841 GB

20
0016
0017
0010
0004
0024
0026 0027
0019
0011
0007
0008
0006
0002
0022
0013
0012
0018
0015
002000250005
0001
0009
0021
0001
0014
0003
0023
Parts list for Solar-Divicon, type PS10 (cont.)
5773 841 GB
