Viesta Eco Pro 200 User manual

\lgcqm
“w “WW
Crn Drn 200
hyv i
All manuals and user guides at all-guides.com
all-guides.com

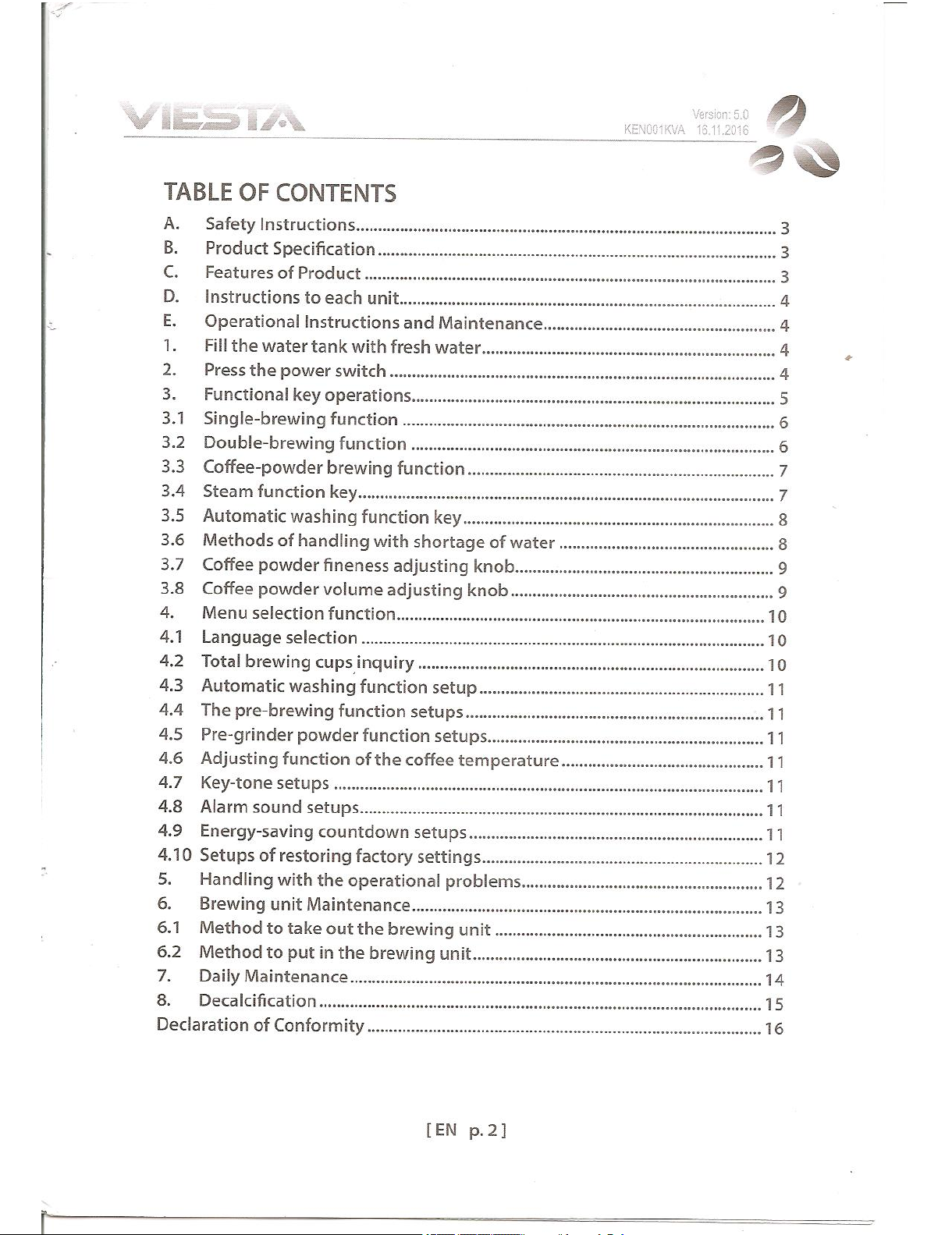

TABLE OF CONTENTS
WENNT'F‘UFWWID
._i
3.2
3.3
3.4
3.5
3.6
3.7
3.8
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
6.1
6.2
Declaration of Conformity.
Safety Instructions..................................................
Product Specification
Featuresof Product.
Instructionsto each unIt
Operational Instructionsand Maintenance
Fill the water tank with fresh water..........
Press the power switch
Functional key operations.
Single-brewing function
Double»brewing function.
Coffee-
-powder brewing function
Steam function key ......
Automatic washing function key
Methodsof handling with shortage of water
Coffee powder fineness adjusting knob......
Coffee powder volume adjusting knob
Menu selection function...............
Languageselection .........
Total brewing cupsyinquiry
Automatic washing function setup
The pre-brewingfunction setups"
Pre—grinder powder function setups.....
Adjusting function of the coffee temperature
Key-tone setups
Alarm sound setup ..
Energy-saving countdown setups

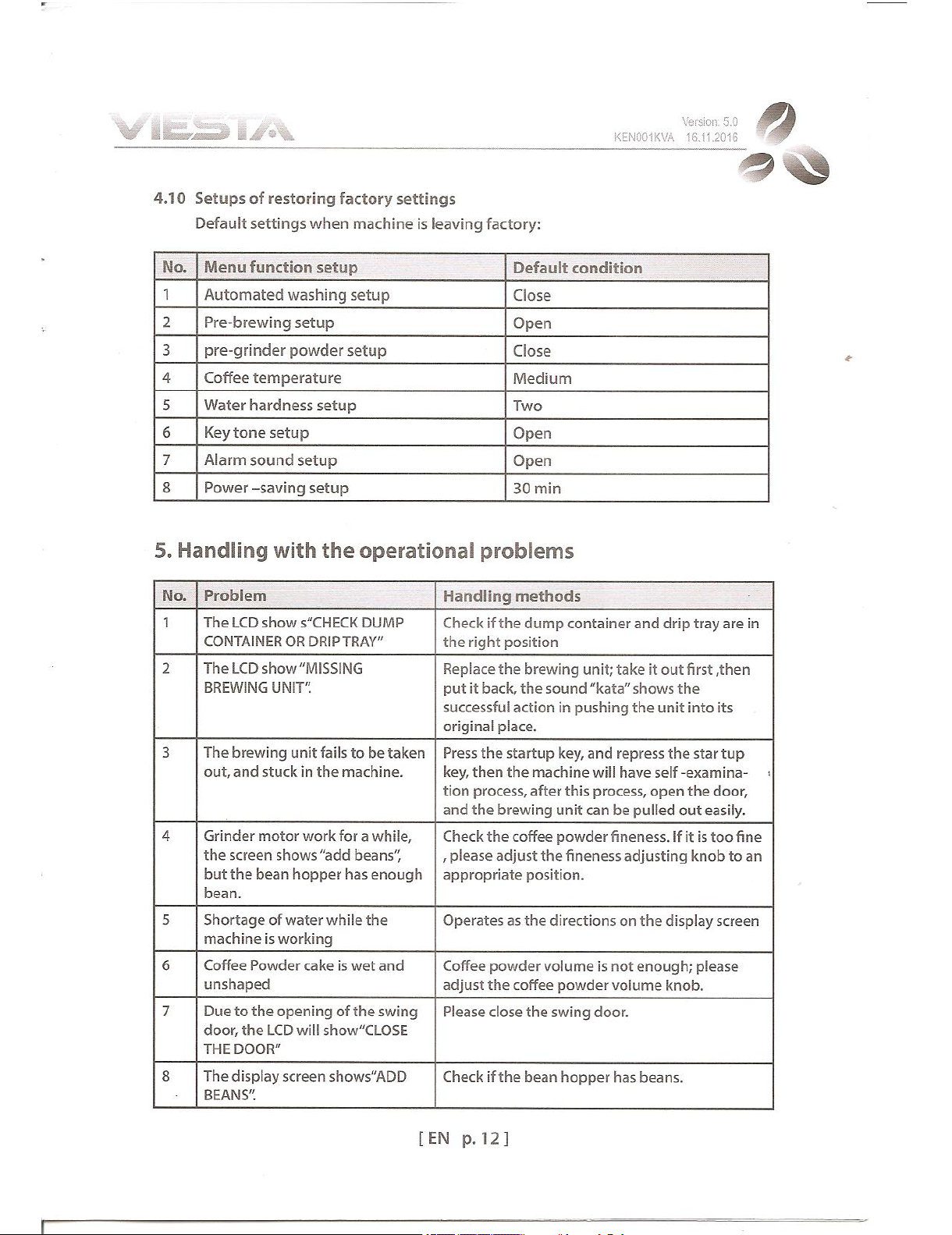

Setups of restoring factory settings......
Handling with the operational problems.
Brewing unit Maintenance.....
Method to take out the brewing unit
Method to put in the brewing uni
Daily Maintenance......................
Decalcification
[EN p.2]
All manuals and user guides at all-guides.com

Safety Instructions
Read and preserve the instruction manual carefully.
Keep the machine in astable flat, which is dry, ventilated and out of the reach of children‘
Understandthe power specificationsbefore using the machine and then connect the power
accordingto the requirements.
Don’t use the machine when it is short of water or runs out of water.
Dispose the plasticand bubble board in the package appropriately to avoid hurting children
Don’t keep the hot water lsteam muzzle towards person or other items
Disassemblethe coffeenmaking machine and wash each unit only when the power is turned
offand the machine is cooled.
Don't use wet dishclothto clean the machine shell.
9. Don’t continue to use the machine when it is broken or the wire is broken Please send it to
the professionalrepairing or specialshops in time.
10. It is normal phenomenon to find little residual powder in the first use after purchasing the
coffee machine.
1i. The machine isn’t applicable to the group deficiencyin physical, feelings and mental,
includingchildren Except that they are under the directions of their guardian to operate the
machine safely and avoid playing with the machinefor fun.
WP.“
N95"?
9°
Product Specification
Model: Eco Pro 200
Voltage: AC220V~AC240V
Frequency:SOHZ
Rated Power: 120071500W
Capacity of water tank: 2000 ml
Capacity of bean container:2509
Capacity of coffee dripping:307200mI/cup
Features of Product
The machine is aperfect combination of high quality and practical use, with streamlined design,
removable brewing unit/water tank/dump container for easy cleaning,simple operations to
make milk frother for fancy coffee and other hot drinks.Themain functions are quoted as follows:
-LCD screen menu
-Singlerbrewingfunction
.Doublenbrewing function
-Coffee—brewingfunction
-Automatic~washing function
-Temperaturenadjustingfunction
-Cup-volumeadjusting function
-Pre-grinderpowder function
-Coffee powder fineness adjusting function
-Coffee-powervolume adjusting function
-Cups-countingfunction
Prerbrewingsetup
-Water hardness setup
-Descaling setup
.Alarm sound setup
-Energyrsaving countdown
[EN p.31
All manuals and user guides at all-guides.com

Introduction to each unit
”93"““lm‘m’ toffeepowderfinenesxzd‘ustmgbar displayscreen
"gm(over ha ofbean menu/Dkkey
singlempkey
double (up
In olzoflee povtde( smug key
Steamfunction key
.uwder volume
mm”. m, aulomamd waghmg
Inndxon key
:oflu'pawdev
brewing key
smallrcw
watev mum
LCD
trademark lampshade
(OHEE (rant covev
1mm operational plate
dnp tray
batktov‘er puwm‘wud. walertank Mpanel
Operational instructions and maintenance
1. Fill the water tank with fresh water
Open the left cover, pull the water tank handle straightlyand take it out, then fill in
water till maximum level.
2. Press the power switch
2.1 Check to make sure the plug in line with the socket.
2.2 Press the power switch, the display screen will show"Welcome”.
2.3 Choosethe (up—volume:Revolve the volume button and place it in
the required position.
[EN p.4l
All manuals and user guides at all-guides.com

power switch

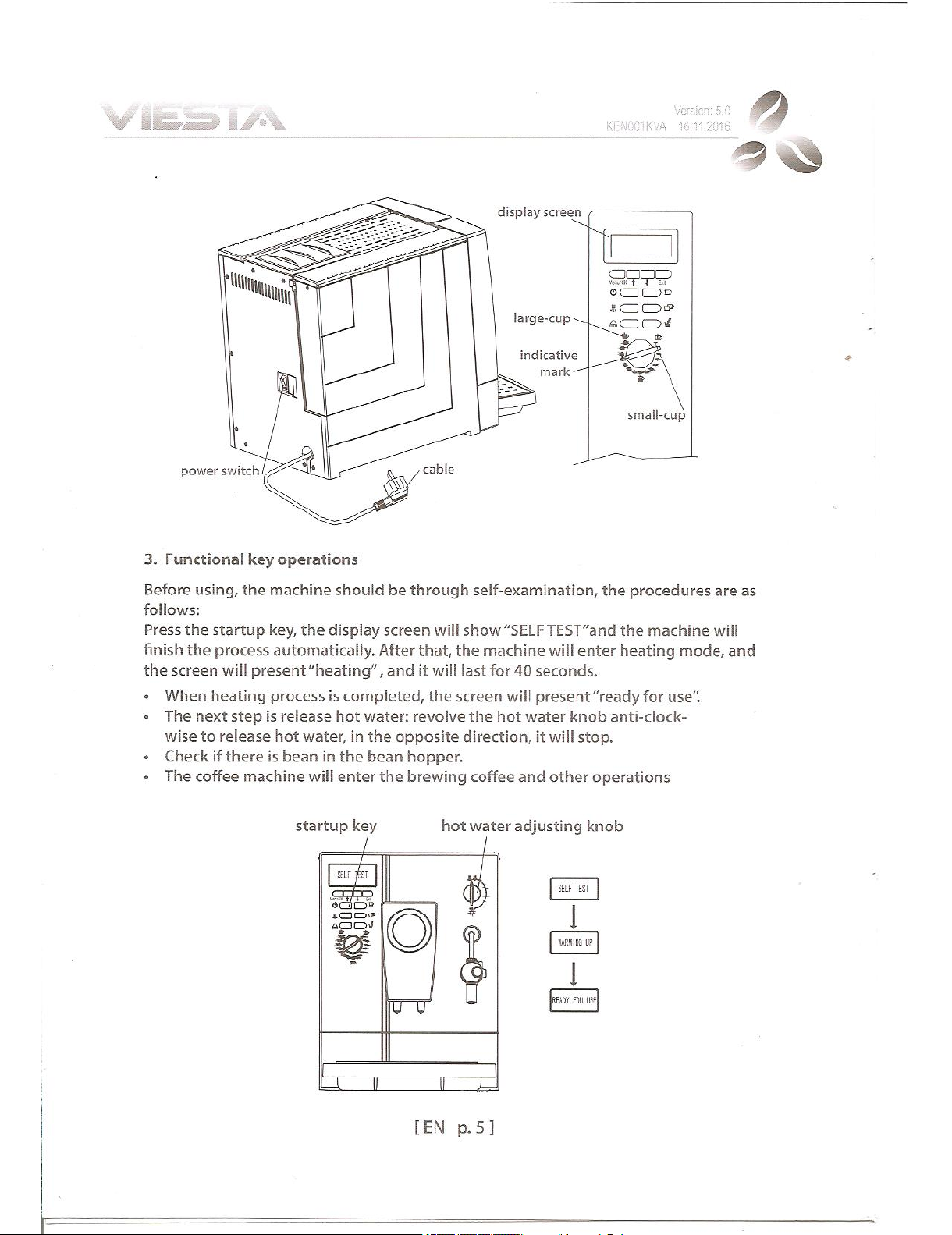

3. Functional key operations
Before using, the machine should be through self-examination,the procedures are as
follows:
Press the startup key, the displayscreen will show"SELF TEST"and the machine will
finish the process automatically After that, the machinewill enter heating mode, and
the screen will present“heating", and it will last for 40 seconds.
.When heating process is completed, the screen will present “ready for use’i
-The next step is release hot water: revolve the hot water knob anti-(lock-
wise to release hot water, in the opposite direction, it will stop,
-Check if there is bean in the bean hopper,
-The coffee machinewill enter the brewing coffee and other operations
startup key hot water adjusting knob
so:
UU
[EN P-5]
my mu us:
All manuals and user guides at all-guides.com

single-cup key
lESPRESSlD
mg
,.,,
oCID
JCIDS
APE)!
Remarks:
4%

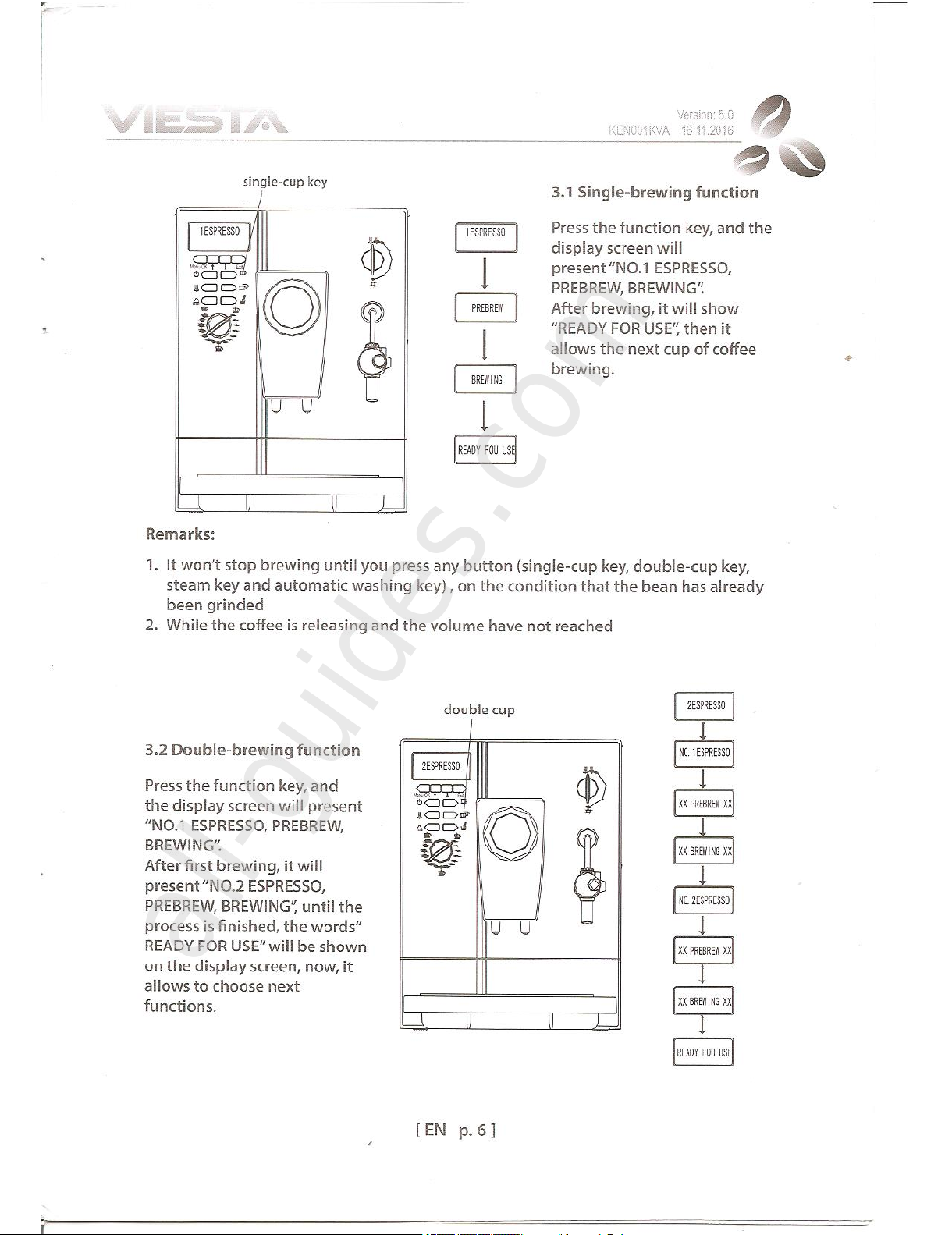

3.1 Single-brewing function
Press the function key, and the
displayscreen will
present"N0.1 ESPRESSO,
PREBREW, BREWING’I
After brewing,it will show
“READY FOR USE", then it
allows the next cup of coffee
brewing.
1. It won’t stop brewing until you press any button (single-cupkey, doubleecup key,
steam key and automatic washing key) ,on the condition that the bean has already
been grinded
2. While the coffee is releasing and the volume have not reached
3.2 Double-brewing function
Press the function key, and
the display screen will present
"No.1 ESPRESSO, PREBREW,
BREWING”.
After first brewing,it will
present “No.2 ESPRESSO,
PREBREW, BREWING", until the
process is finished, the words”
READY FOR USE" will be shown
on the displayscreen, now, it
allows to choose next
functions.
double (up
I
ND lESPRE530
XX PREEREw xx
xx BREWWG xx
[EN p.61
AMg; 1
All manuals and user guides at all-guides.com
all-guides.com

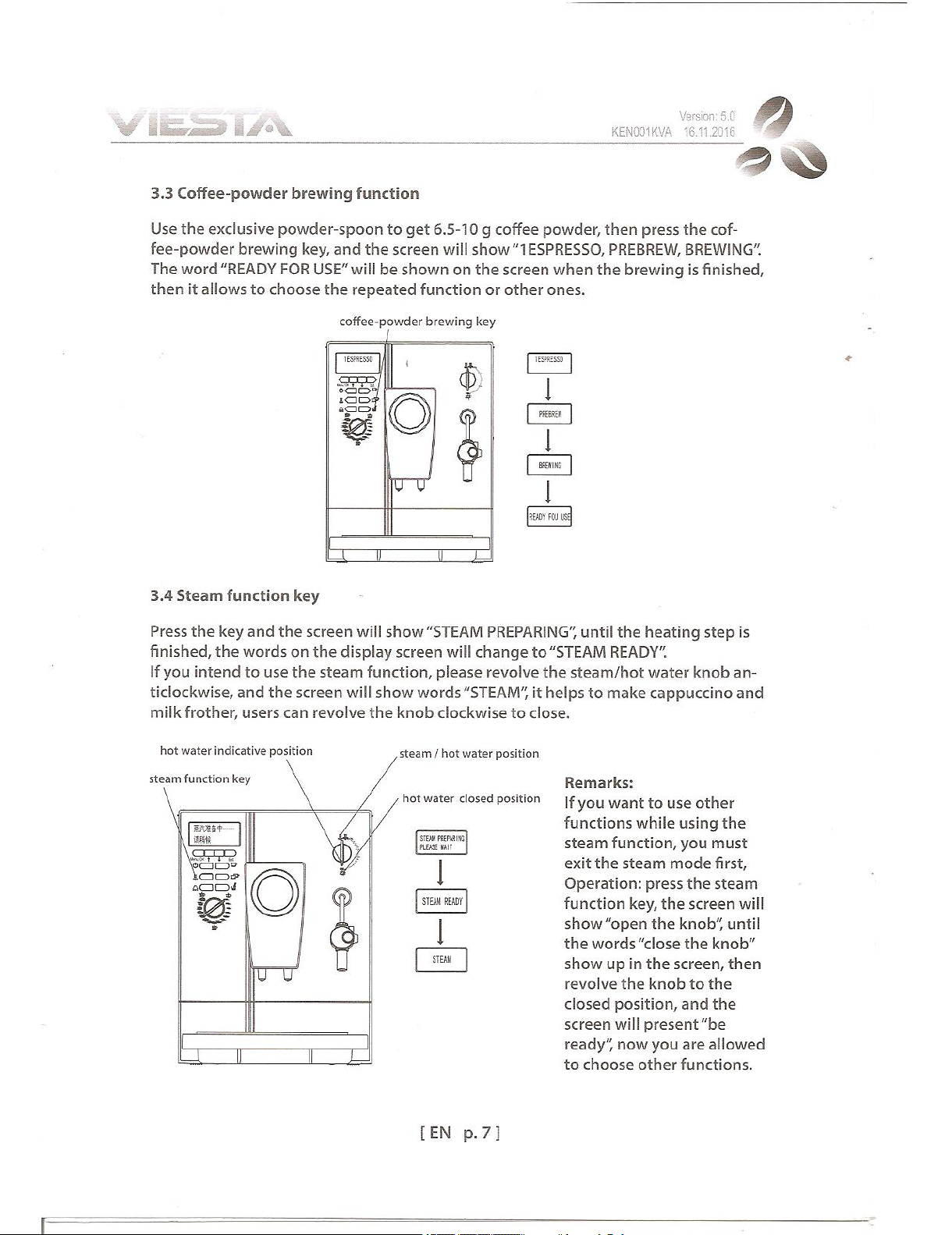

3.3 Coffee-powderbrewing function
Use the exclusive powdervspoonto get 6.5-10 9coffee powder, then press the cof—
fee—powder brewing key, and the screen will show“1 ESPRESSO, PREBREW, BREWING".
The word"READY FOR USE"wi|l be shown on the screen when the brewing is finished,
then it allows to choose the repeated function or other ones.
coffeerpowder brewing key
3.4 Steam function key
Press the key and the screen will show“STEAM PREPARING", until the heating step is
finished,the words on the display screen will change to "STEAM READY".
if you intend to use the steam function, please revolve the steam/hot water knob an-
ticlockwise, and the screen will show words ”STEAM’L it helps to make cappuccinoand
milk frother, users can revolve the knob clockwise to close.
hot water indicative position steam / hot water position
steam function key Remarks:
hot water closed position If you want to use other
functions while using the
steam function,you must
exit the steam mode first,
Operation:press the steam
function key, the screen will
show”open the knob”, until
the words ”close the knob"
Show up in the screen, then
revolvethe knob to the
closed position, and the
screen will present ”be
ready”, now you are allowed
to choose other functions.
"Eon 000w
4®
no
[EN p.71
All manuals and user guides at all-guides.com

hot water Indicative osition V.
psteam /hot water positlon
steam function key hot water closed position
3.5 Automatic washing function key
Press down the key, the screen will present l’RINSING”.When the washing is completed,
the words“READYFOR USE” will be shown again.
automatedrwashing
function key
3.6 Methods of handling with shortage of water
In the processof using, if the display screen show the words“F|LL WATER,TURN ON
KNOB”, you need to check if there is little water in the water tank, if so, please add
water in water tank and open the steam/hot water knob, you can read the words ”VENi
TlLATlNG”on the displayscreen. Please wait until the water flows smoothly,later the
words"TURN OFF KNOB"will be presented on the screen. Close the knob, the screen
will show"READYFOR USE”, users can proceed with other operations.
[EN p.81
All manuals and user guides at all-guides.com

97%

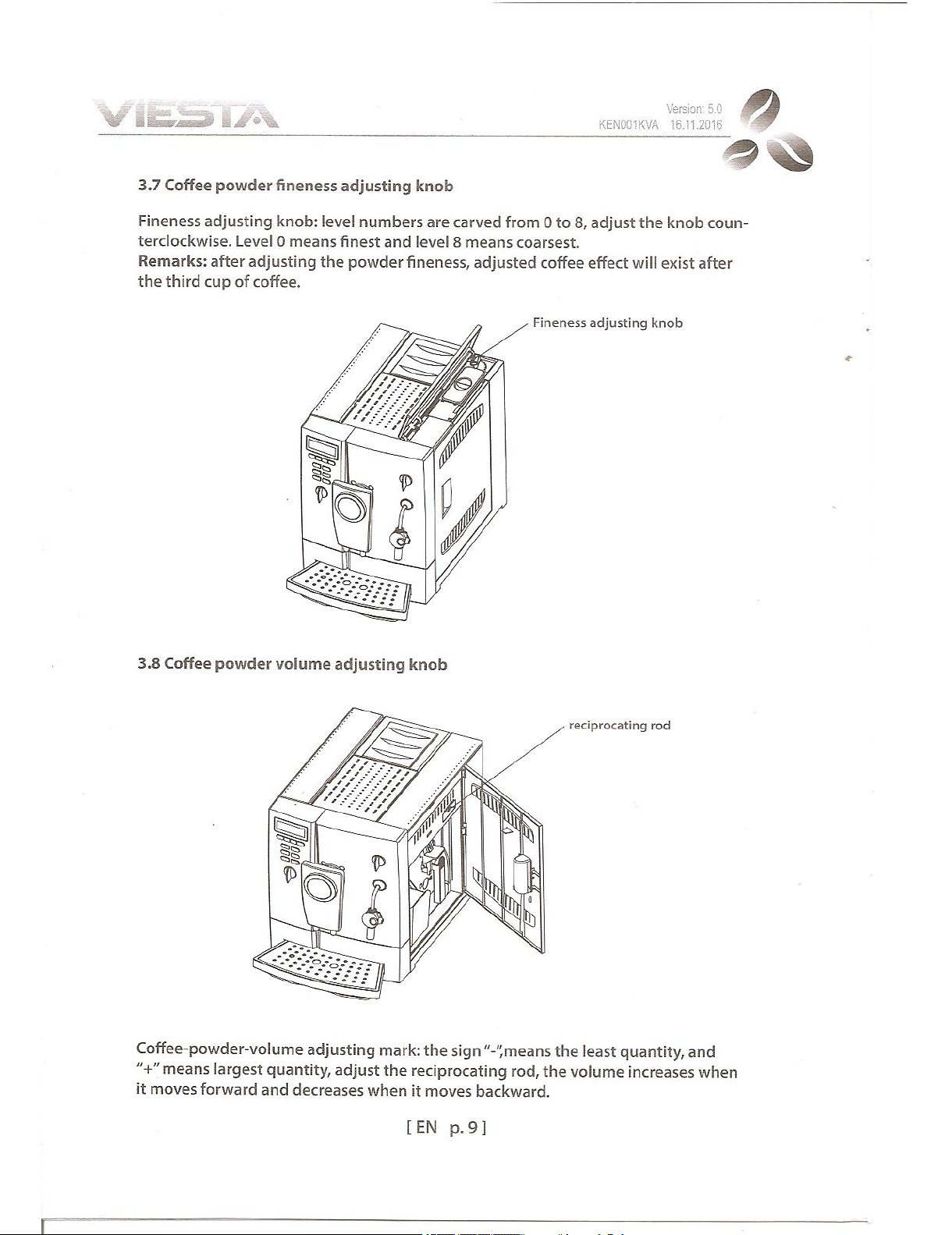

3.7 Coffee powder fineness adjusting knob
Finenessadjusting knob: level numbers are carved from 0to 8, adjust the knob (ouni
terclockwise. Level 0means finest and levels means coarsest.
Remarks:after adjusting the powder fineness, adjusted coffee effect will exist after
the third cup of coffee.
Fineness adjustingknob
reciprocating rod
Coffeeipowderwolumeadjusting mark: the sign “-'2means the least quantity, and
”+" means largest quantity, adjust the reciprocatingrod, the volume increaseswhen
it moves forwardand decreases when it moves backward.
[EN p.9]
All manuals and user guides at all-guides.com

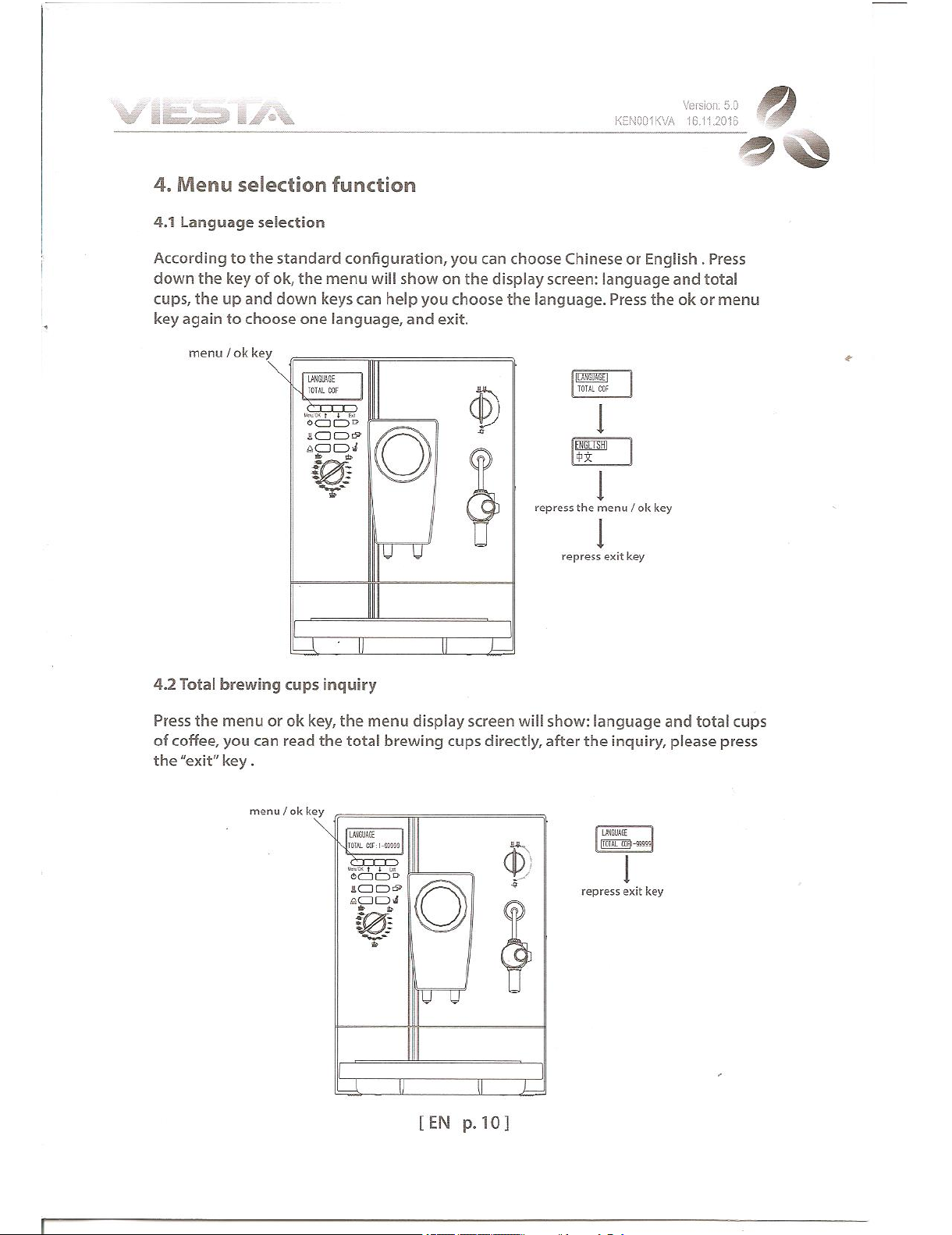

4. Menu selection function
4.1 Language selection
According to the standard configuration,you can choose Chinese or English .Press
down the key of ok, the menu will show on the display screen: language and total
cups, the up and down keys can help you choose the language. Press the ok or menu
key again to choose one language, and exit.
menu /ok key
UNEME
mm our
”5&5
MODS
repress the menu wk key
1
repressexit key
4.2 Total brewing cups inquiry
Press the menu or ok key, the menu display screen will Show: language and total cups
of coffee, you can read the total brewing cups directly, after the inquiry, please press
the "exit" key.
menu [0k key
1
©“repress exit key
[EN p.10]
