The evolution of dramatic home entertainment.
ViewSonic’s NextVision N3020w 30" (29.5" viewable) HD LCD TV unlocks the power of
entertainment. Its distinctly designed, ultra-thin, flat panel screen fits virtually anywhere
in your home. Rich, saturated color, bold life-like images, and powerful 20-watt stereo
speakers PUT YOU IN THE MIDDLE OF THE ACTION. Integrated connections make it
easy to connect your DVD, VCR, set-top box, game box, or camcorder. ViewSonic’s
N3020w is ONE OF THE FIRST LCD TVS TO OFFER HDCP (high-definition content
protection) capability ensuring long-term compatibility with evolving technology. Dual
NTSC TV tuners give you full picture-
in-picture (PIP) capability so you can both
watch what you want. The N3020w
continues ViewSonic’s tradition of quality
and performance while unveiling the next
step in dramatic home entertainment.
Take home an incredible wide-screen TV

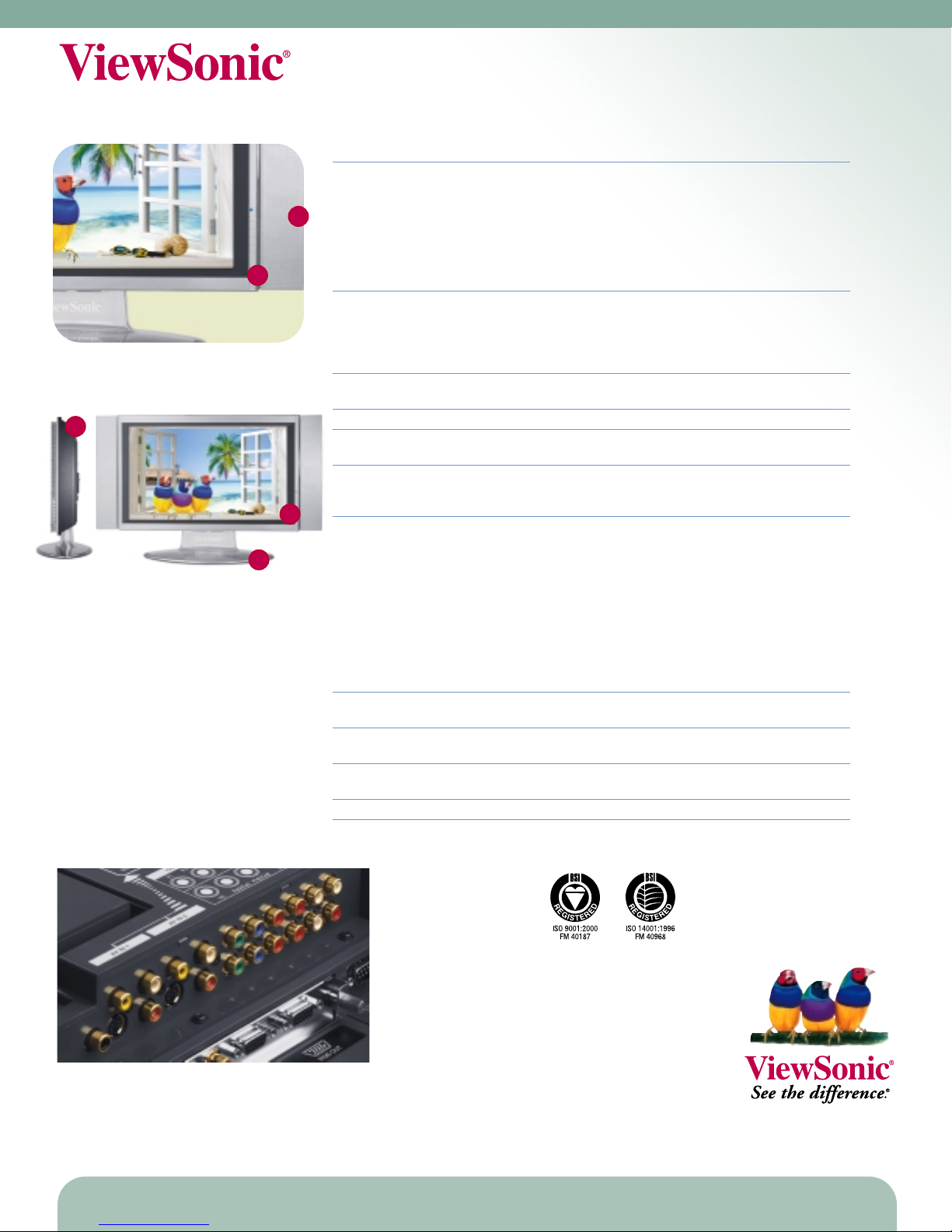

N3020w High Definition LCD TV Display
30" (29.5" viewable) NextVision®wide-screen, H *LC TV
More to See
Remarkable home entertainment.
>Experience wide-screen HDTV
Enjoy wide-screen and high-definition TV with true 1280x768
resolution and XtremeView®angles for a higher quality image at
virtually any angle.
>Get into the action with super-fast video response
The super-fast 16ms video response time brings gaming and movies to
life with crisp, life-like video.
>Advanced image processing
Integrated motion adaptive progressive scan, 3-D comb filter and 3:2
pull down give you a larger, clearer picture with fewer artifacts. Low
level contrast enhancement brings clarity to darker images.
>Connections for all your multimedia components
Multiple inputs provide easy connection of video accessories. The
integrated DVI-HDCP input gives you the best HDTV images regardless
of your signal source and dual TV tuners give you full picture-in-picture
(PIP) capability.
>Powerful multimedia stereo audio
Four built-in stereo speakers deliver 20 watts of stereo sound to your
TV and movie choices. Stereo connections also allow you to enjoy
stereo audio through your sound system.
>Stunning TV, vivid graphics
Ultra-high brightness of 450 nits (typ)
and a high contrast ratio of 400:1 (typ)
bring you crisp images in rich, saturated
color.
You’ll never have to
leave your seat with
this 56-key remote
control.
Add some flare to your entertaining with the
included light-up base, or easily remove the
base for wall mounting.

For more product information, visit us on the web at ViewSonic.com
*Cable provider and set-top box needed to view HDTV. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trade-
marks stated herein are the property of their respective companies. Copyright © 2004 ViewSonic Corporation. All rights reserved. [11632-00B-01/04] N3020w-1
ViewSonic Corporation •381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] •In Canada [phone] •Fax [phone] •[email protected] •ViewSonic.com
specifications
VIEWSONIC NEXTVISION HD LCD TV DISPLAY
LCD PANEL Type 30" (29.5" viewable) wide color, 1280x768 LCD TV
Display Area 25.3" horizontal X 15.2" vertical; 29.5" diagonal
Brightness 450 cd/m2 (typ)
Contrast Ratio 400:1 (typ)
Viewing Angle 170º horizontal, 170º vertical
Response Time 16ms (typ) gray-to-gray
Aspect Ratio 15:9
Glass Surface Anti-glare
VIDEO INPUT Tuner 2xNTSC
Analog RGB analog (75 ohms, 0.7/1.0 Vp-p)
Video 2xSVHS + R/L audio, 2xCVBS + R/L audio
2xYPbPr/YCbCr + R/L audio
Digital DVI with HDCP (content protection)
VIDEO OUTPUT Output 1 R/L audio
Output 2 Subwoofer
AUDIO OUTPUT Speakers 2x10-watt
COMPATIBILITY PC Compatible from VGA up to 1280x1024 non-interlaced, 1280x768 preferred
Mac®** Power Mac™G3/G4 up to 1280x1024, 1280x768 (preferred)
POWER Voltage AC 90–240V (universal), 50–60Hz
Consumption 175W (typ)
Connector 3-pin plug
CONTROLS Basic Volume +, - , select up/down, input, menu, power
Remote 56-key, IR, AAA battery type
OnView®Picture Contrast, brightness, color, tint, sharpness, color temp, format, H/V
size/position clock phase
Sound Bass, treble, balance, volume, surround, BBE®, speaker, audio output
TV Channel, channel status, MTS, blue background
Setup TV (air/cable, search), language, video system, sleep timer, pass code,
closed caption, V-chip, OSD timeout, OSD background, power save, (light),
PIP window size
Information Resolution, software version, H/V frequency, video system
Exit Exit
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 20–85% (non-condensing)
DIMENSIONS Physical 927mm x 600mm x 270mm
(W X H X D) 36.5" x 23.6" x 10.6"
WEIGHT Net 17.0 kg (37.5 lb.)
Gross 21.0 kg (46.3 lb.)
REGULATIONS FCC class B, UL, cUL, ICS003
WARRANTY One-year limited warranty on parts, labor and backlight
1
2
N3020w High Definition LCD TV Display
30" (29.5" viewable) NextVision®wide-screen, H *LC TV
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
The N3020w features a number of input connections to ensure
long-term compatibility with evolving technology.
Additional Special Features
•Full PIP capability
•Picture scaling –full screen, fill aspect ratio, 1:1
panorama, zoom 1, zoom 2, zoom 3
•Advanced precision scaling and image processing
•Headphone output
•Closed caption
•V-chip parental control
•Dual TV tuners
•High-quality audio with subwoofer output
3
4
5
3. Only 10.6" thick or less when wall mounted
4. Stylish silver case
5. Removable base for wall mounting (optional wall
mount LCD-WMK-001)
1. One-touch buttons to control all major functions
2. Detachable twin stereo speakers
