Bring big entertainment to
small spaces.
N1750w
17.1" NEXTVISION®
WIDE-SCREEN LCD TV
WITH CLEARPICTURE™ ELECTRONICS
>HDTV on your desktop
Connect to a high definition signal source and experience HDTV pic-
ture quality on your desktop with enhanced and high-definition com-
patibility including HDTV: 480i, 480p, 720p and 1080i.
>Experience wide-screen HDTV*
Enjoy a wide-screen theater experience and high-definition picture
quality with this display’s wide-screen aspect ratio, HDTV capability, and
wide viewing angles.
>1280x768 native resolution
Perfect as a monitor supporting up to 1280x1024 resolution or as a TV
supporting up to 1080i high definition.
>Vivid graphics, clear text, stunning TV
Ultra-high brightness of 450 nits (typ), high contrast ratio of 600:1 (typ),
and 1280x768 optimum resolution bring video and data images to life
on your desktop or in your living room.
>Advanced ClearPicture image processing
ClearPicture electronics make images brighter, bolder, and clearer with
precision scaling, digital 3D comb filter and 3:2 pull down processing.
>Watch TV and view data from
your computer
Increase your efficiency and productivity
with the PIP video-over-data window.
Watch TV and surf the Internet or check
e-mail. Then, easily switch to full screen
viewing of computer applications or video.
WIDE-SCREEN TV VIRTUALLY ANYWHERE
You get it all with the ViewSonic N1750w, a superior 17.1" wide-screen
LCD computer display and an ultra-thin TV. Revolutionary ClearPicture™
electronics bring images to life with stunning brightness and depth.
YOU'LL GET VIVID GRAPHICS, CLEAR TEXT AND FABULOUS TV. The
N1750w offers a wide-format desktop theater experience with HDTV
capability, precision scaling, image processing and a powerful 10-watt
audio system. The integrated TV tuner and video module offer additional
ports TO EASILY ADD A DIGITAL CAMERA, DVD PLAYER OR GAMING
CONSOLE. With the N1750w LCD TV, your easy chair may be the best
seat in the house.
It’s not just an LCD TV. It’s a ViewSonic.
Full-function 51-key
remote control included

LCD Type 17.1" active matrix, color TFT active matrix, wide LCD
Display Area 14.6" horizontal x 8.8" vertical; 17.1" diagonal
Optimum Resolution 1280x768
Contrast Ratio 600:1 (typ)
Viewing Angles 170° horizontal, 170° vertical (CR>10)
Response Time 12ms (Tr+Tf, G to G)
Light Source Long life, 50,000 hrs. (typ)
Brightness 450 cd/m2 (typ)
Aspect Ratio 15:9
Glass Surface Anti-glare
INPUT PC RGB analog (ohms, 0.7/Vp-p)
TV RGB analog (75 ohms, 0.7v)
Audio Dual 5-watt stereo speakers, 10 watt total
RGB Frequency Fh: 30~80kHz, Fv: 50~75Hz
Sync H/V separated (TTL)
Tuner FI1236MK2 (North America)
AUDIO OUTPUT Speakers 2x10-watt
COMPATIBILITY PC VGA up to 1280x1024 (1280x768 recommended)
Mac®** Power Mac™G3/G4/G5 up to 1280x1024
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i
CONNECTOR Analog PC Analog 15HD Female
Signal input Composite, component YPbPr, S-video, RCA audio, 1xRF (TV), RGB
PC Audio 3.5mm stereo mini
POWER Voltage AC 100–240V (universal)
Consumption 75-watts (max)
CONTROLS Basic Power, menu, source, channel up/down, volume up/down
OnView®Video (contrast, brightness, saturation, tint, black level,
sharpness, reset), Audio (volume, bass, treble, w/headphone,
SRS), closed caption (mode, channel, display), V-chip (pass
word, status, TV guidelines, movie guidelines, change pin),
PIP [PC only (data over PC], (PIP, position, source, audio
select), sleep timer
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–85% (non-condensing)
DIMENSIONS Physical (mm) 560mm x 340mm x 233mm (with stand)
(W x H x D) Physical (in) 22" x 13.3" x 9.1" (with stand)
WEIGHT Net 6.7 lb. (15.0 kg) (with stand)
Gross 8.7 lb. (19.3 kg) (with stand)
REGULATIONS FCC-B, CE, cUL, NOM, ICES0031
PACKAGE CONTENTS LCD TV display, power cable, VGA cable, mini-stereo audio
cable, remote control with batteries, Quick Start sheet,
User Guide
WARRANTY One-year limited warranty on parts and backlight
N1750w
17.1" NEXTVISION®WIDE-SCREEN LCD TV WITH CLEARPICTURE™ELECTRONICS
For more product information, visit us on the web at ViewSonic.com
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone]• Fax [phone]• [email protected] • ViewSonic.com
*HDTV content provider and set-top box required. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved. [12450-02B-10/05] N1750w-1

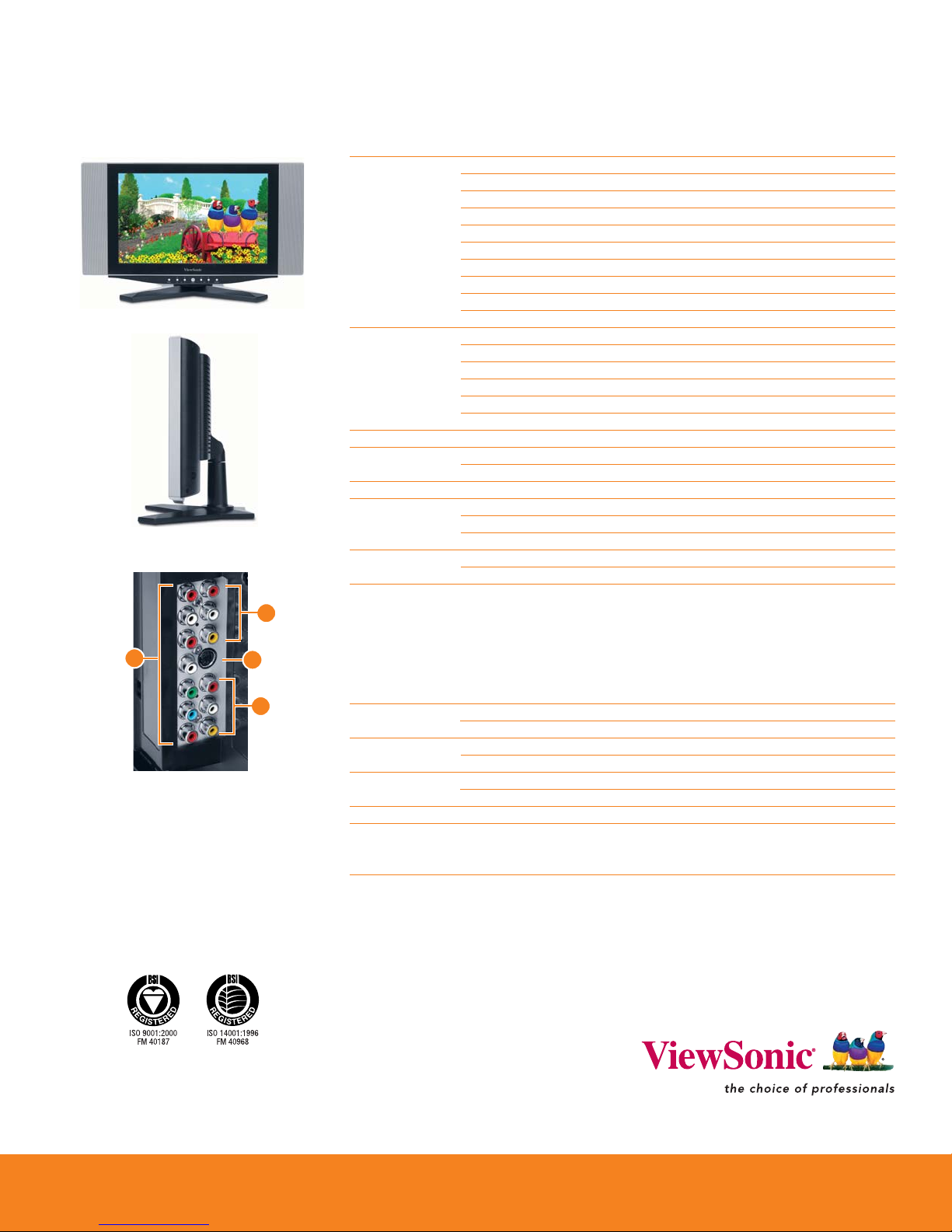

The N1750w features a number
of input connections to ensure
long-term compatibility with
evolving technology.
1
2
1. Composite video with audio
2. S-video with audio
3. Composite video with audio
4. Component video with audio
3
4
