ViewSonic VA2405-h User manual

VA2405-h/VA2405-mh
Display
User Guide
Model No. VS18131
P/N: VA2405-h/VA2405-mh
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!

3
Safety Precauons
Please read the following Safety Precauons before you start using the device.
• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Sit at least 18" (45 cm) away from the device.
• Allow at least 4" (10 cm) clearance around the device to ensure proper
ventilation.
• Place the device in a well-ventilated area. Do not place anything on the device
that prevents heat dissipation.
• Do not use the device near water. To reduce the risk of fire or electric shock, do
not expose the device to moisture.
• Avoid exposing the device to direct sunlight or other sources of sustained heat.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that may increase the temperature of the
device to dangerous levels.
• Use a soft, dry cloth to clean the external housing. For more information, refer
to the "Maintenance" section on page 40.
• Oil may collect on the screen as you touch it. To clean the greasy spots on the
screen, refer to the "Maintenance" section on page 40.
• Do not touch the screen surface with sharp or hard objects, as it may cause
damage to the screen.
• When moving the device, be careful not to drop or bump the device on
anything.
• Do not place the device on an uneven or unstable surface. The device may fall
over resulting in an injury or a malfunction.
• Do not place any heavy objects on the device or connection cables.
• If smoke, an abnormal noise, or a strange odor is present, immediately turn the
device off and call your dealer or ViewSonic®. It is dangerous to continue using
the device.
• Do not attempt to circumvent the safety provisions of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the plug does not
fit into your outlet, obtain an adapter and do not attempt to force the plug into
the outlet.

4
• When connecting to a power outlet, DO NOT remove the grounding
prong. Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched,
particularly at the plug, and at the point where it emerges from
the equipment. Ensure that the power outlet is located near the
equipment so that it is easily accessible.
• Only use attachments/accessories specified by the manufacturer.
• When a cart is used, use with caution when moving the cart/equipment
combination to avoid injury from tipping over.
• Disconnect the power plug from the AC outlet if the device is not being used for
a long period of time.
• Refer all servicing to qualified service personnel. Service will be
required when the unit has been damaged in any way, such as:
if the power supply cord or plug is damaged
if liquid is spilled onto or objects fall in the unit
if the unit is exposed to moisture
if the unit does not operate normally or has been dropped
• NOTICE: LISTENING THROUGH EAR-/HEADPHONES AT A HIGH VOLUME FOR
EXTENDED PERIODS CAN CAUSE HEARING DAMAGE/HEARING LOSS. When using
ear-/headphones, adjust the volume to appropriate levels, or hearing damage
may result.
• NOTICE: THE MONITOR MAY OVERHEAT AND SHUTDOWN! If the device shuts
down automatically, please turn on your monitor again. After rebooting, change
your monitor's resolution and refresh rate. For details, please refer to the
graphics card's user guide.

5
Contents
Safety Precautions....................................................... 3
Introduction ................................................................ 7
Package Contents ...................................................................................................7
Product Overview - VA2405-h ................................................................................8
Front and Rear View................................................................................................ 8
I/O Ports ................................................................................................................. 8
Product Overview - VA2405-mh.............................................................................9
Front and Rear View................................................................................................ 9
I/O Ports ................................................................................................................. 9
Initial Setup............................................................... 10
Installing the Stand...............................................................................................10
Wall Mounting......................................................................................................11
Using the Security Slot..........................................................................................12
Making Connections.................................................. 13
Connecting to Power ............................................................................................13
Connecting External Devices - VA2405-h .............................................................14
Connecting External Devices - VA2405-mh ..........................................................15
Using the Monitor ..................................................... 16
Adjusting the Viewing Angle.................................................................................16
Tilt Angle Adjustment............................................................................................ 16
Turning the Device On/Off ...................................................................................17
Quick Menu - VA2405-h ........................................................................................ 18
Quick Menu - VA2405-mh..................................................................................... 19
Hot Keys ................................................................................................................ 20
Configuring the Settings .......................................................................................22
General Operations............................................................................................... 22
On-Screen Display (OSD) Menu Tree - VA2405-h.................................................. 24
On-Screen Display (OSD) Menu Tree - VA2405-mh .............................................. 28

6
Appendix................................................................... 32
Specifications........................................................................................................32
Glossary ................................................................................................................34
Troubleshooting ...................................................................................................38
Maintenance.........................................................................................................40
General Precautions.............................................................................................. 40
Cleaning the Screen............................................................................................... 40
Cleaning the Case.................................................................................................. 40
Regulatory and Service Information .......................... 41
Compliance Information.......................................................................................41
FCC Compliance Statement................................................................................... 41
Industry Canada Statement................................................................................... 41
Declaration of RoHS2 Compliance......................................................................... 42
Indian Restriction of Hazardous Substances ......................................................... 43
Product Disposal at End of Product Life................................................................ 43
Copyright Information ..........................................................................................44
Customer Service .................................................................................................. 45
Limited Warranty .................................................................................................. 46
Mexico Limited Warranty...................................................................................... 49

7
Introducon
Package Contents
• Monitor
• Power cord
• Video cable
• Quick start guide
NOTE: The power cord and video cables included in your package may vary
depending on your country. Please contact your local reseller for more
informaon.

8
Product Overview - VA2405-h
Front and Rear View
I/O Ports
VGAHDMI
t
NOTE: For more informaon about the 1(«)/2/3/4/5( ) key and its funcons,
refer to “Hot Keys” on page 20.
VGA Port
AC IN Jack HDMI 1.4
Port

9
Product Overview - VA2405-mh
Front and Rear View
I/O Ports
VGAHDMI
NOTE: For more informaon about the 1(«)/2/3/4/5( ) key and its funcons,
refer to “Hot Keys” on page 20.
VGA Port Audio In
Port
Audio Out
Port
AC IN Jack HDMI 1.4
Port

10
Inial Setup
Installing the Stand
1
2
3
NOTE: Always place the device on a at, stable surface. Failure to do so may
cause the device to fall and damage the device and/or result in personal
injury.

11
Wall Mounng
NOTE: Only use UL Cered wall mount kits.
100 mm
100 mm
Refer to the table below for the standard dimensions for wall mount kits.
Maximum
Loading Hole paern (W x H) Interface Pad (W x H x D) Pad Hole Screw Specicaon & Quanty
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 8 mm
4 pieces
NOTE: Wall mount kits are sold separately. To obtain a wall mounng kit,
contact ViewSonic® or your local dealer.
1. Turn o the device and disconnect all cables.
2. Place the device on a at, stable surface with the screen facing down.
3. Remove the monitor stand.
1 2
4. Aach the mounng bracket to the VESA mounng holes at the rear of the
device. Then secure it with four (4) screws (M4 x 8 mm).
5. Follow the instrucons that come with the wall mounng kit to mount the
monitor onto the wall.

12

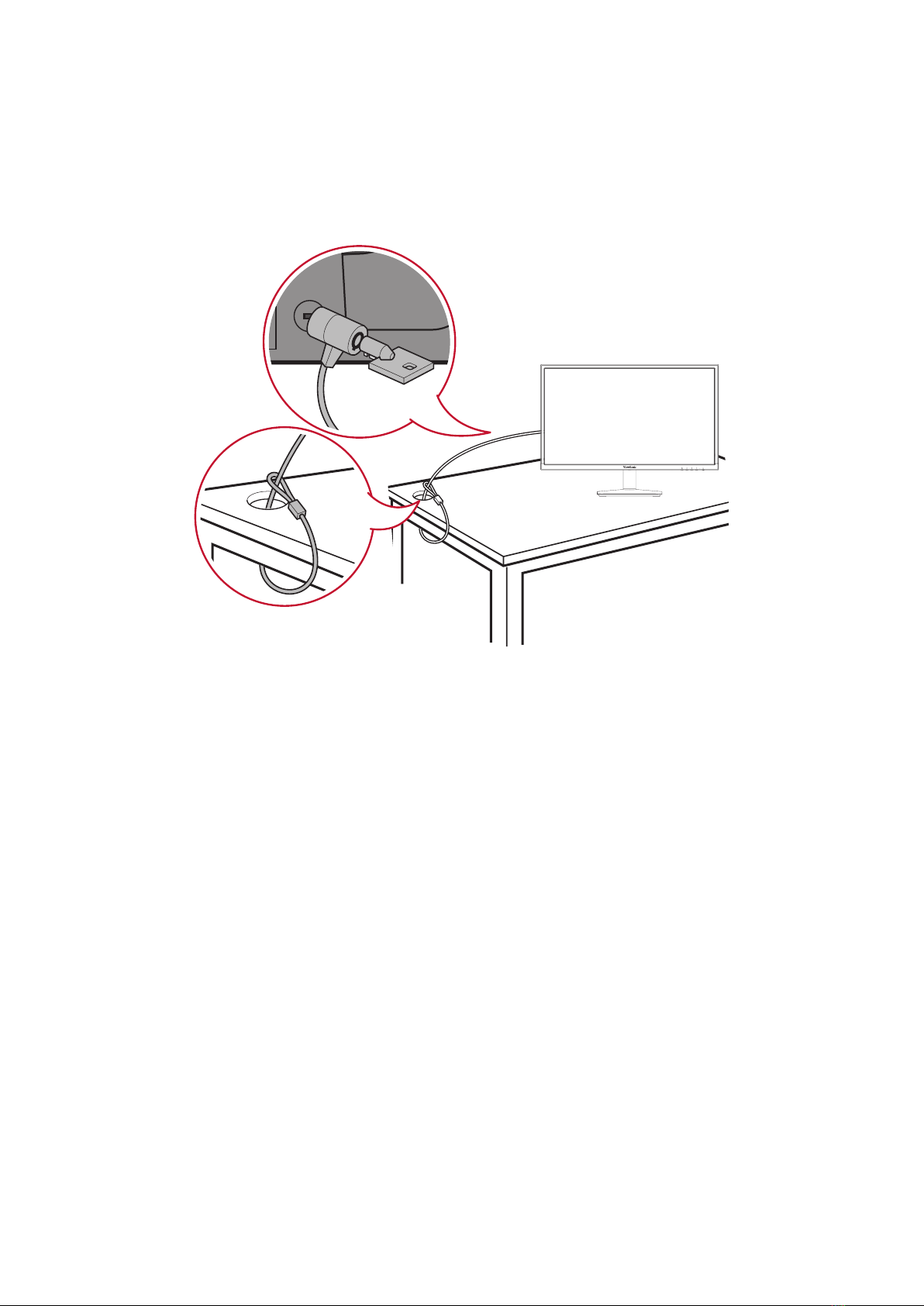

Using the Security Slot
To help prevent the device from being stolen, use a security slot locking device to
secure the device to a xed object.
Below is an example of seng up a security slot locking device on a table.

1313
Making Connecons
This secon guides you on how to connect the monitor with other equipment.

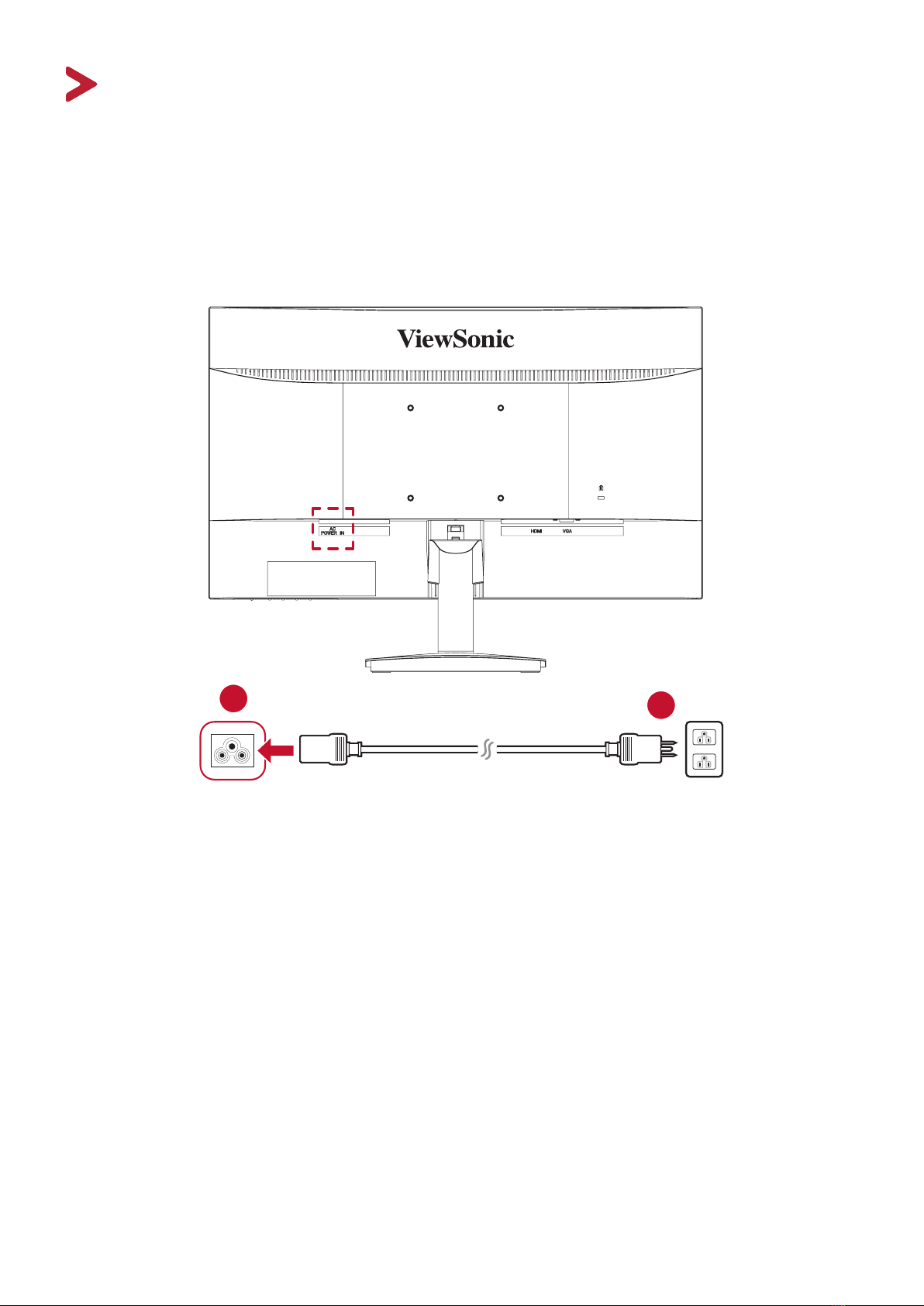

Connecng to Power
1. Connect the power cord to the AC IN jack at the rear of the device.
2. Connect the power cord plug to a power outlet.
12

14

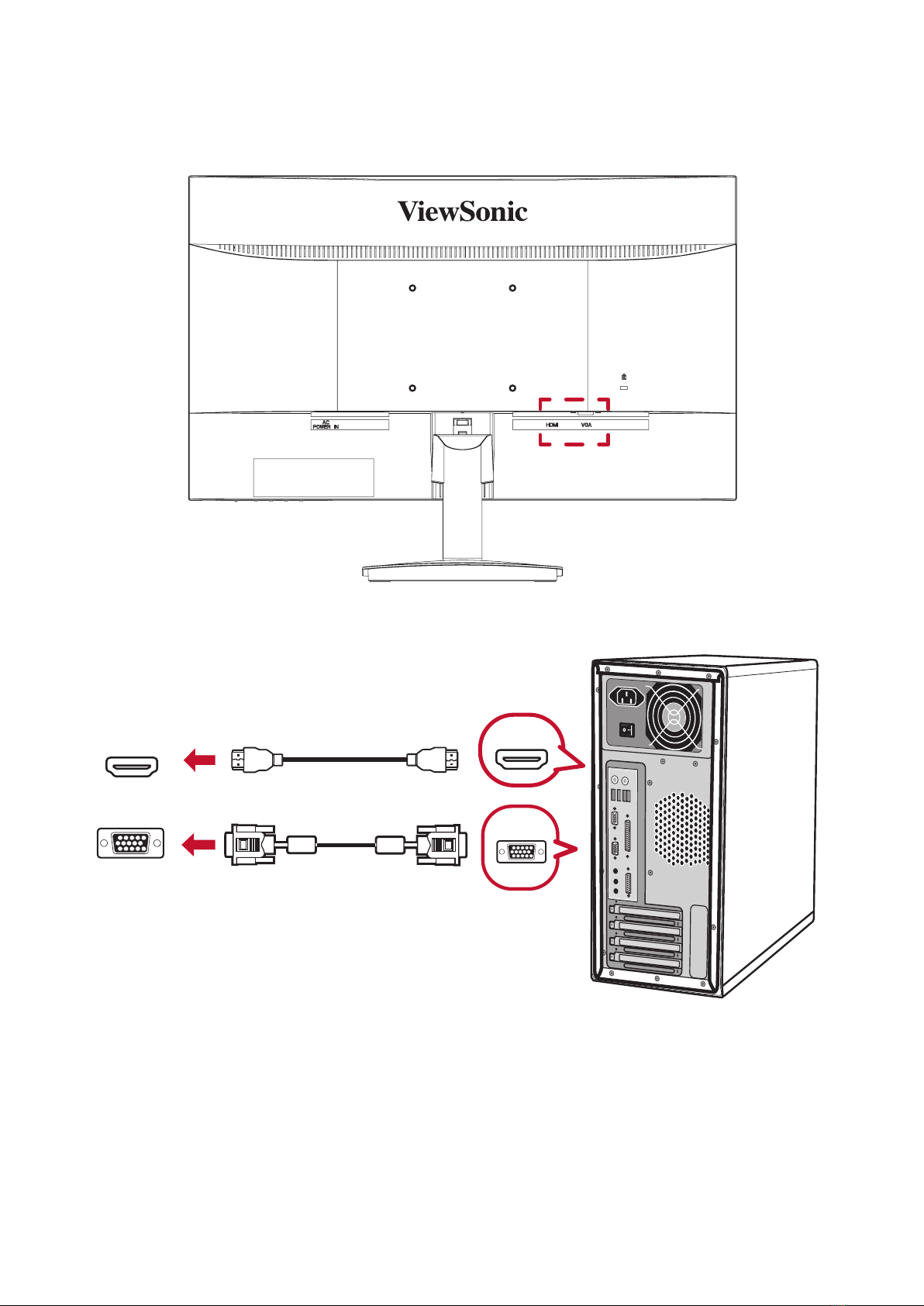

Connecng External Devices - VA2405-h
VGA
HDMI
VGA
HDMI

15
Connecng External Devices - VA2405-mh
VGA
HDMI
VGA
HDMI

1616
Using the Monitor
Adjusng the Viewing Angle
Tilt Angle Adjustment
Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 20˚).
NOTE: When adjusng, support the stand rmly with one hand while lng the
monitor forwards or backwards with the other hand.

17

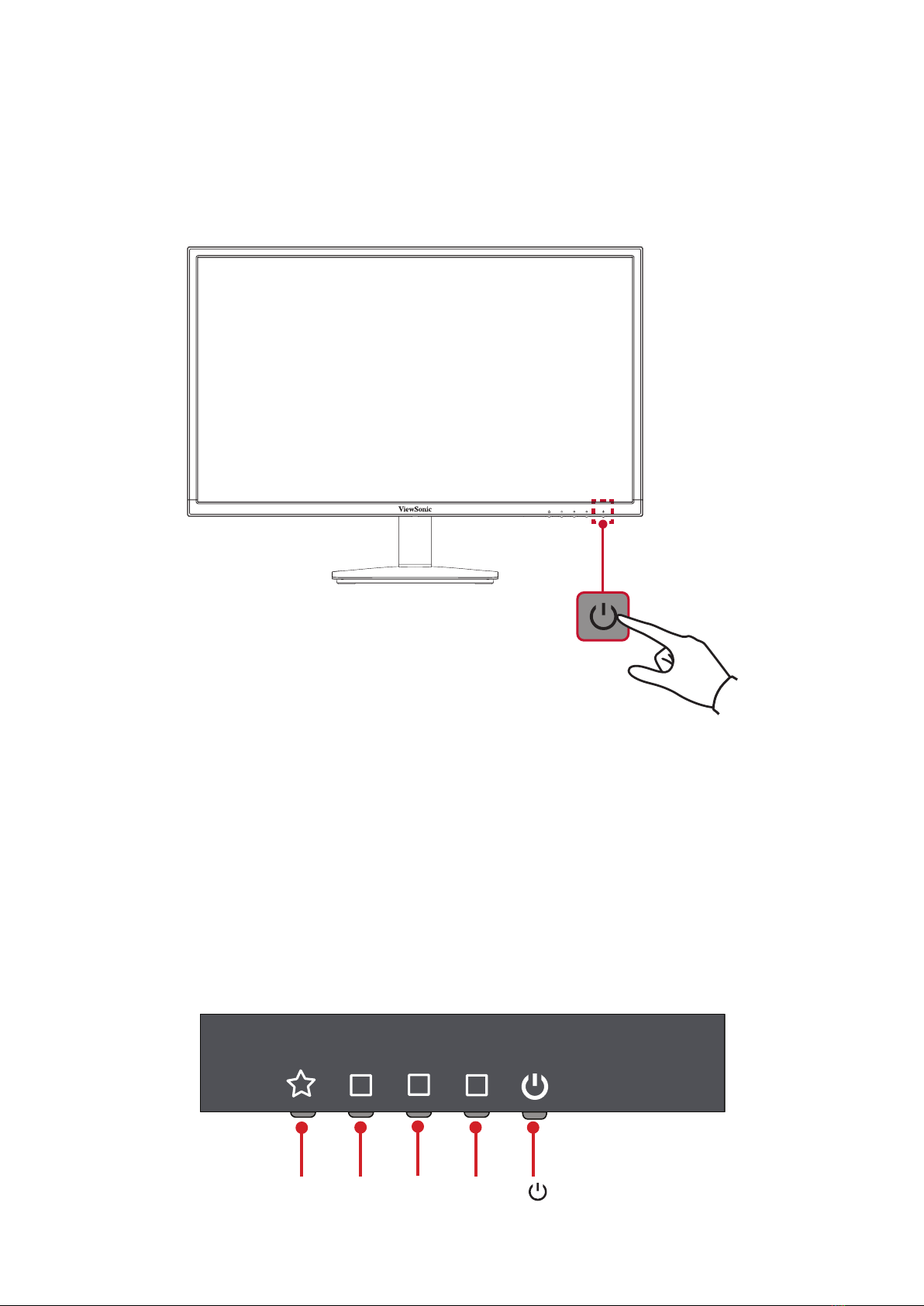

Turning the Device On/O
1. Plug the power cord into a power outlet.
2. Press the Power buon to turn on the monitor.
3. To turn the monitor o, press the Power buon again.
NOTE: The monitor will sll consume some power as long as the power cord
is connected to the power outlet. If the monitor is not being used for a
long period of me, please disconnect the power plug from the power
outlet.
Using the Control Panel Keys
Use the control panel keys to access the Quick Menu, acvate Hot Keys, navigate
the On-Screen Display (OSD) Menu, and change the sengs.
1(«)235( )
4

18
Quick Menu - VA2405-h
Press the 1(«)key to acvate the Quick Menu.
View Mode
Standard
Game
Movie
Web
Text
Mac
Mono
NOTE: Follow the key guide that appears on the boom of the screen to select
the opon or make adjustments.
Menu Descripon
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
ViewMode Select one of the preset color sengs.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Contrast/Brightness Adjust the contrast or brightness level.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Input Select Select the input source.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Exit Exit the Quick Menu.

19
Quick Menu - VA2405-mh
Press the 1(«)key to acvate the Quick Menu.
View Mode
Standard
Game
Movie
Web
Text
Mac
Mono
NOTE: Follow the key guide that appears on the boom of the screen to select
the opon or make adjustments.
Menu Descripon
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
ViewMode Select one of the preset color sengs.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Volume Adjust the level, or mute the volume.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Contrast/Brightness Adjust the contrast or brightness level.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Input Select Select the input source.
Viewmode
Contrast/Brightness
Input Select
Main Menu
Exit
Exit Exit the Quick Menu.

20
Hot Keys
When the On-Screen Display (OSD) Menu is o, you can quickly access special
funcons by using the control panel keys.
Key Descripon
1(«)+ 2 Press and hold the keys to lock/unlock the OSD Menu.
When the menu appears on the screen, connue holding both
keys for 10 seconds to lock/unlock the OSD Menu.
1
OSD Lock/Unlock
Locking OSD
Press and hold for 10s
to lock OSD
If the OSD Menu is locked, the below message will appear on the
screen:
OSD Lock/Unlock
OSD Locked
