Vigia NM343 User manual

X1430.A166-8

1
USER'S MANUAL
ENGLISH
AUTOMATIC TIRE PRESSURE SYSTEM
Functions
VIGIA automatically regulates tire calibration maintaining
predetermined (cold) pressure, even with punctures and with the
vehicle in motion.
Operation
Before any decrease of the predetermined pressure, by minimum
that may be, in one or more tires, provoked by punctures or other
motives, VIGIA alerts the driver of the problem and its location. At
the same time VIGIA automatically maintains the predetermined tire
pressure. If the loss is of great magnitude, for example: a blowout
and VIGIA can not compensate the loss of pressure, the system will
alert of the situation and an integrated electronic security device
will automatically block the equipment annulling the delivery of air
to the damaged tire. In this manner you will be assured the normal
operation of the remaining air powered systems: brakes, suspension,
etc. This model can be applied to all vehicles equipped with an air
compressor.

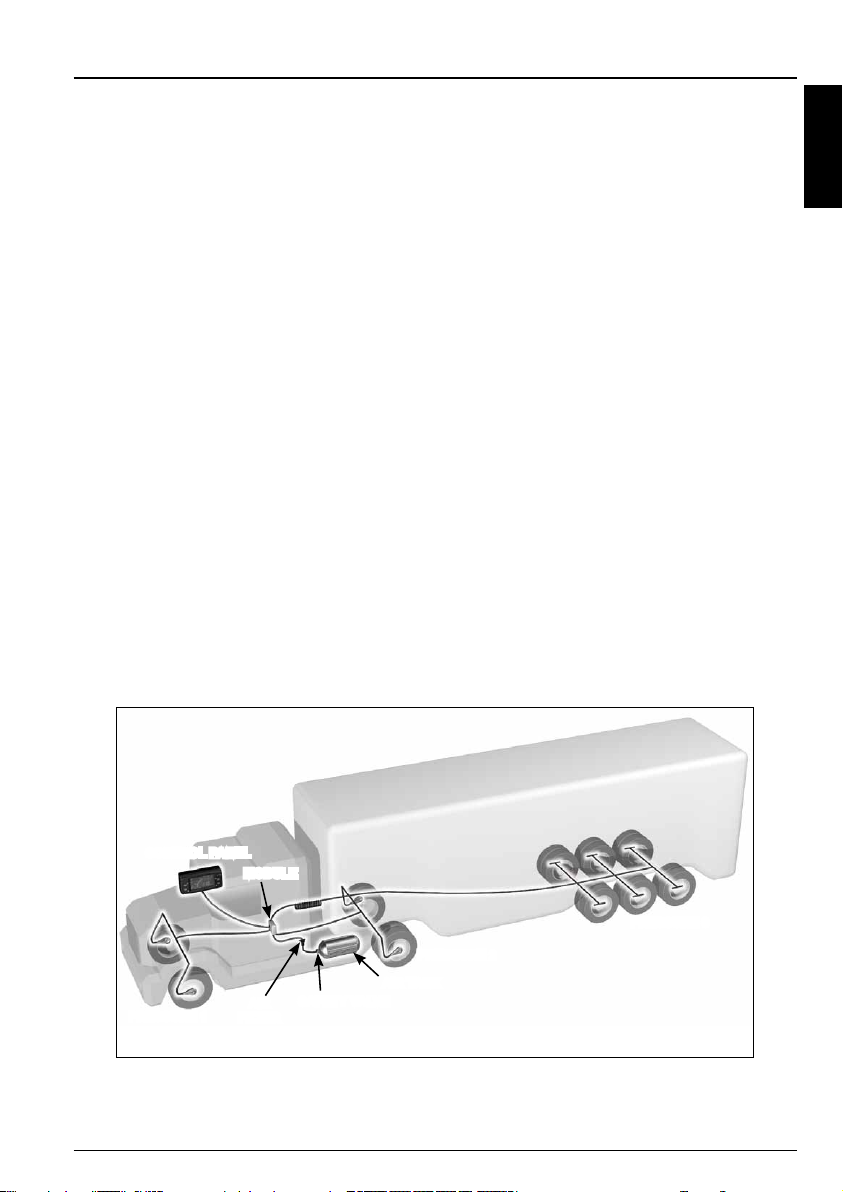

PRESSURE 2
AIR TANK
SAFETY VALVE
AIR
FILTER
PRESSURE 1
CONTROL PANEL
MODULE
PRESSURE 3

2

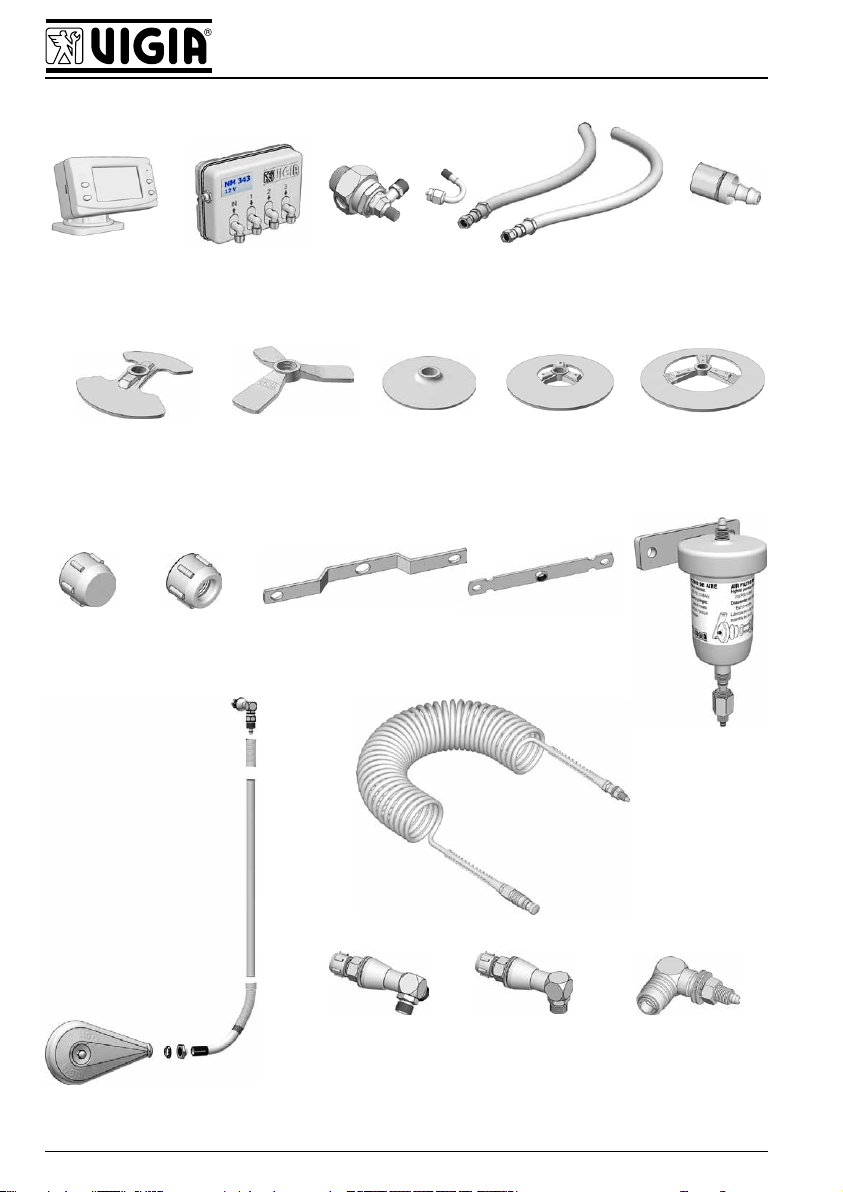

PARTS
NM 343 CONTROL
PANEL
ROTOR CONNECTORS WITH
INFLATION VALVES
ROTOR
COUPLING
TERMINAL
DOUBLE DISK "T" ROTOR
SUPPORT
STAR
DISK
150 MM.
PLUG NF
1/2”
PIPE NUT
5/16”
ROTOR SUPPORT
AIR
FILTER
CONECCTION TRUCK
TRACTOR TO TRAILER
ARM ASSEMBLY
DOUBLE OUTLET
BODY COUPLING
STANDARD
BODY COUPLING
QUICK RELEASE
BODY COUPLING
INFLATION
MODULE
DISK
215 MM.
DISK
280 MM.

3
USER'S MANUAL
ENGLISH
GENERAL CONFORMATION

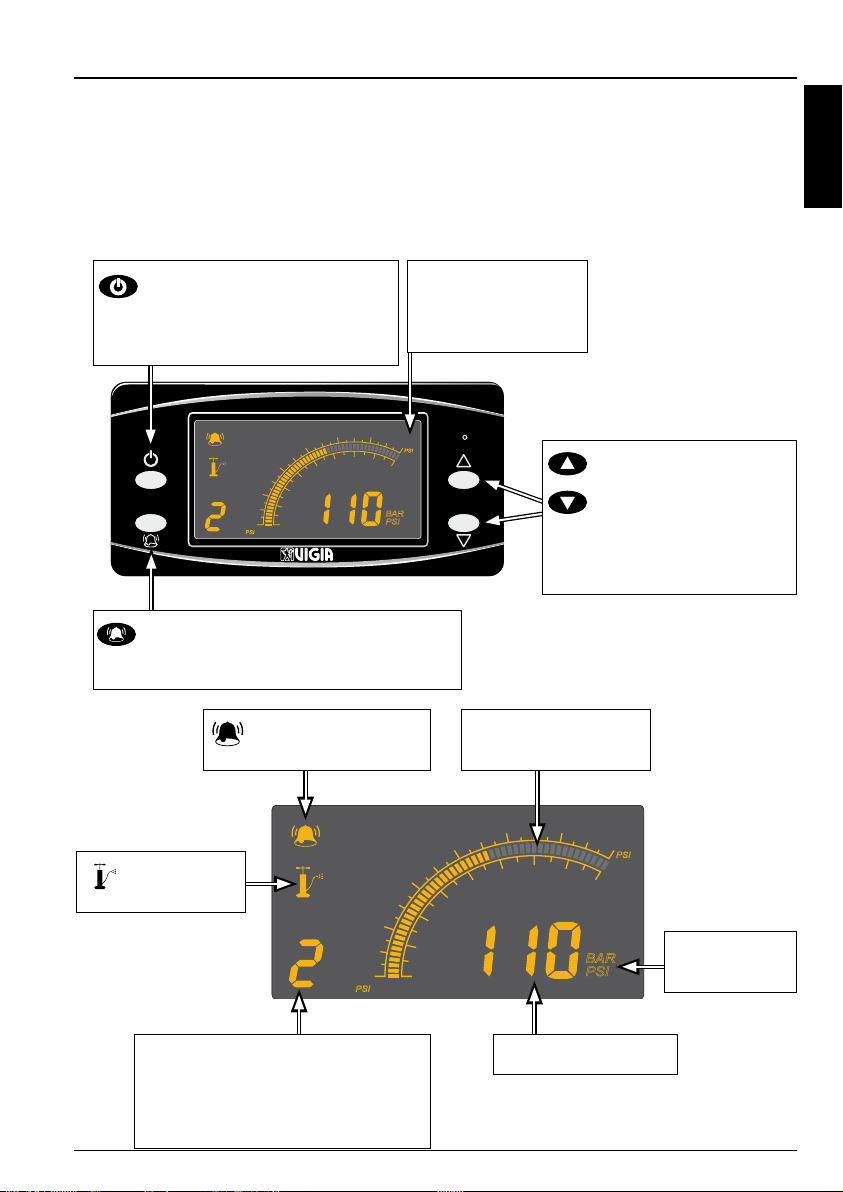

Control Panel
It controls the functioning of the ination module and it alerts the
driver through audiovisual signals on a digital screen.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
- TURNS ON/OFF THE
EQUIPMENT
- DEACTIVATE THE INFLATION
PROCESS IN ONE OR MORE
PRESSURES
IT SHOWS THE
FUNCTIONS AND
PARAMETERS OF
THE EQUIPMENTS
- INCREASES/
DECREASES THE
VALUES
- SELECTS A PRESSURE
SYSTEM
- GO INTO SEQUENTIAL
MANUAL MODE
- ACTIVATES/DEACTIVATES THE ALARM
- CHANGES THE LUMINOUS INTENSITY
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
PRESSURE SCALE
EQUIPMENT
CALIBRATED
MEASURING
UNIT
PRESSURE VALUE INDICATOR DÍGIT:
1= PRESSURE 1
2= PRESSURE 2
3= PRESSURE 3
P= PRESSURE OF AIR SUPPLY
AUDIOVISUAL SIGNAL
ACTIOVATED

4

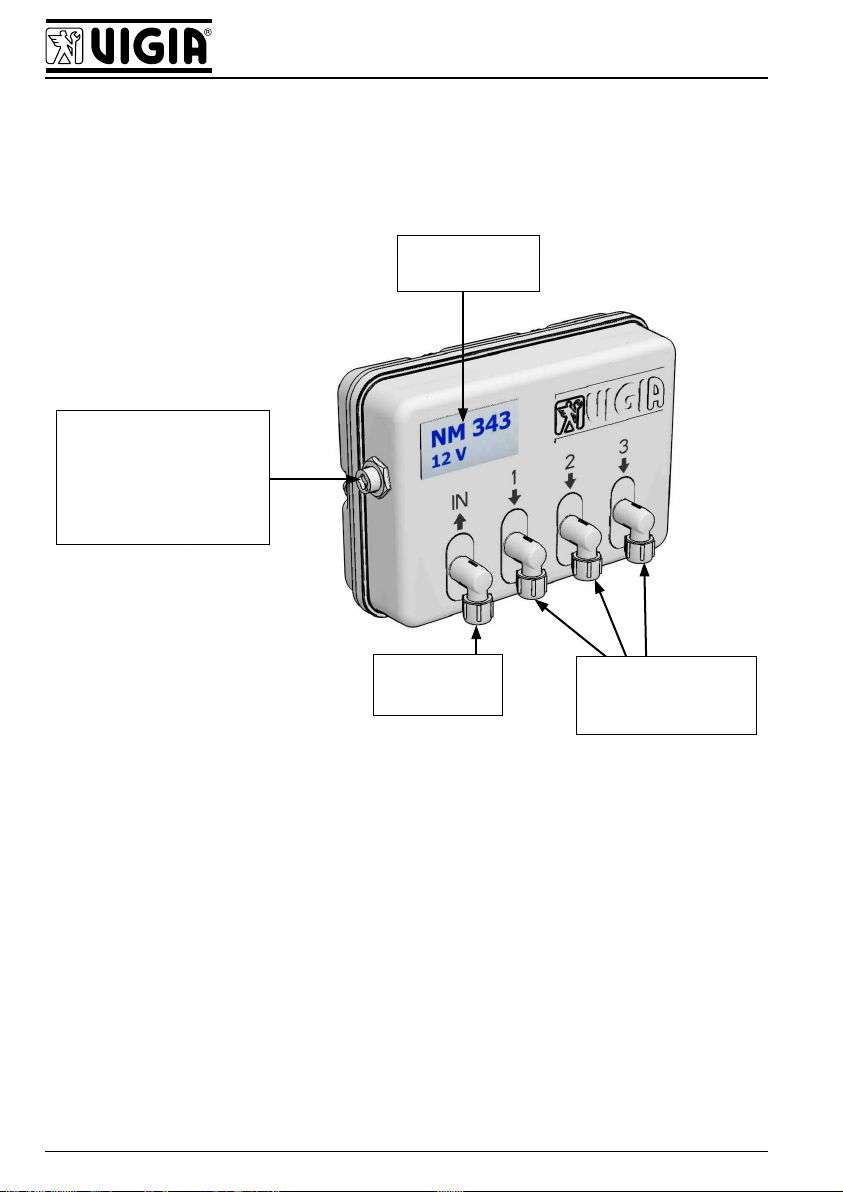

Ination module
Made of electrovalves and electronic sensors.
It controls the tire pressure permanently and it sends the informationto
the control panel.
VOLTAGE
INDICATOR
DEPOSIT AIR
INLET
ELECTRICAL COMMU-
NICATION CONNECTOR
(CAN BUS) TO THE
CONTROL PANEL AND
TO THE ELECTRICAL
POWER SOCKET
AIR PRESSURE
OUTLET 1, 2 AND 3
TO THE TIRES

5
USER'S MANUAL
ENGLISH
Rotor
Rotor permits the connection of the air
circuit to the tires.
Ination Valves and Connectors
Ination Valves replace the original tire
valves and connect to the rotor.
Couples and Accessories
Couples permit the connections of the air
circuit.

6
FUNCTION
Activation
The equipments turns on automatically
when the contact key is introduced and it
turns off when closing it.
ON
OFF
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
ON
OFF
However, the equipment could be turn on
and off by pressing for ± 4 seconds
even with the contact key closed.
But it will not inate the tires, you will only
be able to visualize the pressure of tires
going into manual mode.
ON
OFF
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
ON
OFF
Visualization
The control panel can visualize the pressure of tires in sequential or
manual mode.
Sequential Mode: Each pressure is
visualized for 10 seconds each one
automatically, i.e. 10 seconds pressure
1, then 10 seconds pressure 2, then 10
seconds pressure 3 and then it goes to
pressure 1 again and so forth.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
10 SECONDS
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
10 SECONDS
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
10 SECONDS

7
USER'S MANUAL
ENGLISH

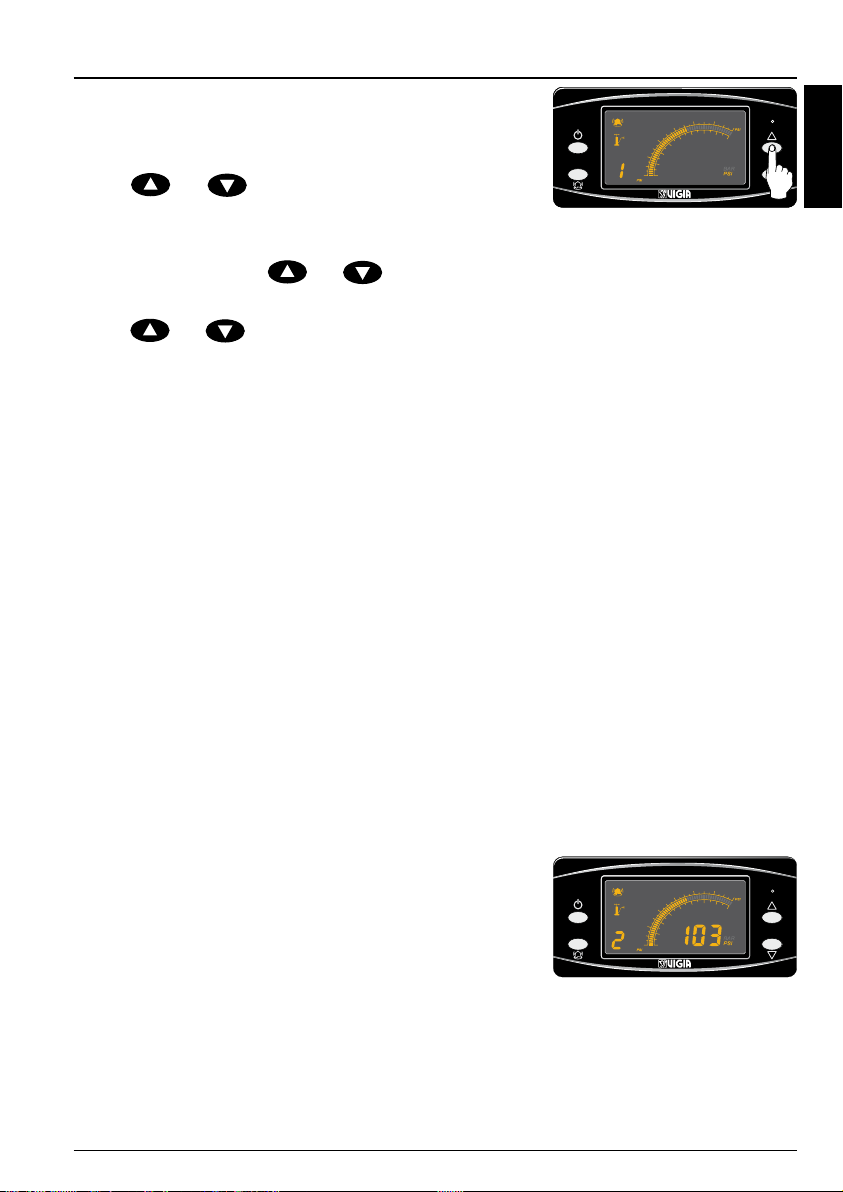

Manual Mode: If you want to see only one
pressure constantly you may congure it to
manual mode pressing for 3 seconds the
keys or . Once the manual mode
is congured you will see the pressures 1,
2, 3 (or more) y and the inlet pressure P
pressing the keys or .
To go back to sequential mode, press the
keys or for 3 seconds.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
3 SECONDS
Explanation: If there is a pressure loss (tire puncture) the con-
trol panel automatically goes into sequential mode to alert the
driver of the problem.
Air Leak
The panel will indicate the magnitude of the air loss through an alarm:
Small loss: 1 beep every 9 seconds
Medium loss: 2 beeps every 5 seconds
Big loss: 3 beeps every 2 seconds
Important: For every case, repair the air loss and/or contact
the closest ocial service.
If there is more than one air loss the control
panel wil only indicate the sequential
losses.
For example: If there is an air loss in
pressures 2 and 3, the display will indicate
pressure 2 for 10 seconds, then pressure
3 for 10 seconds and so forth, but it will
not indicate pressure 1.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
10 SECONDS

8
Explanation: If the equipment is
in manual mode and there is an air
loss in any of the pressures, it auto-
matically goes to sequential mode.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
10 SECONDS
Excessive Loss of Pressure
When there is low air pressure in the deposit (less then 80 PSI), the
equipment will deactivate automatically and it will indicate the inlet
pressure Pwarning the driver with 3 beeps every 2 seconds.
Explanation: If there is a pressure calibrating, it indicates
sequentially Pand the pressure at issue (1, 2 or 3).

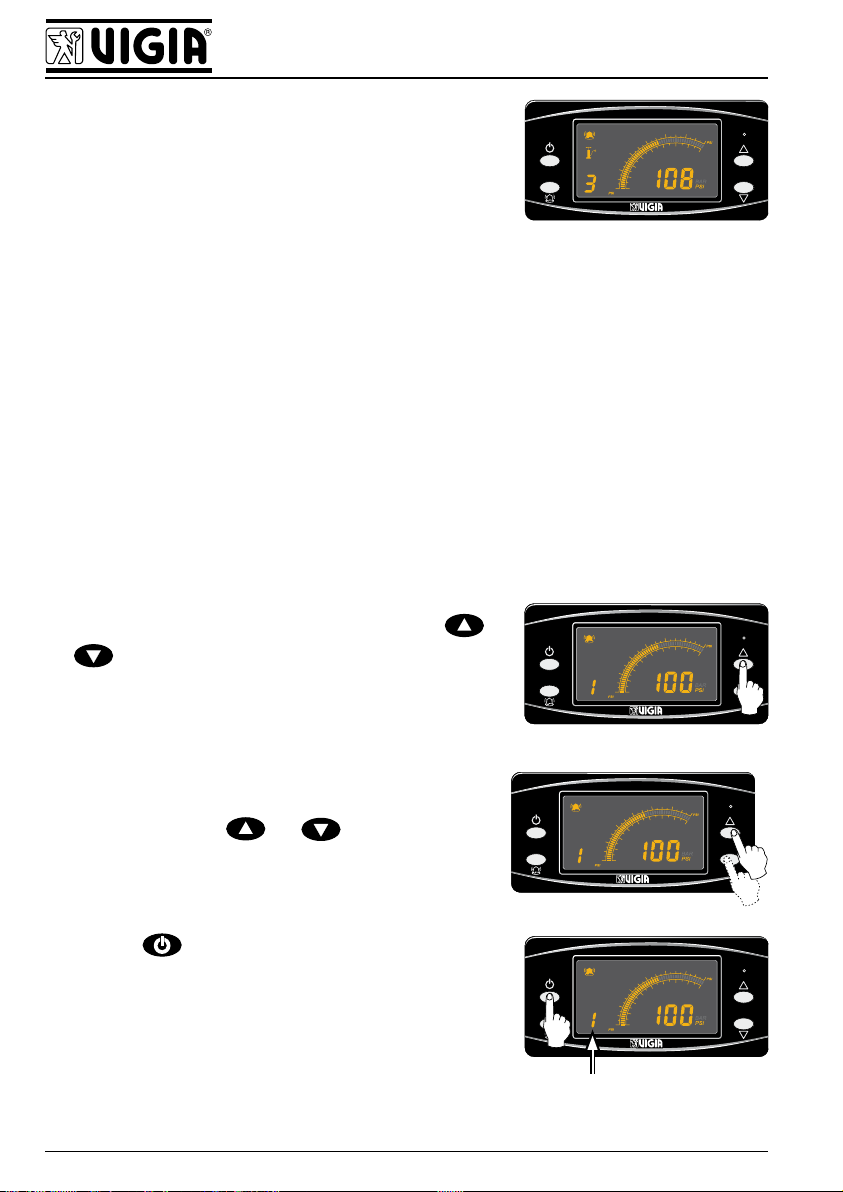

Cancellation
If you wish to deactivate a pressure, proceed as following:
- Congure to manual mode pressing
or for 3 seconds.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
3 SECONDS
- Select the pressure you want to
deactivate using or .
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
- Press (conrmation with 1 beep
and the number of the pressure will blink
indicating that it has been deactivated).
To activate that pressure again follow the
three steps mentioned or close and open
the contact key.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
BLINKING

9
USER'S MANUAL
ENGLISH

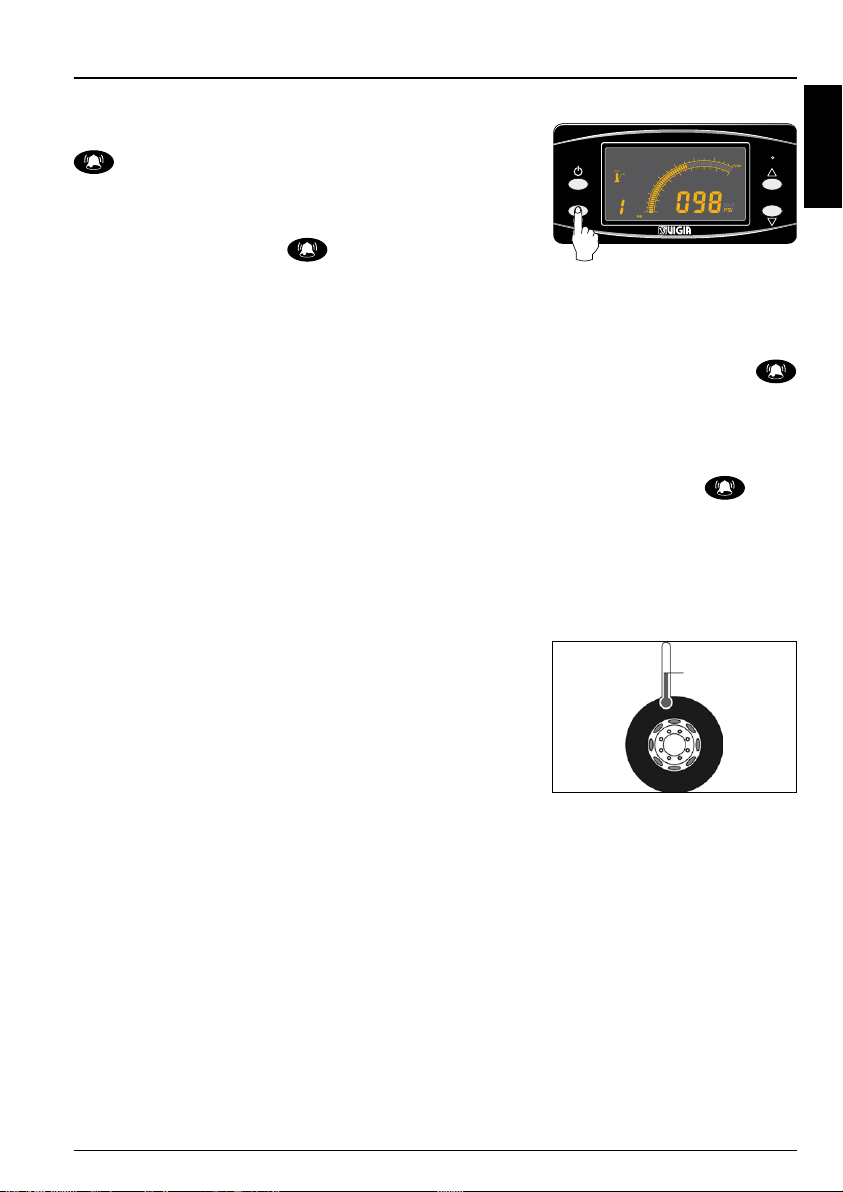

Alarm
If you want to deactivate the alarm press
nevertheless if the air pressure
continúes, it will activate automatically
after 20 minutes, being able to deactivate
it again by pressing .
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
Luminous intensity of the Display
If you want to modify the luminous intensity of the display press
which will increase the intensity until it reaches the maximum and
then it will decrease to the minimum so it will increase again and so
forth.
As son as it shows the luminous intensity you want release .
Tire Pressure Variances and the Electronic Tire
Calibration System VIGIA
A- Calibrate cool tires.
The tires should be calibrated when they
are cold at ambient temperature according
to the “ination table” supplied by the tire
manufacturer.
AMBIENT
TEMPERATURE
B- Never bleed tires due to the pressure increase generated by operation
(rolling.).
Tires normally increase about 18% its initial pressure. This percentage
may vary according to the type of tires, this is why you should request
the load table to the manufacturer and appropriate pressures.
C- Over-ination generated by operation (rolling).
VIGIA has the ability to indicate over-ination when certain conditions
are met:

10
- That no losses exist neither in the system or the tires.
- That pressure equilibrium among the VIGIA system and the tires
exist (that is to say that the control panels indicate, for example;
8 kg. and the tires actually have 8 kg.).
- That the VIGIA ination valves are in perfect condition and are
operating properly.
When there is a balanced pressure between the Vigia equipment
and the tires, the ination valve becomes neutral. Tires increase their
temperature when rolling, so their internal pressure increases and it
goes out through the VIGIA valve because of the vibrations produced
by the imperfections of the road. That overpressure goes into the
VIGIA connection network and therefore the board will indicate the
episode.
Nota: It is possible that the increased pressure not be equal in
all of the vehicles tires. In this case the system will indicate the
minimum pressure.
If in operation, VIGIA detects a considerable increase in pressure
(more than 18 %) the cause should be inspected. In this case VIGIA
will be indicating the following:
A- Initial pressure of at tire.
B- Bad load distribution.

11
USER'S MANUAL
ENGLISH

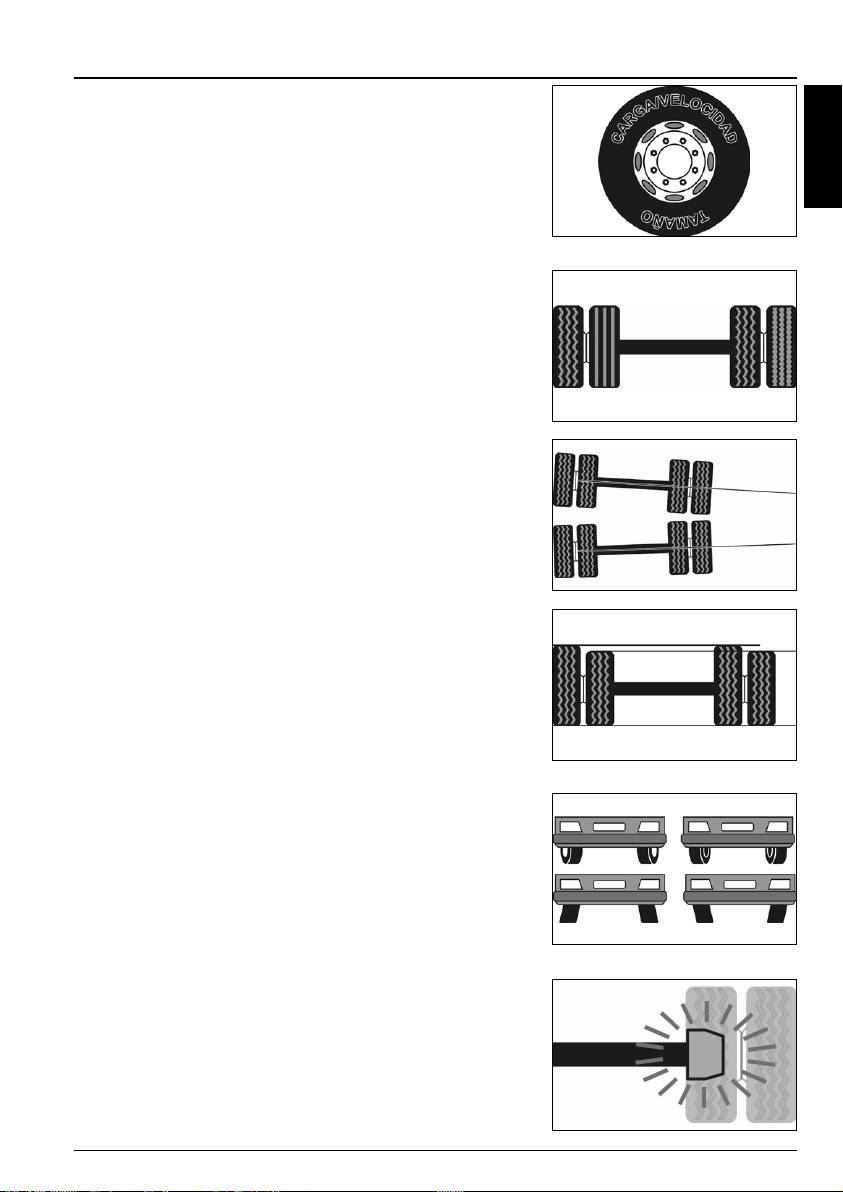

C- Wrong selection of tire size in regards to
load, speed or road conditions.

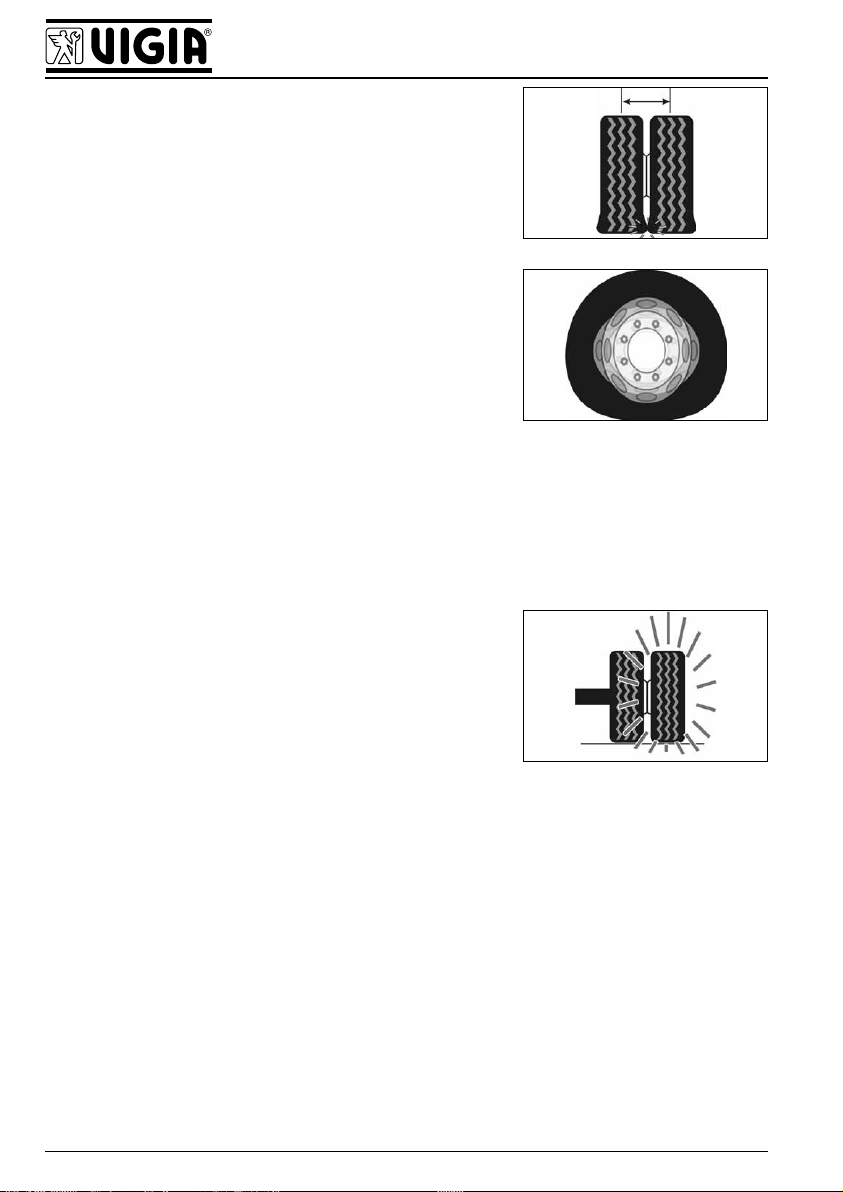

D- Different or mixed matched tires on the
same axle.
E- Axles are out of alignment.
F- Different size tires in duals.
G- Problems in the vehicles suspension,
steering or alignment.
H- Problems in the brake systems.

12
I- Incorrect separation among tires duals.
J- Bad or oval wheels.
VIGIA allows you to monitor over-ination. VIGIA does not contribute
to over-ination. VIGIA is simply offering information. It’s indicating
problems that exist with or without VIGIA. Without VIGIA these
problems would occur unnoticed.
D- Flat tire
In the event of a at tire, VIGIA will supply
predetermined pressure without attending
to the increase of the tire pressure caused
by rolling. It is important to repair the
damaged tire, as soon as circumstances
permit it.

13
USER'S MANUAL
ENGLISH
CONNECTION OF THE TRUCK TO THE
TRAILER
Connect valve located at the end of the air hose to the connector
located in the trailer. Before un-hooking, disconnect the valve then
protect the end using the cap and support.
5.1 Quick Connectors for Truck with Retractable Cabs
Before retracting the cab disconnect quick joints.

14
MAINTENANCE
Purge Deposit (Tank) and Clean
Air Filter
A- The air lter will retain solid impurities.
To eliminate liquid impurities, purge the
deposit (tank) often.
B- The air lter should be kept clean
for correct operation, as needed and
conditions of use, at least twice a year.
C- When taking apart lter for cleaning, pay
attention to the location of the pieces.
D- Lubricate the o-ring to avoid damage and
air leaks.
E- Maximum pressure: 200lbs/sq inch.
(14 BAR).
Clean and/or Replace Valve Connectors
If upon disconnecting ination valves if there is a constant air loss, this
indicates that one or more VIGIA ination valves allow air pressure to
escape. Proceed in the following:
A- Determine which valve has the air loss.
B- Remove the connector of the ination valve.
C- Spray the surface of the entrance with
soapy water to verify if the fastener seals
correctly.
SOAP
WATER
D- Replace the valve, in case of not solving
the leak.
E- Place the inating valve adjusting it lightly
with a wrench. Verify that the does not
graze the ring, axle, rotor support, etc.

15
USER'S MANUAL
ENGLISH
System Disassembly of Connection from the Body to
the Rotor
BODY COUPLE
BODY COUPLE
TERMINAL
SPRING
HOSE
STEEL PIPE
SPRING
ROTOR COVER CURVE
BSP 3/8" FASTENING NUT OF THE ROTOR
COVER CURVE
ROTOR COVER
ROTOR COVER
TERMINAL LOCK WASHER

16

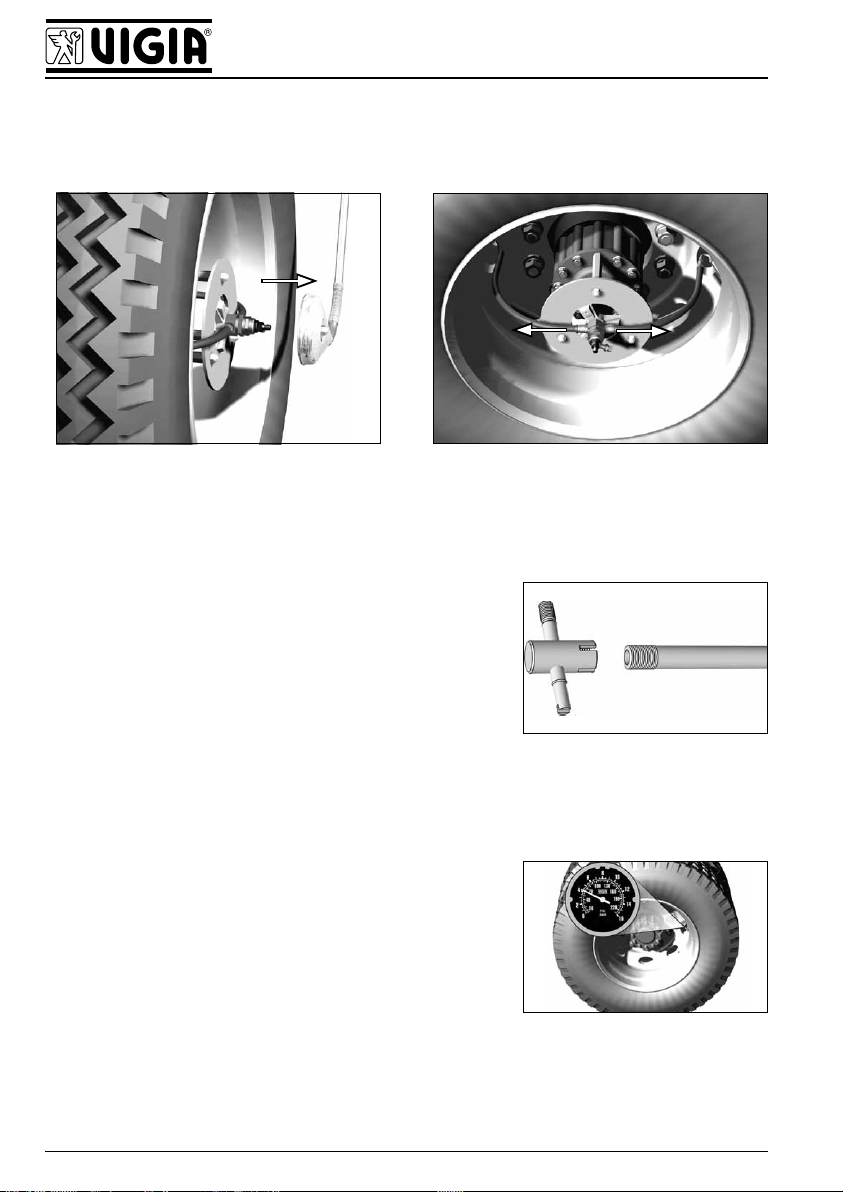

Tire Changes
A- Remove the rotor cover. Disconnect the hose/s at the rotor.
Remove the support bracket if necessary.
B- Remove the tire, being careful as to not damaging the rotor.
C- Remove the connector to the VIGIA ination valve and reinstall
the connector in the tire, keep in mind the following steps:
- Clean, preferably with a brush, the thread
of the original valve.
- Remove the inner valve.
- Adjust the VIGIA valve, tightening smoothly with a wrench. Verify that
the VIGIA valve do not graze the ring, axle, bell housing or brakes, etc.;
if necessary, modify the position.
D- Verify that the tire pressure be lower
to that of calibration value. The
equipment will be the responsible for
calibrating it to the pre-set value.
E- Replace the tire.
F- Replace the rotor support bracket.
G- Connect the rotor and the ination valves hoses with the nuts
provided.
H- Replace the rotor cover and tighten the nut.

17
USER'S MANUAL
ENGLISH

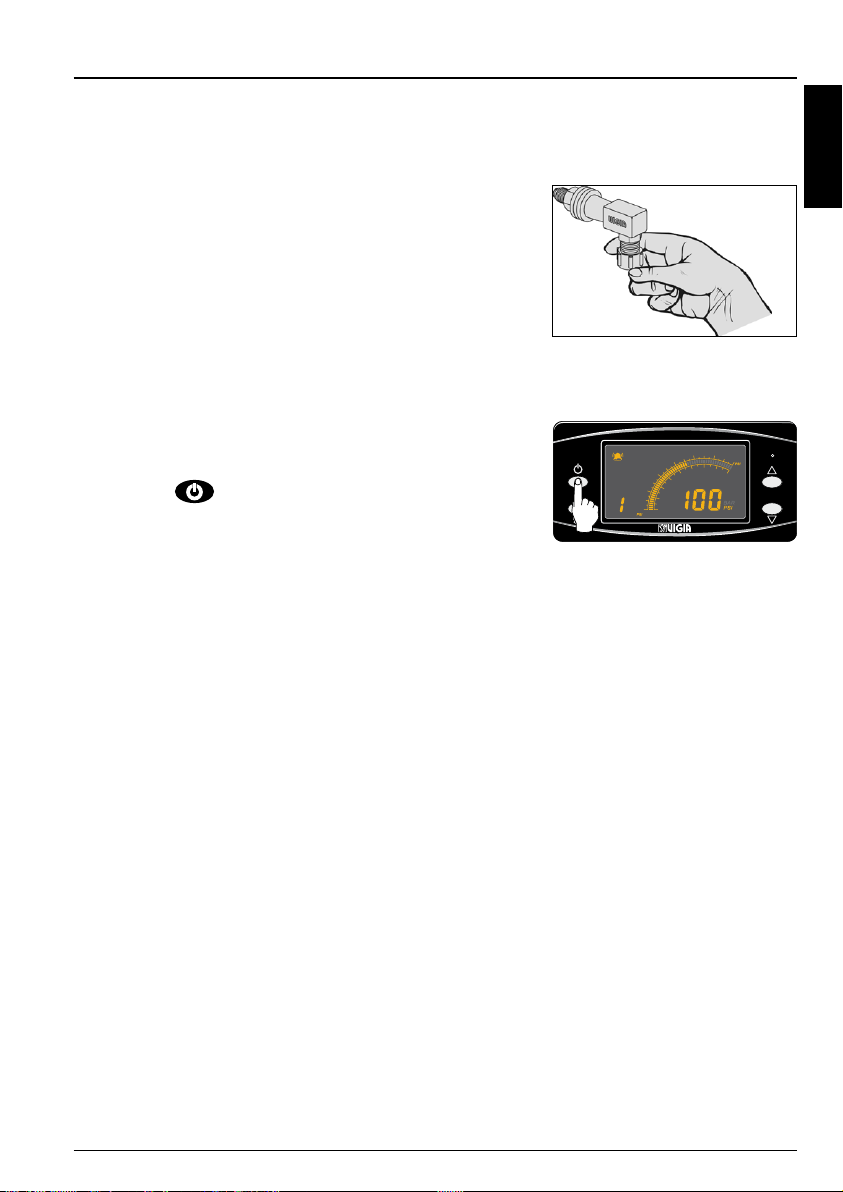

DISCONNECTION OF THE EQUIPMENT
Partial
In cases of air loss in the system, and no
possible repair at the moment, to annul
the damaged circuit with the plug that
is provided. Contact your Authorized
Service Technician.
Total
If a partial annulment of the system can not
be carried out, disconnect the equipment
pressing for ± 4 seconds. Contact
your Authorized Service Technician.
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI
40 3
BAR
160
11
BAR
60
80
100
120 140
BAR
PSI
4
5
6
78910
PSI
PSI

18
IMPORTANCE OF TIRE PRESSURE
The main factor that affects tire performance is tire pressure.
Excessive Tire Pressure:
Excess pressure weakens the tire by
not allowing the tire to absorb impacts,
producing tire failure as well as irregular
wear and reduce puncture resistance.
It reduces the rolling surface, causing
excessive wear in the tires due to the loss
of traction.
Low Tire Pressure:
Under ination produces an increase of
the casing ex. Casing ex generates
excessive heat causing casing fatigue,
excessive tread shoulder wear, cap
separation and ultimately tire failure.
Important: According to the specications established by the tire manu-
facturers, the tire pressure should be regulated when tires are COLD
(allow the tires to cool for 3-4 hours after use). You may have a uctua-
tion of an additional 18 % of pressure due to the temperature increase
caused by tire operation than the original calibrated pressure. VIGIA will
indicate this pressure increase in its operation. Its functioning is correct.
DO NOT BLEED the tires.
