Vigitron MAXIINET VI3010 User manual

 2014 Vigitron, Inc. All rights reserved. All brand and product names are trademarks or registered trademarks of
their respective companies.
MaxiiNetTM VI3010
Installation and Getting Started Guide
10 Port Series PoE+ L2 Plus Managed Switch

2
MaxiiNetTM Vi3010 Gigabit Managed Switch
Installation and Getting Started Guide

3
About This Guide
Purpose
Audience
Conventions
Warranty
This guide gives specific information on how to operate and use the management
functions of the switch.
The guide is intended for use by network administrators who are responsible for
operating and maintaining network equipment. Consequently, it assumes a basic
working knowledge of general switch functions, the Internet Protocol (IP), and
Simple Network Management Protocol (SNMP).
The following conventions are used throughout this guide to show information:
NOTE: Emphasizes important information or calls your
attention to related features or instructions.
WARNING: Alerts you to a potential hazard that could
cause personal injury.
CAUTION: Alerts you to a potential hazard that could
cause loss of data, or damage the system or
equipment.
See the Customer Support/Warranty booklet included with the product. A copy of
the specific warranty terms applicable to Vigitron’s products and replacement
parts can be obtained from Vigitron’s Sales and Service Office or authorized dealer.

4
Contents
About This Guide ...........................................................................................................................................................3
Compliances and Safety Statements .............................................................................................................................5
Introduction...................................................................................................................................................................8
Description of Hardware..............................................................................................................................................10
Network Planning ........................................................................................................................................................12
Installing the Switch.....................................................................................................................................................15
Operation of Web-Base Management.........................................................................................................................22
Making Network Connections .....................................................................................................................................24
Cable Labeling and Connection Records......................................................................................................................29
Troubleshooting...........................................................................................................................................................30
Power and Cooling Problems.......................................................................................................................................32
Cables ..........................................................................................................................................................................33
Specifications...............................................................................................................................................................37
Compliances ................................................................................................................................................................39
Warranty......................................................................................................................................................................42
Contact Information ....................................................................................................................................................43

5
Compliances and Safety Statements
FCC-Class A
CE Mark
Declaration of
Conformance for
EMI and Safety
(EEC)
UL Mark
EMC
This equipment has been tested and found to comply with the limits for a Class A
computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed
to provide reasonable protection against such interference when operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interferences in which case the user will be required
to correct the interferences at his own expense.
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.
You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3 or
better for 10 Mbps connections, Category 5 or better for 100 Mbps connections,
and Category 5, 5e, or 6 for 1000 Mbps connections. For fiber optic connections,
you may use 50/125 or 62.5/125 micron multimode fiber or 9/125 micron single-
mode fiber.
This equipment has been tested and found to comply with the protection
requirements of European Emission Standard EN55022/EN61000-3 and the Generic
European Immunity Standard EN55024.
Ul 60950-1 Information Technology Equipment - Safety - Part 1:
General Requirements - Edition 2 - Revision Date 2014/05/13
EN55022(2006)+A1:2007/CISPR
22:2006+A1:2006
Class A
4K V CD, 8KV, AD
IEC61000-4-2 (2001)
3V/m
IEC61000-4-3( 2002)
1KV – (power line), 0.5KV – (signal line)
IEC61000-4-4(2004)
Line to Line: 1KV, Line to Earth: 2KV
IEC61000-4-5 (2001)
130dBuV(3V) Level 2
IEC61000-4-6 (2003)
1A/m
IEC61000-4-8 (2001)
Voltage dips:
>95%, 0.5period, 30%, 25periods
IEC61000-4-11(2001)
Voltage interruptions:
>95%, 250periods

6
CAUTION: Circuit devices are sensitive to static electricity,
which can damage their delicate electronics. Dry weather
conditions or walking across a carpeted floor may cause you
to acquire a static electrical charge.
To protect your device, always:
Touch the metal chassis of your computer to ground the
static electrical charge before you pick up the circuit
device.
Pick up the device by holding it on the left and right edges
only.

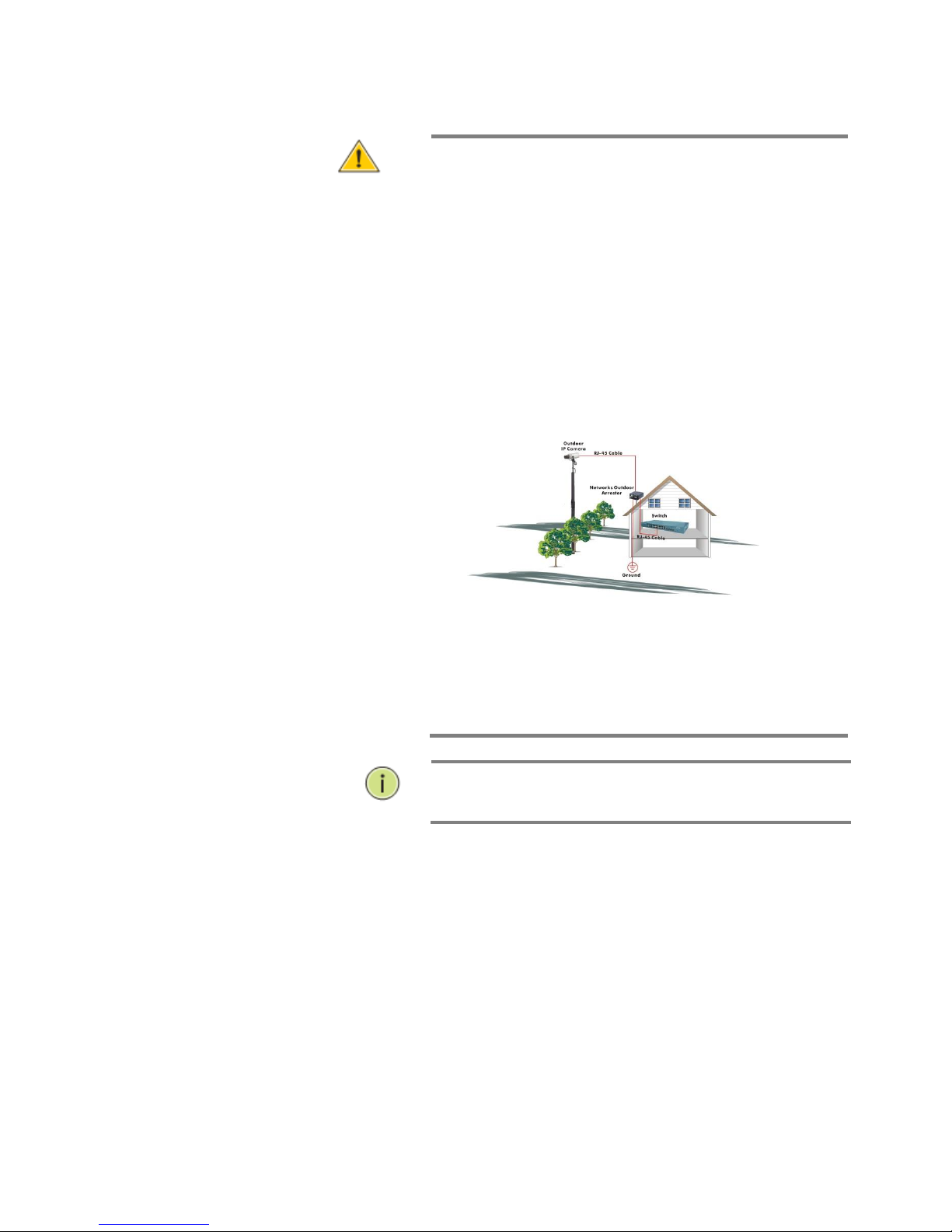

If you need to use an outdoor device to connect to this
device with cable, then you need to add an arrester on the
cable between outdoor device and this device.
Fig. Add an arrester between outdoor device and this
switch
Supports SFP manufactured by Vigitron and others
conforming to MSA standards. Differences between
manufacturers may result in difference in performance or
provided information.
NOTE: The switch is an indoor device. If it will be used in an
outdoor environment or connected with an outdoor device,
then a lightning arrester must be used to protect the switch.

7
Related
Publication
Revision History
WARNING:
Self-demolition on this product is strictly prohibited.
Damages caused by self-demolition will be charged for
repairing fees.
Do not place product outdoor or in a sandstorm.
Before installation, please make sure input the power
supply and product specifications are compatible to each
other.
To reduce the risk of electric shock. Disconnect all AC or
DC power cords and RPS cables to completely remove
power from the unit.
Before importing / exporting configuration, please make
sure the firmware version is always the same.
After the firmware upgrade, the switch will remove the
configuration automatically to latest firmware version.
The following publication gives specific information on how to operation and use the
management functions of the switch:
The User’s Manual
This section summarizes the changes in each revision of this guide.

8
Introduction
Overview
The Vi3010 PoE switch, next generation network solutions, is an affordable
managed switch that provides a reliable infrastructure for your business network.
These switches deliver more intelligent features you need to improve the
availability of your critical business applications, protect your sensitive information,
and optimize your network bandwidth to deliver information and applications
more effectively. Easy to set up and use, it provides the ideal combination of
affordability and capabilities for entry level networking, including small business or
enterprise application. It also helps you create a more efficient and better-
connected workforce.
The Vi3010 is an easy-implement managed Ethernet switch that provides ideal
flexibility to design suitable network infrastructure for business requirement.
However, unlike other entry-level switching solutions that provide advance
managed network capabilities only in the most expensive models, all of Vigitron’s
series switches support the advanced security management capabilities and
network features to support data, voice, security, and wireless technologies. These
switches are easy to deploy and configure. They provide stable and quality
performance network services your business needs.
Front of the Switches
Back of the Switches
Power LED
Console
Switch TP Port LEDs
10/100/1G Base-T RJ-45
Ports
Reset/ Default
Switch SFP Port LEDs
TP and 100/1G
SFP Combo Ports
AC Power Cord

9
Switch
Architecture
Network
Management
Options
The switch performs a wire-speed, non-blocking switching fabric. This allows wire-
speed transport of multiple packets at low latency on all ports simultaneously. The
switch also features full-duplex capability on all ports, which effectively doubles
the bandwidth of each connection.
This switch uses store-and-forward technology to ensure maximum data integrity.
With this technology, the entire packet must be received into a buffer and checked
for validity before being forwarded. This prevents errors from being propagated
throughout the network.
The switch can also be managed over the network with a web browser or a Telnet
application. The switch includes a built-in network management agent that allows
it to be managed in-band by using SNMP or RMON (Groups 1, 2, 3, 9) protocols. It
also has an RJ-45 console port connector on the front panel for out-of-band
management. A PC may be connected to this port for configuration and monitoring
out-of-band via a null-modem serial cable (see Appendix B for wiring options).
NOTE: For a detailed description of the management
features, refer to the user’s manual.

10
Description of Hardware
1000Base-T Ports
SFP Transceiver
Slots
The switch contains 8/10 1000BASE-T RJ-45 ports. All RJ-45 ports support
automatic MDI/MDI-X operation, auto-negotiation, and IEEE 802.3x auto-
negotiation of flow control, so the optimum data rate, and transmission can be
selected automatically.
Vi3010 supports the Small Form Factor Pluggable (SFP) transceiver slots. The SFP
transceiver slots are shared with RJ-45 port 9 to 10. In the default configuration, if
a SFP transceiver (purchased separately) is installed in a slot and has a valid link on
the port, the associated RJ-45 port is disabled.
The following table shows a list of transceiver types which have been tested with
the switch. For an updated list of vendors supplying these transceivers, contact
your local dealer. For information on the recommended standards for fiber optic
cabling, see “1000 Mbps Gigabit Ethernet Collision Domain” on page 27.
Media
Standard
Fiber
Diameter
(microns)
Wavelength (nm)
Maximum Distance*
1000BASE-SX
50/125
62.5/125
850
850
550 m
275 m
1000BASE-LX/
LHX/ XD/ZX
9/125
9/125
9/125
1310
1550
1300
10 km
30.50 km
10 km
1000BASE-LX
Single Fiber
N/A
TX-1310/RX-1550
Tx-1550/RX-1310
20 km
20 km
1000BASE-T
N/A
N/A
100 m
100-FX
50/125
62.5/125
850
1550
2 km
15km
Table 1: Supported SFP Transceivers
NOTE: *Maximum distance may vary for different SFP
vendors.

11
Port and System
Status LEDs
Power Supply
Socket
The Vi3010 has a display panel for system and port indications that simplify
installation and network troubleshooting. The LEDs are located on left hand side of
the front panel for easy viewing. Details are shown below and described in the
following tables.
LED
Conditions
Status
TP (Link/ACT)
Green
Green when the TP link is good.
Blinks when any traffic is present.
PoE
Green
Green when the port is delivering PoE
power.
SFP (Link/ACT)
Green/Amber
Green when the SFP link is 1000Mp/s.
Amber when the SFP link is 100Mb/s.
Blinks when any traffic is present.
Table 2: Port Status LEDs
SYSTEM LED
Condition
Status
Power
Green
OFF
Lit when power is coming up
Table 3: System Status LED
There is a power socket in the rear panel of the switch. For normal power supply,
the Vi3010 8/10/12-Port series switch has a standard power socket for AC power
cord.
Figure 3: AC Power Supply Socket

12
Network Planning
Introduction to
Switching
Application
Examples
A network switch allows simultaneous transmission of multiple packets. It can
partition a network more efficiently than bridges or routers. Therefore, the switch
has been recognized as one of the most important devices for today’s networking
technology.
When performance bottlenecks are caused by congestion at the network access
point such as file server, the device can be connected directly to a switched port.
By using the full-duplex mode, the bandwidth of the dedicated segment can be
doubled to maximize throughput.
When networks are based on repeater (hub) technology, the distance between end
stations is limited by a maximum hop count. However, a switch can subdivide the
network into smaller and more manageable segments, and link them to the larger
network. It then turns the hop count back to zero and removes the limitation.
A switch can easily be configured in any Ethernet, Fast Ethernet, or Gigabit
Ethernet network to significantly increase bandwidth while using conventional
cabling and network cards.
The Vi3010 has auto MDIX and 2 slots for the removable SFP module which support
comprehensive types of fiber connection, such as LC and BiDi-LC modules. It is not
only designed to segment your network, but also to provide a wide range of
options in setting up network connections. Some typical applications are described
below.
The switch is suitable for the following applications:
 Remote site application is used in enterprise or SMB.
 Peer-to-peer application is used in two remote offices.
 Office network.
 High performance requirement environment.
 Advance security for network safety application.
 Suitable for data/voice and video conference application.

13
Figure 4: Network Connection between Remote Site and Central Site
Figure 5: Peer-to-peer Network Connection
Vi3026
Vi3026
Vi3026

14
Figure 6: Office Network Connection
Vi3026

15
Installing the Switch
Selecting a Site
Ethernet Cabling
The switch can be mounted in a standard 19 inch equipment rack by using the rack
mount kit or on a flat surface. Be sure to follow the guidelines below when
choosing a location.
 The site should:
o Be at the center of all the devices that you want to link and near a
power outlet.
o Be able to maintain its temperature within 0°C to 40°C (32°F to 104°F)
and its humidity within 10% to 90%, non-condensing.
o Be accessible for installing, cabling, and maintaining the devices.
o Allow the status LEDs to be clearly visible.
 Make sure the twisted-pair Ethernet cable is always routed away from power
lines, radios, transmitters, or any other electrical interference.
 Make sure that Vi3010 is connected to a separate grounded power outlet that
provides 100 to 240 VAC, 50 to 60 Hz.
To ensure proper operation when installing the switch into a network, make sure
that the current cables are suitable for 100BASE-TX or 1000BASE-T operation.
Check the following criteria against the current installation of your network:
 Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) cable
with RJ-45 connectors; Category 5 or Category 5e with maximum length of 100
meters is recommend 100BASE-TX, and Category 5e or 6 with maximum length
of 100 meters is recommend for 1000BASE-T.
 Protection from radio frequency interference emissions.
 Electrical surge suppression.
 Separation of electrical wires and data based network wiring.
 Safe connections with no damaged cables, connectors, or shields.

16
Equipment
Checklist
Package Contents
Figure 7: RJ-45 Connections
Figure 8: SFP Transceiever
After unpacking the switch, please check the contents make sure you have
received all of the components. Also make sure you have all other necessary
installation equipment before beginning the installation process.
 Vi3010 GbE Management Switch
 Four Adhesive Rubber Feet
 AC Power Cord
 RS-232 to RJ-45 Console Cable
NOTE: Please notify your sales representative
immediately if any of the aforementioned items is
missing or damaged.
WARNING: The mini-GBICs are Class 1 laser devices. Avoid
direct eye exposure to the beam coming from the transmit
port.

17
Mounting
Rack Mounting
The switch can be mounted in a standard 19 inch equipment rack, on a desktop, or
a shelf. Mounting instructions for each type of site is as follows.
Before rack mounting the switch, please pay attention to the following factors:
Temperature: Since the temperature within a rack assembly may be higher
than the ambient room temperature, make sure the rack-environment
temperature is within the specified operating temperature range of 0°C to
40°C.
Mechanical Loading: Do not place any equipment on top of a rack-mounted
unit.
Circuit Overloading: Make sure that the supply circuit to the rack assembly is
not overloaded.
Grounding: Rack-mounted equipment should be properly grounded.
To Rack-Mount Devices:
Step1. Attach the brackets to the device using the screws provided in the mounting
accessory.

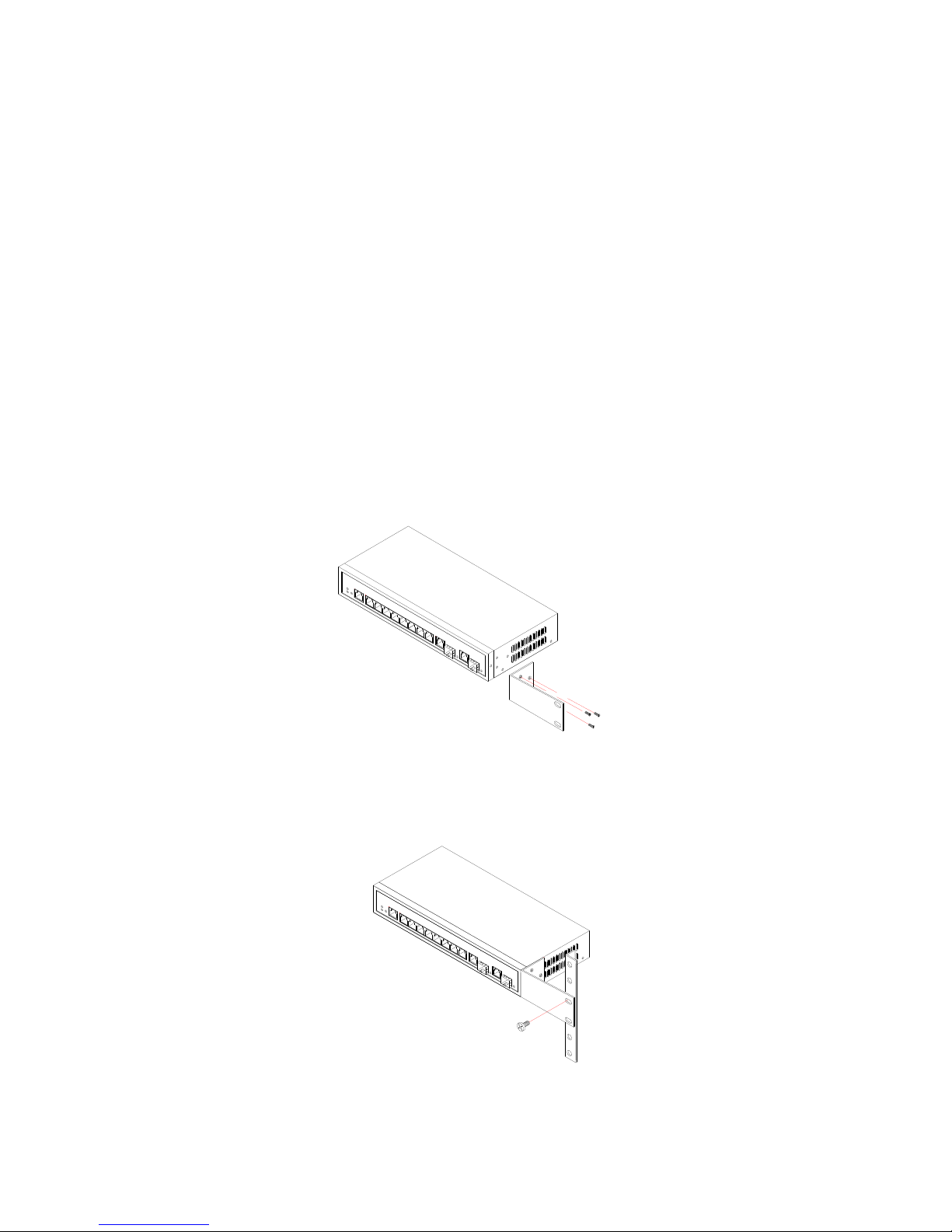

Figure 9: Attaching the Brackets
Step2. Mount the device to the rack by using four rack-mounting screws (not
provided). Be sure to secure the lower rack-mounting screws first to prevent the
brackets from being bent by the weight of the switch.
Figure 10: Installing the Switch in a Rack

18
Installing an
Optional SFP
Transceiver
Step3. If you’re only installing a single switch, turn to “Connection to a Power
Source” at the end of this chapter.
Step4. If you’re installing multiple switches, mount them in the rack, one below the
other in any order.
Desktop or Shelf Mounting:
Step1. Attach the four adhesive rubber feet to the bottom of the first switch.

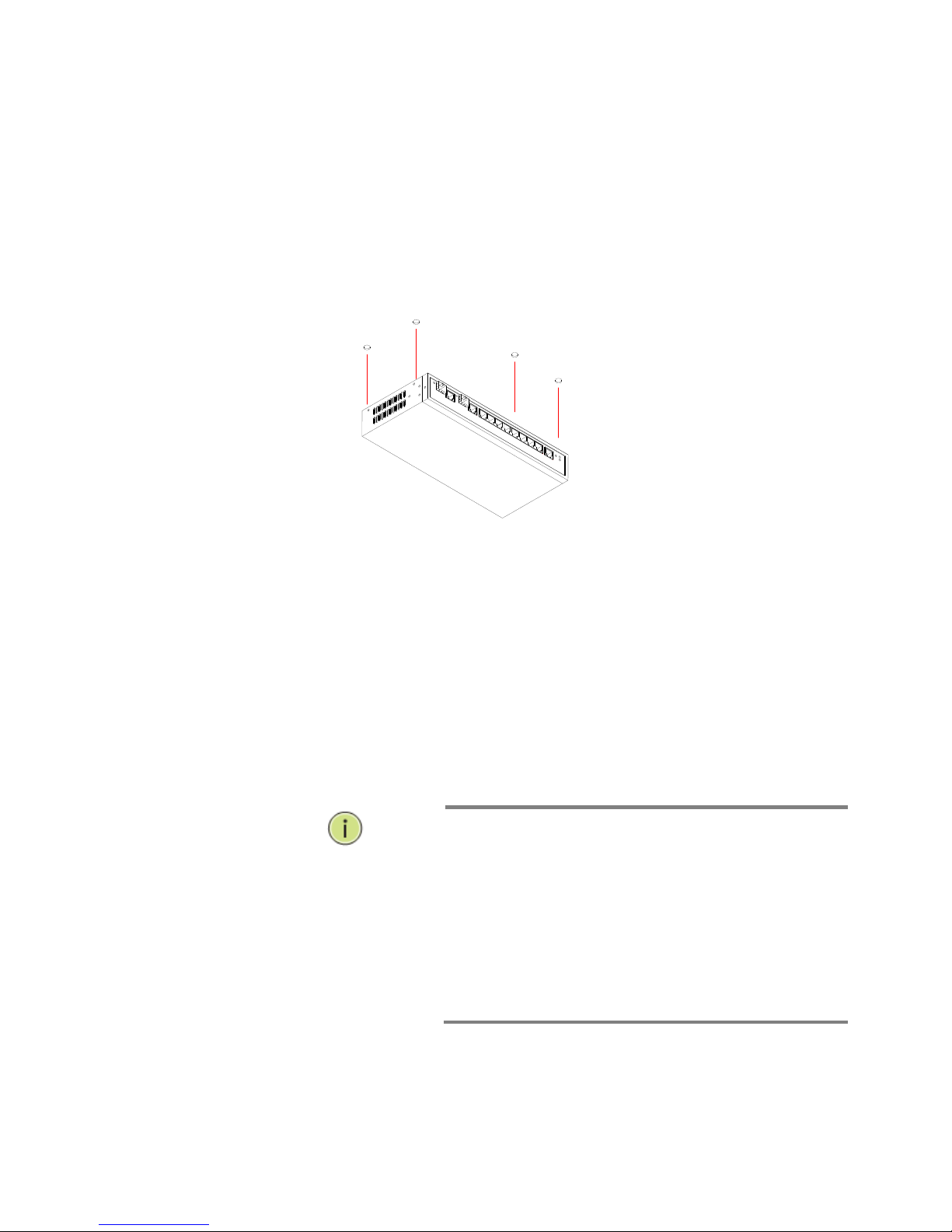

Figure 11: Attaching the Adhesive Rubber Feet
Step2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
Step3. If you’re installing a single switch, go to “Connecting to a Power Source” at
the end of this Chapter.
Step4. If you’re installing multiple switches, attach four adhesive feet to each one.
Place each device squarely on top of the one below, in any order.
You can install or remove a mini-GBIC SFP from a mini-GBIC slot without having to
power off the switch. Use only manufacture mini-GBIC.
NOTE:
The mini-GBIC slots are shared with the two 10/
100/ 1000Base-T RJ-45 ports. If a mini-GBIC is
installed in a slot, the associated RJ-45 port is
disabled and cannot be used.
The mini-GBIC ports operate only at full duplex.
Half duplex operation is not supported.
Ensure the network cable is NOT connected
when you install or remove a mini-GBIC.

19
CAUTION: Use only supported genuine manufacture mini-
GBICs with your switch. Non-manufacture mini-GBIC might
have compatibility issues, and may result in product
malfunction.

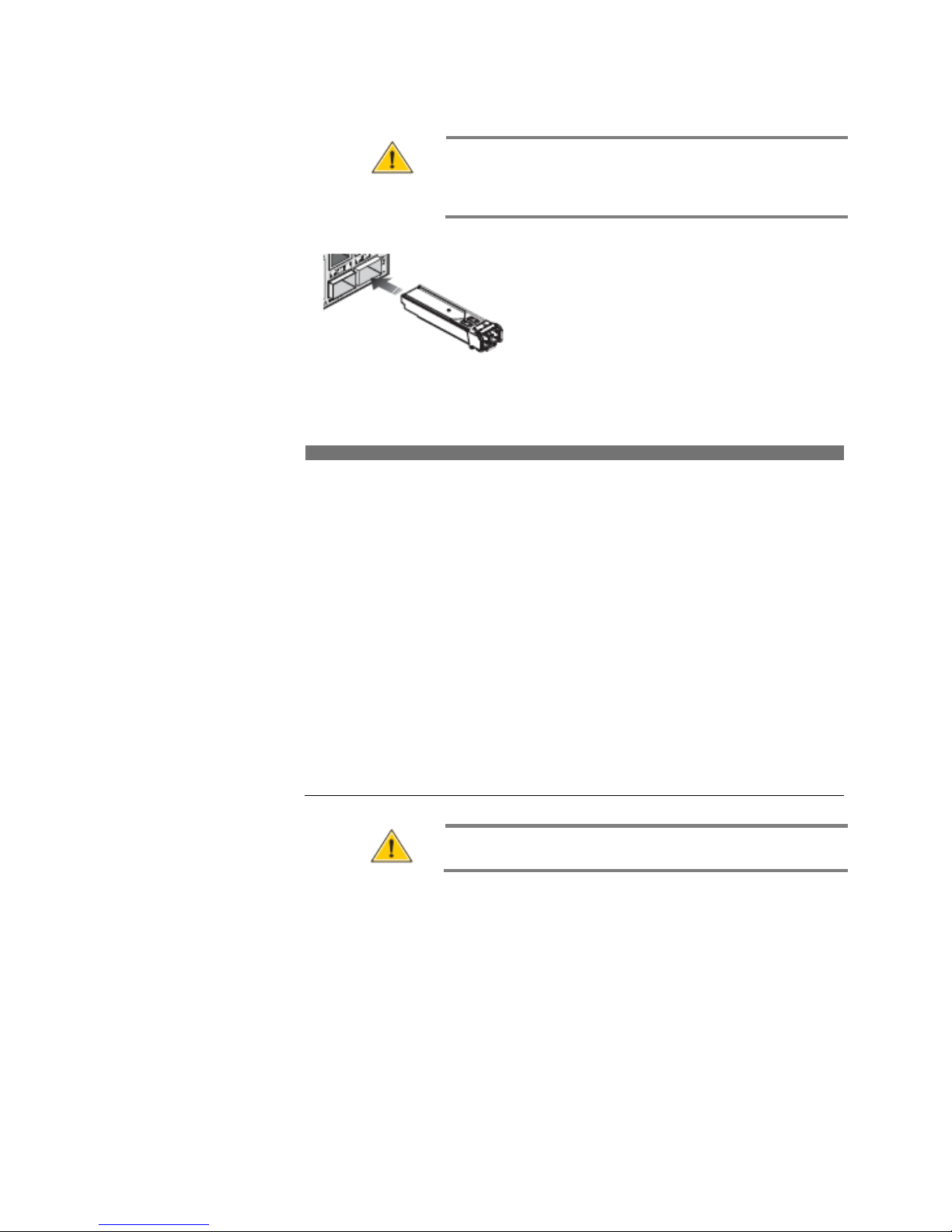

Figure 12: Inserting an SFP Transceiver into a Slot
The SFP slots support the following optional SFP transceivers:
Description
1000Base-SX GE SFP Fiber Module, LC Multi-Mode 850nm
1000Base-SX GE SFP Fiber Module, LC Multi-Mode 1310nm 2km
1000Base-LX GE SFP Fiber Module, LC Single-Mode 10km
1000Base-LX GE SFP Fiber Module, LC Single-Mode 30km
1000Base-LX GE SFP Fiber Module, LC Single-Mode 50km
1000Base-LX GE SFP Fiber Module, LC Single-Mode 50km
1000Base-LX GE SFP Fiber Module, Bidi LC Single-Mode 10km,
1310nm
1000Base-LX GE SFP Fiber Module, Bidi LC Single-Mode 10km,
1550nm
1000Base-LX GE SFP Fiber Module, Bidi LC Single-Mode 20km,
1550nm
1000Base-LX GE SFP Fiber Module, Bidi LC Single-Mode 20km,
1310nm
100Base-FX FE SFP Fiber Module, LC Multi-Mode
100Base-FX FE SFP Fiber Module, LC Single-Mode 20km
CAUTION: Differences in manufacturers may result in
different performance and reporting status.

20
Connecting to a
Power Source
To Install a SFP Transceiver, Do the Following:
Step1. Consider the network and cabling requirements to select an appropriate SFP
transceiver type.
Step2. Insert the transceiver with the optical connector facing outward and the slot
connector facing down. Note that SFP transceivers are keyed so they can only be
installed in one orientation.
Step3. Slide the SFP transceiver into the slot until it clicks into place.
NOTE: SFP transceivers are not provided in the switch
package.
You can plug or remove the power cord from the AC power socket to switch the
power on and off.

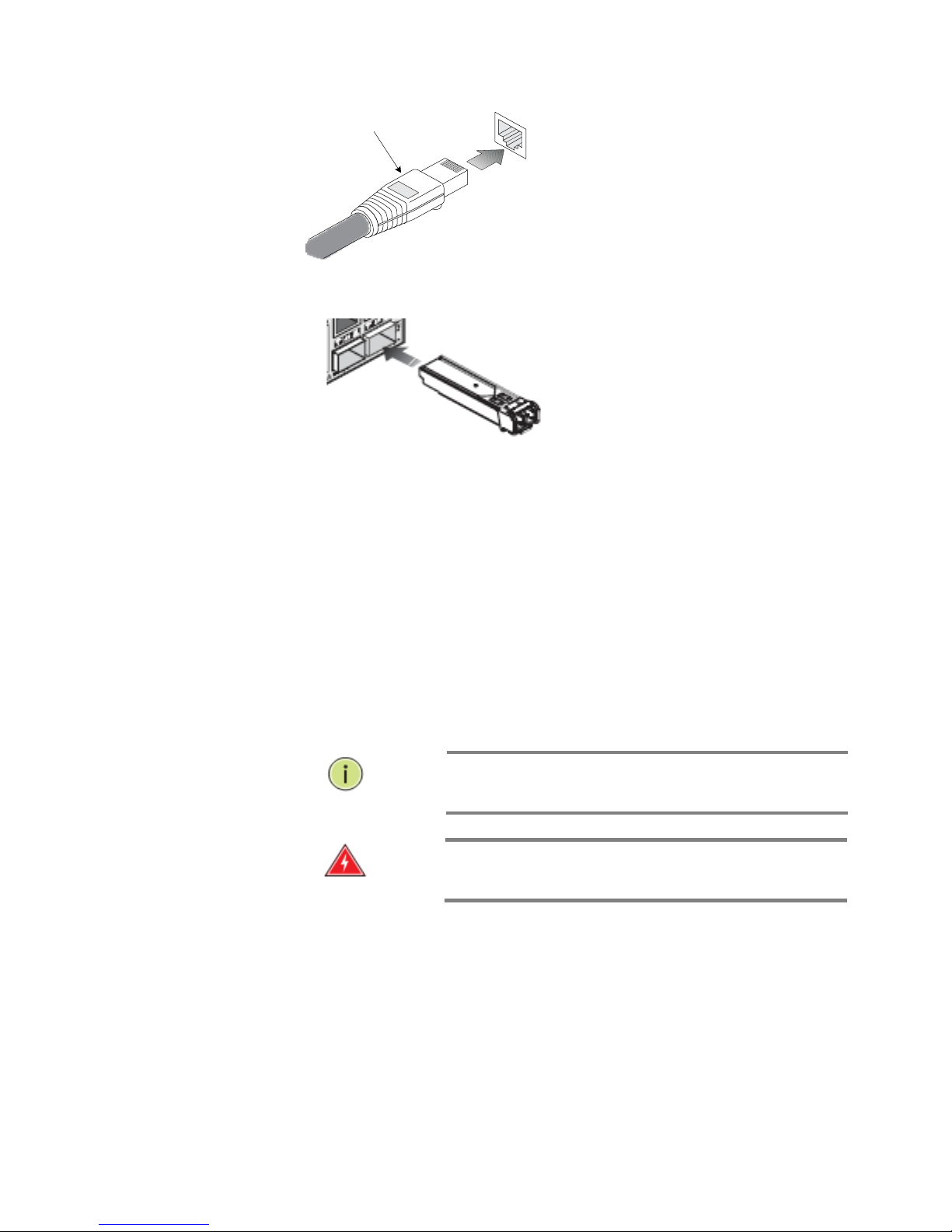

Figure 13: Inserting the Power Cord to AC Power Socket
Step1. Insert the power cable plug directly into the AC socket located at the back of
the switch.
Step2. Plug the other end of the cable into a grounded 3-Pin AC power source.
Step3. Check the front-panel LEDs as the device is powered on to be sure the
POWER LED is lit. If not, check that the power cable is correctly plugged in.
WARNING: For international use, you may need to change
the AC line cord. You must use a line cord set that has been
approved for the socket type in your country.
